Here is a comprehensive breakdown of the Jugular Venous Pulse (JVP) waveform with images from multiple authoritative sources.

The JVP Waveform

The JVP reflects pressure changes in the right atrium and has 3 peaks (a, c, v) and 2 descents (x, y):

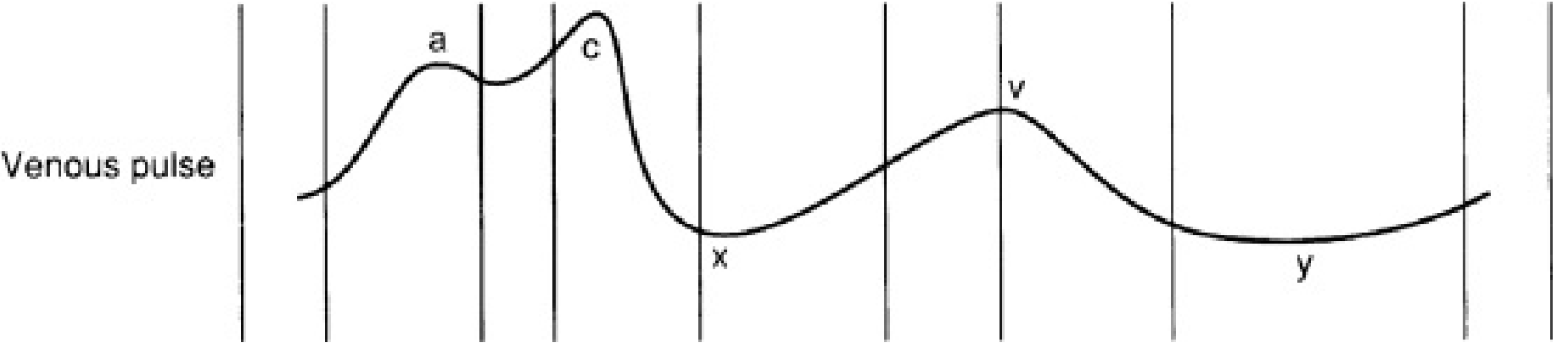

JVP basic waveform — a, c, x, v, y labeled
Basic venous pulse — Mulholland & Greenfield's Surgery

Each Component

🔺 a wave

  • Cause: Right atrial presystolic contraction
  • Timing: Just after the ECG P wave; precedes S1
  • Normal a > v
  • Absent in atrial fibrillation
  • Prominent in: reduced RV compliance (e.g. pulmonary hypertension, pulmonary stenosis, RV hypertrophy)
  • Cannon a waves: RA contracts against a closed tricuspid valve → seen in AV dissociation (ventricular tachycardia)

🔻 x descent

  • Cause: Two overlapping events:
    1. Atrial relaxation (atrial diastole)
    2. Apical displacement of the tricuspid annulus during ventricular systole
  • Interrupted mid-way by the c wave
  • Prominent in: cardiac tamponade (preserved x, lost y)
  • Absent in: tricuspid regurgitation (replaced by a positive deflection)

🔺 c wave

  • Cause: Tricuspid valve bulging back into the right atrium during early isovolumetric ventricular systole (+ contiguous carotid pulsation artifact)
  • Small and often not visible clinically — interrupts the x descent

🔺 v wave

  • Cause: Venous return to the RA while the tricuspid valve is closed during ventricular systole (atrial diastole / passive filling)
  • Peaks at S2
  • Prominent (large v wave): Tricuspid regurgitation — v merges with c as TR worsens → "ventricullarized" waveform

🔻 y descent

  • Cause: Tricuspid valve opens → rapid early diastolic filling of the RV
  • Steep/rapid y: Tricuspid regurgitation, constrictive pericarditis (prominent x AND y → "W" or "M" pattern)
  • Slow/blunted y: Tricuspid stenosis, cardiac tamponade

JVP with ECG Correlation & Pathological Variants

JVP with ECG timing — normal plus tricuspid regurgitation progression
Panel A: Normal JVP with A, C, X, V, Y labeled and cardiac cycle phases. Panel B: Progressive TR — mild → severe enlargement of V wave. Panel C: ECG vs JVP timing. — Harrison's Principles of Internal Medicine 21e

Normal JVP Waveform (Real-world tracing)

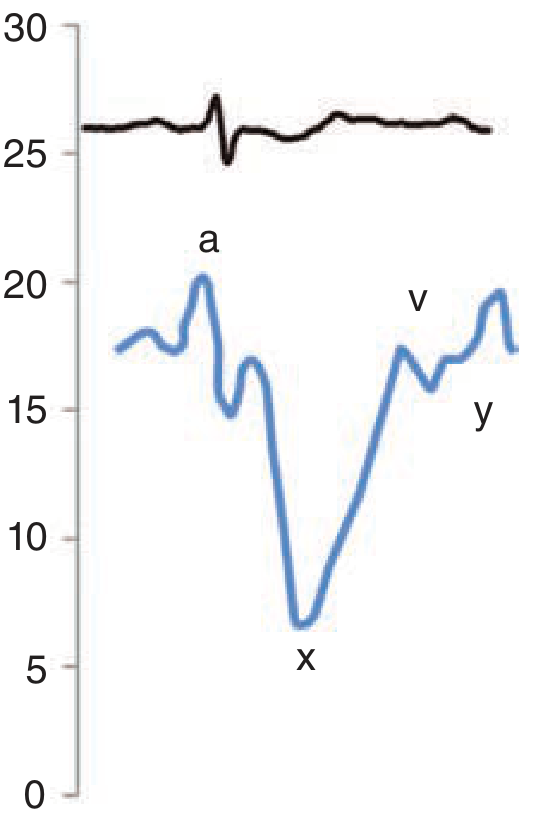

Normal JVP waveform with a, x, v, y — synchronized with ECG
Normal right atrial pressure waveform with a, x, v, y labeled — Fuster & Hurst's The Heart 15e

Quick Reference Table

ComponentMechanismTimingAbnormalities
a waveRA contractionAfter P wave, before S1↑ in PS, PHT, RVH; absent in AF; cannon waves in VT/AV dissociation
c waveTricuspid valve bulge into RAAfter S1Often not clinically visible
x descentAtrial relaxation + tricuspid annulus descentSystolePreserved (prominent) in tamponade; absent in TR
v wavePassive RA filling during systolePeaks at S2↑↑ in tricuspid regurgitation; merges with c in severe TR
y descentTricuspid valve opens → RV fillsEarly diastoleSteep in TR/constrictive pericarditis; slow/absent in TS/tamponade
Key clinical rules:
  • Tamponade → prominent x, absent y
  • Constrictive pericarditis → prominent x AND y (Friedreich's sign)
  • Tricuspid regurgitation → giant cv wave, steep y, absent x
  • Tricuspid stenosis → giant a wave, slow y
  • Atrial fibrillation → absent a wave
  • Kussmaul's sign → JVP rises (or fails to fall) with inspiration → constrictive pericarditis, RV infarct, restrictive cardiomyopathy
— Fuster & Hurst's The Heart 15e, p. 85; Harrison's 22e, p. 1904; Goldman-Cecil Medicine
