Bile Leak with Drain — Clinical Overview

1. What Is a Bile Leak?

A bile leak occurs when bile escapes from the biliary tree — most commonly after cholecystectomy (from the cystic duct stump or a duct of Luschka), hepatic resection, or biliary reconstruction. When a drain was placed in the operative bed, bilious output from the drain is often the earliest sign.

Clinical features:

Fevers, chills, right upper quadrant pain
Jaundice or leakage of bile from an incision
Bilious fluid in a surgically placed drain
Persistent anorexia or bloating

"Leakage of bile from an incision or into a drain … are common signs and symptoms." — Sabiston Textbook of Surgery

2. Imaging — CT & ERCP

CT Scan — Bile Leak After Cholecystectomy

(Schwartz's Principles of Surgery, 11e)

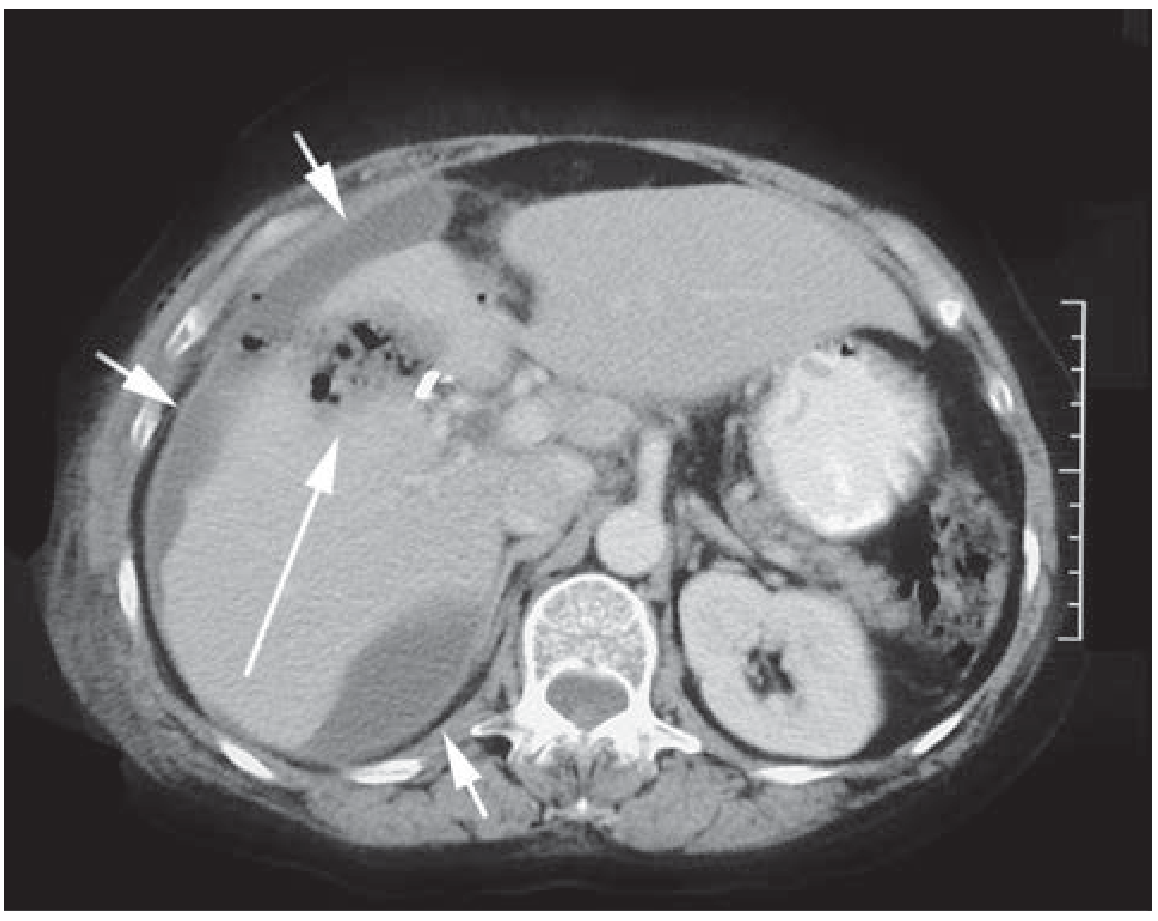

CT scan showing intraperitoneal bile collections (short arrows) and air/bile in the gallbladder bed (long arrow) after cholecystectomy

Figure A — CT abdomen: Short arrows indicate intraperitoneal fluid collections (biloma); the long arrow points to air and bile in the gallbladder bed, along with a surgical clip. This is the classic post-cholecystectomy bile leak appearance.

ERCP — Contrast Extravasation from Cystic Duct Stump

(Schwartz's Principles of Surgery, 11e)

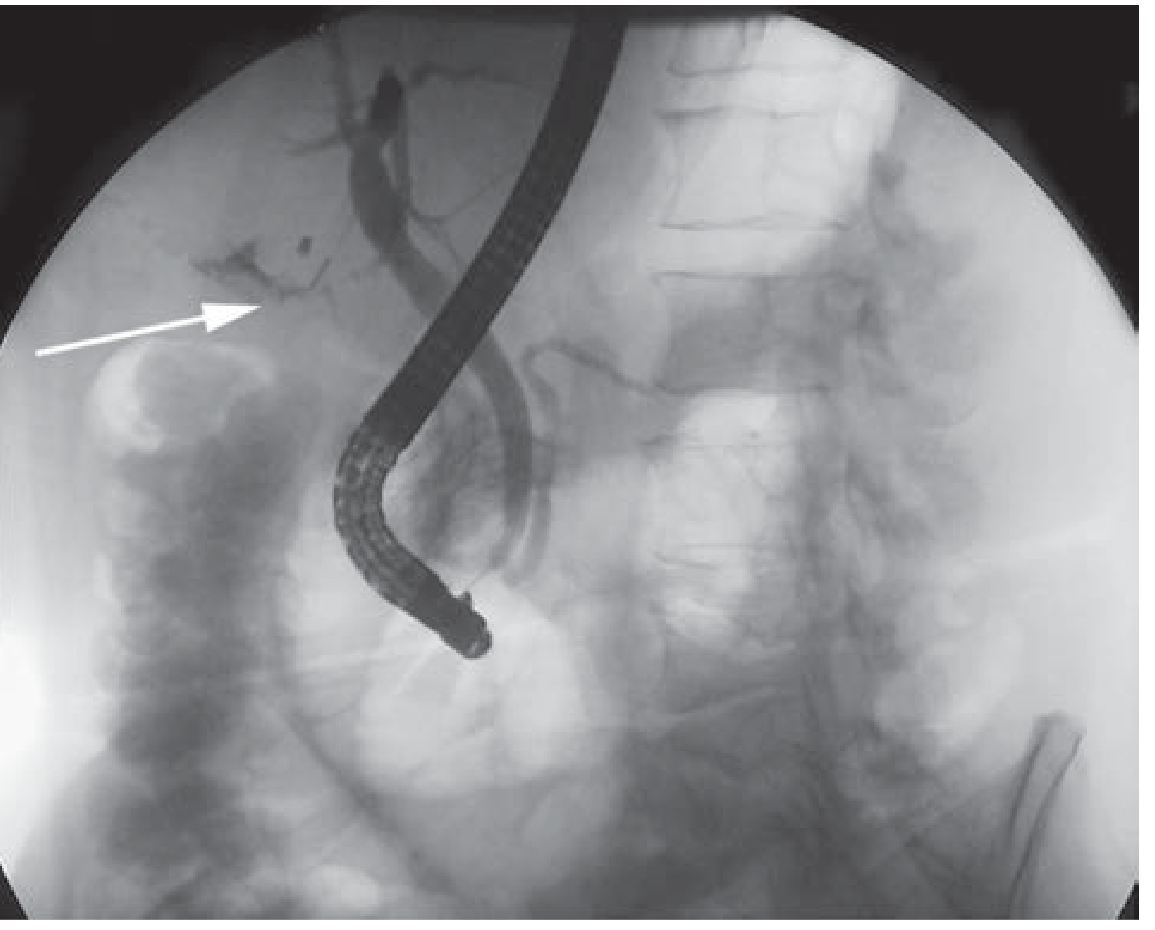

ERCP showing contrast extravasation from cystic duct stump (arrow) — note filling of the pancreatic duct

Figure B — Same patient as CT above. ERCP demonstrates contrast extravasation from the cystic duct stump (white arrow). ERCP with sphincterotomy ± stenting is the primary treatment for high-output leaks.

Fluoroscopic Cholangiogram — Active Bile Leak with Drain

Cholangiogram showing contrast extravasation at the common bile duct (red arrow) and external surgical drain positioned near the leak site

Cholangiogram — Red arrow marks active contrast extravasation at the mid-CBD. An external surgical drain enters from the lower-left, with its tip positioned at the leak site to facilitate biliary decompression. Surgical clips are visible in the right upper quadrant. This is the classic image of a bile leak managed with percutaneous drainage.

3. Intraoperative Photos

Intraoperative Bile Duct Cannulation for Leak Testing (After Hepatic Resection)

Intraoperative photograph showing 12 Fr infant feeding tube cannulated into the cystic duct stump for intraoperative saline injection to identify bile leaks on the raw liver surface

A 12 Fr infant feeding tube (green) cannulated into the cystic duct stump for intraoperative saline injection — a technique used during hepatic resection to identify and ligate biliary leaks on the raw cut surface before closure.

Intraoperative — Bile Staining of Diaphragm (Chemical Peritonitis)

Intraoperative open abdomen showing bile staining (dark brownish-green discoloration, yellow arrowheads) on the left diaphragm surface with surrounding inflammatory hyperemia — evidence of bile peritonitis

Yellow arrowheads point to brownish-green bile staining on the under-surface of the left diaphragm — indicating a prior bile leak causing chemical peritonitis. Surrounding tissues show inflammatory hyperemia with serosanguinous fluid pooling.

4. Clinical Photo — Skin Discoloration After Retroperitoneal Bile Leak

Clinical photo of patient's abdomen showing yellowish-brown skin discoloration (icterus marginatus) from a retroperitoneal bile leak, with pen markings tracing prior extent and adhesive dressings over drain/port sites

Post-ERCP stenting: receding yellow-brown skin pigmentation (icterus marginatus) from a retroperitoneal bile leak. Pen marks trace the previous extent of discoloration, showing improvement. Small adhesive dressings cover laparoscopic port/drain sites. A rare but dramatic clinical sign.

5. Management Summary

Output	Management
Low output (<300 mL/day)	Drain in place → may dry up spontaneously
High output (>300–500 mL/day)	ERCP + sphincterotomy ± biliary stent
Peritonitis / non-localizable	Laparoscopic washout + subhepatic drain placement
Inaccessible percutaneously	Laparoscopic approach — do NOT attempt to repair the leak directly
Persistent >6 weeks	Suspect unrecognized bile duct injury; surgical reconstruction after inflammation resolves

"No attempt should be made to fix the leak; any such intervention is almost always unsuccessful and risks further biliary tree injury." — Sabiston Textbook of Surgery, 20e

Sources:

Sabiston Textbook of Surgery (20e) — Biliary Leak, p. 1847
Schwartz's Principles of Surgery (11e) — Extrahepatic Bile Ducts, Fig. 32-29
Current Surgical Therapy (14e) — Bile Leak & Postoperative Care

Diabetic / thickened gallbladder images

Your credits are exhausted. Your daily credits reset tomorrow, or you can purchase a top-up for more.

Diabetic / thickened gallbladder images

Reading File

Finding Sources

Searching Images

thickened gallbladder wall ultrasound diabetic cholecystitis

Finding Sources

Loading Image

Reading File

Loading Image

Searching Images

emphysematous cholecystitis CT scan gas gallbladder diabetic

Loading Image

Here is a comprehensive visual and clinical overview of diabetic / thickened gallbladder findings.

Diabetic & Thickened Gallbladder — Imaging Overview

The Diabetes–Gallbladder Connection

Diabetes affects the gallbladder in several important ways:

Acalculous cholecystitis — Diabetes is a direct risk factor. Increased bile viscosity from stasis causes functional cystic duct obstruction without stones.
Emphysematous cholecystitis — ~50% of cases occur in diabetics. Gas-forming organisms (e.g. Clostridium, E. coli) infect the ischemic gallbladder wall.
Diabetic neuropathy — Denervated gallbladders may present without a sonographic Murphy's sign, masking the diagnosis.
Gangrenous cholecystitis — More common in diabetics due to vascular compromise.

"Patients with denervated gallbladders, either as a result of diabetes or gangrenous cholecystitis, can present without a sonographic Murphy's sign." — Yamada's Textbook of Gastroenterology, 7e

Section 1 — Ultrasound: Thickened Gallbladder Wall

Acalculous Cholecystitis — Wall Thickness 8.3 mm

Ultrasound of gallbladder showing markedly thickened and edematous wall measured at 8.3 mm (normal <3 mm), anechoic lumen without stones, and pericholecystic fluid — classic acalculous cholecystitis

Ultrasound — Acute Acalculous Cholecystitis. Wall thickness measured at 8.3 mm (normal <3 mm). The lumen is anechoic — no stones. Pericholecystic fluid is present. This is the classical diabetic/ICU pattern: thickened wall, distended GB, no calculi.

Calculous Cholecystitis — Thickened Wall + Stone

Ultrasound showing thickened edematous gallbladder wall (measured by calipers) with a hyperechoic gallstone in the dependent portion (dashed circle) showing posterior acoustic shadowing

Acute Calculous Cholecystitis. Thickened, layered GB wall (measured by calipers). A hyperechoic stone (dashed circle) is visible in the dependent portion with posterior acoustic shadowing. Diabetic patients may present late or without typical Murphy's sign.

Acalculous Cholecystitis — Sludge + Wall Thickening

Ultrasound of gallbladder showing thickened hyperechoic wall with heterogeneous intraluminal echogenic material (biliary sludge/debris), no gallstones, and pericholecystic fluid — acalculous/hemorrhagic cholecystitis pattern

Acalculous / Hemorrhagic Cholecystitis. Thickened wall + intraluminal sludge/debris (no shadowing stone). Pericholecystic fluid layer. No gallstones. This pattern is typical in critically ill diabetic patients.

Xanthogranulomatous Cholecystitis — Focal Wall Thickening + Doppler

Dual panel ultrasound: Panel A shows focal base-of-gallbladder wall thickening with layered texture; Panel B shows color Doppler with absent flow in the thickened area (CDFI=0), categorized as GB-RADS 2 (low malignancy risk)

Xanthogranulomatous Cholecystitis. Panel A: focal wall thickening at the gallbladder base with layered texture. Panel B: Color Doppler shows absent flow (CDFI=0) — helps differentiate from carcinoma. Categorized GB-RADS 2 (low malignancy risk).

Cholecystitis — Stones + Sludge + Thickened Wall

Ultrasound gallbladder showing thickened edematous wall with internal sludge (low-level echoes) and multiple small gallstones with posterior acoustic shadowing, plus pericholecystic fluid

Cholecystitis — Stones + Sludge. Thickened wall, internal biliary sludge, multiple small echogenic stones with posterior shadowing, and pericholecystic fluid. A common combined picture in diabetic patients.

Section 2 — CT Scan: Emphysematous Cholecystitis in Diabetics

"About 50% of patients with emphysematous cholecystitis are diabetics and stones are present in less than 50%." — Grainger & Allison's Diagnostic Radiology

Emphysematous Cholecystitis — Coronal CT (Diabetic Patient)

Coronal non-contrast CT of the abdomen in a diabetic patient showing emphysematous cholecystitis: circumferential ring of intramural gas (low-attenuation/dark areas) within the gallbladder wall, intraluminal gas, significant wall thickening, and incidental chronic calcific pancreatitis

Emphysematous Cholecystitis — Diabetic Patient (Coronal CT). Circumferential intramural gas (dark ring) within the thickened GB wall — pathognomonic for emphysematous cholecystitis. Intraluminal gas also present. Incidental chronic calcific pancreatitis is visible. Surgical emergency.

Emphysematous Cholecystitis — Axial CT

Axial CT abdomen showing markedly distended gallbladder (long arrow) with thin walls and multiple focal air bubbles at the gallbladder neck (short arrows) — intramural/intraluminal gas from gas-producing organisms in a diabetic patient

Emphysematous Cholecystitis — Axial CT. Markedly distended GB (long arrow). Multiple focal air bubbles at the GB neck (short arrows) = intramural/intraluminal gas. Classic in elderly diabetic males; caused by gas-forming organisms. Requires urgent cholecystectomy or cholecystostomy.

Ultrasound Diagnostic Criteria Summary

Feature	Normal	Cholecystitis
Wall thickness	<3 mm	>3 mm (often >5 mm)
Lumen	Clear, anechoic	Sludge, debris
Stones	Absent	Present (calculous) or absent (acalculous)
Pericholecystic fluid	Absent	Present
Murphy's sign	Negative	Positive (but may be absent in diabetics)
Intramural gas	Absent	Emphysematous type — surgical emergency
