EPIDEMIOLOGY OF HYPERTENSION

(Park's Textbook of Preventive and Social Medicine)

1. INTRODUCTION

Hypertension is a chronic condition of major public health concern due to its role in the causation of coronary heart disease (CHD), stroke, and other vascular complications. It is the commonest cardiovascular disorder, posing a major public health challenge to populations in socio-economic and epidemiological transition. It is one of the major risk factors for cardiovascular mortality, accounting for 20-50% of all deaths.

2. DEFINITION

Definition of hypertension is difficult and, by necessity, arbitrary. Sir George Pickering first formulated that blood pressure in a population is distributed continuously as a bell-shaped curve with no real separation between normotension and hypertension. There is a direct relation between cardiovascular risk and blood pressure - the higher the BP, the higher the risk of both stroke and coronary events.
Definition is based on the average of two or more readings on two or more occasions after initial screening, in adults aged 18 years or older not taking anti-hypertensive drugs.

3. CLASSIFICATION (WHO/JNC)

CategorySystolic (mm Hg)Diastolic (mm Hg)
Optimal< 120and < 80
Normal120-129and/or 80-84
High Normal130-139and/or 85-89
Grade 1 HT140-159and/or 90-99
Grade 2 HT160-179and/or 100-109
Grade 3 HT≥ 180and/or > 110
Isolated Systolic HT≥ 140and < 90
When systolic and diastolic fall in different categories, the higher category is selected.

4. CLASSIFICATION BY TYPE

  • Essential (Primary) Hypertension - Cause unknown; accounts for 90% of all cases.
  • Secondary Hypertension - Due to identifiable causes (accounts for ~10%):
    • Chronic glomerulonephritis / chronic pyelonephritis
    • Tumours of the adrenal glands (phaeochromocytoma, Conn's syndrome)
    • Congenital narrowing of the aorta (coarctation)
    • Toxaemias of pregnancy
    • Oral contraceptive pills (commonest cause of secondary HT today - due to oestrogen component)

5. MAGNITUDE OF THE PROBLEM (Prevalence)

  • Global prevalence estimated at 1.13 billion in 2015.
  • Overall prevalence in adults: 30-40% worldwide.
  • Age-standardized prevalence: 24% in men, 20% in women.
  • Prevalence > 60% in persons aged over 60 years.
  • Number of hypertensives estimated to increase by 15-20% by 2025 as populations age and adopt sedentary lifestyles.
  • Elevated blood pressure is a leading cause of premature death worldwide.

6. THE "RULE OF HALVES" (Iceberg Phenomenon)

Hypertension is an "iceberg" disease. In the early 1970s it became evident:
  • Only ½ of hypertensives in the community were aware of the condition
  • Of those aware, only ½ were being treated
  • Of those treated, only ½ were adequately controlled
This is the "Rule of Halves" - a term that describes the massive hidden burden of the disease.

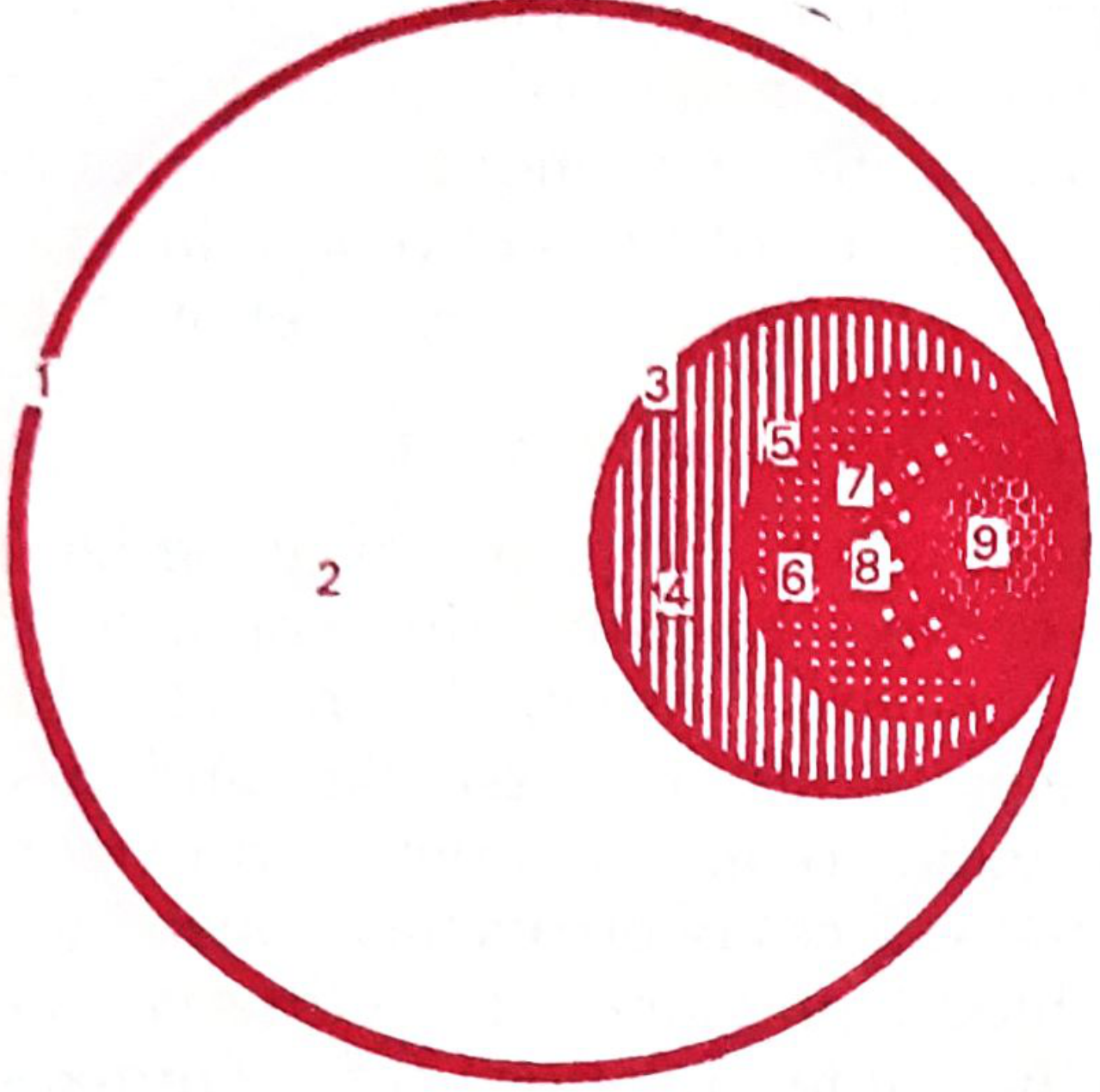

Fig. 1 - Hypertension in the Community (Park's Rule of Halves Diagram):
Rule of Halves - Hypertension in the Community
Key: 1 = Whole community | 2 = Normotensives | 3 = Hypertensives | 4 = Undiagnosed | 5 = Diagnosed | 6 = Diagnosed but untreated | 7 = Diagnosed & treated | 8 = Inadequately treated | 9 = Adequately treated

7. INCIDENCE

The concept of incidence has limited value in hypertension because of:
  • Variability of consecutive readings in individuals
  • Ambiguity of what constitutes "normal" BP
  • Insidious nature of the condition

8. "TRACKING" OF BLOOD PRESSURE

If BP is followed from early childhood into adult life, those with initially high readings tend to remain in the same "track" - low pressures stay low, and high pressures become higher with age. This is called "tracking".

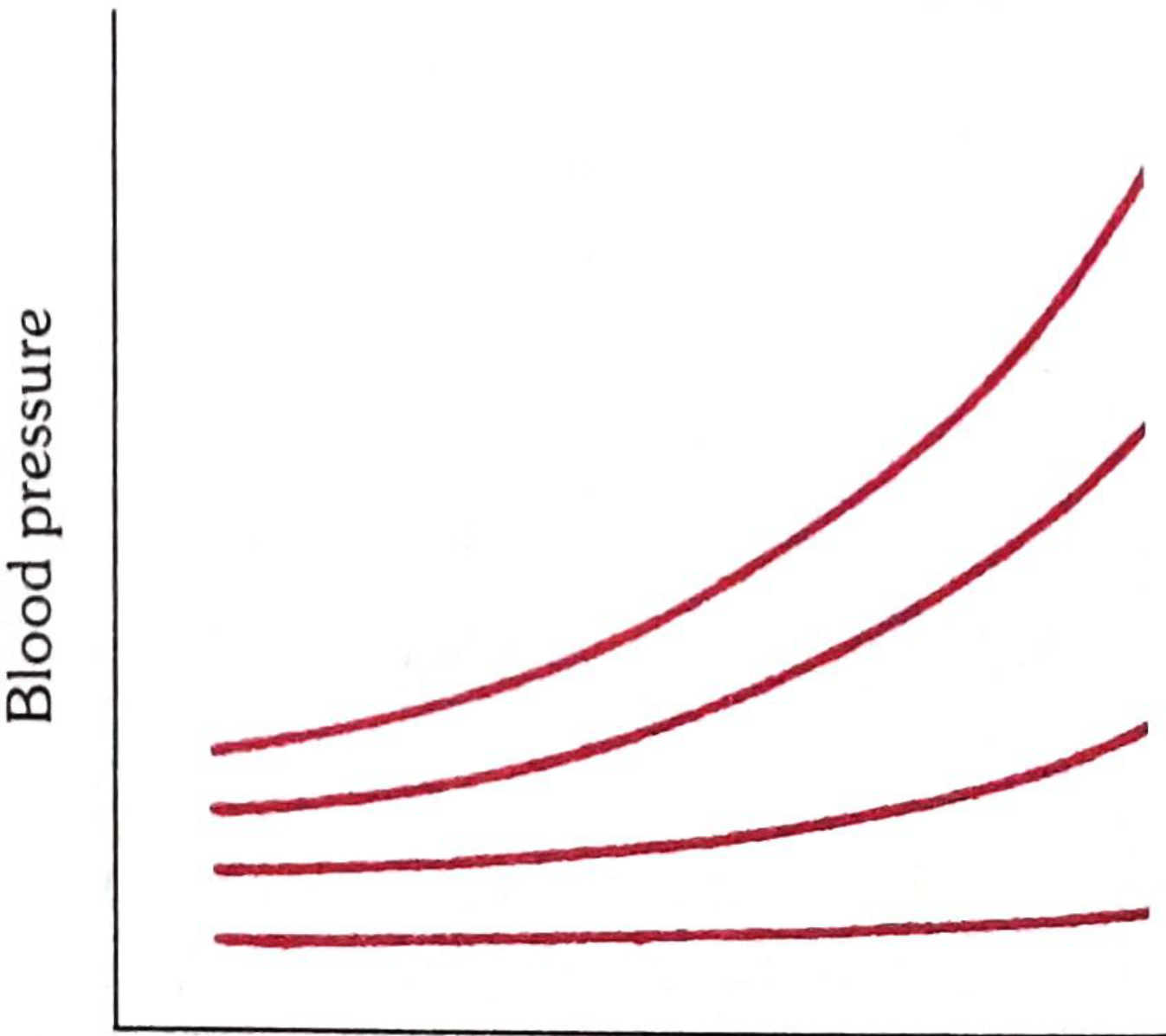

Tracking of Blood Pressure - Park's Diagram
FIG. 2 - Tracking of Blood Pressure (multiple parallel rising curves)
This concept helps identify children and adolescents "at risk" of developing hypertension in adult life.

9. RISK FACTORS

A. Non-Modifiable Risk Factors

FactorDetails
AgeBP rises with age in both sexes; greater in those with higher initial BP
SexMen have higher BP at adolescence; post-menopausal women catch up in later life
Genetic factorsPolygenic inheritance; monozygotic twins more strongly correlated; children of 2 hypertensive parents have 45% risk vs 3% with 2 normotensive parents
EthnicityBlack Americans have consistently higher BP than whites (up to 20 mm Hg difference by 6th decade)

B. Modifiable Risk Factors

FactorDetails
ObesityGreater weight gain = greater BP risk; central obesity (increased waist:hip ratio) especially significant; weight loss reduces BP
Salt intakeHigh salt (>7-8 g/day) increases BP; Japan (>400 mmol/day sodium) has high HT; primitive societies (<60 mmol/day) have virtually none
Saturated fatRaises both BP and serum cholesterol
Dietary fibreInversely related - higher fibre = lower HT risk
AlcoholHigh intake raises systolic BP more than diastolic; reversible on abstinence
Heart rateHypertensives have higher resting heart rate; reflects higher sympathetic activity
Physical inactivityReduces body weight indirectly reducing BP when active
Environmental stressPsychosocial factors operate through mental processes; higher noradrenaline levels noted in hypertensives
PotassiumAntagonizes sodium; potassium supplementation lowers mild-moderate HT
OCPCommonest cause of secondary HT (oestrogen component)

10. PREVENTION OF HYPERTENSION (WHO Recommendations)

1. Primary Prevention

(a) Population Strategy - Aimed at the entire community:
  • Salt reduction to < 5 g/day
  • Moderate fat intake
  • Avoid excess alcohol
  • Weight reduction (BMI < 25)
  • Regular physical activity
  • Behavioural changes (stress reduction, yoga, meditation)
  • Health education and self-care (self BP monitoring with log-books)
(b) High-Risk Strategy - Targeted at individuals at high risk (e.g., those with family history, obesity, high-normal BP)

2. Secondary Prevention

  • Screening for hypertension
  • Adequate anti-hypertensive treatment
  • Regular follow-up and adequate control

11. ORGAN DAMAGE

The extent of organ damage often correlates with BP level, but not always. They should be evaluated separately since:
  • Markedly high pressures may exist without organ damage
  • Organ damage may occur with only moderate BP elevation
Presence of organ damage confers increased cardiovascular risk at any BP level.

Source: Park's Textbook of Preventive and Social Medicine, Chapter on Cardiovascular Diseases

Describe diabetes mellitus Risk factors and lifestyle Diagnostic criteria Glycemic index

Finding Sources
Reading File
Reading File
Reading File
Reading File
Reading File
Now let me get the impaired glucose tolerance section and the glycemic index / lifestyle section:
Finding Sources
Reading File
Reading File
I now have all the material needed. Since no marks were specified, I'll treat this as a Long Note (20 marks). Here is the complete answer:

DIABETES MELLITUS

(Park's Textbook of Preventive and Social Medicine)

1. DEFINITION

Diabetes mellitus describes a group of metabolic disorders characterized by the presence of hyperglycaemia in the absence of treatment. The heterogeneous aetiopathology includes defects in:
  • Insulin secretion
  • Insulin action
  • Or both
This results in disturbances of carbohydrate, fat and protein metabolism.

2. COMPLICATIONS

Long-term specific complications:
  • Retinopathy
  • Nephropathy
  • Neuropathy
Associated increased risks:
  • Heart disease, peripheral arterial disease, cerebrovascular disease
  • Obesity, cataracts, erectile dysfunction
  • Non-alcoholic fatty liver disease
  • Infections - particularly tuberculosis

3. CLASSIFICATION (WHO 2019)

TypeDescription
Type 1 DMBeta-cell destruction (mostly immune-mediated); absolute insulin deficiency; onset in childhood/early adulthood
Type 2 DMMost common; beta-cell dysfunction + insulin resistance; associated with overweight/obesity
Hybrid forms
- Slowly evolving immune-mediated DM of adultsPreviously LADA; features of metabolic syndrome; single GAD autoantibody
- Ketosis-prone Type 2 DMPresents with ketosis but later does not require insulin; not immune-mediated
Monogenic DMSpecific gene mutations - beta-cell defects (MODY) or defects in insulin action
Exocrine pancreas diseaseTrauma, tumour, inflammation of pancreas
Endocrine disordersAcromegaly, Cushing's, etc.
Gestational DMHyperglycaemia first detected in pregnancy
  • Essential (Type 2) accounts for the majority of all cases.
  • India has 77 million diabetics (second only to China); prevalence 11.8% (2019 survey).

4. EPIDEMIOLOGICAL DETERMINANTS / RISK FACTORS

A. AGENT

The underlying cause is insulin deficiency - absolute in Type 1, partial in Type 2. Mechanisms include:
  • Pancreatic disorders (inflammatory, neoplastic, cystic fibrosis)
  • Defective insulin synthesis (abnormal, biologically less active molecule)
  • Beta-cell destruction (viral, chemical agents)
  • Decreased insulin sensitivity (decreased adipocyte/monocyte insulin receptors)
  • Genetic defects (mutation of insulin gene)
  • Autoimmunity

B. HOST FACTORS (Non-Modifiable)

FactorDetails
AgePrevalence rises steeply with age; Type 2 manifests in middle age; prognosis worse in younger onset
SexMale:female ratio roughly equal in most countries; south-east Asia shows excess males
Genetic factorsStrong genetic component; Type 2 concordance ~90% in identical twins; Type 1 only ~50% (environmental trigger also needed)
Genetic markersType 1 associated with HLA-B8, B15, DR3, DR4; highest risk with both DR3+DR4; Type 2 is NOT HLA-associated
Immune mechanismsCell-mediated and humoral activity against islet cells; defective immunological mechanisms allow autoattack on beta cells
ObesityCentral adiposity (waist circumference, waist:hip ratio) is a more powerful determinant than BMI alone; obesity reduces insulin receptor numbers; weight loss improves insulin sensitivity and reduces progression of impaired glucose tolerance to Type 2 DM by 58%
Maternal diabetesOffspring of diabetic pregnancies have 3-fold higher risk of developing diabetes

C. ENVIRONMENTAL / LIFESTYLE RISK FACTORS (Modifiable)

FactorDetails
Sedentary lifestyleLack of exercise alters insulin-receptor interaction; key modifiable risk for Type 2
DietHigh saturated fat - associated with impaired glucose tolerance; high fasting insulin; high unsaturated fatty acids from vegetables are protective
Dietary fibreLow fibre diet increases risk; fibre slows sugar release and absorption (related to glycaemic index)
Malnutrition / protein deficiencyMalnutrition-related DM (kwashiorkor); affects young people in developing countries
AlcoholDamages pancreas and liver; promotes obesity; indirectly increases DM risk
Viral infectionsRubella, mumps, Coxsackie virus B4 - trigger immune-mediated beta-cell destruction in susceptible individuals
Chemical agentsAlloxan, streptozotocin, rodenticide VALCOR; cyanide-producing foods (cassava, certain beans) toxic to beta cells
StressSurgery, trauma, psychosocial stress can "unmask" or precipitate disease
Social factorsUrbanization, sedentary occupation, lower social class (reversal of historical gradient), economic transitions
Diabetogenic drugsOral contraceptives, corticosteroids, thiazide diuretics

5. DIAGNOSTIC CRITERIA (WHO 2019)

MeasurementDiagnostic Cut-off
Fasting venous/capillary plasma glucose≥ 7.0 mmol/L (126 mg/dL)
2-hour post-load venous plasma glucose≥ 11.1 mmol/L (200 mg/dL)
2-hour post-load capillary plasma glucose≥ 12.2 mmol/L (220 mg/dL)
Random plasma glucose≥ 11.1 mmol/L (200 mg/dL)
HbA1c≥ 6.5% (48 mmol/mol)
Diagnosis should be confirmed on a second occasion in the absence of symptoms. In the presence of classic symptoms (polyuria, polydipsia, unexplained weight loss), a single test is sufficient.

Impaired Glucose Tolerance (IGT) / Pre-diabetes:

  • Fasting: 6.1-6.9 mmol/L (110-125 mg/dL)
  • 2-hour post-load: 7.8-11.0 mmol/L (140-199 mg/dL)
  • HbA1c: 5.7-6.4%
Note: Urine glucose testing has poor sensitivity (only 10-50%) - too many false negatives - and is not suitable for screening or epidemiological surveys.

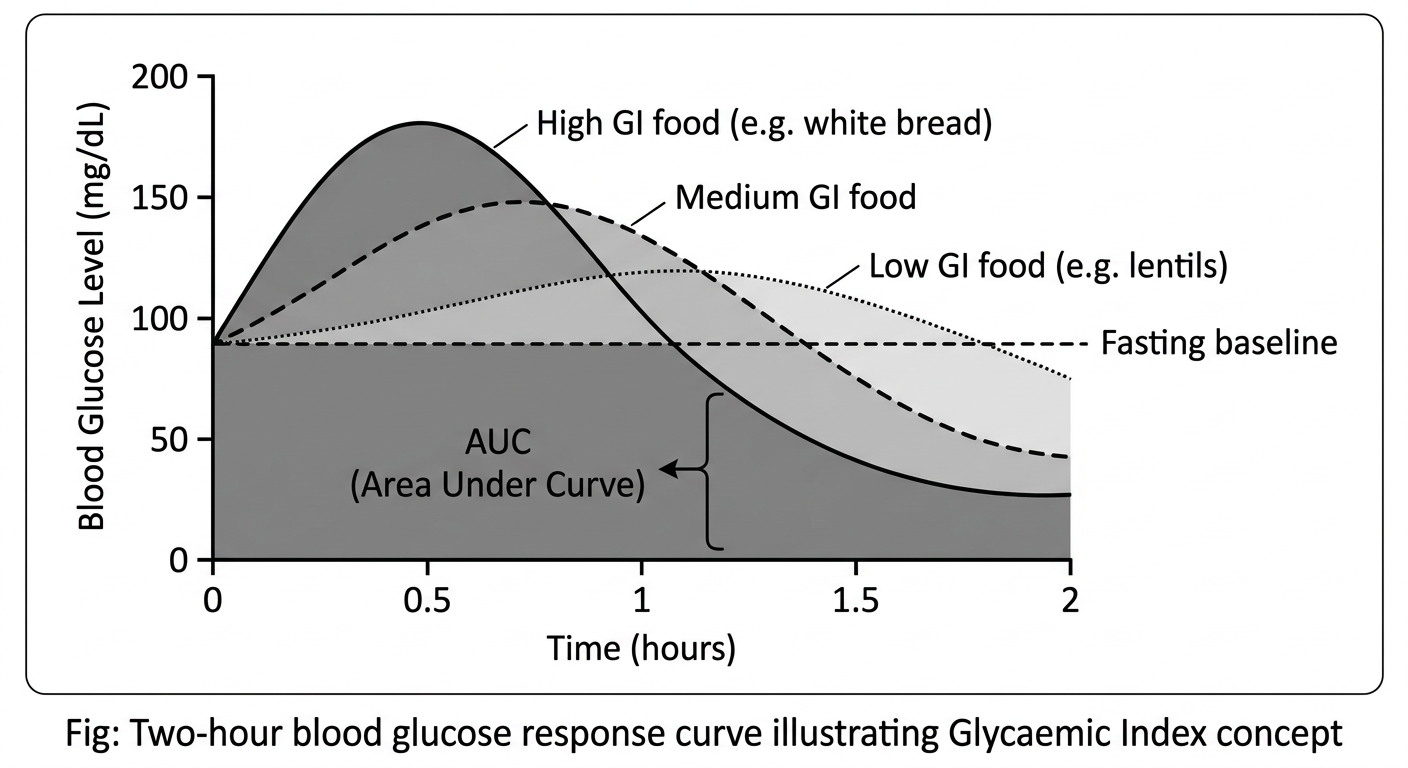

6. GLYCAEMIC INDEX (GI)

Definition (Park's):
"Glycaemic index of a food is defined by the area under the two-hour blood glucose response curve (AUC) following ingestion of a fixed portion of test carbohydrate (usually 50 g), as a proportion (%) of the AUC of the standard (either glucose or white bread)."
Concept: Foods containing different fractions of soluble and insoluble fibres favour slow release of sugar into the small intestine and slow absorption into blood (reduced peak, prolonged rate) = Low GI foods.

Classification of Foods by GI:

ClassificationGI RangeExamples
Low GI≤ 55Most fruits & vegetables (except potato, watermelon, sweet corn), whole grains, pasta, beans, lentils
Medium GI56-69Sucrose, basmati rice, brown rice
High GI≥ 70Corn flakes, baked potato, jasmine rice, white bread, candy bars, syrupy foods
Clinical utility:
  • Management of diabetes - low GI foods prevent glucose spikes
  • Control of obesity - low GI foods provide satiety and prevent overeating

7. LIFESTYLE MODIFICATIONS FOR PREVENTION

a. Primary Prevention - Population Strategy:

  • Maintain normal body weight
  • Healthy nutritional habits - adequate protein, high dietary fibre, avoidance of sweet foods
  • Regular physical exercise
  • Avoid excess alcohol
  • Avoid diabetogenic drugs (OCP, corticosteroids)

b. Evidence-Based Interventions:

InterventionBenefit
Lifestyle intervention for high-risk persons35-58% reduction in incidence of Type 2 DM
Metformin for high-risk persons25-31% reduction in incidence
Glycaemic control (HbA1c > 9%)30% reduction in microvascular disease per 1% drop in HbA1c
BP control (> 130/80 mmHg)35% reduction in macrovascular + microvascular disease per 10 mmHg drop
Annual eye examinations60-70% reduction in serious vision loss
Foot care50-60% reduction in serious foot disease
ACE inhibitor use42% reduction in nephropathy; 22% reduction in cardiovascular disease

Source: Park's Textbook of Preventive and Social Medicine

Don't use too many tables use only if they are in park textbook otherwise for comparison thats it

Noted! From now on:
  • Tables only when Park's textbook itself has a table (classification tables, diagnostic criteria tables, etc.) - I'll reproduce those as-is.
  • For everything else - risk factors, descriptions, mechanisms, lists - I'll write in flowing text with bullet points or numbered lists, not tables.
  • Tables only for genuine comparisons where side-by-side format is truly needed.
Got it. Ask your next question!

For above question describe glycemic index for 8 marks

The content is already in my context from the previous query. Here's the 8-mark short note:

GLYCAEMIC INDEX

(Park's Textbook of Preventive and Social Medicine)

Definition

Glycaemic index (GI) of a food is defined as the area under the two-hour blood glucose response curve (AUC) following ingestion of a fixed portion of test carbohydrate (usually 50 g), expressed as a proportion (%) of the AUC of the standard (either glucose or white bread).

Concept

Foods containing different fractions of soluble and insoluble dietary fibres favour slow release of sugar into the small intestine and its absorption into the blood. This results in:
  • A reduced peak blood glucose level
  • A prolonged rate of absorption
Such foods are termed low GI foods. In contrast, foods with readily digestible and rapidly absorbable sugars produce a sharp glucose spike and are termed high GI foods.

Classification (Park's Table)

ClassificationGI RangeExamples
Low GI55 or lessMost fruits and vegetables (except potatoes, watermelon, sweet corn), whole grains, pasta, beans, lentils
Medium GI56-69Sucrose, basmati rice, brown rice
High GI70 or moreCorn flakes, baked potato, jasmine rice, white bread, candy bars, syrupy foods

Clinical Utility

The concept of glycaemic index has practical utility in two important areas:
  1. Management of diabetes - Low GI foods prevent sharp post-meal glucose spikes, aiding better glycaemic control. Patients are advised to prefer low GI foods to maintain stable blood sugar levels.
  2. Control of obesity - Low GI foods provide greater satiety, slow gastric emptying, and reduce overall caloric intake, thereby helping in weight management.

Relationship with Dietary Fibre

Dietary fibre is the key determinant of a food's GI. Soluble fibre (found in oats, legumes, fruits) slows sugar absorption most effectively. Insoluble fibre adds bulk and reduces digestibility. A high-fibre diet is thus associated with lower GI values and reduced risk of both diabetes and obesity.

Source: Park's Textbook of Preventive and Social Medicine

I said glycemic index not glycaemic index once recheck

Both spellings are correct and refer to the same thing:
  • Glycaemic index - British/international spelling (used by WHO, Park's textbook, and most medical literature)
  • Glycemic index - American spelling
Park's textbook uses "Glycaemic index" since it follows British medical spelling conventions. So when I write answers based on Park's, I'll use "glycaemic" - it is not a mistake, just the British spelling used in the source text.
Both are accepted in exams. No content difference at all.

Two hour blood glucose response curve diagram

Generating Image

Two-hour blood glucose response curve diagram showing glycaemic index concept. Medical textbook style graph. X-axis labeled "Time (hours)" with marks at 0, 0.5, 1, 1.5, 2 hours. Y-axis labeled "Blood Glucose Level (mg/dL)". Three curves starting from a common baseline point at time 0 (fasting level ~90 mg/dL) after ingestion of 50g carbohydrate: 1) High GI food curve - rises steeply to a high peak (~180 mg/dL) at about 30-45 min then drops sharply back, labelled "High GI food (e.g. white bread)"; 2) Medium GI food curve - moderate rise and fall, labelled "Medium GI food"; 3) Low GI food curve - gradual gentle rise to a low peak (~120 mg/dL) at about 60-90 min then slowly returns to baseline, labelled "Low GI food (e.g. lentils)". The area under each curve is shaded - dark shading for high GI, light shading for low GI. A horizontal dashed line marks the fasting baseline. An arrow and bracket shows "AUC (Area Under Curve)" on the high GI curve. Caption at bottom: "Fig: Two-hour blood glucose response curve illustrating Glycaemic Index concept". Clean white background, black axes, clearly labeled, medical diagram style.

Two-hour Blood Glucose Response Curve - Glycaemic Index

How to read this diagram:
  • All three curves start at the same fasting baseline (~90 mg/dL) at time 0, after ingestion of 50 g of test carbohydrate.
  • The area under the curve (AUC) over 2 hours is measured for each food.
  • This AUC is then expressed as a percentage of the AUC of the standard (glucose or white bread) - and that percentage IS the glycaemic index.
Key takeaway:
  • High GI food - sharp, tall spike - large AUC - rapid glucose rise and rapid fall (risk of rebound hypoglycaemia)
  • Low GI food - gentle, broad, flat curve - small AUC - slow sustained release, better for diabetics and weight control
  • GI = (AUC of test food / AUC of standard) × 100

Add a note on prevention of oral cancer and cervical cancer for 8 marks

Finding Sources
Finding Sources
Finding Sources
Finding Sources
Finding Sources
Reading File
Reading File
Reading File
Reading File
Reading File
All material is in hand. Here is the 8-mark short note:

PREVENTION OF ORAL CANCER AND CERVICAL CANCER

(Park's Textbook of Preventive and Social Medicine)

PART 1 - PREVENTION OF ORAL CANCER

Background

Oral cancer is one of the ten most common cancers in the world and a major public health problem in India, especially in South and South-East Asia. In 2020, it caused about 75,290 deaths in India, with the age-standardized incidence rate being 14.8 per 1,00,000 in men and 4.6 per 1,00,000 in women. Approximately 90% of oral cancers in South-East Asia are linked to tobacco - making it highly amenable to prevention.

Key Epidemiological Features Relevant to Prevention

  • Tobacco (chewing and smoking) is the single most important causative factor.
  • Alcohol has a synergistic effect with tobacco.
  • The natural history shows a precancerous stage (leukoplakia, erythroplakia) that can be detected up to 15 years before invasive carcinoma develops - offering a critical window for intervention.
  • High-risk groups: tobacco/betel quid chewers, bidi smokers, those who sleep with tobacco quid in the mouth (risk 36 times higher than non-chewers).

a. Primary Prevention

Oral cancer is amenable to primary prevention. The key measures are:
  • Tobacco elimination - If tobacco habits are eliminated from the community, a great reduction in oral cancer incidence can be achieved. This is the single most effective measure.
  • Public education and motivation - Intensive IEC (Information, Education, Communication) activities for lifestyle change.
  • Legislative measures - Banning or restricting the sale of tobacco products.
  • Alcohol reduction - Limiting alcohol consumption, especially in tobacco users.

b. Secondary Prevention

  • Oral cancers are easily accessible for inspection, enabling early detection.
  • Leukoplakia (precancerous lesion) can be cured by cessation of tobacco use alone.
  • If detected at the precancerous stage, lesions can be treated or reversed before progression to invasive carcinoma.
  • Main treatment modalities: surgery and radiotherapy.
  • Primary health care workers (village health guides, multi-purpose workers) are in a strategic position to detect oral cancers during home visits - they serve as a vital link in developing countries.
  • In developing countries, over 50% of oral cancers are detected only at an advanced stage - making community-level detection efforts critical.

PART 2 - PREVENTION OF CERVICAL CANCER

Background

Cervical cancer is the fourth most frequent cancer in women globally, with 6,04,000 new cases and 3,42,000 deaths in 2020. 90% of deaths occur in low and middle income countries. In India, cancer cervix constitutes 9.4% of all female cancers, with an estimated 77,348 deaths in 2020.

Natural History (Basis for Prevention)

The disease follows a progressive, slow course:
Normal epithelium → Dysplasia → Carcinoma in situ → Invasive carcinoma
  • Carcinoma in situ persists for an average of more than 8 years before becoming invasive.
  • The entire preinvasive stage may last 15-20 years or longer.
  • This prolonged preinvasive phase makes screening-based secondary prevention extremely effective.
  • Causative agent: Human Papilloma Virus (HPV) - sexually transmitted; found in more than 95% of cases; necessary but not sufficient cause.

a. Primary Prevention

  • Until causative factors are more clearly understood, full primary prevention is limited.
  • Measures with potential impact include:
    • Improved personal hygiene and genital hygiene (especially in lower socio-economic groups).
    • Birth control and reduction of early marriage, early coitus, and repeated childbearing.
    • Monogamous sexual behaviour and avoidance of multiple sexual partners.
    • HPV vaccination (current evidence strongly supports this as the most effective primary prevention measure).
    • Avoiding prolonged use of high-oestrogen oral contraceptive pills.

b. Secondary Prevention (Screening)

This is the cornerstone of cervical cancer control. It rests on early detection through screening followed by treatment.
  • Pap smear (Cervical smear): All women should have a Pap test at the beginning of sexual activity, then every 3 years thereafter. Organized population-based Pap smear programmes have markedly reduced incidence and mortality in developed countries.
  • VIA (Visual Inspection with Acetic acid): Application of 5% acetic acid to the cervix; a well-defined opaque acetowhite lesion close to the squamo-columnar junction is a positive result. This is cost-effective, easy to perform, and easy to train health workers in - particularly suitable for India.
    • Also: VIAM (VIA with magnification) and VILI (Visual Inspection with Lugol's Iodine).
  • Single-visit approach: After a positive VIA, the woman is managed in the same visit at a district hospital - colposcopy, biopsy, and treatment (reduces loss to follow-up).
  • IEC activities to sensitize the community about significance of the disease and importance of screening.

Prognosis with Early Detection:

  • 5-year survival rate for carcinoma in situ - virtually 100%
  • For local invasive disease - 79%
  • For regional invasive disease - 45%
  • Once symptoms develop, it is difficult to cure and fatal if untreated - reinforcing the value of screening.

Source: Park's Textbook of Preventive and Social Medicine

Any diagrams related to the rta

"RTA" can mean different things depending on the subject. Could you clarify?
Asking for Preferences

Which subject is this RTA question from?

Finding Sources
Finding Sources
Reading File
Reading File
Reading File
Park's mentions Fig. 1 - Multiple causation of accidents in the text. Let me check if that image is available in the textbook block:
Finding Sources
Reading File
The Fig. 1 (multiple causation) is referenced in the text but the image is not stored in the textbook's CDN. I'll generate the key diagrams from Park's that are described in the RTA chapter.
Generating Image

Medical textbook diagram titled "Multiple Causation of Road Traffic Accidents" as described in Park's Textbook of Preventive and Social Medicine. A clean flowchart/web diagram showing two broad categories of causative factors converging to cause an "ACCIDENT" in the center. Left branch labeled "HUMAN FACTORS" with sub-boxes: Speed, Drink-driving, Driver fatigue, Distracted driving (mobile phones), Non-use of helmet/seatbelt, Age (young males under 25), Pedestrian behaviour. Right branch labeled "ENVIRONMENTAL FACTORS" with sub-boxes: Road defects (poor lighting, bad crossroads), Vehicle defects (old, poorly maintained), Weather conditions, Overloaded buses, Animals on road. Both branches point with arrows to a central red box "ACCIDENT". Below the central box, two outcome boxes: "FATAL INJURIES" and "NON-FATAL INJURIES". A note at bottom: "Up to 90% of accident factors attributed to human failure". White background, black text, clean medical diagram style, textbook quality.

Generating Image

Medical textbook bar/data diagram titled "Haddon's Matrix for Road Traffic Accidents" as used in Park's Preventive and Social Medicine. A clean 3x3 grid matrix table. Rows labeled (top to bottom): "Pre-crash phase", "Crash phase", "Post-crash phase". Columns labeled (left to right): "HOST (Human)", "AGENT (Vehicle)", "ENVIRONMENT (Road/Physical)". Each cell contains brief text: Pre-crash/Host: "Alcohol, Speed, Distraction, Age, Fatigue"; Pre-crash/Agent: "Brake failure, Tyre defects, Overloading"; Pre-crash/Environment: "Poor road design, Poor lighting, Blind corners"; Crash/Host: "Seatbelt use, Helmet use, Body position"; Crash/Agent: "Airbags, Crumple zones, Safety features"; Crash/Environment: "Roadside barriers, Crash barriers"; Post-crash/Host: "First aid knowledge, Health status"; Post-crash/Agent: "Fire risk, Fuel leakage"; Post-crash/Environment: "Emergency services, Hospital access". Clean white background, black grid lines, bold headings, medical textbook style.

Here are the two key diagrams for RTA (SPM - Park's):

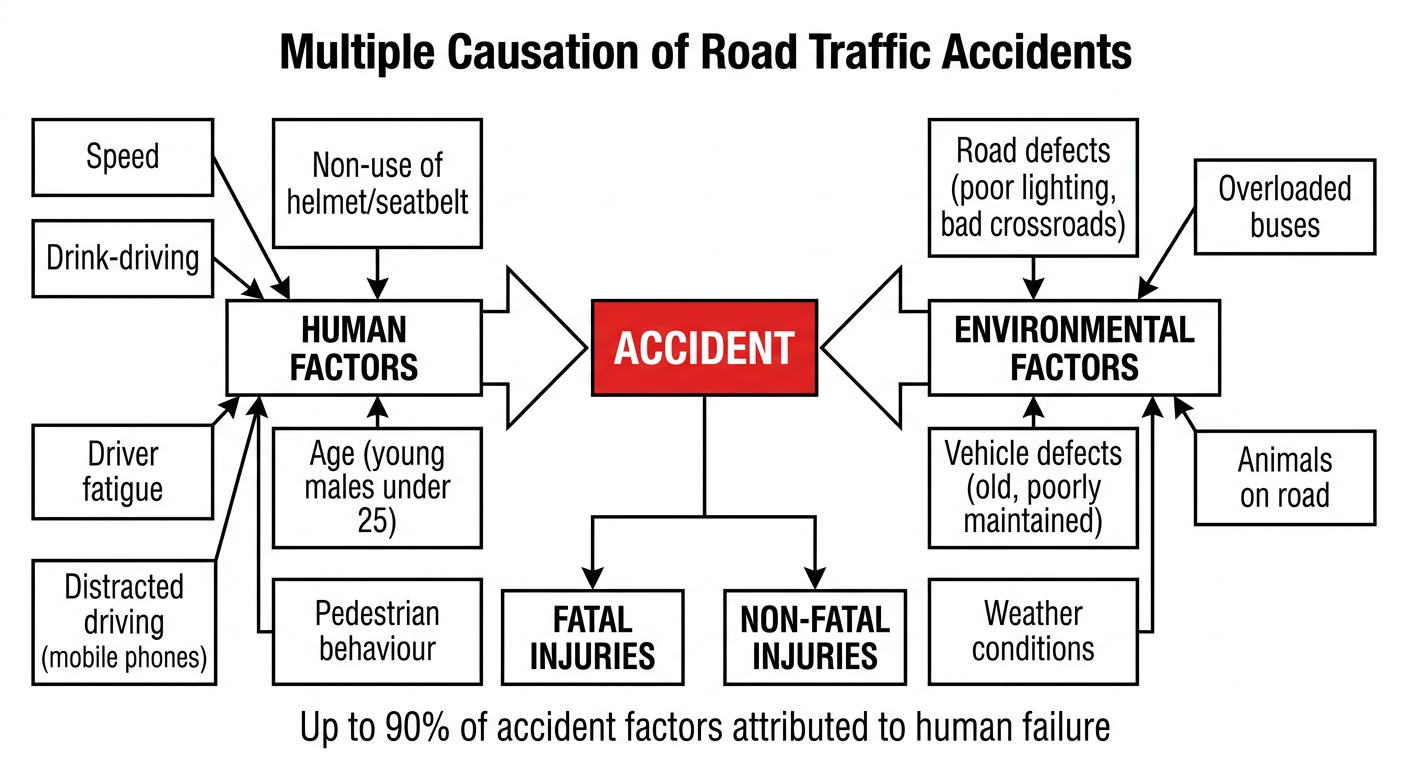

DIAGRAM 1 - Multiple Causation of Road Traffic Accidents

Multiple Causation of Road Traffic Accidents
Key point from Park's: Accidents are a complex phenomenon of multiple causation. Aetiological factors fall into two broad categories - human and environmental. Up to 90% of accident causation is attributed to human failure.

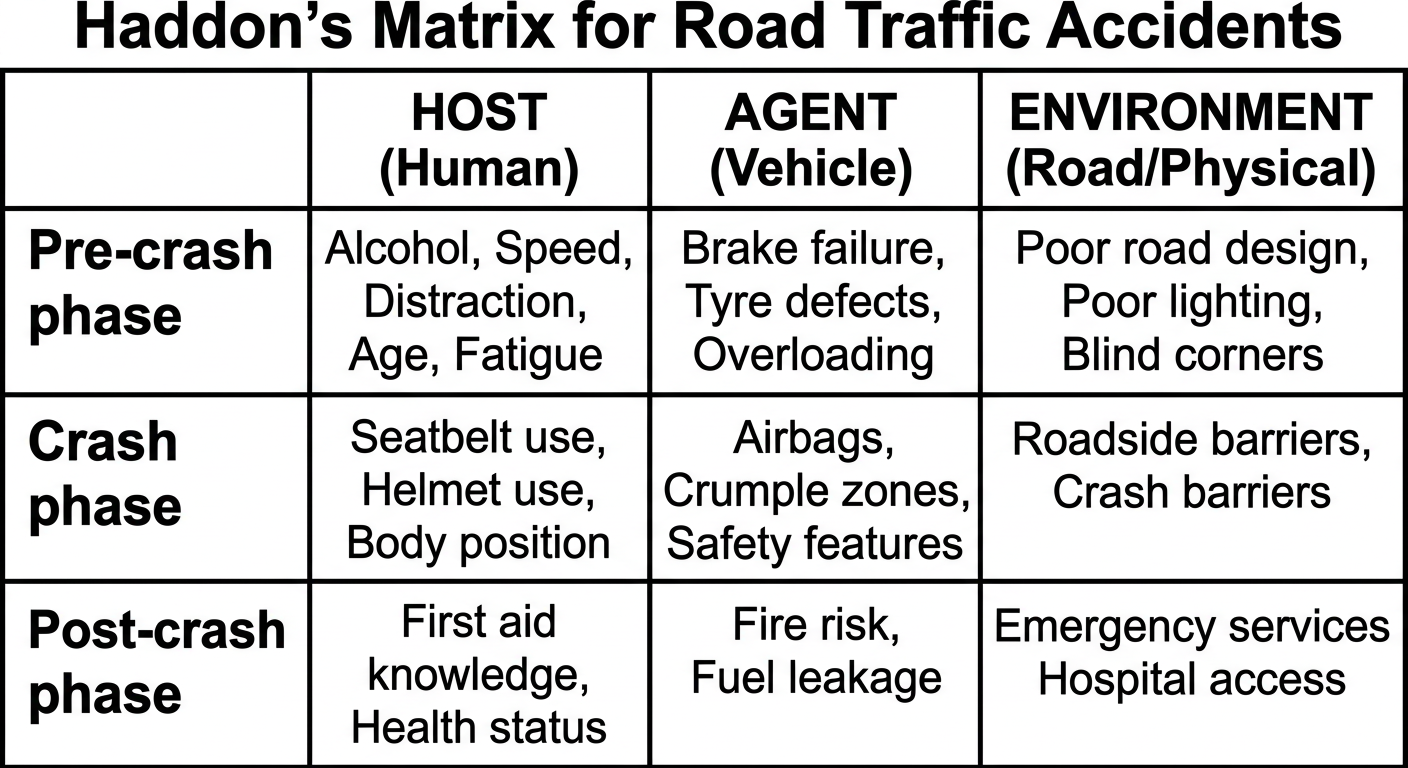

DIAGRAM 2 - Haddon's Matrix (Host-Agent-Environment Model for RTA)

Haddon's Matrix for Road Traffic Accidents
Key point: Haddon's matrix analyses RTA across three phases (pre-crash, crash, post-crash) and three factors (host, agent, environment). This helps identify intervention points at every stage - before, during, and after the crash.

Other Important Points / Quick Notes on RTA (Park's)

Epidemiology:
  • ~1.25 million deaths per year globally from road accidents
  • For every death - 20-50 non-fatal injuries and 10-20 serious injuries
  • 48% of road deaths are vulnerable users (pedestrians, cyclists, motorcyclists)
  • >90% of RTA deaths occur in low and middle income countries
  • Males under 25 are 3 times more likely to be killed than young females
  • Traffic accidents killed 1,77,423 persons in India in 2015
Risk factors (from Park's):
  • Speed - pedestrian survival < 50% at impact ≥ 45 km/h
  • Drink-driving - risk increases significantly above BAC of 0.04 g/dl
  • Motorcycle helmet use - reduces death risk by 40%, severe injury by 70%
  • Seat belt use - reduces front-seat fatality by 40-50%
  • Distracted driving (mobile phones)
  • Driver fatigue
  • Non-use of child restraints

Diagrams related to rhumeatic heart' diseases

Finding Sources
Reading File
Reading File
Good. Now I have all the key content. Let me check if Park's has any actual image/figure for RHD in the textbook block:
Reading File
No images are embedded in the textbook for RHD. I'll generate the key diagrams that Park's describes. Two important ones: the natural history / pathogenesis chain and the Jones criteria summary.
Generating Image

Medical textbook diagram showing "Natural History and Pathogenesis of Rheumatic Heart Disease" as described in Park's Textbook of Preventive and Social Medicine. A clean vertical flowchart with arrows. Step 1 box: "Group A Beta-Haemolytic Streptococcal Throat Infection (Streptococcal Pharyngitis)" with sub-note "M-type 5 most rheumatogenic". Arrow down to Step 2 box: "ACUTE RHEUMATIC FEVER (in genetically susceptible host)" with sub-note "Toxic-immunological mechanism / Molecular mimicry". Arrow down to Step 3 box: "RHEUMATIC CARDITIS" with sub-note "Pancarditis - affects all layers of heart". Branching arrow from Step 3 to Step 4a: "RECOVERY (with penicillin prophylaxis)" and to Step 4b: "RECURRENT ATTACKS OF RF" with note "Each attack = more valve damage". Step 4b arrow down to Step 5 box: "CHRONIC RHEUMATIC HEART DISEASE" with sub-boxes showing "Mitral Stenosis (most common)", "Mitral Regurgitation", "Aortic Stenosis/Regurgitation". Step 5 arrow down to Step 6 box (red): "COMPLICATIONS: Heart failure, Pulmonary hypertension, Infective endocarditis, Premature death (by age 35)". On the left side: a vertical bracket labeled "Prevention Points" with arrows pointing to Step 1 (Primary: treat strep throat) and Step 2 (Secondary: Benzathine Penicillin prophylaxis). White background, clean medical diagram, textbook style, black text, color-coded boxes.

Generating Image

Medical textbook diagram showing "Modified Jones Criteria for Diagnosis of Rheumatic Fever" as per WHO 2002-2003 revision, from Park's Preventive and Social Medicine. Two main columns side by side. Left column titled "MAJOR MANIFESTATIONS" (5 items in separate boxes with icons): 1. Carditis (heart icon), 2. Polyarthritis (joint icon), 3. Chorea / Sydenham's chorea (brain/movement icon), 4. Erythema Marginatum (skin rash icon), 5. Subcutaneous Nodules (nodule icon). Right column titled "MINOR MANIFESTATIONS" (items in boxes): Clinical - Fever, Polyarthralgia; Laboratory - Elevated ESR/CRP/Leukocyte count; ECG - Prolonged PR interval. Below both columns, a central box titled "PLUS - Evidence of Preceding Streptococcal Infection" with 4 sub-items: Elevated/rising ASOT, Positive throat culture, Rapid antigen test for Group A Strep, Recent Scarlet fever. At the bottom, diagnosis rule: "Diagnosis = 2 Major OR 1 Major + 2 Minor + Evidence of Strep infection". Clean white background, medical textbook style, black text, well-organized, easy to read.

Here are the key diagrams for Rheumatic Heart Disease (SPM - Park's):

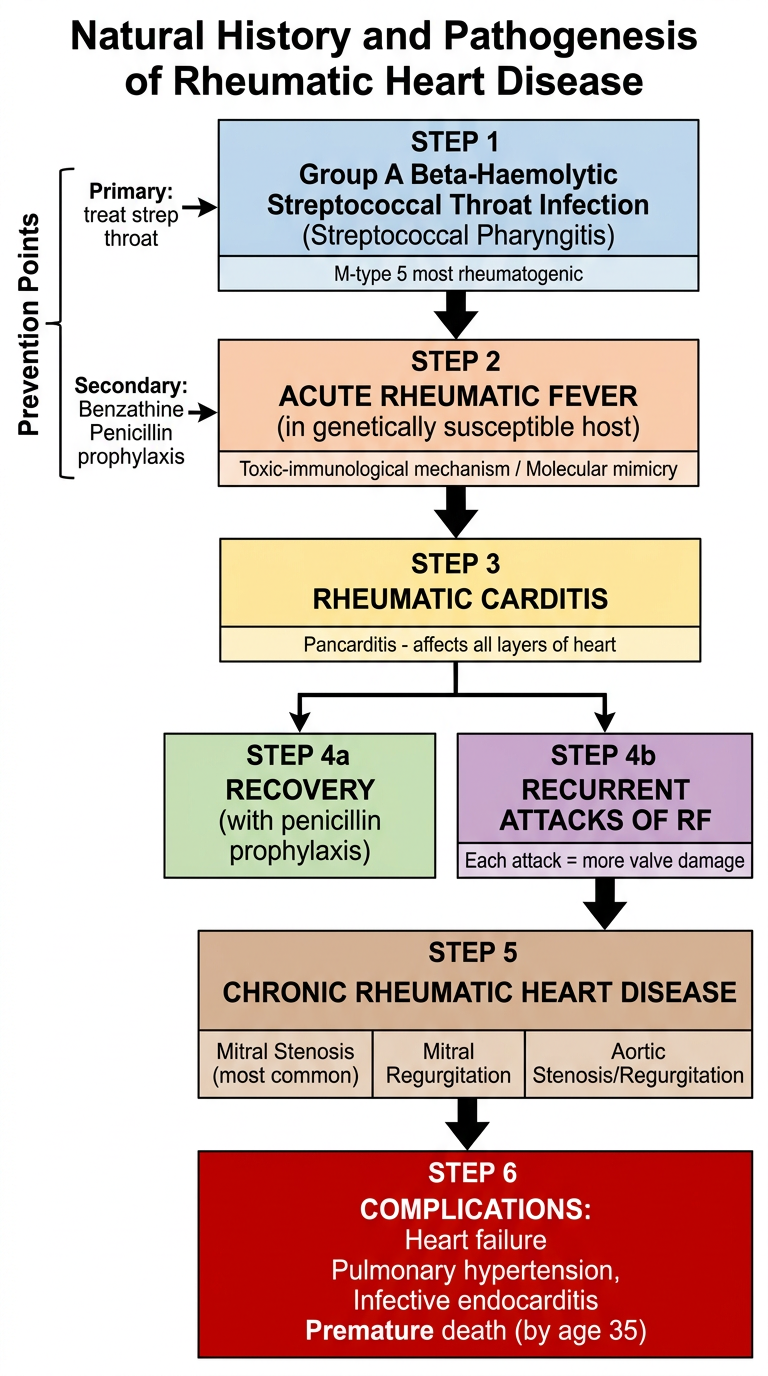

DIAGRAM 1 - Natural History & Pathogenesis of RHD

Natural History of Rheumatic Heart Disease
Key points to note (Park's):
  • RF is NOT a communicable disease but results FROM a communicable disease (streptococcal pharyngitis)
  • The toxic-immunological hypothesis explains the link - cross-reactive antibodies against streptococcal antigens damage cardiac tissue
  • Each recurrent attack causes progressive valve damage
  • Mitral stenosis is the most common valvular lesion
  • Death typically occurs by age 35 or even earlier
  • Insufficiency from acute rheumatic valve disease resolves in 60-80% of patients who adhere to antibiotic prophylaxis

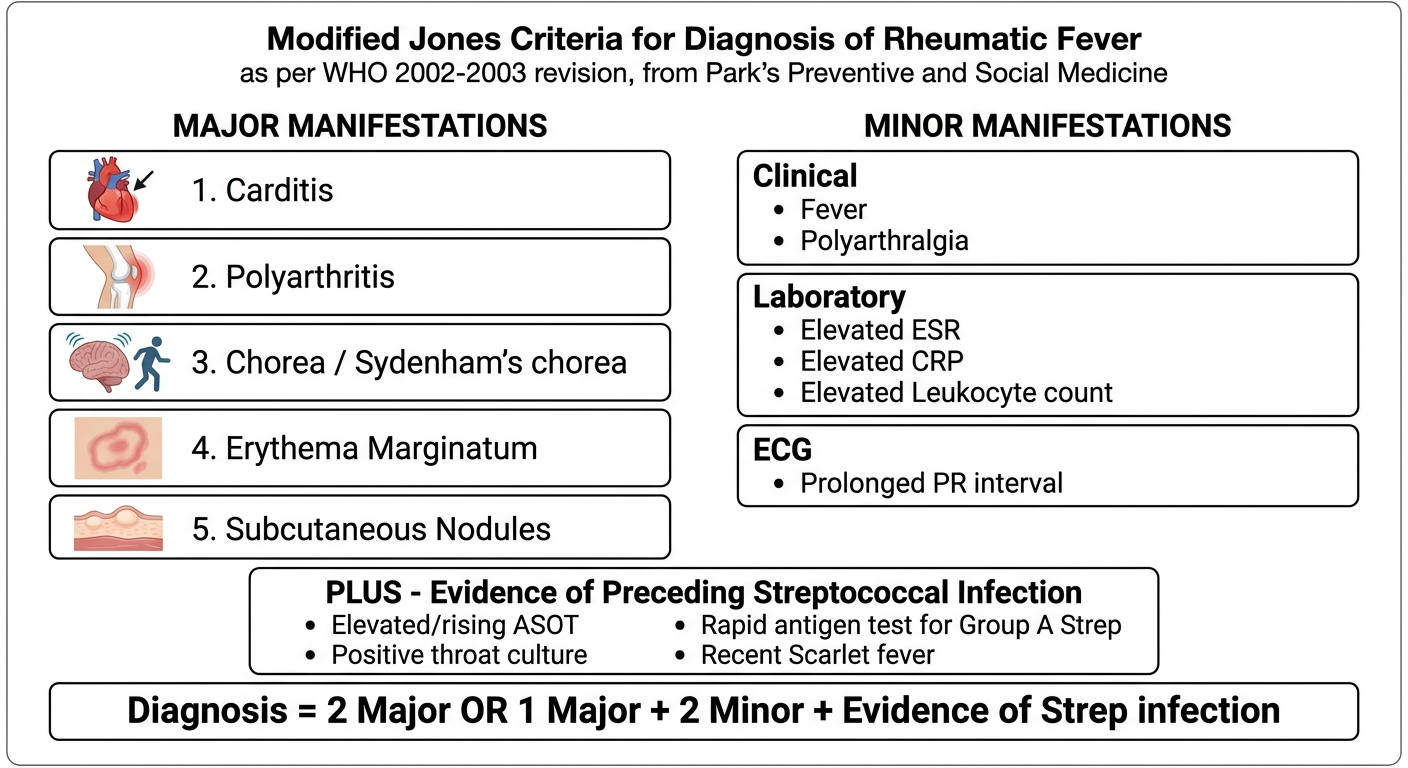

DIAGRAM 2 - Modified Jones Criteria (WHO 2002-2003)

Jones Criteria for Diagnosis of Rheumatic Fever
Diagnosis rule (Park's Table 2):
  • Primary episode of RF = 2 Major OR 1 Major + 2 Minor + evidence of preceding strep infection
  • Recurrent RF with established RHD = 2 Minor alone + strep evidence is sufficient
  • Rheumatic chorea / insidious onset carditis = no other criteria required
Memory aid for Major manifestations - JONES:
  • J - Joint (Polyarthritis) - most common, 90% of cases
  • O - (c)Orditis - Carditis
  • N - Nodules (subcutaneous)
  • E - Erythema marginatum
  • S - Sydenham's chorea

For this one time go out of park and generate diagrams

Generating comprehensive RHD diagrams - pathogenesis, valve lesions, and prevention!
Generating Image

Detailed medical diagram showing "Immunopathogenesis of Rheumatic Heart Disease - Molecular Mimicry". A clear flowchart on white background. Top box: "Group A Beta-Haemolytic Streptococcus (GAS) - Throat Infection" with a drawing of streptococcus bacteria. Arrow down to box: "Streptococcal M-protein and other antigens presented to immune system". Arrow down to two parallel boxes: Left box "Antibodies produced against streptococcal antigens" and Right box "T-cell mediated immunity activated". Both arrows converge to central box: "MOLECULAR MIMICRY - Streptococcal antigens structurally similar to human cardiac proteins (myosin, tropomyosin, laminin, vimentin)". Arrow down to box: "Cross-reactive immune attack on HEART TISSUE". This splits into three arrows pointing to: 1. "ENDOCARDIUM - Valvulitis, Aschoff bodies, valve thickening", 2. "MYOCARDIUM - Myocarditis, Aschoff nodules", 3. "PERICARDIUM - Fibrinous pericarditis". Bottom convergence box: "PANCARDITIS - Acute Rheumatic Carditis". Clean medical illustration style, labeled arrows, color-coded boxes (blue for immune, red for cardiac damage), textbook quality.

Generating Image

Detailed anatomical diagram of the heart showing "Valve Lesions in Chronic Rheumatic Heart Disease". A clear cross-section anterior view of the heart with all four valves labeled. Each valve shows rheumatic changes with callout boxes. MITRAL VALVE (most commonly affected, left side, prominent): shows "Commissural fusion, Leaflet thickening and fibrosis, Subvalvular chordal fusion and shortening, Calcification in chronic disease" - labeled as "MITRAL STENOSIS (most common) and/or MITRAL REGURGITATION". AORTIC VALVE (second most common): shows "Cuspal thickening, fusion of commissures, Aortic stenosis or regurgitation". TRICUSPID VALVE: shows "Less commonly affected, Usually with mitral disease". PULMONARY VALVE: shows "Rarely affected". A frequency table on the side: "Mitral alone 70%, Mitral + Aortic 25%, Aortic alone 5%, Tricuspid rare". Bottom note: "Mitral stenosis = hallmark of RHD". Color-coded diagram, anatomically accurate heart cross-section, medical textbook quality, clean white background.

Generating Image

Medical textbook diagram showing "Prevention of Rheumatic Fever and Rheumatic Heart Disease - Three Levels" as a clean pyramid or three-tier horizontal diagram. TOP TIER - PRIMARY PREVENTION (green): "Prevent initial streptococcal throat infection". Sub-points: Treat strep pharyngitis with Benzyl Penicillin (Penicillin G) or Amoxicillin for 10 days; Improve socioeconomic conditions, reduce overcrowding; Health education; Early reporting of sore throat; Target: school-age children 5-15 years. MIDDLE TIER - SECONDARY PREVENTION (orange): "Prevent recurrence of RF in those who already had one attack". Sub-points: Benzathine Benzyl Penicillin 1.2 million units IM every 3-4 weeks (drug of choice); Duration: without carditis = 5 years or till age 18; with carditis no residual disease = 10 years or till age 25; with carditis + residual valve disease = lifelong; Oral Penicillin V alternative. BOTTOM TIER - TERTIARY PREVENTION (red): "Prevent complications and disability". Sub-points: Surgical valve repair or replacement; Management of heart failure; Rehabilitation; Prevention of infective endocarditis. White background, clean medical diagram, color-coded tiers, bold headings, textbook quality.

Here are three detailed diagrams for Rheumatic Heart Disease:

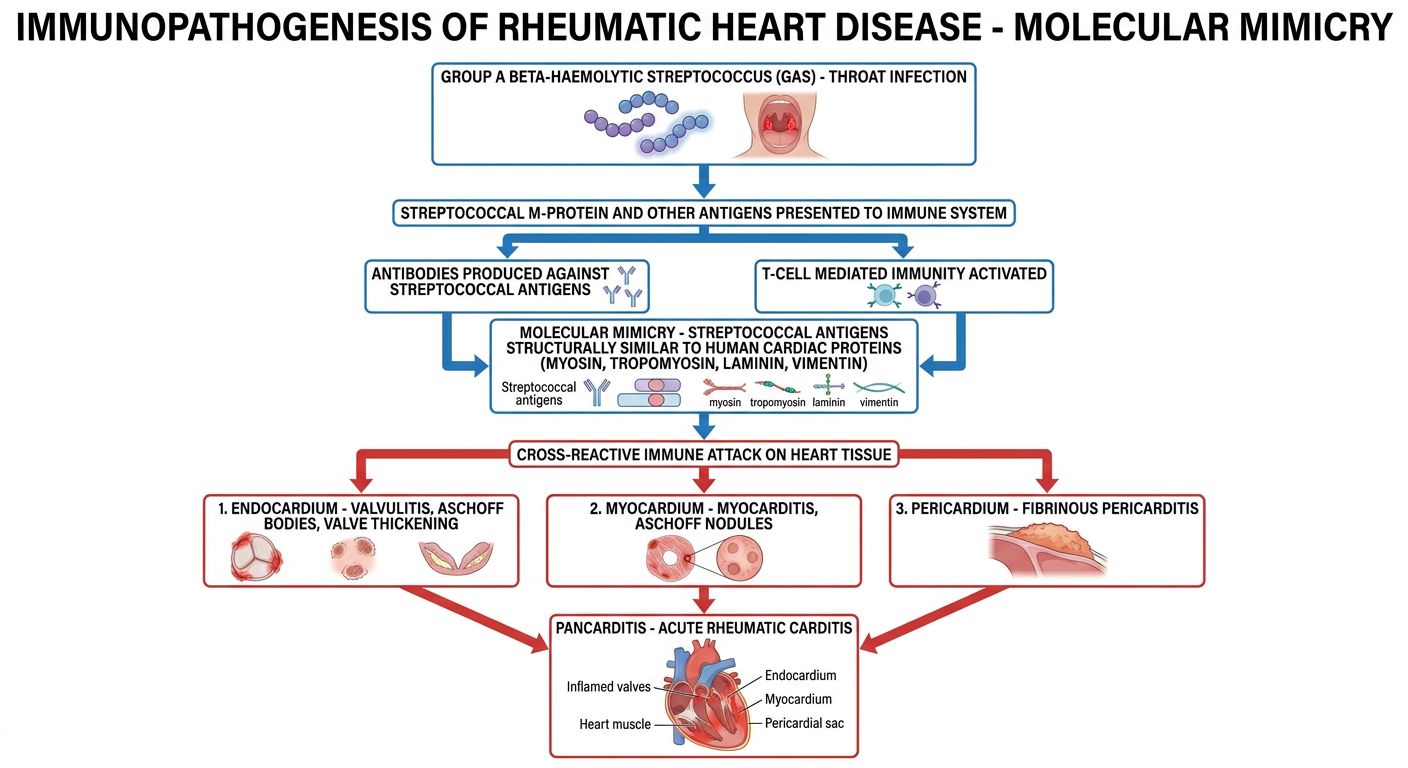

DIAGRAM 1 - Immunopathogenesis (Molecular Mimicry)

Immunopathogenesis of Rheumatic Heart Disease
Core concept: The streptococcal M-protein is structurally similar to human cardiac proteins (myosin, tropomyosin, laminin). The immune system, while attacking the bacteria, simultaneously attacks the heart - this is molecular mimicry. This results in pancarditis - inflammation of all three layers (endo, myo, pericardium).

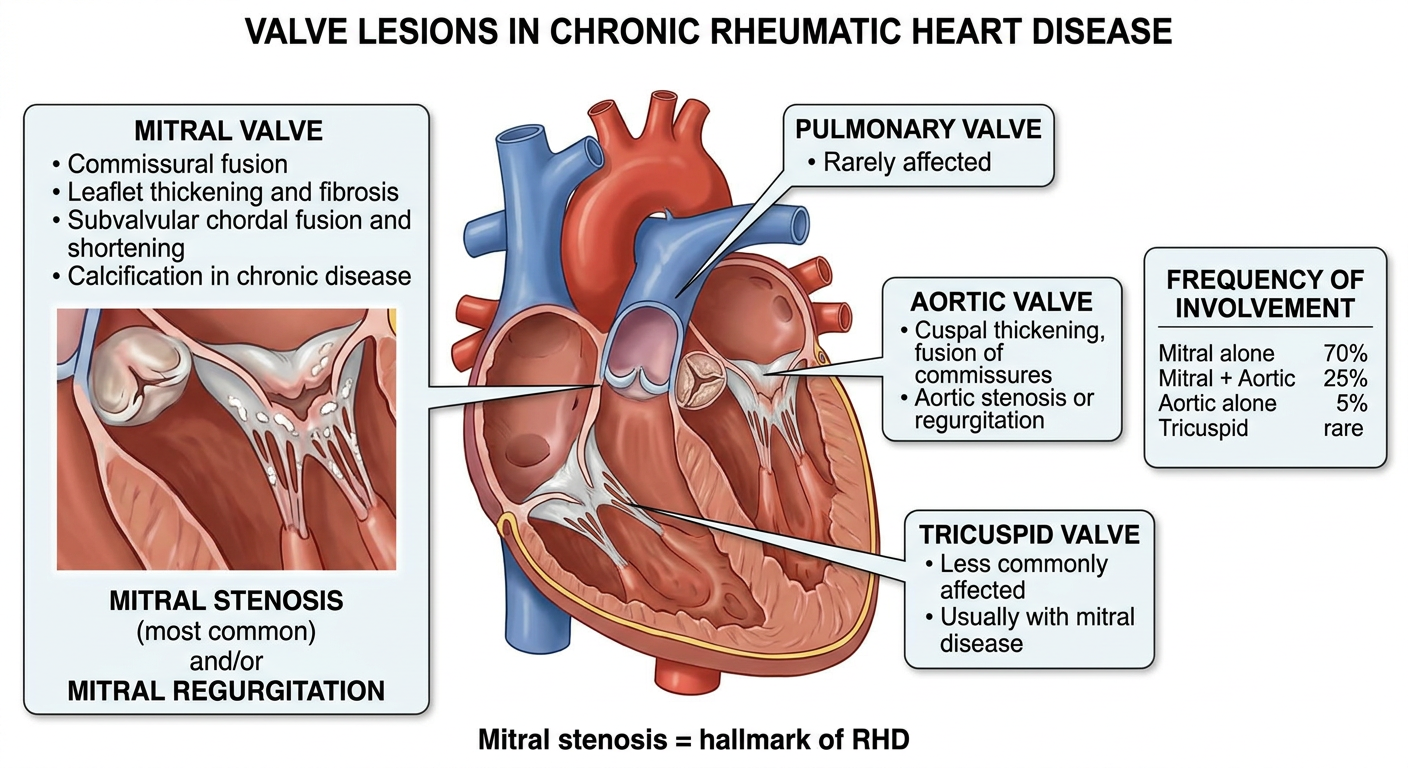

DIAGRAM 2 - Valve Lesions in Chronic RHD

Valve Lesions in Chronic Rheumatic Heart Disease
Key points:
  • Mitral valve alone - 70% cases (most common)
  • Mitral + Aortic - 25% cases
  • Aortic alone - 5% cases
  • Tricuspid/Pulmonary - rare
  • Mitral stenosis is the hallmark of RHD
  • Pathology = commissural fusion + leaflet thickening + chordal shortening + calcification

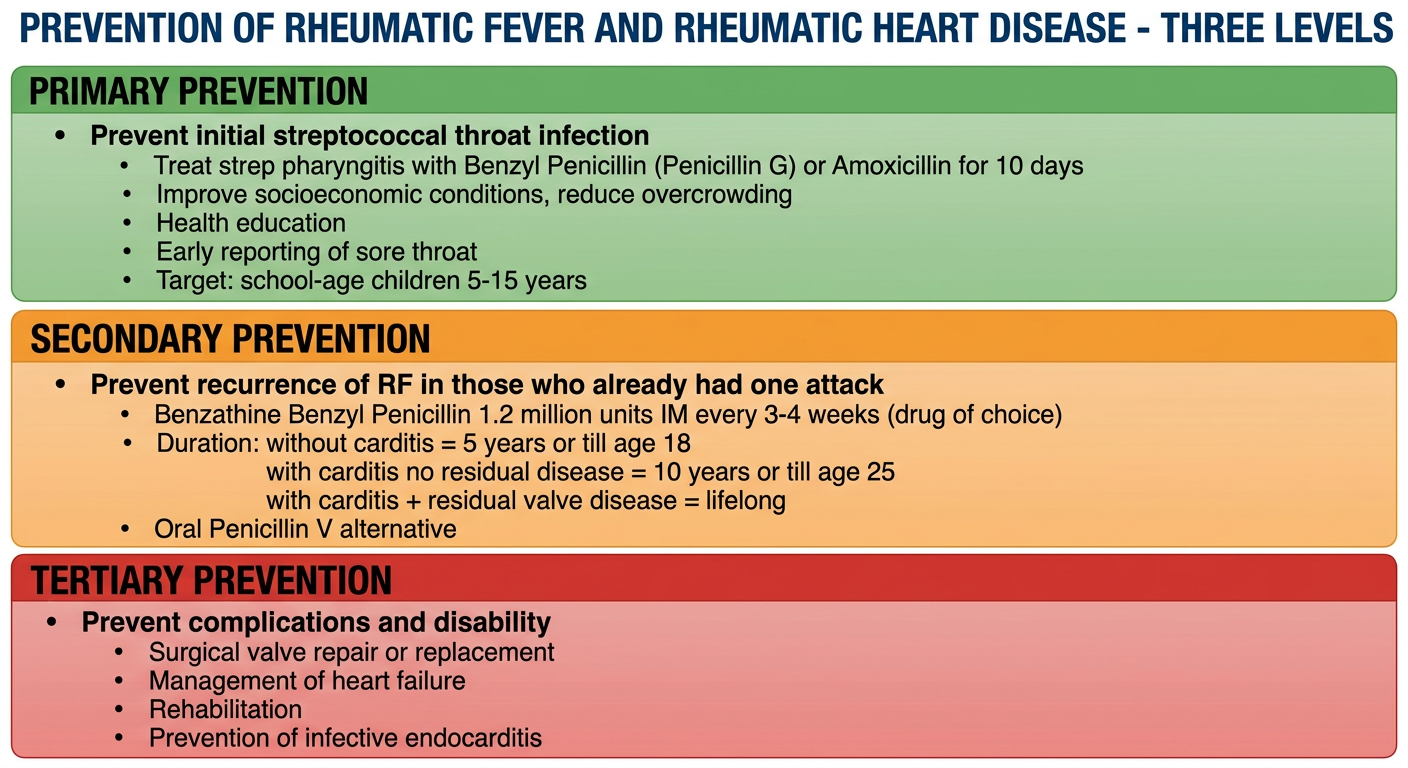

DIAGRAM 3 - Three Levels of Prevention

Prevention of RHD - Three Levels
The most important point (Park's):
  • Secondary prevention with Benzathine Benzyl Penicillin (1.2 million units IM every 3-4 weeks) is the cornerstone of RHD control in developing countries
  • Duration depends on whether carditis/residual valve disease is present - can be lifelong in those with residual valve lesions
  • RHD is one of the most readily preventable chronic diseases (Park's) - yet kills by age 35 if untreated

From now all park textbook of spm only broh

Got it! From now on for SPM:
  • All content strictly from Park's Textbook of Preventive and Social Medicine only
  • Diagrams that exist in Park's will be pulled directly from the textbook
  • If Park's has no diagram for a topic, I'll generate one based only on what Park's text describes - no outside sources
  • No mixing with other references
Park's only. Always. Ask away!
attachment
attachment

All the questions of short note - 8 marks Answer in detail Appropriate diagrams necessary Everything from park textbook of spm

I can see 9 questions. That's a lot to cover in one go with full detail + diagrams each. Let me clarify:
Asking for Preferences

Do you want all 9 answered together, or one at a time?

Let me search for all topics simultaneously from Park's:
Finding Sources
Finding Sources
Finding Sources
All locations found. Now reading all sections in parallel:
Reading File
Reading File
Reading File
Reading File
Good - found image URLs for Epidemiological Triad and Web of Causation. Now reading the remaining sections in parallel:
Reading File
Reading File
Reading File
Reading File
Now reading John Snow, health indicators categories, spectrum of health, chain of transmission (main section), and advanced triangles sections:
Finding Sources
Reading File
Reading File
Finding Sources
Finding Sources
Finding Sources
Finding Sources
Reading File
Reading File
Excellent - I now have Park's own diagrams for Chain of Infection, Epidemiological Triad, Advanced Triangle, Web of Causation, Iceberg, John Snow spot map. Let me fetch all the Park's textbook images simultaneously:
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
All Park's images retrieved. The Web of Causation image URL was truncated - I'll note that. Now let me compile all 9 answers:Here are all 9 answers, each at 8-mark detail, strictly from Park's:

SPM SHORT NOTES - 8 MARKS EACH

(Park's Textbook of Preventive and Social Medicine)


Q1. INDICATORS OF HEALTH

Definition

Indicators are variables which help to measure changes in a situation, especially when those changes cannot be measured directly (e.g., health or nutritional status). They serve as a reflection of a given situation. If measured sequentially over time, they indicate direction and speed of change and allow comparison between different areas or groups.
  • Health indicator - measures a specific aspect of health
  • Health index - an amalgamation of several health indicators

Characteristics of an Ideal Indicator (Park's)

An ideal indicator should be:
  • Valid - measures what it is supposed to measure
  • Reliable and objective - same answer regardless of who measures
  • Sensitive - responds to changes in the situation
  • Specific - reflects only changes in the situation concerned
  • Feasible - data collection is practically possible
  • Relevant - contributes to understanding the phenomenon

Classification of Health Indicators (Park's)

Since health is multidimensional, a profile of indicators must be used:
  1. Mortality indicators - Crude death rate, Life expectancy, Infant mortality rate (IMR), Under-5 mortality rate, Maternal mortality rate
  2. Morbidity indicators - Incidence, Prevalence, notification rates
  3. Disability rates - Event-type and person-type disability indicators
  4. Nutritional status indicators
  5. Health care delivery indicators
  6. Utilization rates
  7. Indicators of social and mental health
  8. Environmental indicators
  9. Socio-economic indicators
  10. Health policy indicators
  11. Indicators of quality of life
  12. Other indicators (e.g., HALE, QALY, DALYs)

Key Single Best Indicators

  • Best overall health indicator - Life expectancy at birth
  • Best indicator of health of children / socioeconomic development - Infant Mortality Rate (IMR)
  • Best sensitive indicator - IMR

Q2. ICEBERG PHENOMENON OF DISEASE

Definition

According to this concept, disease in a community may be compared with an iceberg. The floating tip represents what the physician sees - clinical (symptomatic) cases. The vast submerged portion represents the hidden mass of disease - latent, inapparent, presymptomatic, undiagnosed cases and carriers.
The "waterline" represents the demarcation between apparent and inapparent disease.

Park's Diagram (Fig. 10):

Iceberg of Disease - Park's
FIG. 10 - The Iceberg of Disease

Components of the Iceberg

Above waterline (Visible tip):
  • Symptomatic / clinical disease
  • What the physician sees
Below waterline (Hidden bulk):
  • Presymptomatic disease
  • Inapparent / subclinical infections
  • Undiagnosed cases
  • Carriers

Examples (Park's)

In diseases like hypertension, diabetes, anaemia, malnutrition, mental illness - the unknown (submerged) morbidity far exceeds the known morbidity.

Significance

  • The hidden part constitutes an important undiagnosed reservoir of infection or disease in the community
  • Its detection and control is a challenge to modern preventive medicine
  • One major deterrent in chronic disease study is the absence of methods to detect the subclinical state - the bottom of the iceberg
  • Explains why community-based screening is essential

Q3a. EPIDEMIOLOGICAL TRIAD

Background

The germ theory of disease (single cause) has limitations. Not everyone exposed to TB develops it. The same exposure in an undernourished or susceptible host may result in disease. This demanded a broader concept incorporating agent, host and environment.

The Triad

Epidemiological Triad - Park's Fig. 4
FIG. 4 - Epidemiological Triad (Agent - Host - Environment)

The Three Components

1. AGENT - The cause of disease. Includes:
  • Biological agents (bacteria, viruses, parasites, fungi)
  • Chemical agents (dietary factors, tobacco, solvents, poisons)
  • Physical agents (radiation, heat)
  • Nutritional deficiencies
2. HOST - The organism harbouring the disease. Determinants include:
  • Level of immunity
  • Genetic makeup
  • Age, sex, nutritional status
  • Level of exposure
3. ENVIRONMENT - Surroundings external to host. Includes:
  • Biological environment
  • Social, cultural and physical aspects
  • Conditions in which the pathogen lives
TIME (in the triangle model) - Accounts for:
  • Incubation periods
  • Duration of illness
  • Life expectancy of host/pathogen

Significance

The primary mission of epidemiology is to break one leg of the triangle, disrupting the connection among environment, host and agent, thus stopping the outbreak.

Q3b. ADVANCED TRIANGLES OF EPIDEMIOLOGY

Traditional Triangle (Fig. 5)

Triangle of Epidemiology - Park's Fig. 5
FIG. 5 - The Triangle of Epidemiology (with TIME at centre)
This is based on the communicable disease model showing interaction of Agent - Host - Environment with Time at the centre. Useful for investigating infectious disease outbreaks and epidemics.

Limitations of the Traditional Model

With advances in public health, communicable diseases declined - only to be replaced by "modern diseases of civilization" - lung cancer, CHD, chronic bronchitis, mental illness. These could not be explained by the germ theory, nor prevented by isolation or immunization alone.

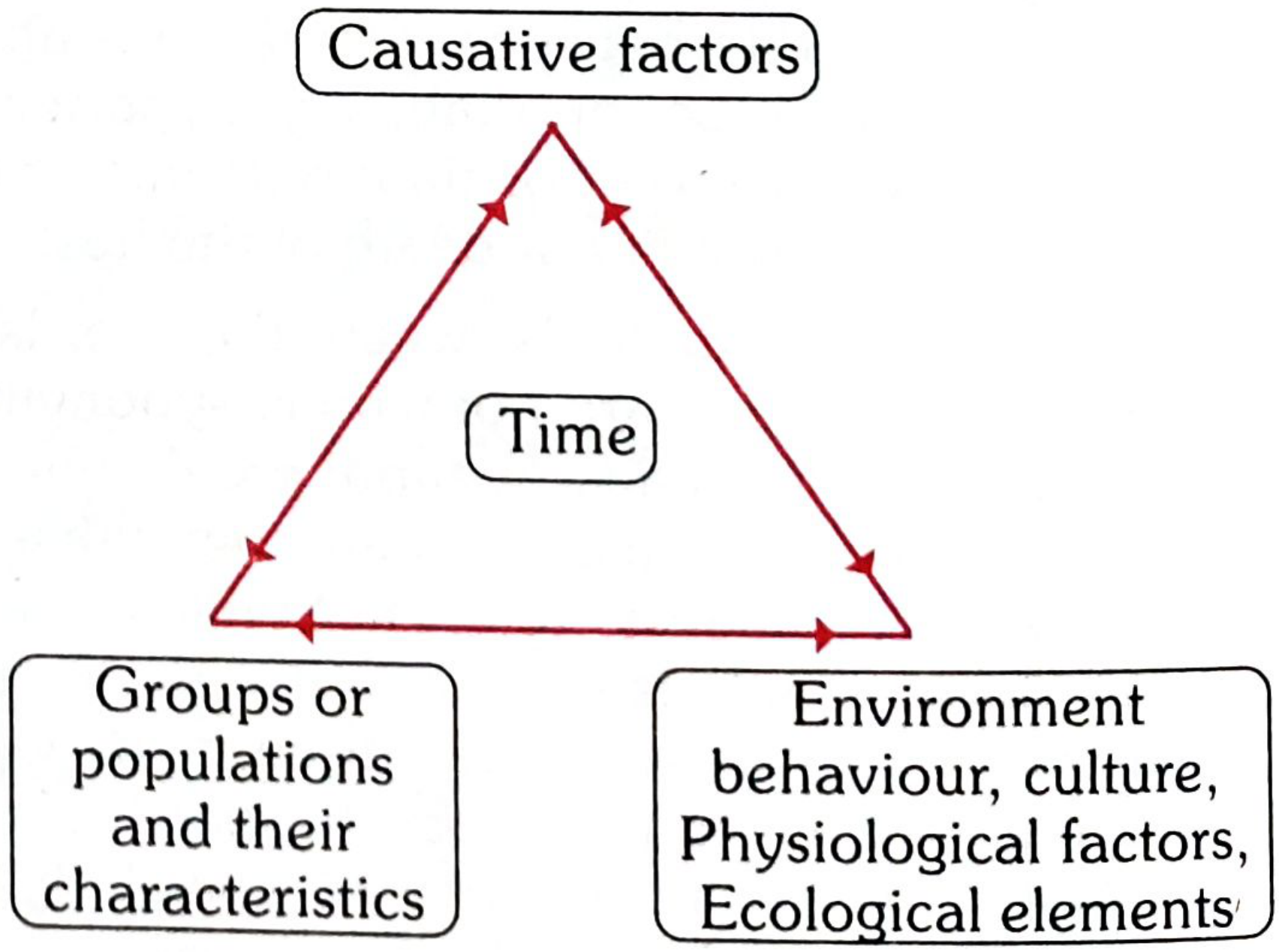

Advanced (Adapted) Model of the Triangle (Fig. 6)

Advanced Triangle of Epidemiology - Park's Fig. 6
FIG. 6 - Advanced Model of the Triangle of Epidemiology

Key Differences from Traditional Model

  • "Agent" is replaced by "Causative factors" - implying multiple aetiological factors
  • "Host" is replaced by "Groups or populations and their characteristics"
  • "Environment" now includes behaviour, culture, physiological factors, and ecological elements
  • Time remains at the centre
This model covers all facets of the communicable disease model AND incorporates causes of today's non-communicable diseases, disabilities, injuries and deaths - including lifestyle factors, behavioural causes, and chronic disease interactions.

Q4. SPECTRUM OF DISEASE (Spectrum of Health)

Definition

The term "spectrum of disease" is a graphic representation of variations in the manifestations of disease. Like the spectrum of light where colours vary from one end to the other without clear demarcation, disease manifestations also vary continuously.

The Spectrum

At one end: subclinical infections (not ordinarily identified) At the other end: fatal illnesses In the middle: illnesses ranging in severity from mild to severe
These different manifestations reflect individuals' different states of immunity and receptivity.

Gradient of Infection

In infectious diseases, the spectrum is also referred to as the "gradient of infection".

Example

Leprosy is an excellent example of the spectral concept - ranging from tuberculoid (strong immunity) to lepromatous (poor immunity) at the other end.
Almost every disease has a spectrum of severity - with few exceptions such as rabies (almost always fatal once symptomatic).

Relationship with Iceberg

The spectrum of disease is directly related to the iceberg phenomenon:
FATAL ←————————————————→ SUBCLINICAL
  ↑                              ↑
(Tip of iceberg)        (Bottom of iceberg)

Significance

  • The sequence of events can be interrupted by early diagnosis, treatment or preventive measures
  • It allows inclusion of all cases - both subclinical and clinical - in study of disease
  • Helps understand why the same organism produces different severity in different people

Q5. WEB OF CAUSATION

Origin

This model was suggested by MacMahon and Pugh in their book "Epidemiologic Principles and Methods". It is ideally suited for the study of chronic disease where the disease agent is often unknown and the disease is the outcome of multiple interacting factors.

Concept

The "web of causation" considers all the predisposing factors of any type and their complex interrelationship with each other.
Park's illustrates this with the causal web of Myocardial Infarction (Fig. 7) - which is by no means a complete web even then.
(Note: The web of causation diagram for MI is a complex multi-node flowchart from Park's showing factors like: heredity, diet, obesity, physical inactivity, hypertension, hyperlipidaemia, smoking, stress, diabetes - all converging in multiple interconnected pathways to myocardial infarction.)

Important Principle

The web of causation does NOT imply that disease cannot be controlled unless all causes are removed. Sometimes removal of just one important link in the chain may be sufficient to control disease, provided that link is sufficiently important in the pathogenetic process.
  • The relative importance of individual factors is expressed in terms of "relative risk"
  • In a multifactorial event, individual factors are not all of equal weight

Advantages of this Model

  • More suitable for non-communicable / chronic diseases
  • Helps identify multiple points of intervention
  • Acknowledges that disease cannot always be explained by a single agent
  • Useful in studying diseases like CHD, cancer, diabetes, hypertension

Difference from Epidemiological Triad

TriadWeb of Causation
Three factors (A-H-E)Multiple interacting factors
Best for communicable diseaseBest for chronic/non-communicable disease
Simple modelComplex model

Q6. ROLE OF JOHN SNOW IN PUBLIC HEALTH

Background

John Snow (1813-1858) was a London physician considered the "Father of Epidemiology" and the "Father of Field Epidemiology". His work on cholera in 1854 is a landmark in the history of public health.

The Cholera Epidemic of 1854 (Golden Square, London)

In 1854, a severe cholera epidemic broke out in the Golden Square district (Broad Street) of London. John Snow undertook a classic epidemiological investigation.
Method - Spot Map / Place of Distribution: Snow plotted the spot map of fatal cases of cholera - showing the location of deaths and the location of water pumps on a street map of London.
John Snow's Spot Map of Asiatic Cholera in London - Park's Fig. 6
FIG. 6 - Spot Map of Asiatic Cholera in London (after the original map by Dr. John Snow)
Key observations on the map:
  • Cases clustered around the Broad Street water pump
  • People living near other water pumps had fewer deaths
  • The boundary line on the map shows equal distances between the Broad Street pump and other pumps - and cases fell predominantly within the Broad Street pump boundary

Findings and Action

Based on his descriptive study, Snow was able to:
  • Hypothesize that cholera was a water-borne disease, long before the birth of bacteriology (the cholera bacillus was not discovered until 1883 by Koch)
  • Identify the Broad Street water pump as the source of infection
  • Remove the handle of the Broad Street pump - and the epidemic was controlled. This is the classic example of disease control by removing one link in the chain of causation

Contributions to Public Health

  • Pioneered the use of spot maps / place distribution in epidemiology
  • Demonstrated the descriptive epidemiology method (person, place, time)
  • Proved that disease can be controlled without knowing the causative organism - by epidemiological reasoning alone
  • His work established the foundation for epidemiological investigation of outbreaks
  • His approach is used to this day in field epidemiology and outbreak investigation

Q7. MORBIDITY INDICATORS

Need

Describing health in terms of mortality rates alone is misleading. Mortality indicators do not reveal the full burden of ill-health (e.g., mental illness, rheumatoid arthritis cause significant morbidity but little mortality). Hence morbidity indicators supplement mortality data.
Limitation of morbidity statistics: They tend to overlook a large number of subclinical or inapparent conditions - the hidden part of the iceberg.

Morbidity Rates Used (Park's)

The following morbidity rates are used to assess ill-health in the community:
a. Incidence and Prevalence
  • Incidence rate = Number of new cases in a defined population in a specified time period
  • Prevalence rate = Number of existing cases (new + old) in a defined population at a given point in time
  • Relationship: Prevalence = Incidence × Mean duration of disease
b. Notification rates - Reporting of notifiable diseases to health authorities
c. Attendance rates - At outpatient departments, health centres, etc.
d. Admission, readmission and discharge rates - From hospitals
e. Duration of stay in hospital - Reflects severity and bed occupancy
f. Spells of sickness or absence from work or school - A proxy measure of morbidity in the community

Other Important Measures

  • HALE (Health-Adjusted Life Expectancy) - Life expectancy adjusted for time spent in poor health; equivalent number of years in full health a newborn can expect to live
  • QALY (Quality-Adjusted Life Years) - Measures disease burden including both quality and quantity of life lived; used to assess value for money of medical interventions. Each year in perfect health = 1.0; a year in poor health = < 1.0
  • DALY (Disability-Adjusted Life Years) - Years of healthy life lost due to disease or disability

Significance

Morbidity indicators are essential to:
  • Identify the true burden of disease (including subclinical cases)
  • Plan and allocate health resources
  • Monitor programme effectiveness
  • Compare health status across populations and time

Q8. CHAIN OF TRANSMISSION OF DISEASE

The Three Links (Park's Fig. 16)

Communicable diseases are transmitted from the reservoir/source of infection to the susceptible host. There are three fundamental links in the chain of transmission:
Chain of Infection - Park's Fig. 16
FIG. 16 - Chain of Infection (Source/Reservoir - Modes of Transmission - Susceptible Host)

LINK 1: SOURCE / RESERVOIR OF INFECTION

Source of infection = the person, animal, object or substance from which an infectious agent passes to the host.
Reservoir = any person, animal, arthropod, plant, soil or substance in which an infectious agent lives, multiplies and reproduces in such a manner that it can be transmitted to a susceptible host.
Three types of reservoirs:
1. Human reservoir - Most important source for humans. May be:
  • Cases (clinical cases - severe, mild, inapparent)
  • Carriers - Healthy carrier, incubatory carrier, convalescent carrier, chronic carrier
2. Animal reservoir (Zoonoses) - Diseases transmissible from animals to humans:
  • e.g., Rabies (dogs/foxes), Brucellosis (cattle), Plague (rats), Leptospirosis (rats)
3. Non-living reservoir - Soil (tetanus, anthrax), water, food
Note: Reservoir and source are not always the same. In hookworm - reservoir is man but source is contaminated soil.

LINK 2: MODES OF TRANSMISSION

A. Direct transmission - Without intermediary:
  • Direct contact (STDs, scabies)
  • Droplet spread (influenza, measles)
  • Contact with soil (hookworm, tetanus)
  • Transplacental (rubella, syphilis, HIV)
B. Indirect transmission - With intermediary:
  • Vehicle-borne (contaminated food, water, milk, blood)
  • Vector-borne:
    • Mechanical (flies transmitting typhoid)
    • Biological (malaria parasite in mosquito)
      • Propagative (plague in rat flea - multiplies, no change in form)
      • Cyclo-propagative (malaria in Anopheles - changes form and number)
      • Cyclo-developmental (microfilaria in mosquito - develops, no multiplication)
  • Airborne - Droplet nuclei (TB, measles, chickenpox), dust
  • Fomites - Inanimate objects (towels, utensils, surgical instruments)

LINK 3: SUSCEPTIBLE HOST

Host susceptibility depends on:
  • Immunity (specific and non-specific)
  • Genetic makeup
  • Nutritional status
  • Age and sex
  • Concurrent disease

Significance

Interrupting any single link in the chain of transmission breaks the chain and prevents disease spread. This is the basis of all communicable disease control measures.

Q9. INTERNATIONAL CLASSIFICATION OF DISEASES (ICD)

Background

The ICD was produced by WHO and accepted in 1940 for national and international use. It has been revised about once every 10 years. The 6th revision (1948) expanded its scope to cover morbidity from illness and injury (earlier it covered only causes of death).

Definition / Purpose

ICD is:
  • The foundation for identification of health trends and statistics globally
  • The international standard for reporting diseases and health conditions
  • A diagnostic classification standard for all clinical and research purposes
  • Defines the universe of diseases, disorders, injuries and related health conditions in a comprehensive, hierarchical fashion

Functions of ICD

It allows for:
  • Easy storage, retrieval and analysis of health information for evidence-based decision-making
  • Sharing and comparing health information between hospitals, regions, settings and countries
  • Data comparison in the same location across different time periods

ICD-10

  • Came into effect on 1st January 1993 (10th revision)
  • Used widely across the world for coding diseases, causes of death and health conditions

ICD-11 (Current - 21st Century Update)

The ICD-11 has been updated for the 21st century, reflecting significant progress in science and medicine over the past 30 years. Key features:
  • Designed for use with digital health applications
  • Accessible online or downloadable free of charge in multiple languages
  • Comprises over 55,000 entities and 120,000 clinical terms
  • Can code millions of terms with thousands of new categories
Key new changes in ICD-11:
  • New chapter on sexual health (gender incongruence reclassified - not a mental health condition)
  • New chapter on traditional medicine
  • Stroke now classified as a neurological disorder (not circulatory system) - a landmark change
  • HIV recognized as a chronic condition with updated therapy codes
  • Allergy coded under diseases of the immune system
  • Better reporting of antimicrobial resistance
  • Enhanced mental health descriptions for simpler diagnosis

Significance

ICD provides a common language for reporting and monitoring diseases globally. It is the backbone of:
  • National mortality statistics
  • Hospital morbidity data
  • Epidemiological surveillance
  • Health resource allocation and planning

All answers from: Park's Textbook of Preventive and Social Medicine

Add More points to answers

Let me pull more content from Park's for each of the 9 topics.
Reading File
Reading File
Reading File
Reading File
Reading File
Reading File
Reading File
Reading File
Excellent additional content. Here are all 9 answers with significantly expanded points from Park's:

SPM SHORT NOTES - 8 MARKS (EXPANDED)

(Park's Textbook of Preventive and Social Medicine)


Q1. INDICATORS OF HEALTH

Definition

Indicators are variables which help to measure changes in a situation, especially when those changes cannot be measured directly (e.g., health, nutritional status). They reflect the situation and - if measured sequentially over time - indicate direction and speed of change and allow comparison between different areas or groups.
  • Health indicator - measures a specific aspect of health
  • Health index - an amalgamation of several health indicators

Characteristics of an Ideal Indicator

  • Valid - measures what it is supposed to measure
  • Reliable and objective - same answer regardless of who measures
  • Sensitive - responds to changes in the situation
  • Specific - reflects only changes in the situation concerned
  • Feasible - data collection is practically possible
  • Relevant - contributes to understanding the phenomenon

Why a Profile of Indicators is Needed

Health is multidimensional and influenced by numerous factors. No single indicator can capture it fully. Therefore, health must be measured through a profile of many indicators.

Classification of Health Indicators (Park's - 12 Categories)

1. Mortality Indicators
  • (a) Crude death rate - number of deaths per 1000 population per year; useful for comparison but affected by age-sex composition
  • (b) Life expectancy at birth - average number of years lived if current age-specific mortality rates persist; best overall health indicator
  • (c) Age-specific death rates - deaths in a specific age group per 1000 of the same age group
  • (d) Infant Mortality Rate (IMR) - deaths under 1 year per 1000 live births; most universally accepted, sensitive indicator of availability, utilization and effectiveness of health care; sensitive indicator of the whole population's health status and socioeconomic conditions
  • (e) Child death rate - deaths at ages 1-4 years per 1000 children in that group; may be 25 times higher in least developed vs developed countries
  • (f) Under-5 proportionate mortality rate - proportion of total deaths in under-5 age group; may exceed 60 per 1000 live births in communities with poor hygiene
  • (g) Adult mortality rate - probability of dying between 15 and 60 years per 1000 population
  • (h) Maternal mortality rate - accounts for greatest proportion of deaths among women of reproductive age in developing world
  • (i) Disease-specific mortality rate - e.g., CHD causes 25-30% of deaths in western countries
  • (j) Proportional mortality rate - proportion of all deaths attributed to a specific disease; indicates magnitude of preventable mortality
  • (k) Case fatality rate - measures risk of dying from a particular disease
2. Morbidity Indicators - Incidence, prevalence, notification rates, OPD attendance rates, hospital admissions, duration of stay, sickness absenteeism
3. Disability Rates
  • Event-type: days of restricted activity, bed disability days, work/school-loss days
  • Person-type: limitation of mobility and activity (ADL)
  • HALE (Health-Adjusted Life Expectancy) - years in full health a newborn can expect
  • QALY (Quality-Adjusted Life Years) - quality + quantity of life; 1 year perfect health = 1.0 QALY
  • DALY (Disability-Adjusted Life Years) = YLL (Years of Life Lost) + YLD (Years Lived with Disability); 1 DALY = 1 year of healthy life lost
  • DFLE (Disability-Free Life Expectancy) - average years expected to be lived free of disability
4. Nutritional Status Indicators - Positive health indicators
5. Health Care Delivery Indicators - Doctor-population ratio, nurse-population ratio, population per health facility
6. Utilization Rates - Attendance rates, bed occupancy
7. Indicators of Social and Mental Health
8. Environmental Indicators
9. Socio-economic Indicators - Per capita GNP, family size, housing (persons per room), literacy rate, per capita calorie availability
10. Health Policy Indicators - Proportion of GNP spent on health; proportion devoted to primary health care; single most important = political commitment (adequate resource allocation)
11. Indicators of Quality of Life - Physical Quality of Life Index (PQLI) - consolidates: infant mortality, life expectancy at age 1, and literacy rate
12. Social Indicators / Basic Needs Indicators (ILO) - calorie consumption, access to water, life expectancy, illiteracy, doctors/nurses per population

WHO "Health for All" Indicators (4 Categories - Park's Table 2)

  1. Health policy indicators - political commitment, resource allocation, equity, community involvement
  2. Social and economic indicators - GNP/GDP, income distribution, adult literacy, housing, food availability
  3. Indicators for provision of health care - availability, accessibility, utilization, quality
  4. Health status indicators - IMR, child mortality, life expectancy, MMR, morbidity, disability prevalence

Q2. ICEBERG PHENOMENON OF DISEASE

Concept

Disease in a community may be compared with an iceberg. The floating tip represents what the physician sees - clinical (symptomatic) cases. The vast submerged portion represents the hidden mass of disease - latent, inapparent, presymptomatic, undiagnosed cases and carriers. The "waterline" is the demarcation between apparent and inapparent disease.

Park's Diagram (Fig. 10):

Iceberg of Disease - Park's
FIG. 10 - The Iceberg of Disease (Park's)

Components

Above the waterline (Visible tip):
  • Symptomatic/clinical disease
  • What the physician sees and what appears in statistics
Below the waterline (Hidden bulk):
  • Presymptomatic disease - disease present but not yet manifest
  • Inapparent/subclinical infections - agent multiplies but no signs/symptoms; detected only by lab tests
  • Undiagnosed cases - diseased but never sought care
  • Carriers - harbour the agent without apparent disease

Subclinical Infection - Key Points (Park's)

  • Subclinical cases are also called inapparent, covert, missed or abortive cases
  • The disease agent multiplies and is eliminated into the environment just like clinical cases
  • Persons who are sick "unbeknown to themselves and others" - contribute MORE to transmission than symptomatic patients and do not appear in any statistics
  • Subclinical infection occurs in most infectious diseases - e.g., rubella, mumps, polio, hepatitis A and B, Japanese encephalitis, influenza, diphtheria
  • Subclinical infections are responsible for the natural immunity shown by adults to many microbes
  • Latent infection (e.g., herpes simplex, Brill-Zinser disease) - distinct from subclinical; host does not shed the agent which lies dormant

Examples of Iceberg Diseases (Park's)

  • Hypertension, diabetes, anaemia, malnutrition, mental illness - unknown morbidity far exceeds known morbidity
  • Polio - for every paralytic case, there are hundreds of subclinical cases
  • Hypertension - "Rule of Halves" - only ½ are aware, ½ of those treated, ½ adequately controlled

Significance

  • Hidden part = important undiagnosed reservoir of infection/disease
  • Its detection is a challenge to modern preventive medicine
  • Explains why community screening is essential
  • Absence of methods to detect subclinical state is a major deterrent in chronic disease study

Q3a. EPIDEMIOLOGICAL TRIAD

Background

The germ theory of disease (single cause concept) has limitations. Not everyone exposed to TB develops TB. The same exposure in a malnourished or susceptible person may result in disease. This demanded a broader concept synthesizing agent, host and environment.

Park's Diagram (Fig. 4):

Epidemiological Triad - Park's Fig. 4
FIG. 4 - Epidemiological Triad

The Three Components

1. AGENT - The cause of disease:
  • Biological - bacteria, viruses, parasites, fungi, molds
  • Chemical - dietary chemicals, tobacco smoke, solvents, radiation, heat, poison
  • Physical - radiation, heat, mechanical forces
  • Nutritional deficiencies - protein, vitamins, minerals
  • One or several agents may contribute to an illness
2. HOST - The organism harbouring the disease:
  • Level of immunity (specific and non-specific)
  • Genetic makeup - some pathogens thrive only in limited temperature range
  • Level of exposure, state of health, overall fitness
  • Age, sex, nutritional status
  • Behaviour and lifestyle
3. ENVIRONMENT - Surroundings external to the host:
  • Biological - insects, animals, microorganisms in the environment
  • Social, cultural, and physical aspects
  • Environment can be within a host (internal) or external in the community
  • Surroundings in which the pathogen lives and their effect on it
TIME (at the centre of the triangle):
  • Incubation periods
  • Life expectancy of host or pathogen
  • Duration of illness
  • Threshold of an epidemic in a population
  • Severity of illness in relation to how long a person is infected

Disease occurs when:

  • The agent is virulent/numerous enough
  • The host is susceptible
  • The environment favours transmission

Application

Primary mission of epidemiology = to provide information that results in breaking one leg of the triangle, disrupting the connection and stopping the outbreak.
Examples of "breaking the leg":
  • Breaking the agent leg: antibiotics, vaccination
  • Breaking the host leg: improving nutrition, immunization
  • Breaking the environment leg: sanitation, vector control

Q3b. ADVANCED TRIANGLES OF EPIDEMIOLOGY

1. Traditional Triangle of Epidemiology (Fig. 5)

Triangle of Epidemiology - Park's Fig. 5
FIG. 5 - The Triangle of Epidemiology (Agent - Host - Environment with TIME at centre)
Based on the communicable disease model. Useful for investigating infectious disease outbreaks and epidemics. Shows the interaction and interdependence of agent, host, environment, and time.

Why an Advanced Model was Needed

With advances in public health, communicable diseases declined - replaced by "modern diseases of civilization" - lung cancer, CHD, chronic bronchitis, mental illness. These diseases could not be explained by the germ theory nor prevented by isolation or immunization alone.
The concept that disease is due to multiple factors is not new - Pettenkofer of Munich (1819-1901) was an early proponent. But the germ theory/single cause idea in the late 19th century overshadowed this.

2. Advanced (Adapted) Model of the Triangle (Fig. 6)

Advanced Triangle of Epidemiology - Park's Fig. 6
FIG. 6 - Advanced Model of the Triangle of Epidemiology

Key Differences from Traditional Model

ComponentTraditional TriangleAdvanced Triangle
Top vertexAgentCausative factors (multiple aetiological factors)
Bottom leftHostGroups/populations and their characteristics
Bottom rightEnvironmentEnvironment, behaviour, culture, physiological factors, ecological elements
CentreTimeTime

What the Advanced Model Covers

  • All facets of the communicable disease model
  • Causes of today's non-communicable diseases, disabilities, injuries, deaths
  • Behaviour and lifestyle factors
  • Chronic disease interactions
  • Ecological elements
The term "agent" is replaced by "causative factors" - implying the need to identify multiple aetiological factors of disease, disability, injury and death.

Q4. SPECTRUM OF DISEASE (Spectrum of Health)

Definition

"Spectrum of disease" is a graphic representation of variations in the manifestations of disease. Like the spectrum of light where colours vary continuously from one end to the other with no clear demarcation, disease manifestations also vary continuously from subclinical to fatal.

The Spectrum (from one end to the other)

Subclinical → Mild → Moderate → Severe → Fatal
(Inapparent)   infection        illness    death
At one end: subclinical infections - not ordinarily identified At the other end: fatal illnesses In the middle: illnesses ranging in severity from mild to severe
These different manifestations simply reflect individuals' different states of immunity and receptivity.

"Gradient of Infection"

In infectious diseases, the spectrum of disease is also referred to as the "gradient of infection". This gradient determines what proportion of exposed individuals will develop clinical illness vs. subclinical infection.

Examples

  • Leprosy - excellent example of spectral concept: ranges from tuberculoid (high immunity end) to lepromatous (low immunity end)
  • Polio - vast majority are subclinical; very few develop paralysis
  • Rabies - one of the few exceptions where the spectrum is almost invariably fatal once symptomatic
  • Almost every disease has a spectrum: tuberculosis, hepatitis, meningococcal infection, etc.

Relationship with Iceberg

The spectrum of disease provides the theoretical basis for the iceberg phenomenon. The subclinical end of the spectrum corresponds to the submerged portion of the iceberg.

Significance

  • Allows inclusion of all cases - both subclinical and clinical - in disease study
  • The sequence can be interrupted by early diagnosis, treatment or preventive measures introduced at a particular point
  • Helps explain why the same organism causes different severity in different individuals
  • Forms the basis for understanding herd immunity - if many people have subclinical disease, they develop immunity which protects the community

Q5. WEB OF CAUSATION

Origin

Suggested by MacMahon and Pugh in "Epidemiologic Principles and Methods". Ideally suited for the study of chronic/non-communicable disease where the agent is often unknown and disease is the outcome of multiple interacting factors.

Concept

The web of causation considers all predisposing factors of any type and their complex interrelationship with each other. It can be visualized as a complex network of interconnected causes - like a spider's web.
Park's illustrates this with the causal web of Myocardial Infarction (Fig. 7) - described as incomplete even then. The factors in the web include:
  • Heredity
  • Diet high in saturated fat
  • Obesity
  • Physical inactivity
  • Hypertension
  • Hyperlipidaemia
  • Smoking
  • Stress
  • Diabetes
  • Age, sex
All of these interact in multiple pathways converging to cause myocardial infarction.

Important Principle

The web does NOT imply that all causes must be removed to control disease. Sometimes removing just one sufficiently important link in the chain may be enough to control the disease. The relative importance of individual factors is expressed in terms of "relative risk".
Example: Stopping smoking alone significantly reduces the risk of lung cancer, even though cancer is multifactorial.

Why the Web Model is Superior for Chronic Diseases

  • Acknowledges multiple causation - no single agent explanation
  • Shows multiple intervention points
  • Reflects the biological complexity of modern diseases
  • Helps quantify the contribution of each factor (via relative risk)
  • Useful in planning multi-pronged prevention strategies

Q6. ROLE OF JOHN SNOW IN PUBLIC HEALTH

Background

John Snow (1813-1858) - a London physician, considered the "Father of Epidemiology" and "Father of Field Epidemiology". Made landmark contributions to public health through his investigation of cholera in 1854.

The Cholera Epidemic of 1854 (Broad Street, Golden Square - London)

A severe cholera epidemic struck the Golden Square district (Broad Street) of London in 1854. Snow conducted a classic epidemiological investigation before the era of bacteriology.

Method - Spot Map (Place Distribution)

Snow plotted a spot map of fatal cholera cases alongside the location of water pumps on the street map of London.
John Snow's Spot Map of Asiatic Cholera in London
FIG. 6 - Spot Map of Asiatic Cholera in London (after the original map by Dr. John Snow)
The map showed:
  • Deaths clustered around the Broad Street water pump
  • A boundary line showing equal distances between the Broad Street pump and other pumps
  • Fatal cases fell predominantly within the Broad Street pump zone
  • People nearest to other pumps had fewer deaths
  • The workhouse nearby (with its own water supply) had very few deaths despite being in the epidemic zone

Key Analysis - Person, Place, Time

Snow used all three dimensions of descriptive epidemiology:
  • Place - spot mapping; cases concentrated around Broad Street pump
  • Person - those using the Broad Street pump were affected; those with other water sources were spared
  • Time - epidemic curve showed a sharp rise and fall

Action Taken

Snow recommended and achieved the removal of the handle of the Broad Street water pump - the epidemic was brought under control. This is the classic example of disease control by removing one critical link in the chain of causation.

Significance of Snow's Work

  1. Demonstrated that cholera is waterborne, long before Koch discovered Vibrio cholerae (1883) - purely by epidemiological reasoning
  2. Pioneered the use of spot maps to study place distribution of disease
  3. Established the method of descriptive epidemiology - person, place, time
  4. Proved that disease can be controlled without knowing the causative agent - one of epidemiology's most important lessons
  5. His approach is the foundation of field epidemiology and outbreak investigation used worldwide to this day
  6. His work inspired Maxcy's rodent reservoir hypothesis for typhus (1920s using spot map by place of employment), and epidemiological evidence for AIDS as an infectious disease (case clustering by sexual contact and blood product use)

Q7. MORBIDITY INDICATORS

Why Morbidity Indicators are Needed

Describing health by mortality rates alone is misleading - mortality does not reveal the full burden of ill-health (e.g., mental illness, rheumatoid arthritis - significant morbidity, little mortality). Morbidity indicators supplement mortality data.
Limitation: Morbidity statistics tend to overlook the large number of subclinical/inapparent conditions - the hidden part of the iceberg.

Morbidity Rates Used (Park's)

a. Incidence and Prevalence - the cornerstone of morbidity measurement:
  • Incidence rate = new cases in defined population in specified time ÷ population at risk × 1000
  • Prevalence rate = all existing cases (new + old) at a point in time ÷ total population × 1000
  • Relationship: Prevalence ≈ Incidence × Mean duration of disease
  • Incidence measures risk; prevalence measures burden
b. Notification rates - mandatory reporting of notifiable diseases (cholera, plague, typhoid, etc.) to health authorities; reflects only reported cases - significant underreporting
c. Attendance rates - at OPD, health centres, dispensaries - proxy measure of morbidity burden in community
d. Admission, readmission and discharge rates - from hospitals; reflects more severe morbidity
e. Duration of stay in hospital - reflects severity, case complexity, bed occupancy and efficiency of care
f. Spells of sickness or absence from work or school - community-level proxy; used in occupational health and school health

Composite Morbidity-Disability Measures (Park's)

  • HALE (Health-Adjusted Life Expectancy) - life expectancy adjusted for time spent in poor health; equivalent number of years in full health a newborn can expect based on current ill-health and mortality rates
  • QALY (Quality-Adjusted Life Years) - measures disease burden including both quality and quantity of life; used in assessing value-for-money of medical interventions
    • 1 year in perfect health = 1.0 QALY
    • 1 year in poor health = < 1.0 QALY
    • Death = 0.0
  • DALY (Disability-Adjusted Life Years) = YLL + YLD
    • Originally developed by Harvard University for World Bank (1990); adopted by WHO in 2000
    • YLL (Years of Life Lost) = deaths at each age × expected remaining life years (by global standard)
    • YLD (Years Lived with Disability) = incident cases × average duration × severity weight (0 = perfect health, 1 = dead)
    • 1 DALY = 1 year of healthy life lost
    • Japanese life expectancy used as standard (longest in world)
    • Reveals hidden burden - e.g., 5 out of 10 leading causes of disability (1990 WHO report) were psychiatric conditions; yet psychiatric conditions cause only 1.4% of deaths
  • DFLE (Disability-Free Life Expectancy) - average years expected free of disability

Q8. CHAIN OF TRANSMISSION OF DISEASE

The Three Links (Park's Fig. 16)

Communicable diseases are transmitted from the reservoir/source to the susceptible host. There are three fundamental links:
Chain of Infection - Park's Fig. 16
FIG. 16 - Chain of Infection

LINK 1: SOURCE / RESERVOIR

Source = person, animal, object or substance from which the agent passes to the host Reservoir = natural habitat where the agent lives, multiplies and reproduces and from which it can be transmitted
Note: Reservoir and source are NOT always the same:
  • Hookworm: reservoir = man; source = contaminated soil
  • Typhoid: reservoir = case/carrier; source = faeces, urine, contaminated food/water
Types of Reservoirs:
1. Human Reservoir - Three sub-categories:
(a) Cases:
  • Clinical cases (mild, moderate, severe, fatal) - epidemiologically, mild/ambulant cases are more important sources because they spread infection widely, unlike severe cases confined to bed
  • Subclinical cases - equally important; contribute MORE to transmission than symptomatic patients; do not appear in statistics; responsible for maintaining endemicity
  • Primary case - first case introduced into a population
  • Index case - first case to come to the attention of the investigator (may not be the primary case)
  • Secondary cases - develop from contact with primary case
(b) Carriers - crucially important:
  • Healthy carrier - never shows illness; most dangerous as unsuspected
  • Incubatory carrier - in the incubation period, already infectious
  • Convalescent carrier - recovering patient still shedding organism (e.g., typhoid)
  • Chronic carrier - persistent shedding for months/years (e.g., typhoid Mary, HBsAg carrier)
  • Carriers play a dominant role in maintaining endemicity
2. Animal Reservoir (Zoonoses) - diseases transmissible from vertebrate animals to humans:
  • Rabies (dogs, foxes, bats)
  • Plague (rats)
  • Brucellosis (cattle, goats)
  • Leptospirosis (rats)
  • Homologous reservoir - same species (e.g., man for vibrio cholerae)
  • Heterologous reservoir - other species (e.g., animals/birds with salmonella)
3. Non-living Reservoir: Soil (tetanus, anthrax, histoplasmosis), water, food

LINK 2: MODES OF TRANSMISSION

A. Direct Transmission (no intermediary):
  • Direct contact - STIs, scabies, ringworm
  • Droplet spread - within ~1 metre; influenza, measles, whooping cough
  • Contact with soil - hookworm, tetanus
  • Transplacental (vertical) - rubella, syphilis, HIV, toxoplasmosis
B. Indirect Transmission (with intermediary):
  • Vehicle-borne - contaminated food, water, milk, blood, instruments, fomites
  • Airborne:
    • Droplet nuclei - tiny particles (<5 microns) that remain suspended in air for long periods; can travel long distances; TB, measles, chickenpox
    • Dust - dried secretions on dust particles
  • Vector-borne:
    • Mechanical transmission - agent carried on feet/proboscis of insect; NO multiplication in vector; e.g., flies transmitting typhoid
    • Biological transmission - agent undergoes development/multiplication in vector; requires extrinsic incubation period:
      • Propagative - multiplies only, no change in form; e.g., plague bacilli in rat flea
      • Cyclo-propagative - changes in form AND number; e.g., malaria parasite in Anopheles mosquito
      • Cyclo-developmental - develops only, no multiplication; e.g., microfilaria in mosquito
    • Transovarial transmission - agent transmitted from infected female to her progeny (vertical in vector)
    • Transstadial transmission - agent passes from one stage of life cycle to next (e.g., nymph to adult)
Classification of vector-borne diseases by transmission chain:
  • Man-arthropod-man: malaria
  • Man-snail-man: schistosomiasis
  • Mammal-arthropod-man: plague
  • Bird-arthropod-man: encephalitis
  • Man-cyclops-fish-man: fish tapeworm
  • Man-snail-crab-man: paragonimiasis

LINK 3: SUSCEPTIBLE HOST

Susceptibility depends on:
  • Immunity - specific (antibodies, cell-mediated) and non-specific (skin, mucous membranes, phagocytes)
  • Genetic makeup - HLA associations (e.g., HLA-B8 in RF)
  • Nutritional status - malnutrition increases susceptibility
  • Age and sex - e.g., extremes of age more vulnerable
  • Concurrent disease - immunocompromised states
  • Behaviour - personal hygiene, sexual behaviour, occupation

Breaking the Chain

Interrupting any single link breaks the chain and prevents spread - the basis of all communicable disease control. E.g.:
  • Treating the source (reservoir) with antibiotics
  • Interrupting transmission by sanitation, vector control, condom use
  • Protecting the host by vaccination, chemoprophylaxis

Q9. INTERNATIONAL CLASSIFICATION OF DISEASES (ICD)

Background

ICD produced by WHO; accepted in 1940 for national and international use. Revised approximately every 10 years. The 6th revision (1948) was a landmark - expanded scope to include morbidity from illness and injury (previously only deaths). The 10th revision (ICD-10) came into effect on 1st January 1993.

Definition

ICD is:
  • Foundation for identification of health trends and statistics globally
  • International standard for reporting diseases and health conditions
  • Diagnostic classification standard for all clinical and research purposes
  • Defines the universe of diseases, disorders, injuries and related conditions in a comprehensive, hierarchical fashion

Functions of ICD

  • Easy storage, retrieval and analysis of health information for evidence-based decision-making
  • Sharing and comparing health information between hospitals, regions, settings and countries
  • Data comparison in the same location across different time periods
  • Basis for national mortality statistics, hospital morbidity data, resource allocation, research

ICD-11 (Adopted by World Health Assembly 2019; effective 1st January 2022)

Updated for the 21st century to reflect significant scientific and medical progress.
Technical features:
  • Designed for use with digital health applications
  • Accessible online or downloadable free of charge in multiple languages
  • Comprises over 55,000 entities and 120,000 clinical terms
  • Can code millions of terms with thousands of new categories
Chapters of ICD-11 (complete list from Park's):
  1. Certain infectious and parasitic diseases
  2. Neoplasms
  3. Diseases of blood and blood forming organs
  4. Disorders of the immune system (allergy now coded here)
  5. Endocrine, nutritional and metabolic diseases
  6. Mental, behavioural or neurodevelopmental disorders
  7. Sleep-wake disorders (new chapter)
  8. Diseases of the visual system
  9. Diseases of the nervous system (stroke now here - landmark change)
  10. Diseases of the ear and mastoid process
  11. Diseases of the circulatory system
  12. Diseases of the respiratory system
  13. Diseases of the digestive system
  14. Diseases of the skin
  15. Diseases of musculoskeletal system and connective tissue
  16. Diseases of the genitourinary system
  17. Conditions related to sexual health (new chapter - gender incongruence here)
  18. Pregnancy, childbirth and puerperium
  19. Conditions in perinatal/neonatal period
  20. Developmental anomalies
  21. Symptoms/signs not elsewhere classified
  22. Injury, poisoning or consequences of external causes
  23. External causes of morbidity and mortality
  24. Factors influencing health status/contact with health services
  25. Codes for special purposes
  26. Supplementary chapter - Traditional Medicine Conditions (new) V. Supplementary section for functioning assessment X. Extension codes
Key new changes in ICD-11:
  • Stroke reclassified as neurological disorder (not circulatory) - "long overdue"
  • Gender incongruence moved to sexual health chapter - not a mental health condition; reduces stigma
  • HIV recognized as a chronic condition with updated therapy codes
  • Allergy under diseases of the immune system
  • ADHD - symptoms no longer required within a fixed age range for diagnosis
  • Better coding for antimicrobial resistance (aligned with Global AMR Surveillance System)
  • Enhanced mental health descriptions for simpler diagnosis
  • New traditional medicine chapter

Linkages with other Classifications (ICD-11)

  • ICD-O (Oncology)
  • ICD-10 (External Causes of Injury)
  • ICF (International Classification of Functioning, Disability and Health)
  • ICPC (International Classification of Primary Care)
  • SNOMED-CT, OrphaNet

ICF (International Classification of Functioning, Disability and Health)

  • Framework for organizing information on functioning and disability (WHO 2001)
  • Conceptualizes functioning as a "dynamic interaction between a person's health condition, environmental factors and personal factors"
  • Integrates medical model and social model of disability as a bio-psycho-social synthesis
  • Provides standard language for definition and measurement of disability

All content from: Park's Textbook of Preventive and Social Medicine

add diagrams also

The Park's textbook diagrams are already included in the answers above (Epidemiological Triad Fig.4, Triangle of Epidemiology Fig.5, Advanced Triangle Fig.6, Iceberg Fig.10, Chain of Infection Fig.16, John Snow Spot Map Fig.6).
The only ones missing diagrams are Q1, Q4, Q5, Q7, Q9. Let me generate those now.
Generating Image

Medical textbook diagram "Classification of Health Indicators" from Park's Preventive and Social Medicine. A clean hierarchical diagram with central oval labeled "HEALTH INDICATORS (Profile approach)" with 12 branches radiating outward like a wheel/sunburst. Each branch is a numbered box: 1. Mortality Indicators (CDR, IMR, Life expectancy, MMR), 2. Morbidity Indicators (Incidence, Prevalence, Notification rates), 3. Disability Rates (DALY, QALY, HALE, DFLE), 4. Nutritional Status Indicators, 5. Health Care Delivery Indicators, 6. Utilization Rates, 7. Social and Mental Health Indicators, 8. Environmental Indicators, 9. Socio-economic Indicators, 10. Health Policy Indicators, 11. Quality of Life Indicators (PQLI), 12. Social/Basic Needs Indicators. At the bottom a note box: "Best single indicator = IMR (Infant Mortality Rate)". White background, clean medical diagram, color-coded branches, textbook quality, bold headings.

Generating Image

Medical textbook diagram "Spectrum of Disease" from Park's Preventive and Social Medicine. A horizontal arrow from left to right showing the complete disease spectrum. Left end labeled "SUBCLINICAL / INAPPARENT INFECTION" with sub-label "Below waterline - Iceberg". Right end labeled "FATAL ILLNESS / DEATH". Along the arrow in order from left to right: boxes showing "Subclinical infection", "Mild illness", "Moderate illness", "Severe illness", "Fatal illness". Above the central portion of the arrow: "CLINICAL DISEASE (What physician sees)". Below the left portion: "INAPPARENT DISEASE (Hidden - not diagnosed)". A dashed vertical line cutting the spectrum labeled "WATERLINE (Threshold of clinical detection)". Below the spectrum a second row showing disease examples: "Polio - 99% subclinical" at left end and "Rabies - almost always fatal" at right end. "Leprosy - full spectrum" in the middle. At the bottom a note: "These variations reflect different states of immunity and receptivity - Park's". White background, clean arrows, color gradient from light blue (subclinical) to red (fatal), medical textbook style.

Generating Image

Medical textbook diagram "Web of Causation of Myocardial Infarction" based on MacMahon and Pugh as illustrated in Park's Preventive and Social Medicine. A complex interconnected web/flowchart. Central red box: "MYOCARDIAL INFARCTION". Multiple upstream boxes with arrows flowing toward the centre through intermediate factors. Upstream boxes include: "Heredity/Genetic factors", "Age (middle age and above)", "Male sex", "Diet high in saturated fat", "Obesity/Overweight", "Physical inactivity/Sedentary lifestyle", "Cigarette smoking/Tobacco", "Psychosocial stress", "Diabetes mellitus". Intermediate/pathway boxes include: "Hyperlipidaemia (high LDL, low HDL)", "Hypertension", "Atherosclerosis/Coronary artery disease", "Insulin resistance", "Platelet aggregation". Arrows show complex cross-connections between upstream factors (e.g. obesity connecting to both hypertension AND hyperlipidaemia). Note at bottom: "Web of Causation - MacMahon and Pugh. Removal of even ONE important link can control disease." White background, clean web diagram, color-coded boxes (blue for lifestyle, yellow for metabolic, red for final outcome), arrows showing pathways, textbook quality.

Generating Image

Medical textbook diagram "DALY - Disability Adjusted Life Years" formula diagram from Park's Preventive and Social Medicine. Clean educational diagram. Top section shows the formula in large text: "DALY = YLL + YLD". Box 1 explaining YLL: "YLL - Years of Life Lost due to premature mortality = Number of deaths at each age × Expected remaining years of life (based on Japanese life expectancy standard - longest in world)". Box 2 explaining YLD: "YLD - Years Lived with Disability = Number of incident cases × Average duration of disease × Severity weight (0 = perfect health, 1 = dead)". Below a number line from 0 to 1 showing severity weights: 0 = Perfect health, 0.5 = Moderate disability, 1.0 = Death. At bottom: "1 DALY = 1 year of healthy life lost". Also show QALY formula: "QALY = Years of life × Utility value (0 to 1)". Note: "Developed by Harvard University for World Bank (1990); adopted by WHO (2000)". Clean white background, medical textbook style, bold formulas, well-organized boxes.

Generating Image

Medical textbook diagram "ICD-11 Structure and Key Changes" from Park's Preventive and Social Medicine. Two-panel diagram. Left panel: "ICD - Evolution Timeline" as a vertical timeline: 1893 - First ICD adopted; 1940 - Accepted for national/international use; 1948 - 6th revision expanded to include morbidity; 1993 (Jan 1) - ICD-10 came into effect; 2019 - ICD-11 adopted by World Health Assembly; 2022 (Jan 1) - ICD-11 came into effect. Right panel: "Key New Features of ICD-11" as a bullet list in boxes: (1) 55,000+ entities, 120,000 clinical terms; (2) Digital platform - free online access; (3) STROKE - now Neurological (not Circulatory); (4) Gender incongruence - Sexual Health chapter (not mental health); (5) HIV - recognized as chronic condition; (6) New chapter on Traditional Medicine; (7) Better AMR coding; (8) New Sleep-wake disorders chapter; (9) Allergy - under Immune system diseases. At bottom: "ICD = International standard for reporting diseases globally - WHO". Clean white background, two-column layout, bold headings, medical textbook style, color-coded boxes.

!

400, message: Got more than 4194304 bytes when reading: b'data: {"candidates": [{"content": {"role": "model","parts": [{"inlineData": {"mimeType": "image/png"...'.

We encountered an error while processing your request. Please try again or reach out to us for help.

This is a shared conversation. Sign in to Orris to start your own chat.
