Advances in Volume Scanning
Volume scanning refers to the acquisition of three-dimensional (volumetric) imaging data sets — encompassing CT, ultrasound, MRI, and hybrid modalities — that allow complete anatomical and functional coverage in a single acquisition. The field has advanced across multiple fronts.
1. Evolution from Single-Slice to Multidetector CT (MDCT)
The foundational advance was the shift from conventional sequential single-slice CT to helical (spiral) CT in the early 1990s. This replaced discontinuous axial slices with continuous volumetric data acquisition as the table moves through a rotating x-ray beam — generating a helix of x-ray information reformatted into any desired slice thickness or plane. Modern MDCT uses anywhere from 4 to 320 solid-state ceramic detectors arrayed opposite the x-ray source, yielding multiple slices per revolution.
Key gains from MDCT:
- Shorter scan times, reducing motion artifact
- Sub-millimeter isotropic voxels enabling high-quality multiplanar reformats (axial, coronal, sagittal) and 3D volume rendering

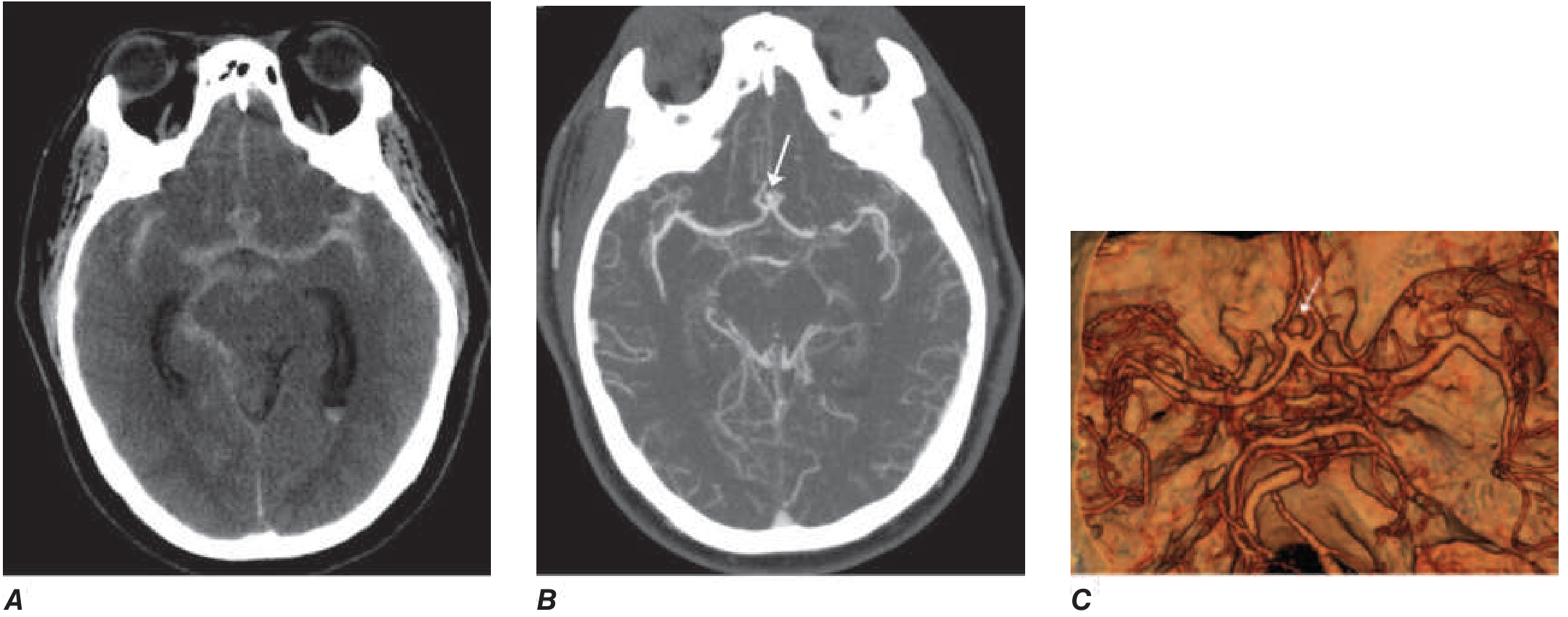

- CT angiography (CTA) and CT perfusion by dynamic contrast acquisition
- Sections as thin as 0.5–1 mm with 0.4 mm in-plane resolution at 0.3 seconds per rotation; complete brain studies in 1–10 seconds
— Harrison's Principles of Internal Medicine 22E, p. 3427
2. Wide-Area / 320-Detector Row CT: True Single-Rotation Volume Coverage
The most clinically transformative step in volume scanning was the development of 320-detector row (wide-area detector) CT, with a 16 cm z-axis coverage. This allows the entire organ of interest — heart, brain, or joint — to be captured in a single gantry rotation without table movement.
Clinical Applications
Neurovascular imaging:
CT with 320 detector rows enables dynamic scanning, providing both high spatial and temporal resolution of the entire cerebrovasculature — the basis of 4D CT angiography (4D-CTA). The cervical vessels are imaged with an additional helical acquisition analogous to 64-detector row CT, and the combined technique allows temporal reconstruction of contrast passage through all cerebral vessels simultaneously. Studies have demonstrated that 320-detector row nonsubtracted and subtracted volume CTA is accurate for evaluating small cerebral aneurysms, and that 4D-CTA defines intracranial thrombus burden more precisely than single-phase CTA.
— Bradley and Daroff's Neurology in Clinical Practice
Cardiac imaging:
Coronary CT angiography (CCTA) with 320-detector row scanners allows single-heartbeat acquisition, substantially reducing radiation dose versus multi-beat protocols. This is central to the modern CCTA workflow for coronary artery disease evaluation.
— Grainger & Allison's Diagnostic Radiology
Pulmonary nodule perfusion:
First-pass perfusion CT with 320-detector rows has been used to differentiate malignant from benign pulmonary nodules, compared against FDG-PET/CT.
3. Four-Dimensional CT (4D-CT): Adding Time as a Dimension
4D CT extends volumetric coverage with a temporal dimension, creating cine-movies of dynamic physiologic processes.

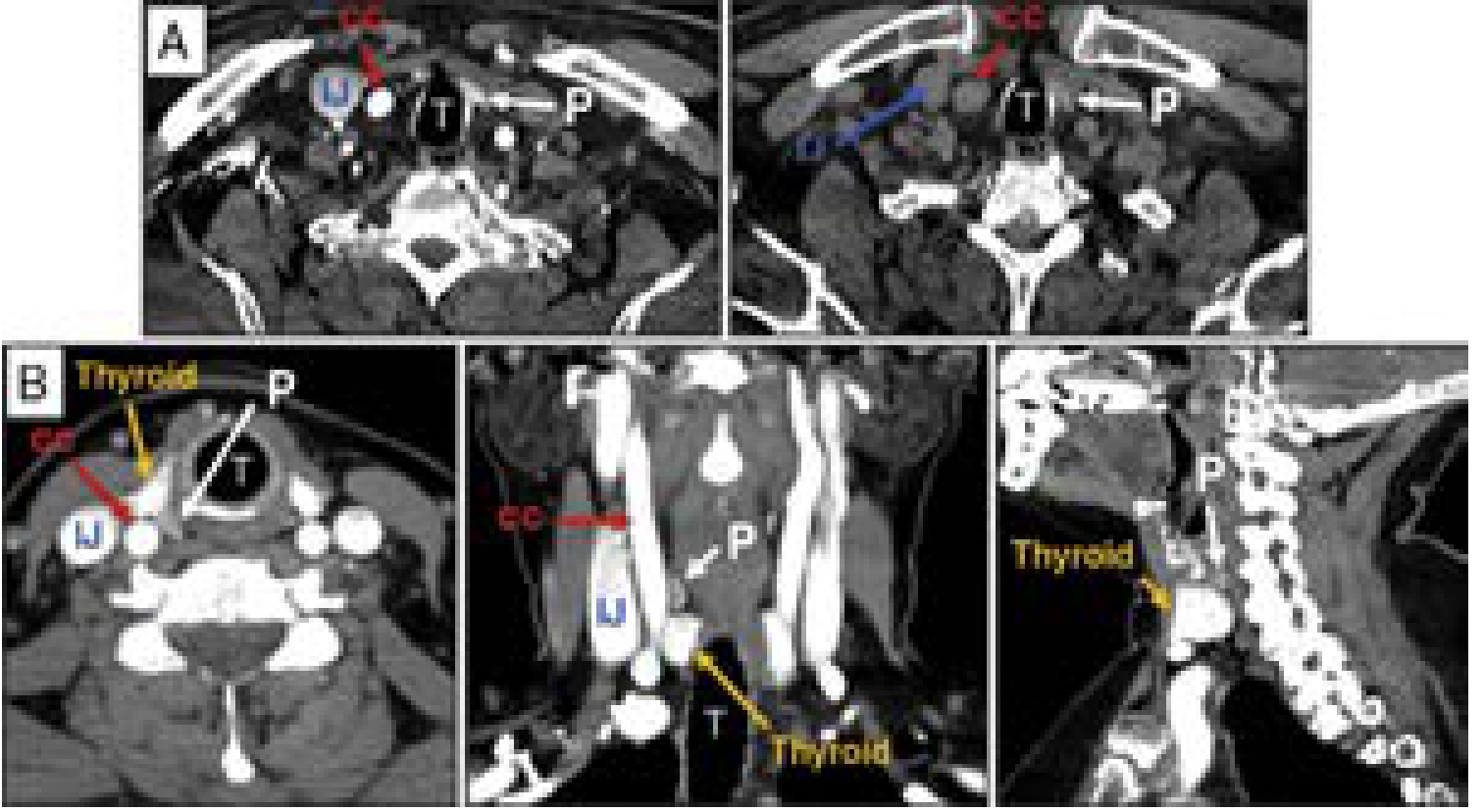

Parathyroid Localization
The best-established indication is parathyroid adenoma localization. 4D-CT involves four-phase scanning of the neck and upper chest:
- Non-contrast
- Arterial
- Venous
- Delayed/washout
This exploits the characteristic rapid arterial enhancement and early washout of hyperfunctioning parathyroid tissue. Sensitivity reaches ~90%, making it the most sensitive single modality for parathyroid localization and particularly valuable in failed prior exploration or recurrent disease. CT also defines peripara-thyroidal anatomy — thyroid, trachea, esophagus, carotid, jugular vein, and lung apices — with superior resolution compared to ultrasound or sestamibi.
Musculoskeletal / Orthopaedic Applications
4D-CT is an emerging tool for joint biomechanics assessment. By reconstructing dynamic cine-movies, it captures real-time joint kinematics under motion. Current and developing indications include:
- Costoclavicular impingement
- Scapholunate instability
- Capitate subluxation
- Pisotriquetral instability
- Acromioclavicular dislocation
- Snapping scapula
Applications in the lower extremity are under active investigation. Previously used mainly in parathyroid and esophageal surgery, 4D-CT is now expanding into trauma diagnosis and preoperative planning — particularly in the upper extremity.
— Rockwood & Green's Fractures in Adults 10th ed 2025
Weight-Bearing CT (WBCT)
Conventional CT images joints in an unloaded supine position. Cone beam CT (CBCT) now enables weight-bearing imaging, providing physiologically loaded views. Applications include:
- Pre/postoperative evaluation of total ankle replacements
- Patellofemoral instability after MPFL reconstruction
- Diabetic foot architecture
- Flatfoot reconstruction
- Syndesmotic instability (a systematic review found WBCT measuring the syndesmotic area to be the most reliable parameter for this diagnosis) — Rockwood & Green's Fractures in Adults 10th ed 2025
4. Photon-Counting CT (PCD-CT): The Latest Detector Revolution
The newest advance in CT detector technology is the photon-counting detector (PCD-CT). Unlike conventional CT where x-rays are converted to photons (light) by ceramic scintillators and then to electrical signals, PCD-CT converts x-rays directly to electrical signals, with key advantages:
| Feature | Conventional MDCT | Photon-Counting CT |
|---|---|---|
| Resolution | ~0.4–0.5 mm in-plane | ~0.2 mm |
| Electronic noise | Inherent scintillator noise | Greatly reduced |
| Radiation dose | Standard | Often reduced |
| Spectral capability | Limited (dual-energy variants) | Multi-energy bins in each acquisition |
| Contrast dose | Standard iodine volume | Reduced contrast required |
| Metal/bone artifact | Beam hardening present | Improved calcium/bone artifact reduction |
The FDA cleared the first PCD-CT system (developed at Mayo Clinic's CT Clinical Innovation Center) and described it as "the first major imaging advancement cleared by the FDA for CT in a decade." PCD-CT is especially powerful for coronary imaging, spectral CT, and high-resolution pulmonary/musculoskeletal applications.
In cardiac CT, 2024 studies highlighted by Rubio et al. (PMID: 40300917) confirm that photon-counting CT improves diagnostic accuracy for coronary artery disease, enables FFR-CT functional assessment, and supports CT-derived extracellular volume (CT-ECV) as a myocardial biomarker — all building on the volumetric acquisition platform.
— Harrison's Principles of Internal Medicine 22E, p. 3427
5. 3D and 4D Ultrasound Volume Scanning
Three-dimensional ultrasound overcomes the limitations of 2D by acquiring complete volumetric data sets. Three main acquisition strategies exist:
Mechanical Scanning
A motorized mechanism sweeps a standard transducer, and reconstruction algorithms combine the 2D frames into a 3D volume. Position/orientation tracking by encoder allows precise adjustment of scanning geometry. Limitation: relatively slow volume capture rate (~2–3 volumes/second).
Free-Hand Scanning
Similar reconstruction using a position sensor, with spatial calibration algorithms determining the sensor position relative to the image plane.
2D Phased-Array Transducers (Matrix Arrays) — Real-Time 4D
The major advance is the 2D phased-array (matrix) transducer that uses electronic beam steering to produce a diverging pyramidal beam, acquiring volumetric data in real time without mechanical movement. This is "4D ultrasound" — real-time 3D — with substantially higher volume frame rates. To push rates further:
- Wideband 2D sparse arrays with multiline receiving optimize active component count while maintaining accuracy and speed
Clinical applications:
- Obstetrics: Real-time 4D visualization of fetal face, movement, anomalies (midline cleft lip, anencephaly, Müllerian anomalies)
- Cardiology: Real-time 3D echocardiography for valve morphology, ventricular volumes, wall motion
- Oncology: Tumor margin delineation and volume measurements
- Urology: 3D TRUS for prostate volume calculation; cryo-probe placement confirmation
A key clinical use of 3D ultrasound is diagnosis of Müllerian anomalies — modern 3D ultrasound has the advantage of being noninvasive and reliable, with MRI reserved for equivocal cases.
— DIR Journal 2024; Creasy & Resnik's Maternal-Fetal Medicine
6. Dual-Energy CT and Spectral Imaging
Dual-energy CT (DECT) acquires data at two x-ray energy levels in a single volume scan, enabling:
- Material decomposition (iodine vs. calcium vs. uric acid maps)
- Virtual non-contrast reconstructions
- Reduced metal artifact via monoenergetic reconstructions
- Improved lesion characterization (e.g., renal stone composition, gout)
DECT is now offered as a routine option on modern 64–320 row MDCT platforms, and PCD-CT extends this to multi-energy spectral bins per acquisition.
7. 3D Reconstruction and Post-Processing
Volume scan data supports an expanding suite of post-processing:
- Multiplanar reformation (MPR): Axial, coronal, sagittal, oblique
- Maximum-intensity projection (MIP): Vascular and high-density structures

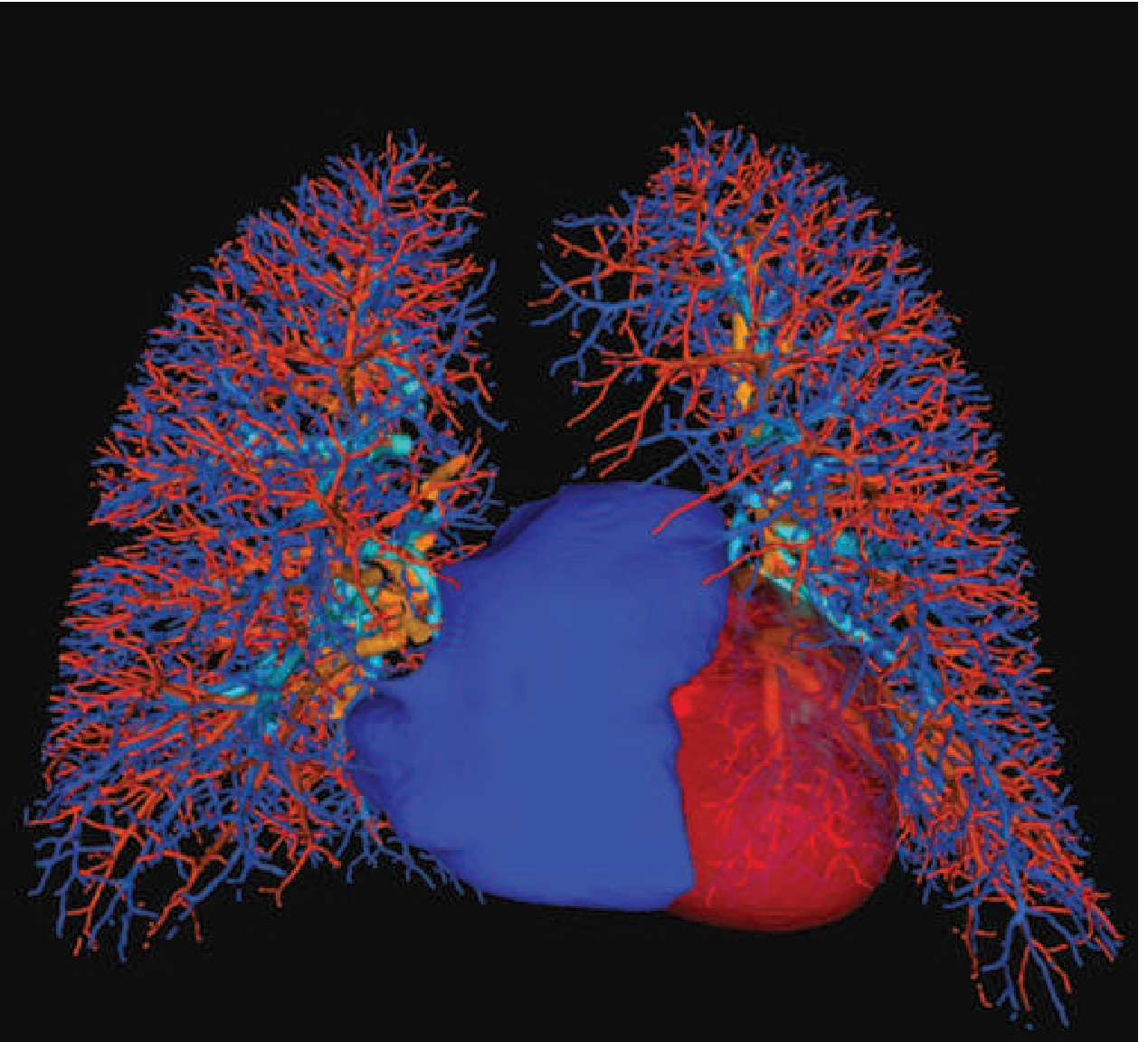

- 3D volume rendering: Surgical planning (fracture, tumor, vascular anatomy)
- "Ghosting" / bone removal for orthopaedic fracture visualization
- 3D printing: CT data used to generate physical models for maxillofacial reconstruction, complex fracture management, deformity correction, and tumor resection planning
- AI-assisted segmentation: Automated organ/lesion volumetry, plaque quantification (FFR-CT), myocardial mass estimation
— Rockwood & Green's Fractures in Adults 10th ed 2025
Summary Table
| Technology | Key Advance | Clinical Gain |
|---|---|---|
| Helical CT | Continuous volumetric acquisition | Replaces sequential slices; CTA enabled |
| MDCT (64–256 row) | Faster, thinner, isotropic voxels | Sub-mm resolution; multiplanar reformat |
| 320-row wide-area CT | Single-rotation organ coverage | 4D cardiac, 4D-CTA, reduced dose |
| 4D-CT | Temporal dimension added | Parathyroid localization; joint kinematics |
| Weight-bearing CBCT | Physiologic loading during scan | Syndesmotic, ankle, flatfoot assessment |
| Photon-counting CT | Direct x-ray→electric conversion | 0.2 mm resolution; reduced dose/contrast |
| Dual-energy/Spectral CT | Multi-energy acquisition | Material decomposition; reduced artifact |
| 4D ultrasound (matrix array) | Real-time volumetric US | Fetal, cardiac, oncology applications |
| AI integration | Automated segmentation & analysis | FFR-CT, volumetry, prognostic biomarkers |
Key References:
- Harrison's Principles of Internal Medicine 22E, p. 3427 (MDCT, photon-counting CT)
- Grainger & Allison's Diagnostic Radiology (MDCT evolution, 320-row cardiac CT)
- Bradley and Daroff's Neurology in Clinical Practice (4D-CTA, 320-row neurovascular)
- Current Surgical Therapy 14e (4D-CT parathyroid localization)
- Rockwood & Green's Fractures in Adults 10th ed 2025 (4D-CT joints, WBCT, 3D printing)
- Rubio PM et al. J Cardiovasc Comput Tomogr 2025 — Key advances in cardiac CT (PMID: 40300917)
- DIR Journal 2024 — New imaging techniques and trends in radiology
Advances in volume scanning in ct in detail , firstly define volume scanning and it principle , components and u want to add , and then advances
Reading File
Finding Sources
Finding Sources
Finding Sources
Searching PubMed
"computed tomography" volumetric scanning advances review
Searching the Web
volume CT scanning definition principle components advances 2024 2025 radiology review
Finding Sources
Finding Sources
Finding Sources
Reading Web Page
https://aditum.org/images/article/1769068116Advances_in_CT_I…
Excellent. Now let me read the key Grainger & Allison sections on CT technology, iterative reconstruction, and dual-energy CT, plus get the Harrison's CT passage and some images.
Reading File
Reading File
Reading File
Reading File
Reading File
Loading Image
Loading Image
I now have comprehensive, rich material from the authoritative textbooks. Let me also quickly get the Grainger & Allison section on Dual-Energy CT and the photon counting CT figure from Harrison's.
Finding Sources
Finding Sources
Reading File
Reading File
Here is the complete, detailed answer:
Volume Scanning in CT — Definition, Principles, Components, and Advances
PART 1 — DEFINITION OF VOLUME SCANNING IN CT
Volume scanning (also called volumetric CT) is a method of computed tomography data acquisition in which the x-ray beam and detector system collect information from a three-dimensional block of tissue — a volume — rather than from a single 2D cross-sectional slice at a time. The resulting data set consists of a continuous stack of voxels (3D pixels) that can be reconstructed into slices of any desired thickness, in any plane (axial, coronal, sagittal, oblique), and rendered as 3D surfaces or volumes — all from a single acquisition.
The key distinction from conventional sequential ("step-and-shoot") CT is continuity: in volume scanning, data are acquired without interruption as the patient moves through the rotating x-ray beam, generating a seamless volumetric record of the scanned region.
"From the same data set, both narrow sections (0.6–1.25 mm thickness) for high spatial resolution detail or 3D postprocessing and wide sections (2.5–5 mm) can be produced for better contrast resolution or quick review." — Grainger & Allison's Diagnostic Radiology
PART 2 — PHYSICAL PRINCIPLE OF VOLUME CT
2.1 X-Ray Attenuation and the Hounsfield Scale
CT is built on the measurement of x-ray attenuation — the degree to which different tissues absorb x-ray photons. As a rotating x-ray source emits a beam that passes through the patient from every angle, detectors on the opposite side record the intensity of transmitted radiation. Denser tissues (bone, metal) attenuate more; less dense tissues (fat, air) attenuate less. A computer reconstructs these attenuation profiles into an image using back-projection algorithms — producing an anatomical "map" where each voxel is assigned a Hounsfield Unit (HU) value encoding its density.
Greater x-ray attenuation → higher density → whiter on scan. Poor attenuation (air, organs) → gray-black. — Harrison's Principles of Internal Medicine 22E, p. 3427
2.2 The Helical (Spiral) Acquisition — The Foundation of Volume Scanning
In conventional sequential CT, the tube rotated to acquire a single slice, the table stepped forward, and the process repeated. This created gaps and misregistration between slices.
The introduction of spiral (helical) CT in the early 1990s fundamentally changed this:
- The x-ray tube rotates continuously
- The patient table continuously translates through the rotating beam
- The combined motion traces a helix of data around the patient
- Computer algorithms interpolate this helical raw data into planar slice images at any desired interval
This replaced discontinuous slice acquisition with true volumetric data acquisition — the entire anatomical region of interest is captured in a single breath-hold, generating a seamless 3D data set.
2.3 Pitch
Pitch = table distance traveled per rotation ÷ total beam collimation width
- Pitch < 1: overlapping acquisitions → higher radiation dose, better Z-axis resolution
- Pitch > 1: faster coverage → lower dose but reduced Z-axis sampling
2.4 Cone Beam Geometry
With modern wide-area multidetector CT, the beam geometry shifts from a thin fan beam (single-slice era) to a broader cone beam that simultaneously illuminates all detector rows. This enables true single-rotation organ coverage but introduces cone-beam artifacts at the detector edges — an engineering challenge addressed by z-flying focal spot and iterative reconstruction methods.
PART 3 — COMPONENTS OF A VOLUME CT SCANNER
A complete CT scanner system has these core hardware components:
3.1 X-Ray Tube
- Generates a polychromatic (broad energy spectrum) x-ray beam
- Housed within the rotating gantry opposite the detector array
- Key parameters: kVp (peak voltage, determining photon energy) and mAs (tube current × time, determining photon flux and dose)
- Modern tubes rotate at 0.33 seconds per gantry rotation — down to as fast as 0.25 s in some systems
- Focal spot: The physical point where electrons strike the anode and x-rays are produced. Smaller focal spot = sharper image. The "flying focal spot" (see advances below) deflects the electron beam to alternate between two focal spot positions, doubling effective sampling
3.2 Gantry
- The rotating ring structure housing the x-ray tube and detector array
- Modern gantries achieve sub-0.35 second rotation times
- Slip-ring technology (introduced ~1987–1991) allows continuous rotation without cable wrap — a prerequisite for helical CT
- Some systems use dual-source design: two x-ray tube/detector pairs mounted 90° apart in the same gantry
3.3 Detector Array
The detector is the most critical determinant of CT performance. Located 180° from the x-ray source.
Conventional scintillator detectors (MDCT):
- X-rays → converted to light photons by ceramic scintillators → converted to electrical signals by photodiodes
- Organized in rows (Z-axis) and channels (XY-plane)
- Modern scanners: 4 to 320 detector rows, each row ~0.5–0.625 mm thick
- More rows = wider anatomical coverage per rotation = faster volume scanning
Detector inefficiencies in conventional MDCT:
- Dead space between detector elements (inter-detector septa)
- Electronic noise from the two-stage conversion (x-ray → light → electricity)
- Geometric dose inefficiencies (dose delivered to inter-row septa is wasted)
3.4 Patient Table (Couch)
- Motorized translation through the gantry bore during helical acquisition
- Precise table speed is coordinated with tube rotation and beam collimation to determine pitch
- Must be stable and vibration-free to avoid motion artifact in volumetric data
3.5 Collimators
- Pre-patient collimators (bow-tie filters): shape the x-ray beam to reduce peripheral dose and even out the attenuation profile across the patient's cross-section. Different bow-tie shapes for head vs. body
- Post-patient collimators: reject scattered radiation before it reaches detectors
- Z-axis collimation: defines the total width of the detector array illuminated, determining the number of slices per rotation
3.6 Reconstruction Computer
- Processes raw projection data into images
- Originally used Filtered Back Projection (FBP): computationally efficient but amplifies noise at low doses
- Modern systems use Iterative Reconstruction (IR) and Deep Learning Reconstruction (DLR)
- Must process large volumes of raw data rapidly — parallel GPU-based processing is now standard
3.7 Post-Processing Workstation
After volumetric acquisition, the raw 3D data set is processed into:
- Multiplanar Reformations (MPR): axial, coronal, sagittal, oblique planes
- Maximum Intensity Projections (MIP): highlights high-density structures (vessels, calcifications)
- Minimum Intensity Projections (MinIP): for airway visualization
- 3D Volume Rendering (VR): surface and opacity-rendered 3D anatomical displays
- Curved planar reformations (CPR): follows curved structures (coronary arteries, bile ducts)
- CT angiography (CTA) and CT perfusion maps
PART 4 — ADVANCES IN VOLUME CT SCANNING
Advance 1 — From Single-Slice to Multidetector CT (MDCT)
Timeline:
- 1971: First clinical CT scan (Hounsfield, Atkinson Morley Hospital) — single slice, ~4.5 minutes per image
- Early 1990s: Helical CT — continuous rotation + table movement → true volume acquisition
- 1998: Multiple manufacturers introduce multidetector CT (MDCT) — arrays of detector rows allowing multiple simultaneous slices per rotation
- 2000s–present: Rapid escalation from 4-row → 16 → 64 → 128 → 256 → 320-row systems
Benefits of MDCT:
- Single breath-hold imaging of entire organ systems
- Reduced motion artifacts (less sedation needed in children)
- Improved spatial resolution — isotropic voxels (equal dimensions in X, Y, Z) enabling high-quality 3D reconstruction
- Faster acquisition → dynamic contrast-enhanced imaging → CTA + CT perfusion
"Three major benefits arise from these technological advances: single breath-hold imaging, reduction in motion artefacts, and improved spatial resolution." — Grainger & Allison's Diagnostic Radiology
Advance 2 — Wide-Area Detectors: 320-Row CT
The most clinically transformative hardware advance was the 320-detector row wide-area CT (e.g., Canon Aquilion ONE), featuring a 16 cm wide detector array in the Z-axis — wide enough to cover an entire adult heart, brain, or joint in a single gantry rotation.
Key technical approaches to achieving 320-row equivalent coverage:
- True 320-row arrays: wide-area detectors
- Dual-source CT: two x-ray tube/detector pairs → doubles temporal resolution without increasing rotation speed; particularly valuable in cardiac CT at high heart rates
- Flying focal spot: alternates the focal spot position between two positions per rotation, converting a 128-row array into a virtual 256-row array
- z-flying focal spot: applies focal spot deflection in the Z-axis, doubling z-axis sampling
Clinical impact of 320-row CT:
- Cardiac CT: entire heart covered in one rotation → single-heartbeat coronary CT angiography → dramatically reduced radiation dose (no multi-beat stitching artifacts)
- 4D CT angiography (4D-CTA): dynamic scanning of the entire cerebrovasculature with both high spatial and temporal resolution — images contrast bolus passage through all cerebral vessels simultaneously; more accurate than single-phase CTA for defining intracranial thrombus burden and small aneurysms
- CT perfusion: simultaneous perfusion maps of an entire organ (brain, heart, liver) in one acquisition
- Pediatric imaging: ultra-fast acquisition minimizes need for sedation/general anesthesia
"More recent CT with 320 detector rows enables dynamic scanning, providing both high spatial and temporal resolution of the entire cerebrovasculature (four-dimensional [4D] CTA)." — Bradley and Daroff's Neurology in Clinical Practice
Advance 3 — Four-Dimensional CT (4D-CT): Adding Time
Definition: 4D-CT adds time as the fourth dimension to volumetric data acquisition, generating dynamic cine-movies of physiological processes in real time.
4D-CT for Parathyroid Localization
The most established use: four-phase scanning of the neck and upper chest:
- Non-contrast
- Arterial phase
- Venous phase
- Delayed/washout phase
This captures differential contrast enhancement kinetics — parathyroid adenomas show rapid arterial uptake and early washout, distinguishing them from lymph nodes and thyroid tissue. Sensitivity: ~90%, the highest of any parathyroid localization modality. Particularly valuable in failed prior surgery and recurrent disease.
4D-CT for Joint Biomechanics
4D-CT reconstructs dynamic cine-movies of joint motion, revealing instability that is invisible on static imaging. Applications include:
- Costoclavicular impingement
- Scapholunate instability
- Capitate subluxation
- Pisotriquetral instability
- Acromioclavicular dislocation
- Snapping scapula
- Lower extremity indications under active investigation
"Dynamic CT, otherwise known as 4D CT, is an emerging diagnostic tool to assess joint biomechanics... allowing the reconstructions to show dynamic cine-movies." — Rockwood & Green's Fractures in Adults, 10th ed. 2025
Advance 4 — Iterative Reconstruction (IR): Better Images, Lower Dose
Historical context: Early CT used Filtered Back Projection (FBP) — fast and computationally simple, but it amplifies image noise, forcing high radiation doses to maintain diagnostic quality.
Iterative Reconstruction (IR) revisits the original mathematical approach: instead of a single back-projection pass, IR algorithms compare a current image estimate against the raw projection data, apply corrections, and iterate repeatedly until the image converges to a best estimate of reality. Types:
| Type | Mechanism | Dose Reduction | Trade-off |
|---|---|---|---|
| Hybrid IR | Blends FBP + IR | ~30–50% | Mild "waxy" appearance in early generations |
| Pure/Model-Based IR (MBIR) | Physically models focal spot, beam, patient, detector | Up to 75–80% | Computationally very slow (3–4 reconstructions/hour initially) |
| Adaptive non-local means (ANLM) | Vendor-independent, post-FBP noise suppression | Comparable to IR | Less computational demand |

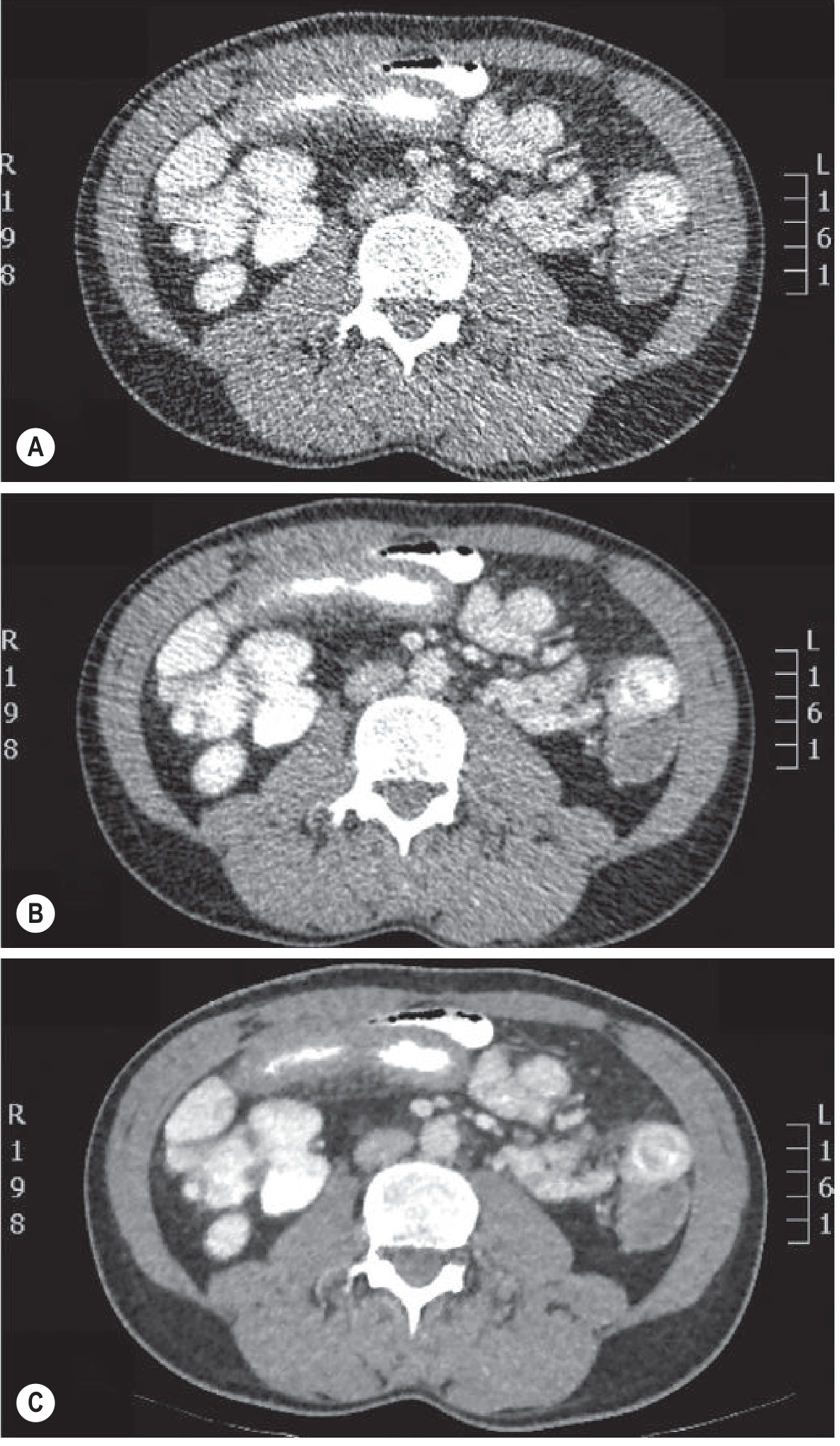

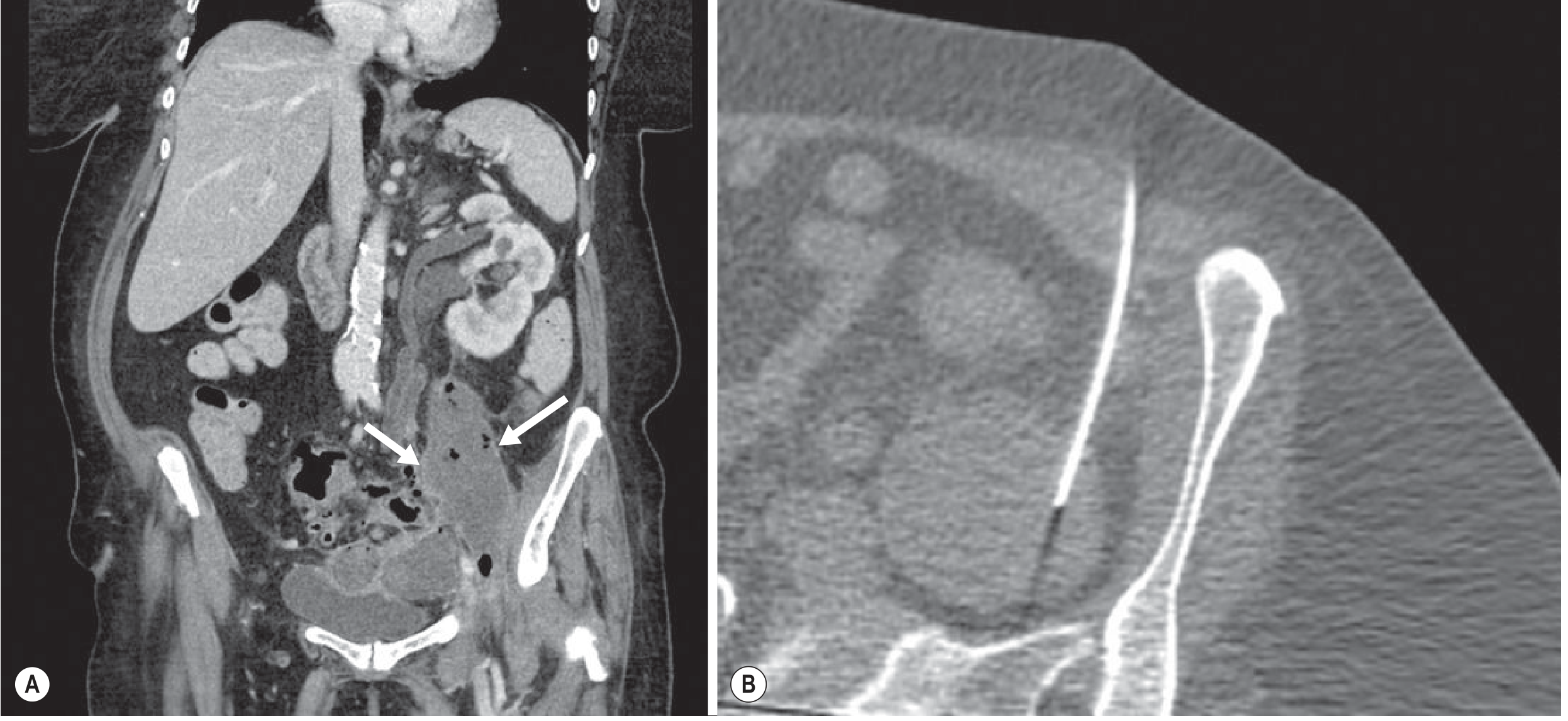

Clinical example: A 36-year-old with Crohn's disease underwent low-dose CT abdomen (0.96 mSv — comparable to a plain abdominal X-ray). Pure IR yielded diagnostically superior images compared to hybrid IR or FBP at that ultra-low dose.
"The widespread dissemination of technologies such as iterative reconstruction is likely to result in CT dose reductions on the order of 75% and greater in future years." — Grainger & Allison's Diagnostic Radiology
Advance 5 — Photon-Counting Detector CT (PCD-CT): The Newest Detector Revolution
This is the most significant detector advance in CT since MDCT, described by the FDA as "the first major imaging advancement cleared for CT in a decade."
How conventional MDCT detectors work:
X-ray photons → scintillator crystal → light → photodiode → electrical signal
(Two-step conversion; electronic noise is introduced at each step; photons within an energy pulse are summed, losing spectral information)
How PCD-CT works:
X-ray photons → direct conversion semiconductor detector (e.g., cadmium zinc telluride) → electrical pulse per individual photon
(One-step conversion; each photon is counted individually; photon energy is measured for each event)
Advantages of PCD-CT over conventional MDCT:
| Parameter | Conventional MDCT | Photon-Counting CT |
|---|---|---|
| In-plane resolution | ~0.4–0.5 mm | ~0.2 mm |
| Electronic noise | Inherent from 2-stage conversion | Near-zero (photons counted individually) |
| Radiation dose | Standard | Often reduced |
| Spectral capability | Requires special hardware (dual-source, fast kV switching) | Multi-energy bins built into every acquisition |
| Contrast dose | Standard | Reduced (improved CNR) |
| Calcium/bone artifact | Beam hardening present | Improved (spectral separation) |
| Detector element size | Limited by cross-talk | Smaller → higher resolution |
"New so-called photon-counting CT scanners... convert x-ray directly into an electric signal, rather than photon light, resulting in improved resolution, reduced electronic noise and thus dose reduction, improved spectral energy detection that reduces calcium and bone artifact, and improved contrast-to-noise ratio... Photon counting scanners are now able to produce CT images with 0.2 mm resolution often at reduced radiation dose." — Harrison's Principles of Internal Medicine 22E, p. 3427
By 2025, PCD-CT is moving from early adopter centers to mainstream clinical consideration, with RSNA 2025 coverage identifying it as "the next CT evolution" taking center stage.
Advance 6 — Dual-Energy CT (DECT) and Dual-Source CT
Dual-Energy CT acquires data at two different x-ray energy levels in a single volumetric scan, enabling material decomposition — distinguishing tissues that appear identical on standard CT but have different atomic compositions.
Technical implementations:
- Dual-source CT: Two x-ray tube/detector pairs at 90° in the same gantry, each running at a different kVp
- Fast kV switching: A single tube rapidly alternates between high and low kVp
- Dual-layer detectors: A single tube; detector rows are physically layered to capture different energy spectra simultaneously
Clinical applications of DECT volume scanning:
- Virtual non-contrast (VNC) images: remove iodine mathematically → eliminate a non-contrast acquisition → reduces dose
- Iodine maps: quantify contrast uptake in lesions → organ perfusion assessment
- Uric acid vs. calcium stone differentiation: directly diagnose gout tophi and uric acid calculi
- Pulmonary embolism: dual-energy CT provides simultaneous morphological (clot) and functional (perfusion deficit) information in one acquisition
- Reduced beam-hardening and metal artifact: monoenergetic virtual reconstructions at high keV
- Bone subtraction: automated removal of bony structures for vascular imaging
Advances include: "Dual source geometry with ECG gating/triggering – less need for high dose retrospective cardiac CT even at high heart rates. Dual energy CT – roles in artefact reduction and potential for quantitative imaging." — Grainger & Allison's Diagnostic Radiology, Summary Box: Current Status of CT
Advance 7 — Deep Learning Reconstruction (DLR) and AI Integration
The most recent computational advance is Deep Learning Reconstruction (DLR), which uses convolutional neural networks (CNNs) trained on large CT data sets to directly map low-quality (low-dose or high-noise) raw projections → high-quality images.
How it differs from iterative reconstruction:
- IR uses physics-based mathematical models (slow, iterative loops)
- DLR uses a trained neural network that applies learned noise/artifact suppression patterns in a single forward pass → much faster than pure IR
- DLR models learn from millions of CT image pairs (noisy→clean) and can achieve image quality rivaling or surpassing pure IR at low doses
AI applied to CT volume data:
- Automated organ segmentation: lungs, liver, kidneys, heart, vasculature delineated automatically
- Pulmonary nodule detection and characterization: AI matches or exceeds radiologist performance for benign/malignant discrimination in screening CT
- FFR-CT (Fractional Flow Reserve from CT): AI analyzes coronary CT angiography volume to compute functional significance of stenoses without catheterization
- CT-ECV (extracellular volume): AI-derived myocardial biomarker from volume-scanned cardiac CT
- Bone mineral density (BMD) from opportunistic CT
"Some of the first medical applications of deep learning were in the field of dermatology, and more recently, this advanced form of pattern recognition has been reported to excel at the discrimination of benign and malignant lung nodules in thoracic CT scan. The breadth of application of these tools continues to expand to include image navigation and feature detection, biomarker development, and direct prediction of clinical outcomes." — Harrison's Principles of Internal Medicine 22E
Advance 8 — High-Resolution Volume CT (HRCT) and Thin-Section Protocols
MDCT volume scanning enables High-Resolution CT (HRCT) with:
- Thin collimation (1–2 mm or sub-millimeter)
- High-spatial-frequency reconstruction algorithm ("lung" or "sharp" kernel)
- Single breath-hold acquisition to eliminate respiratory motion
Thin-section reconstructions from a single volumetric acquisition are now recommended for:
- Volumetric assessment and characterization of pulmonary nodules
- Evaluation of interstitial lung disease (ILD) — thickened septa, ground-glass opacification, traction bronchiectasis
- Pulmonary embolism (PE) protocol
- Bronchiectasis and small airways disease
This is now possible from a single standard CT data set without separate acquisition runs — a major dose-saving advance.
Advance 9 — Cone-Beam CT (CBCT) and Weight-Bearing CT
Cone-beam CT (CBCT) uses a divergent pyramidal-shaped x-ray beam and a flat-panel detector to acquire volumetric data in a single 180–360° arc rotation, producing a 3D data set.
- Radiation dose considerably lower than conventional CT
- Weight-bearing CBCT: allows imaging of joints under physiological load (standing) — impossible with conventional supine CT
- Applications: syndesmotic instability, total ankle arthroplasty assessment, patellofemoral instability, flatfoot reconstruction, diabetic foot architecture
- Also widely used in dental/maxillofacial surgery for bony anatomy (jaw, skull base, implant planning)
- Limitation: poor soft-tissue contrast; beam-hardening artifact from dental restoration
Advance 10 — Portable CT and Point-of-Care Volume Scanning
Miniaturization and advances in flat-panel detector technology have enabled portable CT scanners capable of volumetric acquisition at the bedside:
- ICU and emergency department deployment without patient transport
- Intraoperative CT (surgical suites, hybrid ORs)
- Mobile cone-beam CT combined with bronchoscopy for real-time confirmation of peripheral lung biopsy position
- Canon Alphenix 4D CT + Aquilion One/Insight Edition: combined angiography/CT interventional system, FDA-cleared 2025, combining intraoperative 4D CT with DSA for complex endovascular procedures
Summary: The Arc of Volume CT Advances
1971 First clinical CT Single slice, 4.5 min/image
↓
1991 Helical CT True continuous volumetric acquisition
↓
1998 MDCT (4–16 rows) Multiple slices per rotation, isotropic voxels
↓
2000s 64-row MDCT Sub-mm isotropic CT angiography becomes routine
↓
2007 320-row wide-area CT Entire organ in one rotation; 4D perfusion/CTA
↓
2008– Iterative Reconstruction 30–80% dose reduction; better low-contrast detail
↓
2010s Dual-Energy CT Material decomposition; spectral imaging
↓
2017– Deep Learning Recon AI-based noise suppression; ultra-low dose possible
↓
2022– Photon-Counting CT (PCCT) 0.2 mm resolution; direct x-ray conversion; multi-energy bins
↓
2025+ AI integration Automated segmentation, FFR-CT, biomarker extraction
Key Sources:
- Harrison's Principles of Internal Medicine 22E (McGraw-Hill, 2025), pp. 3427–3428
- Grainger & Allison's Diagnostic Radiology — CT Technology Chapters
- Bradley and Daroff's Neurology in Clinical Practice — CTA section
- Rockwood & Green's Fractures in Adults 10th ed. (2025) — 4D-CT and WBCT
- Current Surgical Therapy 14e — 4D-CT parathyroid
- DIR Journal 2024 — New imaging techniques and trends in radiology
- Rubio PM et al. J Cardiovasc Comput Tomogr 2025 — Cardiac CT key advances 2024This comprehensive guide covers everything you asked for. Here is a quick orientation to the structure:
What was covered:
Part 1 — Definition: Volume scanning = continuous 3D tissue block acquisition (vs. sequential slice-by-slice), producing a seamless voxel data set reformattable in any plane.
Part 2 — Physical Principles: X-ray attenuation → Hounsfield units; helical (spiral) CT as the foundation of volume scanning; pitch; cone-beam geometry.
Part 3 — Components: Seven core hardware/software components explained in detail — X-ray tube (with focal spot/flying focal spot), gantry (slip-ring, dual-source), detector array (scintillator design and its limitations), patient table, collimators (bow-tie filters, Z-axis), reconstruction computer (FBP vs. IR vs. DLR), and post-processing workstation (MPR, MIP, VR, CTA).
Part 4 — 10 Major Advances:
- MDCT evolution (single-slice → 320 row)
- Wide-area detectors & 320-row CT (single-rotation organ coverage)
- Four-dimensional CT — parathyroid & joint biomechanics
- Iterative reconstruction (30–80% dose reduction)
- Photon-counting CT — 0.2 mm resolution, direct x-ray conversion, multi-energy spectral bins
- Dual-Energy / Dual-Source CT — material decomposition and spectral imaging
- Deep Learning Reconstruction + AI (FFR-CT, automated segmentation, biomarkers)
- High-Resolution thin-section protocols from volumetric data
- Cone-beam CT and weight-bearing CT
- Portable/point-of-care volume CT
Interventional guidance tools in CT what to write ?
The topic "Interventional Guidance Tools in CT" is a well-defined radiology/interventional subject. Before I research and write it in full detail, let me clarify the format you need:
Asking for Preferences
What is this for? · How detailed should it be? · What aspect of interventional CT guidance do you want covered?
Reading File
Finding Sources
Finding Sources
Finding Sources
Searching the Web
interventional guidance tools CT-guided procedures biopsy ablation drainage navigation 2024 2025 review
Finding Sources
Finding Sources
Finding Sources
Searching PubMed
"CT-guided" interventional procedures needle guidance tools
Reading File
Reading File
Reading File
Searching PubMed
CT-guided percutaneous interventional radiology biopsy ablation
Reading File
Finding Sources
Searching the Web
CT guided interventional tools needle guidance systems robotic navigation augmented reality 2024 2025
Reading File
Loading Image
Loading Image
Reading File
Loading Image
Loading Image
I now have all the material needed. Let me compile the complete, detailed exam-ready notes.---
Interventional Guidance Tools in CT — Complete Study Notes
1. DEFINITION AND OVERVIEW
CT-guided interventional radiology uses computed tomography to provide real-time or near-real-time image guidance for minimally invasive diagnostic and therapeutic procedures performed percutaneously. CT is chosen because it:
- Is widely available across clinical settings
- Provides excellent anatomic delineation and spatial resolution regardless of overlying structures (bowel gas, fat, ribs)
- Visualizes deep structures inaccessible to ultrasound
- Allows precise multi-planar targeting of small or complex lesions
- Gives superior delineation of collection walls, adjacent organs, and safe access routes
"CT provides excellent anatomic delineation, irrespective of the overlying structures... The superior spatial resolution of CT over ultrasound often allows better localisation of the margins of a collection, the thickness of the wall, the adjacent organs and the access route." — Grainger & Allison's Diagnostic Radiology
2. WHY CT FOR INTERVENTIONAL GUIDANCE?
CT vs. Ultrasound vs. Fluoroscopy
| Feature | CT | Ultrasound | Fluoroscopy |
|---|---|---|---|
| Real-time guidance | Limited (except CT-fluoro) | Yes | Yes |
| Soft tissue resolution | Excellent | Good (superficial) | Poor |
| Deep lesions / retroperitoneum | Excellent | Limited | Limited |
| Gas-containing collections | Can visualize | Cannot penetrate | Variable |
| Radiation | Yes | None | Yes |
| Portability | No (except mobile CT) | Yes (bedside) | Some |
| Angulated approaches | Limited to axial plane | Freely angulated | Freely angulated |
| Cost | Higher | Lower | Moderate |
Key principle: CT is reserved mainly for lesions inaccessible to ultrasound or in deep locations where soft tissue detail is critical. Ultrasound has the advantage of real-time capability and oblique approaches.
3. THE STANDARD CT GUIDANCE WORKFLOW
3.1 Pre-Procedure Planning
- Review cross-sectional imaging (CT/MRI) to identify:
- Target size, depth, and location
- Adjacent vulnerable structures: vessels, bowel, pleura, bile ducts, pericardium
- Optimal access window (skin-entry point)
- Planned needle/probe trajectory
- Assess coagulation status (INR, platelets) and anticoagulant use (stop clopidogrel 5 days prior for high-risk procedures)
- Broad-spectrum antibiotic prophylaxis within 1 hour of commencement (drainage procedures per Society of Interventional Radiology guidelines)
3.2 Patient Positioning and CT Localization
- Patient positioned prone, supine, or lateral depending on target
- Scout (topogram) to identify entry level
- Gantry laser guide used to mark the skin entry point precisely — essential when gantry is tilted craniocaudally for non-axial access windows
- Local anesthesia applied to the planned trajectory depth
3.3 Guidance Modes During Procedure
4. CT GUIDANCE MODES — THE CORE TOOLS
4.1 Conventional (Intermittent / "Quick-Check") CT Guidance
The most widely used CT guidance method.
Mechanism:
- Needle/catheter is manually advanced a small increment by the operator
- Operator steps away → CT scan acquired → image reviewed
- Needle position assessed → further manipulation as required
- Process repeated until target is reached
Advantages:
- Significantly lower radiation dose than real-time CT fluoroscopy
- Works on any standard CT scanner
- Sufficient for most percutaneous procedures
Limitations:
- Dependent on patient breath-holding consistency (each scan acquired at same respiratory phase)
- Slower than real-time methods
- Operator must step out of the room for each acquisition
"Quick-check CT guidance considerably reduces fluoroscopic time and radiation dose compared with real-time guidance." — Grainger & Allison's Diagnostic Radiology
4.2 CT Fluoroscopy (Real-Time CT Guidance)
Definition: CT fluoroscopy provides a continuously updated CT image — essentially "live" cross-sectional imaging — allowing real-time visualization of needle advancement.
Two modes:
- Real-time mode: Needle held with a long clamp; operator keeps hands out of gantry while continuously imaging as needle is advanced
- Quick-check mode (more common): Intermittent rapid CT acquisitions timed to needle manipulation — shorter exposures than true real-time
Technical parameters:
- Typically uses reduced tube current (30–50 mA) to limit dose
- Images reconstructed and displayed at ~6 frames per second
- Scan length limited to a few cm around the target
Clinical advantages:
- Overcomes the problem of respiratory motion — critical for kidney, liver, and lung lesions where the target moves with breathing
- Faster procedures: reduces needle manipulation steps
- Particularly valuable for: kidney biopsy, percutaneous cryoablation, RFA of renal tumors, fluid aspiration, drain placement, catheter placement
Disadvantages — Important for Exam:
- Increased radiation dose to both patient and operator
- Operator hands may be in or near the gantry → radiation exposure risk
- Requires specific CT scanner capability
"Real-time CT fluoroscopy is available as an option on new CT imaging equipment. CT fluoroscopy gives a 3D CT image that is much more detailed and offers greater soft-tissue contrast and resolution than conventional CT. One significant disadvantage of CT fluoroscopy is the increased radiation exposure to the patient and radiologist or surgeon performing the procedure." — Campbell-Walsh Urology
4.3 Gantry Tilt
- The CT gantry can be tilted in the craniocaudal direction (typically ±30°)
- Creates an oblique imaging plane, allowing access to lesions where the axial plane alone does not provide a safe route (e.g., lesion near the dome of the liver covered by the lung, or access below a rib)
- The gantry laser guide projected onto the patient skin remains essential for orienting the operator when the gantry is tilted
- Limitation: adds complexity for the operator in maintaining the needle along the correct angulated trajectory
4.4 CT/Fluoroscopy Combined Method
Used particularly for procedures requiring two phases:
- CT phase: Needle access to the target confirmed under CT guidance (superior soft-tissue detail)
- Fluoroscopy phase: Wire manipulation, catheter advancement, tract dilation, and final catheter positioning confirmed under fluoroscopy (real-time with contrast)
Example: CT-guided nephrostomy
"The procedure can be performed under sole CT guidance or as a combined CT/fluoroscopy method. Needle access is gained under CT guidance, and a guidewire is inserted. Subsequent tract dilatation and catheter insertion is done under fluoroscopic control." — Grainger & Allison's Diagnostic Radiology
4.5 Cone-Beam CT (CBCT) in the Interventional Suite
Definition: CBCT uses a flat-panel detector and a divergent pyramidal x-ray beam. A single 180°–360° arc rotation of the C-arm in the angiography/interventional suite acquires a complete 3D volumetric data set.
Key advantages for interventional guidance:
- Available directly within the hybrid angiography/interventional suite — no separate CT room needed
- Produces 3D volumetric images equivalent to conventional CT for guidance purposes
- Software fusion packages overlay this 3D volume onto live fluoroscopic images (fluoroscopic overlay navigation)
- Shown to be equivalent to conventional CT guidance for drain placement with reduced procedure time
- Enables intraprocedural confirmation of device position in 3D (e.g., ablation probe, screw fixation, drain)
"Cone-beam CT, where available on modern angiography units, allows the acquisition of three-dimensional volumetric images in the interventional suite. Software fusion packages then allow this volumetric data to be superimposed on live fluoroscopic images. This technique has been shown to be equivalent to conventional CT guidance for drain placement with reduced procedure time." — Grainger & Allison's Diagnostic Radiology
Applications:
- Percutaneous abdominal/pelvic abscess drain placement
- Complex vascular interventions
- Percutaneous screw fixation of pelvic bone metastases
- Intraprocedural verification in hepatic ablation and TACE (e.g., lipiodol deposition assessment)
5. INTERVENTIONAL PROCEDURES PERFORMED UNDER CT GUIDANCE
5.1 CT-Guided Biopsy
Types of biopsy needles:
| Type | Gauge | Use | Yield |
|---|---|---|---|
| Fine Needle Aspiration (FNA) | 20–25G | Cytology; cystic lesions | Cells only |
| Core Needle Biopsy (CNB) | 14–18G | Histology with tissue architecture | Tissue cores |
| Coaxial technique | 17–19G introducer + inner needle | Multiple passes through single skin puncture | Reduced complications |
CT guidance preferred for:
- Deep retroperitoneal or mediastinal lesions
- Lesions not visible / poorly visible on ultrasound
- Lesions requiring precise angulated approaches
- Pancreatic masses (EUS preferred if available; CT as alternative)
- Pleural and pericardial lesions
- Bone and spinal lesions
Coaxial technique: An outer (introducer) cannula is placed at the margin of the lesion under CT guidance; multiple inner needle passes are made through it, reducing the number of times the pleura or abdominal wall is traversed. Significantly reduces complication risk.
Complications:
- Hemorrhage (most common)
- Pneumothorax (lung/pleural biopsy — ~15–25% incidence, majority managed conservatively)
- Biliary peritonitis, bowel perforation, gallbladder perforation
- Haemobilia, arterioportal shunt
- Mortality ~1:10,000 (cirrhosis and malignancy are risk factors)
Special consideration — Liver:
- Route through intervening normal liver parenchyma probably reduces hemorrhage risk
- Avoid transgressing: hilum, gallbladder, hepatic flexure, stomach, duodenum, pleura, lung
- Contrast-Enhanced Ultrasound (CEUS): Used before biopsy to distinguish viable tumor from prior ablation zone — arterial enhancement of tumor recurrence around an ablation zone guides precise targeting
5.2 CT-Guided Fluid Aspiration and Percutaneous Drainage
Indications:
- Abdominal/pelvic abscesses (post-surgical, diverticular, Crohn's, appendiceal)
- Pleural effusions (when ultrasound guidance inadequate or complex)
- Hepatic abscesses, renal cyst infection
- Psoas abscess
- Pancreatic pseudocysts and collections
- Empyema
CT preferred over ultrasound when:
- Gas within a collection (ultrasound cannot penetrate gas)
- Adjacent bowel loops obscure ultrasound window
- Deep retroperitoneal collections
- Complex multiloculated collections requiring precise access window planning
Catheter types used:
- Small-bore pigtail catheters (8–14F) with multiple side holes and locking mechanisms
- Placed using modified Seldinger technique (needle → guidewire → dilator → catheter)
Gantry tilt can provide access to collections not reachable in the standard axial plane (e.g., subphrenic collections covered partially by lung).
5.3 CT-Guided Ablation Procedures — Thermal and Non-Thermal
Ablation is the destruction of target tissue (usually tumors) using energy delivered through a needle-like probe placed under image guidance.
A. Radiofrequency Ablation (RFA)
Mechanism:
High-frequency alternating current (460–500 kHz) applied through a needle electrode. Agitates polarized water molecules in an alternating electric field → frictional heating → coagulative necrosis at >45°C. Temperatures up to 100–110°C achieved near the probe tip, but beyond a few mm conductive heating drives further tissue destruction.
Limitation: Heavy reliance on conductive heating makes ablation zone unpredictable in vivo, especially near blood vessels (heat sink effect) → risk of marginal recurrences.
Modern probes:
- Single needle: 3–5 cm sphere of destruction in 15–20 minutes
- Expandable/clustered multi-tine arrays: overcome single-probe limitations by deploying multiple tines from one handle → larger, more reproducible ablation zones
- Cooled-tip electrodes: circulate saline internally to prevent charring at probe surface → allows higher power delivery
CT guidance role: Confirms probe placement within target; monitors procedure (outgassing may obscure margins); post-ablation imaging assesses zone of coagulation.
B. Microwave Ablation (MWA)
Mechanism:
Needle probe harbors a microwave broadcast antenna (feedpoint ~10–17 mm back from probe tip). Tuned to 900–2400 MHz. Electromagnetic radiation causes water molecule oscillation → lossy dielectric heating → tissue temperatures often exceeding those achievable with RFA.
Advantages over RFA:
- Active heating zone extends ~10 mm around the active antenna tip
- Subsequent conductive heating less compromised by heat sink effect and tissue charring
- Faster ablation (single probe can be repositioned after ~5 minutes)
- Multiprobe interactive arrays available for larger volumes
CT guidance role: Probe placement; monitoring of ablation zone; "outgassing" (steam bubble formation during ablation) may temporarily obscure the target on CT — recognized limitation.
C. Cryoablation (CRA)
Mechanism:
Multiple narrow-gauge argon cryoprobes placed under image guidance into the target (usually 3–7 probes, ~10 mm from tumor edge, 15–20 mm apart). Phase change of liquid → gaseous argon (Joule-Thomson effect) → temperatures of −150°C to −170°C near probes. Cell-lethal isotherm: −20°C to −30°C. A double freeze-thaw cycle ensures tissue killing.
Cell injury mechanisms:
- Intracellular ice formation → disrupts organelles
- Extracellular ice formation + osmotic dehydration
- Microvascular endothelial injury
- Importantly: collagenous structures (pelvicalyceal system, bile ducts, vessels) are preserved → preferred near critical structures
Outstanding feature — the iceball:
"The outstanding feature of CRA is the physical iceball created through the tissues during the treatment cycle. The evolution of the iceball is more predictable and the phase change to ice is clearly visualised by current ultrasound, CT and MRI modalities." — Grainger & Allison's Diagnostic Radiology
The iceball is hypodense on CT and directly visible, providing real-time monitoring of the ablation zone — a unique advantage over RFA and MWA.
CT guidance role: Probe placement; real-time CT monitoring of iceball margins during freeze cycles.
D. Irreversible Electroporation (IRE)
Mechanism:
Application of millisecond direct current pulses between monopolar probes or a bipolar probe → permanently perforates cell membranes → controlled cell death. This is a non-thermal technique — does not damage collagenous structures or blood vessels.
Key advantage: Used adjacent to critical structures (major vessels, bile ducts, bowel) where thermal ablation would be contraindicated.
Key disadvantages:
- Severe muscle contractions from direct current → general anesthesia + muscle relaxants required
- Risk of cardiac dysrhythmias → ECG synchronization of current pulses required
- Limited clinical experience
E. Interstitial Laser Photocoagulation (ILP)
Mechanism:
Laser fibers (typically Nd:YAG, 1064 nm) inserted percutaneously into the tumor under CT/US guidance. Light energy converted to heat within a small focal zone → coagulative necrosis. Multiple fibers can be deployed simultaneously for larger zones.
Limitation: Small ablation zone per fiber (~1 cm); best suited for small tumors; less commonly used than RFA or MWA currently.
F. Focused Ultrasound (FUS/HIFU)
Mechanism:
High-intensity focused ultrasound (HIFU) from an extracorporeal acoustic lens — does NOT require a percutaneous probe.
- Focuses 1 MHz acoustic energy onto a small focal zone (~12 × 3 mm per "sonication")
- Stacked sonications create larger ablation volumes
- Requires motion correction and respiratory gating for mobile organs
Limitation: Severely attenuated by bone and gas — currently limited to stationary organs (uterus for fibroids, prostate). Not routinely CT-guided; typically MRI-guided (MRgFUS).
5.4 CT-Guided Drainage — Nephrostomy
Percutaneous nephrostomy can be performed under:
- Sole CT guidance, or
- Combined CT/fluoroscopy method
CT identifies the target calyx; needle access and wire placement under CT; subsequent tract dilation and catheter placement under fluoroscopic control. CT clearly delineates adjacent structures (colon, spleen, liver) to plan a safe approach.
5.5 CT-Guided Bone and Spinal Interventions
"Bone and spinal intervention is often performed under CT guidance." — Grainger & Allison's Diagnostic Radiology
Applications include:
- Vertebroplasty and kyphoplasty: CT confirms pedicle needle placement before cement injection
- Bone biopsy: Precise targeting of lytic/blastic lesions
- Percutaneous screw fixation of pelvic bone metastases (CBCT navigation)
- Nerve blocks and facet joint injections: CT provides precise anatomical localization when ultrasound/fluoroscopy are inadequate
- Epidural and paravertebral injections
6. ADVANCED AND EMERGING GUIDANCE TOOLS
6.1 Electromagnetic Navigation (EM Navigation)

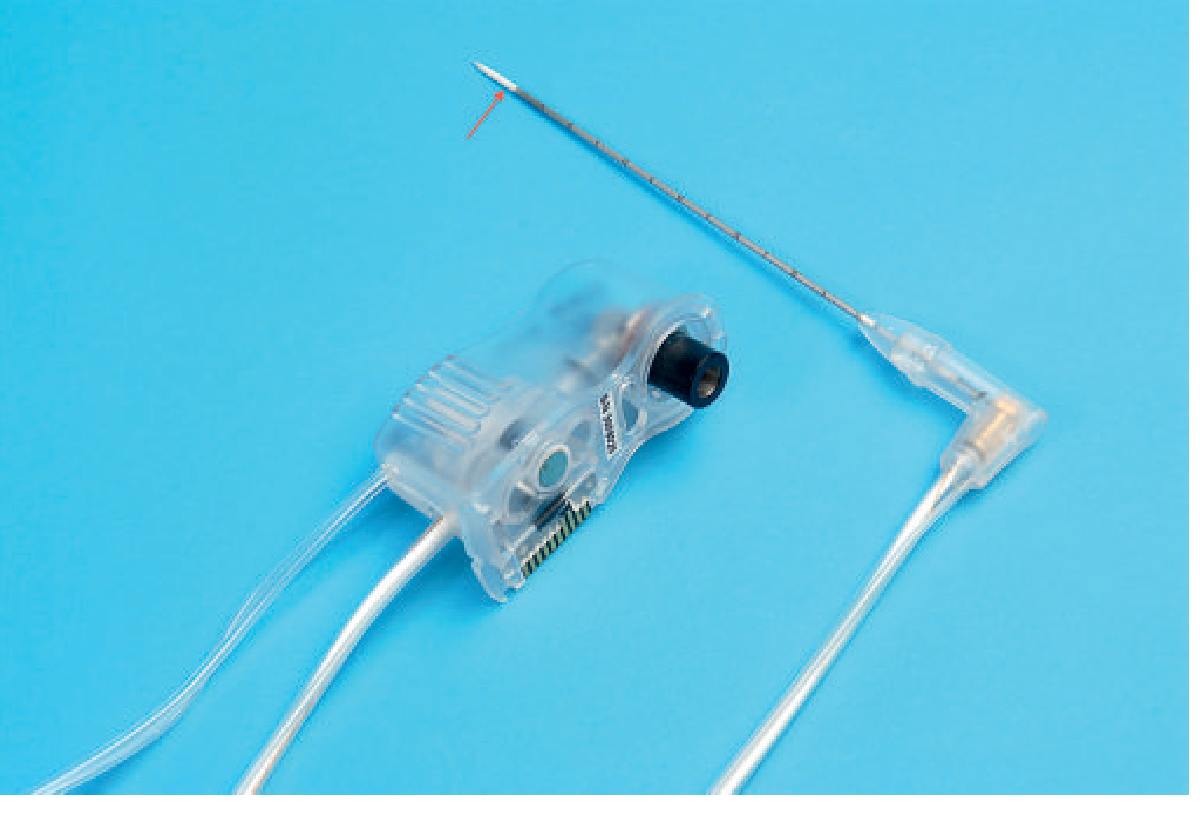

An electromagnetic field generator creates a localization field around the patient. Sensors attached to the needle tip track its position in real time in 3D space and overlay this onto pre-procedural CT images (registered via anatomic landmarks or skin fiducials).
Clinical use:
- CT-guided lung biopsy: EM navigation used alongside CT fluoroscopy to improve targeting of peripheral pulmonary nodules in 60 consecutive patients (Grand et al.)
- Particularly useful for out-of-plane needle trajectories
- Reduces number of CT acquisitions needed → dose reduction
Limitation: Registration accuracy depends on patient not moving between pre-CT and procedure; respiratory motion reduces real-time accuracy.
6.2 Optical Tracking Navigation Systems
Mechanism:
Optical markers affixed to patient skin surface. An infrared optical tracking camera system tracks the markers and the needle guide in 3D space. Navigation software:
- Imports pre-procedure CT → 3D reconstruction of target organ
- Plans optimal puncture path (safe, unobstructed trajectory)
- Registers patient coordinate system to world coordinate system via rigid registration of optical markers
- Guides the needle/robotic arm along the preplanned path in real time
Clinical performance:
In ex vivo and in vivo animal models, optical navigation robot-assisted puncture demonstrated accurate guidance. Clinical accuracy reported at ~1.33 mm lateral deviation and 1.02° angular deviation from planned trajectory (Micromate robotic system, 61 procedures).
6.3 Robotic Systems for CT-Guided Interventions
Robotic assistance represents a significant leap in accuracy and reproducibility. Two functional categories:
Needle-guiding robots:
- Plan and mechanically align the needle guide toward the target
- Operator manually advances the needle along the preplanned axis
- Examples: Micromate (Interventional Systems), MAXIO, iSYS
Needle-driving robots:
- Autonomously advance the needle to the planned depth after alignment
- Fully motorized insertion along planned trajectory
- Higher accuracy but additional safety considerations
Clinical benefits of robotics:
- Improved needle placement accuracy (±1–2 mm)
- Enables out-of-plane and double-angulated insertions not easily achieved manually
- Reduces radiation exposure to operator (hands away from gantry)
- Reduces number of CT check scans needed → lower total patient dose
- Reduces operator fatigue and variability
- First robotic needle system with FDA 510(k) clearance for CT optical navigation: Micromate (2023)
Applications:
- CT-guided lung biopsy (comparison of robotic vs. CT fluoroscopy shows equivalent accuracy)
- CT-guided microwave ablation of abdominal tumors
- Liver, kidney, adrenal ablation
- Spine procedures
6.4 Augmented Reality (AR) and Extended Reality (XR) Navigation
Definition: AR overlays pre-procedure CT-derived 3D anatomical models onto the operator's real-world view via head-mounted displays (HMD) or projection systems. The operator sees the patient plus a holographic rendering of their internal anatomy simultaneously.
Modes:
- Pre-planning: 3D CT reconstructions reviewed in AR space before the procedure → optimized trajectory planning
- Intraprocedural: 2D/3D CT-fusion reference projected onto the procedural table, or viewed through HMD while scrubbed in → real-time guidance without needing to look at a remote monitor
Clinical evidence:
- AR-enhanced percutaneous vertebroplasty: 100% clinical success rate in one study
- AR-guided percutaneous tumor procedures: live tracking accurate to ~5 mm in live patients
- Reduced procedure time
- Reduced radiation exposure to both patient and operator
- Pre-planning AR for CT-guided liver biopsies: less radiation, shorter indwelling needle time, fewer needle manipulations
- AR-HMD holographic guidance during percutaneous tumor ablation: difference between planned AR coordinates and physical anatomic markers = 3.3 mm
Limitation: Currently requires accurate real-time registration between virtual CT space and physical patient (organ deformation with respiration and patient movement is a challenge).
6.5 CT-US Fusion / Multi-Modality Fusion Guidance
Principle: Real-time ultrasound images are co-registered and fused with previously acquired CT (or MRI) volumetric data. As the operator moves the ultrasound probe, the corresponding CT slice is simultaneously displayed alongside the live US image.
Advantages:
- Ultrasound provides real-time guidance + no radiation
- CT provides better anatomical context, target localization, and lesion visibility (for lesions poorly visible on US)
- Particularly valuable for:
- Liver lesions visible on CT but not on B-mode US
- Post-ablation tumor recurrence (CEUS + CT fusion identifies viable tissue adjacent to ablation zone)
- Portal vein catheterization
Recent advance: "Smart Goggles" AR CT-US fusion — operator wears goggles displaying fused CT-US in real time, compared to conventional workstation-based fusion, allows hands-free guidance during scrubbed procedures.
6.6 AI-Assisted Needle Guidance (Software Integrated into CT Systems)
Needle companion software (e.g., Siemens myNeedle portfolio):
- myNeedle Companion (2D): Displays a fused coronal CT reconstruction alongside the current scan to visually guide in-plane procedures; automated needle trajectory planning
- myNeedle Guide 3D: Powerful 3D guidance for double-angulated procedures — plans and displays the needle path in 3D
- myNeedle Laser: Fully integrated laser guidance system; projects a laser cross onto the patient's skin aligning with the hub of the inserted needle to confirm the correct insertion angle along the preplanned path
Respiratory cycle trackers: AI-based software monitors patient respiratory motion and triggers CT acquisition at the same respiratory phase, improving consistency and reducing targeting error.
Jet ventilation under general anesthesia: High-frequency jet ventilation reduces respiratory motion amplitude during CT-guided lung tumor ablation, improving ablation precision — compared favorably vs. normal respiration under conscious sedation.
6.7 Hybrid Interventional CT Suites (CT-Angiography Combined Systems)
Canon Alphenix 4D CT + Aquilion One/Insight Edition:
- Combines a full-rotation angiography suite with a 320-detector row CT gantry on shared floor rails
- FDA-cleared 2025; commercially available 2026
- Allows the interventionalist to switch between fluoroscopic angiography and high-quality volumetric CT without moving the patient
- 4D CT capability: dynamic acquisition for perfusion, vascular mapping, and real-time ablation monitoring
- Applications: complex hepatic and endovascular interventions, TACE with CT confirmation, vertebral augmentation
7. CHOICE OF GUIDANCE MODALITY — DECISION FRAMEWORK
Target lesion
│
├─── Visible on ultrasound?
│ ├── Yes + superficial + simple → ULTRASOUND (real-time, no radiation)
│ └── No / gas / deep / complex → CT GUIDANCE
│
├─── CT guidance selected
│ ├── Simple axial approach, stable patient → CONVENTIONAL (quick-check) CT
│ ├── Respiratory motion significant (lung/kidney) → CT FLUOROSCOPY
│ ├── Non-axial trajectory required → GANTRY TILT + CT
│ ├── Complex drainage, needs catheter manipulation → CT + FLUOROSCOPY COMBINED
│ └── In interventional angio suite → CONE-BEAM CT ± FLUOROSCOPIC OVERLAY
│
└─── Advanced precision required / complex anatomy
├── EM navigation or optical tracking
├── Robotic assistance
└── AR/XR guidance or AI needle companion software
8. SUMMARY TABLE — Guidance Tools at a Glance
| Tool | Real-Time? | Radiation | Key Advantage | Key Limitation |
|---|---|---|---|---|
| Conventional CT (quick-check) | No | Moderate | Low dose, widely available | Breath-hold dependent |
| CT Fluoroscopy | Yes | High | Overcomes respiratory motion | High operator/patient dose |
| Gantry tilt | No | Moderate | Non-axial access window | Added complexity |
| CT + Fluoroscopy combined | Partial | Moderate | Best of both modalities | Two-room or two-system setup |
| Cone-Beam CT (CBCT) | Near real-time | Moderate | In-suite 3D; fluoroscopic overlay | Lower soft-tissue resolution than CT |
| EM Navigation | Yes (tracking) | Low | Out-of-plane trajectories; dose reduction | Registration drift with patient motion |
| Optical tracking + Robotics | Yes (tracking) | Low | Sub-2 mm accuracy; no operator radiation | Cost; setup time |
| Augmented Reality | Yes | Low | Hands-free; intuitive 3D visualization | Registration accuracy; organ deformation |
| CT-US Fusion | Yes (US) | Low | Real-time US + CT context | Lesion must be visible on US after fusion |
| AI Needle Software | Near real-time | Moderate | Automated trajectory planning | Dependent on vendor software |
| Hybrid CT-Angio Suite | Yes | Moderate-high | Full CT + angio in one room | Expensive; limited availability |
9. KEY EXAM POINTS — WHAT TO REMEMBER
- CT guidance = gold standard for deep/inaccessible lesions not seen on ultrasound
- Quick-check CT = most common method; lower dose; dependent on breath-holding
- CT fluoroscopy = real-time but highest radiation — operator must use long clamps and stand back
- Gantry tilt = allows access beyond axial plane; laser guide is essential
- Coaxial technique = one skin entry → multiple biopsy passes → fewer complications
- CBCT in hybrid suite = 3D volume + live fluoroscopic overlay → equivalent to CT for drainage with less procedure time
- Cryoablation iceball is directly visible on CT — only ablation modality with real-time CT-visible ablation zone
- RFA relies on conductive heating → vulnerable to heat-sink effect near vessels; MWA is more robust
- IRE = non-thermal → safe near major vessels and bile ducts; requires GA + ECG gating
- Robotics = ~1–2 mm accuracy, reduces operator radiation, enables double-angulated trajectories
- AR guidance = accurate to ~5 mm in live patients; reduces procedure time and radiation
- Combined CT-angio suites (Canon Alphenix 4D CT) = future of complex interventional guidance
Sources:
- Grainger & Allison's Diagnostic Radiology — Chapters on abdominal drainage, hepatic intervention, ablation
- Campbell-Walsh Urology 3-Volume Set — CT fluoroscopy section
- Harrison's Principles of Internal Medicine 22E — CT technique
- Current Surgical Therapy 14e — Ablation techniques
- ScienceDirect 2025 — Robotic CT-guided MWA, Miami Cancer Institute
- PMC 2025 — Optical navigation robot-assisted puncture, liver/kidney
- PMC 2025 — Smart Goggles AR CT-US fusion
- ScienceDirect 2025 — Evaluation of navigation/robotic systems for percutaneous CT-guided interventions
- Siemens Healthineers — myNeedle guidance portfolioHere is a quick orientation to the full notes above:
What these notes cover — in order:
- Definition — what CT interventional guidance is and why CT is chosen over US/fluoroscopy
- CT vs US vs Fluoroscopy comparison table
- Standard workflow — pre-planning, positioning, localization
- Core guidance modes (the main exam topic):
- Conventional / quick-check CT
- CT Fluoroscopy (real-time) — mechanism, advantages, radiation danger
- Gantry tilt
- Combined CT + Fluoroscopy
- Cone-Beam CT with fluoroscopic overlay
- Interventional procedures performed under CT guidance:
- Biopsy (FNA, core, coaxial technique, complications)
- Drainage (abscess, pleural, nephrostomy)
- Ablation — full detail on RFA, Microwave, Cryoablation, IRE, Laser, HIFU — mechanisms, advantages, CT monitoring role
- Bone/spine interventions
- Advanced guidance tools (emerging/advances section):
- Electromagnetic navigation
- Optical tracking + Robotics
- Augmented Reality (AR/XR)
- CT-US Fusion
- AI needle companion software
- Hybrid CT-angiography suites
- Decision framework — when to use which modality
- Summary table + 12 Key Exam Points
This is a shared conversation. Sign in to Orris to start your own chat.
