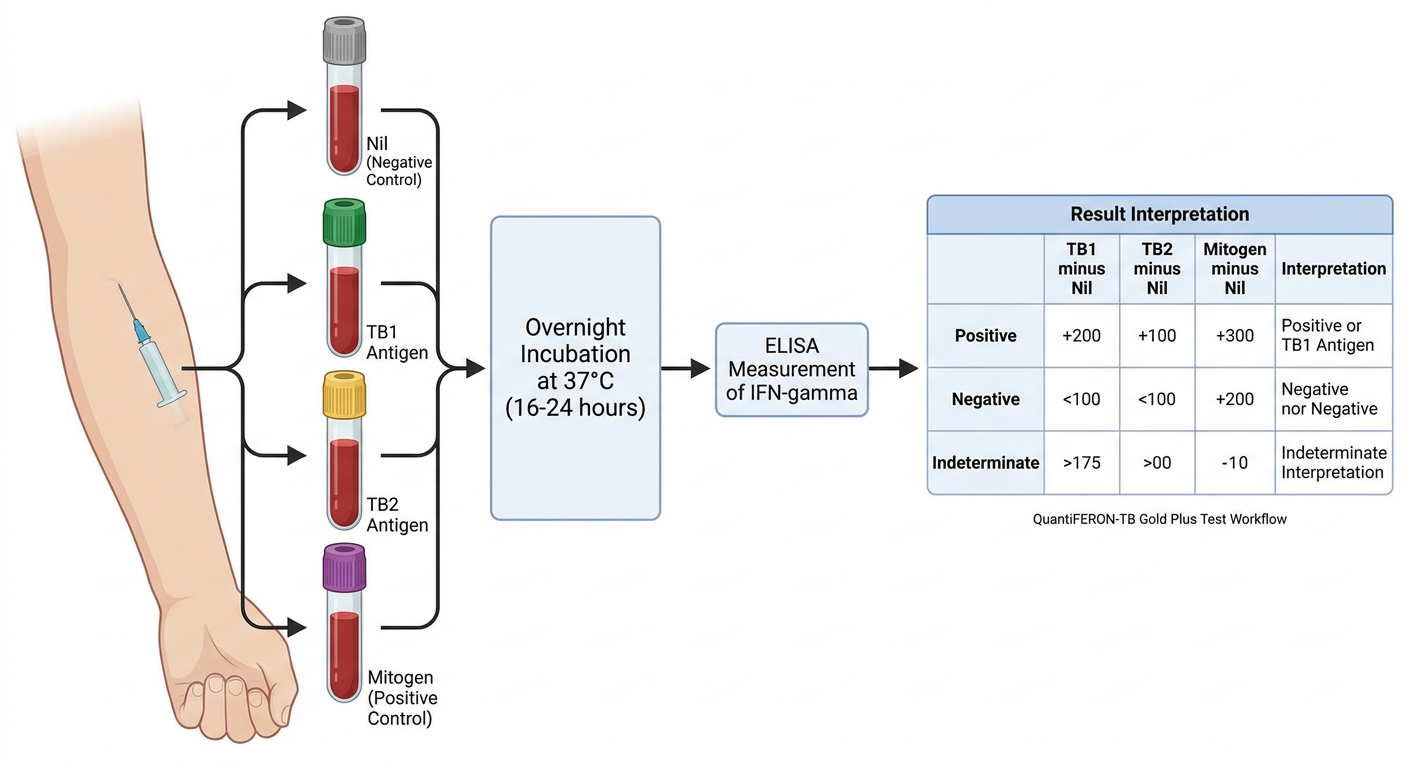

QuantiFERON TB Gold Plus test: medical diagram showing the 4 blood collection tubes (Nil/negative control, TB1 antigen tube, TB2 antigen tube, Mitogen/positive control), the overnight incubation step at 37°C, ELISA measurement of IFN-gamma, and result interpretation table (Positive/Negative/Indeterminate). Clean educational medical illustration with labels and arrows showing the workflow from blood draw to result.
Here is a complete, textbook-sourced overview of both tests:
Mantoux Test (Tuberculin Skin Test / TST)
Principle
The Mantoux test detects delayed-type hypersensitivity (Type IV) to Mycobacterium tuberculosis antigens. It uses purified protein derivative (PPD) injected intradermally, and the immune system's memory T-cells mount a local reaction if previously sensitized.
Procedure
- Inject 0.1 mL of PPD intradermally into the volar (inner) forearm using a 27-gauge needle at 5-15 degrees
- Read the result at 48-72 hours (results unreliable after 72 hours)
- Measure only induration (raised hardness) - NOT erythema or redness
- Sensitivity develops 2-10 weeks after infection
Interpretation (TABLE 67-2 - Tintinalli's Emergency Medicine)
| Induration Size | Positive In |
|---|---|
| ≥5 mm | HIV patients; close contacts of active TB; abnormal CXR (healed TB); immunosuppressed (prednisone >15 mg/day >1 month); organ transplant recipients |
| ≥10 mm | Injection drug users; high-prevalence groups (immigrants, long-term care residents); silicosis, diabetes, carcinoma of head/neck/lung; children <4 years |
| ≥15 mm | All others (low-risk individuals) |
Screening Conversions (New Infections)
- ≥10 mm increase within 2 years = positive if age <35 years
- ≥15 mm increase within 2 years = positive if age >35 years
Sensitivity by Induration Size
| Cut-off | Sensitivity |
|---|---|
| 5 mm | 98% |
| 10 mm | 90% |
| 15 mm | 50-60% |
False Positives
- Prior BCG vaccination (most common confounder)
- Exposure to non-tuberculous mycobacteria (NTM)
False Negatives
- Improper administration or reading
- Very early disease (window period)
- Recent MMR vaccination
- Profound immunosuppression (HIV - 20% of active TB patients test negative)
- Anergy states
Key note: A negative TST does NOT rule out TB. 4% of close contacts of infected patients test positive with no symptoms, and half have detectable disease within 1 month of exposure.
QuantiFERON-TB Gold (IGRA - Interferon-Gamma Release Assay)
Principle
QuantiFERON-TB Gold is an in vitro blood test measuring cell-mediated immunity (CMI). It measures IFN-γ released by sensitized memory T-cells when stimulated by M. tuberculosis-specific antigens:
- ESAT-6 (Early Secreted Antigenic Target 6)
- CFP-10 (Culture Filtrate Protein 10)
These antigens are absent from all BCG strains, which is why QFT-Gold has higher specificity than TST, especially in BCG-vaccinated populations.
Available Platforms (FDA-Approved)
| Assay | Tubes | CD4/CD8 |
|---|---|---|
| QFT-Gold (original) | ESAT-6, CFP-10 | CD4 only |
| QFT-GIT (Gold In-Tube) | ESAT-6, CFP-10, TB7.7 | CD4 only |
| QFT-Plus | TB1 (ESAT-6 + CFP-10) + TB2 (shorter peptides) | CD4 + CD8 |
QFT-Plus Tubes (4 Tubes)
- Nil tube - Negative control (no antigen, no stimulator) - measures background IFN-γ
- TB1 tube - ESAT-6 + CFP-10 antigens → stimulates CD4+ T cells
- TB2 tube - Shorter peptides of ESAT-6 + CFP-10 → stimulates CD4+ and CD8+ T cells
- Mitogen tube - Positive control (non-specific T-cell stimulator - confirms blood is viable)
Procedure
- Collect blood directly into the 4 antigen-coated tubes
- Incubate overnight at 37°C (within 16 hours of collection)
- ELISA measures IFN-γ concentration in each tube
- Software calculates result by subtracting background (Nil tube)
Result Interpretation
| Result | QFT Criteria |
|---|---|
| Positive | IFN-γ ≥ 0.35 IU/mL above Nil (in TB1 or TB2 for QFT-Plus) |
| Negative | IFN-γ < 0.35 IU/mL AND Mitogen response adequate |
| Indeterminate | Nil too high (>8 IU/mL) OR Mitogen response too low (<0.5 IU/mL) |
QFT-Plus is positive if EITHER TB1 or TB2 tube is positive.
Key Advantages Over TST
| Feature | TST (Mantoux) | QFT-Gold |
|---|---|---|
| Patient visits | 2 (placement + reading) | 1 |
| Result time | 48-72 hours | 24 hours |
| BCG interference | YES - false positives | NO |
| NTM interference | YES | Minimal |
| Sensitivity | ~70-90% | ~90-100% |
| Specificity | Lower | Higher |
Limitations of QFT
- Requires laboratory infrastructure and technical expertise
- Less reproducible on serial testing than TST (especially near the 0.35 IU/mL threshold - "borderline positives" may convert/revert spontaneously)
- Higher cost than TST
- Cannot distinguish active TB from latent TB (neither can TST)
- A negative result does not exclude TB - send cultures if clinical suspicion is high
CDC Guidelines: When to Prefer Which Test
(Murray & Nadel's Textbook of Respiratory Medicine)
| Situation | Preferred Test |
|---|---|
| BCG-vaccinated individuals | IGRA preferred |
| Groups with low return rates (homeless, drug users) | IGRA preferred |
| Children <5 years | TST preferred |
| All other situations | Either acceptable |
| Dual testing (IGRA + TST) | When initial test negative but high suspicion; OR to encourage treatment adherence in BCG+ with positive TST |
Sources:
- Tintinalli's Emergency Medicine, Block 6, p. 494 (Mantoux/TST)
- Rosen's Emergency Medicine, Block 24, p. 2713 (IGRA/QuantiFERON)
- Murray & Nadel's Textbook of Respiratory Medicine, Block 9, p. 933 (IGRA Platforms & Interpretation)
- Fishman's Pulmonary Diseases and Disorders, Block 26 (IGRA vs TST)
