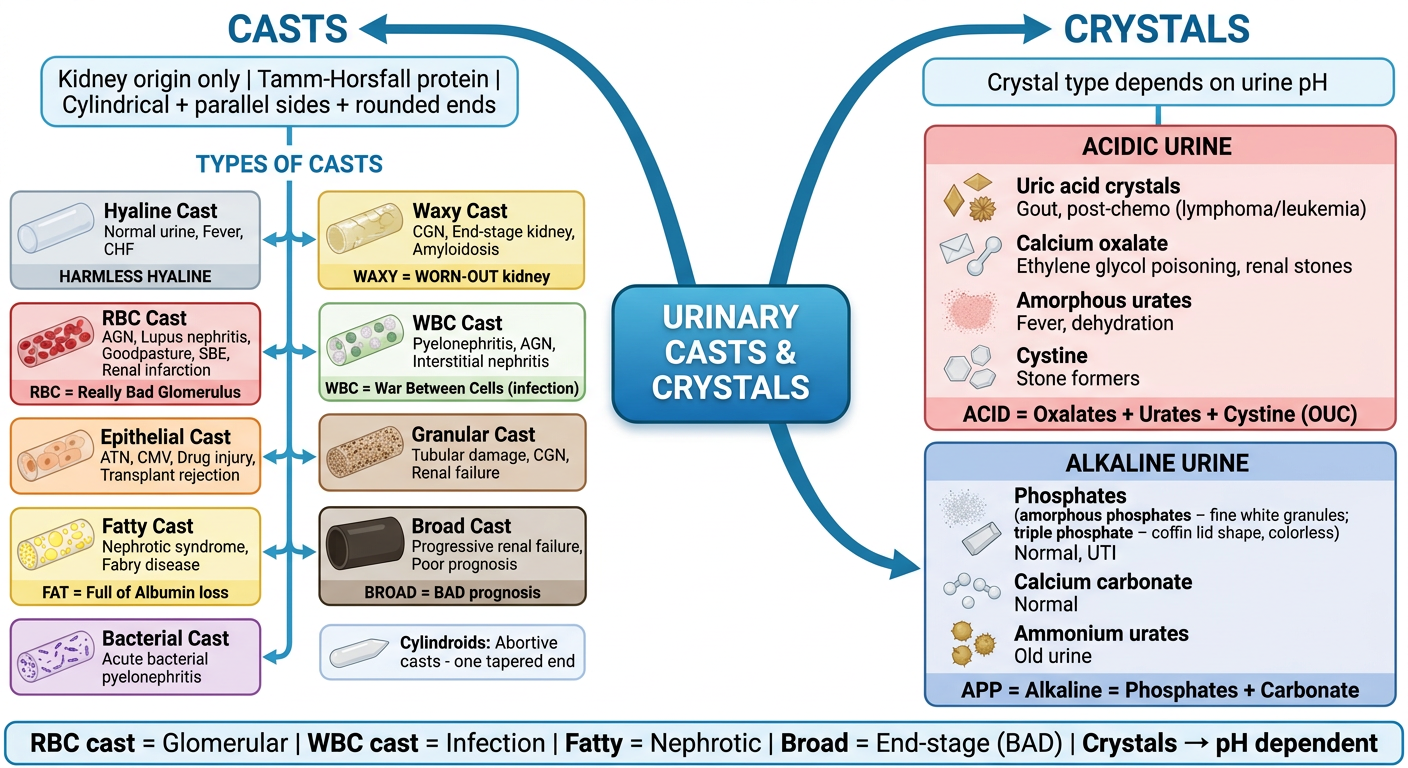

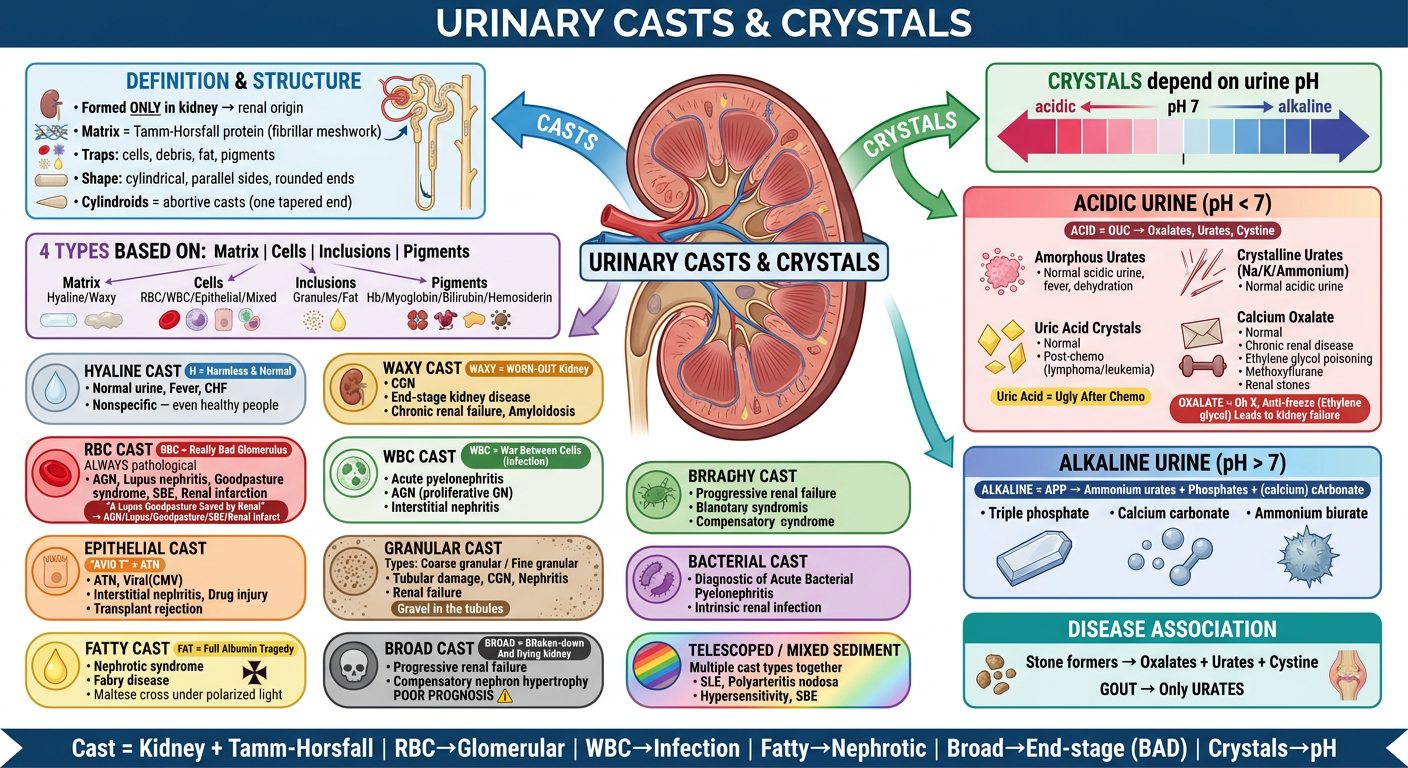

⸻ URINARY CASTS & CRYSTALS ⸻ CASTS Definition * Formed only in kidney → always indicate renal origin * Made by solidification of Tamm Horsfall protein * This protein forms fibrillar meshwork (matrix)     → traps cells / debris / fat / pigments ⸻ Structure * Cylindrical structures * Parallel sides + rounded ends * Variable size, shape, appearance ⸻ Cylindroids * Abortive casts * One end → tapered * Other end → rounded * Sides not parallel ⸻ Classification of Casts 1. Based on Matrix * Hyaline * Waxy ⸻ 2. Based on Cells * RBC casts * WBC casts (neutrophils / lymphocytes) * Renal tubular epithelial cell casts * Mixed cellular casts     (RBC + neutrophils + epithelial cells) ⸻ 3. Based on Inclusions * Granules     (proteins, cell debris) * Fat globules / droplets     (triglycerides, cholesterol esters) ⸻ 4. Based on Pigments * Hemoglobin * Myoglobin * Bilirubin * Hemosiderin granules ⸻ TYPES OF CASTS & SIGNIFICANCE Hyaline Cast * Nonspecific * Present even in normal urine * Seen in:     * Fever     * Congestive heart failure ⸻ Waxy Cast * Seen in:     * Chronic glomerulonephritis (CGN)     * End-stage kidney disease     * Chronic/advanced renal failure     * Amyloidosis ⸻ Cellular Casts 1. RBC Cast * Always indicates renal disease * Seen in:     * Acute glomerulonephritis (AGN)     * Lupus nephritis     * Goodpasture syndrome     * Subacute bacterial endocarditis     * Renal infarction ⸻ 2. WBC Cast * Seen in:     * Acute pyelonephritis     * AGN (proliferative GN)     * Interstitial nephritis ⸻ 3. Epithelial Cast * Seen in:     * Acute tubular necrosis (ATN) / injury     * Viral infections (e.g., CMV)     * Drug-induced injury     * Interstitial nephritis     * Transplant rejection ⸻ Granular Cast Types: * Coarsely granular * Finely granular Seen in: * Tubular damage * CGN * Nephritis with tubular injury * Renal failure ⸻ Fatty Cast * Seen in:     * Nephrotic syndrome     * Fabry disease ⸻ Telescoped (Mixed) Sediment * Seen in:     * Various nephritis conditions     * Proliferative GN (e.g., SLE, polyarteritis nodosa)     * Hypersensitivity reactions     * Subacute bacterial endocarditis ⸻ Bacterial Cast * Diagnostic of acute bacterial pyelonephritis * Indicates intrinsic renal infection ⸻ Broad Cast (Renal Failure Cast) * Seen in:     * Progressive renal failure     * Compensatory nephron hypertrophy * Poor prognosis ⸻ CRYSTALS General Points * Usually absent in normal urine * Types depend on urine pH ⸻ Crystals in Acidic Urine 1. Amorphous Urates * Seen in:     * Normal acidic urine     * Concentrated urine (fever, dehydration) ⸻ 2. Crystalline Urates * Types:     * Sodium urate     * Potassium urate     * Ammonium urate * Seen in normal acidic urine ⸻ 3. Uric Acid Crystals * Seen in:     * Normal acidic urine     * Post-chemotherapy (lymphoma, leukemia) ⸻ 4. Calcium Oxalate Crystals * Seen in:     * Normal acidic urine     * Severe chronic renal disease     * Poisoning:         * Ethylene glycol         * Methoxyflurane     * Nephrolithiasis (renal stones) ⸻ Disease Associations * Oxalates + urates + cystine → stone formers * Only urates → gout ⸻ pH-Based Classification Acidic Urine * Oxalates * Urates * Cystine ⸻ Alkaline Urine * Phosphates * Calcium carbonate * Ammonium urates ⸻ ULTRA-SHORT REVISION * Cast = kidney origin + Tamm Horsfall protein * RBC cast → glomerular disease * WBC cast → infection/inflammation * Fatty cast → nephrotic * Broad cast → end-stage kidney (bad prognosis) * Crystals depend on pH ⸻ Create image of illlustrated mind map infographics of this given text. With easy to remember method like mnemonic, wherever needed.
