Estimation of Bilirubin in Serum - Complete Practical Guide

Background: What is Bilirubin?

Bilirubin is an orange-yellow pigment derived from heme, primarily a product of red blood cell (RBC) turnover. It is extracted and biotransformed in the liver and excreted in bile and urine. It exists in two main forms:

Unconjugated bilirubin (UCB) / Indirect bilirubin: Lipid-soluble, tightly bound to albumin in plasma. Cannot be filtered by kidneys. Stabilized by six intramolecular hydrogen bonds in a "ridge-tile" configuration that makes it water-insoluble.
Conjugated bilirubin (CB) / Direct bilirubin: Water-soluble, formed in the liver by conjugation with glucuronic acid (mono- or di-glucuronide). Can appear in urine when elevated.
Delta bilirubin (δ-bilirubin): Conjugated bilirubin covalently bound to albumin; accumulates in prolonged cholestasis.

Principle of the Assay: The Diazo Reaction (Van den Bergh Reaction)

All routine serum bilirubin measurements are based on the diazo (Van den Bergh) reaction, discovered by Ehrlich in 1883 and applied to serum measurement by Van den Bergh and Muller in 1916.

Chemical Reaction: Diazotized sulfanilic acid (the diazo reagent) reacts with the two central pyrrole rings of bilirubin via electrophilic aromatic substitution. The central methylene carbon is cleaved, producing two phenyl-azo adducts (azodipyroles/azobilirubin) that absorb at 540 nm (reddish-purple at neutral pH, blue at acidic/alkaline pH), measurable colorimetrically.

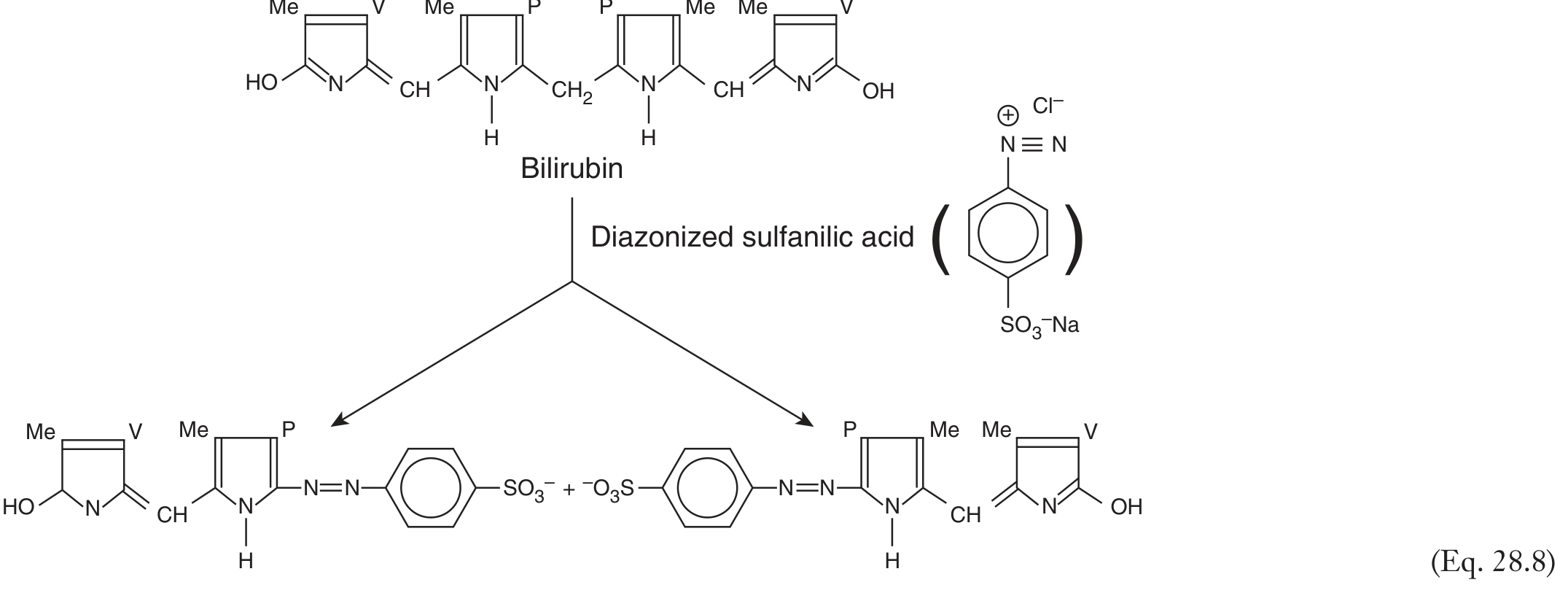

Bilirubin diazo reaction with diazonized sulfanilic acid producing two phenyl-azo adducts

Reaction of bilirubin with diazonized sulfanilic acid producing two azobilirubin adducts (Henry's Clinical Diagnosis, p. 527)

Why conjugated bilirubin reacts directly: CB is water-soluble and lacks the tight internal hydrogen bonds that shield unconjugated bilirubin. It therefore reacts rapidly with the diazo reagent in aqueous solution without any accelerator.

Why unconjugated bilirubin needs an accelerator: UCB is tightly bound to albumin and protected by six internal hydrogen bonds that block access of the diazo reagent. An accelerator (e.g., caffeine-benzoate, ethanol, methanol) disrupts these bonds and displaces UCB from albumin, allowing it to react.

The Standard Method: Jendrassik-Grof Method (1938, Modified by Doumas)

This is the method of choice for routine clinical laboratory measurement, recognized as reproducible and reliable.

Reagents Required:

Diazo reagent: Freshly prepared diazotized sulfanilic acid (sulfanilic acid + sodium nitrite + HCl)
Accelerator solution: Caffeine-sodium benzoate solution (aqueous; preferred over methanol/ethanol as it avoids protein precipitation and turbidity)
Alkaline tartrate solution: Sodium hydroxide + sodium potassium tartrate (used to shift pH for color development)
Blank reagent: Sodium nitrite replaced with distilled water (controls for background colour of sample)

I. Estimation of TOTAL Bilirubin

Principle

Total bilirubin = conjugated + unconjugated bilirubin. The caffeine-benzoate accelerator displaces UCB from albumin, allowing all bilirubin species to react with the diazo reagent. The product is measured spectrophotometrically.

Procedure

Step	Action
1	Pipette 0.1 mL serum + 0.5 mL caffeine-benzoate (accelerator) + 0.4 mL diazo reagent into a test tube. Mix well.
2	Allow to stand for 10 minutes at room temperature (reaction time for both CB and UCB).
3	Add 1.5 mL alkaline tartrate (shifts product to blue color at alkaline pH, increasing sensitivity).
4	Read absorbance at 600 nm (blue color) or 540 nm (reddish-purple) within 1 hour.
5	Run a blank: serum + caffeine-benzoate + blank reagent (no diazo) - subtract this from the test reading.
6	Compare to standard bilirubin calibrator of known concentration.

Calculation

Using the Beer-Lambert law:

Total Bilirubin (mg/dL) = (Absorbance of Test / Absorbance of Standard) × Concentration of Standard

Reference Range

Adults: 0.2 - 1.0 mg/dL (3.4 - 17.1 μmol/L)
With van den Bergh method: normal mean ~0.5 mg/dL; 95% of normal population 0.2 - 0.9 mg/dL

II. Estimation of DIRECT Bilirubin (Conjugated Bilirubin)

Principle

Direct bilirubin = the fraction that reacts with diazotized sulfanilic acid in aqueous solution, WITHOUT any accelerator. This primarily measures conjugated (water-soluble) bilirubin, which reacts rapidly (within 1 minute).

Procedure

Step	Action
1	Pipette 0.1 mL serum + 0.9 mL distilled water + 0.4 mL diazo reagent. Mix.
2	Allow to react for exactly 1 minute at room temperature (only direct-reacting CB reacts in this short window).
3	Read absorbance at 540 nm immediately.
4	Run a blank as above (serum + water + blank reagent).

Note: No accelerator is added. The reaction is done in purely aqueous conditions. Conjugated bilirubin reacts rapidly; unconjugated bilirubin reacts slowly but some will react with prolonged incubation - hence the strict 1-minute reaction window.

Reference Range

Direct bilirubin: 0.0 - 0.3 mg/dL (< 5.1 μmol/L)
In normal plasma, only ~4% of total bilirubin is conjugated (direct-reacting)
Clinically: Direct fraction <15% of total serum bilirubin = unconjugated hyperbilirubinemia

III. Estimation of INDIRECT Bilirubin (Unconjugated Bilirubin)

Principle

Indirect bilirubin cannot be measured directly - it is calculated by subtraction:

Indirect Bilirubin = Total Bilirubin - Direct Bilirubin

This reflects mostly unconjugated bilirubin (albumin-bound, slow-reacting fraction). However, this is an approximation - the calculated "indirect" value may slightly underestimate true UCB because a small amount of UCB may react in the direct assay even without accelerator.

Reference Range

Indirect bilirubin: 0.1 - 0.8 mg/dL (1.7 - 13.7 μmol/L)

Important Technical Points & Sources of Error

Issue	Explanation
Hemolysis	Hemoglobin interferes; no significant interference up to 25 mg/dL Hb on automated analyzers (Beckman AU). Hemolysis can falsely lower bilirubin by oxidation.
Lipemia	No significant interference up to 500 mg/dL Intralipid.
Light exposure	Bilirubin is photosensitive; samples must be protected from light (covered tubes).
Methanol/ethanol accelerators	Cause protein precipitation and turbidity; caffeine-benzoate is preferred.
Delta bilirubin	Covalently albumin-bound conjugated bilirubin. Has a ~18-20 day half-life (albumin's half-life). Not accurately measured by standard diazo methods. Important in prolonged cholestasis.
Direct ≠ Conjugated	Direct and conjugated bilirubin are NOT equivalent. A small amount of UCB may appear in the "direct" fraction; some CB (especially delta bilirubin) may escape. Errors can occur if used to diagnose isolated disorders like Gilbert syndrome.
Calibrators	Human serum-based calibrators are preferred over bovine serum, which gives incomplete and unpredictable reactions with UCB.

Clinical Significance

Normal Values Summary

Fraction	Normal Range (mg/dL)	Normal Range (μmol/L)
Total bilirubin	0.2 - 1.0	3.4 - 17.1
Direct (conjugated)	0.0 - 0.3	0.0 - 5.1
Indirect (unconjugated)	0.1 - 0.8	1.7 - 13.7

Jaundice becomes clinically visible at total bilirubin >2.5 - 3.0 mg/dL (scleral icterus typically appears first around 2 mg/dL).

Elevated INDIRECT (Unconjugated) Bilirubin - Causes

Category	Examples
Increased production (overproduction)	Hemolysis (intravascular/extravascular), ineffective erythropoiesis, blood transfusion, resorption of large hematomas
Decreased hepatocellular uptake	Drugs (rifampin, cyclosporine)
Decreased conjugation	Gilbert syndrome (mild UGT1A1 deficiency), Crigler-Najjar syndrome type I and II (severe/absent UGT1A1), neonatal physiologic jaundice (low UGT activity at birth), hypothyroidism

Key point on neonatal jaundice: UCB in excess of albumin's binding capacity (>20-25 mg/dL) can cross the blood-brain barrier and deposit in the basal ganglia causing kernicterus (toxic encephalopathy). Treatment: phototherapy (blue light converts bilirubin Z-Z to more water-soluble E-isomers that can be excreted without conjugation).

Elevated DIRECT (Conjugated) Bilirubin - Causes

Category	Examples
Hepatocellular disease	Viral hepatitis (A, B, C, E), alcoholic hepatitis, drug-induced liver injury, cirrhosis, liver failure
Intrahepatic cholestasis	Primary biliary cholangitis (PBC), primary sclerosing cholangitis (PSC), intrahepatic cholestasis of pregnancy, drug-induced cholestasis
Extrahepatic (posthepatic) obstruction	Choledocholithiasis (bile duct stones), carcinoma of head of pancreas, cholangiocarcinoma, ampullary carcinoma, biliary strictures
Hereditary disorders	Dubin-Johnson syndrome, Rotor syndrome

Key point: Even limited amounts of true conjugated bilirubin in serum indicate significant hepatobiliary pathology. Conjugated hyperbilirubinemia is always associated with bilirubinuria (bilirubin in urine - "dark urine") EXCEPT when it's in the form of delta bilirubin (albumin-bound), which cannot be filtered by glomeruli due to its large size. A urine dipstick for bilirubin is therefore a helpful confirmatory test.

Differential Diagnosis Summary by Pattern

Bilirubin Pattern	Likely Diagnosis
↑ Indirect, Normal Direct	Hemolysis, Gilbert syndrome, Crigler-Najjar, neonatal jaundice
↑ Direct, ↑ Indirect	Hepatocellular disease (hepatitis, cirrhosis)
↑ Direct predominantly	Obstructive jaundice (intrahepatic or extrahepatic cholestasis)
↑ Total, decreasing but jaundice persists	Delta bilirubin accumulation (prolonged cholestasis)

The Delta Bilirubin Enigma

In prolonged cholestasis, patients may show:

Bilirubin in serum but NO bilirubinuria - because delta bilirubin (albumin-bound CB) cannot pass through glomeruli.
Clinical jaundice persisting after biochemical recovery - because delta bilirubin's half-life matches albumin (~18-20 days vs. free bilirubin's ~4 hours), so it clears slowly even after the underlying cause is corrected.

Sources

Tietz Textbook of Laboratory Medicine, 7th Edition, pp. 1971-1972 (Jendrassik-Grof method, diazo methods)
Henry's Clinical Diagnosis and Management by Laboratory Methods, p. 527 (bilirubin reaction chemistry)
Harrison's Principles of Internal Medicine, 22nd Ed., pp. 1650-1655 (measurement, delta bilirubin, clinical interpretation)
Sleisenger and Fordtran's Gastrointestinal and Liver Disease, pp. 335-336 (clinical significance, differential diagnosis)
Lippincott's Illustrated Reviews: Biochemistry, 8th Ed., p. 805 (van den Bergh reaction, neonatal jaundice)
