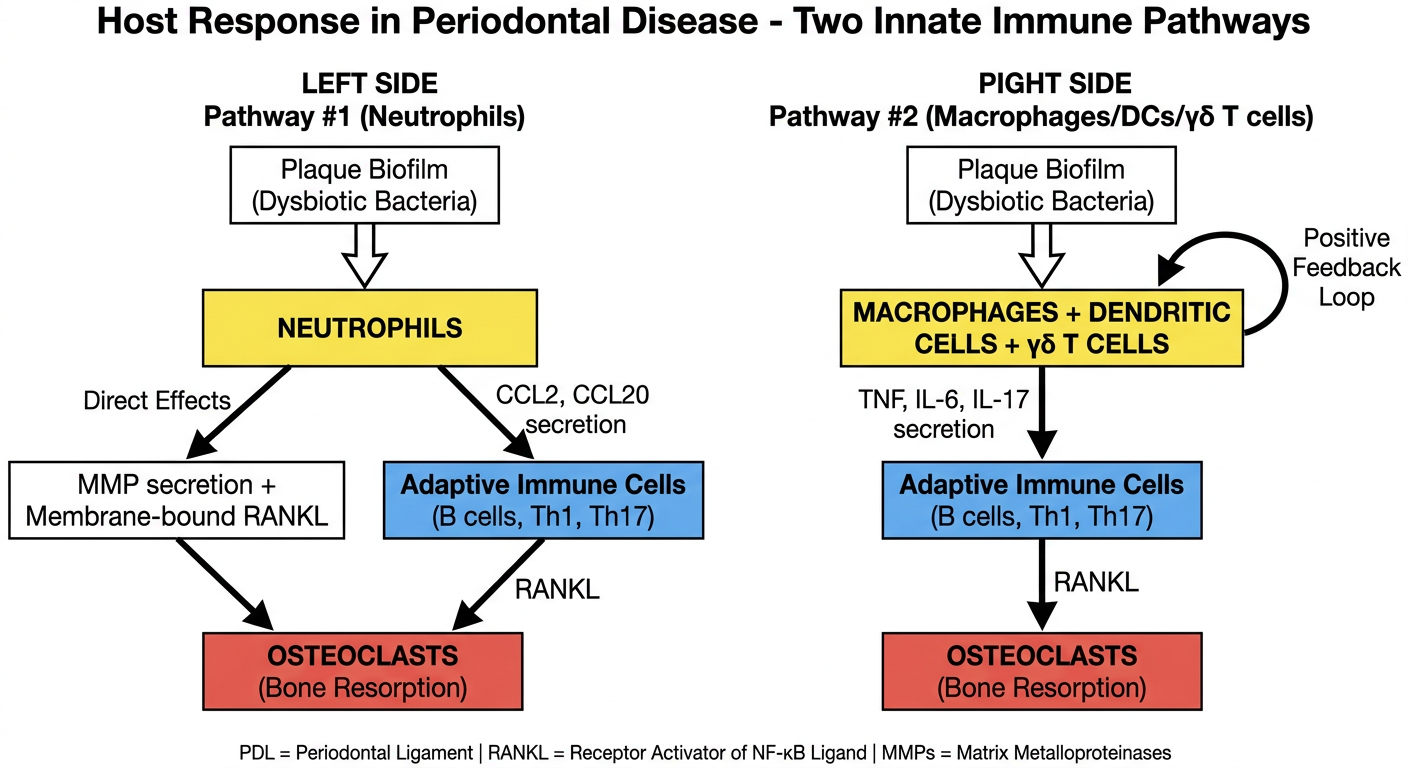

A simplified educational diagram for university exam showing "Host Response in Periodontal Disease - Two Innate Immune Pathways". Clean white background, clear flowchart style with labeled boxes and arrows. LEFT SIDE - "Pathway #1 (Neutrophils)": Top box: "Plaque Biofilm (Dysbiotic Bacteria)" with arrow pointing down to "NEUTROPHILS" box (yellow). Two arrows from Neutrophils: Arrow 1 going left down: "Direct Effects" -> box: "MMP secretion + Membrane-bound RANKL" -> arrow down to "OSTEOCLASTS (Bone Resorption)" Arrow 2 going right down: "CCL2, CCL20 secretion" -> "Adaptive Immune Cells (B cells, Th1, Th17)" -> "RANKL" -> arrow down to "OSTEOCLASTS (Bone Resorption)" RIGHT SIDE - "Pathway #2 (Macrophages/DCs/γδ T cells)": Top box: "Plaque Biofilm (Dysbiotic Bacteria)" with arrow pointing down to "MACROPHAGES + DENDRITIC CELLS + γδ T CELLS" box (yellow). Two arrows: Arrow 1: "TNF, IL-6, IL-17 secretion" -> "Adaptive Immune Cells (B cells, Th1, Th17)" -> "RANKL" -> arrow down to "OSTEOCLASTS (Bone Resorption)" Arrow 2: Curved autocrine/paracrine feedback loop arrow back to same innate cells box labeled "Positive Feedback Loop" Bottom note in small text: "PDL = Periodontal Ligament | RANKL = Receptor Activator of NF-κB Ligand | MMPs = Matrix Metalloproteinases" Use bold headers, color-coded boxes (yellow for innate cells, blue for adaptive cells, red for osteoclasts/bone resorption), clean arrows, simple sans-serif font. Make it look like a professional medical textbook diagram suitable for printing.
Host Response in Periodontal Disease - Simplified
Common Starting Point
Pathway #1 - Neutrophil-Mediated (Innate)
| Step | What Happens |
|---|---|
| 1 | Biofilm activates Neutrophils |
| 2a (Direct) | Neutrophils secrete MMPs (destroy extracellular matrix) + express membrane-bound RANKL -> minor osteoclastogenesis |
| 2b (Indirect) | Neutrophils release CCL2 & CCL20 -> recruit adaptive cells |
| 3 | Adaptive cells (B cells, Th1, Th17) produce RANKL |
| 4 | RANKL activates Osteoclast progenitors -> Bone Resorption |
Pathway #2 - Macrophage/DC/γδ T Cell-Mediated (Innate)
| Step | What Happens |
|---|---|
| 1 | Biofilm activates Macrophages + Dendritic Cells + γδ T cells |
| 2 | These cells secrete TNF, IL-6, IL-17 |
| 3 | Cytokines activate adaptive cells (B cells, Th1, Th17) |
| 4 | Adaptive cells produce RANKL -> Bone Resorption |
| + | Positive feedback loop - innate cells stimulate each other (autocrine/paracrine), amplifying bone destruction |
Key Terms to Remember
- RANKL = Receptor Activator of NF-kB Ligand - the final trigger for osteoclastogenesis
- MMPs = Matrix Metalloproteinases - enzymes that degrade connective tissue
- PDL = Periodontal Ligament
- Both pathways converge on osteoclast activation = bone resorption = periodontal bone loss
