Variable Angle (Polyaxial) Locking Plate - 10 Marks PG Answer
1. Definition
- Rockwood and Green's Fractures in Adults, 10th ed. 2025
2. Historical Context and Evolution
- Non-locking plates - relied on plate-to-bone friction (dependent on bone quality)
- Uniaxial locking plates (LISS, LCP) - screw head threads into plate at a fixed single angle; angular stability; act as internal fixators independent of bone quality
- Variable angle locking plates (VA-LCP) - introduced to free the surgeon from fixed screw trajectories while retaining locking stability
3. Design Features
Screw-Plate Interface Mechanisms (varies by manufacturer):
| Mechanism Type | Description |
|---|---|
| Locking caps | Cap locks screw into plate at variable angle |
| Over-compression screw heads | Screw head compresses into polyaxial socket |
| Screws cutting threads into plate | Self-threading into the plate hole at the inserted angle |
| Tabbed screw holes | Tabs deform to lock screw at the angle of insertion |
Key structural elements:
- Threaded screw head engages matching threads in the plate hole
- Conical hole geometry permits ±15° off-axis angulation in any direction
- Combination holes - many designs accept BOTH locking and non-locking screws in the same hole
- Anatomically precontoured shapes for periarticular sites (distal femur, proximal tibia, distal radius, proximal humerus, clavicle)
- Larger core diameter of locking screws with finer thread pitch - designed for bending strength over stripping torque

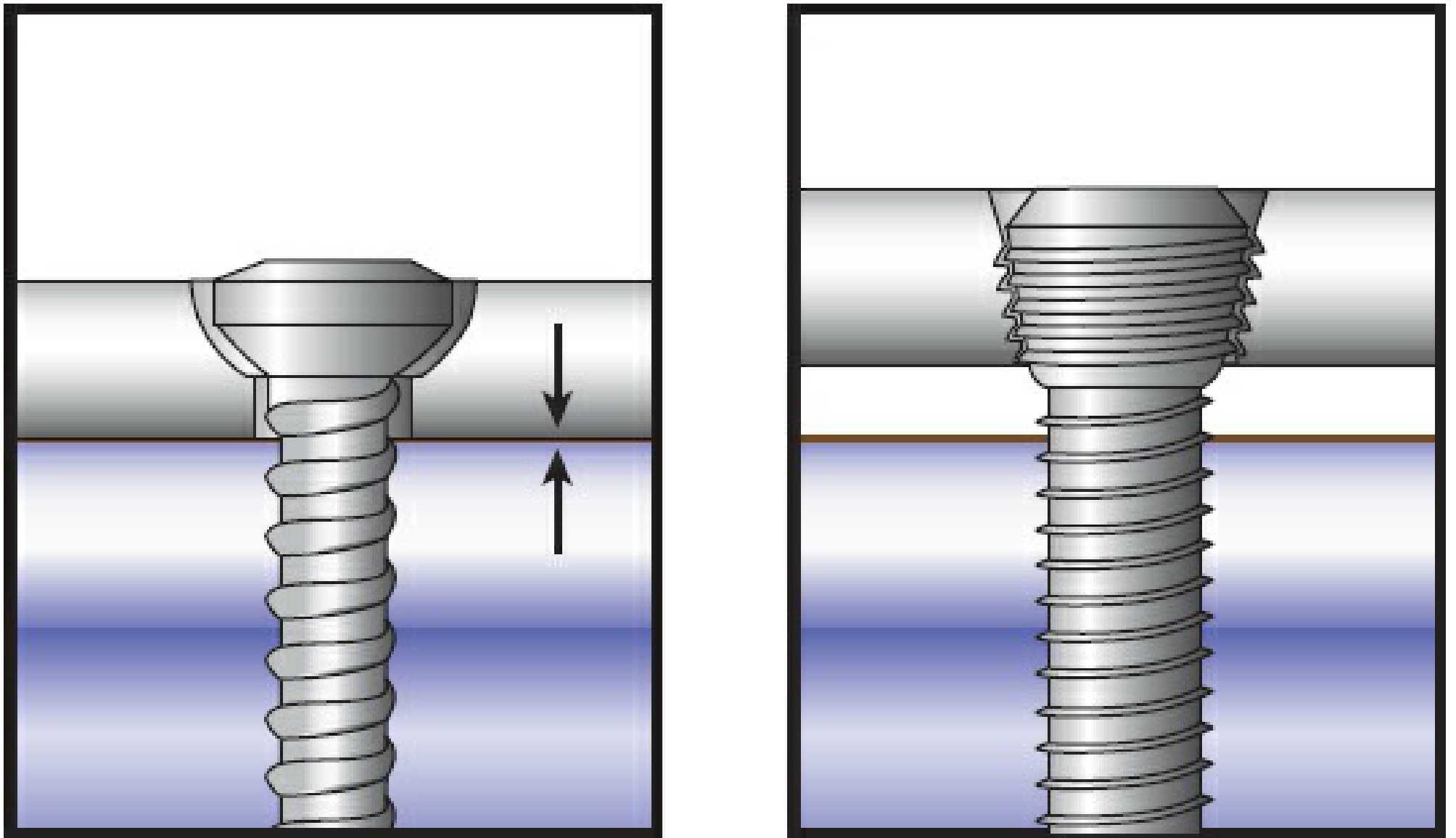

4. Biomechanical Principles
- Stability = friction force between plate and bone
- Load exceeding friction → screw toggles and loosens sequentially
- Entirely dependent on bone quality/density
- Threaded screw head locks into plate → fixed-angle device

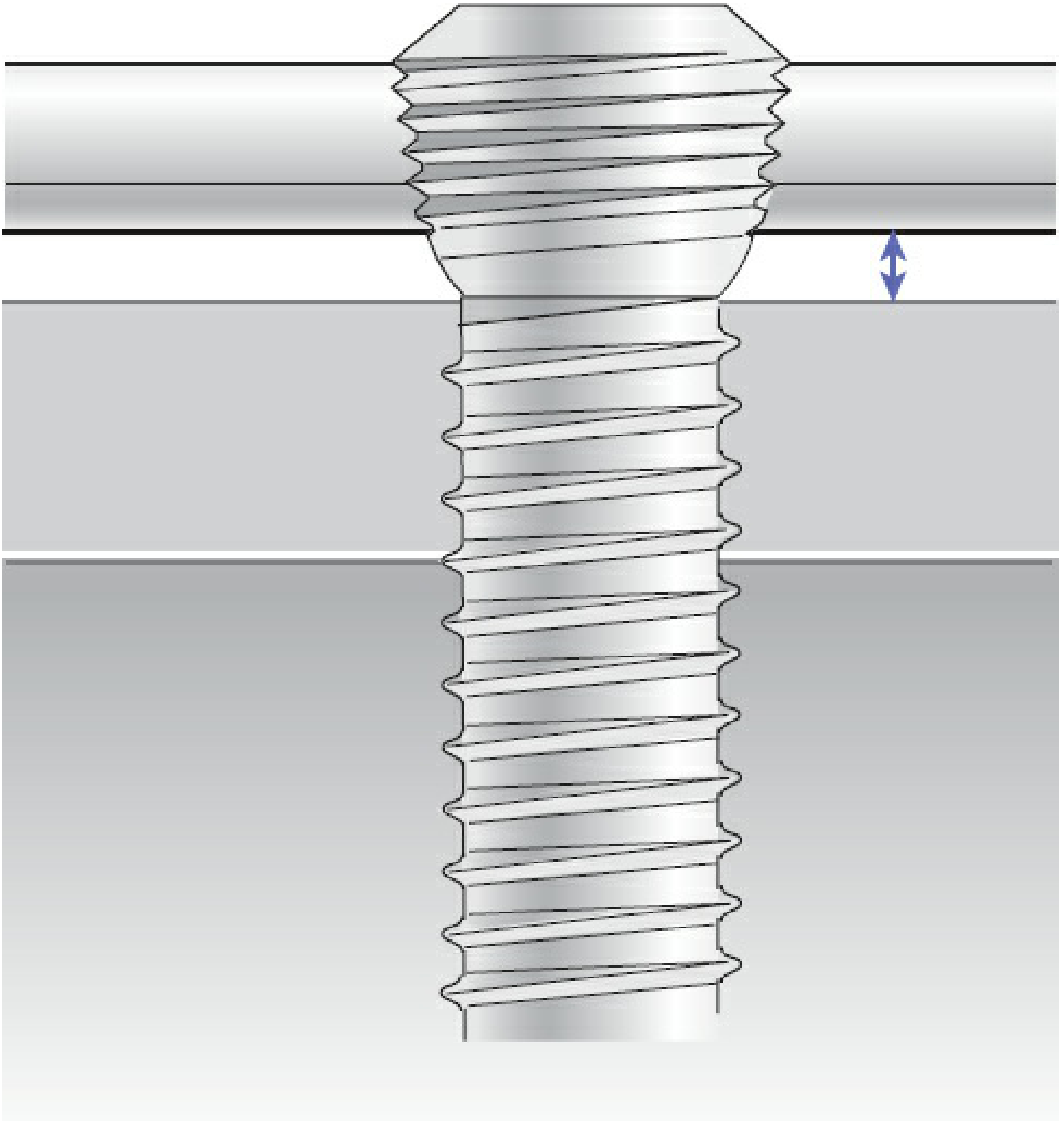

- No plate-to-bone contact required
- Load transfers directly: bone → screw → plate (compressive stresses at screw-bone interface)
- All screws fail simultaneously (not sequentially)
- Angular stability distributes stress more uniformly across all screw-bone interfaces
- Same locking principle, but screw can be inserted off-axis (up to 15°)
- As off-axis angle increases, locking interface resistance DECREASES nearly linearly
- Bending stability reduced to 63% and 31% with 5° and 10° axis deviation respectively
- Maximum stability achieved when screw is inserted perpendicular (on-axis) to plate

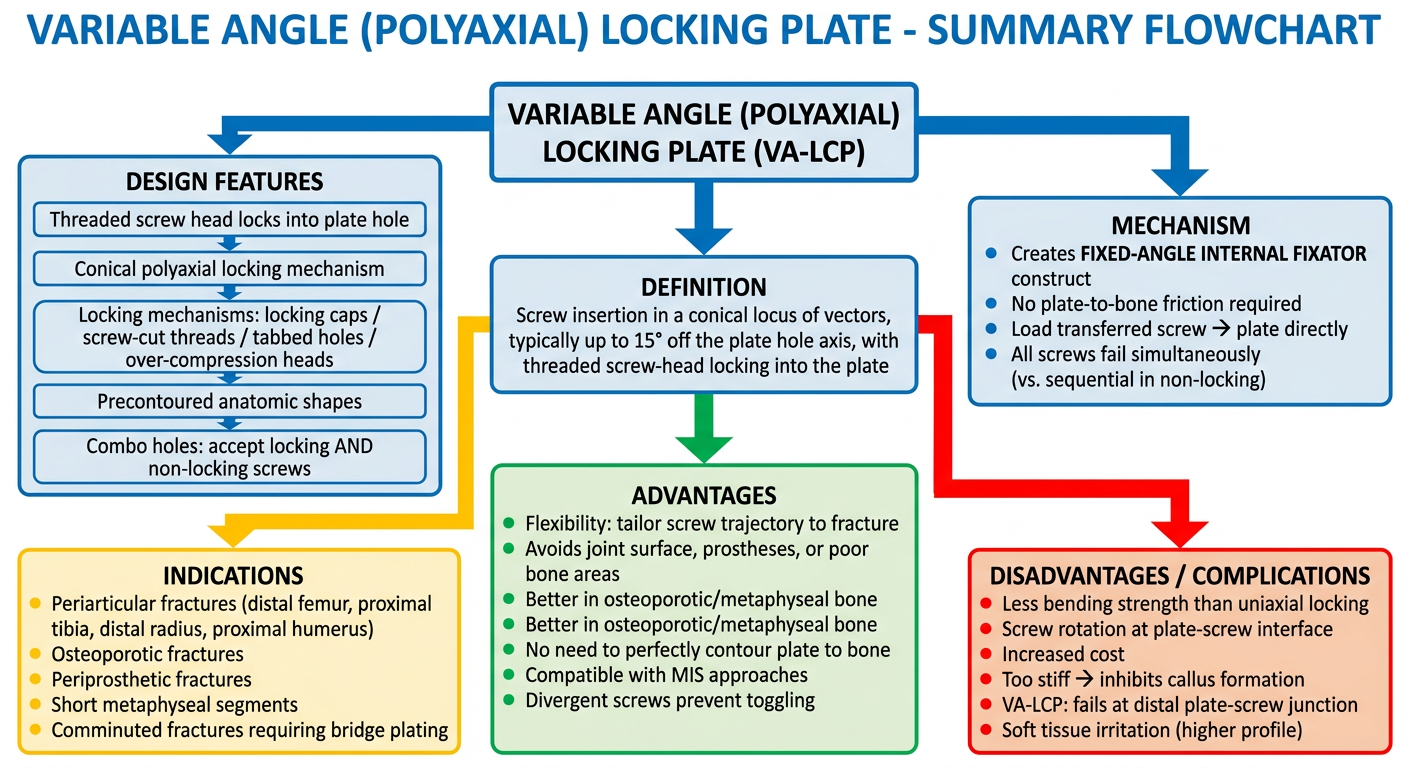

5. Flowchart
6. Indications
| Clinical Scenario | Rationale |
|---|---|
| Periarticular fractures (distal femur, proximal tibia, distal radius, proximal humerus) | Short metaphyseal segment; poor bone quality near joint |
| Osteoporotic fractures | Screw locking independent of bone density; no pull-out risk |
| Periprosthetic fractures | VA screws can redirect to avoid prosthesis |
| Comminuted fractures (bridge plating) | Screw trajectories tailored to available bone fragments |
| Plate-bone mismatch | Locked screw does not drag bone to plate, preserving reduction |
| Clavicle fractures | Precontoured VA-LCP when plate not centred perfectly |
| Distal radius fractures | VA allows fragment-specific fixation up to 15° off-axis |
7. Advantages
- Surgical flexibility - surgeon selects screw trajectory based on fracture geometry, bone quality, and existing hardware; not dictated by fixed plate design
- Better fixation in challenging anatomy - screw can target denser bone regions, avoid joints or articular surfaces, and navigate around prior implants
- Osteoporotic bone - angular stability without relying on bone purchase; significantly reduces screw pull-out risk
- No perfect plate contouring required - locked screws do not drag bone to plate, preserving reduction
- MIS compatibility - precontoured plates allow submuscular insertion with minimal soft tissue stripping
- Divergent screw trajectories - multiple divergent screws resist toggling better than parallel screws in comminuted metaphyseal fractures
- Hybrid construct option - non-locking screws can be used first for compression and reduction, then locking screws for stability
8. Disadvantages and Complications
| Disadvantage | Mechanism |
|---|---|
| Reduced locking strength vs. uniaxial | Off-axis insertion reduces screw-plate thread engagement; VA mechanisms inherently less stable than fixed-angle |
| Screw rotation at plate-screw interface | Clinical failures reported where VA screws rotate under load; standard locking provides greater rotational resistance |
| Higher cost | More complex manufacturing vs. conventional plates |
| Construct over-stiffness | May create environment too rigid for callus formation in some fracture types |
| Specific failure pattern | VA-LCP plates for distal femur tend to fail at the distal plate-screw junction |
| Soft tissue irritation | Higher profile implants in subcutaneous locations (e.g., clavicle, distal radius) |
| Clinical effectiveness unproven | Comparative clinical superiority over standard locking plates remains unproven in literature |
- Rockwood and Green's, 2025, pp. 492-506
9. Specific Clinical Applications
Distal Femur (VA-LCP):
- Locking plates with polyaxial screw capabilities allow variable insertion angles to optimize screw placement in complex fracture patterns or with preexisting hardware
- VA-LCP plates specifically fail at the distal plate-screw junction (unlike LISS which fails at shaft fixation, or stainless steel which fails within working length)
- Polyaxial screws provided greatest resistance to rotation when inserted perpendicular to the plate - resistance decreased as off-axis angle increased
Distal Radius (VA-LCP 2.4):
- Screws can diverge up to 15° in any variable angle hole in the plate head
- Enables fragment-specific fixation of complex intra-articular fractures
- Allows buttressing of subchondral bone without mandatory far-cortex penetration
Proximal Humerus / Clavicle:
- Variable angle holes useful when the plate is not positioned perfectly central on the bone
- Clavicle VA-LCP: locking plate placed superiorly is biomechanically superior to conventional compression plate
10. Key Exam Points to Remember
- VA = Polyaxial = permits ±15° off-axis screw insertion
- More flexibility = less locking strength (inverse relationship)
- Screw perpendicular to plate = maximum strength
- Specific failure: VA-LCP distal femur fails at distal plate-screw junction
- Standard locking > VA locking for rotational resistance at screw-plate interface
- Acts as an internal fixator (not reliant on plate-bone friction)
- All screws fail simultaneously (vs. sequential in non-locking)
- Especially valuable in: osteoporotic bone, periarticular fractures, periprosthetic fractures
