🃏 FLASHCARD: Anatomical & Physiological Closure of the Fetal Venous Cardiac Shunts at Birth
FRONT
Q: Describe the physiological and anatomical closure of the three fetal cardiac venous shunts at birth, their triggers, timelines, and adult remnants.
BACK
The Three Fetal Shunts (Venous System)

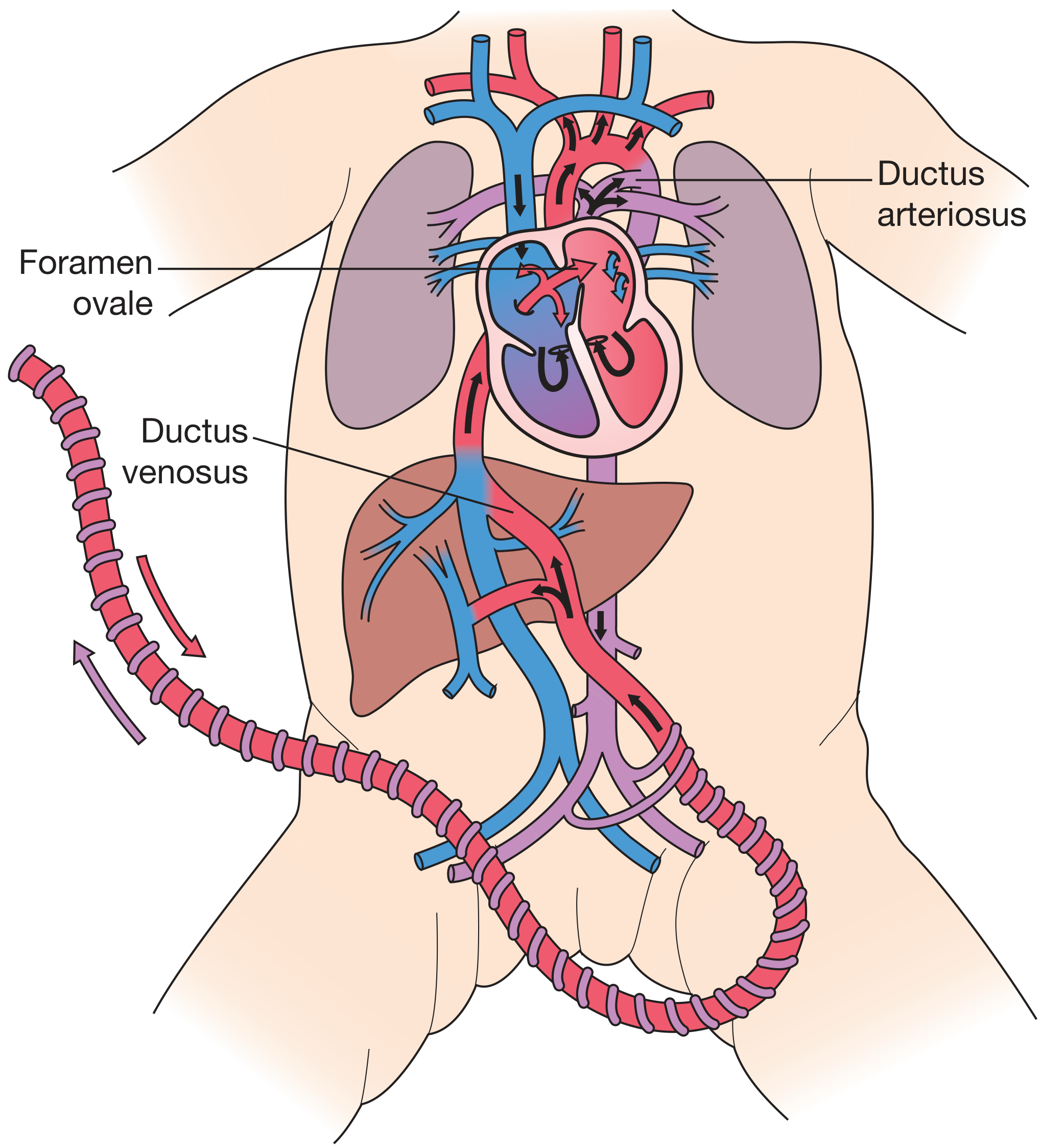

Fig: Fetal circulation - Bailey & Love's Short Practice of Surgery, 28th ed.
1. Foramen Ovale
| Detail | |
|---|---|
| Fetal role | Right-to-left atrial shunt; directs oxygenated IVC blood to left atrium, bypassing lungs |
| Trigger for closure | First breath → ↓ pulmonary vascular resistance → ↑ pulmonary blood flow → ↑ left atrial pressure; cord clamping → ↓ IVC return → ↓ right atrial pressure |
| Mechanism | Septum primum (valve-like flap) is pushed against septum secundum by reversed pressure gradient (LA > RA by 2-4 mmHg) |
| Physiological closure | Minutes after birth (functionally closed by first breath); reversible in first days - crying causes transient R→L shunt and cyanosis |
| Anatomical closure | Fusion of the two septa occurs over ~1 year |
| Incomplete closure | Patent foramen ovale (PFO) persists in 20% of adults; haemodynamically insignificant as long as LA pressure exceeds RA |
| Adult remnant | Fossa ovalis (depression on interatrial septum) |
2. Ductus Venosus
| Detail | |
|---|---|
| Fetal role | Connects umbilical vein to IVC; bypasses hepatic sinusoids, delivering oxygenated placental blood directly to the heart |
| Trigger for closure | Cutting the umbilical cord → cessation of umbilical vein flow → fall in ductus venosus pressure and lumen diameter |
| Mechanism | Smooth muscle contraction in the ductus wall (most portal blood still transits it initially; muscle contracts within 1-3 hours) |
| Physiological closure | Within 1-3 hours after birth |
| Anatomical closure | Complete by 2-18 days after birth; fibrous obliteration |
| Consequence of closure | Portal vein pressure rises from ~0 to 6-10 mmHg → forces portal blood through liver sinusoids |
| Adult remnant | Ligamentum venosum (courses from ligamentum teres to IVC in the liver) |
3. Umbilical Vein & Umbilical Arteries (associated venous structures)
| Detail | |
|---|---|
| Trigger | Thermal + mechanical stimuli at birth; change in oxygen tension |
| Umbilical arteries | Functional closure: within minutes of birth; anatomical obliteration: 2-3 months |
| Umbilical vein | Closes shortly after umbilical arteries; blood from placenta can still enter newborn for a short time after birth |
| Adult remnants | Umbilical arteries → medial umbilical ligaments (distal portions); proximal portions remain as superior vesical arteries. Umbilical vein → ligamentum teres hepatis (lower margin of falciform ligament) |
Summary Timeline Table
| Structure | Physiological Closure | Anatomical Closure | Adult Remnant |
|---|---|---|---|
| Foramen Ovale | Minutes (1st breath) | ~1 year | Fossa ovalis |
| Ductus Venosus | 1-3 hours | 2-18 days | Ligamentum venosum |
| Umbilical vein | Shortly after arteries | Weeks | Ligamentum teres hepatis |
| Umbilical arteries | Minutes | 2-3 months | Medial umbilical ligaments + superior vesical arteries |
| Ductus Arteriosus | 10-15 hours (up to 1-8 days) | 1-4 months | Ligamentum arteriosum |
Key Mechanisms - Quick Mnemonics
- Foramen Ovale: "Pressure reversal flips the flap" - ↑LA vs ↓RA pressure after first breath
- Ductus Venosus: "No cord, no flow, no ductus" - cord clamping kills the pressure; smooth muscle closes it
- Umbilical vessels: "Cold air + O2 = vasoconstriction"
Clinical Pearls
- PFO (20% of adults): clinically silent unless LA < RA (e.g., pulmonary HTN) - then becomes a paradoxical embolism risk
- Ductus arteriosus kept open by PGE2 in fetal life; indomethacin (COX inhibitor) promotes closure in premature infants with PDA
- Structural closure of shunts takes months; "functional" closure is the immediate haemodynamic event at birth
- In neonates with duct-dependent congenital heart disease (e.g., critical aortic stenosis, pulmonary atresia), prostaglandin E1 infusion must be given to keep the ductus arteriosus open until surgical correction
Sources: Guyton & Hall Medical Physiology (10th ed., p.1711-1725) | Langman's Medical Embryology (p.238) | Bailey & Love's Surgery (28th ed., p.985) | Rosen's Emergency Medicine (p.3201)
Make a post card
Generating Image

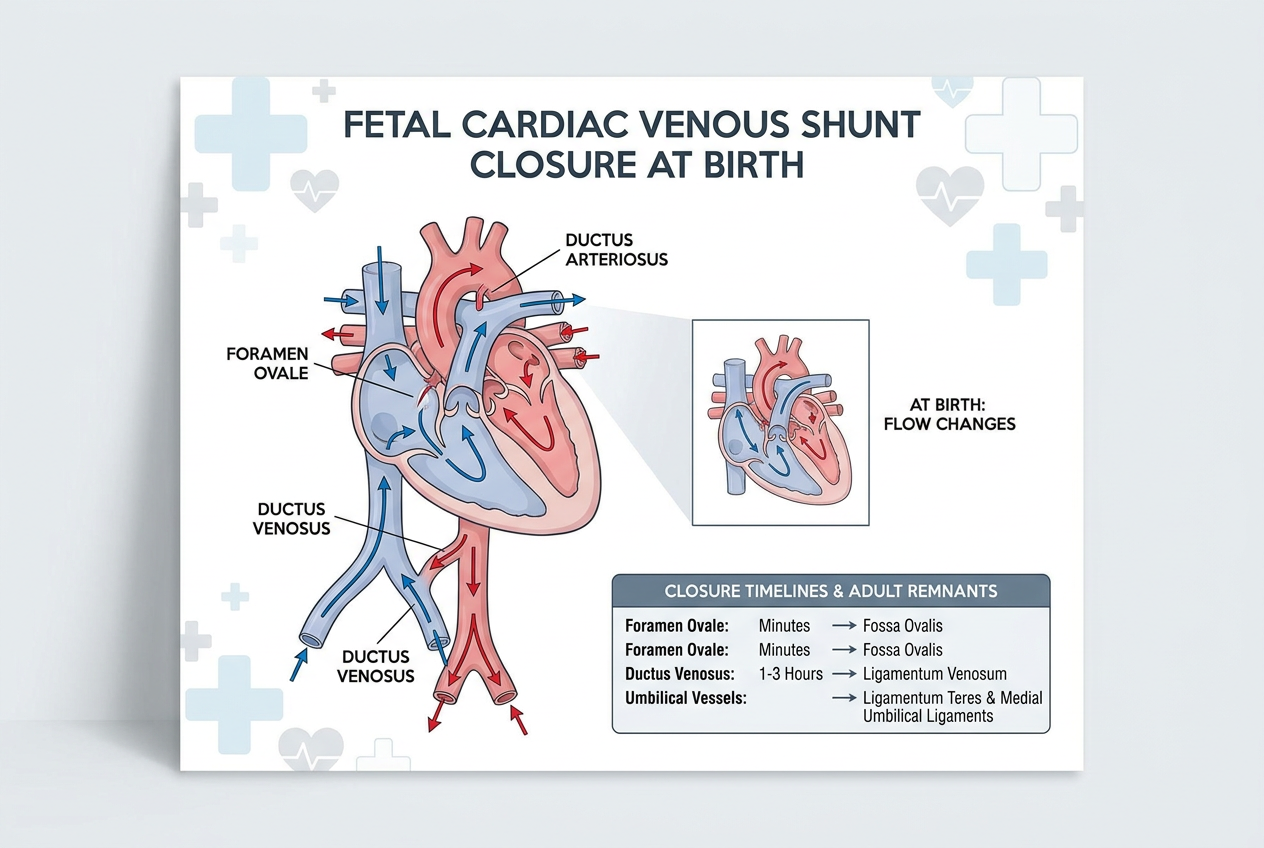

Here's your postcard on the anatomical and physiological closure of the fetal cardiac venous system at birth. It covers the three key shunts - Foramen Ovale, Ductus Venosus, and Ductus Arteriosus - with their closure timelines and adult remnants in a visual, easy-to-review format. Let me know if you'd like any changes to the style, layout, or content!
