How to Understand an Audiogram
An audiogram is a graph that plots a person's hearing sensitivity to pure tones as a function of frequency. It is the foundation of audiometric assessment.
The Grid
| Axis | What it represents |
|---|
| Horizontal (X-axis) | Frequency in Hz — from low (125 Hz) to high (8000 Hz); left = low pitch, right = high pitch |
| Vertical (Y-axis) | Hearing level in dB HL — 0 at top (normal/quiet), increases downward (louder sound needed) |
Key point: Down = worse hearing. A point plotted lower on the graph means the patient needed a louder sound to hear it.
Severity of Hearing Loss

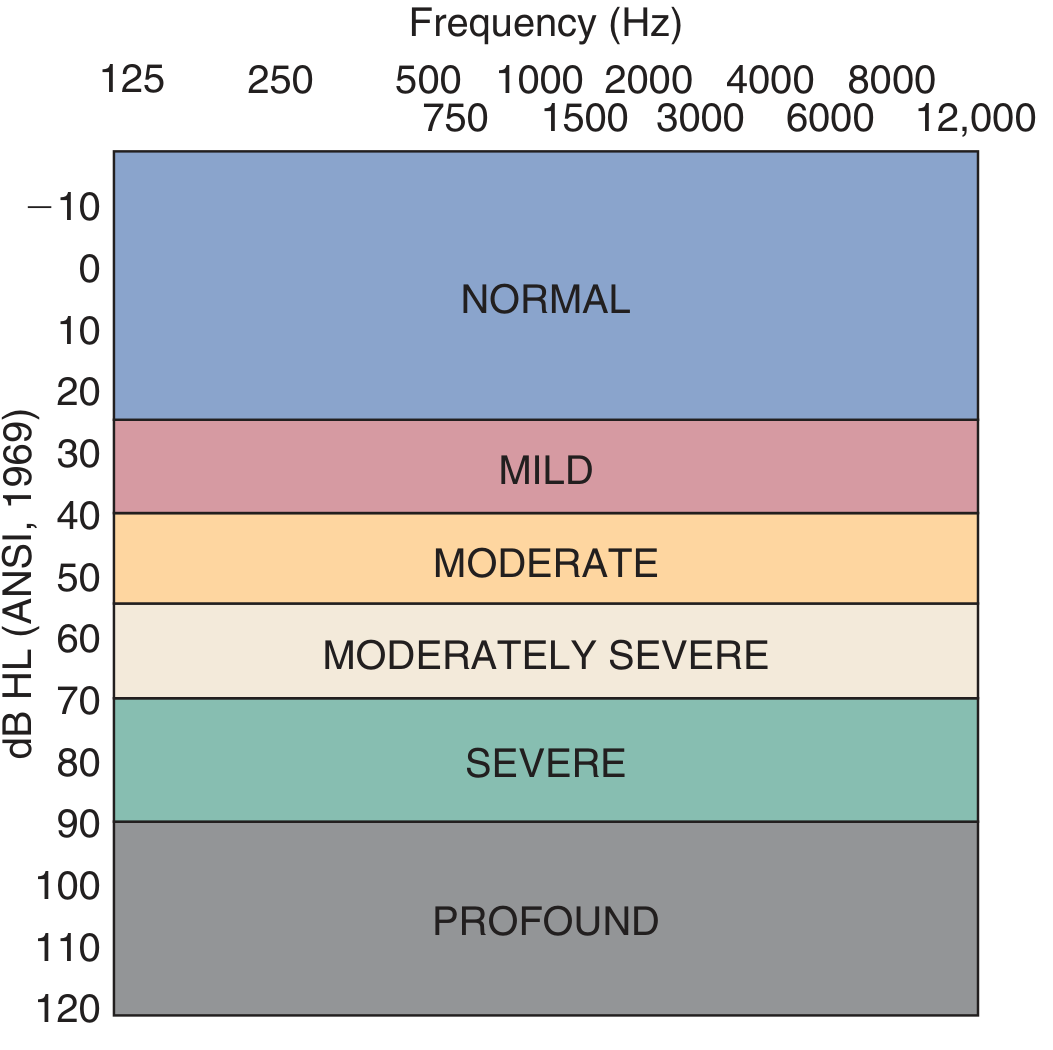

| dB HL Threshold | Degree |
|---|
| ≤ 25 dB | Normal (adults); ≤ 15 dB in children |
| 26–40 dB | Mild |
| 41–55 dB | Moderate |
| 56–70 dB | Moderately Severe |
| 71–90 dB | Severe |
| > 90 dB | Profound |
Symbols Used on an Audiogram
| Symbol | Meaning | Ear |
|---|
| O | Unmasked air conduction | Right |
| X | Unmasked air conduction | Left |
| Δ | Masked air conduction | Right |
| □ | Masked air conduction | Left |
| < | Unmasked bone conduction | Right |
| > | Unmasked bone conduction | Left |
| [ | Masked bone conduction | Right |
| ] | Masked bone conduction | Left |
By convention: Red = Right ear, Blue = Left ear.
Air Conduction vs. Bone Conduction
Air conduction (AC): Sound travels through the ear canal → tympanic membrane → ossicles → cochlea → auditory nerve. Tests the entire hearing system.
Bone conduction (BC): A vibrator on the mastoid process sends vibrations directly to the cochlea, bypassing the outer and middle ear. Tests the inner ear and auditory nerve only.
Air-bone gap (ABG): When AC thresholds are worse (lower on the graph) than BC thresholds, there is a gap. This means the outer or middle ear is not conducting sound efficiently but the cochlea is intact.
The Four Audiogram Patterns
1. Normal Hearing
Both AC and BC thresholds ≤ 25 dB HL across all frequencies.
2. Conductive Hearing Loss
- AC elevated (shifted down on graph)
- BC normal (at top of graph)
- Air-bone gap present
- Cause: outer or middle ear problem (e.g., otitis media, otosclerosis, cerumen)
3. Sensorineural Hearing Loss (SNHL)
- Both AC and BC equally elevated — they overlap, no air-bone gap
- Cause: cochlea, auditory nerve, or central auditory pathway

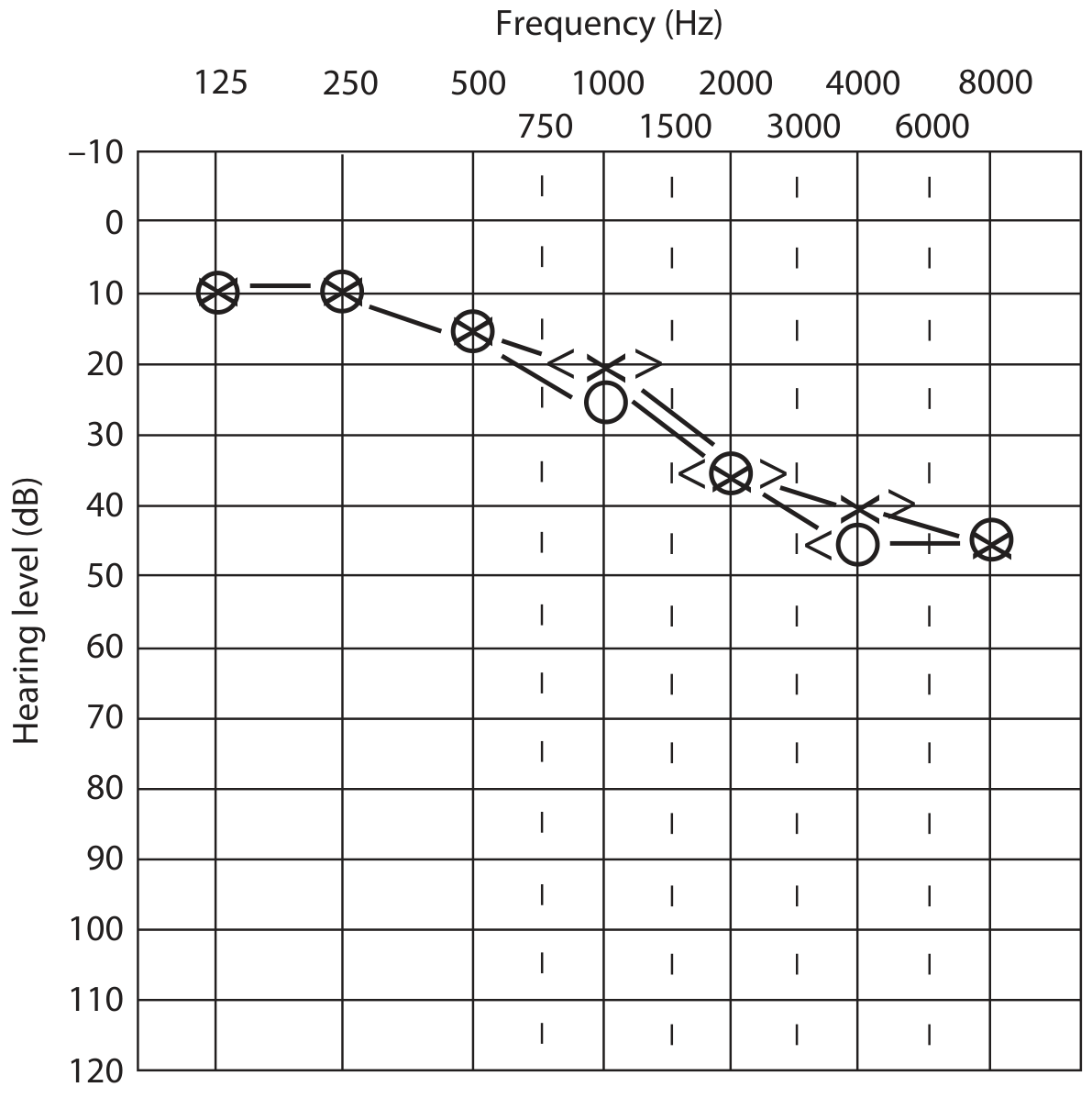

Classic SNHL: high-frequency loss sloping downward — air conduction (X) and bone conduction (<, >) track together
4. Mixed Hearing Loss
- Both AC and BC elevated, but AC is worse than BC
- Air-bone gap is present, but BC is also not normal
- Cause: conductive pathology superimposed on sensorineural pathology
Configuration (Shape) of the Audiogram
The shape gives clues about etiology:
| Configuration | Description | Classic Cause |
|---|
| Flat | Equal loss across all frequencies | Otosclerosis, some SNHL |
| Sloping / High-frequency | Normal low-freq, loss at high freq | Presbycusis, noise-induced |
| Falling | Progressive drop toward high freq | Age-related, ototoxicity |
| Notched | Dip at 4000 Hz, recovers at 8000 Hz | Noise-induced hearing loss |
| Rising | Worse at low frequencies | Ménière's disease |
| Saucer-shaped | Better at high and low, worse in mid | Various |
Pure-Tone Average (PTA)
The PTA is the average threshold at 500, 1000, and 2000 Hz — the speech frequencies. It summarizes the degree of hearing loss in a single number and should correlate with the patient's speech perception ability.
In Summary: A 4-Step Approach
- Look at the thresholds — are they in the normal zone (top 25 dB)?
- Compare AC and BC — is there an air-bone gap?
- Classify the type — conductive / SNHL / mixed
- Describe the configuration — flat, sloping, notched, etc., and identify the frequency range affected
Sources: K.J. Lee's Essential Otolaryngology; Cummings Otolaryngology Head and Neck Surgery; Guyton and Hall Textbook of Medical Physiology
