Summary : This figure presents a schematic diagram and three echocardiographic images illustrating the anatomical relationship and visualization of the coronary arteries and aorta. diagram and echocardiographic images: # Panel A: Schematic Diagram : • Shows the anatomical relationship between the aorta (red circle) and pulmonary artery (blue circle). • Labels include: RCA (right coronary artery), LMS (left main stem), LAD (left anterior descending), LCx (left circumflex). • Arrows indicate the direction and origin of the coronary arteries from the aorta. # Panel B: Echocardiographic Image (Short Axis View) : • Displays the aortic root in cross-section. • Labeled structures: RCA (right coronary artery), LMS (left main stem). • The coronary ostia are visible as small openings in the aortic root. # Panel C: Echocardiographic Image (Short Axis View) : • Similar view as Panel B, focused on the LMS (left main stem). • The LMS is labeled and its origin from the aorta is visualized. # Panel D: Echocardiographic Image (Long Axis View) : • Shows the aortic root and left ventricle. • Labeled structures: LMS (left main stem), LAD (left anterior descending), LCx (left circumflex). • The course of the coronary arteries is visualized as they branch from the aorta. # Analysis : • The figure effectively demonstrates the anatomical origins and visualization of the coronary arteries using both schematic and echocardiographic imaging. • The labeled images help correlate anatomical landmarks with ultrasound findings, aiding in the identification of coronary ostia and branches. • No anomalies or abnormal patterns are visible; the images represent typical coronary anatomy.

This diagnostic image is a coronary angiogram consisting of two panels demonstrating normal coronary anatomy. The left panel shows the left coronary system with labeled Left Anterior Descending (LAD) and Left Circumflex (LCx) arteries. The LAD is seen coursing anteriorly and inferiorly, giving off diagonal branches, while the LCx travels within the atrioventricular groove, exhibiting normal tapering and branching without evidence of luminal narrowing, stenosis, or occlusion. The right panel illustrates the Right Coronary Artery (RCA) in a characteristic 'C' shape, originating from the right coronary sinus and extending along the posterior interventricular groove. The RCA appears smooth with patent distal flow and visible side branches. This invasive imaging study serves as a clinical reference for angiographically normal epicardial coronary arteries, typically used in cardiology and radiology to rule out obstructive coronary artery disease (CAD) or vasospastic disorders in the setting of chest pain or ischemic ECG changes.

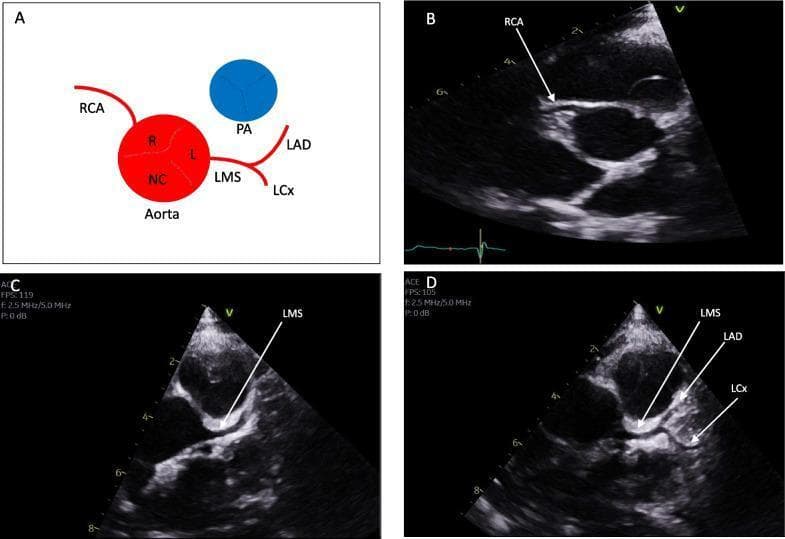

This composite educational graphic details normal human coronary artery anatomy through a schematic diagram and transthoracic echocardiography (TTE) images. Panel A presents a schematic illustrating the aorta with its three sinuses: Right (R), Left (L), and Non-Coronary (NC). It shows the Right Coronary Artery (RCA) originating from the right sinus and the Left Main Stem (LMS) originating from the left sinus, subsequently bifurcating into the Left Anterior Descending (LAD) and Left Circumflex (LCx) arteries. The Pulmonary Artery (PA) is shown in spatial relation to these structures. Panels B, C, and D are clinical diagnostic ultrasound images in the parasternal short-axis (PSAX) view at the level of the aortic valve. Panel B identifies the origin of the RCA. Panel C demonstrates the origin of the LMS from the aortic sinus. Panel D highlights the bifurcation of the LMS into the LAD and LCx. This material serves as a reference for identifying normal coronary ostia and branching patterns, essential for diagnosing anomalous coronary origins or interarterial courses.
