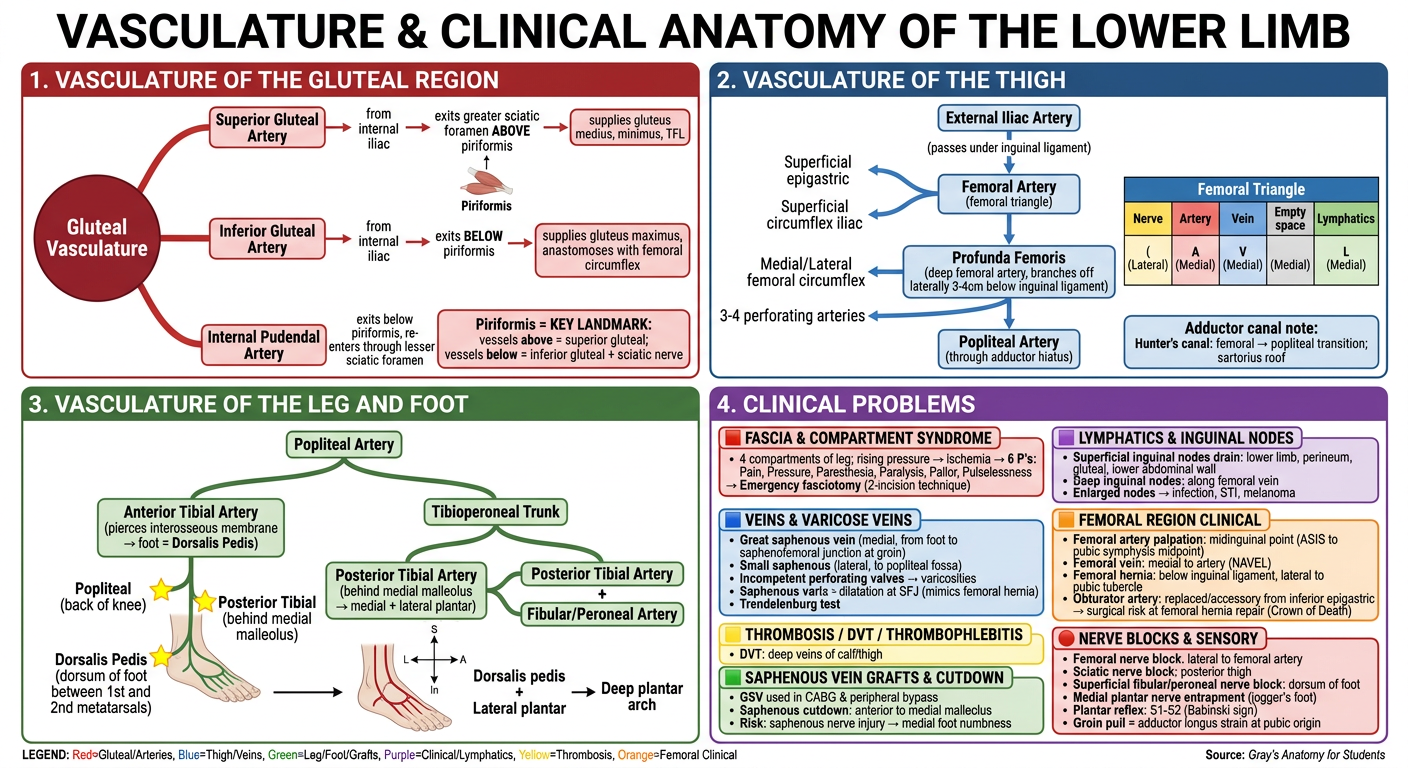

A large, detailed, color-coded anatomical study sheet titled "VASCULATURE & CLINICAL ANATOMY OF THE LOWER LIMB" designed for medical students. The sheet is divided into 4 main color-coded sections on a white background: SECTION 1 (top-left, deep red header): "1. VASCULATURE OF THE GLUTEAL REGION" - Mind map with central node "Gluteal Vasculature" - Branch 1: Superior Gluteal Artery → from internal iliac → exits greater sciatic foramen ABOVE piriformis → supplies gluteus medius, minimus, TFL - Branch 2: Inferior Gluteal Artery → from internal iliac → exits BELOW piriformis → supplies gluteus maximus, anastomoses with femoral circumflex - Branch 3: Internal Pudendal Artery → exits below piriformis, re-enters through lesser sciatic foramen - Small icon of piriformis muscle as landmark divider - Note box: "Piriformis = KEY LANDMARK: vessels above = superior gluteal; vessels below = inferior gluteal + sciatic nerve" SECTION 2 (top-right, dark blue header): "2. VASCULATURE OF THE THIGH" - Vertical flowchart: External Iliac Artery → (passes under inguinal ligament) → Femoral Artery (femoral triangle) → Profunda Femoris (deep femoral artery, branches off laterally 3-4cm below inguinal ligament) → Popliteal Artery (through adductor hiatus) - Side branches labeled: Superficial epigastric, Superficial circumflex iliac, Medial/Lateral femoral circumflex, 3-4 perforating arteries - Color-coded table: Femoral Triangle contents (NAVEL mnemonic): Nerve | Artery | Vein | Empty space | Lymphatics - Adductor canal note: "Hunter's canal: femoral → popliteal transition; sartorius roof" SECTION 3 (bottom-left, forest green header): "3. VASCULATURE OF THE LEG AND FOOT" - Branching tree diagram: Popliteal Artery → Anterior Tibial Artery (pierces interosseous membrane → foot = Dorsalis Pedis) and Tibioperoneal Trunk → Posterior Tibial Artery (behind medial malleolus → medial + lateral plantar) + Fibular/Peroneal Artery - Pulse points marked with star icons: Popliteal (back of knee), Posterior Tibial (behind medial malleolus), Dorsalis Pedis (dorsum of foot between 1st and 2nd metatarsals) - Foot arterial arch: Dorsalis pedis + Lateral plantar → Deep plantar arch SECTION 4 (bottom-right, purple header): "4. CLINICAL PROBLEMS" Multiple color-coded sub-boxes: 🟥 FASCIA & COMPARTMENT SYNDROME: "4 compartments of leg; rising pressure → ischemia → 6 P's: Pain, Pressure, Paresthesia, Paralysis, Pallor, Pulselessness → Emergency fasciotomy (2-incision technique)" 🟦 VEINS & VARICOSE VEINS: "Great saphenous vein (medial, from foot to saphenofemoral junction at groin); Small saphenous (lateral, to popliteal fossa); Incompetent perforating valves → varicosities; Saphenous varix = dilatation at SFJ (mimics femoral hernia); Trendelenburg test" 🟨 THROMBOSIS / DVT / THROMBOPHLEBITIS: "DVT: deep veins of calf/thigh; Virchow's triad: Stasis + Hypercoagulability + Endothelial injury; Superficial thrombophlebitis = great saphenous; Risk: PE" 🟩 SAPHENOUS VEIN GRAFTS & CUTDOWN: "GSV used in CABG & peripheral bypass; Saphenous cutdown: anterior to medial malleolus; Risk: saphenous nerve injury → medial foot numbness" 🟪 LYMPHATICS & INGUINAL NODES: "Superficial inguinal nodes drain: lower limb, perineum, gluteal, lower abdominal wall; Deep inguinal nodes: along femoral vein; Enlarged nodes → infection, STI, melanoma" 🟧 FEMORAL REGION CLINICAL: "Femoral artery palpation: midinguinal point (ASIS to pubic symphysis midpoint); Femoral vein: medial to artery (NAVEL); Femoral hernia: below inguinal ligament, lateral to pubic tubercle; Obturator artery: replaced/accessory from inferior epigastric → surgical risk at femoral hernia repair (Crown of Death)" 🔴 NERVE BLOCKS & SENSORY: "Femoral nerve block: lateral to femoral artery; Sciatic nerve block: posterior thigh; Superficial fibular/peroneal nerve block: dorsum of foot; Medial plantar nerve entrapment (jogger's foot); Plantar reflex: S1-S2 (Babinski sign); Groin pull = adductor longus strain at pubic origin" Footer: Small legend with color codes, source citation "Gray's Anatomy for Students" and a compass rose indicating anatomical directions. Clean medical illustration style with sans-serif font.

Here is your visual study sheet:

Here is a full written breakdown to use alongside the image for revision:

1. Vasculature of the Gluteal Region

Key landmark: Piriformis muscle (exits greater sciatic foramen, divides superior from inferior)

Artery	Origin	Exits	Supplies
Superior Gluteal	Internal iliac	Above piriformis (greater sciatic foramen)	Gluteus medius, minimus, TFL
Inferior Gluteal	Internal iliac	Below piriformis	Gluteus maximus, hip joint; anastomoses with medial femoral circumflex
Internal Pudendal	Internal iliac	Below piriformis → loops back through lesser sciatic foramen	Perineum

The sciatic nerve also exits below piriformis alongside the inferior gluteal artery.
Cruciate anastomosis: Medial/lateral femoral circumflex + inferior gluteal + 1st perforator - important collateral network.

2. Vasculature of the Thigh

Flow: External iliac → Femoral artery (at inguinal ligament midpoint) → Popliteal artery (at adductor hiatus)

Femoral Triangle (NAVEL lateral to medial):

Nerve (femoral) | Artery | Vein | Empty space | Lymphatics

Profunda Femoris (Deep Femoral Artery):

Arises 3-4 cm below inguinal ligament, lateral side
Branches: Medial + Lateral femoral circumflex arteries; 4 perforating arteries
Main supply to thigh muscles and femur

Adductor (Hunter's) Canal:

Femoral artery + vein + saphenous nerve pass through
Femoral becomes popliteal at adductor hiatus in adductor magnus

3. Vasculature of the Leg and Foot

Popliteal Artery
├── Anterior Tibial → pierces interosseous membrane → Dorsalis Pedis (dorsum of foot)
│                      ↓ Deep plantar arch (with lateral plantar)
└── Tibioperoneal Trunk
    ├── Posterior Tibial → behind medial malleolus → Medial + Lateral Plantar arteries
    └── Fibular (Peroneal) → lateral compartment of leg

Pulse Points (3 key):

Popliteal: behind knee in popliteal fossa (deep, flex knee to feel)
Posterior Tibial: posterior to medial malleolus
Dorsalis Pedis: dorsum of foot, lateral to extensor hallucis longus tendon (between 1st and 2nd metatarsals)

4. Clinical Problems

🔴 Compartment Syndrome & Fasciotomy

4 compartments of leg: anterior, lateral, deep posterior, superficial posterior
Raised pressure → ischemia → the 6 P's: Pain (especially passive stretch), Pressure, Paresthesia, Paralysis, Pallor, Pulselessness
Treatment: emergency fasciotomy (2-incision technique releasing all 4 compartments)

🔵 Varicose Veins

Great saphenous vein (GSV): medial leg, anterior to medial malleolus, drains at saphenofemoral junction (SFJ) in femoral triangle
Small saphenous: posterior leg, drains into popliteal vein
Incompetent valves in perforators → superficial varicosities
Saphenous varix: dilatation at SFJ - can mimic femoral hernia (disappears on lying down, no cough impulse)

🟡 DVT, Thrombosis & Thrombophlebitis

Virchow's triad: Stasis + Hypercoagulability + Endothelial injury
DVT: calf/thigh deep veins; risk of pulmonary embolism
Superficial thrombophlebitis: commonly GSV; painful, palpable cord

🟢 Saphenous Vein Grafts & Cutdown

GSV widely used for CABG and peripheral arterial bypass
Saphenous cutdown: incision anterior to medial malleolus
Risk: saphenous nerve injury → loss of sensation along medial side of foot and leg

🟣 Lymphatics & Inguinal Nodes

Superficial inguinal nodes drain: lower limb, perineum, genitalia, perianal skin, lower abdominal wall
Deep inguinal nodes: along femoral vein medial to it
Causes of enlargement: infection (cellulitis, STI), melanoma, squamous cell carcinoma

🟠 Femoral Region Clinical Points

Topic	Key Point
Femoral artery palpation	Midinguinal point = midpoint between ASIS and pubic symphysis
Femoral vein location	Medial to femoral artery (NAVEL mnemonic)
Femoral hernia	Below and lateral to pubic tubercle; medial to femoral vein
Femoral artery laceration	Life-threatening; apply pressure at midinguinal point
"Potentially Lethal Misnomer"	Femoral vein sometimes confused with femoral artery during cannulation
Replaced/Accessory Obturator Artery	From inferior epigastric; runs along lacunar ligament; risk at femoral hernia repair ("Crown of Death")

🔴 Nerve Blocks & Sensory

Femoral nerve block: inject lateral to femoral artery, below inguinal ligament
Superficial fibular (peroneal) nerve block: dorsum of foot, subcutaneous
Sciatic nerve block: midpoint between greater trochanter and ischial tuberosity
Medial plantar nerve entrapment (Jogger's foot): under abductor hallucis muscle belly
Plantar reflex: S1-S2; abnormal = Babinski sign (extensor response = upper motor neuron lesion)
Groin pull: avulsion/strain of adductor longus at pubic origin; common in football/soccer
Accessory soleus: extra muscle belly in posteromedial ankle - can mimic soft tissue tumor

Reference: Gray's Anatomy for Students (Gluteal region, pp. 677+; Thigh & Leg chapters)
