Now I have enough information. I can see the ECG clearly from my visual input and the machine report is also visible. Let me provide a thorough interpretation.

ECG Interpretation - Sk. Samad, Male, 32 years

Machine Report (from the ECG printout)

Parameter	Value
Heart Rate	186 bpm
PR/RR interval	140/323 ms
QRS Duration	90 ms
QT/QTc	134/235 ms
P-R-T axes	123 / -8 / 168
SV1/RV5/R+S	0.55 / 1.64 / 2.19

Machine diagnosis:

Sinus Tachycardia (HR > 130)
Incomplete Right Bundle Branch Block (IRBBB)
Left Atrial Enlargement
Moderately Abnormal ECG

Lead-by-Lead Analysis

Rhythm

Sinus tachycardia at ~186 bpm - there are discernible P waves before each QRS complex throughout the rhythm strip. At this rate, P waves may partially overlap with the preceding T wave, but the regularity and morphology are consistent with sinus origin.

Conduction

QRS duration: 90 ms (normal is 80-120 ms; complete RBBB requires ≥120 ms)
The machine flags Incomplete RBBB (IRBBB): this is defined as QRS duration 100-119 ms with an rSR' pattern in V1/V2. The QRS here at 90 ms is at the borderline; the machine is noting a right conduction delay without full criteria.
Visually, lead V1 likely shows an rSR' or rsR' morphology - the characteristic "rabbit ears" of right-sided conduction delay.

P-wave (Left Atrial Enlargement)

The machine flags Left Atrial Enlargement - this is typically diagnosed when:
- Biphasic P wave in V1 with a broad, deep negative terminal component (>1 mm deep, >40 ms wide), called "P-mitrale" pattern
- Broad, notched P wave in limb leads (≥120 ms), often with an M-shape
As per Harrison's Principles of Internal Medicine: "Left atrial overload typically produces a biphasic P wave in V1 with a broad negative component or a broad (≥120 ms), often with a notched P wave in one or more limb leads"

Axis

P axis: 123° - rightward; could suggest right atrial activation delay or right atrial overload
QRS axis: -8° - normal (just slightly leftward; within the normal range of -30° to +90°)
T axis: 168° - significantly divergent from QRS axis, indicating repolarization abnormality / T-wave inversion pattern in some leads

QTc

QTc 235 ms - this is markedly short. This likely reflects rate-correction formula distortion at very high heart rates. At HR 186, the RR interval is ~323 ms, making QT measurement/correction less reliable. The raw QT of 134 ms may be a machine-measurement artifact at this rate.

Clinical Correlation & Key Points

1. Sinus Tachycardia at 186 bpm is the dominant finding. This is not a primary arrhythmia - it is a secondary response. At 32 years old with this rate, the common causes to investigate urgently are:

Fever / sepsis
Pulmonary embolism (IRBBB + sinus tachycardia is a classic PE pairing - Braunwald's notes: "The ECG commonly displays a rightward QRS axis and an incomplete RBBB" in PE)
Hypovolemia / hemorrhage
Thyrotoxicosis
Anemia
Severe pain / anxiety
Cardiac tamponade

2. Incomplete RBBB - can be a normal variant, but in the context of sinus tachycardia and left atrial enlargement, it raises the question of right heart strain (e.g., from PE or pulmonary hypertension).

3. Left Atrial Enlargement - suggests chronic pressure/volume load on the left atrium. Common causes:

Mitral valve disease (stenosis or regurgitation)
Left ventricular dysfunction / hypertension
Hypertrophic cardiomyopathy

4. The combination of sinus tachycardia + IRBBB + left atrial enlargement in a 32-year-old male is clinically significant and warrants:

Urgent clinical assessment for hemodynamic stability
2D Echocardiogram (to assess LA size, valves, LV/RV function)
D-dimer / CTPA if PE is suspected (the note at the bottom mentions "GRBS > 300 mg/dl DO ABG" - suggesting this patient may also be a diabetic in hyperglycemic crisis)
CBC, TFTs, ABG
Troponin

Reference ECG images for comparison

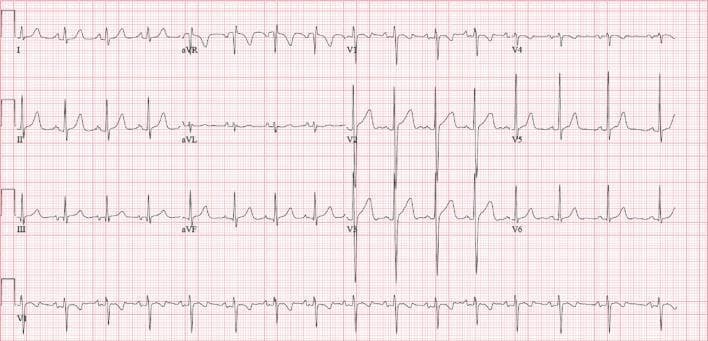

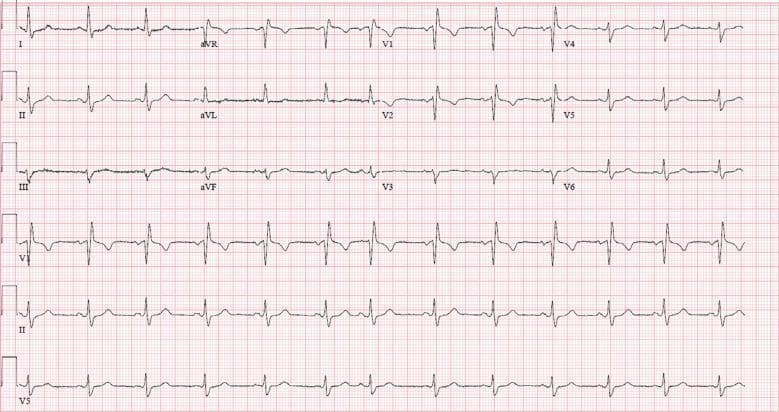

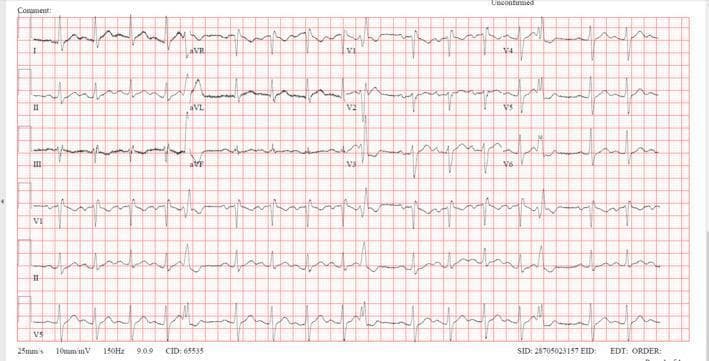

Incomplete RBBB (rSR' in V1):

Incomplete RBBB ECG showing rSR' pattern in V1

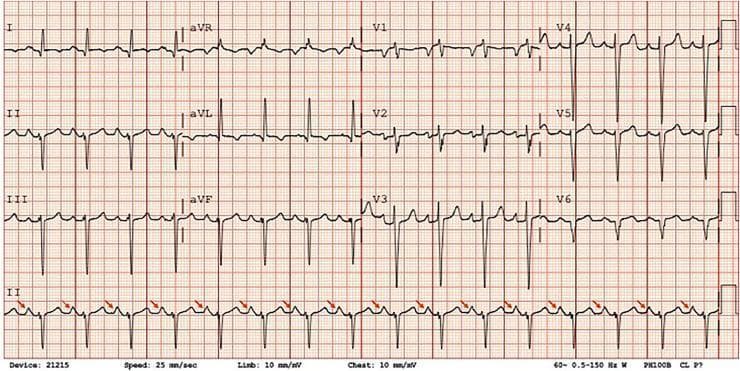

Left Atrial Enlargement (biphasic P wave in V1, notched P in II):

Left atrial enlargement ECG with biphasic P wave V1 and P-mitrale

Note: The machine diagnosis states "To be finally confirmed by physician." This ECG interpretation is educational and should be correlated with full clinical history, examination, and additional investigations. The note at the bottom of the ECG strip appears to reference GRBS > 300 mg/dl, suggesting the patient may be presenting with diabetic hyperglycemia - which itself is a common cause of sinus tachycardia.

Basics of pacemaker

Finding Sources

Reading File

Finding Sources

Reading File

Searching Images

pacemaker components pulse generator lead diagram cardiac pacing

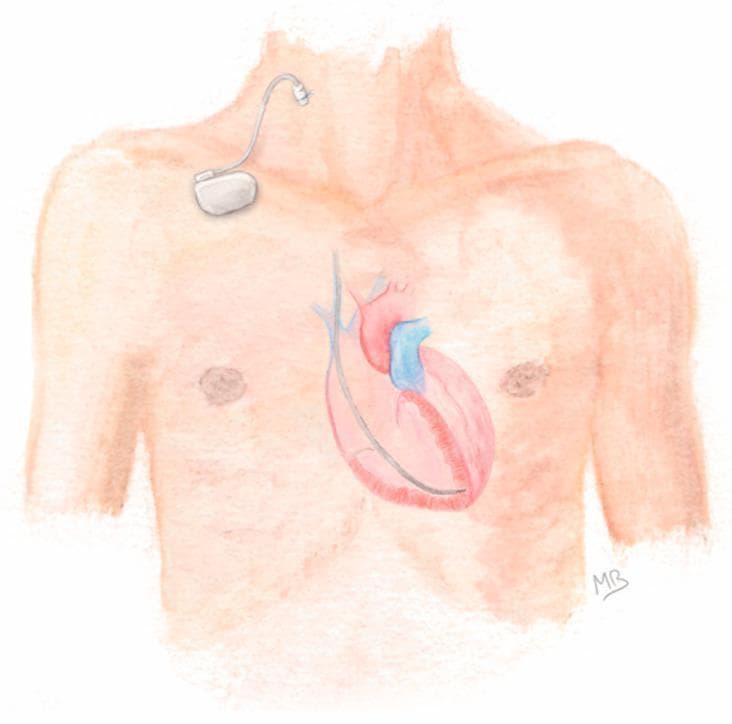

Anatomical diagram illustrating the configuration for Prolonged Temporary Cardiac Pacing (PTCP). The illustration shows a human torso with a focus on the cardiovascular and pacing systems. A silver-colored, single-chamber pacemaker generator is positioned externally on the patient's upper right chest, secured to the skin. An active-fixation lead is connected to the generator and enters the venous system via a percutaneous puncture of the right internal jugular vein. The lead is shown descending through the superior vena cava, entering the heart, and terminating with its tip anchored in the apex of the right ventricle. The diagram highlights the clinical pathway for temporary pacing in patients with transient conduction disorders or those with contraindications to permanent implantation, such as active infection. Key components depicted include the external pulse generator, the transvenous lead, the jugular venous access site, and the intracardiac positioning within the right ventricular cavity.

This lateral chest X-ray of a pediatric patient demonstrates the components and configuration of an implanted epicardial pacemaker system. A radiopaque pulse generator is positioned inferiorly within the abdominal wall (rectus sheath). Radiopaque pacing leads extend superiorly from the generator, forming a large, redundant loop that encircles the cardiac silhouette. Notably, the leads follow a posterior course relative to the heart, rather than an anterior or mediastinal path. Two small metallic markers are visible at the leads' distal aspect near the mid-cardiac level. This specific configuration—where the epicardial lead loop completely wraps around the heart—is a diagnostic hallmark of cardiac strangulation, a rare complication where the growing heart is constricted by the non-expanding pacemaker leads. The image highlights the importance of lateral radiographic views in pediatric patients with epicardial pacemakers to assess for lead migration and potential compression of cardiac structures such as the pulmonary artery, atrioventricular groove, and coronary arteries.

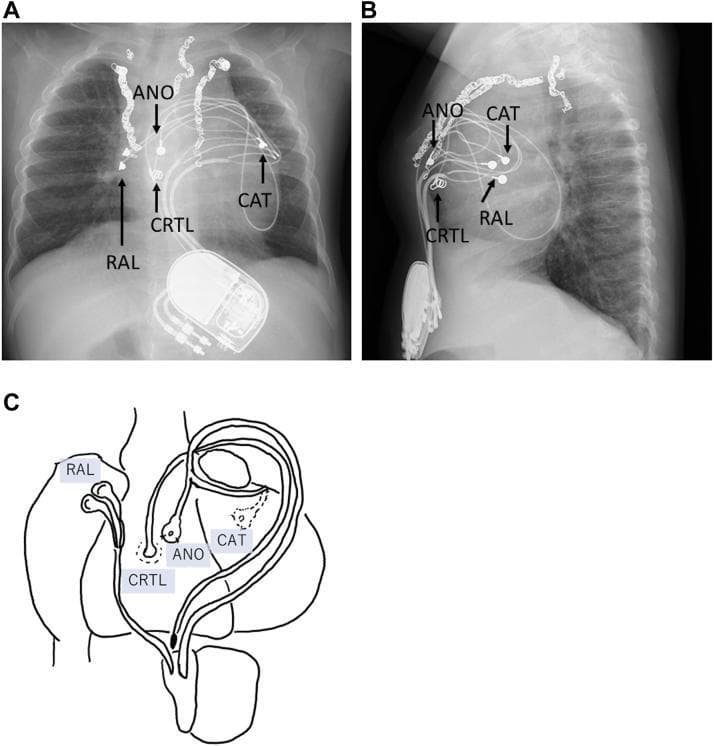

This composite figure includes chest radiographs and a corresponding anatomical diagram illustrating an epicardial pacing system in a pediatric patient. Panel A (anteroposterior view) and Panel B (lateral view) show a radiopaque pacemaker pulse generator implanted in the upper abdominal region, specifically the rectus abdominis muscle sheath. Multiple leads emerge superiorly from the device. Labels indicate the right atrial lead (RAL), the ventricular anode (ANO) positioned on the anterior right ventricular wall, and the ventricular cathode (CAT) placed on the posterior left ventricular wall. A fourth lead (CRTL), intended for cardiac resynchronization therapy, is also visible on the anterior right ventricle. Panel C provides a simplified schematic diagram of the heart, detailing the epicardial attachment sites of these four leads. The radiographs additionally show surgical sternal wires and complex lead loops, which are characteristic of pediatric epicardial systems designed to accommodate growth. This educational visual demonstrates a complex pacing configuration for treating heart failure and left bundle branch block (LBBB) via cardiac resynchronization.

Finding Sources

Searching Images

pacemaker ECG tracing pacing spike DDD VVI paced rhythm

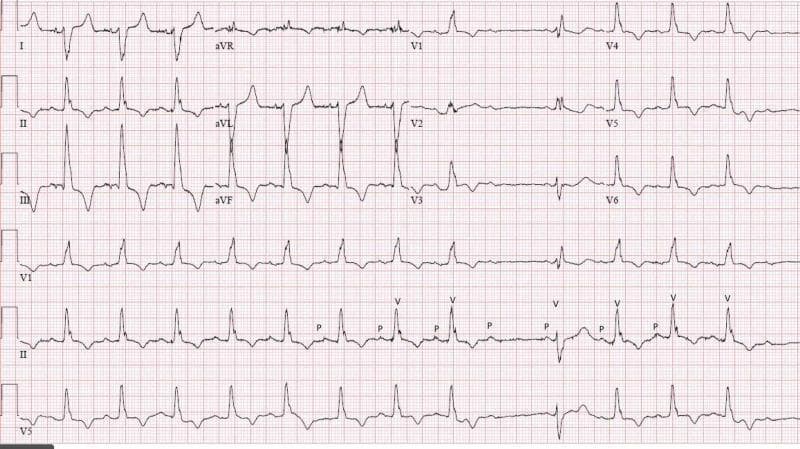

This diagnostic image is a standard 12-lead electrocardiogram (ECG) printed on grid paper, demonstrating dual-chamber (DDD) cardiac pacing. The layout includes limb leads (I, II, III, aVR, aVL, aVF) and precordial leads (V1-V6) arranged in a multi-channel format, with a rhythm strip of Lead II at the bottom. The tracing clearly shows distinct vertical pacemaker spikes occurring in a sequential manner. The first spike (atrial spike) precedes the P-wave, followed by a second spike (ventricular spike) immediately preceding the QRS complex, indicating an AV-sequential pacing mode. The QRS complexes exhibit a widened morphology with a left bundle branch block-like pattern, particularly visible in the precordial leads, which is characteristic of right ventricular apical pacing. This ECG serves as an educational example for identifying artificial pacemaker activity, understanding dual-chamber pacing logic, and recognizing the morphology of paced cardiac rhythms in clinical practice.

This diagnostic image is an electrocardiogram (ECG) rhythm strip illustrating a ventricular-paced rhythm in the context of complete atrioventricular (AV) block. The tracing shows prominent, regular, sharp downward deflections representing paced QRS complexes, each preceded by a clear vertical pacemaker spike. The ventricular pacing rate is approximately 30 beats per minute. Between these paced complexes, the baseline demonstrates independent atrial activity with small-amplitude, irregular P waves at a faster rate of approximately 80 beats per minute, confirming AV dissociation. The paced QRS complexes exhibit an amplitude of approximately 15-20 mm (3-4 large grid squares). This tracing serves as a clinical example of pacemaker function (VVI mode) and the electrophysiological manifestations of hyperkalemia-induced T-wave oversensing or conduction disturbances, necessitating device interrogation and electrolyte correction.

An eighteen-channel surface electrocardiogram (ECG) tracing, including standard limb leads (I, II, III, aVR, aVL, aVF), precordial leads (V1-V6), and additional right-sided/posterior leads (V3R, V4R, V5R, V8, V9). The tracing demonstrates a transient failure of ventricular pacing capture in a patient with a dual-chamber pacemaker. Red arrows specifically indicate ventricular pacing spikes that are not followed by a QRS complex, indicating 'failure to capture.' In segments where capture is successful, a wide QRS complex follows the pacing spike, consistent with ventricular pacing. The underlying atrial rhythm shows P waves, suggesting atrial sensing or pacing (DDD mode). Leads V1 through V3 show predominantly negative QRS complexes with T-wave inversions, while the lateral leads show increasing R-wave amplitude. This diagnostic image illustrates a critical pacemaker malfunction, clinically relevant for identifying causes of syncope in paced patients, such as lead displacement, electrolyte imbalances, or increased myocardial thresholds due to underlying pathology like pulmonary embolism.

Reading File

Loading Image

Finding Sources

I now have comprehensive information from multiple authoritative textbooks. Here is a thorough, structured overview of pacemaker basics.

Basics of Cardiac Pacemakers

1. What is a Pacemaker?

A pacemaker is a device that delivers timed electrical impulses to the myocardium to maintain an adequate heart rate when the heart's natural conduction system fails. It consists of two essential components:

Pulse Generator - a hermetically sealed unit containing a lithium-iodine battery (~30 g), semiconductor microprocessor chip, and electronic sensing/pacing circuitry. Battery life is typically 7-12 years (may be 4-10 years depending on usage). Power decreases gradually, so sudden battery failure is rare.
Lead System - insulated wires connecting the pulse generator to the electrode(s) inside the heart; responsible for both sensing intrinsic activity and delivering pacing impulses.

Roberts and Hedges' Clinical Procedures in Emergency Medicine
Rosen's Emergency Medicine

2. Types of Pacemakers

Type	Generator Location	Electrode Location	Use
Transcutaneous	External (defibrillator unit)	Skin of chest wall	Emergency, temporary
Transvenous	External	Venous catheter tip in RV (±RA)	Temporary
Transesophageal	External	Esophagus	Atrial pacing only
Epicardial	External or internal	Epicardial surface (during surgery)	Post-op, pediatric
Permanent	Subcutaneous (prepectoral)	Venous or epicardial	Long-term management
Leadless	Intracardiac (RV itself)	Self-contained unit (e.g., Micra)	Permanent, no lead complications

Tintinalli's Emergency Medicine

3. Lead Configuration

Unipolar:

Cathode (negative) = lead tip inside heart
Anode (positive) = pulse generator casing (acts as ground)
Produces larger spikes on ECG; more prone to interference from external electromagnetic fields and myopotentials

Bipolar:

Both electrodes inside the heart (~1 cm apart)
Cathode at the tip, anode is a ring electrode ~2 cm proximal
Thicker leads, draw slightly more current
Preferred - less susceptibility to electromagnetic interference, less oversensing of muscle potentials
Roberts and Hedges'

4. The NBG / NASPE-BPEG Five-Letter Code

All pacemakers are described using a standardized five-position code:

Position	I	II	III	IV	V
Meaning	Chamber Paced	Chamber Sensed	Response to Sensing	Rate Modulation	Antitachycardia Function
Options	O, A, V, D	O, A, V, D	O, I, T, D	O, I, M, C, R	O, P, S, D

Key letters:

O = None | A = Atrium | V = Ventricle | D = Dual (both)
I = Inhibited | T = Triggered | D = Dual (I + T)
R = Rate modulation (sensor-driven)

Common modes in practice:

Mode	Meaning	Use
VOO	Ventricular pacing, no sensing, asynchronous	Fixed-rate; used with magnet
VVI	Ventricular paced, ventricular sensed, inhibited	AF with bradycardia; simple
AAI	Atrial paced, atrial sensed, inhibited	Sinus node dysfunction (intact AV node)
DDD	Dual paced + sensed, dual response	Most physiological; AV block + SSS
DDDR	DDD + rate modulation	Active patients

In everyday clinical practice, only the first three letters are used.

Roberts and Hedges'

5. Key Functions: Sensing and Pacing

Sensing - the pacemaker detects intrinsic P waves or QRS complexes and decides whether to fire or hold back.

Pacing - if no intrinsic activity is detected within the escape interval, the generator fires a pulse:

Typically 0.1-20.0 mA current, 2 ms pulse width, at ~15 V
Default pacing rate: 60-80 bpm

Demand mode (inhibited, e.g., VVI): fires ONLY when the intrinsic rate falls below the programmed lower rate limit. This is the standard mode to prevent competitive pacing.

Asynchronous mode (e.g., VOO): fires at a fixed rate regardless of intrinsic activity - used temporarily (e.g., when a magnet is placed over the device).

The Magnet Effect: placing a magnet over the pulse generator closes a reed switch, converting any demand mode to fixed-rate asynchronous pacing at the "magnet rate" - useful during surgery to prevent inhibition by electrocautery interference.

6. Rate Modulation (R in DDDR, VVIR)

Sensors within the pulse generator detect physiologic signals to increase pacing rate during exertion:

Activity/motion sensors (most common - piezoelectric crystal or accelerometer)
Minute ventilation sensors
QT interval sensors
Venous oxygen saturation, temperature sensors

This is particularly useful in patients with chronotropic incompetence who are physically active.

7. Class I Indications for Permanent Pacemaker

(From Rosen's Emergency Medicine - ACC/AHA guidelines:)

Symptomatic sinus node dysfunction (sick sinus syndrome)
Symptomatic bradycardia from AV block on guideline-directed therapy with no alternative
Permanent AF with symptomatic bradycardia
Acquired 2nd degree Mobitz Type II, high-grade AV block, or 3rd degree (complete) AV block - regardless of symptoms
Alternating bundle branch block
Neuromuscular diseases (muscular dystrophy, Kearns-Sayre syndrome) with 2nd/3rd degree block
Syncope + bundle branch block with HV interval >70 ms or infra-nodal block
Post-MI: Mobitz II, high-grade, or 3rd degree block after appropriate waiting period

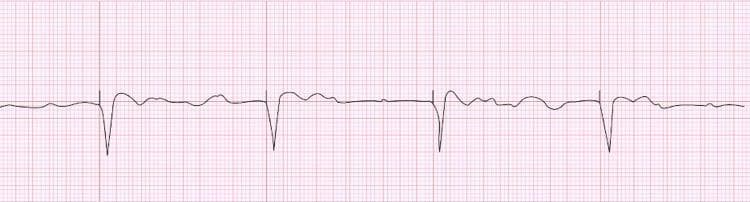

8. ECG Recognition of Paced Rhythm

A pacing spike (vertical deflection) immediately precedes the paced chamber's complex:

Atrial pacing: spike → P wave
Ventricular pacing: spike → wide QRS (LBBB morphology, because RV apex is paced first)
DDD pacing: two spikes (atrial then ventricular) → P wave → wide QRS

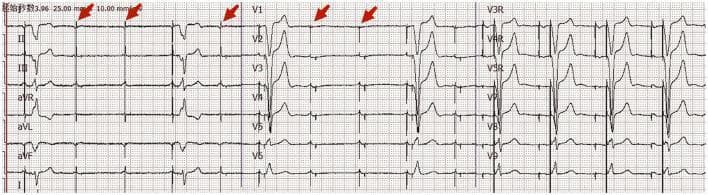

DDD dual-chamber pacemaker ECG with sequential atrial and ventricular spikes

9. Pacemaker Malfunctions

Four main categories:

A. Failure to Sense (Undersensing)

Pacemaker doesn't detect intrinsic cardiac activity
Fires at the set rate even when the heart has its own rhythm
Result: competitive/asynchronous pacing; spikes seen at wrong times
Causes: lead displacement, fibrosis at electrode tip, sensitivity threshold set too high

B. Failure to Pace (Oversensing)

Pacemaker detects non-cardiac signals (skeletal myopotentials, electromagnetic interference, diaphragm)
Erroneously inhibits firing
Result: pauses, bradycardia, syncope
Causes: broken leads, external interference, hypersensitivity setting

C. Failure to Capture

Pacemaker fires (spike visible) but the impulse fails to depolarize the myocardium
Spike not followed by P wave or QRS
Causes: lead dislodgement, lead fracture, electrolyte disturbances (hyperkalemia), myocardial fibrosis, ischemia at lead tip

D. Pacemaker-Associated Tachycardia

Pacemaker-mediated tachycardia (PMT): in dual-chamber devices - retrograde atrial activation from PVC gets sensed by atrial lead, triggers ventricular pacing, creating an endless loop
Runaway pacemaker: generator discharges at rapid rate above upper limit - usually battery failure; treat by magnet or device replacement

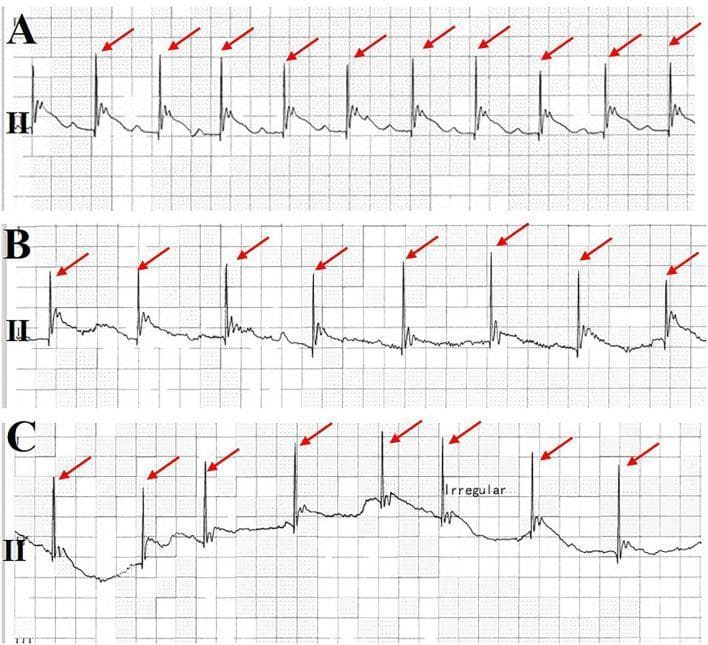

ECG showing pacemaker malfunctions: A = undersensing, B = oversensing, C = failure to capture

Tintinalli's Emergency Medicine, Ch. 33

10. Cardiac Resynchronization Therapy (CRT) / Biventricular Pacing

CRT is used in heart failure with reduced ejection fraction + LBBB (or wide QRS >130 ms):

Right atrial lead (sensing/pacing)
Right ventricular lead (conventional)
Left ventricular lead - placed via the coronary sinus into a lateral cardiac vein to pace the LV epicardially

Goal: restore synchronous biventricular contraction → improve cardiac output, reduce symptoms, reduce mortality (on top of optimal medical therapy).

CRT can be combined with a defibrillator (CRT-D) or without (CRT-P).

Quick Summary Table

Feature	Details
Battery type	Lithium-iodine
Battery life	7-12 years (permanent)
Default pacing rate	60-80 bpm
Bipolar vs unipolar	Bipolar preferred (less interference)
Magnet effect	Converts to asynchronous (VOO/AOO/DOO)
Most physiologic mode	DDD
Most common malfunction	Lead displacement
CRT indication	HFrEF + LBBB + QRS ≥130 ms

Generate a quick reference guide for ECG recognition of pacemaker malfunction

Asking for Preferences

Reading File

Finding Sources

Searching Images

pacemaker failure to capture ECG spike no QRS

This diagnostic image shows a three-panel electrocardiogram (ECG) rhythm strip from lead II, demonstrating a progressive pacemaker malfunction characterized by loss of ventricular capture. Panel A illustrates effective ventricular pacing, where each pacing spike (marked by red arrows) is followed by a narrow QRS complex and T wave at a regular interval. Panel B shows emerging instability, with pacing spikes followed by inconsistent or altered QRS morphologies, suggesting intermittent capture. Panel C displays a frank loss of capture and pacing failure; several pacing spikes occur without subsequent QRS complexes, resulting in a slow, irregular underlying ventricular rhythm labeled as 'Irregular.' This sequence is a critical clinical illustration of pacemaker exit block or threshold elevation, which in this context is associated with acute myocardial infarction (AMI). The content is designed for intermediate to advanced medical learners focusing on cardiology, critical care, and rhythm strip interpretation.

Running Command

ls -la /tmp/workspace/ 2>/dev/null || mkdir -p /tmp/workspace && echo "workspace ready"

Running Command

mkdir -p /tmp/workspace/pacemaker-guide && echo "dir created"

Writing File

~/pacemaker-guide/generate_guide.py

"""
ECG Recognition of Pacemaker Malfunction - Quick Reference Guide
A printable A4 PDF card using reportlab
"""

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.units import cm, mm
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, KeepTogether
)
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_JUSTIFY
from reportlab.platypus import FrameBreak
from reportlab.lib.colors import HexColor
import urllib.request
import os

# ── Color palette ────────────────────────────────────────────────────────────
NAVY       = HexColor("#0D1B2A")
TEAL       = HexColor("#1B7A8C")
TEAL_LIGHT = HexColor("#D4EEF2")
RED        = HexColor("#C0392B")
RED_LIGHT  = HexColor("#FADBD8")
ORANGE     = HexColor("#E67E22")
ORANGE_LT  = HexColor("#FDEBD0")
GREEN      = HexColor("#1A7A4A")
GREEN_LT   = HexColor("#D5F5E3")
PURPLE     = HexColor("#6C3483")
PURPLE_LT  = HexColor("#E8DAEF")
YELLOW_LT  = HexColor("#FEF9E7")
GREY_LIGHT = HexColor("#F2F4F4")
GREY_MID   = HexColor("#BDC3C7")
WHITE      = colors.white
BLACK      = colors.black

# ── Styles ───────────────────────────────────────────────────────────────────
styles = getSampleStyleSheet()

def make_style(name, parent="Normal", fontSize=9, leading=12, textColor=BLACK,
               fontName="Helvetica", alignment=TA_LEFT, spaceAfter=2, spaceBefore=0,
               leftIndent=0, rightIndent=0):
    return ParagraphStyle(
        name, parent=styles[parent],
        fontSize=fontSize, leading=leading, textColor=textColor,
        fontName=fontName, alignment=alignment,
        spaceAfter=spaceAfter, spaceBefore=spaceBefore,
        leftIndent=leftIndent, rightIndent=rightIndent
    )

title_style    = make_style("TitleStyle", fontSize=20, leading=24, textColor=WHITE,
                             fontName="Helvetica-Bold", alignment=TA_CENTER, spaceAfter=0)
subtitle_style = make_style("SubtitleStyle", fontSize=11, leading=14, textColor=TEAL_LIGHT,
                             fontName="Helvetica", alignment=TA_CENTER, spaceAfter=0)
section_hdr    = make_style("SectionHdr", fontSize=11, leading=14, textColor=WHITE,
                             fontName="Helvetica-Bold", alignment=TA_LEFT, spaceAfter=0)
body           = make_style("Body", fontSize=8.5, leading=12, textColor=NAVY)
body_sm        = make_style("BodySm", fontSize=7.8, leading=10.5, textColor=NAVY)
bold_body      = make_style("BoldBody", fontSize=8.5, leading=12, textColor=NAVY,
                             fontName="Helvetica-Bold")
caption        = make_style("Caption", fontSize=7.5, leading=10, textColor=HexColor("#555555"),
                             alignment=TA_CENTER)
bullet         = make_style("Bullet", fontSize=8.2, leading=11, textColor=NAVY,
                             leftIndent=10, spaceAfter=1)
red_label      = make_style("RedLabel", fontSize=9.5, leading=12, textColor=RED,
                             fontName="Helvetica-Bold")
note_style     = make_style("NoteStyle", fontSize=7.8, leading=10.5, textColor=NAVY,
                             fontName="Helvetica-Oblique")
footer_style   = make_style("Footer", fontSize=7, leading=9, textColor=HexColor("#888888"),
                             alignment=TA_CENTER)

# ── Helper: colored section header bar ───────────────────────────────────────
def section_bar(text, color=TEAL, width=None):
    """Returns a single-cell table acting as a colored section header."""
    t = Table([[Paragraph(text, section_hdr)]],
              colWidths=[width or 17.6*cm])
    t.setStyle(TableStyle([
        ("BACKGROUND", (0, 0), (-1, -1), color),
        ("TOPPADDING",    (0, 0), (-1, -1), 5),
        ("BOTTOMPADDING", (0, 0), (-1, -1), 5),
        ("LEFTPADDING",   (0, 0), (-1, -1), 8),
        ("RIGHTPADDING",  (0, 0), (-1, -1), 8),
    ]))
    return t

def colored_cell(text, bg, fg=NAVY, bold=False, fontsize=8.5, padding=5):
    fn = "Helvetica-Bold" if bold else "Helvetica"
    st = ParagraphStyle("cc", fontSize=fontsize, leading=fontsize+2,
                        textColor=fg, fontName=fn)
    t = Table([[Paragraph(text, st)]])
    t.setStyle(TableStyle([
        ("BACKGROUND", (0, 0), (-1, -1), bg),
        ("TOPPADDING",    (0, 0), (-1, -1), padding),
        ("BOTTOMPADDING", (0, 0), (-1, -1), padding),
        ("LEFTPADDING",   (0, 0), (-1, -1), 6),
        ("RIGHTPADDING",  (0, 0), (-1, -1), 6),
    ]))
    return t

# ── Download ECG images ───────────────────────────────────────────────────────
IMG_DIR = "/tmp/workspace/pacemaker-guide/imgs"
os.makedirs(IMG_DIR, exist_ok=True)

images_to_fetch = {
    "malfunction_trio.png":
        "https://cdn.orris.care/cdss_images/fdb3454670a0ab5daa5bc87c6b563c792028bd47fceba5af2498d2af72076237.png",
    "failure_capture.jpg":
        "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_7fa96862af2c988f3135d59e3c2faf859e716cd504bcaf7118f1064188ad2c42.jpg",

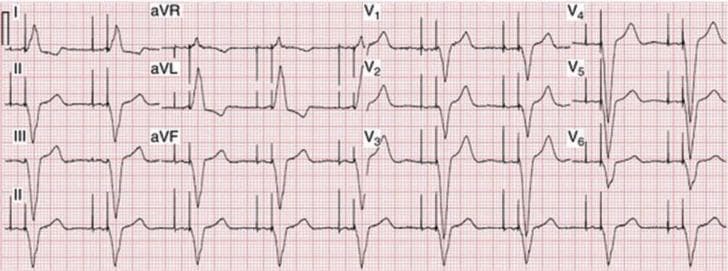

    "ddd_pacing.jpg":
        "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_386706ec42e46f37d85b4b833ddd77362df92178ed6be6d9a226b7928fdc2a6d.jpg",
    "vvi_pacing.jpg":
        "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_9cb295ec998044380d699e78d32cc5dda9c2a785f0f15c86acaa9d834b84d879.jpg",
    "failure_capture2.jpg":
        "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_e3a2a7f855012cc42629d5a1dfcaccdb95c573c6b3ec7684c53d26c5a7d96a88.jpg",
}

for fname, url in images_to_fetch.items():
    dest = os.path.join(IMG_DIR, fname)
    if not os.path.exists(dest):
        try:
            urllib.request.urlretrieve(url, dest)
            print(f"  Downloaded: {fname}")
        except Exception as e:
            print(f"  FAILED {fname}: {e}")
    else:
        print(f"  Cached: {fname}")

print("Images ready.")

Running Command

cd /tmp/workspace/pacemaker-guide && python generate_guide.py

Writing File

~/pacemaker-guide/build_pdf.py

"""
ECG Recognition of Pacemaker Malfunction — Quick Reference PDF
Full 3-page A4 printable guide using reportlab
"""

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.units import cm, mm
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, KeepTogether, Image
)
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_RIGHT
from reportlab.lib.colors import HexColor
import os

# ── Colours ──────────────────────────────────────────────────────────────────
NAVY       = HexColor("#0D1B2A")
TEAL       = HexColor("#1B7A8C")
TEAL_LIGHT = HexColor("#D4EEF2")
RED        = HexColor("#C0392B")
RED_LIGHT  = HexColor("#FADBD8")
ORANGE     = HexColor("#E67E22")
ORANGE_LT  = HexColor("#FDEBD0")
GREEN      = HexColor("#1A7A4A")
GREEN_LT   = HexColor("#D5F5E3")
PURPLE     = HexColor("#6C3483")
PURPLE_LT  = HexColor("#E8DAEF")
YELLOW_LT  = HexColor("#FFFDE7")
GREY_LIGHT = HexColor("#F4F6F7")
GREY_BDR   = HexColor("#CCD1D1")
WHITE      = colors.white
BLACK      = colors.black

# ── Styles ────────────────────────────────────────────────────────────────────
styles = getSampleStyleSheet()

def S(name, fontSize=9, leading=12, textColor=BLACK, fontName="Helvetica",
      alignment=TA_LEFT, spaceAfter=2, spaceBefore=0, leftIndent=0):
    return ParagraphStyle(name, parent=styles["Normal"],
        fontSize=fontSize, leading=leading, textColor=textColor,
        fontName=fontName, alignment=alignment,
        spaceAfter=spaceAfter, spaceBefore=spaceBefore, leftIndent=leftIndent)

title_s   = S("t", 22, 27, WHITE, "Helvetica-Bold", TA_CENTER)
sub_s     = S("sub", 11, 15, TEAL_LIGHT, "Helvetica", TA_CENTER)
hdr_s     = S("hdr", 10.5, 14, WHITE, "Helvetica-Bold")
body_s    = S("body", 8.5, 12, NAVY)
body_sm   = S("bsm", 7.8, 10.5, NAVY)
bold_s    = S("bold", 8.5, 12, NAVY, "Helvetica-Bold")
bullet_s  = S("bul", 8.2, 11.5, NAVY, leftIndent=10)
italic_s  = S("ital", 8, 11, HexColor("#444444"), "Helvetica-Oblique")
cap_s     = S("cap", 7.5, 10, HexColor("#555555"), alignment=TA_CENTER)
note_s    = S("note", 7.5, 10, HexColor("#555555"), "Helvetica-Oblique")
footer_s  = S("footer", 7, 9, HexColor("#888888"), alignment=TA_CENTER)
red_hdr   = S("rhdr", 10, 13, RED, "Helvetica-Bold")
green_hdr = S("ghdr", 10, 13, GREEN, "Helvetica-Bold")
label_s   = S("lbl", 8, 11, NAVY, "Helvetica-Bold")

PW = A4[0] - 2.4*cm   # usable page width

IMG_DIR = "/tmp/workspace/pacemaker-guide/imgs"

def img(fname, width_cm=8.5):
    p = os.path.join(IMG_DIR, fname)
    if os.path.exists(p):
        return Image(p, width=width_cm*cm, height=width_cm*cm*0.45)
    return Paragraph(f"[image: {fname}]", italic_s)

# ── Helpers ───────────────────────────────────────────────────────────────────
def bar(text, bg=TEAL, width=None):
    w = width or PW
    t = Table([[Paragraph(text, hdr_s)]], colWidths=[w])
    t.setStyle(TableStyle([
        ("BACKGROUND",    (0,0),(-1,-1), bg),
        ("TOPPADDING",    (0,0),(-1,-1), 6),
        ("BOTTOMPADDING", (0,0),(-1,-1), 6),
        ("LEFTPADDING",   (0,0),(-1,-1), 8),
        ("RIGHTPADDING",  (0,0),(-1,-1), 8),
    ]))
    return t

def info_box(text, bg=TEAL_LIGHT, width=None):
    w = width or PW
    t = Table([[Paragraph(text, body_sm)]], colWidths=[w])
    t.setStyle(TableStyle([
        ("BACKGROUND",    (0,0),(-1,-1), bg),
        ("BOX",           (0,0),(-1,-1), 0.5, GREY_BDR),
        ("TOPPADDING",    (0,0),(-1,-1), 5),
        ("BOTTOMPADDING", (0,0),(-1,-1), 5),
        ("LEFTPADDING",   (0,0),(-1,-1), 7),
        ("RIGHTPADDING",  (0,0),(-1,-1), 7),
    ]))
    return t

def two_col(left_items, right_items, lw=None, rw=None):
    lw = lw or PW*0.50
    rw = rw or PW - lw - 0.2*cm
    left  = [[item] for item in left_items]
    right = [[item] for item in right_items]
    tl = Table(left,  colWidths=[lw])
    tr = Table(right, colWidths=[rw])
    tl.setStyle(TableStyle([("TOPPADDING",(0,0),(-1,-1),1),("BOTTOMPADDING",(0,0),(-1,-1),1)]))
    tr.setStyle(TableStyle([("TOPPADDING",(0,0),(-1,-1),1),("BOTTOMPADDING",(0,0),(-1,-1),1)]))
    outer = Table([[tl, tr]], colWidths=[lw, rw])
    outer.setStyle(TableStyle([
        ("VALIGN",(0,0),(-1,-1),"TOP"),
        ("LEFTPADDING",(0,0),(-1,-1),0),
        ("RIGHTPADDING",(0,0),(-1,-1),0),
        ("TOPPADDING",(0,0),(-1,-1),0),
        ("BOTTOMPADDING",(0,0),(-1,-1),0),
    ]))
    return outer

def malfunction_card(title, bg_hdr, bg_body, ecg_text, ecg_color,
                     bullets, causes, management, width=None):
    w = width or PW
    col_w = [w]

    rows = []
    rows.append([bar(title, bg=bg_hdr, width=w)])

    ecg_st = S("ecg_"+title[:4], 8.5, 11.5, ecg_color, "Helvetica-Bold")
    rows.append([Table([[Paragraph("🔍 ECG Finding:", label_s)], [Paragraph(ecg_text, ecg_st)]],
                        colWidths=[w],
                        style=[("BACKGROUND",(0,0),(-1,-1),bg_body),
                               ("TOPPADDING",(0,0),(-1,-1),4),
                               ("BOTTOMPADDING",(0,0),(-1,-1),4),
                               ("LEFTPADDING",(0,0),(-1,-1),8),
                               ("RIGHTPADDING",(0,0),(-1,-1),8)])])

    cause_lines  = "".join(f"• {c}<br/>" for c in causes)
    mgmt_lines   = "".join(f"• {m}<br/>" for m in management)
    bullets_txt  = "".join(f"• {b}<br/>" for b in bullets)

    inner = Table([
        [Paragraph("<b>Mechanism / Features:</b>", label_s)],
        [Paragraph(bullets_txt, body_sm)],
        [Paragraph("<b>Common Causes:</b>", label_s)],
        [Paragraph(cause_lines, body_sm)],
        [Paragraph("<b>Management:</b>", label_s)],
        [Paragraph(mgmt_lines, body_sm)],
    ], colWidths=[w], style=[
        ("BACKGROUND",(0,0),(-1,-1), bg_body),
        ("TOPPADDING",(0,0),(-1,-1),2),
        ("BOTTOMPADDING",(0,0),(-1,-1),2),
        ("LEFTPADDING",(0,0),(-1,-1),8),
        ("RIGHTPADDING",(0,0),(-1,-1),8),
    ])
    rows.append([inner])

    card = Table(rows, colWidths=[w])
    card.setStyle(TableStyle([
        ("BOX",  (0,0),(-1,-1), 1, bg_hdr),
        ("TOPPADDING",(0,0),(-1,-1),0),
        ("BOTTOMPADDING",(0,0),(-1,-1),0),
        ("LEFTPADDING",(0,0),(-1,-1),0),
        ("RIGHTPADDING",(0,0),(-1,-1),0),
    ]))
    return card

# ═══════════════════════════════════════════════════════════════════════════════
#  BUILD PDF
# ═══════════════════════════════════════════════════════════════════════════════
OUT = "/tmp/workspace/pacemaker-guide/Pacemaker_ECG_Quick_Reference.pdf"
doc = SimpleDocTemplate(OUT, pagesize=A4,
    leftMargin=1.2*cm, rightMargin=1.2*cm,
    topMargin=1.2*cm, bottomMargin=1.2*cm)

story = []
SP = lambda n=4: Spacer(1, n)
HR = lambda: HRFlowable(width="100%", thickness=0.5, color=GREY_BDR, spaceAfter=4, spaceBefore=4)

# ─────────────────────────────────────────────────────────────────────────────
# PAGE 1 — Title + Overview + NBG Code + Normal Paced Rhythm
# ─────────────────────────────────────────────────────────────────────────────

# Title banner
title_tbl = Table(
    [[Paragraph("ECG Recognition of Pacemaker Malfunction", title_s)],
     [Paragraph("Quick Reference Guide  ·  Cardiology & Emergency Medicine", sub_s)]],
    colWidths=[PW])
title_tbl.setStyle(TableStyle([
    ("BACKGROUND",    (0,0),(-1,-1), NAVY),
    ("TOPPADDING",    (0,0),(-1,-1), 12),
    ("BOTTOMPADDING", (0,0),(-1,-1), 12),
    ("LEFTPADDING",   (0,0),(-1,-1), 10),
    ("RIGHTPADDING",  (0,0),(-1,-1), 10),
    ("ROUNDEDCORNERS",(0,0),(-1,-1), [5,5,5,5]),
]))
story.append(title_tbl)
story.append(SP(8))

# ── Section: Recognising a Paced Rhythm ──────────────────────────────────────
story.append(bar("1.  Recognising a Normal Paced Rhythm", TEAL))
story.append(SP(3))

story.append(info_box(
    "<b>Pacing Spike</b> = a sharp, narrow vertical deflection immediately preceding the paced chamber's complex. "
    "Normal: <b>QRS ≥ 0.12 s (LBBB morphology)</b> after ventricular spike because RV apex is activated first.",
    bg=TEAL_LIGHT))
story.append(SP(5))

# Two-column: Spike types + DDD image
spike_rows = [
    [Paragraph("Pacing Mode", bold_s), Paragraph("ECG Appearance", bold_s)],
    [Paragraph("Atrial only (AAI)", body_s), Paragraph("Spike → P wave → narrow QRS", body_s)],
    [Paragraph("Ventricular only (VVI)", body_s), Paragraph("Spike → wide QRS (LBBB pattern)", body_s)],
    [Paragraph("Dual chamber (DDD)", body_s), Paragraph("2 spikes: atrial spike→P, ventricular spike→wide QRS", body_s)],
    [Paragraph("Biventricular (CRT)", body_s), Paragraph("Spike → narrowed QRS (resynchronised)", body_s)],
]
spike_tbl = Table(spike_rows, colWidths=[PW*0.38, PW*0.62])
spike_tbl.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), NAVY),
    ("TEXTCOLOR",  (0,0),(-1,0), WHITE),
    ("FONTNAME",   (0,0),(-1,0), "Helvetica-Bold"),
    ("ROWBACKGROUNDS",(0,1),(-1,-1),[WHITE, GREY_LIGHT]),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_BDR),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_BDR),
    ("FONTSIZE",   (0,0),(-1,-1), 8.5),
    ("TOPPADDING",    (0,0),(-1,-1), 4),
    ("BOTTOMPADDING", (0,0),(-1,-1), 4),
    ("LEFTPADDING",   (0,0),(-1,-1), 6),
]))
story.append(spike_tbl)
story.append(SP(5))

# DDD + VVI images side by side
ddd_img = img("ddd_pacing.jpg", 8.8)
vvi_img = img("vvi_pacing.jpg", 8.8)
img_tbl = Table(
    [[ddd_img, vvi_img],
     [Paragraph("DDD pacing — two spikes (atrial then ventricular)", cap_s),
      Paragraph("VVI pacing — single ventricular spike, wide QRS", cap_s)]],
    colWidths=[PW*0.50, PW*0.50])
img_tbl.setStyle(TableStyle([
    ("ALIGN",  (0,0),(-1,-1), "CENTER"),
    ("VALIGN", (0,0),(-1,-1), "MIDDLE"),
    ("TOPPADDING",    (0,0),(-1,-1), 2),
    ("BOTTOMPADDING", (0,0),(-1,-1), 2),
]))
story.append(img_tbl)
story.append(SP(8))

# ── Section: Quick-Look Checklist ─────────────────────────────────────────────
story.append(bar("2.  Quick-Look ECG Checklist for Any Paced Patient", PURPLE))
story.append(SP(3))

checklist_rows = [
    [Paragraph("Step", bold_s), Paragraph("Question to ask", bold_s), Paragraph("Normal finding", bold_s)],
    [Paragraph("①", body_s), Paragraph("Is there a pacing spike?", body_s), Paragraph("Visible before each paced complex", body_s)],
    [Paragraph("②", body_s), Paragraph("Does a P wave / QRS follow every spike?", body_s), Paragraph("Yes → capture is intact", body_s)],
    [Paragraph("③", body_s), Paragraph("Is pacing rate appropriate (~60-80 bpm)?", body_s), Paragraph("No unexpected pauses or racing", body_s)],
    [Paragraph("④", body_s), Paragraph("Any spike on T wave or in refractory period?", body_s), Paragraph("No → no undersensing", body_s)],
    [Paragraph("⑤", body_s), Paragraph("Does the pacemaker stay quiet when native beats appear?", body_s), Paragraph("Yes → sensing is intact (demand mode)", body_s)],
    [Paragraph("⑥", body_s), Paragraph("Are there unexpected pauses without spikes?", body_s), Paragraph("No → no oversensing / output failure", body_s)],
]
cl_tbl = Table(checklist_rows, colWidths=[PW*0.07, PW*0.51, PW*0.42])
cl_tbl.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), PURPLE),
    ("TEXTCOLOR",  (0,0),(-1,0), WHITE),
    ("FONTNAME",   (0,0),(-1,0), "Helvetica-Bold"),
    ("ROWBACKGROUNDS",(0,1),(-1,-1),[WHITE, PURPLE_LT]),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_BDR),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_BDR),
    ("FONTSIZE",   (0,0),(-1,-1), 8.5),
    ("TOPPADDING",    (0,0),(-1,-1), 4),
    ("BOTTOMPADDING", (0,0),(-1,-1), 4),
    ("LEFTPADDING",   (0,0),(-1,-1), 6),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
]))
story.append(cl_tbl)
story.append(SP(8))


# ─────────────────────────────────────────────────────────────────────────────
# PAGE 2 — The Four Malfunctions
# ─────────────────────────────────────────────────────────────────────────────
from reportlab.platypus import PageBreak
story.append(PageBreak())

story.append(bar("3.  The Four Pacemaker Malfunctions", NAVY))
story.append(SP(5))

card_w = PW

# ── 3A  Failure to Capture ───────────────────────────────────────────────────
story.append(KeepTogether([
    malfunction_card(
        title="A.  FAILURE TO CAPTURE",
        bg_hdr=RED,
        bg_body=RED_LIGHT,
        ecg_text="Pacing spike present BUT NOT followed by a P wave / QRS complex. "
                 "Spike fires into isoelectric baseline. Native (narrow) QRS may appear after.",
        ecg_color=RED,
        bullets=[
            "Spike fires on time; heart does NOT respond",
            "Can be intermittent (every other beat) or complete",
            "If ventricular: look for spike → flat line (no QRS) → possible escape beat",
        ],
        causes=[
            "Lead displacement or dislodgement (most common — early post-implant)",
            "Lead fracture / conductor break",
            "Elevated pacing threshold: ischaemia, fibrosis at electrode tip",
            "Electrolyte disturbance: hyperkalaemia ↑ threshold",
            "Exit block (progressive threshold rise)",
            "Battery depletion / output set too low",
        ],
        management=[
            "Increase output (mA) — turn up current on generator",
            "Check lead position (CXR, fluoroscopy)",
            "Correct hyperkalaemia or acidosis urgently",
            "If haemodynamically unstable: transcutaneous pacing bridge",
            "Device interrogation + reprogramming or lead revision",
        ],
        width=card_w),
]))
story.append(SP(5))

# Image: failure to capture
story.append(KeepTogether([
    img("failure_capture.jpg", 17.2),
    Paragraph("Failure to capture: pacing spikes visible (↑) not followed by QRS — bare baseline after spike. "
              "Late panel shows complete loss of capture with slow escape rhythm. (Tintinalli / Braunwald)", cap_s),
]))
story.append(SP(7))

# ── 3B  Failure to Sense (Undersensing) ─────────────────────────────────────
story.append(KeepTogether([
    malfunction_card(
        title="B.  FAILURE TO SENSE  (UNDERSENSING)",
        bg_hdr=ORANGE,
        bg_body=ORANGE_LT,
        ecg_text="Pacing spike fires INSIDE or ON TOP OF a native P wave / QRS / T wave. "
                 "Spike does not respect the native cardiac cycle — fires at programmed rate regardless.",
        ecg_color=ORANGE,
        bullets=[
            "Pacemaker ignores intrinsic activity and fires anyway",
            "Competitive pacing with native rhythm",
            "Dangerous: spike-on-T → R-on-T → risk of VF (especially with ventricular undersensing)",
            "ECG: pacing spikes appear at fixed intervals cutting across native complexes",
        ],
        causes=[
            "Lead displacement into poor sensing zone",
            "Lead fracture or insulation break",
            "Sensitivity threshold programmed too high (less sensitive)",
            "Small intrinsic signal amplitude (low-voltage P or QRS)",
            "Electrolyte disturbance, ischaemia at sensing electrode",
        ],
        management=[
            "Increase sensitivity (lower mV threshold value = more sensitive)",
            "Reposition lead if dislodged",
            "Magnet application (→ asynchronous) if R-on-T risk is immediate",
            "Device interrogation and reprogramming",
        ],
        width=card_w),
]))
story.append(SP(7))

# ── 3C  Failure to Pace (Oversensing) ────────────────────────────────────────
story.append(PageBreak())

story.append(KeepTogether([
    malfunction_card(
        title="C.  FAILURE TO PACE  (OVERSENSING)",
        bg_hdr=GREEN,
        bg_body=GREEN_LT,
        ecg_text="Expected pacing spike is ABSENT — long pause with no spike despite rate dropping "
                 "below programmed lower rate limit. Underlying bradycardia or asystole visible.",
        ecg_color=GREEN,
        bullets=[
            "Pacemaker senses a non-cardiac signal and misidentifies it as a QRS → inhibits itself",
            "ECG: pauses longer than the programmed escape interval, no spike",
            "Patient symptomatic: syncope, pre-syncope, dizziness",
            "Distinguish from battery failure (rundown rate) and lead fracture",
        ],
        causes=[
            "Skeletal myopotentials (pectoral muscle activity, diaphragm)",
            "Electromagnetic interference: MRI, electrocautery, TENS, arc welding",
            "Broken pacemaker lead / conductor fracture creating noise",
            "T-wave oversensing (pacemaker counts T wave as second QRS)",
            "Sensitivity programmed too low (too sensitive)",
            "Crosstalk in dual-chamber devices (atrial output sensed by ventricular lead)",
        ],
        management=[
            "Reduce sensitivity (raise mV threshold — less sensitive)",
            "Remove source of electromagnetic interference",
            "Magnet application → converts to asynchronous (VOO/AOO) — bypasses sensing",
            "Reprogram refractory periods to avoid T-wave counting",
            "Replace fractured lead",
        ],
        width=card_w),
]))
story.append(SP(7))

# ── 3D  Output Failure / No Spike ────────────────────────────────────────────
story.append(KeepTogether([
    malfunction_card(
        title="D.  OUTPUT FAILURE  (NO SPIKE — BATTERY / CIRCUIT)",
        bg_hdr=PURPLE,
        bg_body=PURPLE_LT,
        ecg_text="No pacing spikes at all. Patient-dependent rhythm only — slow escape or asystole. "
                 "Differs from oversensing: no inhibiting signal to explain absence of spikes.",
        ecg_color=PURPLE,
        bullets=[
            "Complete absence of pacing output — generator silent",
            "ECG: no pacing spikes anywhere in the tracing",
            "Underlying rhythm visible (junctional escape, idioventricular, or asystole)",
            "Battery ERI/EOL: rate gradually slows before complete failure",
        ],
        causes=[
            "Battery depletion (end of life — ERI/EOL indicator reached)",
            "Pulse generator circuit failure",
            "Complete lead fracture / conductor break (open circuit)",
            "Lead-connector disconnection from generator",
            "Runaway pacemaker damage from external defibrillation",
        ],
        management=[
            "Transcutaneous pacing immediately if symptomatic/unstable",
            "Device interrogation to confirm generator status",
            "Check CXR: lead integrity, connector position",
            "Urgent generator replacement",
            "Atropine / isoproterenol as bridge (if AV conduction intact)",
        ],
        width=card_w),
]))
story.append(SP(7))

# Malfunction trio image
story.append(KeepTogether([
    img("malfunction_trio.png", 17.2),
    Paragraph(
        "A = Undersensing (spikes fire on native beats). "
        "B = Oversensing (missing spikes → pauses, no output). "
        "C = Failure to capture (spikes fire but no QRS follows).   Source: Tintinalli's Emergency Medicine",
        cap_s),
]))
story.append(SP(8))


# ─────────────────────────────────────────────────────────────────────────────
# PAGE 3 — Tachyarrhythmias, Magnet Use, Summary Table, Pearls
# ─────────────────────────────────────────────────────────────────────────────
story.append(PageBreak())

story.append(bar("4.  Pacemaker-Associated Tachyarrhythmias", NAVY))
story.append(SP(4))

tach_rows = [
    [Paragraph("Type", bold_s), Paragraph("Mechanism", bold_s), Paragraph("ECG", bold_s), Paragraph("Action", bold_s)],
    [Paragraph("Pacemaker-Mediated\nTachycardia (PMT)", body_s),
     Paragraph("PVC → retrograde atrial activation → sensed by atrial lead → triggers V pacing → endless loop", body_sm),
     Paragraph("Regular tachycardia at upper rate limit (~120-160 bpm) with wide paced QRS; each QRS followed by retrograde P', then spike", body_sm),
     Paragraph("Place magnet (breaks loop). Reprogram PVARP (post-ventricular atrial refractory period).", body_sm)],
    [Paragraph("Rapid Atrial\nArrhythmia Tracking", body_s),
     Paragraph("DDD device tracks AF/flutter at upper rate limit; 'mode-switch' not programmed", body_sm),
     Paragraph("Regular paced QRS at upper rate limit (e.g. 130 bpm) with no visible P waves; may be irregular", body_sm),
     Paragraph("Enable mode-switch. Rate-control AF. Consider AV nodal ablation.", body_sm)],
    [Paragraph("Runaway Pacemaker", body_s),
     Paragraph("Generator malfunction → fires at rates >200 bpm. Battery failure or external damage.", body_sm),
     Paragraph("Very rapid regular paced complexes, often >200 bpm. Haemodynamic compromise.", body_sm),
     Paragraph("Magnet may help. Urgent device interrogation. Generator replacement.", body_sm)],
    [Paragraph("Lead-Induced\nVentricular Ectopy", body_s),
     Paragraph("Irritation of RV endocardium by lead tip", body_sm),
     Paragraph("Frequent PVCs with morphology matching paced QRS (LBBB pattern)", body_sm),
     Paragraph("Lead repositioning. Antiarrhythmic if frequent.", body_sm)],
]
tach_tbl = Table(tach_rows, colWidths=[PW*0.17, PW*0.30, PW*0.30, PW*0.23])
tach_tbl.setStyle(TableStyle([
    ("BACKGROUND",    (0,0),(-1,0), NAVY),
    ("TEXTCOLOR",     (0,0),(-1,0), WHITE),
    ("FONTNAME",      (0,0),(-1,0), "Helvetica-Bold"),
    ("ROWBACKGROUNDS",(0,1),(-1,-1),[WHITE, TEAL_LIGHT]),
    ("BOX",           (0,0),(-1,-1), 0.5, GREY_BDR),
    ("INNERGRID",     (0,0),(-1,-1), 0.3, GREY_BDR),
    ("FONTSIZE",      (0,0),(-1,-1), 8),
    ("TOPPADDING",    (0,0),(-1,-1), 4),
    ("BOTTOMPADDING", (0,0),(-1,-1), 4),
    ("LEFTPADDING",   (0,0),(-1,-1), 5),
    ("VALIGN",        (0,0),(-1,-1), "TOP"),
]))
story.append(tach_tbl)
story.append(SP(8))

# ── Section: Magnet Use ────────────────────────────────────────────────────────
story.append(bar("5.  The Magnet Effect — When & Why", TEAL))
story.append(SP(4))

magnet_data = [
    [Paragraph("What the magnet does", bold_s),
     Paragraph("Closes reed switch → disables sensing → converts to ASYNCHRONOUS (VOO/AOO/DOO) mode at fixed 'magnet rate' (usually ~85-100 bpm in most devices).", body_sm)],
    [Paragraph("Use when…", bold_s),
     Paragraph("• Oversensing causing inhibition (patient bradycardic, no output)<br/>"
               "• Electrocautery/surgery causing inhibition<br/>"
               "• Pacemaker-mediated tachycardia<br/>"
               "• Runaway pacemaker (attempt)", body_sm)],
    [Paragraph("Do NOT use when…", bold_s),
     Paragraph("• Undersensing (magnet makes it worse — more asynchronous firing, R-on-T risk)<br/>"
               "• Failure to capture (magnet won't fix output threshold problem)<br/>"
               "• ICD — magnet suspends anti-tachycardia therapy (shocks), not pacing mode", body_sm)],
    [Paragraph("ICD vs pacemaker", bold_s),
     Paragraph("On an ICD: magnet suspends shock delivery only. Pacing function is NOT converted to asynchronous — behaviour differs from a pure pacemaker.", body_sm)],
]
magnet_tbl = Table(magnet_data, colWidths=[PW*0.20, PW*0.80])
magnet_tbl.setStyle(TableStyle([
    ("ROWBACKGROUNDS",(0,0),(-1,-1),[TEAL_LIGHT, WHITE]),
    ("BOX",     (0,0),(-1,-1), 0.5, TEAL),
    ("INNERGRID",(0,0),(-1,-1), 0.3, GREY_BDR),
    ("TOPPADDING",    (0,0),(-1,-1), 5),
    ("BOTTOMPADDING", (0,0),(-1,-1), 5),
    ("LEFTPADDING",   (0,0),(-1,-1), 6),
    ("VALIGN",  (0,0),(-1,-1), "TOP"),
    ("FONTSIZE",(0,0),(-1,-1), 8.5),
]))
story.append(magnet_tbl)
story.append(SP(8))

# ── Section: At-a-Glance Summary ──────────────────────────────────────────────
story.append(bar("6.  At-a-Glance Comparison Table", NAVY))
story.append(SP(4))

summary_rows = [
    [Paragraph("Malfunction", bold_s),
     Paragraph("Spike Present?", bold_s),
     Paragraph("Capture?", bold_s),
     Paragraph("Sensing?", bold_s),
     Paragraph("ECG Clue", bold_s),
     Paragraph("1st Action", bold_s)],
    [Paragraph("Failure to Capture", body_s),
     Paragraph("✓  YES", body_s), Paragraph("✗  NO", body_s), Paragraph("Normal", body_s),
     Paragraph("Spike → isoelectric line, no QRS", body_s),
     Paragraph("↑ output (mA)", body_s)],
    [Paragraph("Undersensing", body_s),
     Paragraph("✓  YES (wrong time)", body_s), Paragraph("May occur", body_s), Paragraph("✗  POOR", body_s),
     Paragraph("Spike inside native QRS or on T wave", body_s),
     Paragraph("↑ sensitivity", body_s)],
    [Paragraph("Oversensing", body_s),
     Paragraph("✗  ABSENT", body_s), Paragraph("N/A", body_s), Paragraph("✗  TOO MUCH", body_s),
     Paragraph("Pauses — no spike despite low rate", body_s),
     Paragraph("Magnet; ↓ sensitivity", body_s)],
    [Paragraph("Output Failure", body_s),
     Paragraph("✗  NONE", body_s), Paragraph("✗  NO", body_s), Paragraph("N/A", body_s),
     Paragraph("No spikes anywhere", body_s),
     Paragraph("Transcutaneous pacing", body_s)],
    [Paragraph("PMT", body_s),
     Paragraph("✓  YES (rapid)", body_s), Paragraph("✓  YES", body_s), Paragraph("↑ (retrograde)", body_s),
     Paragraph("Regular tachycardia at upper rate limit", body_s),
     Paragraph("Magnet", body_s)],
]
sum_tbl = Table(summary_rows, colWidths=[PW*0.17, PW*0.13, PW*0.10, PW*0.10, PW*0.30, PW*0.20])
sum_tbl.setStyle(TableStyle([
    ("BACKGROUND",    (0,0),(-1,0), NAVY),
    ("TEXTCOLOR",     (0,0),(-1,0), WHITE),
    ("FONTNAME",      (0,0),(-1,0), "Helvetica-Bold"),
    ("ROWBACKGROUNDS",(0,1),(-1,-1),[WHITE, GREY_LIGHT]),
    ("BACKGROUND",    (0,1),(-1,1), RED_LIGHT),
    ("BACKGROUND",    (0,2),(-1,2), ORANGE_LT),
    ("BACKGROUND",    (0,3),(-1,3), GREEN_LT),
    ("BACKGROUND",    (0,4),(-1,4), PURPLE_LT),
    ("BACKGROUND",    (0,5),(-1,5), TEAL_LIGHT),
    ("BOX",           (0,0),(-1,-1), 0.5, GREY_BDR),
    ("INNERGRID",     (0,0),(-1,-1), 0.3, GREY_BDR),
    ("FONTSIZE",      (0,0),(-1,-1), 8),
    ("TOPPADDING",    (0,0),(-1,-1), 4),
    ("BOTTOMPADDING", (0,0),(-1,-1), 4),
    ("LEFTPADDING",   (0,0),(-1,-1), 5),
    ("VALIGN",        (0,0),(-1,-1), "TOP"),
]))
story.append(sum_tbl)
story.append(SP(8))

# ── Clinical Pearls ────────────────────────────────────────────────────────────
story.append(bar("7.  Clinical Pearls", TEAL))
story.append(SP(4))

pearls = [
    ("<b>Spike ON T wave = Undersensing</b> — most dangerous as R-on-T can trigger VF in ventricle.",),
    ("<b>Paced LBBB morphology is normal</b> — wide QRS from RV apex pacing is expected; new RBBB pattern suggests lead migration to LV.",),
    ("<b>Pseudofusion</b> — spike fires just before intrinsic QRS; complex looks hybrid (partially paced). Not a malfunction.",),
    ("<b>Fusion beats</b> — native and paced activation merge; QRS morphology between native and fully paced. Also normal.",),
    ("<b>Hyperkalaemia = silent killer of pacemakers</b> — raises threshold → failure to capture; first ECG sign may be peaked T waves + loss of capture.",),
    ("<b>Post-cardiac surgery</b> — temporary epicardial wires common; threshold rises over days, check capture daily.",),
    ("<b>Always check CXR</b> in any pacemaker malfunction — lead fracture, displacement, pneumothorax, and pericardial effusion (cardiac tamponade) all visible.",),
    ("<b>Interrogate the device</b> — the programmer provides exact parameters, threshold measurements, lead impedance, and battery status. Always call the manufacturer rep if in doubt.",),
]
pearl_data = [[Paragraph(f"★  {p[0]}", body_sm)] for p in pearls]
pearl_tbl = Table(pearl_data, colWidths=[PW])
pearl_tbl.setStyle(TableStyle([
    ("ROWBACKGROUNDS",(0,0),(-1,-1),[YELLOW_LT, WHITE]),
    ("BOX",     (0,0),(-1,-1), 0.5, ORANGE),
    ("INNERGRID",(0,0),(-1,-1), 0.3, GREY_BDR),
    ("TOPPADDING",    (0,0),(-1,-1), 4),
    ("BOTTOMPADDING", (0,0),(-1,-1), 4),
    ("LEFTPADDING",   (0,0),(-1,-1), 8),
]))
story.append(pearl_tbl)
story.append(SP(8))

# ── Footer ─────────────────────────────────────────────────────────────────────
story.append(HRFlowable(width="100%", thickness=0.5, color=GREY_BDR, spaceAfter=4))
story.append(Paragraph(
    "Sources: Roberts and Hedges' Clinical Procedures in Emergency Medicine · Tintinalli's Emergency Medicine · "
    "Rosen's Emergency Medicine · Braunwald's Heart Disease · Harrison's Principles of Internal Medicine 22E  ·  "
    "For educational purposes only — confirm with device interrogation and senior cardiology review.",
    footer_s))

# ── Build ─────────────────────────────────────────────────────────────────────
doc.build(story)
print(f"PDF created: {OUT}")

Running Command

cd /tmp/workspace/pacemaker-guide && python build_pdf.py 2>&1

Running Command

ls -lh /tmp/workspace/pacemaker-guide/Pacemaker_ECG_Quick_Reference.pdf

Your 3-page A4 printable quick reference guide is ready (835 KB):

Pacemaker ECG Quick Reference

PDF Document · PDF

What's inside the 3 pages:

Page 1

Recognising a normal paced rhythm (AAI / VVI / DDD / CRT) with real ECG images
6-step Quick-Look checklist for any paced patient

Page 2

Four malfunction cards (colour-coded):
- 🔴 Failure to Capture
- 🟠 Failure to Sense (Undersensing)
- 🟢 Failure to Pace (Oversensing)
- 🟣 Output Failure
- Each card includes: ECG finding, mechanism, causes, and management
Real ECG images showing each malfunction pattern

Page 3

Pacemaker-associated tachyarrhythmias table (PMT, AF tracking, runaway pacemaker)
Magnet use guide — when to apply and when NOT to
At-a-glance comparison table (spike present? capture? sensing? 1st action?)
8 clinical pearls (including hyperkalaemia, pseudofusion, LBBB morphology)

Sources: Roberts & Hedges, Tintinalli, Rosen's, Braunwald's, Harrison's 22E.

This is a shared conversation. Sign in to Orris to start your own chat.
