NSTEMI and STEMI — Types, ECG Findings, and Images
Understanding the Distinction
STEMI (ST-Elevation Myocardial Infarction) results from complete occlusion of a coronary artery, causing transmural (full-thickness) ischemia. The hallmark is ST-segment elevation in ≥2 contiguous leads.
NSTEMI (Non-ST-Elevation Myocardial Infarction) results from partial occlusion (or subtotal occlusion), causing subendocardial ischemia. Troponin is elevated but there is no ST elevation — instead, you see ST depression, T-wave inversion, or nonspecific changes.
Overview Comparison Diagram
NSTEMI (partial thrombus, ST depression/T-wave inversion, troponin+) vs. STEMI (complete thrombus, ST elevation, troponin+). — Management of Patients With Acute Coronary Syndromes
STEMI — Types by Territory
STEMI is classified by the territory of infarction, which correlates with the culprit coronary artery and the ECG leads showing elevation.
1. Anterior STEMI
Artery: Left Anterior Descending (LAD)
Leads with ST elevation: V1–V4 (and I, aVL for anterolateral)
Reciprocal changes: ST depression in II, III, aVF
Wall affected: Anterior (and anteroseptal, anterolateral depending on extent)
Classic features: convex "tombstone" ST elevation in precordial leads, evolving Q waves in V2–V3
Anterior STEMI: ST elevation V2–V5, reciprocal depression in II, III, aVF. Proximal LAD occlusion pattern.
Anterior STEMI with evolving QS waves in V2–V3 (necrotic changes), tombstoning morphology.
ECG Sequence (Acute → Evolving):
Acute and evolving anterior STEMI sequence — leads I, aVL, and V1–V6 showing progression to Q-wave formation. — Harrison's Principles of Internal Medicine, 22nd Ed.
2. Anterolateral STEMI
Artery: Proximal LAD or left main
Leads: V1–V6, I, aVL (extensive anterior involvement)
Reciprocal changes: ST depression in inferior leads
Anterolateral STEMI: V1–V6 + I, aVL elevation, hyperacute T waves V2–V4, reciprocal depression II/III/aVF. Proximal LAD/left main occlusion.
3. Inferior STEMI
Artery: Right Coronary Artery (RCA) ~80%, Left Circumflex (LCx) ~20%
Leads with ST elevation: II, III, aVF
Reciprocal changes: ST depression in I and aVL (high lateral leads)
Key clue: ST elevation in lead III > lead II → suggests RCA occlusion
Inferior STEMI: ST elevation II/III/aVF, Q waves in III/aVF, reciprocal depression I/aVL, consistent with RCA occlusion.
Inferior STEMI with additional reciprocal changes in V4–V6, sinus rhythm.

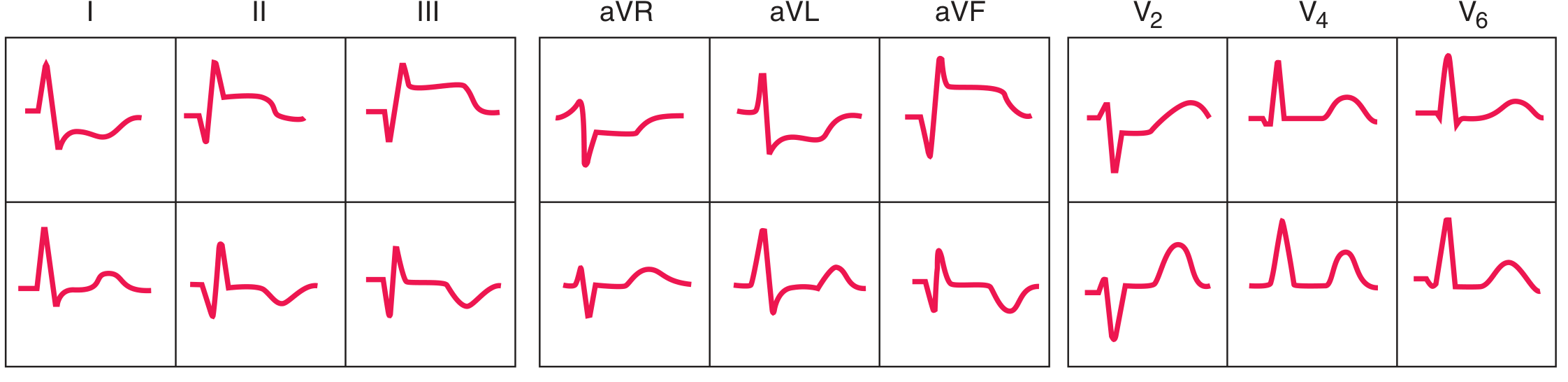

ECG Sequence (Acute → Evolving):
Acute and evolving inferior STEMI — inferior leads showing Q-wave formation with reciprocal anterior depressions. — Harrison's Principles of Internal Medicine, 22nd Ed.
4. Inferior + Right Ventricular (RV) STEMI
Artery: Proximal RCA (before RV branches)
Leads: II, III, aVF (inferior) + V3R–V4R (right-sided leads, ≥1 mm elevation)
Clinical importance: RV infarction causes hypotension sensitive to nitrates and volume depletion — IV fluids are required, nitrates are contraindicated
Inferior STEMI + right ventricular involvement: ST elevation in II/III/aVF and right-sided leads V4R–V6R (blue arrows). Proximal RCA occlusion.
5. Inferior + Posterior STEMI
Artery: RCA (posterior descending branch) or LCx
Leads (direct): V7–V9 (posterior leads placed behind the heart)
Mirror image in standard leads: ST depression in V1–V3 + tall, upright T waves (reciprocal = mirror of posterior ST elevation)
Inferior + posterior STEMI: elevation in II/III/aVF + ST depression/tall T waves in V1–V3 (posterior mirror). Reciprocal changes in aVL.
Panel A (admission) vs. Panel B (day 2): inferior STEMI (red arrows) + posterior leads V7–V9 (blue arrows), with reciprocal depression V1–V4.
6. Lateral STEMI
Artery: Left Circumflex (LCx) or diagonal branch of LAD
Leads: I, aVL (high lateral) and/or V5–V6 (low lateral)
Reciprocal changes: ST depression in II, III, aVF (when high lateral)
High lateral STEMI (I, aVL, V5–V6) + posterior extension (reciprocal depression V1–V3). LCx distribution.
7. Inferolateral STEMI
Artery: LCx (dominant or large)
Leads: II, III, aVF + V5–V6 ± I, aVL
Inferolateral STEMI: elevation in V4–V6 + inferior leads, hyperacute T waves, reciprocal depression in aVL and I.
NSTEMI — ECG Patterns
NSTEMI produces no ST elevation. Instead, look for:
| Pattern | Description |
|---|---|
| ST depression | Horizontal or downsloping ≥0.5 mm in ≥2 contiguous leads |
| T-wave inversion | Symmetric, deep T-wave inversion, especially V1–V4 |
| Nonspecific changes | Flat T waves, subtle changes — ECG may even be normal |
| Wellens' syndrome | T-wave pattern indicating critical proximal LAD stenosis (pre-infarction warning) |
NSTEMI — Serial ECG Progression
Serial ECGs in NSTEMI: initial ST depression (inferior + precordial leads) → dynamic T-wave inversions (I, aVL, V4–V6) at 2–6 days → resolution by 62 days. Classic anterolateral subendocardial ischemia.
NSTEMI: widespread ST-segment depression and deep symmetric T-wave inversions in V1–V6, I, aVL — may indicate multi-vessel disease. QTc prolonged at 497 ms.
Serial NSTEMI ECGs: horizontal ST depression V3–V5 (panel a) improving after nitrates (panel b–c) and fully normalizing before discharge (panel d).
Wellens' Syndrome (High-Risk NSTEMI Equivalent)
A pattern of T-wave changes in V2–V3 during a pain-free period — indicates critical proximal LAD stenosis and impending anterior STEMI. Do NOT stress test — requires urgent angiography.
Type A (Biphasic T waves):
Wellens' Type A: biphasic T waves in V2–V3 — initial upward deflection followed by deep terminal inversion. Highly specific for proximal LAD stenosis.
Type B (Deep symmetric T-wave inversion):
Wellens' Type B: deep, symmetric T-wave inversion V1–V6 with isoelectric ST and preserved R-wave progression. Pain-free at time of ECG. Critical LAD stenosis.
Summary Table
| Type | Territory | Culprit Artery | Leads with ST Elevation | Reciprocal Leads |
|---|---|---|---|---|
| Anterior STEMI | Anterior wall | LAD (mid-distal) | V1–V4 | II, III, aVF |
| Anterolateral STEMI | Anterior + Lateral | Proximal LAD / Left main | V1–V6, I, aVL | II, III, aVF |
| Inferior STEMI | Inferior wall | RCA (80%), LCx (20%) | II, III, aVF | I, aVL |
| Inferior + RV STEMI | Inferior + RV | Proximal RCA | II, III, aVF + V3R–V4R | I, aVL |
| Posterior STEMI | Posterior wall | RCA or LCx | V7–V9 (or mirror: V1–V3 depression) | V1–V3 (ST elevation) |
| Lateral STEMI | Lateral wall | LCx / Diagonal | I, aVL, V5–V6 | II, III, aVF |
| Inferolateral STEMI | Inferior + Lateral | LCx | II, III, aVF, V5–V6 | I, aVL |
| NSTEMI | Subendocardial | Partial any vessel | None (ST depression, T inversion) | N/A |
| Wellens' syndrome | Proximal LAD at risk | Proximal LAD stenosis | Biphasic or inverted T V2–V3 | N/A |
Key clinical points:
- All STEMI types require immediate reperfusion (PCI < 90 min or thrombolytics < 30 min)
- RV infarction: avoid nitrates and diuretics; give IV fluids
- Posterior STEMI is frequently missed on standard 12-lead — always get posterior leads (V7–V9) when inferior changes + ST depression in V1–V3
- NSTEMI diagnosis requires elevated troponin + symptoms/ECG changes — ECG alone may be normal in up to 30%
- Wellens' syndrome is a pre-infarction warning — urgent catheterization, no stress testing
