Brainstem Anatomy

Source: Neuroanatomy through Clinical Cases, 3rd Edition (Chapters 12 & 14)

Overview and Position

The brainstem is a compact, stalklike structure at the base of the cerebral hemispheres, lying within the posterior fossa of the cranial cavity. It carries nearly all information between the brain and the body. More than a simple conduit, it contains nuclei that control cranial nerves, level of consciousness, cerebellar circuits, muscle tone, posture, and cardiac/respiratory/autonomic functions.

Boundaries:

Rostral: midbrain-diencephalic junction (meets thalamus/hypothalamus at the level of the tentorium cerebelli)
Caudal: cervicomedullary junction at the foramen magnum (pyramidal decussation)
The cerebellum attaches to its dorsal surface

Three divisions (rostral to caudal): Midbrain → Pons → Medulla oblongata

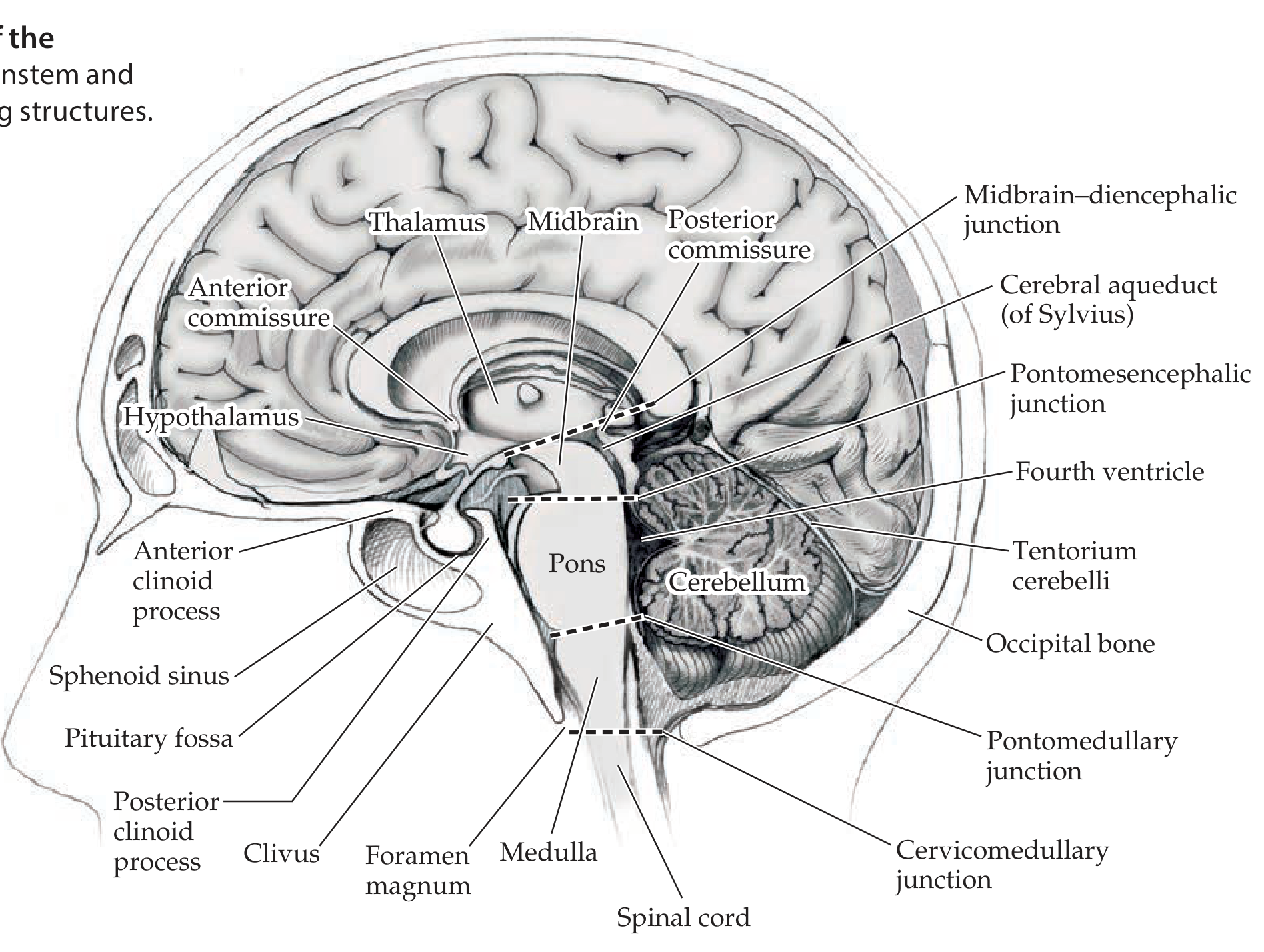

Midsagittal view showing brainstem in situ:

Midsagittal view of the brainstem showing midbrain, pons, medulla, and key junctions

Four Main Functional Groupings

The brainstem can be organized into four functional categories (Table 14.1):

Grouping	Key Structures
1. Cranial nerve nuclei	Somatic motor (CN III, IV, VI, XII), Branchial motor (CN V, VII, IX-XI), Parasympathetic (Edinger-Westphal, salivatory nuclei, dorsal motor X), Sensory (trigeminal complex, vestibular, cochlear, nucleus solitarius)
2. Long tracts	Corticospinal/corticobulbar tracts; posterior column-medial lemniscal system; anterolateral system; descending autonomic pathways
3. Cerebellar circuitry	Superior/middle/inferior cerebellar peduncles; pontine nuclei; red nucleus; inferior olivary nucleus; central tegmental tract
4. Reticular formation	Arousal systems; cholinergic, noradrenergic (locus ceruleus), serotonergic (raphe), dopaminergic nuclei; pain modulation (PAG); autonomic, respiratory, cardiovascular control

Three Subdivisions: Key Anatomy

Terminology: Tectum, Tegmentum, Basis

Tectum ("roof"): dorsal to the cerebral aqueduct in the midbrain; consists of the superior and inferior colliculi
Tegmentum ("covering"): ventral to the aqueduct in midbrain, and ventral to the 4th ventricle in pons/medulla; the main bulk of brainstem nuclei and reticular formation
Basis: most ventral portion; contains the large corticospinal and corticobulbar tracts

1. Midbrain

The midbrain contains the cerebral aqueduct (of Sylvius) centrally. Motor nuclei lie more ventrally, sensory nuclei more dorsally (separated by the sulcus limitans).

Key structures:

Tectum: Superior colliculi (visual reflexes) and inferior colliculi (auditory relay)
Cerebral peduncles = substantia nigra + basis pedunculi (corticospinal, corticobulbar, and corticopontine fibers)
Periaqueductal gray (PAG): pain modulation
Oculomotor nucleus (CN III) and Edinger-Westphal nucleus (parasympathetic to pupil)
Trochlear nucleus (CN IV) - only CN to exit dorsally
Red nucleus: receives superior cerebellar peduncle; sends rubrospinal tract and projects via central tegmental tract to inferior olive
Substantia nigra: dopaminergic; involved in motor control
Medial longitudinal fasciculus (MLF): coordinates eye movements
Medial lemniscus and anterolateral system: ascending sensory tracts

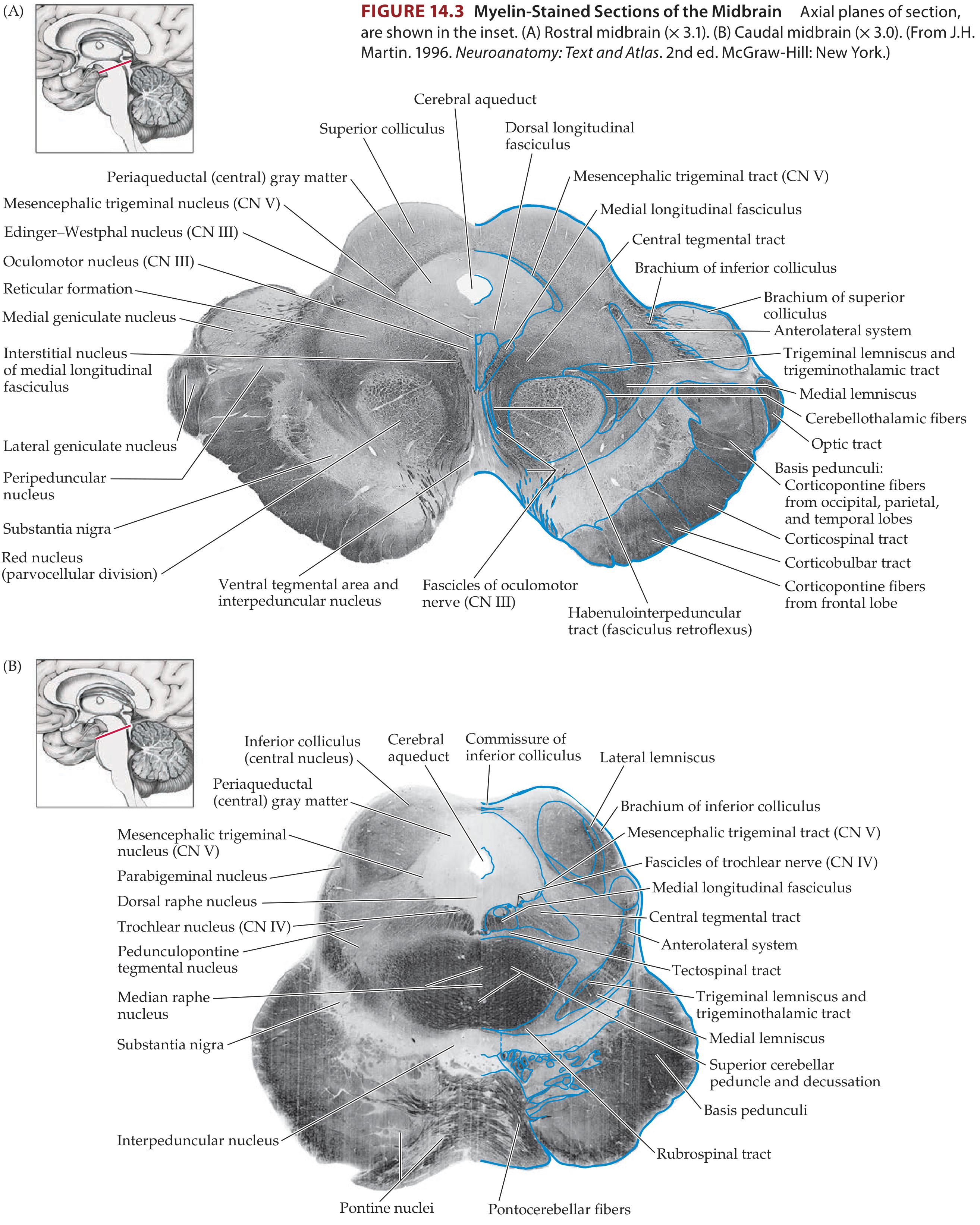

Midbrain cross-sections (myelin-stained):

Midbrain cross-sections at rostral (A) and caudal (B) levels, with labeled nuclei and tracts

2. Pons

The pons (Latin: "bridge") gets its name from the large middle cerebellar peduncles visible laterally, which bridge to the cerebellum.

Key structures:

Basis pontis (ventral pons): corticospinal, corticobulbar tracts + pontine nuclei (relay to cerebellum via middle cerebellar peduncle)
Pontine tegmentum (dorsal): major nuclei and pathways
Fourth ventricle: separates pontine tegmentum from cerebellum
Trigeminal nuclear complex (CN V): principal sensory nucleus (discriminative touch, face), motor trigeminal nucleus (mastication), mesencephalic nucleus (proprioception), spinal trigeminal nucleus (pain/temperature)
Abducens nucleus (CN VI): horizontal gaze; the facial nerve (CN VII) loops around it forming the facial colliculus
Facial nucleus (CN VII)
Vestibular nuclei (CN VIII): superior, medial, lateral, inferior
Cochlear nuclei (CN VIII): dorsal and ventral
Superior olivary complex + trapezoid body + lateral lemniscus: auditory pathway
Paramedian pontine reticular formation (PPRF): horizontal gaze center
Locus ceruleus: noradrenergic nucleus; major source of norepinephrine to CNS
Raphe nuclei: serotonergic; modulate sleep, mood, pain

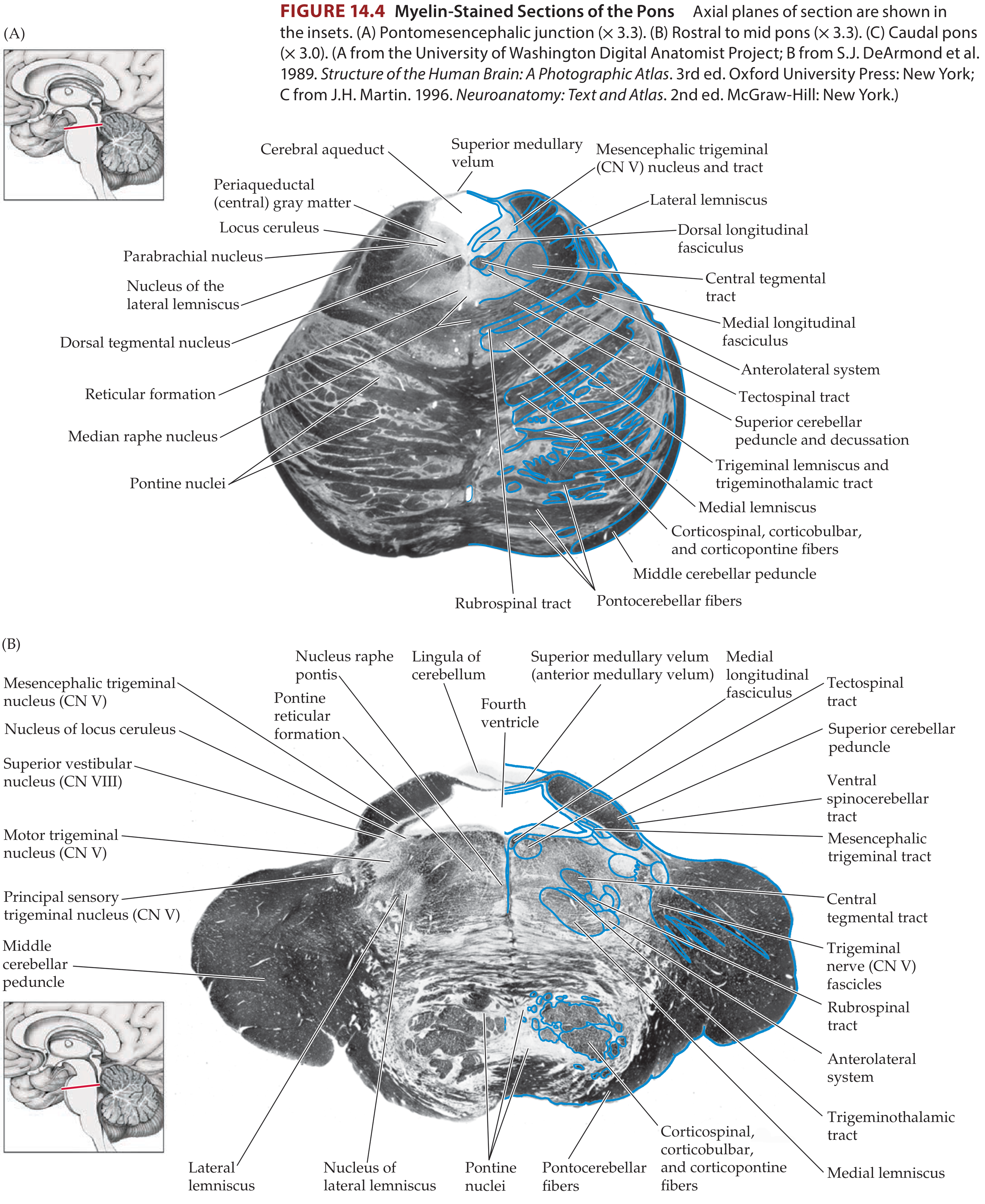

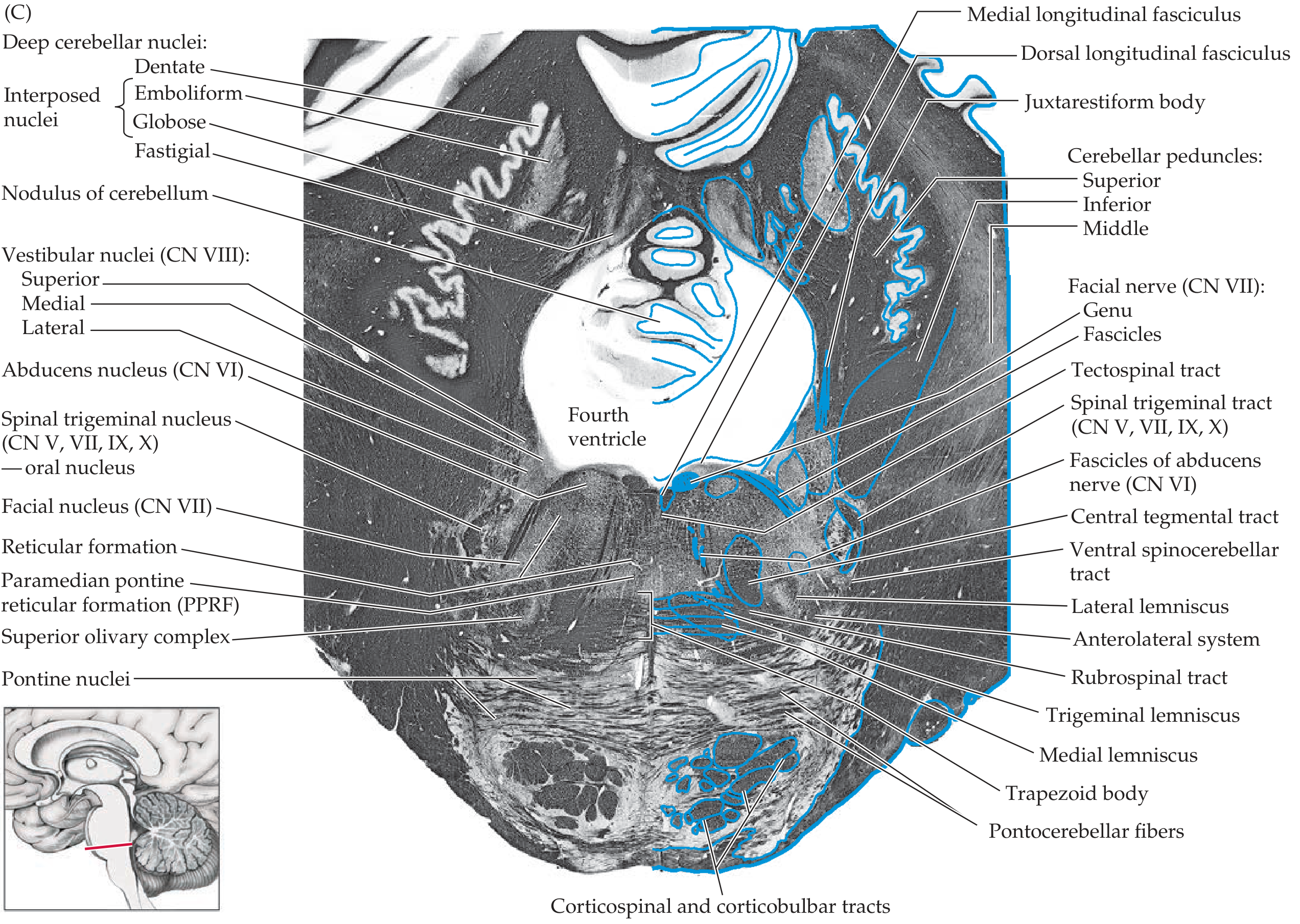

Pons cross-sections (myelin-stained) at three levels:

Pons sections at pontomesencephalic junction (A), mid-pons (B), and caudal pons (C)

Caudal pons section showing abducens/facial nuclei, PPRF, and cerebellar peduncles

3. Medulla Oblongata

Key structures:

Pyramids (ventral): corticospinal tracts; at the caudal end they decussate (pyramidal decussation), marking the medulla-spinal cord boundary
Inferior olivary nucleus (rostral medulla): cerebellar circuitry; receives red nucleus input via central tegmental tract; sends climbing fibers to cerebellum via inferior cerebellar peduncle
Nucleus gracilis and nucleus cuneatus: receive posterior column (fine touch/proprioception) input; their axons cross in the medulla as internal arcuate fibers to form the medial lemniscus
Nucleus tractus solitarius (NTS): receives visceral (CN VII, IX, X) and gustatory afferents; integrates autonomic and eating-related signals
Dorsal motor nucleus of CN X: parasympathetic output to thoracoabdominal viscera
Nucleus ambiguus: motor for CN IX, X, XI (swallowing, phonation)
Hypoglossal nucleus (CN XII): tongue motor
Spinal trigeminal nucleus (extends from pons through medulla into upper cervical cord): pain/temperature from face, CN V, VII, IX, X
Vestibular nuclei (also at ponto-medullary level)
Area postrema: chemoreceptor trigger zone (lacks normal BBB; mediates vomiting); on the dorsal surface of the caudal medulla
Inferior cerebellar peduncle: connects medulla to cerebellum

Surface Anatomy and Cranial Nerve Attachments

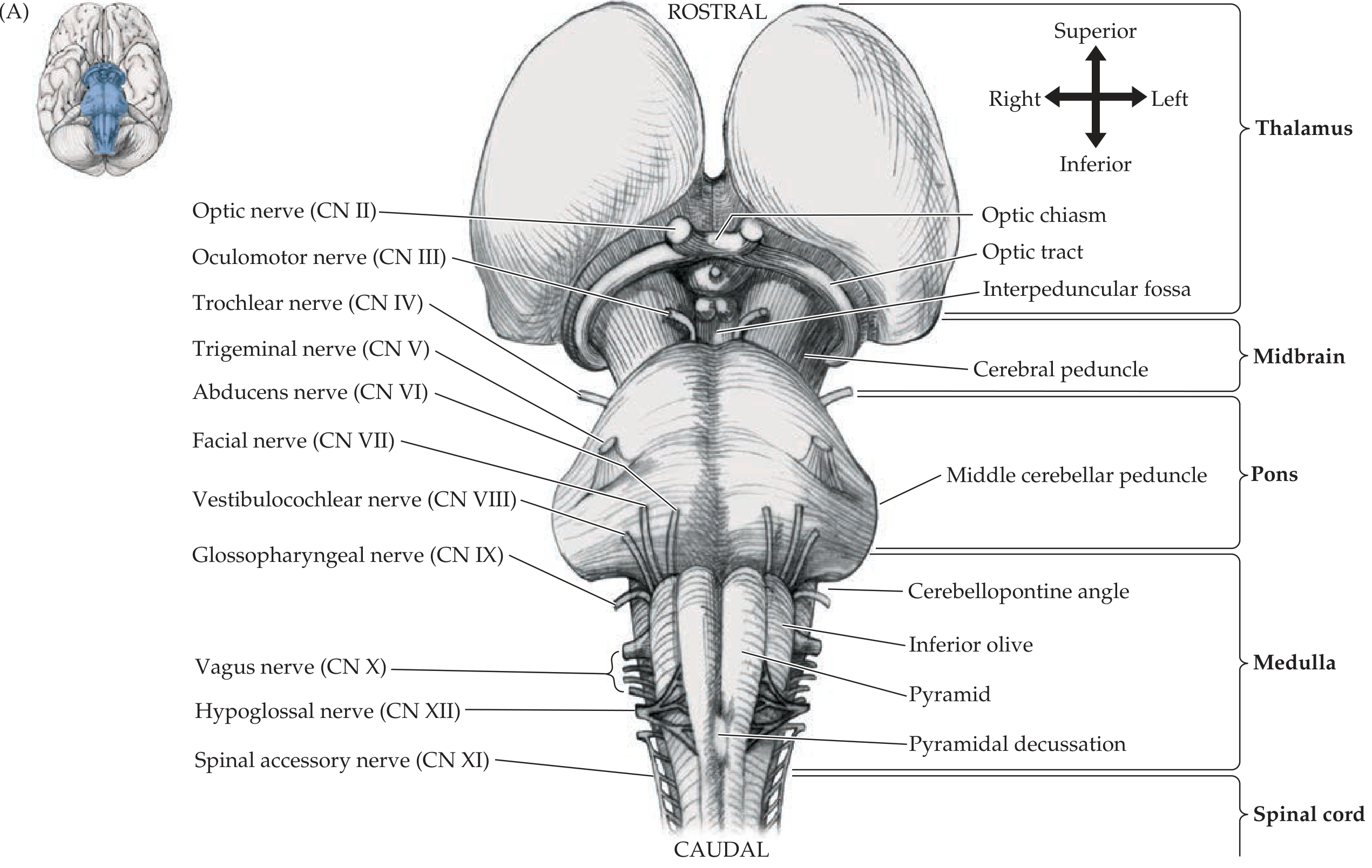

Ventral (anterior) surface:

Ventral surface of the brainstem with all cranial nerves labeled

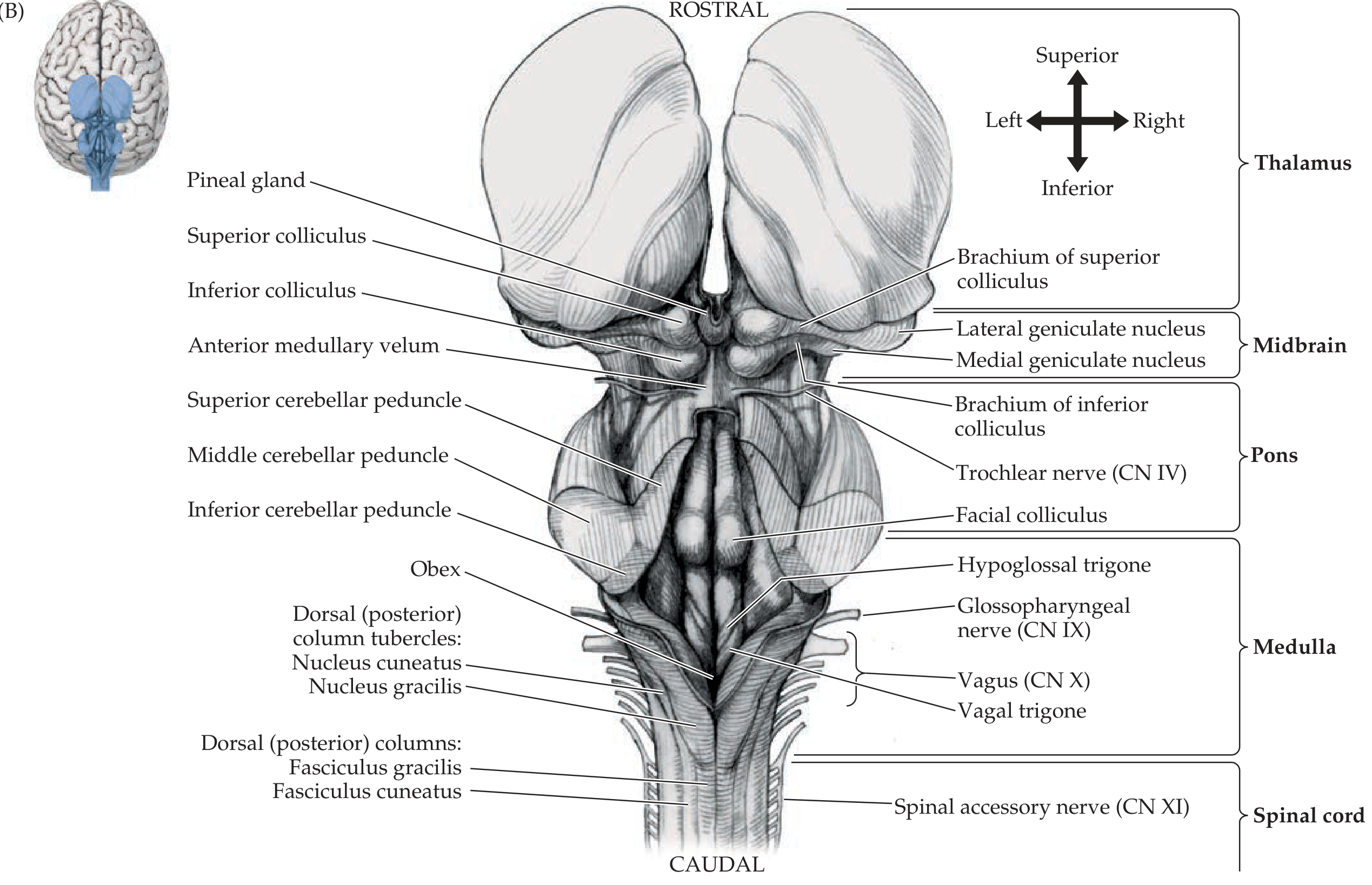

Dorsal (posterior) surface:

Dorsal surface of the brainstem showing colliculi, cerebellar peduncles, rhomboid fossa, and CN attachments

Cranial nerve attachments by level:

Midbrain: CN III (oculomotor, ventral), CN IV (trochlear, dorsal - only CN to exit dorsally)
Pons: CN V (trigeminal, lateral), CN VI (abducens, pontomedullary junction), CN VII (facial), CN VIII (vestibulocochlear)
Medulla: CN IX (glossopharyngeal), CN X (vagus), CN XI (spinal accessory), CN XII (hypoglossal)

Reticular Formation

The reticular formation is a continuous core of nuclei embedded in the tegmentum, running the entire length of the brainstem. It merges rostrally with the diencephalon and caudally with the spinal cord intermediate zone.

Main components of the reticular formation:

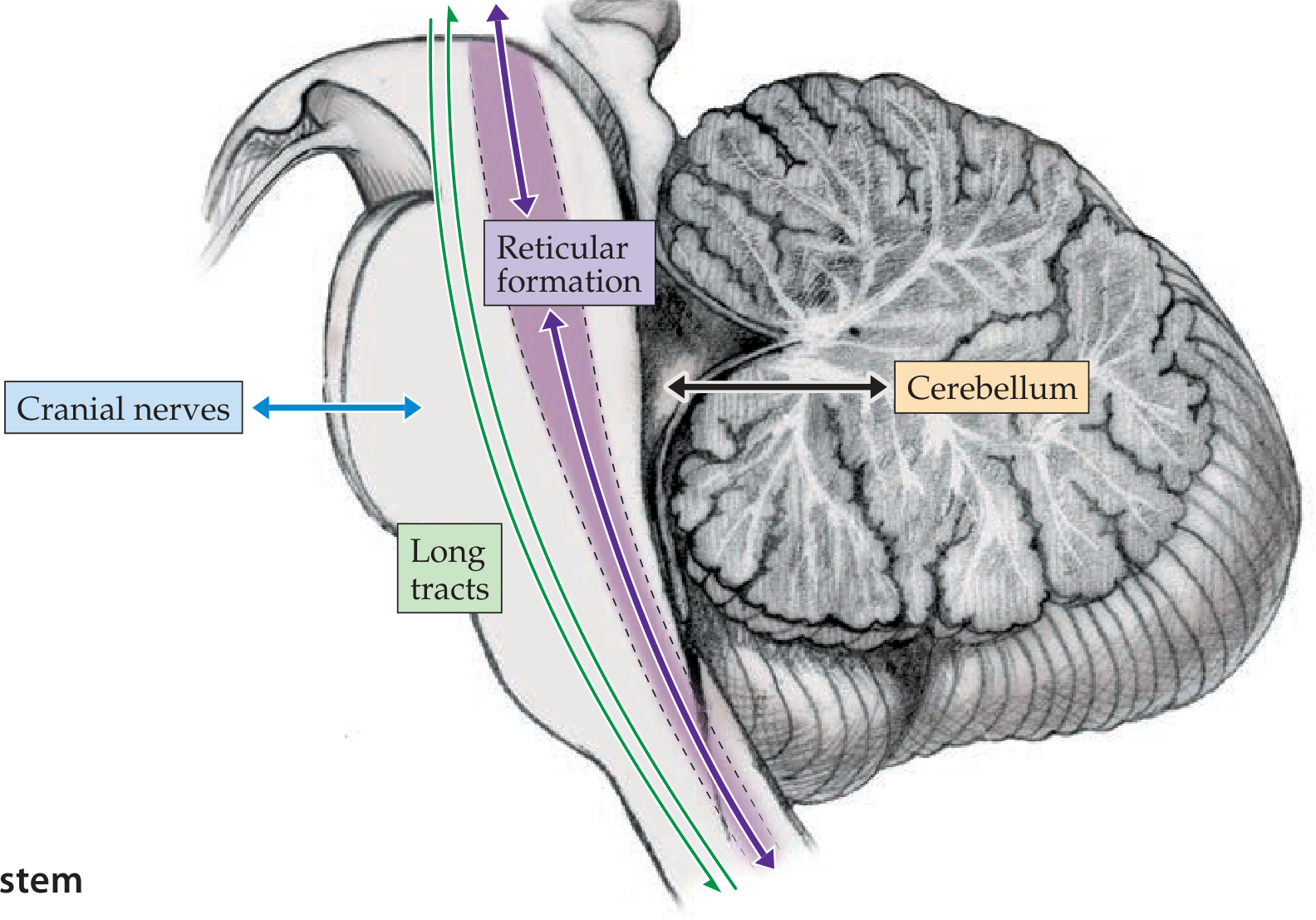

Reticular formation running the full length of the brainstem, with long tracts, cranial nerves, and cerebellum labeled

Functional division:

Rostral (midbrain/upper pons): works with diencephalon to maintain arousal and conscious state - the ascending reticular activating system (ARAS)
Caudal (pons/medulla): controls respiration, cough, hiccup, sneeze, swallowing, nausea/vomiting, cardiovascular function, and sphincter control

Named nuclei within/related to reticular formation:

System	Nucleus	Location	Neurotransmitter	Function
Cholinergic	Pedunculopontine tegmental nucleus	Caudal midbrain	Acetylcholine	Arousal, REM sleep, locomotion
Noradrenergic	Locus ceruleus	Dorsal pons	Norepinephrine	Attention, arousal, stress
Serotonergic	Raphe nuclei	Midline throughout	Serotonin	Sleep-wake, mood, pain modulation
Dopaminergic	Ventral tegmental area; substantia nigra	Midbrain	Dopamine	Reward, motor control
Pain modulation	Periaqueductal gray (PAG)	Midbrain	Multiple	Endogenous opioid pain control

Cerebellar Peduncles

The cerebellum connects to the brainstem via three pairs of peduncles:

Peduncle	Level	Main Contents
Superior (brachium conjunctivum)	Midbrain	Output from cerebellum to red nucleus and thalamus
Middle (brachium pontis)	Pons	Input from pontine nuclei (corticopontocerebellar pathway)
Inferior (restiform body)	Medulla	Input from spinal cord (spinocerebellar), inferior olive; output via juxtarestiform body to vestibular nuclei

Long Tracts Passing Through

Tract	Location	Function
Corticospinal tract	Basis (ventral)	Voluntary limb motor
Corticobulbar tract	Basis (ventral)	Voluntary motor to cranial nerve nuclei
Medial lemniscus	Tegmentum	Fine touch, vibration, proprioception (body); formed in medulla, migrates ventrally as it ascends
Anterolateral system	Lateral tegmentum	Pain, temperature, crude touch (body)
Trigeminothalamic tract	Lateral tegmentum	Pain/temperature from face
MLF	Dorsal tegmentum	Coordinates conjugate eye movements
Descending autonomic fibers	Lateral tegmentum	Sympathetic output to spinal cord (Horner syndrome if disrupted)

Clinical Relevance Summary

Small brainstem lesions produce devastating deficits because all four functional categories are crowded into a tiny space. Classic signs include:

Cranial nerve deficits (ipsilateral to lesion)
Long-tract signs (contralateral hemiplegia or hemisensory loss)
Ipsilateral Horner syndrome (descending sympathetic fibers in lateral tegmentum)
Ataxia (cerebellar peduncle involvement)
Impaired consciousness (reticular formation/ARAS damage)

The crossed pattern - ipsilateral face + contralateral body - is the hallmark of a lateral brainstem lesion (e.g., lateral medullary/Wallenberg syndrome from posterior inferior cerebellar artery occlusion).
