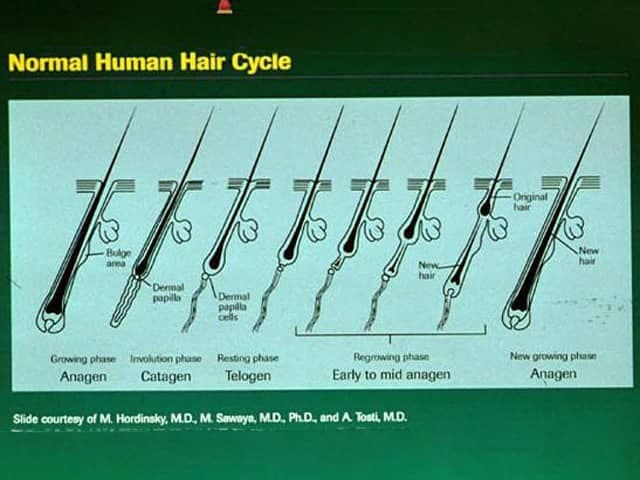

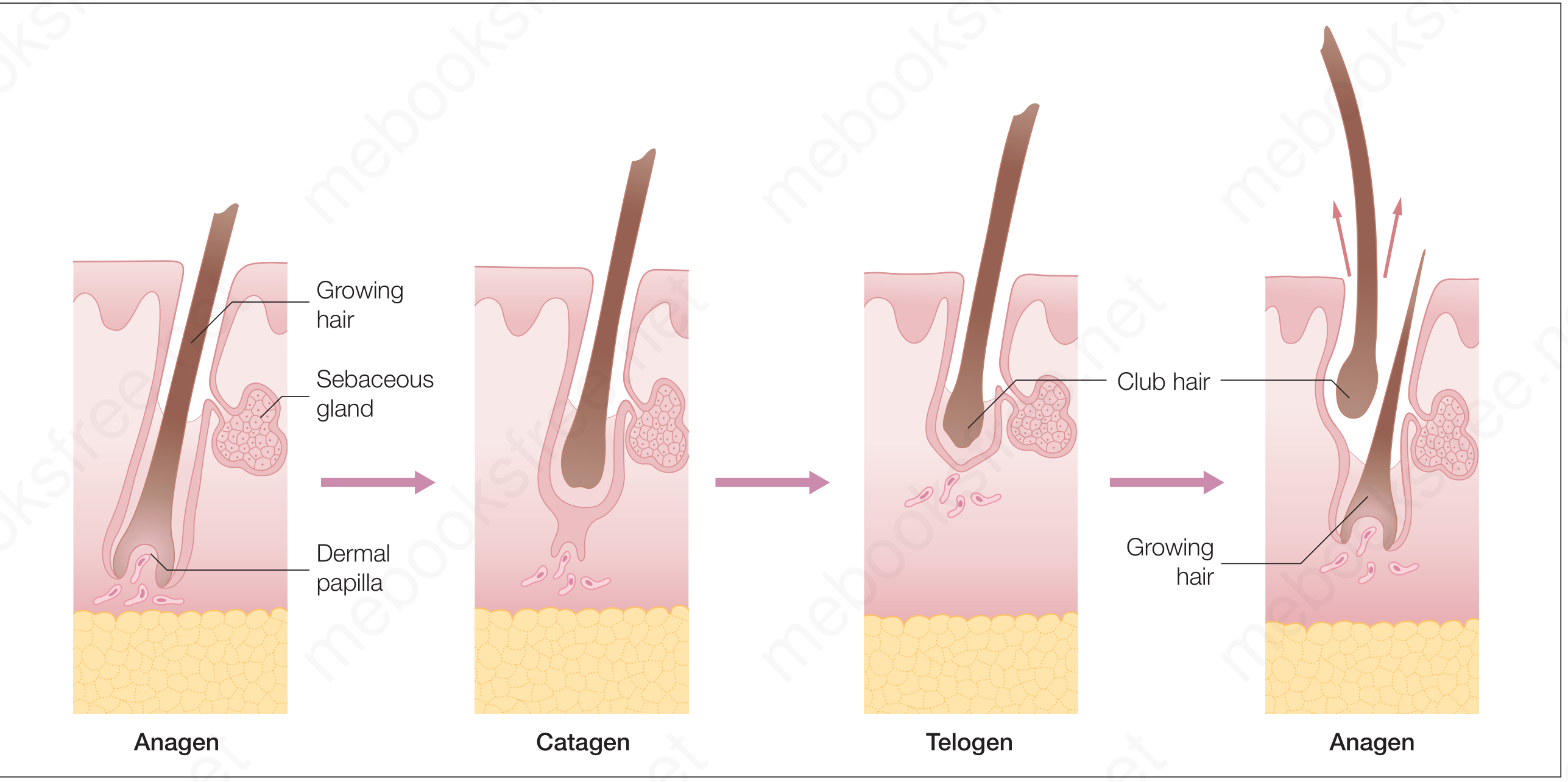

This educational diagram depicts the Normal Human Hair Cycle in a longitudinal schematic of a pilosebaceous unit from the scalp. Modality: Educational illustration; not an in vivo imaging study. Technique: Digital vector illustration with color-coded phases to aid rapid recognition. Anatomy shown includes the scalp hair follicle, hair shaft, hair bulb, dermal papilla, outer root sheath, bulge region, and associated sebaceous gland. Phases represented are Anagen (growth phase) with active matrix proliferation and elongation of the hair shaft; Catagen (transitional phase) with follicular involution and brief regression; Telogen (resting phase) with a quiescent follicle and club hair waiting for shedding; and Exogen (shedding phase) illustrating release of a mature hair and initiation of a new anagen cycle. Notable features emphasize the continuous cyclic renewal of the pilosebaceous unit, directional Bow-like angles of hair emanation, and the temporal sequence that governs production of long continuous hair versus short sparse hair. Clinical significance includes the ability to explain common hair disorders: telogen effluvium from premature shift to telogen, androgenetic alopecia from shortened anagen duration, and anagen effluvium from abrupt matrix disruption. Contextual applications span medical education, patient counseling, and research into hair biology, growth factors, and therapeutic interventions aimed at prolonging anagen or modulating cycle duration.

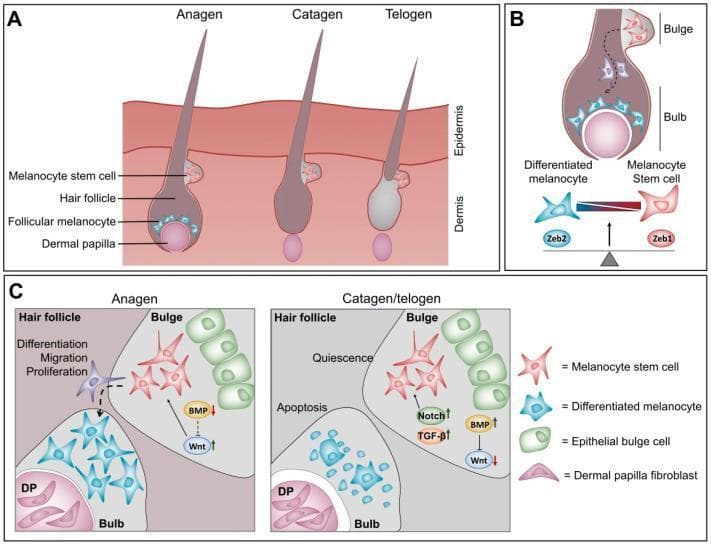

This medical illustration depicts the hair follicle cycle and the molecular mechanisms governing melanocyte homeostasis across three panels. Panel A shows the morphological progression of the hair follicle through the anagen (growth), catagen (regression), and telogen (resting) phases, highlighting the migration of melanocyte stem cells and the presence of follicular melanocytes in the hair bulb. Panel B demonstrates the cellular differentiation gradient within the hair follicle, where ZEB1 expression is associated with quiescent melanocyte stem cells in the bulge, and ZEB2 expression drives differentiation into mature, pigment-producing melanocytes in the bulb. Panel C details the micro-environmental signaling cues. During anagen, low BMP and high Wnt signaling promote stem cell proliferation, migration, and differentiation. In contrast, the catagen/telogen phases are characterized by high BMP, Notch, and TGF-beta signaling alongside low Wnt activity, leading to stem cell quiescence and follicular melanocyte apoptosis. This schematic serves as an educational resource for understanding the pathophysiology of hair pigmentation and the role of the ZEB transcription factor family in dermatological science.

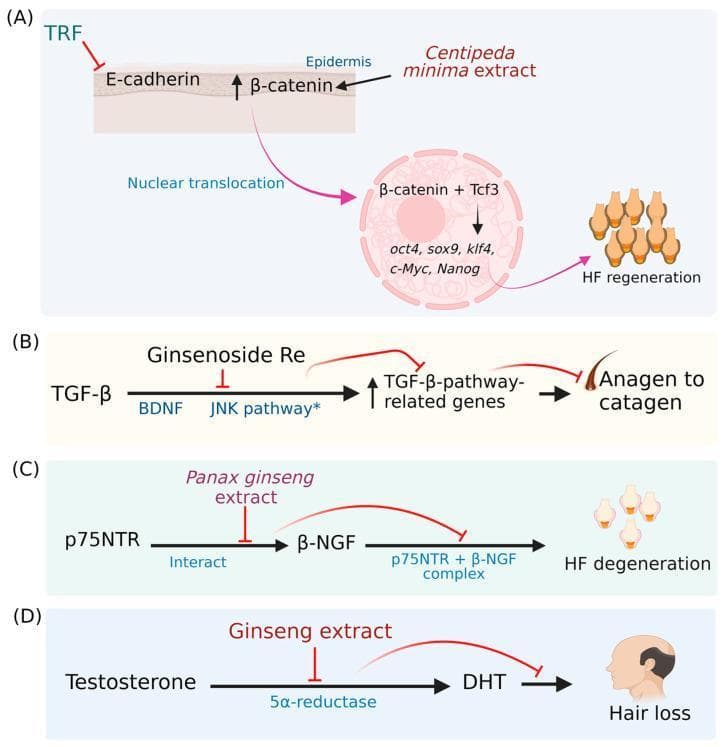

This pathophysiology diagram illustrates four distinct molecular mechanisms (A-D) through which various phytochemicals influence the hair growth cycle and prevent hair loss. Panel A focuses on the Wnt/β-catenin pathway: Tocotrienol-rich fraction (TRF) inhibits E-cadherin, while Centipeda minima extract activates β-catenin, facilitating its nuclear translocation and binding with Tcf3 to induce transcription factors (oct4, sox9, klf4, c-Myc, Nanog) for hair follicle (HF) regeneration. Panel B shows the TGF-β pathway: Ginsenoside Re inhibits the activation of TGF-β-pathway-related genes (stimulated by BDNF and JNK), thereby preventing the transition from anagen to catagen phase. Panel C depicts the neurotrophin pathway: Panax ginseng extract inhibits the interaction between p75NTR and β-NGF, preventing the formation of a complex that leads to HF degeneration. Panel D illustrates the androgenic pathway: Ginseng extract inhibits the enzyme 5α-reductase, blocking the conversion of testosterone to dihydrotestosterone (DHT) to mitigate hair loss. The diagram uses standard notation where arrows signify activation and T-bars signify inhibition.
