Ophthalmology Instruments
A comprehensive overview of the major instruments used in ophthalmic examination, drawn from Kanski's Clinical Ophthalmology: A Systematic Approach, 10th Edition.
1. Slit Lamp (Biomicroscope)
The slit lamp is the central instrument of ophthalmic examination. It combines a variable-intensity, adjustable light source with a binocular microscope and allows magnified examination of all anterior and posterior segment structures.
Illumination Techniques
Fig. 1.27 - Kanski's Clinical Ophthalmology, 10th Ed.
| Technique | Method | Clinical use |
|---|---|---|
| Direct illumination | Narrow oblique slit beam cross-sections the cornea | Detects gross abnormalities, measures lesion depth and size |
| Scleral scatter | Beam incident on limbus; microscope focused centrally | Detects subtle stromal haze, lipid/cellular infiltrates |
| Retroillumination | Reflected light from iris or dilated fundus illuminates cornea from behind | Reveals fine epithelial/endothelial changes, keratic precipitates, small vessels |
| Specular reflection | Reflected beam from endothelial surface | Reveals reduced cell density, guttata, pseudoguttata |
- A cobalt blue filter is used with fluorescein staining.
- A red-free (green) filter makes vascular structures appear black for improved contrast.
- A portable (hand-held) slit lamp is available for bedside or rural settings.
2. Direct Ophthalmoscope
A hand-held instrument for examining the fundus.
- Provides 15x magnification of the fundus.
- Monocular view - no stereopsis; small field of view.
- Useful at the bedside and in emergencies.
- Using a +15 D lens at 15-20 cm distance allows red reflex examination for vitreous and lens opacities.
- When examining the right eye, hold in the right hand; left eye, left hand.
- The light beam can be used to gauge pupil reactions or measure lesion size.
Kanski's Clinical Ophthalmology, 10th Ed.
3. Indirect Ophthalmoscope (Head-Mounted Binocular)
- Provides a wider field of view than direct ophthalmoscopy.
- Binocular - gives stereoscopic (3D) view.
- Lower magnification (~3-5x) but far greater field coverage.
- Used with condensing lenses (20D, 28D) held in front of the eye.
- Indispensable for peripheral retinal examination and retinal detachment surgery.
- A fundus drawing is typically produced after indirect examination, using a standard color-coding:
- Retinal breaks: red; Detached retina: blue; Retinal pigment: black; Exudates: yellow; Vitreous opacities: green
4. Goldmann Applanation Tonometer
Used to measure intraocular pressure (IOP) - the gold standard for glaucoma screening and monitoring.
Principle (Imbert-Fick Law)
IOP = Force (F) / Area (A). When the corneal area flattened is exactly 3.06 mm diameter, corneal rigidity and tear film capillary attraction cancel each other out - this is the physical basis of Goldmann tonometry.
Fig. 1.43 - Kanski's Clinical Ophthalmology, 10th Ed.

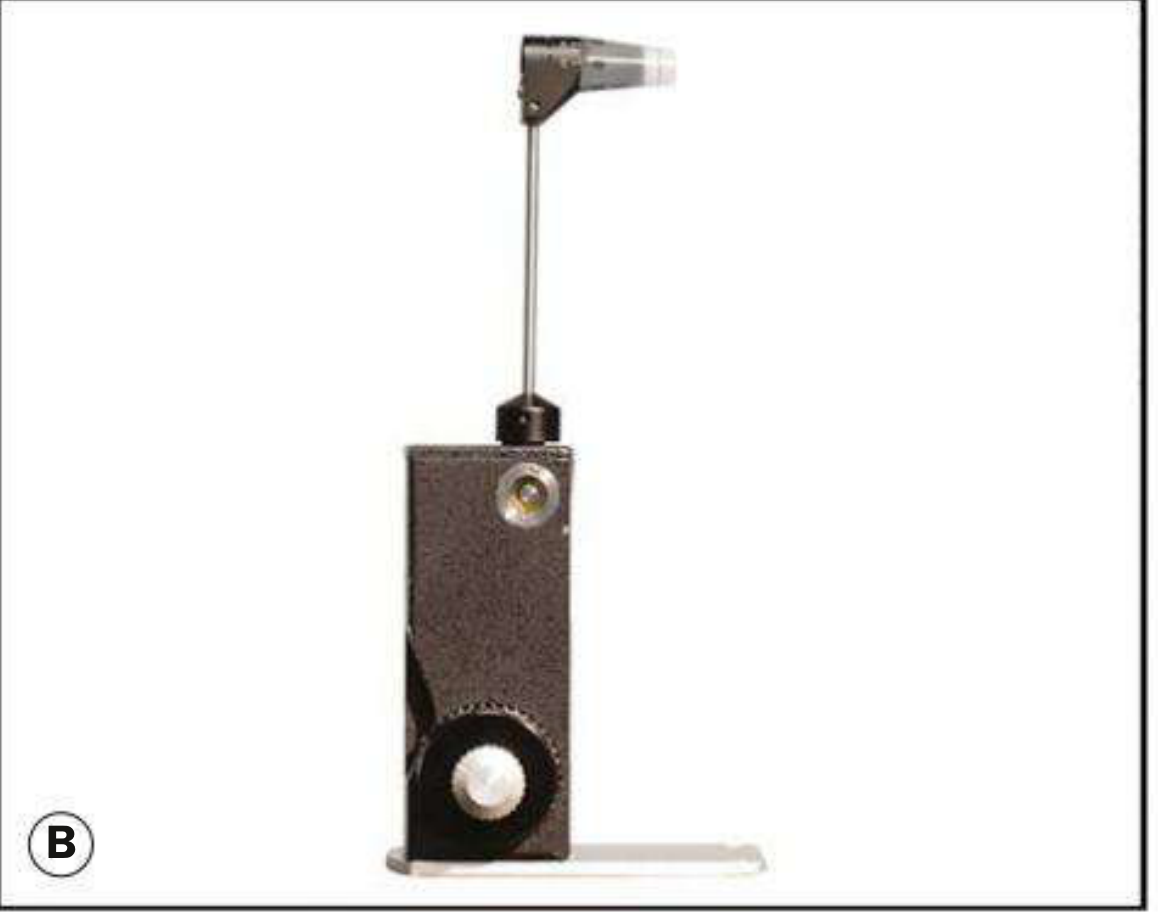

Fig. 1.43B - Goldmann tonometer
Technique
- Instill topical anaesthetic (proxymetacaine 0.5%) and a small amount of fluorescein.
- Advance the tonometer until the prism touches the cornea.
- Adjust force until the inner edges of the two fluorescein semi-circles just meet.
- Read the IOP from the dial.
Sources of Error
- Central corneal thickness (CCT): Thin corneas underestimate true IOP; thick corneas overestimate. Normal CCT = 540 ± 30 µm.
- Corneal scarring, irregular astigmatism, and edema all affect readings.
- The tonometer prism must be disinfected between patients (2% NaHypochlorite for viral infections; 70% isopropyl alcohol is NOT effective against adenovirus or HSV).
- Disposable prism caps are now available.
Other Tonometers
| Instrument | Type | Notes |
|---|---|---|
| Perkins tonometer | Hand-held applanation | Useful for children, bedridden patients; same Imbert-Fick principle |
| Tonopen | Electronic contact (Mackay-Marg type) | Hand-held; transducer measures applied force; portable |
| Non-contact tonometer (air puff) | Non-contact | Rapid; no anaesthetic needed; less accurate; good for screening |
| Ocular Response Analyser | Non-contact | Measures corneal hysteresis (CH); accounts for corneal biomechanics |
| Icare rebound tonometer | Rebound | No anaesthetic; probe makes brief contact; good for children |
5. Gonioscope / Gonioscopy Lenses
Gonioscopy visualises the anterior chamber angle - the drainage angle - which cannot be seen directly due to total internal reflection at the cornea.
Types
| Type | Lens Examples | Method | Notes |
|---|---|---|---|
| Indirect | Goldmann 1-mirror, 2-mirror, 3-mirror; Zeiss 4-mirror | Slit lamp + contact lens with mirrors | Most commonly used; image is inverted/reversed |
| Direct | Koeppe lens | Head-mounted indirect ophthalmoscope or surgical microscope | Image is upright; useful intraoperatively |
| Surgical | Swan-Jacob, Vold-Goldmann | During MIGS or trabeculectomy | Direct visualization of angle for surgery |
Indentation (dynamic) gonioscopy - pressing a Zeiss 4-mirror lens into the cornea can distinguish appositional angle closure from synechial (permanent) closure. This is the key technique for assessing peripheral anterior synechiae (PAS).
Angle Structures (from anterior to posterior)
- Schwalbe's line (termination of Descemet's membrane)
- Trabecular meshwork (anterior non-pigmented, posterior pigmented)
- Scleral spur
- Ciliary body band
- Iris root
6. Direct Ophthalmoscope Lenses for the Fundus
The Goldmann three-mirror lens (used with the slit lamp) allows examination of:
- Central fundus (central 30°): flat mirror-free zone
- Mid-peripheral retina: 73° mirror
- Peripheral retina and angle: 67° and 59° mirrors
Other condensing lenses used with the slit lamp for fundus examination:
- +90D, +78D lenses: non-contact; wide field; commonly used in clinic
- +60D lens: higher magnification, narrower field; ideal for disc and macula
7. Perimetry (Visual Field Testing)
The Goldmann perimeter (kinetic) and automated static perimeters (Humphrey HFA, Octopus) are used to map the visual field.
- SITA (Swedish Interactive Thresholding Algorithm): The standard Humphrey strategy; reduces test time.
- Reliability indices monitored: fixation losses, false positives, false negatives. False positives >15% make the field unreliable.
- The Amsler grid is a bedside/clinic tool for central 10° field assessment, particularly for detecting metamorphopsia in macular disease.
8. Psychophysical Testing Instruments
| Test | Instrument/Method | Purpose |
|---|---|---|
| Visual acuity | Snellen chart, LogMAR chart | Distance VA |
| Contrast sensitivity | Pelli-Robson chart | Functional vision assessment |
| Colour vision | Ishihara plates, HRR, Farnsworth-Munsell 100-hue | Congenital defects, optic neuropathy |
| Amsler grid | Grid chart at 33 cm | Central field / metamorphopsia |
| Photostress test | Torch + recovery time | Differentiates macular from optic nerve disease |
9. Corneal / Anterior Segment Imaging
| Instrument | Measurement |
|---|---|
| Pachymeter (ultrasound or optical) | Central corneal thickness (CCT) |
| Orbscan / Scheimpflug (Pentacam) | Corneal topography, CCT, anterior chamber depth |
| Specular microscope | Endothelial cell density (ECD), cell morphology |
| Corneal topographer (Placido disc) | Anterior corneal curvature; keratoconus screening |
| Anterior segment OCT | Angle anatomy, corneal layers |
10. Posterior Segment Imaging
| Instrument | Use |
|---|---|
| Fundus camera | Retinal photography; documentation |
| Optical coherence tomography (OCT) | Cross-sectional retinal and optic nerve imaging; macula and RNFL analysis |
| Fluorescein angiography (FFA) | Retinal vascular disease, choroidal neovascularisation |
| Indocyanine green angiography (ICGA) | Choroidal circulation; polypoidal choroidal vasculopathy |
| B-scan ultrasonography | Posterior segment when media opaque; tumours, RD assessment |
| Wide-field fundus camera (e.g. Optos) | Peripheral retinal imaging up to 200°; useful in rural/screening settings |
| Optical coherence tomography angiography (OCTA) | Non-invasive vascular flow imaging |
Summary Table: Instruments by Function
| Function | Instrument |
|---|---|
| IOP measurement | Goldmann, Perkins, Tonopen, Icare, NCT |
| Anterior segment examination | Slit lamp + biomicroscopy |
| Fundus examination | Direct/indirect ophthalmoscope, 90D/78D lens, Goldmann 3-mirror |
| Angle examination | Gonioscope (Goldmann, Zeiss, Koeppe) |
| Visual field | Humphrey HFA, Octopus, Goldmann perimeter |
| Corneal thickness | Pachymeter, Orbscan, Pentacam |
| Retinal imaging | Fundus camera, OCT, OCTA, FFA, ICGA |
| Endothelial cell count | Specular microscope |
Sources: Kanski's Clinical Ophthalmology: A Systematic Approach, 10th Edition - Chapter 1 (Examination Techniques)
