Electrical Events of the Cardiac Cycle

The cardiac cycle is driven by a precisely timed sequence of electrical events - impulse generation, conduction, depolarization, and repolarization - that are reflected on the surface ECG as distinct waves and intervals.

1. The Normal ECG

Normal ECG showing P, QRS, T waves with labeled intervals
Figure 11.1, Guyton and Hall Textbook of Medical Physiology

2. Origin and Conduction of the Impulse

The electrical impulse originates at regular intervals in the sinoatrial (SA) node (usually 60-100 bpm). From there:
  1. SA node fires spontaneously (automaticity via slow phase 4 depolarization)
  2. Impulse spreads rapidly through the atria via internodal pathways
  3. Enters the atrioventricular (AV) node - the only conduction pathway between atria and ventricles
  4. AV nodal delay: conduction takes ~0.15 seconds - this delay allows atrial contraction to propel blood into the ventricles before ventricular systole
  5. Impulse travels down the Bundle of His -> left and right bundle branches -> Purkinje fibers
  6. Activation starts at the endocardial surface near the apex and sweeps to the epicardial surface at the base
  7. Complete ventricular activation is achieved in <0.1 seconds, ensuring synchronous, hemodynamically effective contraction
  • Katzung's Basic and Clinical Pharmacology, 16th Edition, p. 357

3. Cardiac Action Potential Phases

Action potentials at each cardiac region and the ECG
Katzung's Basic and Clinical Pharmacology, 16th Edition

Ventricular Action Potential (5 Phases)

The resting membrane potential of ventricular myocytes is approximately -90 mV.
PhaseNameIonic Mechanism
Phase 0Rapid depolarization (upstroke)Opening of voltage-gated Na+ channels - fast inward Na+ current; membrane rapidly depolarizes to +20 to +30 mV (overshoot)
Phase 1Early rapid repolarizationClosure of Na+ channels + opening of transient K+ channels (Kv4.2, Kv4.3, Kv1.4) - brief initial repolarization
Phase 2PlateauBalanced inward L-type Ca2+ current and outward K+ current maintain near-zero potential; lasts ~200 ms; triggers excitation-contraction coupling
Phase 3Late rapid repolarizationClosure of Ca2+ channels + delayed increase of K+ efflux through multiple K+ channels; membrane returns to resting potential
Phase 4Resting potential / Spontaneous depolarizationIn working myocytes: stable at -90 mV. In pacemaker cells (SA node, AV node, Purkinje): slow spontaneous depolarization due to "funny current" (If) - gradual return to threshold
  • Ganong's Review of Medical Physiology, 26th Edition

SA/AV Node (Slow-Response) Action Potential

SA and AV nodal cells differ from working myocytes:
  • Resting potential is less negative (~-55 to -65 mV)
  • Upstroke (Phase 0) depends on Ca2+ channels (not Na+), making it slower and less steep
  • Phase 4 is not stable - spontaneous drift toward threshold (automaticity) driven by If ("pacemaker current"), ICa,T, and declining IK
  • This automaticity is why the SA node naturally fires at 60-100 bpm; AV node at 40-60 bpm; Purkinje at 20-40 bpm (hierarchy of automaticity)

4. ECG Waves and Their Electrical Correlates

Monophasic action potential of a ventricular fiber correlated with the ECG
Figure 11.3, Guyton and Hall - Action potential (top) correlated with simultaneous ECG (bottom)
ECG FeatureElectrical EventNormal Duration/Amplitude
P waveAtrial depolarization0.08-0.1 sec; 0.1-0.3 mV
PR intervalAtrial depolarization + AV nodal conduction delay0.12-0.20 sec
QRS complexVentricular depolarization<0.12 sec; 1.0-1.5 mV
ST segmentVentricular fully depolarized (plateau phase)Isoelectric (no current flow when all cells are equally depolarized)
T waveVentricular repolarization~0.15 sec wide; 0.2-0.3 mV
QT intervalDuration of entire ventricular action potential~0.35-0.43 sec (rate-dependent)
U wavePossibly late repolarization of Purkinje system / M cellsSmall, follows T wave; more prominent at low heart rates or in hypokalemia
  • Guyton and Hall Textbook of Medical Physiology
  • Katzung's Basic and Clinical Pharmacology, 16th Edition

5. Key Principle: Why the ECG Records Deflections

The ECG only records voltage when the heart muscle is partially polarized and partially depolarized - i.e., when current flows between different regions. When the muscle is either completely polarized (phase 4) or completely depolarized (phase 2/plateau), no current flows to the body surface and the ECG returns to baseline (isoelectric). This is why:
  • The PR segment is isoelectric (atria fully depolarized, AV node conducting)
  • The ST segment is isoelectric (ventricles fully depolarized at plateau)
  • Guyton and Hall Textbook of Medical Physiology, p. 143

6. Relationship to Mechanical Events

Electrical EventMechanical Consequence
P waveAtrial contraction begins
QRS complexVentricular contraction begins
ST segmentVentricular contraction continues (systole)
T waveVentricular repolarization; relaxation begins
After T waveVentricular diastole (filling)
The ventricles remain contracted until after the T wave ends, because repolarization must occur before relaxation is possible.

7. Refractory Periods

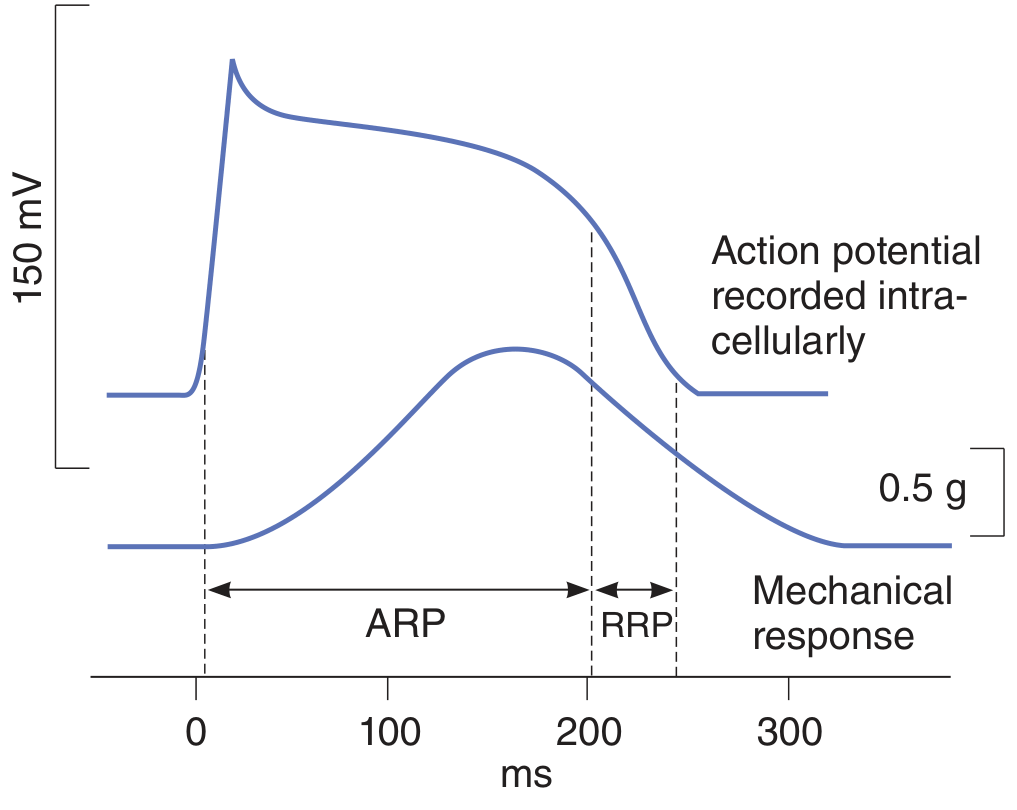

Action potential with ARP and RRP labeled
Ganong's Review of Medical Physiology, 26th Edition
  • Absolute Refractory Period (ARP): corresponds to phases 0-2 (~0-200 ms); no stimulus can trigger another action potential regardless of strength - prevents tetanic contraction of cardiac muscle (critical for heart function)
  • Relative Refractory Period (RRP): corresponds to phase 3 (~200-250 ms); only a supranormal stimulus can trigger an action potential; the cell is vulnerable to arrhythmias here ("R-on-T phenomenon")
The long refractory period, which coincides with the long plateau phase, is one of the most important protective features of cardiac physiology - it prevents summation and ensures each beat is followed by adequate diastolic filling.
Sources:
  • Guyton and Hall Textbook of Medical Physiology - Chapters 10-11
  • Katzung's Basic and Clinical Pharmacology, 16th Edition - Chapter 14
  • Ganong's Review of Medical Physiology, 26th Edition - Chapter 5
  • Medical Physiology (Boron & Boulpaep) - Chapter 22
