Innervation of the Uterus and Cervix

Sources: Berek & Novak's Gynecology, Campbell-Walsh-Wein Urology, Sabiston Textbook of Surgery, Color Atlas of Human Anatomy Vol. 2, Morgan & Mikhail's Clinical Anesthesiology

Anatomical Diagram

Presacral nerves and pelvic plexuses - Berek & Novak's Gynecology, Fig. 5-13

Fig. 5-13 from Berek & Novak's Gynecology - The presacral nerves showing superior hypogastric plexus, hypogastric nerves, inferior hypogastric plexus, and uterovaginal (Frankenhäuser) plexus

FLOWCHART 1: Sympathetic Innervation

SYMPATHETIC ORIGIN
       │
       ▼
Spinal Cord Segments T10 - L2
  ├── Uterine body / Cervix: T10–L1
  └── Ovaries / Fallopian Tubes: T10–T12
       │
       ▼
Preganglionic fibers descend via
Lumbar Sympathetic Chain
       │
       ▼
┌─────────────────────────────────┐
│   AORTIC PLEXUS                 │
│ (below aortic bifurcation, L5)  │
└────────────┬────────────────────┘
             │
             ▼
┌─────────────────────────────────────────┐
│   SUPERIOR HYPOGASTRIC PLEXUS           │
│   (= Presacral Nerve)                   │
│   - Anterior to L5 / sacral promontory  │
│   - Medial to ureters                   │
│   - Contains: preganglionic fibers from │
│     lumbar nerves + postganglionic from │
│     sympathetic ganglia + visceral      │
│     afferent fibers                     │
└────────────┬────────────────────────────┘
             │ Bifurcates just below sacral promontory
             ▼
    ┌────────┴────────┐
    ▼                 ▼
LEFT                RIGHT
HYPOGASTRIC         HYPOGASTRIC
NERVE               NERVE
    └────────┬────────┘
             │ Join pelvic splanchnic nerves
             ▼
┌─────────────────────────────────────────┐
│   INFERIOR HYPOGASTRIC PLEXUS           │
│   (= Pelvic Plexus)                     │
│   - Lateral pelvic sidewall             │
│   - Overlies branches of internal       │
│     iliac vessels                       │
│   - Final common pathway of pelvic      │
│     visceral nervous system             │
└────────────┬────────────────────────────┘
             │ Divides into 3 portions
   ┌─────────┼──────────┐
   ▼         ▼          ▼
Vesical   Middle     UTEROVAGINAL
Plexus    Rectal     PLEXUS
(bladder) (rectum)   (Frankenhäuser
                      ganglion)
                         │
             ┌───────────┴───────────┐
             ▼                       ▼
     Travels along              Travels through
     uterine vessels            cardinal &
                                uterosacral
                                ligaments
             │
             ▼
    UTERUS + CERVIX + VAGINA
    + Clitoris + Vestibular bulbs

FLOWCHART 2: Parasympathetic Innervation

PARASYMPATHETIC ORIGIN
         │
         ▼
Sacral Spinal Cord Segments S2 – S4
(Nervi Erigentes)
         │
         ▼
┌────────────────────────────────┐
│   PELVIC SPLANCHNIC NERVES     │
│   (S2–S4)                      │
│   - Deeper to sympathetic      │
│     fibers (intermediate       │
│     stratum)                   │
└────────────┬───────────────────┘
             │
             ▼
Joins Inferior Hypogastric Plexus
(Pelvic Plexus)
             │
             ▼
┌────────────────────────────────────────────┐
│   UTEROVAGINAL PLEXUS                      │
│   (Frankenhäuser Ganglion)                 │
│   - Lies lateral to the cervix             │
│   - Large ganglion cells                   │
│   - Formed jointly with sympathetic fibers │
└───────────────────┬────────────────────────┘
                    │
                    ▼
            UTERUS & CERVIX
        (smooth muscle function,
         glandular secretion,
         vasodilation)

FLOWCHART 3: Afferent (Pain) Pathways

                UTERUS & CERVIX
                      │
         ┌────────────┴────────────┐
         ▼                         ▼
  UTERINE BODY PAIN          CERVICAL PAIN
  (+ Adnexa)                       │
         │                         ▼
         ▼                Parasympathetic afferent
  Sympathetic afferent    fibers travel with
  fibers travel with      pelvic splanchnic nerves
  hypogastric plexus              │
         │                         ▼
         ▼                Posterior spinal ganglia
  Superior hypogastric    S1 – S2
  plexus → Lumbar         (DeCosta, 2013)
  sympathetic chain
         │
         ▼
  Posterior spinal ganglia
  T10 – T12 (and L1–L2)
         │
         ▼
  Pain referred to:
  Lower abdomen &
  High lumbar spine

NOTE: The uterus, cervix & adnexa share
visceral innervation with the lower ileum,
sigmoid colon & rectum (all via T10–L1).
This explains referred pain confusion
between gynecologic and GI pathology.

FLOWCHART 4: Complete Integrated Overview

SPINAL CORD
    │
    ├─── T10–T12 ──────────────────────────────────────────────┐
    │    (Sympathetic preganglionic)                            │
    │                                                           │
    ├─── L1–L2 ────────────────────────────────────────────┐   │
    │    (Sympathetic, uterine body/cervix pain afferent)   │   │
    │                                                       │   │
    └─── S2–S4 ──────────────────────────┐                 │   │
         (Parasympathetic / pelvic        │                 │   │
          splanchnic nerves)              │                 │   │
                                          │                 │   │
                          ┌───────────────┘       ┌─────────┴───┘
                          ▼                       ▼
                 Pelvic Splanchnic           Aortic Plexus
                    Nerves                       │
                     │                           ▼
                     │              Superior Hypogastric Plexus
                     │              (Presacral Nerve, at L5)
                     │                           │
                     │                    Bifurcates into:
                     │              L & R Hypogastric Nerves
                     │                           │
                     └───────────┬───────────────┘
                                 ▼
                    ┌────────────────────────────┐
                    │  INFERIOR HYPOGASTRIC       │
                    │  PLEXUS (Pelvic Plexus)     │
                    │  - Lateral pelvic sidewall  │
                    └────────────┬────────────────┘
                                 │
                    ┌────────────┴─────────────┐
                    ▼                           ▼
             Uterovaginal Plexus          Other branches
             (FRANKENHÄUSER               (vesical,
              GANGLION)                   rectal plexus)
             - Lateral to cervix
             - Via broad ligament,
               cardinal & uterosacral
               ligaments
                    │
        ┌───────────┴───────────┐
        ▼                       ▼
     UTERUS                  CERVIX
   (body/fundus)           (+ vagina,
                            clitoris,
                            vestibular bulbs)

Summary Table

Feature	Uterine Body	Cervix
Sympathetic origin	T10–L1	T10–L1
Sympathetic pathway	Hypogastric + ovarian plexus	Hypogastric plexus → inferior hypogastric plexus
Parasympathetic origin	S2–S4	S2–S4
Parasympathetic pathway	Pelvic splanchnic nerves	Pelvic splanchnic nerves
Final relay ganglion	Frankenhäuser ganglion (uterovaginal plexus)	Frankenhäuser ganglion (lateral to cervix)
Pain afferents	With sympathetic → T11/T12	With parasympathetic → S1–S2
Shared visceral innervation	Lower ileum, sigmoid, rectum	Same
Clinical relevance	Presacral neurectomy relieves uterine dysmenorrhea	Paracervical block anesthetizes Frankenhäuser ganglion

Key Clinical Points

Frankenhäuser (uterovaginal) plexus - the final relay ganglion lying lateral to the cervix within the cardinal and uterosacral ligaments. It is the target of paracervical block for labor analgesia. (Color Atlas of Human Anatomy Vol. 2; Berek & Novak's Gynecology)
Presacral neurectomy - resects the superior hypogastric plexus to interrupt uterine/cervical afferents, relieving dysmenorrhea in 50–75% of endometriosis cases. Adnexal pain is NOT relieved since ovarian fibers travel with the ovarian plexus. (Berek & Novak's Gynecology)
Upper vagina/cervix/uterus receive separate innervation from lower thoracic nerves - pudendal nerve block alone is insufficient for uterine manipulation. (Pfenninger & Fowler's Procedures for Primary Care)
Radical hysterectomy disrupts the inferior hypogastric plexus and uterovaginal plexus, causing post-operative bladder, bowel, and sexual dysfunction. (Berek & Novak's Gynecology)
Referred pain from the uterus/cervix is felt in the lower abdomen and high lumbar spine (via T10–L1). Because the uterus shares innervation with the sigmoid colon and rectum, GI and gynecological pain can be clinically indistinguishable. (Berek & Novak's Gynecology)

Just from Greg’s anatomy

Finding Sources

Reading File

Finding Sources

Reading File

Finding Sources

Loading Image

I now have everything from Gray's Anatomy for Students. Here is the complete response based exclusively on that textbook.

Innervation of Uterus and Cervix

Gray's Anatomy for Students

Textbook Diagrams (Fig. 5.64)

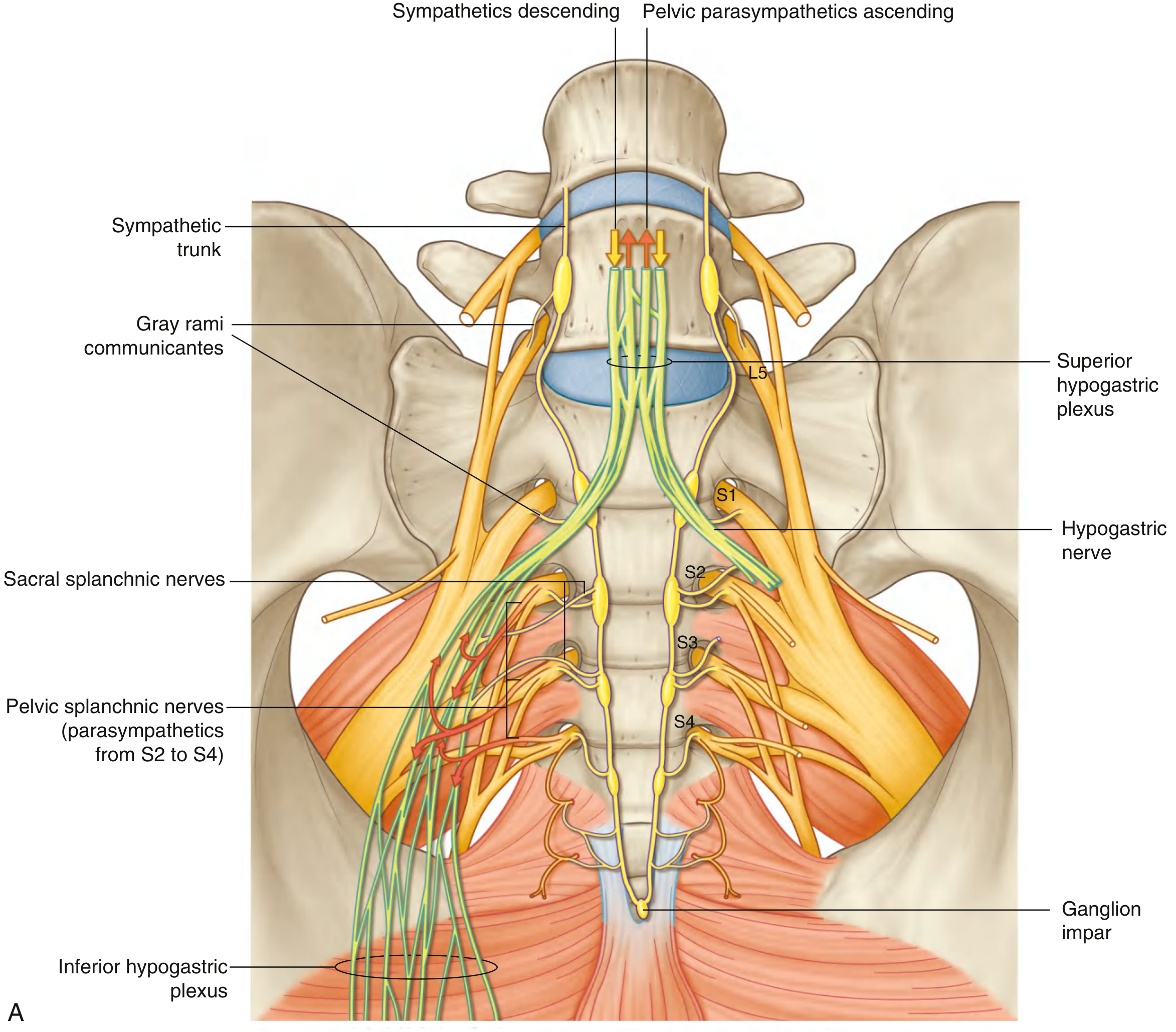

Fig. 5.64A - Pelvic extensions of the prevertebral plexus, anterior view:

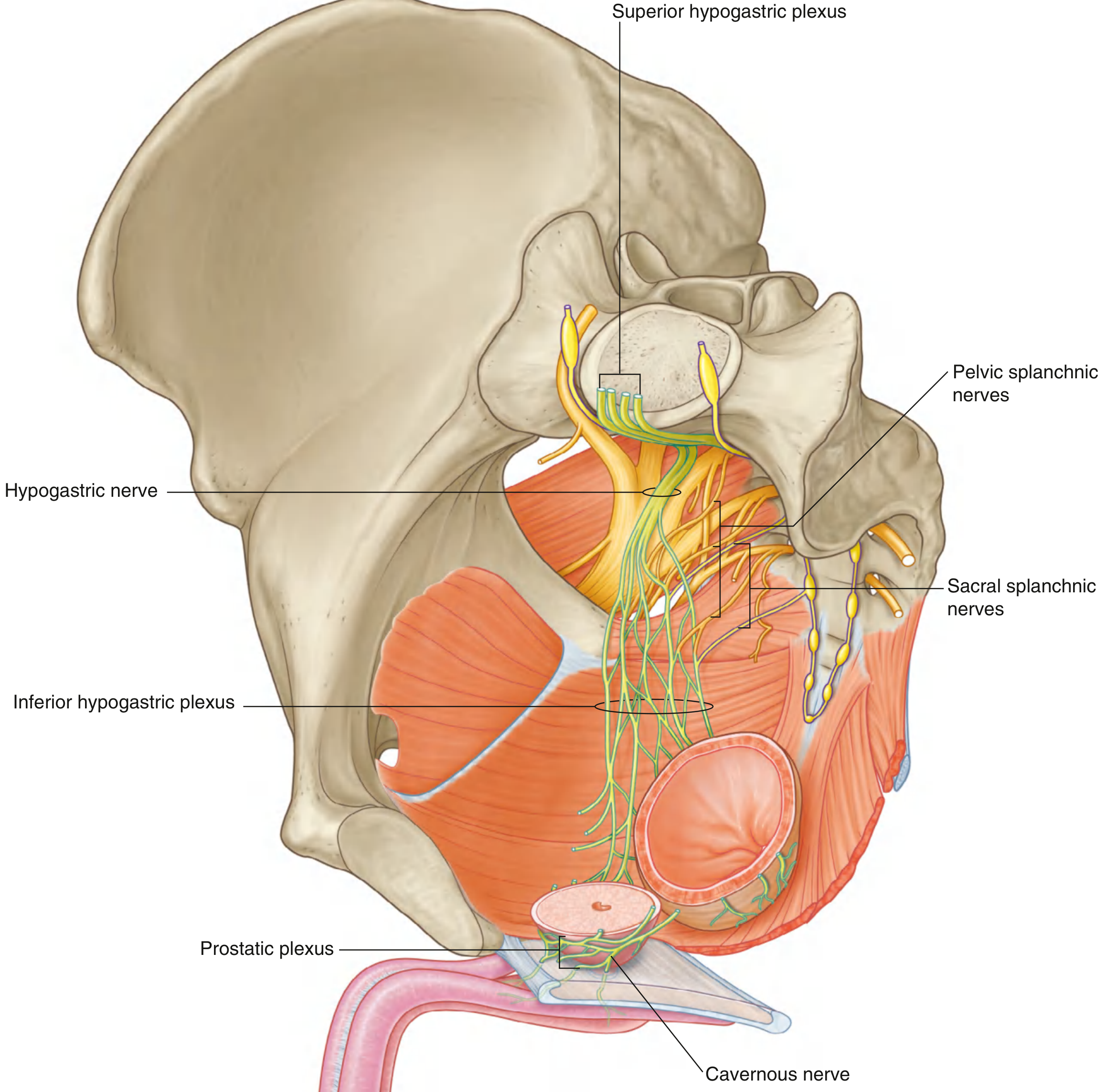

Fig. 5.64B - Anteromedial view of right side of plexus:

FLOWCHART 1: Sympathetic Pathway to Uterus & Cervix

SPINAL CORD
Preganglionic neurons (mainly T10 – L2)
            │
            ▼
  Sympathetic Trunk (thoracic/lumbar)
            │
            │  Lumbar splanchnic nerves
            │  (pass from lumbar trunk to
            │   prevertebral plexus)
            ▼
  AORTIC (PREVERTEBRAL) PLEXUS
  (anterior to abdominal aorta)
            │
            ▼
  SUPERIOR HYPOGASTRIC PLEXUS
  - Anterior to vertebra LV
  - Between sacral promontory &
    bifurcation of aorta
            │
     Bifurcates into:
     ┌──────┴──────┐
     ▼             ▼
  LEFT          RIGHT
  HYPOGASTRIC   HYPOGASTRIC
  NERVE         NERVE
  (cross pelvic inlet medially
   to internal iliac vessels)
     └──────┬──────┘
            │
            ▼
  INFERIOR HYPOGASTRIC PLEXUS
  (= Pelvic Plexus)
  - Courses inferiorly around
    pelvic walls
  - Medial to major vessels &
    somatic nerves
  + receives sacral splanchnic
    nerves (from sacral sympathetic trunk)
            │
            ▼
  UTEROVAGINAL PLEXUS
  (subsidiary of inferior hypogastric plexus)
            │
            ▼
     UTERUS & CERVIX
  • Smooth muscle contraction
  • Blood vessel innervation
  • Secretion from accessory glands

FLOWCHART 2: Parasympathetic Pathway to Uterus & Cervix

SPINAL CORD
Preganglionic neurons S2 – S3 – S4
            │
            ▼
  PELVIC SPLANCHNIC NERVES
  (Nervi erigentes)
  - Join hypogastric nerves in pelvis
            │
            ▼
  INFERIOR HYPOGASTRIC PLEXUS
  (= Pelvic Plexus)
  [formed when pelvic splanchnic
   nerves join hypogastric nerves]
            │
            ▼
  UTEROVAGINAL PLEXUS
  (subsidiary plexus)
            │
            ▼
     UTERUS & CERVIX
  • Vasodilation
  • Smooth muscle modulation
  • Glandular secretion

FLOWCHART 3: Visceral Afferent (Pain) Pathways

           UTERINE BODY                CERVIX
                │                        │
                ▼                        ▼
   Travel with SYMPATHETIC          Travel with
   fibers via inferior              PARASYMPATHETIC
   hypogastric plexus &             fibers (pelvic
   hypogastric nerves               splanchnic nerves)
                │                        │
                ▼                        ▼
   Posterior root ganglia         Posterior root ganglia
   at LOWER THORACIC /            at SACRAL levels
   LUMBAR levels                  (S2–S4)
   (T10–L2)
                │
                ▼
   Pain felt in lower abdomen
   & lumbar region

"Visceral afferent fibers that enter the cord in lower thoracic levels and lumbar levels with sympathetic fibers generally carry pain; however, pain fibers from the cervix... may accompany parasympathetic nerves to sacral levels of the spinal cord."

Gray's Anatomy for Students

FLOWCHART 4: Full Integrated Overview

┌──────────────────────────────────────────────────────────────────┐
│                      SPINAL CORD                                 │
│   T10–L2 (Sympathetic)           S2–S4 (Parasympathetic)         │
└──────────┬───────────────────────────────┬───────────────────────┘
           │                               │
           ▼                               ▼
  Sympathetic Trunk              Pelvic Splanchnic Nerves
  + Lumbar splanchnic            (Nervi erigentes)
    nerves
           │
           ▼
  AORTIC PREVERTEBRAL PLEXUS
           │
           ▼
  SUPERIOR HYPOGASTRIC PLEXUS
  (Presacral nerve, anterior to LV)
           │
      Bifurcates
     ┌─────┴─────┐
     ▼           ▼
  L & R HYPOGASTRIC NERVES
  (cross pelvic inlet, medial
   to internal iliac vessels)
     └─────┬─────┘
           │ ← joins pelvic splanchnic nerves (S2–S4)
           │ ← joins sacral splanchnic nerves
           ▼
  ┌──────────────────────────────────────┐
  │   INFERIOR HYPOGASTRIC PLEXUS        │
  │   (Pelvic Plexus)                    │
  │   Carries: sympathetic +             │
  │            parasympathetic +         │
  │            visceral afferent fibers  │
  └─────────────────┬────────────────────┘
                    │
       ┌────────────┼────────────┬────────────┐
       ▼            ▼            ▼            ▼
  Rectal        UTEROVAGINAL  Vesical     Prostatic
  Plexus        PLEXUS        Plexus      Plexus
  (rectum)      (Frankenhäuser)(bladder)  (prostate /
                ganglion)                 cavernous
                    │                     nerves)
                    ▼
         UTERUS  +  CERVIX
         + Vagina + Clitoris +
           Vestibular bulbs

Summary Table (Gray's Anatomy for Students)

Feature	Detail
Sympathetic origin	Mainly T10–L2
Sympathetic route	Sympathetic trunk → aortic plexus → superior hypogastric plexus → hypogastric nerves → inferior hypogastric plexus → uterovaginal plexus
Parasympathetic origin	S2–S4 (pelvic splanchnic nerves)
Parasympathetic route	Pelvic splanchnic nerves → join hypogastric nerves → inferior hypogastric plexus → uterovaginal plexus
Also contributing	Sacral splanchnic nerves (postganglionic sympathetic from sacral trunk)
Final relay plexus	Uterovaginal plexus (subsidiary of inferior hypogastric plexus)
Uterine body pain afferents	With sympathetic → lower thoracic / lumbar cord (T10–L2)
Cervical pain afferents	With parasympathetic → sacral cord (S2–S4)
Branches to perineum	Terminal branches of inferior hypogastric plexus → erectile tissues of clitoris (extensions of uterovaginal plexus)

Clinical note (Gray's): Women may experience sexual dysfunction if inferior hypogastric plexus branches are damaged during total hysterectomy - the same mechanism as post-prostatectomy impotence in men.
