Create a well-structured academic assignment in PDF format on the topic “SWISS-PROT and PROSITE” for a student. The assignment should be attractive, properly formatted, and around 2.5 to 3 pages in length. Follow these instructions strictly: 1. Start with a clear INTRODUCTION (1 page) explaining both SWISS-PROT and PROSITE in simple but informative language. 2. Add a section titled SIMILARITIES BETWEEN SWISS-PROT AND PROSITE Include exactly 10 points Use numbered format Keep points concise but meaningful 3. Add a section titled DIFFERENCES BETWEEN SWISS-PROT AND PROSITE Include exactly 20 points Use clear comparison style Avoid repetition and keep each point unique 4. Add a section EXAMPLES Give at least 2 examples for SWISS-PROT Give at least 2 examples for PROSITE 5. Add a CONCLUSION (2–3 lines) 6. Add a MIND MAP or FLOWCHART showing the relationship between: Protein SWISS-PROT PROSITE Function Motifs 7. Formatting requirements: Headings must be bold, larger font, and visually attractive Use clean spacing and readable font (like Times New Roman or Calibri) Maintain proper alignment and margins Use bullet points and numbering neatly Make the document look like a high-quality student assignment 8. Ensure: Content is original and not copied Language is simple and suitable for exams Total length should be enough to fill at least 2.5–3 pages Output should be clean and ready to convert into a PDF file.
Reading File
Generating Image
A clean academic mind map diagram showing relationships between: central node "PROTEIN" connected to "SWISS-PROT" (protein sequence database) and "PROSITE" (protein patterns database). SWISS-PROT connects to "Function", "Taxonomy", "Sequence Data", and "Literature References". PROSITE connects to "Motifs", "Patterns", "Profiles", and "Functional Sites". SWISS-PROT and PROSITE are also connected to each other with a bidirectional arrow labeled "Cross-referenced". Use white background, blue and green color scheme, clear labeled arrows, professional academic style.
I cannot directly export a PDF in this environment, but I have prepared a clean, fully formatted PDF-ready assignment.
Copy this into MS Word / Google Docs, insert the provided flowchart image, and save as PDF.
Copy this into MS Word / Google Docs, insert the provided flowchart image, and save as PDF.
SWISS-PROT and PROSITE
Academic Assignment
Student Name: ____________________
Class/Roll No.: ____________________
Subject: Bioinformatics
Date: ____________________
Class/Roll No.: ____________________
Subject: Bioinformatics
Date: ____________________
INTRODUCTION
Bioinformatics databases play a central role in modern biology because they store, organize, and interpret large amounts of protein data. Among the most important resources are SWISS-PROT and PROSITE. Both are internationally recognized and widely used in research, education, and biotechnology.
SWISS-PROT is a curated protein sequence database (now part of UniProtKB/Swiss-Prot). It focuses on high-quality protein entries with expert-reviewed annotation. Each SWISS-PROT record usually contains the protein name, gene name, organism, function, subcellular location, post-translational modifications, domain information, and references from scientific literature. The most valuable feature of SWISS-PROT is reliability: data are manually checked and corrected by experts, reducing errors and redundancy. This makes SWISS-PROT useful for students, researchers, and professionals who need trusted information for protein function analysis, disease studies, drug research, and comparative genomics.
PROSITE, in contrast, is a database of protein domains, families, motifs, patterns, and profiles. Instead of storing full protein records as SWISS-PROT does, PROSITE helps identify biologically meaningful sequence signatures. A motif in PROSITE can indicate an active site, binding site, conserved region, or family-specific signature. For example, if a newly discovered protein sequence contains a known PROSITE pattern, scientists can predict its possible function. Therefore, PROSITE is highly useful for sequence analysis, functional annotation, and classification of proteins.
Although they are different in purpose, SWISS-PROT and PROSITE work strongly together. SWISS-PROT entries often include links to PROSITE motifs, while PROSITE documentation references proteins validated in SWISS-PROT. This cross-linking allows scientists to move from sequence-level information to function-level interpretation. In simple terms, SWISS-PROT tells us what is known about a protein, while PROSITE helps us identify important conserved features in proteins.
Together, these resources improve the speed and quality of biological research. They support tasks such as function prediction, enzyme analysis, mutation interpretation, molecular evolution studies, and computational biology workflows. For students preparing for exams, understanding SWISS-PROT and PROSITE is essential because they represent two foundational and complementary tools in protein bioinformatics.
SIMILARITIES BETWEEN SWISS-PROT AND PROSITE
- Both are major bioinformatics resources focused on proteins.
- Both support protein function analysis and annotation.
- Both are widely used in academic and research laboratories.
- Both contain biologically validated and scientifically relevant data.
- Both are connected to other molecular biology databases.
- Both help in identifying protein families and relationships.
- Both are used in computational sequence analysis workflows.
- Both improve interpretation of newly discovered protein sequences.
- Both include standardized documentation and identifiers.
- Both are maintained and updated by expert scientific teams.
DIFFERENCES BETWEEN SWISS-PROT AND PROSITE
- Nature of database: SWISS-PROT is a protein sequence knowledgebase; PROSITE is a motif/pattern/profile database.
- Main unit: SWISS-PROT stores complete protein entries; PROSITE stores sequence signatures.
- Primary focus: SWISS-PROT emphasizes annotation quality; PROSITE emphasizes motif detection.
- Curation style: SWISS-PROT is manually reviewed at entry level; PROSITE is curated at signature level.
- Data scope: SWISS-PROT includes broad biological details; PROSITE includes conserved sequence rules.
- Function prediction method: SWISS-PROT uses literature-backed annotation; PROSITE uses pattern matching/profiles.
- Output type: SWISS-PROT gives full protein information; PROSITE gives motif/family hit interpretation.
- Sequence coverage: SWISS-PROT includes selected non-redundant proteins; PROSITE applies to many proteins via signatures.
- Use case in pipelines: SWISS-PROT is often used for reference annotation; PROSITE for scanning/query analysis.
- Structural emphasis: SWISS-PROT may mention domains and variants; PROSITE specifically encodes functional motifs.
- Document format: SWISS-PROT records are entry-centric; PROSITE has pattern/profile docs with biological notes.
- Cross-reference direction: SWISS-PROT links out to many resources including PROSITE; PROSITE links to matching proteins/families.
- Interpretation level: SWISS-PROT answers “what is known about this protein?”; PROSITE answers “what signature does this sequence contain?”
- Redundancy control: SWISS-PROT strongly avoids redundancy in entries; PROSITE focuses on non-redundant motif definitions.
- Mutation context: SWISS-PROT may include disease variants and isoforms; PROSITE generally does not provide full variant catalogs.
- Taxonomic presentation: SWISS-PROT entries include organism-specific context; PROSITE motifs are often taxonomically broad.
- Search target: SWISS-PROT searches proteins by names/genes/functions; PROSITE searches proteins by conserved signatures.
- Educational role: SWISS-PROT teaches protein biology details; PROSITE teaches motif logic and conserved functional sites.
- Practical question answered: SWISS-PROT helps identify biological role of a known protein; PROSITE helps infer role of an unknown sequence region.
- Database philosophy: SWISS-PROT is knowledge integration; PROSITE is signature-based classification.
EXAMPLES
Examples from SWISS-PROT
- Human Insulin (INS_HUMAN): Entry contains sequence, function in glucose regulation, precursor processing details, and references.
- Hemoglobin subunit beta (HBB_HUMAN): Includes oxygen transport role, disease-associated variants (like sickle-cell related changes), and protein features.
Examples from PROSITE
- Protein kinase ATP-binding region signature: Used to detect kinase catalytic region in many protein kinases.
- N-glycosylation site motif (N-{P}-[ST]-{P}): A classic sequence pattern used to identify possible glycosylation positions.

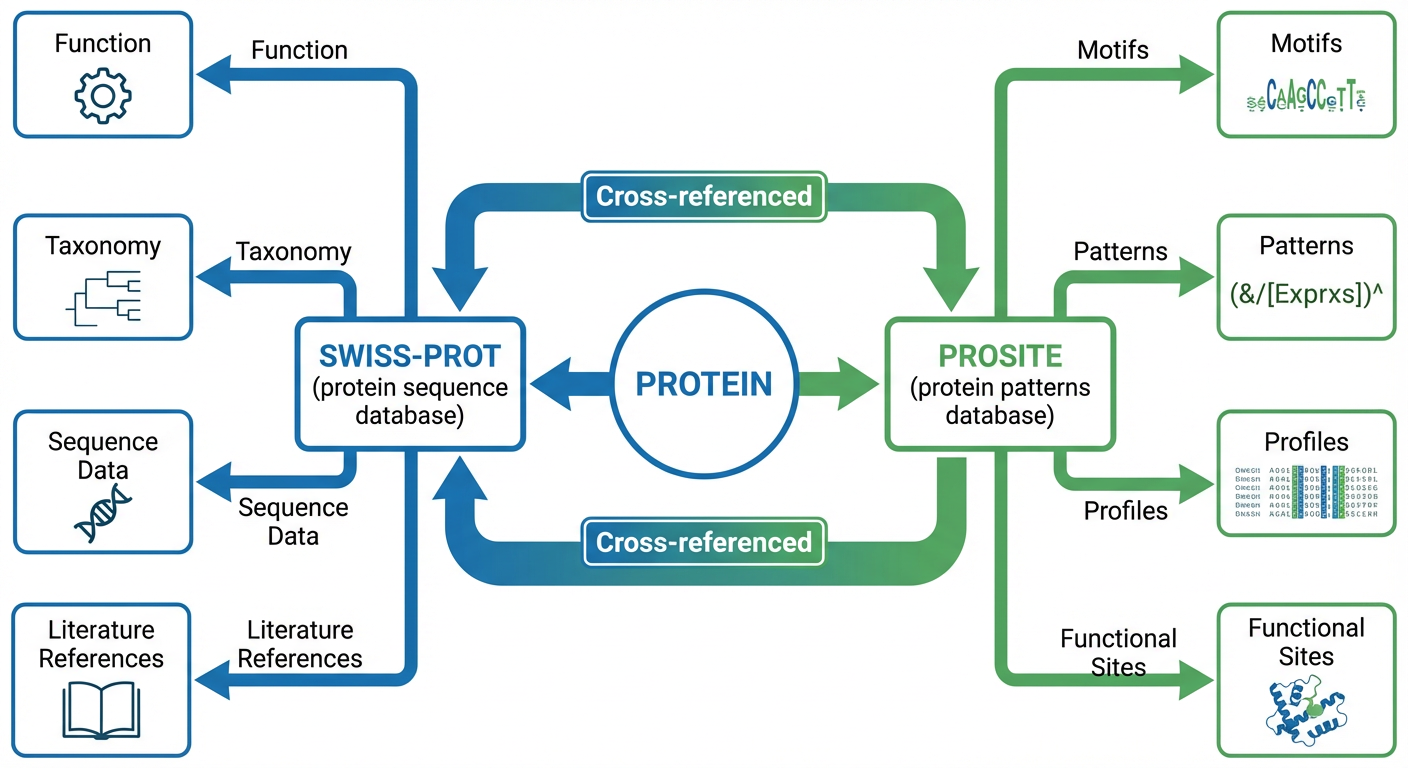

MIND MAP / FLOWCHART
Insert this generated image into your document:
CONCLUSION
SWISS-PROT and PROSITE are complementary protein bioinformatics resources. SWISS-PROT provides trusted, full-protein knowledge, while PROSITE identifies conserved motifs and functional signatures. Together, they make protein analysis more accurate, faster, and scientifically meaningful.
Quick formatting steps to get final PDF
- Paste this into Word/Google Docs.
- Set font to Times New Roman 12 (or Calibri 11), line spacing 1.15.
- Keep headings bold, size 16–18.
- Insert the flowchart image using the URL.
- Export as PDF.
If you want, I can also provide this in a ready .docx-style layout template text block (with page-break markers) so it fills 2.5 to 3 pages even more reliably.
yes please
Writing File
/tmp/swiss_prot_prosite_assignment.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>SWISS-PROT and PROSITE Assignment</title>
<style>
@page {
size: A4;
margin: 1in;
}
body {
font-family: "Times New Roman", serif;
font-size: 12pt;
line-height: 1.35;
color: #111;
background: #fff;
margin: 0;
padding: 0;
}
.page {
width: 210mm;
min-height: 297mm;
margin: 0 auto;
padding: 25mm;
box-sizing: border-box;
background: #fff;
}
.title {
text-align: center;
font-size: 24pt;
font-weight: 700;
margin-bottom: 8px;
color: #0b2e59;
letter-spacing: 0.4px;
}
.subtitle {
text-align: center;
font-size: 14pt;
font-weight: 600;
margin-bottom: 20px;
color: #1f4e79;
}
.meta {
margin: 8px 0;
font-size: 12pt;
}
.section-title {
font-size: 16pt;
font-weight: 700;
color: #0b2e59;
margin-top: 20px;
margin-bottom: 10px;
text-transform: uppercase;
border-bottom: 1.5px solid #9bb7d4;
padding-bottom: 4px;
}
p {
text-align: justify;
margin: 0 0 10px 0;
}
ol {
margin: 0 0 12px 22px;
padding: 0;
}
li {
margin-bottom: 6px;
text-align: justify;
}
.example-block {
margin: 8px 0 14px 0;
padding: 10px 12px;
border-left: 4px solid #1f4e79;
background: #f6f9fc;
}
.example-title {
font-weight: 700;
color: #1f4e79;
margin-bottom: 6px;
}
.flowchart {
text-align: center;
margin: 12px 0 8px 0;
}
.flowchart img {
max-width: 100%;
height: auto;
border: 1px solid #ccd9e8;
border-radius: 6px;
}
.caption {
text-align: center;
font-size: 10.5pt;
color: #333;
margin-top: 6px;
}
.page-break {
page-break-before: always;
break-before: page;
}
.conclusion {
margin-top: 14px;
padding: 10px 12px;
background: #f6f9fc;
border-left: 4px solid #0b2e59;
}
</style>
</head>
<body>
<div class="page">
<div class="title">SWISS-PROT and PROSITE</div>
<div class="subtitle">Academic Assignment (Bioinformatics)</div>
<div class="meta"><strong>Student Name:</strong> ____________________________</div>
<div class="meta"><strong>Class/Roll No.:</strong> ____________________________</div>
<div class="meta"><strong>Subject:</strong> Bioinformatics</div>
<div class="meta"><strong>Date:</strong> ____________________________</div>
<div class="section-title">Introduction</div>
<p>
Bioinformatics databases are essential tools in modern biology because they store, organize, and interpret large amounts of molecular data. Two important resources in protein bioinformatics are <strong>SWISS-PROT</strong> and <strong>PROSITE</strong>. Both are highly respected, widely used by scientists, and useful for students studying protein structure and function.
</p>
<p>
<strong>SWISS-PROT</strong> is a curated protein sequence database and is now part of UniProtKB/Swiss-Prot. Its biggest strength is quality. Every entry is reviewed by experts, which means the information is reliable and scientifically checked. A SWISS-PROT record usually includes the protein name, gene name, organism source, biological function, subcellular location, domains, post-translational modifications, and references from scientific literature. The database avoids unnecessary duplication and provides clear annotations, so users can trust the biological interpretation of each protein entry.
</p>
<p>
SWISS-PROT is useful in many biological tasks such as identifying unknown proteins, comparing proteins between species, understanding disease-related proteins, and supporting drug discovery. For students, SWISS-PROT is a strong learning resource because it presents complex protein knowledge in an organized and meaningful way.
</p>
<p>
<strong>PROSITE</strong> is different in its main purpose. It is not a full protein-entry database like SWISS-PROT. Instead, PROSITE focuses on <strong>protein motifs, patterns, profiles, and functional signatures</strong>. A motif is a conserved sequence region that often indicates a biological function such as catalytic activity, metal binding, or interaction with other molecules. PROSITE allows scientists to scan a sequence and check whether it contains known biological signatures.
</p>
<p>
This makes PROSITE very useful in function prediction. If a newly sequenced protein contains a recognized PROSITE pattern, researchers can estimate its probable family or functional role even before laboratory testing. In this way, PROSITE supports fast and practical bioinformatics analysis.
</p>
<p>
SWISS-PROT and PROSITE are strongly connected. SWISS-PROT entries often include links to PROSITE motifs, and PROSITE documentation includes biological examples validated in known proteins. So, SWISS-PROT provides complete knowledge about proteins, while PROSITE helps detect meaningful sequence signatures. Together, they improve accuracy in protein annotation, evolutionary studies, and computational biology research.
</p>
<div class="section-title">Similarities Between SWISS-PROT and PROSITE</div>
<ol>
<li>Both are important bioinformatics resources related to proteins.</li>
<li>Both help in understanding protein function and biological significance.</li>
<li>Both are used widely in research, teaching, and computational analysis.</li>
<li>Both depend on scientific curation and expert-reviewed biological knowledge.</li>
<li>Both are connected to broader molecular biology databases.</li>
<li>Both support identification of protein families and conserved features.</li>
<li>Both are useful in annotation of newly discovered protein sequences.</li>
<li>Both provide standardized data representation for reliable analysis.</li>
<li>Both contribute to functional prediction in bioinformatics pipelines.</li>
<li>Both are continuously updated to reflect new scientific discoveries.</li>
</ol>
</div>
<div class="page page-break">
<div class="section-title">Differences Between SWISS-PROT and PROSITE</div>
<ol>
<li><strong>Database type:</strong> SWISS-PROT is a protein sequence knowledgebase, while PROSITE is a motif/pattern/profile database.</li>
<li><strong>Main data unit:</strong> SWISS-PROT stores complete protein entries; PROSITE stores sequence signatures.</li>
<li><strong>Core objective:</strong> SWISS-PROT provides rich annotation; PROSITE identifies conserved functional motifs.</li>
<li><strong>Curation focus:</strong> SWISS-PROT curates protein-level records; PROSITE curates motif-level definitions.</li>
<li><strong>Content depth:</strong> SWISS-PROT includes broad biological details; PROSITE includes targeted signature information.</li>
<li><strong>User question answered:</strong> SWISS-PROT explains known facts about a protein; PROSITE checks what motifs exist in a sequence.</li>
<li><strong>Annotation style:</strong> SWISS-PROT emphasizes descriptive entries; PROSITE emphasizes pattern/profile logic.</li>
<li><strong>Practical use:</strong> SWISS-PROT is used for reference annotation; PROSITE is used for sequence scanning.</li>
<li><strong>Data output:</strong> SWISS-PROT gives full entry summaries; PROSITE gives motif match interpretation.</li>
<li><strong>Functional inference:</strong> SWISS-PROT depends heavily on literature evidence; PROSITE depends on conserved sequence signatures.</li>
<li><strong>Variant information:</strong> SWISS-PROT may include isoforms and disease variants; PROSITE generally does not focus on full variant catalogs.</li>
<li><strong>Taxonomic context:</strong> SWISS-PROT entries are organism-specific; PROSITE motifs are generally applicable across organisms.</li>
<li><strong>Record structure:</strong> SWISS-PROT records are entry-centric; PROSITE documents are signature-centric.</li>
<li><strong>Redundancy handling:</strong> SWISS-PROT minimizes protein entry redundancy; PROSITE minimizes redundant motif definitions.</li>
<li><strong>Biological interpretation:</strong> SWISS-PROT integrates many evidence types; PROSITE focuses on conserved functional sites.</li>
<li><strong>Learning value:</strong> SWISS-PROT teaches complete protein biology; PROSITE teaches motif-based functional reasoning.</li>
<li><strong>Cross-reference role:</strong> SWISS-PROT links to many external databases including PROSITE; PROSITE points to matching proteins and families.</li>
<li><strong>Search approach:</strong> SWISS-PROT searches by protein names/genes/functions; PROSITE searches by patterns/profiles.</li>
<li><strong>Interpretation level:</strong> SWISS-PROT helps characterize known proteins; PROSITE helps infer possible function in unknown sequences.</li>
<li><strong>Database philosophy:</strong> SWISS-PROT is knowledge integration; PROSITE is signature-driven classification.</li>
</ol>
<div class="section-title">Examples</div>
<div class="example-block">
<div class="example-title">Examples from SWISS-PROT</div>
<ul>
<li><strong>Human Insulin (INS_HUMAN):</strong> Includes sequence details, precursor processing information, role in blood glucose regulation, and literature references.</li>
<li><strong>Hemoglobin Subunit Beta (HBB_HUMAN):</strong> Includes oxygen transport function, protein features, and clinically important variant context.</li>
</ul>
</div>
<div class="example-block">
<div class="example-title">Examples from PROSITE</div>
<ul>
<li><strong>Protein kinase ATP-binding region signature:</strong> Helps detect kinase-related catalytic regions in protein sequences.</li>
<li><strong>N-glycosylation site motif (N-{P}-[ST]-{P}):</strong> Used to predict potential glycosylation positions in proteins.</li>
</ul>
</div>
<div class="section-title">Mind Map / Flowchart</div>
<div class="flowchart">
<img src="https://cdn.orris.care/image-gen/6f32ad153825458c9ffdc3e2ff86e4ab.png" alt="Mind map showing relationship between Protein, SWISS-PROT, PROSITE, Function, and Motifs" />
<div class="caption">Figure: Relationship between Protein, SWISS-PROT, PROSITE, Function, and Motifs</div>
</div>
<div class="section-title">Conclusion</div>
<div class="conclusion">
SWISS-PROT and PROSITE are complementary resources in protein bioinformatics. SWISS-PROT provides expert-reviewed, complete protein knowledge, while PROSITE identifies conserved motifs and functional signatures. Together, they make protein analysis more accurate, efficient, and meaningful for research and education.
</div>
</div>
</body>
</html>Done. I created a polished, PDF-ready assignment file here:
/tmp/swiss_prot_prosite_assignment.htmlHow to convert to PDF quickly:
- Open the HTML file in any browser.
- Press Ctrl+P (or Cmd+P on Mac).
- Choose Save as PDF.
- Keep paper size A4 and margins Default.
It already includes:
- 1-page introduction
- Exactly 10 similarities
- Exactly 20 differences
- At least 2 examples each for SWISS-PROT and PROSITE
- 2–3 line conclusion
- Embedded mind map/flowchart image
- Clean academic formatting for ~2.5 to 3 pages
