Sickle Cell Disease — Pathology Study Aid

1. The Molecular Root Cause

Feature	Detail
Mutation	Single point mutation: GAG → GTG in codon 6 of the β-globin gene (chromosome 11)
Amino acid change	Glutamate → Valine at position 6 of the β-globin chain
Abnormal Hb	HbS (α₂β₂^S) instead of normal HbA (α₂β₂)
Inheritance	Autosomal recessive; HbSS = disease, HbAS = trait (carrier)

Key insight: The valine substitution creates a hydrophobic "sticky patch" on the β-chain surface. When deoxygenated, this patch allows HbS molecules to polymerize into long rigid fibers.

2. The Central Cascade: Deoxygenation → Polymerization → Sickling

Low pO₂ (e.g., capillaries, exertion, infection)
        ↓
HbS deoxygenated → hydrophobic Val-6 exposed
        ↓
HbS molecules polymerize into long fiber bundles
        ↓
Erythrocyte deforms → SICKLE shape
        ↓
 ┌──────────────┴──────────────┐
 │                             │
Re-oxygenated              Repeated sickling cycles
(reversible sickling)           │
                                ↓
                   Irreversibly Sickled Cells (ISCs)
                   (membrane permanently damaged)

Concentration matters: Polymerization depends on the 30th power of Hb concentration. Even tiny increases in cell dehydration dramatically accelerate sickling (Harrison's, p. 2915).

3. Blood Smear — What You See

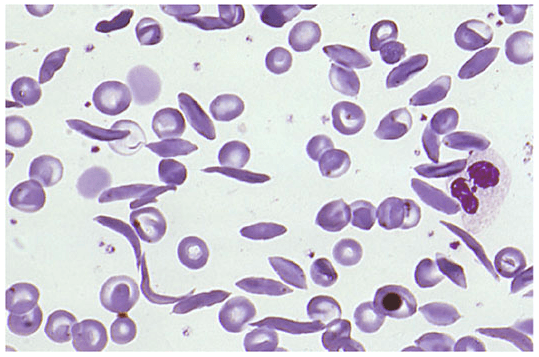

Wright-Giemsa stained peripheral blood smear in SCD. Key findings:

Finding	Significance
Sickle/crescent-shaped RBCs	HbS polymerization under deoxygenation
Irreversibly sickled cells (ISCs)	Permanently deformed; membrane-damaged even when re-oxygenated
Target cells	Thin, deformable cells; also seen in HbC disease and thalassemia
Polychromasia	Reticulocytosis — compensatory response to hemolysis
Howell-Jolly bodies	Functional asplenia (autosplenectomy) after repeated infarcts
Nucleated RBCs	Seen during hemolytic crises; bone marrow stress response

4. Two Major Pathophysiological Arms

ARM 1: Vaso-occlusion

Sickled RBCs
   ↓  rigid, adhesive
Stick to vascular endothelium
   ↓
Occlude capillaries and postcapillary venules
   ↓
Ischemia → Infarction → End-organ damage

Sickled cells express abnormal adhesion molecules (e.g., αVβ3 integrin, BCAM/LU)
Leukocytes and platelets are also activated, amplifying occlusion
Stasis worsens local deoxygenation → more sickling (vicious cycle)

ARM 2: Hemolytic Anemia

Sickled RBCs
   ↓  membrane damage, oxidative stress
Shortened RBC lifespan: ~10–20 days (vs. normal 120 days)
   ↓
Intravascular + extravascular hemolysis
   ↓
↓ Hemoglobin in plasma → Scavenges NO
   ↓
Endothelial dysfunction, vasospasm, pulmonary hypertension

5. Complications Map by Organ System

System	Complication	Mechanism
Blood	Chronic hemolytic anemia (Hb ~6–9 g/dL)	RBC destruction
Spleen	Autosplenectomy (by ~5 yrs)	Repeated infarcts → fibrosis
Bone	Vaso-occlusive pain crisis; avascular necrosis (femoral head)	Marrow/cortical infarction
Bone marrow	Aplastic crisis (Parvovirus B19)	Suppression of erythropoiesis
Brain	Stroke (ischemic in children; hemorrhagic in adults)	Large & small vessel occlusion
Lung	Acute Chest Syndrome (ACS)	Fat embolism + infection + infarction
Kidney	Papillary necrosis, hematuria, CKD, hyposthenuria	Medullary hypoxia/infarction
Eye	Proliferative retinopathy ("sea fan" neovascularization)	Retinal ischemia
Penis	Priapism	Venous stasis in corpora cavernosa
Liver/GB	Pigment gallstones (bilirubin)	Chronic hemolysis → ↑ unconjugated bilirubin
Heart	Cardiomegaly, high-output failure	Chronic anemia

6. Triggers That Precipitate Crises

Trigger	Why It Causes Sickling
Infection / fever	↑ O₂ demand, dehydration
Dehydration	↑ intracellular HbS concentration → faster polymerization
Hypoxia (altitude, surgery, sleep apnea)	Direct deoxygenation of HbS
Cold / temperature change	Vasoconstriction → stasis
Acidosis	Bohr effect → rightward O₂ dissociation curve → more deoxyHbS
Stress / exertion	Local tissue hypoxia

7. Lab Findings Summary

Test	Finding	Why
CBC	Hb 6–9 g/dL; ↑ reticulocytes (10–25%)	Chronic hemolysis + compensatory erythropoiesis
Peripheral smear	Sickle cells, target cells, Howell-Jolly bodies	(see above)
Bilirubin	↑ indirect (unconjugated)	RBC breakdown
LDH	Elevated	Intravascular hemolysis
Haptoglobin	Low/absent	Binds free Hb; depleted in hemolysis
Hemoglobin electrophoresis	HbS >90%, absent HbA; HbF variable	Definitive diagnosis
Urinalysis	Isosthenuria, hematuria	Renal medullary damage

8. HbF — The Protective Factor

Fetal hemoglobin (HbF, α₂γ₂) does not polymerize with HbS
Higher HbF levels = less sickling = milder disease
Hydroxyurea (first-line therapy) works by reactivating γ-globin gene expression → ↑ HbF
This is why some patients with HbSS + high HbF have surprisingly mild phenotypes

9. Quick Comparison: SCD Genotypes

Genotype	Disease Severity	HbS%	Notes
HbSS	Most severe	~90–95%	Classic sickle cell anemia
HbSC	Moderate	~50% HbS, ~50% HbC	More retinopathy, less anemia
HbS/β⁰-thal	Severe (similar to HbSS)	High HbS, absent HbA	No normal β-globin produced
HbS/β⁺-thal	Mild–moderate	HbS + some HbA	Some normal β-globin produced
HbAS	Carrier (trait)	~40% HbS	Usually asymptomatic; protective vs. P. falciparum

Sources: Harrison's Principles of Internal Medicine, 21st Edition (pp. 2915, 1726)
