Anatomy of the Ear

The ear is divided into three main parts: the external ear, the middle ear, and the inner ear. Together, they capture, amplify, and convert sound waves into nerve signals.

Bailey and Love's Short Practice of Surgery, 28th Ed., p. 773

1. External (Outer) Ear

Structure	Description

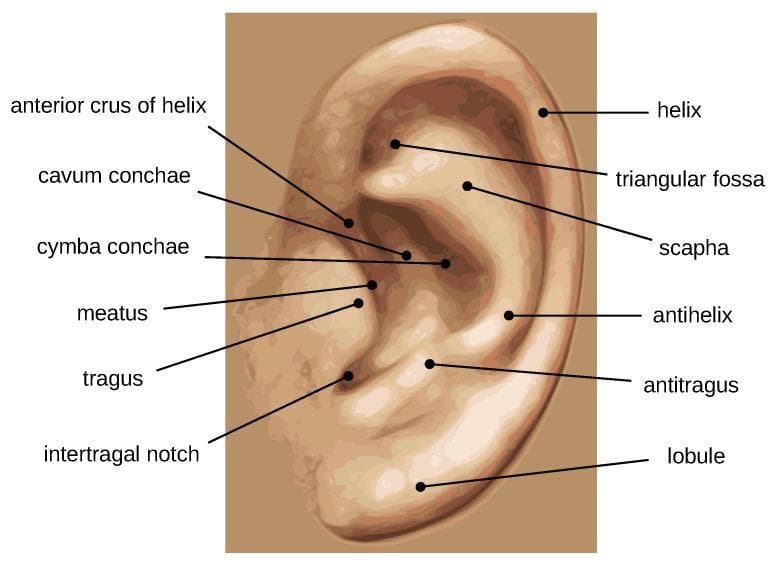

Auricle (Pinna)	The visible, cartilage-based, funnel-shaped part that collects sound
External Auditory Canal (EAC)	~2.5 cm S-shaped tube; lined with skin, ceruminous glands (wax)
Tympanic Membrane (Eardrum)	Thin, cone-shaped membrane; boundary between outer and middle ear; vibrates with sound

2. Middle Ear (Tympanic Cavity)

A small, air-filled cavity in the temporal bone.

Structure	Description
Malleus (Hammer)	Ossicle attached directly to the tympanic membrane
Incus (Anvil)	Middle ossicle; connects malleus to stapes
Stapes (Stirrup)	Smallest bone in the body; footplate sits on the oval window
Oval Window	Membrane-covered opening to the inner ear; transmits vibrations from stapes
Round Window	Second membrane-covered opening; allows fluid pressure to dissipate
Eustachian Tube	Connects middle ear to nasopharynx; equalizes air pressure

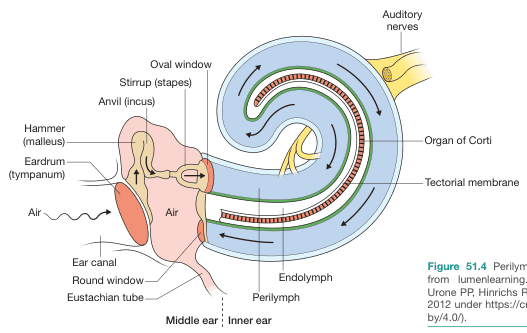

The ossicles act as a mechanical transformer, amplifying vibrations from air (low impedance) to fluid (high impedance) in the inner ear. (Bailey & Love, p. 771)

3. Inner Ear (Labyrinth)

Located within the petrous part of the temporal bone.

A. Cochlea (Hearing)

Spiral, snail-shaped structure; ~2.5 turns
Contains three fluid-filled ducts:
- Scala vestibuli — filled with perilymph
- Scala tympani — filled with perilymph
- Scala media (cochlear duct) — filled with endolymph
Organ of Corti — sits on the basilar membrane; contains inner and outer hair cells (mechanoreceptors)
Tectorial membrane — overlies hair cells; deflects them during sound waves
Auditory nerve (CN VIII) — carries signals to brainstem

B. Vestibular Apparatus (Balance)

Semicircular canals (3 — anterior, posterior, lateral): detect rotational/angular movement
Utricle and Saccule: detect linear acceleration and gravity (via otoliths)

Sound Transmission Pathway

Sound wave
    ↓
Pinna → EAC → Tympanic Membrane
    ↓
Malleus → Incus → Stapes
    ↓
Oval Window → Perilymph (scala vestibuli)
    ↓
Basilar Membrane vibration → Hair cells (Organ of Corti)
    ↓
Endolymph wave → Round Window (pressure relief)
    ↓
Auditory nerve (CN VIII) → Brainstem → Auditory Cortex

Simple Diagram to Draw

Here is a step-by-step sketch guide:

        OUTER EAR        MIDDLE EAR       INNER EAR
  ________________    _______________    ___________
 |                |  |               |  |           |
 |   PINNA        |  | Malleus       |  |  Cochlea  |
 |    \           |  |  \            |  |  (snail   |
 |     EAR        |~~|   Incus       |~~|   shape)  |
 |     CANAL      |  |    \          |  |           |
 |                |  |     Stapes ===|==| Oval Win  |
 |________________|  |  Eustachian   |  |___________|
         ↓            |  Tube ↓      |
      Eardrum         |  (throat)    |
    (tympanic         |______________|
     membrane)

Drawing Steps:

Draw a large C-shape (pinna) on the left
Draw a short horizontal tube (EAC) going right
Draw a slightly angled oval at the end = tympanic membrane
Inside the middle ear box, sketch 3 tiny bones in an L/chain shape: hammer → anvil → stirrup
The stirrup touches a small oval on the right wall = oval window
To the right, draw a snail/spiral = cochlea
Add a tube going down from the middle ear = Eustachian tube
Label all parts

Key Memory Aid:

"MIS" — Malleus, Incus, Stapes (in order from eardrum inward) "3 S's" — Sound → Stirrup → Scala (cochlea)
