🫀 CTG (Cardiotocography) - Easy Guide with Pictures

What is a CTG?

CTG is a machine that records two things at the same time on a paper strip:

Top line = Fetal Heart Rate (FHR) - measured in beats per minute (bpm)
Bottom line = Uterine Contractions - pressure of the womb tightening

Two sensors are placed on the mother's belly:

One over the fetal heart (Doppler ultrasound)
One at the fundus (to detect contractions)

📊 How to Read a CTG - The 5 Features (DR C BraVaDo)

Letter	Feature	What to look for
DR	Define Risk	Is it high or low risk?
C	Contractions	How many per 10 min? (normal ≤5)
Bra	Baseline Rate	Normal = 110-160 bpm
Va	Variability	Normal = 5-25 bpm fluctuation
D	Decelerations	Any dips? What type?
o	Oxytocin/Accelerations	Any heart rate spikes? (good sign)

1. BASELINE RATE

The average FHR over 10 minutes, ignoring accelerations and decelerations.

Finding	Rate	Meaning
Normal	110-160 bpm	Healthy fetus
Tachycardia	>160 bpm	Fever, infection, hypoxia, drugs
Bradycardia	<110 bpm	Fetal distress, cord compression, maternal drugs

2. VARIABILITY

This is how much the heart rate "wiggles" up and down around the baseline. A healthy, awake baby's heart rate should bounce around constantly - it should NOT be a flat line.

Variability	Range	Meaning
Normal	5-25 bpm	Healthy CNS + cardiovascular system
Reduced	<5 bpm for >40-90 min	Hypoxia, sleep cycle, drugs (opioids, MgSO4)
Absent	Flat line	Serious - possible severe hypoxia/acidosis
Increased/Saltatory	>25 bpm for >25 min	Acute hypoxia, cord compression

Here is a real CTG tracing showing several patterns - good variability (A, B), flat/absent variability (C), variable decelerations (D), and late decelerations (E):

CTG tracing showing variability, accelerations, variable and late decelerations

A = Good variability (normal, reassuring). B = Good variability with accelerations (very reassuring). C = Flat/poor variability - may indicate fetal hypoxia. D = Variable decelerations (cord compression). E = Late decelerations (uteroplacental insufficiency).

3. ACCELERATIONS

Temporary rises in FHR of ≥15 bpm lasting ≥15 seconds.

Presence = REASSURING - means fetus is not acidotic
Caused by fetal movement stimulating the sympathetic nervous system
Form the basis of the Non-Stress Test (NST)
Reactive NST = at least 2 accelerations in 20-30 minutes

4. DECELERATIONS - The Most Important Part ⚠️

Decelerations = drops in FHR of >15 bpm lasting >15 seconds.

There are 4 types - each with a different cause and significance:

🟢 Type 1: EARLY Decelerations (Benign)

Feature	Detail
Shape	Gradual, smooth, uniform dip
Timing	Mirror the contraction - start and end WITH it
Nadir	Coincides with the peak of contraction
Cause	Fetal head compression → vagal stimulation
Significance	Normal/benign - not pathological

Think of it as: the baby's head gets squeezed during a contraction, slows the heart briefly, then recovers. No fetal distress.

🔴 Type 2: LATE Decelerations (Most Ominous)

Feature	Detail
Shape	Gradual, smooth dip
Timing	Start AFTER the contraction begins, recover AFTER it ends
Nadir	Occurs >30 seconds after peak of contraction
Cause	Uteroplacental insufficiency → fetal hypoxia
Significance	Pathological - indicates fetal compromise

Think of it as: the placenta isn't delivering enough oxygen. When the womb contracts, blood flow drops even further, and the heart slows - but only AFTER the contraction.

Causes: maternal hypotension, pre-eclampsia, abruption, postmaturity, IUGR, oxytocin hyperstimulation

🟡 Type 3: VARIABLE Decelerations (Most Common)

Feature	Detail
Shape	Abrupt, sharp, V-shaped or W-shaped
Timing	Variable - no consistent relationship to contractions
Onset to nadir	<30 seconds (abrupt)
Duration	15 seconds to <2 minutes
Cause	Umbilical cord compression
Significance	Isolated = not concerning; Persistent = worrying

Reassuring "shoulders" = small accelerations just before and after the dip (fetus compensating well)

Atypical/concerning features:

Drop to <60 bpm
Duration >60 seconds
Slow return to baseline
Loss of variability during the deceleration
No shoulders

🔴 Type 4: PROLONGED Decelerations

Feature	Detail
Duration	2-10 minutes with drop >15 bpm
Cause	Cord prolapse, maternal hypotension, uterine rupture, abruption
Significance	Always abnormal - requires immediate action

Drop >10 minutes = new baseline (bradycardia)

5. SINUSOIDAL PATTERN 🚨

CTG prediction app showing hypoxia-compensated vs hypoxia-decompensated patterns

A smooth, sine wave-like pattern, ≥10 minutes with:

Regular oscillations at 2-5 cycles/min
Amplitude 5-15 bpm
No accelerations
No short-term variability

Causes: Severe fetal anaemia (Rh isoimmunization, fetal-maternal haemorrhage), severe hypoxia

This is a MEDICAL EMERGENCY - requires immediate delivery

📋 CTG CLASSIFICATION (NICE Guidelines)

NICE CTG classification table showing normal, suspicious and pathological categories

Category	Definition	Action
Normal	ALL features reassuring	Continue monitoring
Suspicious	1 non-reassuring feature (rest reassuring)	Correct reversible causes, closer monitoring
Pathological	2+ non-reassuring OR 1+ abnormal features	Urgent action - consider delivery

Feature Classification Quick Reference:

Feature	Reassuring	Non-Reassuring	Abnormal
Baseline	110-160 bpm	100-109 or 161-180	<100 or >180, sinusoidal ≥10 min
Variability	5-25 bpm	<5 for 40-90 min or >25 for 15-25 min	<5 for ≥90 min
Decelerations	None	Early; Variable <90 min	Late; Atypical variable; Prolonged >3 min
Accelerations	Present	Absent (uncertain significance)	-

🛠️ Management When CTG is Abnormal

Correct reversible causes first (ALSO mnemonic):

Letter	Action
A	Assess maternal position (left lateral)
L	Lower oxytocin / stop if running
S	Stop pushing / maternal effort
O	Oxygen (though evidence is mixed)

Then escalate:

Suspicious → continue monitoring, repeat VE
Pathological → consider fetal blood sampling (scalp pH <7.20 = acidosis) or expedite delivery
Sinusoidal / prolonged bradycardia → emergency caesarean section

🧠 Quick Memory Summary

Normal CTG = "CAVE"
C - Contractions ≤5 per 10 min
A - Accelerations present
V - Variability 5-25 bpm
E - no dEcelerations (or only early ones)

Baseline: 110-160 bpm

Sources: Tintinalli's Emergency Medicine (McGraw-Hill), Mulholland & Greenfield's Surgery, Creasy & Resnik's Maternal-Fetal Medicine, NICE Guidelines 2017 (updated), ZeroToFinals CTG

pics of ctg

Searching the Web

CTG fetal heart rate tracing images normal late deceleration variable sinusoidal bradycardia

Finding Sources

Reading File

Loading Image

Finding Sources

Reading File

Loading Image

Reading File

Loading Image

Here is a complete visual guide to CTG tracings - all images sourced directly from medical textbooks (Creasy & Resnik's Maternal-Fetal Medicine and Textbook of Family Medicine).

📸 CTG Pictures - All Key Patterns

✅ 1. NORMAL CTG

Normal CTG fetal heart rate pattern - baseline ~130 bpm with normal variability and no decelerations

What you're seeing:

Top strip: Fetal heart rate running nicely around 130 bpm
The line has a healthy "wobble" (that's good variability, 5-25 bpm)
Bottom strip: Smooth uterine contractions, 2-3 min apart
No dips in the heart rate = reassuring, healthy baby

❌ 2. LATE DECELERATIONS (Uteroplacental Insufficiency)

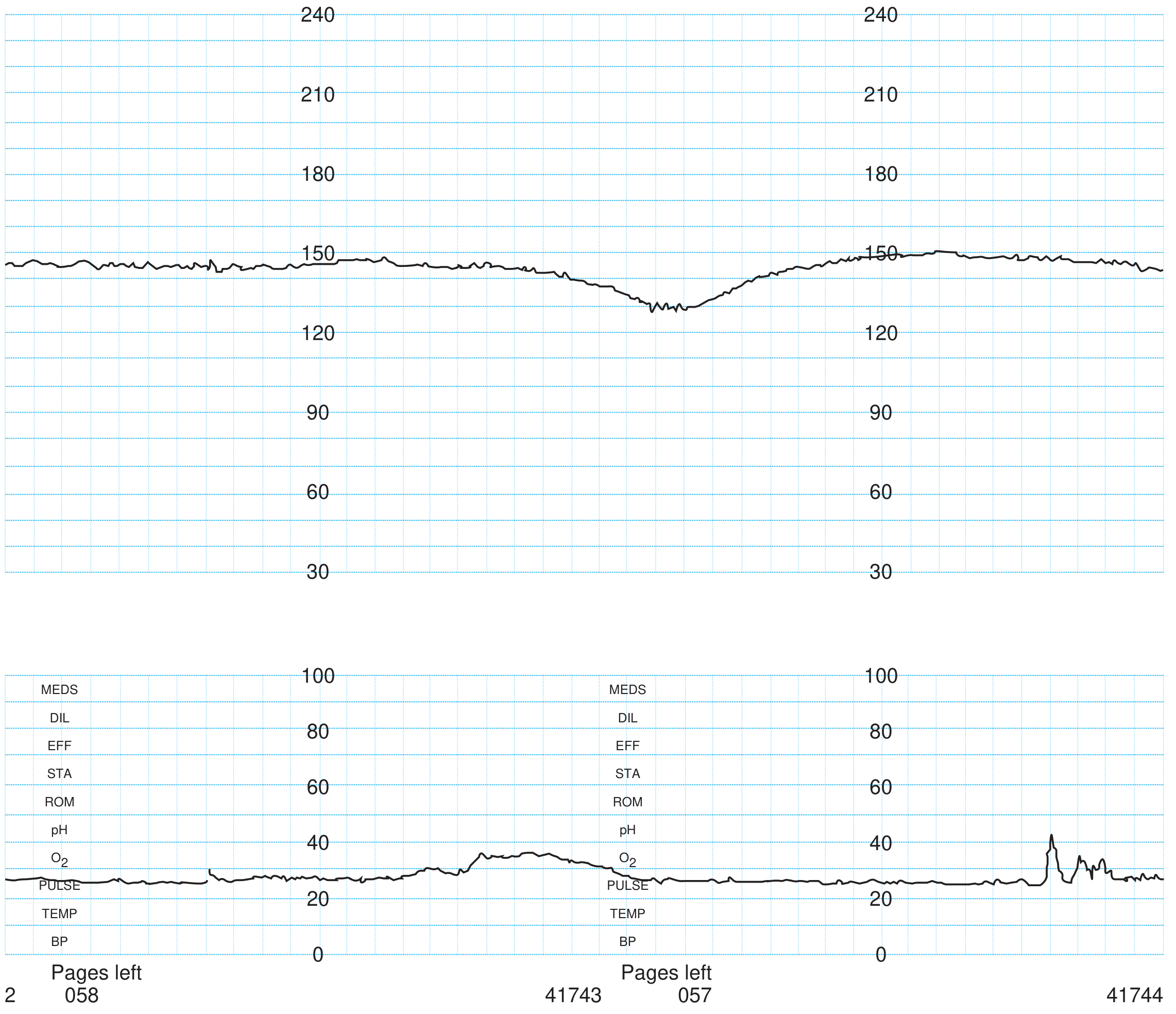

Late deceleration CTG - fetal heart rate dips after peak of contraction, slow return to baseline

What you're seeing:

Baseline around 150 bpm, nearly flat (minimal variability - already worrying)
The heart rate dips AFTER the contraction peaks and returns slowly
The gap between contraction peak and heart rate nadir is the key sign
Cause: Placenta cannot deliver enough oxygen during contractions
Significance: PATHOLOGICAL - may indicate fetal acidosis

🔴 3. FETAL TACHYCARDIA (>160 bpm)

CTG showing fetal tachycardia - baseline heart rate around 170-180 bpm with contractions

What you're seeing:

Baseline running consistently around 170-180 bpm (well above the normal 110-160)
Some variability is preserved here
Causes: Maternal fever, chorioamnionitis, fetal hypoxia, β-mimetic drugs, maternal anxiety
If tachycardia + decelerations together = high concern for hypoxia

⚠️ 4. PROLONGED BRADYCARDIA

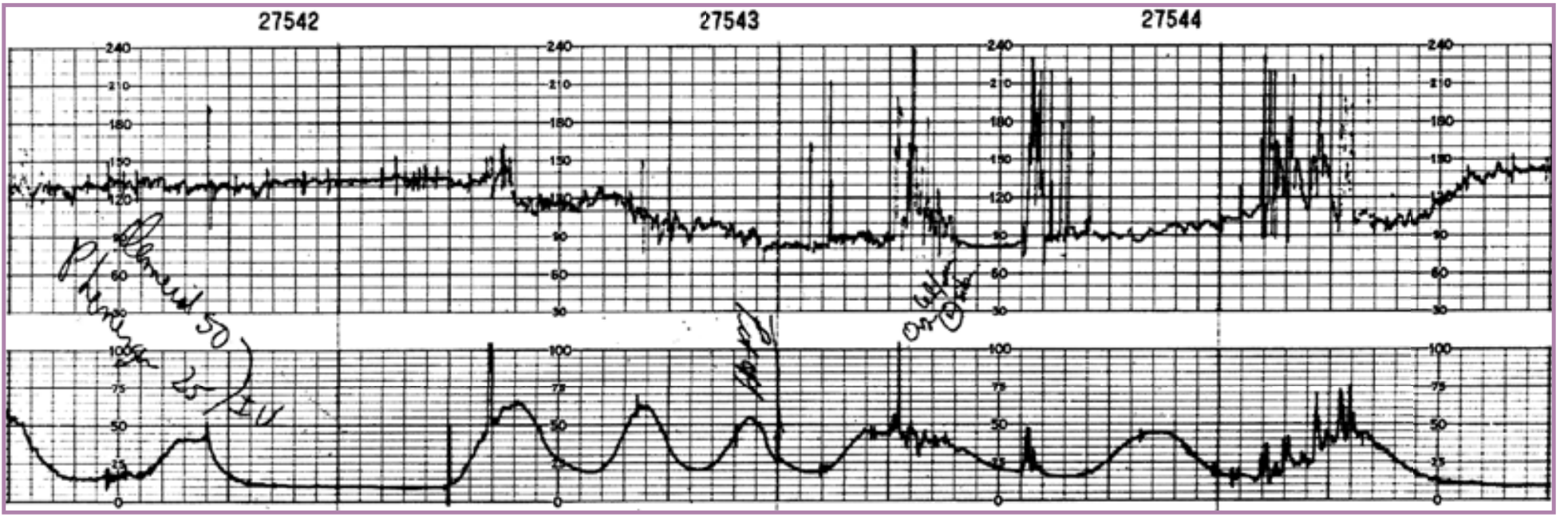

CTG showing prolonged fetal bradycardia - heart rate drops suddenly then recovers after treatment

What you're seeing:

Heart rate starts normal (~120-130 bpm), then suddenly drops to below 60 bpm
The drop lasts several minutes (prolonged bradycardia)
Note on the tracing: "Pit off, O2 6L/min, side" - showing treatment was given
Heart rate eventually recovers at the end of the strip
Cause here: Oxytocin hyperstimulation (too many contractions, not enough recovery time)
Key point: Variability was maintained throughout, meaning the brain still had enough oxygen

⚠️ 5. ABSENT VARIABILITY (Flat Line CTG)

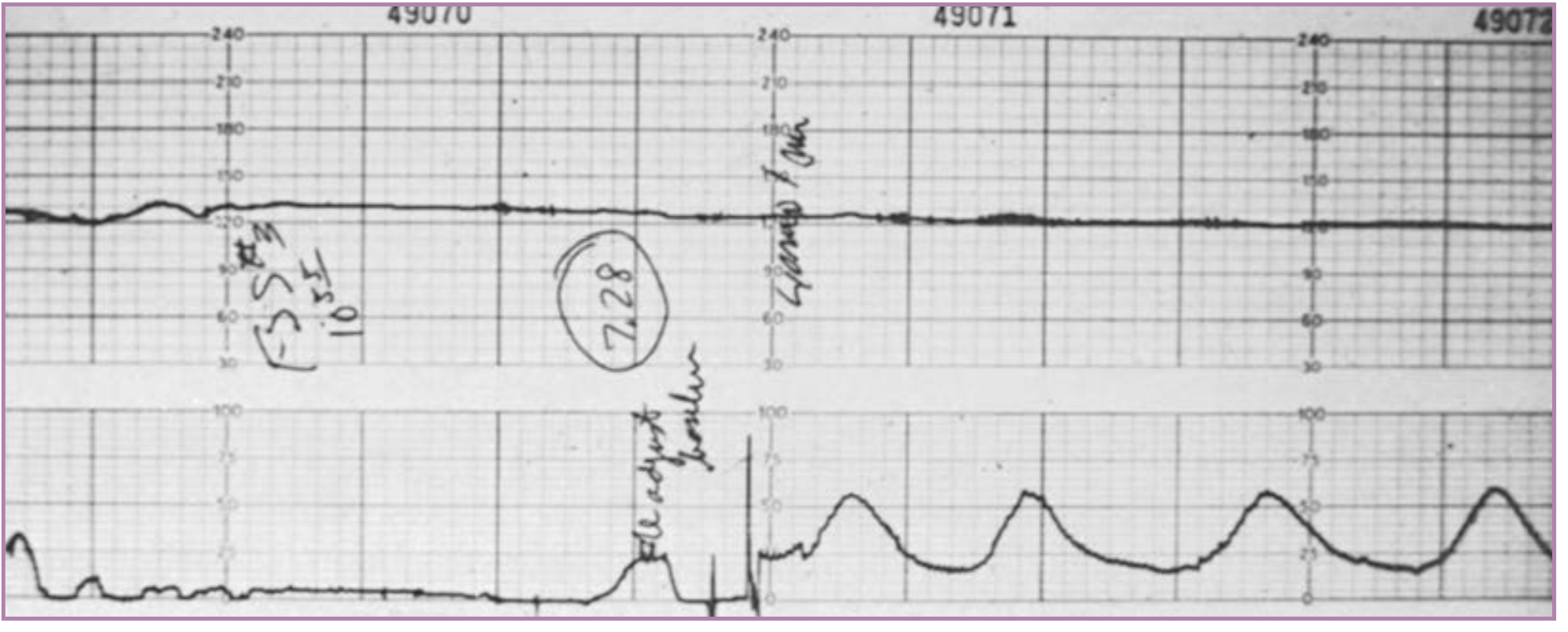

CTG showing absent fetal heart rate variability - completely flat line around 120 bpm

What you're seeing:

Heart rate is a completely flat line around 115-120 bpm - no wiggling at all
The circled "7.28" is the scalp blood pH - normal in this case
This patient was on magnesium sulfate and narcotics (drugs can flatten the trace)
Key teaching point: Absent variability is NOT always hypoxia - drugs, fetal sleep, and CNS depression can all cause it
When variability is absent WITHOUT a known cause = urgent concern

🔶 6. VARIABLE DECELERATIONS (Cord Compression)

From the multi-panel CTG (shown in the previous session):

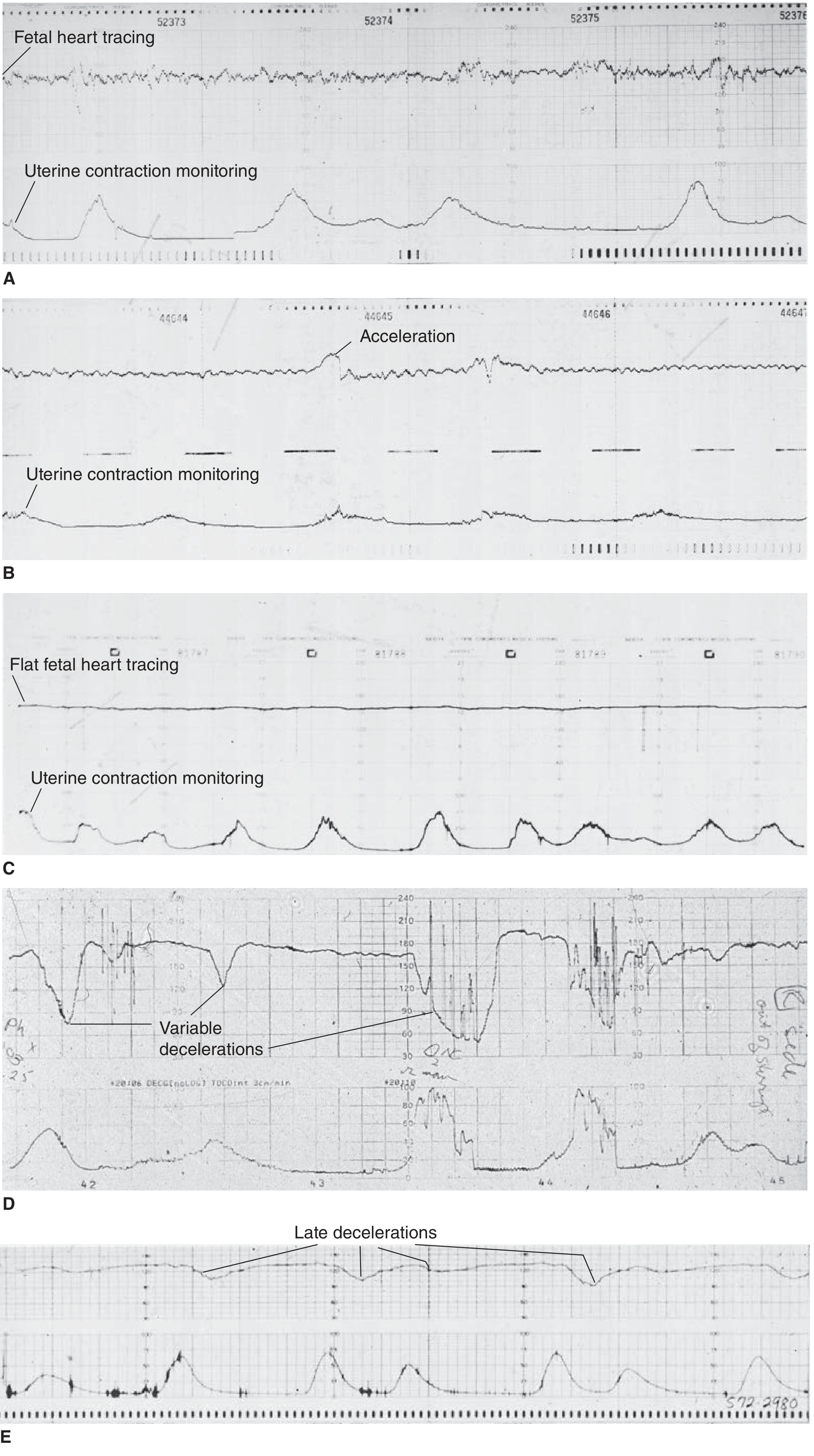

Multi-panel CTG showing variable decelerations, poor variability, late decelerations, and accelerations

What you're seeing (5 panels A-E):

Panel	Pattern	Meaning
A	Good variability, no decelerations	Normal - reassuring
B	Good variability + brief accelerations	Very reassuring - healthy baby
C	Flat fetal heart tracing (poor variability)	Non-reassuring - possible hypoxia
D	Sharp V-shaped variable decelerations	Cord compression - no fixed relation to contractions
E	Late decelerations	Uteroplacental insufficiency

🚨 7. SINUSOIDAL PATTERN (Medical Emergency)

Sinusoidal CTG pattern - smooth sine wave undulation without any variability or accelerations

The classic sinusoidal pattern looks like a perfectly smooth, regular wave - like this:

Smooth, undulating sine-wave at 2-5 cycles/minute
Amplitude 5-15 bpm
No accelerations at all
No short-term variability (completely regular, no beat-to-beat changes)
Must persist for ≥10-20 minutes

Causes: Severe fetal anaemia (Rh isoimmunisation, fetal-maternal haemorrhage), severe hypoxia Action: Immediate delivery

📋 QUICK VISUAL COMPARISON TABLE

Pattern	What it looks like	Cause	Action
Normal	Wiggly line 110-160 bpm, no dips	Healthy fetus	Continue monitoring
Tachycardia	Line stuck above 160 for >10 min	Fever, infection, drugs	Find and treat cause
Bradycardia	Line stuck below 110 for >10 min	Hypoxia, cord prolapse	Urgent review
Early decel	Dip mirrors contraction exactly	Head compression	Benign - no action
Late decel	Dip AFTER contraction, slow return	Placental insufficiency	Pathological - act now
Variable decel	Abrupt V-shape, no fixed timing	Cord compression	Watch closely
Absent variability	Completely flat line	Drugs / hypoxia / sleep	Identify cause urgently
Sinusoidal	Smooth perfect wave, no variation	Severe anaemia/hypoxia	Emergency delivery

Sources: Creasy & Resnik's Maternal-Fetal Medicine, Textbook of Family Medicine 9e, ACOG guidelines

show levels of cervical lymph nodes with pic

Finding Sources

Searching the Web

cervical lymph node levels I II III IV V VI anatomy diagram image

Loading Image

Finding Sources

Loading Image

Searching the Web

cervical lymph node levels primary tumour drainage chart oral cavity oropharynx thyroid

Reading File

Loading Image

Excellent - I have all the best images. Here is the complete visual guide:

🗺️ Cervical Lymph Node Levels - Complete Visual Guide

📌 Overview Diagram - All Levels at a Glance

Cervical lymph node levels diagram showing levels Ia, Ib, II, III, IV, Va, Vb, VI and VII on a lateral neck illustration

Classic Radiopaedia diagram (F. Gaillard, CC-NC-SA) showing all lymph node levels on the lateral neck. Key landmarks: hyoid bone separates levels I/II from III, and cricoid cartilage separates III from IV/V.

🎨 Detailed Colour-Coded Map (with all sublevels)

Detailed colour-coded cervical lymph node map showing all sublevels IA, IB, IIA, IIB, III, IVA, IVB, VA, VB, VC, VI, VIIA, VIIB, VIII, IX, XA, XB with legend

This extended map from Radiology Assistant shows the full modern classification including retropharyngeal (VII), parotid (VIII), buccofacial (IX), and occipital (X) nodes.

🏷️ What Each Level Contains & Drains

Reference table showing cervical lymph node levels IA through VI with anatomic correlation, location boundaries, and primary sites drained

🔍 Level-by-Level Breakdown

🟠 Level I - Submental & Submandibular (Anterior Triangle)

Sublevel	Name	Location	Drains
Ia	Submental	Between the two anterior digastric bellies, above hyoid	Floor of mouth, tip of tongue, lower lip, chin
Ib	Submandibular	Around submandibular gland, under mandible	Oral cavity (lips, cheek, nose, anterior tongue, gingiva)

Clinical clue: Enlarged Level I node = suspect oral cavity cancer (floor of mouth, tongue, lower lip)

🟢 Level II - Upper Jugular (Upper 1/3 of internal jugular vein)

Sublevel	Name	Boundary	Key structure
IIa	Anterior to spinal accessory nerve	Skull base to hyoid	Most common site of nodal metastasis from H&N cancers
IIb	Posterior to spinal accessory nerve	Skull base to hyoid	Less commonly involved; NPC metastasis

Borders: Skull base (above) → Hyoid bone (below) → SCM (lateral) → Sternohyoid (medial)

Clinical clue: Most head & neck cancers drain here first. Enlarged Level II = oropharynx, larynx, nasopharynx, oral cavity, major salivary glands

🟡 Level III - Middle Jugular (Middle 1/3 of internal jugular vein)

Borders: Hyoid bone (above) → Cricoid cartilage (below) → SCM (lateral) → Sternohyoid (medial)

Contains the jugulo-omohyoid node (landmark node for tongue cancer)

Clinical clue: Enlarged Level III = oropharynx, larynx, hypopharynx, oral cavity

🔵 Level IV - Lower Jugular (Lower 1/3 of internal jugular vein)

Borders: Cricoid (above) → Clavicle (below) → SCM (lateral) → Sternohyoid (medial)

Important: The thoracic duct enters on the LEFT side at Level IV

Clinical clue: Enlarged Level IV = larynx, hypopharynx, thyroid, cervical oesophagus Virchow's node = left Level IV/supraclavicular = abdominal/thoracic malignancy (gastric, lung, breast)

🔵 Level V - Posterior Triangle

Sublevel	Boundary	Drains
Va	Above cricoid (superior half)	Nasopharynx, oropharynx, posterior scalp
Vb	Below cricoid (inferior half)	Posterior scalp, skin of posterior neck

Borders: Posterior border of SCM (anterior) → Anterior border of trapezius (posterior) → Clavicle (inferior)

Contains the spinal accessory nerve running through this level

Clinical clue: Enlarged Level V = nasopharyngeal carcinoma (NPC), thyroid, posterior scalp skin cancers

🟣 Level VI - Anterior (Central) Compartment

Borders: Hyoid (above) → Suprasternal notch (below) → Carotid arteries bilaterally (lateral)

Contains:

Prelaryngeal (Delphian) node
Pretracheal nodes
Paratracheal nodes
Perithyroidal nodes

Clinical clue: Enlarged Level VI = thyroid cancer (most specific!), larynx (subglottic/glottic), trachea, hypopharynx, cervical oesophagus

⬛ Level VII - Superior Mediastinal (sometimes added)

Borders: Suprasternal notch (above) → Aortic arch (below)

Clinical clue: Thyroid cancer (especially advanced), trachea, oesophagus

🩺 Drainage Patterns Diagram

Neck lymph node drainage diagram showing which primary tumour sites drain to which cervical lymph node levels - including thyroid, larynx, oral cavity, oropharynx, and nasopharynx

📐 Anatomical Zones with Level Names

$Neck zones diagram showing lateral and central compartments with level names: Level I submandibular/submental, Level II superior spinal accessory/superior jugular/jugulo-digastric, Level III midjugular, Level IV jugulo-omohyoid/inferior jugular, Level V inferior spinal accessory/transverse cervical, Level VI pretracheal/paratracheal, Level VII infraclavicular/anterior mediastinal$

🧠 Quick Memory Tricks

Level I   = "I" am under the chin / jaw  → Oral cavity
Level II  = "II" is high up               → ALL head & neck cancers drain here
Level III = "III" is in the middle        → Oropharynx, larynx
Level IV  = "IV" is low (near clavicle)   → Thyroid, oesophagus, subglottic
Level V   = "V" is at the back            → Nasopharynx, posterior scalp
Level VI  = "VI" is in front (central)    → Thyroid (most specific!)

⚠️ Clinical Importance - Which Level = Which Cancer?

Enlarged Level	Most Likely Primary
I	Oral cavity, floor of mouth, lip
II	Oropharynx, tonsil, base of tongue, NPC
III	Larynx, oropharynx, hypopharynx
IV	Thyroid, hypopharynx, cervical oesophagus
V	Nasopharynx, posterior scalp
VI	Thyroid (papillary), larynx (subglottic)
Left IV supraclavicular (Virchow's)	Stomach, lung, breast (infra-diaphragmatic)

Sources: Color Atlas of Human Anatomy Vol. 2 (Thieme), Radiopaedia Cervical Nodes, Radiology Assistant Node Map, AJCC/ENT guidelines

This is a shared conversation. Sign in to Orris to start your own chat.
