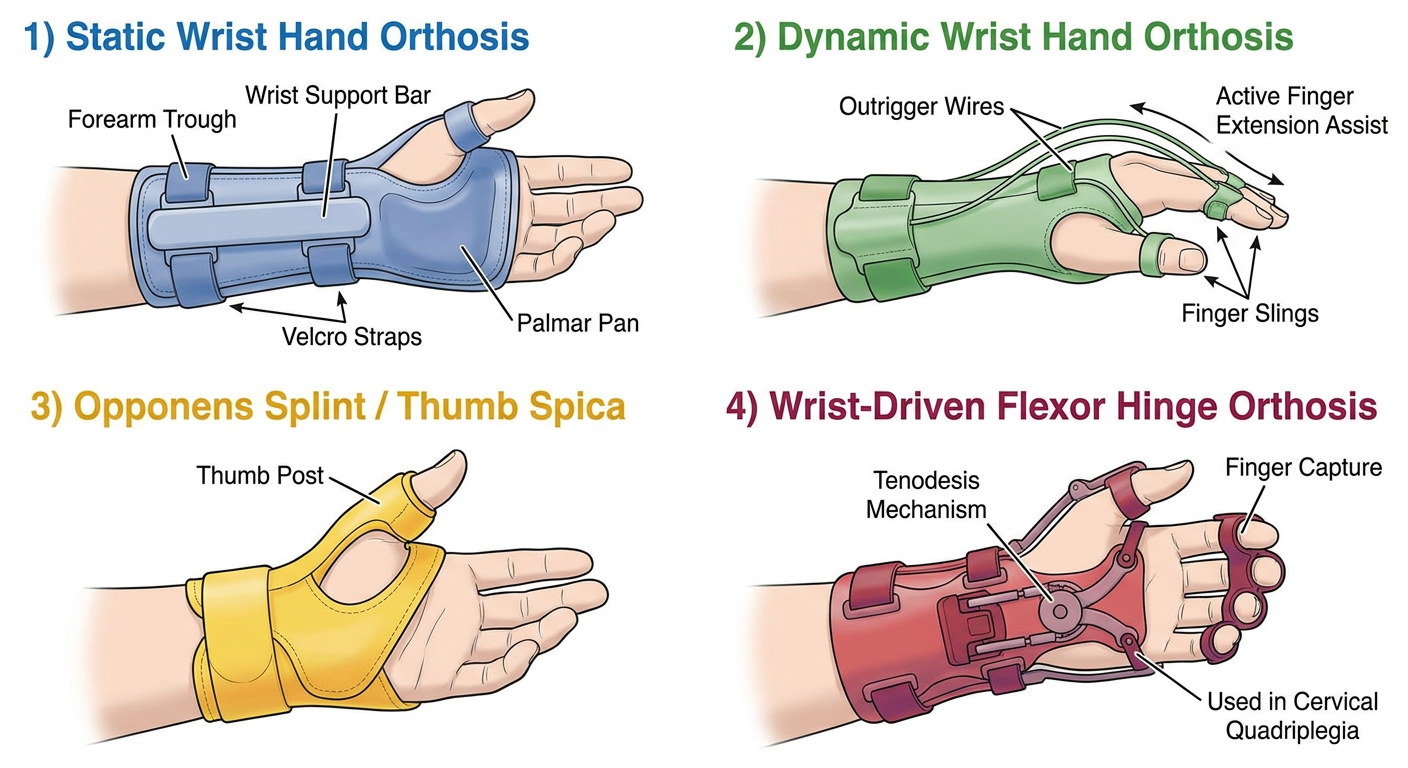

Medical educational diagram of wrist hand orthoses showing 4 types: 1) Static Wrist Hand Orthosis - rigid splint holding wrist in neutral extension, labeled parts including forearm trough, wrist support bar, palmar pan, and velcro straps; 2) Dynamic Wrist Hand Orthosis - showing outrigger wires with finger slings for active finger extension assist; 3) Opponens Splint / Thumb Spica - holding thumb in opposition and abduction with labeled thumb post; 4) Wrist-Driven Flexor Hinge Orthosis - used in cervical quadriplegia, showing tenodesis mechanism with finger capture. Each type cleanly labeled with its name and key anatomical components. Clean white background, professional medical illustration style, color-coded by type.
Wrist-Hand Orthoses (WHO)
Classification by Function
| Type | Mechanism | Key Feature |
|---|---|---|
| Static | Rigid, no movement | Immobilizes joint in set position |
| Static-Progressive | Incrementally adjustable | Serial repositioning to increase ROM |
| Dynamic | Springs/outriggers allow motion | Assists or resists movement |
Major Types
- Holds wrist in ~20-30° extension, MCPs in 70-90° flexion, thumb abducted
- Used for: RA, post-op recovery, spasticity management, burn care
- Components: forearm trough, palmar pan, finger trough, Velcro straps
- Immobilizes wrist only; fingers and thumb are free
- Used for: carpal tunnel syndrome, wrist sprains, de Quervain's tenosynovitis, radial nerve palsy
- Has outrigger wires with finger slings to assist extension or flexion
- Used for: radial nerve palsy (low, high), post-tendon repair, Dupuytren's post-op
- Components: forearm base, outrigger, rubber band/spring, finger loops
- Positions thumb in palmar abduction/opposition
- Used for: median nerve palsy, CMC joint OA, scaphoid fractures
- Keeps fingers and wrist mobile while protecting the thumb
- Used in lower cervical quadriplegia (C6-C7 level)
- Wrist extension passively closes fingers (tenodesis action); wrist flexion opens them
- Can be body-powered or motorized
- Per Miller's Review of Orthopaedics: "wrist-driven hand orthoses are used in patients with lower cervical quadriplegia; the devices may be body-powered by tenodesis action or motor-driven; weight and cumbersomeness are the major limiting factors"
Additional Visual References
Key Clinical Notes (from Miller's Review of Orthopaedics, p. 887)
- Most common use today is postoperative care after injury or reconstructive surgery
- Devices can be static, static-progressive, or dynamic depending on the goal
- The opponens splint prepositiones the thumb but impairs tactile sensation
- In cervical quadriplegia, weight and cumbersomeness are the main limiting factors of wrist-driven orthoses
