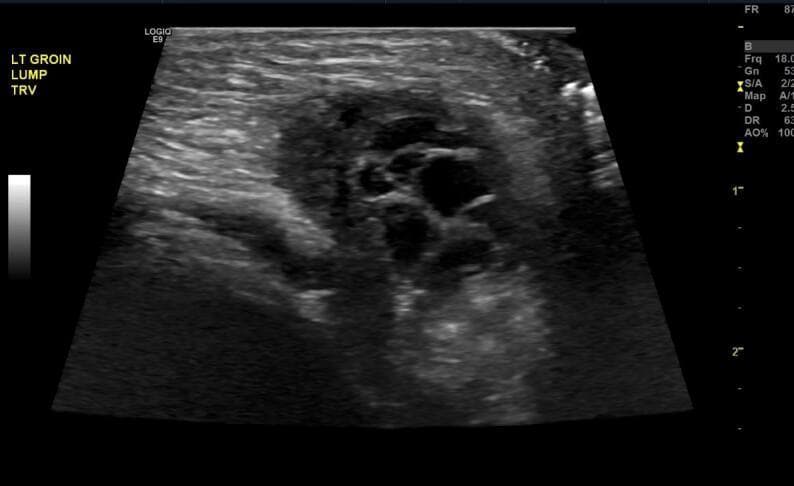

This diagnostic image is a gray-scale ultrasonography of the left groin area in a transverse (TRV) plane. The scan reveals a well-defined mass of mixed echogenicity within the inguinal canal, measuring approximately 2.1 x 1.1 cm. Central to the mass are multiple small, anechoic, circular structures consistent with ovarian follicles. The visualization of these follicles within the inguinal region is diagnostic of an incarcerated ovary within an inguinal hernia. The surrounding stromal tissue of the herniated ovary appears slightly hypoechoic compared to the adjacent hyperechoic subcutaneous fat. This image demonstrates a critical pediatric surgical emergency where normal pelvic anatomy is displaced into the inguinal canal, requiring prompt identification and reduction to prevent ovarian torsion or ischemia. Educational focus is on the sonographic recognition of ovarian tissue by its follicular pattern when evaluating a palpable inguinal lump.

This diagnostic image is a gray-scale ultrasonography of the left groin area in a transverse (TRV) plane. The scan reveals a well-defined mass of mixed echogenicity within the inguinal canal, measuring approximately 2.1 x 1.1 cm. Central to the mass are multiple small, anechoic, circular structures consistent with ovarian follicles. The visualization of these follicles within the inguinal region is diagnostic of an incarcerated ovary within an inguinal hernia. The surrounding stromal tissue of the herniated ovary appears slightly hypoechoic compared to the adjacent hyperechoic subcutaneous fat. This image demonstrates a critical pediatric surgical emergency where normal pelvic anatomy is displaced into the inguinal canal, requiring prompt identification and reduction to prevent ovarian torsion or ischemia. Educational focus is on the sonographic recognition of ovarian tissue by its follicular pattern when evaluating a palpable inguinal lump.

This laparoscopic diagnostic image depicts a view of the internal abdominal cavity, specifically focusing on the pelvic anatomy near the inguinal region. The primary visual element is the oviduct (fallopian tube), which is seen extending into an unclosed internal inguinal canal orifice, characteristic of an indirect inguinal hernia or incarcerated adnexa. The oviduct appears tubular, slightly thickened, and exhibits signs of mild edema and hyperaemia, evidenced by a swollen morphology and a reddish-pink hue due to increased vascularity. The surrounding parietal peritoneum shows a prominent network of small, congested blood vessels. Key anatomical landmarks visible include the internal ring of the inguinal canal and the adjacent abdominal wall lining. This image serves as an educational tool for identifying adnexal involvement in pediatric or adult female inguinal hernias and demonstrates the visual manifestations of early inflammatory changes (edema and hyperemia) in incarcerated tissue during laparoscopic exploration.

This laparoscopic diagnostic image depicts a view of the internal abdominal cavity, specifically focusing on the pelvic anatomy near the inguinal region. The primary visual element is the oviduct (fallopian tube), which is seen extending into an unclosed internal inguinal canal orifice, characteristic of an indirect inguinal hernia or incarcerated adnexa. The oviduct appears tubular, slightly thickened, and exhibits signs of mild edema and hyperaemia, evidenced by a swollen morphology and a reddish-pink hue due to increased vascularity. The surrounding parietal peritoneum shows a prominent network of small, congested blood vessels. Key anatomical landmarks visible include the internal ring of the inguinal canal and the adjacent abdominal wall lining. This image serves as an educational tool for identifying adnexal involvement in pediatric or adult female inguinal hernias and demonstrates the visual manifestations of early inflammatory changes (edema and hyperemia) in incarcerated tissue during laparoscopic exploration.

Hernia Anatomy — Topic Map

A hernia is a protrusion of a viscus (or part of one), covered by its peritoneal sac, through an abnormal opening in the wall of the cavity that normally contains it - most commonly a weakness in the abdominal wall. "Hernia anatomy" as a subject spans several distinct regions, each with its own defect, boundaries, and clinical relevance:
  1. General abdominal wall layers & the myopectineal orifice of Fruchaud - the shared anatomic "weak zone" that inguinal and femoral hernias both pass through
  2. Inguinal hernia - inguinal canal, deep/superficial rings, Hesselbach's triangle, direct vs. indirect pathways
  3. Femoral hernia - femoral canal, femoral ring boundaries (relation to inguinal ligament, femoral vein, lacunar ligament)
  4. Umbilical / paraumbilical hernia - umbilical ring, linea alba defect
  5. Epigastric and Spigelian hernia - linea alba above umbilicus; semilunar line defects
  6. Incisional / ventral hernia - defects through surgical scars in the abdominal wall layers
  7. Hiatal / diaphragmatic hernia - esophageal hiatus, sliding vs. paraesophageal types
  8. Rare hernias - obturator, lumbar (Petit's/Grynfeltt's), sciatic, perineal
Each has a different set of anatomical landmarks and clinical exam correlates (e.g., inguinal vs. femoral hernia distinction relative to the pubic tubercle is a classic exam point). Covering all of these in full anatomical detail with images in one answer would be very long.
Asking for Preferences

Which hernia anatomy would you like to go deep on?

Hernia Anatomy — Topic Map

A hernia is a protrusion of a viscus (or part of one), covered by its peritoneal sac, through an abnormal opening in the wall of the cavity that normally contains it - most commonly a weakness in the abdominal wall. "Hernia anatomy" as a subject spans several distinct regions, each with its own defect, boundaries, and clinical relevance:
  1. General abdominal wall layers & the myopectineal orifice of Fruchaud - the shared anatomic "weak zone" that inguinal and femoral hernias both pass through
  2. Inguinal hernia - inguinal canal, deep/superficial rings, Hesselbach's triangle, direct vs. indirect pathways
  3. Femoral hernia - femoral canal, femoral ring boundaries (relation to inguinal ligament, femoral vein, lacunar ligament)
  4. Umbilical / paraumbilical hernia - umbilical ring, linea alba defect
  5. Epigastric and Spigelian hernia - linea alba above umbilicus; semilunar line defects
  6. Incisional / ventral hernia - defects through surgical scars in the abdominal wall layers
  7. Hiatal / diaphragmatic hernia - esophageal hiatus, sliding vs. paraesophageal types
  8. Rare hernias - obturator, lumbar (Petit's/Grynfeltt's), sciatic, perineal
Each has a different set of anatomical landmarks and clinical exam correlates (e.g., inguinal vs. femoral hernia distinction relative to the pubic tubercle is a classic exam point). Covering all of these in full anatomical detail with images in one answer would be very long.
Finding Sources
Finding Sources
Finding Sources
Finding Sources
Finding Sources
Searching Images

anatomical diagram of abdominal wall hernia sites epigastric umbilical Spigelian

Finding Sources
Finding Sources

Hernia Anatomy — Overview by Region

A hernia is the protrusion of a viscus, or part of one, through a weakness in the wall of the cavity that normally contains it. Most clinically important hernias occur in the abdominal wall, and the anatomy differs by site.

1. The shared "weak zone" — myopectineal orifice of Fruchaud

Both inguinal and femoral hernias emerge through a single anatomical region described by Fruchaud: the myopectineal orifice - bounded by the internal oblique/transversus arch above, the iliopsoas laterally, the rectus sheath medially, and the pectineal (Cooper's) ligament below. The inguinal ligament crosses this orifice and divides it into an upper (inguinal) and lower (femoral) compartment. This is why preperitoneal mesh repairs cover the whole orifice rather than treating each hernia type separately (Sabiston Textbook of Surgery).

2. Inguinal hernia

  • Inguinal canal: ~4 cm long, running from the deep (internal) inguinal ring (an opening in the transversalis fascia, lateral to the inferior epigastric vessels) to the superficial (external) inguinal ring (an opening in the external oblique aponeurosis, above the pubic tubercle). It transmits the spermatic cord in men / round ligament in women, plus the ilioinguinal and genital branch of the genitofemoral nerve (Gray's Anatomy for Students).
  • Hesselbach's triangle: bounded medially by the lateral border of rectus abdominis, superolaterally by the inferior epigastric vessels, and inferiorly by the inguinal ligament. A weakness here (thinned/ballooned transversalis fascia) is the site of direct inguinal hernias.
  • Direct vs indirect:
    • Indirect: sac enters the deep ring lateral to the epigastric vessels, follows the spermatic cord through the canal, and may exit the superficial ring into the scrotum - congenital, from a patent processus vaginalis.
    • Direct: sac pushes straight through Hesselbach's triangle, medial to the epigastric vessels - acquired, from fascial weakness.
  • Both directions are above the inguinal ligament, which is the key landmark distinguishing them from femoral hernias (Goldman-Cecil Medicine; Fischer's Mastery of Surgery).

3. Femoral hernia

  • The femoral sheath contains (lateral to medial) the femoral artery, femoral vein, and femoral canal.
  • The femoral ring (internal opening) is bounded by the inguinal ligament anteriorly, the pectineal ligament/superior pubic ramus posteriorly, the femoral vein laterally, and the lacunar ligament medially.
  • A femoral hernia passes through this ring, below and lateral to the pubic tubercle (versus inguinal hernias, which are above/medial to it) - the classic bedside distinguishing point. Femoral hernias are more common in women due to a wider pelvis and larger femoral ring, and they carry higher strangulation risk because the ring is rigid and narrow (Gray's Anatomy for Students; Fischer's Mastery of Surgery).

4. Umbilical / paraumbilical hernia

The umbilicus is a midline defect in the linea alba. In children, incomplete closure of the umbilical ring after cord separation leaves a defect (most close spontaneously by age 4). In adults, stretching/thinning of the linea alba (pregnancy, obesity, cirrhotic ascites) reopens or enlarges the defect - true umbilical hernias go through the umbilical ring itself; paraumbilical/supraumbilical hernias occur through the linea alba just above it (Bailey and Love's Short Practice of Surgery).

5. Epigastric and Spigelian hernia

  • Epigastric hernia: defect in the linea alba between the xiphoid and umbilicus, where it is narrower and weaker.
  • Spigelian hernia: occurs at the semilunar line (the lateral border of the rectus sheath, where internal oblique and transversus abdominis aponeuroses fuse) - the "Spigelian fascia" here is variably thin, widest near the umbilicus. These are often intraparietal (sac dissects between muscle layers under an intact external oblique), which can make them clinically occult (Maingot's Abdominal Operations; Sabiston Textbook of Surgery).

6. Incisional / ventral hernia

Occurs through a defect in a prior surgical scar where the abdominal wall layers (fascia, muscle) have failed to heal, allowing peritoneum and viscera to protrude under skin and subcutaneous fat.

7. Hiatal / diaphragmatic hernia

Herniation of the stomach (and occasionally other viscera) through the esophageal hiatus of the diaphragm, where the phrenoesophageal ligament weakens. Four types (Harrison's Principles of Internal Medicine; Sleisenger and Fordtran's):
  • Type I (sliding) - ~90-95%; the gastroesophageal junction itself slides upward into the thorax.
  • Type II (paraesophageal, pure) - GE junction stays in place, but the fundus herniates alongside it.
  • Type III (mixed) - combination of sliding and paraesophageal components; most "paraesophageal" hernias are actually this type.
  • Type IV - large defect with herniation of other organs (colon, spleen, small bowel) alongside the stomach.

Quick landmark summary

HerniaKey structurePosition relative to inguinal ligament / pubic tubercle
Indirect inguinalDeep ring, lateral to epigastric vesselsAbove
Direct inguinalHesselbach's triangle, medial to epigastric vesselsAbove
FemoralFemoral ring/canalBelow and lateral
UmbilicalUmbilical ring / linea albaMidline, at umbilicus
SpigelianSemilunar lineLateral rectus border
HiatalEsophageal hiatus of diaphragmNot abdominal wall - thoracoabdominal
If you want, I can go deeper into one area with clinical exam findings, imaging, or surgical repair anatomy (e.g., Lichtenstein vs. laparoscopic TEP/TAPP views of the myopectineal orifice) - just let me know which.

Explain surgical repair approaches (open vs. laparoscopic)

Finding Sources
Finding Sources
Finding Sources
Finding Sources
Searching PubMed

"inguinal hernia" AND laparoscopic vs open repair

Surgical Repair Approaches for Hernia: Open vs. Laparoscopic

Open repair

A. Tissue (non-mesh) repairs - approximate native tissue layers under tension; largely historical but still used when mesh is contraindicated (e.g., contaminated field):
  • Bassini repair - the original tension repair; approximates the transversus abdominis aponeurosis and transversalis fascia to the inguinal ligament.
  • Shouldice repair - a refined Bassini modification; the transversalis fascia is opened and the inguinal floor is reconstructed in four continuous suture layers. Expert centers report recurrence rates under 2%, but it is technically demanding and results elsewhere often resemble a plain Bassini (Bailey and Love's Short Practice of Surgery).
  • McVay (Cooper's ligament) repair - sutures the conjoint tendon to Cooper's ligament rather than the inguinal ligament, which also closes the femoral ring - the preferred tissue repair for femoral hernias or when mesh cannot be used (Schwartz's Principles of Surgery).
B. Open mesh (tension-free) repairs - now standard of care for adult inguinal hernia:
  • Lichtenstein repair - a flat polypropylene mesh is laid over the posterior inguinal floor and sutured to the conjoint tendon medially and inguinal ligament inferiorly, with a slit for the spermatic cord. This became the benchmark technique because it eliminates suture-line tension, the main driver of recurrence (Sabiston Textbook of Surgery).
  • Mesh plug and patch, Prolene Hernia System (PHS) - variations using a plug or bilayer device combining anterior and preperitoneal mesh; PHS relies on a posterior mesh component similar in principle to Lichtenstein. Current guidelines favor flat mesh (Lichtenstein) over 3-dimensional plug devices (Mulholland and Greenfield's Surgery).
  • Open preperitoneal repair (Stoppa, transinguinal preperitoneal) - large mesh placed behind the transversalis fascia covering the whole myopectineal orifice; useful for bilateral or recurrent hernias.

Laparoscopic / minimally invasive repair

Both approaches place mesh in the preperitoneal space over the myopectineal orifice, differing only in how that space is accessed:
  • TAPP (transabdominal preperitoneal) - the peritoneal cavity is entered first, a peritoneal flap is raised, mesh is placed in the preperitoneal space, and the peritoneum is closed over it. Easier to learn and gives a full view of anatomy, but carries a higher risk of intra-abdominal injury (bowel, vessels) since the peritoneal cavity is opened.
  • TEP (totally extraperitoneal) - the preperitoneal space is accessed and developed (often with a balloon dissector) without ever entering the peritoneal cavity. Avoids intraperitoneal complications and adhesions but has a steeper learning curve.
  • The HerniaSurge Group's 2018 International Guidelines consider TAPP and TEP largely equivalent in operative time, cost, complications, and recurrence; choice depends on surgeon experience and hernia complexity (large inguinoscrotal or recurrent hernias may favor TAPP for its wider working view) (Current Surgical Therapy).
  • Robot-assisted repair is an emerging variant following the same TAPP/TEP anatomic principles with robotic instrumentation.

Open vs. laparoscopic: how they compare

FactorOpen (Lichtenstein)Laparoscopic (TEP/TAPP)
Postoperative painMoreLess
Recovery / return to activitySlowerFaster
Operative timeShorter (especially unilateral)Longer, especially early in learning curve
RecurrenceComparable in expert hands; some meta-analyses show a trend toward slightly higher recurrence with laparoscopic in earlier trialsComparable overall; low with adequate mesh overlap and experience
Chronic groin pain / nerve injurySomewhat higherLower (nerves less handled)
Bilateral or recurrent herniaRequires separate/larger incisionWell suited - same ports treat both sides
Learning curveShorterLonger, requires significant case volume for TEP/TAPP proficiency
CostLower (no laparoscopic equipment)Higher
AnesthesiaCan be done under local/regionalRequires general anesthesia + pneumoperitoneum
Meta-analyses summarized in Sleisenger and Fordtran's and Maingot's Abdominal Operations found laparoscopic repair causes less pain and faster recovery, but some early trials showed a trend toward higher recurrence versus open mesh repair; larger subsequent meta-analyses (41 RCTs) found no significant difference in recurrence once surgeon experience was accounted for. Current consensus (HerniaSurge/Mulholland and Greenfield's) is that laparoscopic (TEP/TAPP) is suggested for male primary unilateral hernias by experienced laparoscopic surgeons, while Lichtenstein remains the recommended default open approach, and Shouldice is the recommended nonmesh option when mesh is unsuitable.

Practical selection points

  • Bilateral, recurrent (after prior open repair), or need for rapid return to activity → favor laparoscopic.
  • Contaminated/strangulated hernia, local anesthesia needed, low-volume laparoscopic center, or femoral hernia → favor open (Lichtenstein or McVay).
  • Ventral/incisional hernia: similar logic applies - laparoscopic (or robotic) IPOM/retromuscular repair gives lower wound infection rates and faster recovery with comparable recurrence versus open repair, per a meta-analysis of 11 studies cited in Schwartz's Principles of Surgery.
  • Paraesophageal/hiatal hernia: laparoscopic repair is now the standard approach for elective repair, with outcomes comparable to open transabdominal or transthoracic repair but faster recovery, per comparative series in Maingot's Abdominal Operations.

Recent evidence check

A quick PubMed check (last 3 years, systematic reviews/meta-analyses) surfaced several relevant papers that refine but do not contradict the textbook consensus above:
  • Learning curve analysis for laparoscopic inguinal hernia repair (PMID: 36416945) - confirms a meaningful proficiency threshold, reinforcing why outcomes vary by surgeon experience.
  • Sexual dysfunction after laparoscopic vs open inguinal hernia repair (PMID: 37450061) - suggests laparoscopic repair may have a favorable profile for this specific complication.
  • Laparoscopic vs open repair for incarcerated inguinal hernia in children (PMID: 36220132) - relevant if pediatric incarcerated hernia is a concern, an area not detailed in the general textbook comparison above.
None of these overturn the standard teaching, but they add nuance on surgeon learning curve and specific complication profiles worth knowing if you're deciding on a technique for a particular patient population.
