IVUS — Intravascular Ultrasound

---

1. Definition

According to Harrison's Principles of Internal Medicine, 21st Edition (p. 6916): "IVUS provides a more accurate anatomic assessment of the coronary artery and the degree of coronary atherosclerosis... used to image atherosclerotic plaque precisely, determine luminal cross-sectional area, and measure vessel size."

---

2. Working Principle

• Higher frequency → better axial resolution (~100 µm) but limited penetration (~10 mm)
• Lower frequency → deeper penetration for larger vessels (e.g., aorta)

---

3. Catheter-Based Transducer Design

A. Mechanical (Rotational) IVUS

• A single piezoelectric transducer element at the catheter tip rotates at ~1,800 RPM driven by a flexible driveshaft
• Produces one scan line per rotation; a full 360° image is formed per revolution
• Advantage: High image quality, uniform resolution
• Disadvantage: Mechanical artifacts — "NURD" (Non-Uniform Rotational Distortion) when the driveshaft binds

B. Solid-State (Phased Array) IVUS

• 64 or more piezoelectric elements arranged circumferentially around the catheter tip, activated electronically in sequence (no moving parts)
• Electronic beam steering generates the 360° image
• Advantage: No NURD artifact; more flexible catheter; real-time imaging
• Disadvantage: Slightly lower resolution; near-field artifacts (ring-down artifact from catheter itself)

---

4. Imaging Mechanism Inside the Vessel

What is Visualized (Layer by Layer):

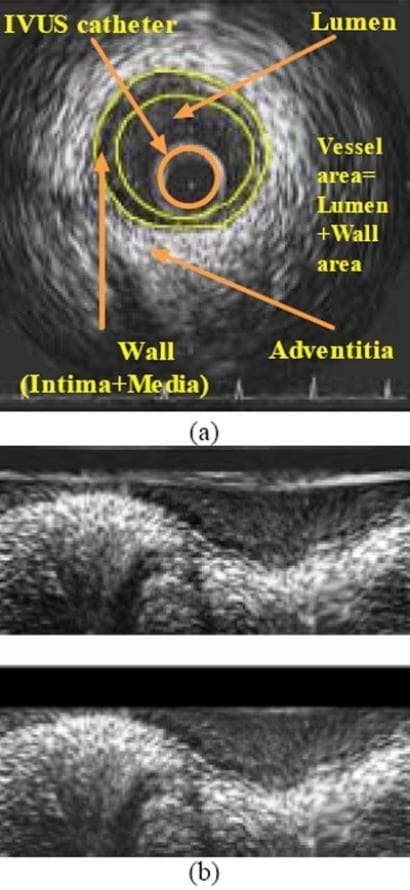

Key Measurements Obtained:

• Lumen Cross-Sectional Area (LCSA) — inner boundary of intima
• Vessel Cross-Sectional Area (VCSA) — outer boundary of media (external elastic lamina)
• Wall/Plaque Area (WCSA) = VCSA − LCSA
• Plaque burden (%) = (WCSA / VCSA) × 100

Clinical Applications:

1. Intermediate stenosis assessment (40–70% lesions on angiography)
2. Pre-PCI planning — vessel sizing, lesion characterization
3. Post-stent assessment — stent apposition, expansion, edge dissection
4. Plaque vulnerability — identifying lipid-rich or thin-cap fibroatheroma
5. Left main coronary disease evaluation
6. Detecting positive (outward) remodeling — vessel enlarges to accommodate plaque (Glagov phenomenon), invisible on angiography

---

Summary Diagram of the IVUS System

[Console/Processor] ←→ [Pullback Device] ←→ [IVUS Catheter (transducer at tip)]
                                                        ↓
                                        Emits 40 MHz ultrasound pulses radially
                                                        ↓
                                        Echoes reflected from vessel wall layers
                                                        ↓
                                        360° cross-sectional grayscale image
                                                        ↓
                              Pullback at 0.5 mm/s → 3D longitudinal reconstruction

---

---

IVUS Instrumentation

1. The IVUS Catheter
2. The Transducer (ultrasound element)
3. The Pullback Device
4. The Imaging Console
5. Signal Processing & Display

---

1. The IVUS Catheter

Physical Specifications

Catheter Construction (Layers, Proximal to Distal)

Proximal Hub (connector to console)
        ↓
Outer Shaft (polyimide/nylon braid for torque transmission)
        ↓
Inner Lumen (guidewire channel)
        ↓
Drive Cable / Electrical Conductors (to transducer)
        ↓
Transducer Housing (tip)
        ↓
Atraumatic Distal Tip (soft, tapered)

• The outer shaft must be flexible enough to navigate tortuous coronary anatomy, yet stiff enough to transmit torque and pullback motion
• The inner guidewire lumen runs alongside or coaxially depending on design (monorail = rapid-exchange; over-the-wire = full lumen)
• Flush ports allow saline flushing to remove air (air causes acoustic shadowing)

---

2. Transducer — The Core Ultrasound Element

A. Piezoelectric Crystal

• Material: PZT (Lead Zirconate Titanate) or newer PVDF (polyvinylidene fluoride)
• Principle: Piezoelectric effect — mechanical deformation produces voltage; applied voltage produces mechanical vibration (ultrasound pulse)
• The crystal is excited by a short electrical pulse → vibrates at its resonant frequency → emits an ultrasound burst

B. Frequency Selection

Higher frequency = finer resolution but shallower penetration. Coronary IVUS uses 40 MHz as an optimal trade-off.

C. Two Transducer Architectures

i. Mechanical (Single-Element Rotational) Transducer

         Motor Drive Unit
               ↓
    Flexible Torque Cable (driveshaft)
               ↓
    Single Piezoelectric Element
         (rotates at ~1,800 RPM)
               ↓
    Ultrasound emitted radially as it rotates
    → 360° image assembled from sequential scan lines

• One scan line per pulse; full rotation = one cross-sectional frame
• Frame rate: ~30 frames/sec
• Acoustic mirror variant: crystal is fixed, mirror rotates (reduces size)
• Artifact — NURD (Non-Uniform Rotational Distortion): uneven rotation due to driveshaft friction in tortuous vessels causes image smearing/distortion

ii. Solid-State (Phased Array / Multi-Element) Transducer

    64 piezoelectric elements arranged circumferentially
    around catheter tip (no moving parts)
               ↓
    Electronic multiplexer activates elements sequentially
               ↓
    Synthetic aperture reconstruction → 360° image

• No mechanical rotation → no NURD artifact
• More flexible catheter profile
• Near-field artifact: ring-down artifact (reverberation near catheter surface)
• Frame rate: up to 30 frames/sec

---

3. Pullback Device (Motorized Pullback Unit)

Components

Why Controlled Pullback Matters

• Constant speed = known distance between frames → accurate volumetric measurements
• Enables 3D reconstruction of plaque volume and vessel geometry
• Manual pullback is unreliable for quantitative analysis

---

4. Imaging Console

Console Subsystems

┌──────────────────────────────────────┐
│           IVUS CONSOLE               │
│                                      │
│  ┌─────────────┐  ┌───────────────┐  │
│  │  Pulser /   │  │  Receiver /   │  │
│  │  Transmitter│  │  Amplifier    │  │
│  └─────────────┘  └───────────────┘  │
│          ↓               ↑           │
│  ┌───────────────────────────────┐   │
│  │    Time-Gain Compensation     │   │
│  │         (TGC)                 │   │
│  └───────────────────────────────┘   │
│  ┌───────────────────────────────┐   │
│  │   Analog-to-Digital Converter │   │
│  │         (ADC)                 │   │
│  └───────────────────────────────┘   │
│  ┌───────────────────────────────┐   │
│  │    Digital Signal Processor   │   │
│  │         (DSP)                 │   │
│  └───────────────────────────────┘   │
│  ┌───────────────────────────────┐   │
│  │   Scan Converter / Display    │   │
│  └───────────────────────────────┘   │
└──────────────────────────────────────┘

Each Console Component Explained

a. Pulser / Transmitter

• Generates short, high-voltage electrical pulses (excitation pulses) sent to the piezoelectric crystal
• Pulse duration is very brief (~nanoseconds) to achieve short spatial pulse length → better axial resolution

b. Receiver / Pre-Amplifier

• Amplifies the weak returning echo signals before digitization
• Must handle a very wide dynamic range (strong near-field echoes vs. weak far-field echoes)

c. Time-Gain Compensation (TGC)

• Ultrasound attenuates as it travels deeper (deeper echoes are weaker)
• TGC applies progressively increasing amplification with depth to equalize image brightness across all depths
• Result: uniform grayscale appearance regardless of depth

d. Analog-to-Digital Converter (ADC)

• Converts analog echo waveforms → digital data
• Sampling rate: typically 200–500 MHz for 40 MHz IVUS
• Higher sampling rate → more precise depth resolution

e. Digital Signal Processor (DSP)

• Performs envelope detection (extracts amplitude of RF signal)
• Log compression — compresses wide dynamic range into displayable grayscale
• Scan conversion — converts polar coordinate data (radius, angle) to Cartesian (x, y) for display
• Image filtering and smoothing

f. ECG Module

• Synchronizes imaging with cardiac cycle
• Allows ECG-gated frame acquisition to reduce motion artifact from heartbeat
• Displays cardiac rhythm alongside IVUS images

---

5. Signal Processing & Display

Scan Conversion

Image Display Modes

Virtual Histology (VH-IVUS) — Advanced Signal Processing

---

Complete IVUS System — Integrated Overview

GUIDEWIRE → advanced into coronary artery
      ↓
IVUS CATHETER → delivered over guidewire to target lesion
      ↓
TRANSDUCER (40 MHz piezoelectric crystal)
  → emits ultrasound pulses radially (mechanical rotation or phased array)
      ↓
ECHOES return from vessel wall layers
      ↓
SIGNAL travels via cable to:
      ↓
CONSOLE:
  Pulser → Receiver → TGC → ADC → DSP → Scan Converter
      ↓
DISPLAY: Real-time 360° cross-sectional grayscale image
      ↓
PULLBACK DEVICE: Withdraws catheter at 0.5 mm/sec
      ↓
LONGITUDINAL / 3D RECONSTRUCTION of full vessel segment

---

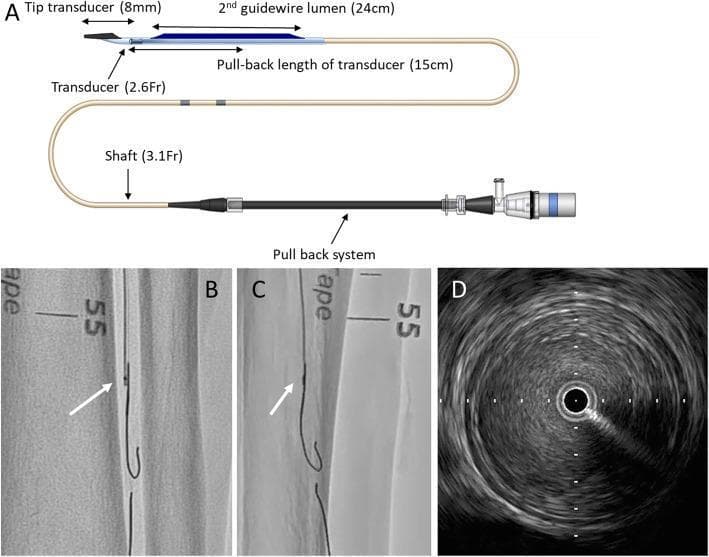

IVUS Catheter System — Clinical Illustration

---

Summary Table — IVUS Instrumentation Components

Intravascular Ultrasound (IVUS) Instrumentation

Detailed explanation of each part

---

1) IVUS Catheter Assembly (intravascular hardware)

a) Distal soft tip

• Atraumatic flexible tip at the front
• Helps cross lesions safely and reduces vessel injury risk

b) Transducer housing (near distal tip)

• Contains the ultrasound transducer (single rotating element or array)
• Positioned close to lesion for high-quality intraluminal imaging

c) Shaft

• Thin torqueable polymer-braided shaft
• Balances pushability (to advance), trackability (through tortuous vessels), and kink resistance

d) Guidewire lumen

• Channel for guidewire compatibility (commonly 0.014" in coronary IVUS)
• May be rapid-exchange (monorail) or over-the-wire design

e) Proximal hub/connector

• Connects catheter to motor drive unit and console cable
• Provides electrical pathway and mechanical coupling

---

2) Ultrasound Transducer (core sensing element)

Types

A) Mechanical (rotational) IVUS

• One piezoelectric element rotates rapidly (about 1800 rpm)
• Produces 360° cross-sectional image line-by-line
• Pros: high image quality
• Limitation: rotational artifacts (NURD) if rotation becomes nonuniform

B) Solid-state (phased-array) IVUS

• Multiple fixed elements around tip, fired electronically
• No rotating shaft
• Pros: less rotational distortion, better mechanical reliability
• Limitation: different near-field artifact profile

Frequency role

• Typical coronary IVUS around 40 MHz (as described in Harrison’s, p. 6916)
• Higher frequency gives better resolution but shallower penetration
• Lower frequency gives deeper penetration but lower resolution

---

3) Drive/Interface Unit

a) Motor drive (for rotational systems)

• Spins the driveshaft or rotating transducer at constant speed
• Stable rotation is critical for circular geometry and accurate measurements

b) Electrical interface

• Sends transmit pulses to transducer
• Receives tiny echo signals and routes them to console receiver

---

4) Pullback Device

Function

• Withdraws catheter at a known constant speed (commonly 0.5 or 1.0 mm/s)
• Converts many cross-sectional frames into longitudinal vessel mapping

Why it matters

• Enables reproducible measurements:
  • lesion length
  • plaque volume
  • stent segment analysis
• Manual pullback is less accurate for quantitative analysis

---

5) IVUS Console Electronics

a) Pulser/Transmitter

• Generates very short high-voltage electrical impulses
• Excites transducer to emit ultrasound pulses into vessel wall

b) Receiver/Pre-amplifier

• Captures weak returning echo signals
• Amplifies them while preserving signal fidelity

c) Time Gain Compensation (TGC)

• Compensates for depth-dependent attenuation
• Deep echoes are amplified more so image brightness is balanced

d) Analog-to-Digital Converter (ADC)

• Converts analog echo waveforms into digital data
• High sampling needed for precise axial localization

e) Digital Signal Processor (DSP)

1. filtering
2. envelope detection
3. dynamic range/log compression
4. artifact handling
5. scan conversion support

---

6) Scan Conversion and Image Reconstruction

Scan converter

• Transforms polar data into familiar circular cross-sectional image

Display outputs

• Real-time 2D vessel cross section
• Longitudinal “pullback” view
• Quantitative overlays (lumen and vessel contours, area values)

---

7) Software Measurement and Analysis Module

Core measurements

• Lumen CSA
• Vessel (EEM) CSA
• Plaque burden = (vessel area - lumen area) / vessel area
• Lesion length and stent expansion metrics

Clinical use

• Pre-PCI vessel sizing
• Post-stent optimization (underexpansion, malapposition, edge dissection)
• Plaque characterization support

---

8) Display, Recording, and Data Management

Includes

• High-resolution monitor
• Cine loop playback (frame-by-frame review)
• Procedure recording and export
• Integration with cath lab systems (DICOM/PACS in many setups)

---

9) Ancillary Components

• Sterile flush system (reduces air artifacts)
• ECG gating input (optional motion-reduced analysis)
• Footswitch/user controls for acquisition and pullback actions

---

End-to-end workflow (instrumentation in action)

1. Guidewire crosses lesion
2. IVUS catheter advanced distal to lesion
3. Console sends pulses; transducer emits ultrasound
4. Echoes return from lumen-intima-media-adventitia/plaque interfaces
5. Receiver + DSP process signals into grayscale image
6. Pullback device withdraws catheter at constant speed
7. Software quantifies lumen/vessel/plaque and supports PCI decisions

---

Quick system block diagram

---

1. a labeled exam-style IVUS instrumentation diagram, or
2. a comparison table of IVUS vs OCT instrumentation, which is commonly asked in viva/practical exams.

---

IVUS Transducer-Based Catheters

---

Definition

Harrison's Principles of Internal Medicine (21st Ed., p. 6916): "IVUS is performed using a small flexible catheter with a 40-mHz transducer at its tip that is advanced into the coronary artery over a guidewire."

---

Classification of IVUS Transducer Catheters

IVUS Transducer Catheters
        |
   _____|______
  |            |
Mechanical   Solid-State
(Rotational) (Phased Array)
  |
  |_______________
  |               |
Single-element  Acoustic mirror
rotating        (fixed crystal,
crystal         rotating mirror)

---

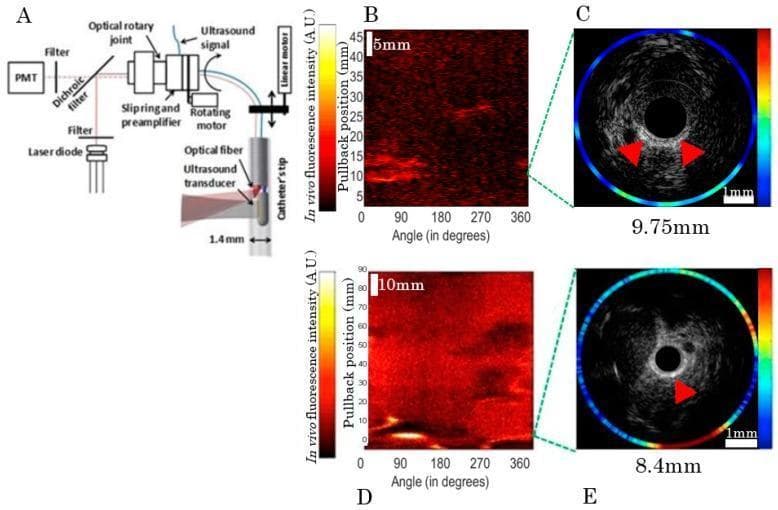

TYPE 1 — Mechanical (Rotational) IVUS Catheter

Definition

---

Components

1. Distal Atraumatic Tip

• Soft, rounded, tapered polyurethane tip
• Positioned beyond the transducer
• Purpose: guides catheter across lesions without traumatizing vessel wall; allows smooth advancement through tight stenoses

2. Transducer Housing / Window

• A thin-walled acoustic window surrounding the rotating element
• Made of acoustically transparent material (minimal signal loss)
• Purpose: allows ultrasound to pass freely in and out while protecting the rotating inner assembly

3. Single Piezoelectric Crystal (Rotating Element)

• The actual sound-generating element
• Material: Lead Zirconate Titanate (PZT) or PVDF (polyvinylidene fluoride)
• Frequency: 40–45 MHz (coronary); 20 MHz (peripheral)
• Size: extremely small (fraction of a millimeter)
• Purpose: converts electrical pulses → ultrasound pulses (transmit); converts returning echoes → electrical signals (receive)

4. Acoustic Mirror Variant (optional design)

• In some designs, the crystal is fixed and a tiny rotating mirror redirects the beam laterally
• Allows even smaller catheter profile
• Eliminates issues from rotating electrical connections

5. Flexible Drive Cable (Torque Shaft)

• A stainless-steel coaxial cable running the full catheter length (~135–150 cm)
• Connects rotating transducer to the external motor drive unit
• Purpose: transmits rotational force from external motor to spinning transducer tip; also conducts electrical signals to/from transducer

6. Outer Catheter Shaft

• Multi-layer polymer construction (inner PTFE + braided reinforcement + outer nylon/polyurethane)
• Purpose: provides structural integrity, torque response, and kink resistance during navigation

7. Guidewire Lumen

• Inner channel for 0.014" guidewire
• Rapid-exchange (monorail) or over-the-wire configurations
• Purpose: tracks over pre-placed guidewire for safe coronary delivery

8. Flush Port / Saline Sheath

• Allows saline flushing around the rotating assembly
• Critical because air causes acoustic shadowing — saline displaces air and acts as an acoustic coupling medium between transducer and vessel wall

9. Proximal Connector Hub

• Interfaces catheter with:
  • Motor drive unit (mechanical coupling for rotation)
  • Electrical connector (signal transmission)
• Purpose: bridges disposable catheter to reusable console hardware

---

Working of Mechanical IVUS Catheter

STEP 1: Preparation
        → Catheter flushed with saline to remove air bubbles
        → Connected to motor drive unit at proximal hub

STEP 2: Delivery
        → Advanced through guiding catheter over 0.014" guidewire
        → Positioned distal to target lesion

STEP 3: Rotation
        → Motor drive unit rotates drive cable at ~1,800 RPM
        → Single piezoelectric element spins inside housing

STEP 4: Pulse Emission
        → Console sends electrical pulse to spinning transducer
        → Transducer vibrates at resonant frequency (40 MHz)
        → Short ultrasound burst emitted radially into vessel wall

STEP 5: Echo Reception
        → Ultrasound hits acoustic interfaces:
          blood/intima → intima/media → media/adventitia → plaque
        → Partial echoes reflected back at each boundary
        → Transducer receives echoes, converts back to electrical signals

STEP 6: Image Line Formation
        → One transmitted pulse + received echoes = ONE radial scan line
        → Depth encoded by time-of-flight of each echo

STEP 7: 360° Frame Assembly
        → As transducer rotates, new scan lines acquired at each angular position
        → ~360 scan lines per revolution = one complete cross-sectional frame
        → Frame rate: ~30 frames/second

STEP 8: Pullback
        → Motorized pullback withdraws catheter at 0.5 mm/sec
        → Sequential frames stacked → longitudinal & 3D vessel reconstruction

---

Artifact — NURD (Non-Uniform Rotational Distortion)

---

TYPE 2 — Solid-State (Phased Array) IVUS Catheter

Definition

---

Components

1. Multi-Element Phased Array Transducer

• 64 individual piezoelectric elements arranged as a ring around the catheter circumference
• Each element is tiny (~50–100 µm wide)
• Elements fired sequentially by electronic multiplexer
• Purpose: each element contributes scan lines at different angles → full 360° coverage without any moving parts

2. Application-Specific Integrated Circuit (ASIC)

• Miniaturized integrated circuit embedded within the catheter tip
• Purpose: controls timing of element firing, multiplexing, and preliminary signal conditioning — essential because 64 signal wires cannot run the full catheter length

3. Flexible Printed Circuit Board (PCB)

• Thin flexible substrate connecting elements to ASIC and cable
• Purpose: routes electrical signals within extremely tight catheter dimensions

4. Catheter Shaft (No Drive Cable Needed)

• Simpler construction than mechanical type
• No rotating driveshaft — catheter is more flexible and trackable
• Multi-lumen design carries signal conductors

5. Guidewire Lumen

• Same as mechanical type (0.014" compatibility)

6. Proximal Electrical Connector

• Pure electrical interface (no mechanical coupling required)
• Connects to console for power supply and signal transfer

---

Working of Solid-State IVUS Catheter

STEP 1: Preparation & Delivery
        → No flushing required (no rotating assembly, no air trapping concern)
        → Advanced over guidewire to target site

STEP 2: Electronic Activation
        → Console sends firing sequence to ASIC in catheter tip
        → ASIC activates elements one-by-one (or in small groups)
          around the 360° circumference

STEP 3: Pulse-Echo per Element
        → Each activated element emits an ultrasound pulse
        → Listens for returning echoes
        → One element = one angular scan line

STEP 4: Synthetic Aperture Processing
        → Signals from adjacent elements mathematically combined
        → Improves lateral resolution beyond what one element achieves
        → DSP in console performs this reconstruction

STEP 5: 360° Frame Assembly
        → All 64 elements complete one firing cycle = one full frame
        → Frame rate: ~30 frames/sec

STEP 6: Pullback & Reconstruction
        → Same motorized pullback process
        → Sequential frames build longitudinal/3D vessel map

---

Artifact — Ring-Down Artifact

---

Comparison Table — Mechanical vs Solid-State IVUS Catheter

---

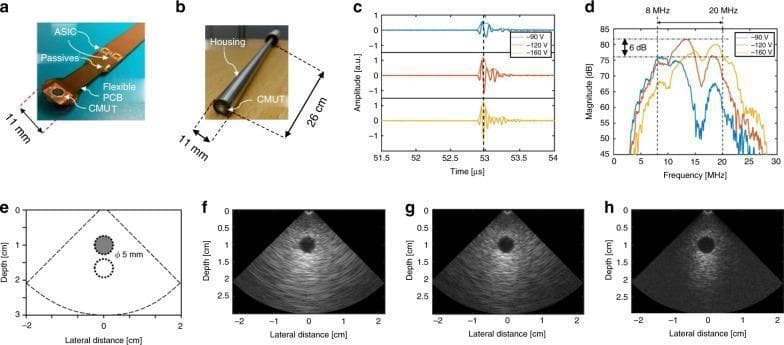

CMUT — Emerging Transducer Technology

• Fabricated using semiconductor microfabrication (MEMS technology)
• Integrated directly with ASICs on flexible PCB within catheter
• Frequency tunable by adjusting bias voltage (e.g., 8–20 MHz range from same device)
• Enables switchable modes: high-penetration vs high-resolution imaging
• Smaller profile, better bandwidth, and improved signal-to-noise ratio

---

Piezoelectric Transducer — Physical Principle (Core of all IVUS catheters)

TRANSMIT MODE:
Electrical pulse applied to crystal
        ↓
Crystal deforms mechanically (inverse piezoelectric effect)
        ↓
Rapid mechanical vibration at resonant frequency
        ↓
Ultrasound wave emitted into medium

RECEIVE MODE:
Returning echo strikes crystal
        ↓
Mechanical deformation of crystal
        ↓
Voltage generated across crystal faces (direct piezoelectric effect)
        ↓
Electrical signal sent to console receiver

f = v / 2t (where v = speed of sound in crystal, t = thickness)

• Thinner crystal → higher frequency → better resolution but more fragile

---

Key Technical Parameters of IVUS Transducer Catheters

---

Summary — Key Points for Exam

1. IVUS transducer catheters use the piezoelectric effect to generate and detect ultrasound from within the vessel
2. Two main types: mechanical (single rotating element) and solid-state (64-element phased array)
3. Mechanical type uses a rotating drive shaft → excellent image quality but NURD artifact
4. Solid-state type uses electronic beam steering → no moving parts but ring-down artifact
5. Coronary IVUS uses 40 MHz — optimal balance of resolution (~100 µm) and penetration (~10 mm)
6. Saline flushing is essential in mechanical systems to eliminate air acoustic shadowing
7. CMUT technology is the next-generation transducer using MEMS fabrication with tunable frequency
8. The drive cable in mechanical systems transmits both rotation force and electrical signals simultaneously
9. Pullback at 0.5 mm/sec allows volumetric plaque analysis and lesion length measurement
10. All designs ultimately produce the same output: 360° grayscale cross-sectional images of the vessel wall

---

IVUS Transducer-Based Catheters

Complete Notes — Definition | Components | Working

---

SECTION 1 — DEFINITION

Harrison's Principles of Internal Medicine, 21st Ed. (p. 6916): "IVUS is performed using a small flexible catheter with a 40-mHz transducer at its tip that is advanced into the coronary artery over a guidewire... used to image atherosclerotic plaque precisely, determine luminal cross-sectional area, and measure vessel size."

Key defining features:

• Works from inside the vessel (intravascular)
• Uses high-frequency ultrasound (20–60 MHz)
• Produces tomographic (cross-sectional) images
• Both transmitter and receiver are the same element (pulse-echo mode)
• Provides anatomical truth — vessel wall layers, plaque burden, lumen geometry

---

SECTION 2 — CLASSIFICATION OF IVUS TRANSDUCER CATHETERS

        IVUS Transducer-Based Catheters
                     |
        _____________|_____________
        |                         |
  TYPE 1: MECHANICAL          TYPE 2: SOLID-STATE
  (Rotational)                (Phased Array)
        |
   _____|_____
   |         |
Single     Acoustic
rotating   mirror
crystal    design

---

SECTION 3 — TYPE 1: MECHANICAL (ROTATIONAL) IVUS CATHETER

3.1 Definition

---

3.2 Detailed Components

---

COMPONENT 1 — Distal Atraumatic Tip

---

COMPONENT 2 — Acoustic Window / Transducer Housing

---

COMPONENT 3 — Piezoelectric Crystal (Single Rotating Element)

TRANSMIT:
Electrical pulse applied to crystal
        ↓
Inverse piezoelectric effect
        ↓
Crystal mechanically vibrates at resonant frequency
        ↓
Ultrasound pulse emitted radially into vessel

RECEIVE:
Returning echo strikes crystal surface
        ↓
Direct piezoelectric effect
        ↓
Mechanical pressure → voltage generated
        ↓
Electrical signal sent to console

---

COMPONENT 4 — Flexible Drive Cable (Torque Shaft)

---

COMPONENT 5 — Outer Catheter Shaft

---

COMPONENT 6 — Guidewire Lumen

---

COMPONENT 7 — Saline Flush Port / Sheath

---

COMPONENT 8 — Proximal Connector Hub

---

3.3 Working of Mechanical IVUS Catheter — Step by Step

STEP 1 — PREPARATION
→ Catheter purged with saline to eliminate all air
→ Proximal hub connected to motor drive unit
→ Motor drive unit connected to imaging console

STEP 2 — DELIVERY INTO VESSEL
→ Guiding catheter positioned at coronary ostium
→ Guidewire advanced past lesion
→ IVUS catheter tracked over guidewire
→ Positioned distal to target lesion/stenosis

STEP 3 — ROTATION INITIATED
→ Motor drive unit activates
→ Torque transmitted along full drive cable
→ Single piezoelectric crystal rotates at ~1,800 RPM
→ One complete rotation = one 360° sweep

STEP 4 — ULTRASOUND PULSE EMISSION
→ Console sends brief high-voltage electrical pulse to crystal
→ Crystal vibrates at 40 MHz resonant frequency
→ Very short ultrasound burst (~20 nanoseconds) emitted radially
→ Beam travels through saline → vessel wall tissue

STEP 5 — ECHO REFLECTION
→ Sound encounters acoustic impedance interfaces:
   Blood / Intima boundary → partial echo reflected back
   Intima / Media boundary → partial echo reflected back
   Media / Adventitia boundary → partial echo reflected back
   Plaque / Normal wall → partial echo reflected back
→ Each boundary produces echo with characteristic strength

STEP 6 — ECHO RECEPTION
→ Returning echoes strike crystal surface
→ Direct piezoelectric effect → voltage generated
→ Amplitude of voltage encodes echo strength (tissue type)
→ Time delay encodes depth: Distance = (Speed × Time) / 2

STEP 7 — ONE SCAN LINE FORMED
→ One pulse + received echoes = one radial scan line
→ Depth information along that angular direction captured

STEP 8 — 360° FRAME ASSEMBLY
→ Crystal continues rotating
→ New pulse fired at each angular position
→ ~360 scan lines assembled into one circular frame
→ Frame rate: approximately 30 frames per second

STEP 9 — MOTORIZED PULLBACK
→ Pullback device withdraws catheter at 0.5–1.0 mm/sec
→ Each frame represents a new axial position in vessel
→ Stacking frames → longitudinal vessel map
→ 3D reconstruction of plaque, lumen, vessel geometry

---

3.4 Acoustic Mirror Variant

• Crystal is fixed (does not rotate)
• A tiny rotating acoustic mirror redirects the beam laterally
• Eliminates need for rotating electrical contacts (reduces noise)
• Allows even smaller catheter tip profile
• Signal quality preserved; same 360° imaging principle

---

3.5 Major Artifact — NURD

---

SECTION 4 — TYPE 2: SOLID-STATE (PHASED ARRAY) IVUS CATHETER

4.1 Definition

---

4.2 Detailed Components

---

COMPONENT 1 — Multi-Element Circumferential Array

---

COMPONENT 2 — Application-Specific Integrated Circuit (ASIC)

---

COMPONENT 3 — Flexible Printed Circuit Board (PCB)

---

COMPONENT 4 — Catheter Shaft (Simplified, No Drive Cable)

---

COMPONENT 5 — Guidewire Lumen

• Same 0.014 inch compatibility as mechanical type
• Runs full length or as rapid-exchange design

---

COMPONENT 6 — Proximal Electrical Connector

---

4.3 Working of Solid-State IVUS Catheter — Step by Step

STEP 1 — DELIVERY
→ No saline flush needed (no rotating assembly)
→ Catheter advanced over 0.014" guidewire to target site

STEP 2 — ELECTRONIC ACTIVATION
→ Console sends power and timing signals to ASIC in catheter tip
→ ASIC initializes firing sequence for 64 elements

STEP 3 — SEQUENTIAL ELEMENT FIRING
→ Element 1 fires: emits ultrasound pulse at 0°
→ Element 1 listens: receives echoes from 0° direction
→ Element 2 fires: emits at ~5.6° (360/64)
→ Element 2 listens: receives echoes from that direction
→ Continues through all 64 elements sequentially

STEP 4 — SYNTHETIC APERTURE PROCESSING
→ Signals from multiple adjacent elements combined mathematically
→ Virtual aperture larger than single element
→ Improves lateral resolution significantly
→ DSP in console performs this reconstruction algorithm

STEP 5 — 360° FRAME ASSEMBLY
→ All 64 elements complete one full firing cycle
→ 64 angular scan lines assembled into circular cross-section
→ Frame rate: ~30 frames per second

STEP 6 — PULLBACK AND 3D RECONSTRUCTION
→ Same motorized pullback at 0.5–1.0 mm/sec
→ Sequential frames produce longitudinal vessel map
→ 3D plaque and lumen reconstruction

---

4.4 Major Artifact — Ring-Down

---

SECTION 5 — CMUT: NEXT-GENERATION TRANSDUCER TECHNOLOGY

---

SECTION 6 — COMPLETE COMPARISON TABLE

---

SECTION 7 — KEY TECHNICAL PARAMETERS

---

SECTION 8 — SUMMARY (EXAM POINTS)

---

IVUS Transducer-Based Catheters

Definition | Components | Working

---

1. DEFINITION

Harrison's Principles of Internal Medicine, 21st Ed. (p. 6916): "IVUS is performed using a small flexible catheter with a 40-mHz transducer at its tip that is advanced into the coronary artery over a guidewire... used to image atherosclerotic plaque precisely, determine luminal cross-sectional area, and measure vessel size."

Core concept in one line:

The catheter brings the ultrasound source inside the vessel — imaging outward through the wall, rather than inward from the body surface.

---

2. TYPES OF IVUS TRANSDUCER-BASED CATHETERS

         IVUS Transducer-Based Catheters
                      |
          ____________|____________
          |                       |
   TYPE 1                      TYPE 2
 MECHANICAL                  SOLID-STATE
(Rotational)               (Phased Array)
     |
  ___|___
  |     |
Single  Acoustic
crystal mirror
rotating variant

---

3. TYPE 1 — MECHANICAL (ROTATIONAL) IVUS CATHETER

Definition

---

Components

---

A. Distal Atraumatic Tip

[ soft tapered polymer tip ]──► guides catheter across lesions

---

B. Acoustic Window / Transducer Housing

---

C. Piezoelectric Crystal — THE CORE ELEMENT

TRANSMIT MODE
─────────────
Electrical pulse → applied to crystal faces
        ↓
Inverse piezoelectric effect
        ↓
Crystal mechanically vibrates at resonant frequency
        ↓
Ultrasound pulse emitted radially into vessel wall

RECEIVE MODE
────────────
Returning echo strikes crystal surface
        ↓
Direct piezoelectric effect
        ↓
Mechanical pressure → voltage generated across crystal
        ↓
Electrical signal sent back to console receiver

---

D. Flexible Drive Cable (Torque Shaft)

[Motor drive unit] ──torque──► [Drive cable running 150 cm] ──► [Rotating crystal at tip]
                   ◄──signal──                               ◄──

---

E. Outer Catheter Shaft

---

F. Guidewire Lumen

---

G. Saline Flush Port

---

H. Proximal Connector Hub

---

Working — Mechanical IVUS Catheter (Step by Step)

STEP 1 ── PREPARATION
         Catheter flushed with saline → all air removed
         Proximal hub connected to motor drive unit + console

STEP 2 ── DELIVERY
         Guiding catheter seated at coronary ostium
         Guidewire advanced past the target lesion
         IVUS catheter tracked over guidewire
         Tip positioned distal to lesion

STEP 3 ── ROTATION BEGINS
         Motor drive unit activates
         Torque transmitted along full drive cable (~150 cm)
         Single piezoelectric crystal spins at ~1,800 RPM

STEP 4 ── PULSE EMISSION
         Console sends brief high-voltage electrical pulse to crystal
         Crystal vibrates at 40 MHz resonant frequency
         Short ultrasound burst (~20 nanoseconds) emitted radially
         Beam travels: saline → vessel wall tissue layers

STEP 5 ── ECHO REFLECTION
         Sound hits acoustic impedance boundaries:
           Blood / Intima → partial echo reflected
           Intima / Media → partial echo reflected
           Media / Adventitia → partial echo reflected
           Plaque / Normal wall → partial echo reflected
         Each boundary returns echo of characteristic amplitude

STEP 6 ── ECHO RECEPTION
         Returning echoes strike crystal surface
         Direct piezoelectric effect → voltage proportional to echo amplitude
         Time delay of each echo encodes depth:
           Distance = (Speed of sound × Time) / 2

STEP 7 ── ONE SCAN LINE FORMED
         One transmitted pulse + all received echoes
         = one radial scan line at that angular position

STEP 8 ── 360° FRAME ASSEMBLY
         Crystal continues rotating
         New pulse fired at each angular step
         ~360 scan lines assembled → one complete circular frame
         Frame rate: ~30 frames per second

STEP 9 ── MOTORIZED PULLBACK
         Pullback device withdraws catheter at 0.5–1.0 mm/sec
         Each frame represents a new axial slice of vessel
         Stacked frames → longitudinal map + 3D reconstruction

---

NURD Artifact — Mechanical Catheter

---

Acoustic Mirror Variant

• Crystal is fixed — does not rotate
• A tiny rotating acoustic mirror redirects the beam radially
• Eliminates rotating electrical contacts → reduces electrical noise
• Allows even smaller catheter tip profile
• Same 360° imaging principle achieved

---

4. TYPE 2 — SOLID-STATE (PHASED ARRAY) IVUS CATHETER

Definition

---

Components

---

A. Multi-Element Circumferential Array

---

B. Application-Specific Integrated Circuit (ASIC)

---

C. Flexible Printed Circuit Board (PCB)

---

D. Simplified Catheter Shaft (No Drive Cable)

---

E. Proximal Electrical Connector

---

Working — Solid-State IVUS Catheter (Step by Step)

STEP 1 ── DELIVERY
         No saline flush required (no rotating assembly)
         Catheter advanced over 0.014" guidewire to target site

STEP 2 ── ELECTRONIC ACTIVATION
         Console sends power + timing signals to ASIC in catheter tip
         ASIC initializes firing sequence for all 64 elements

STEP 3 ── SEQUENTIAL ELEMENT FIRING
         Element 1 fires → emits pulse at 0°
         Element 1 listens → receives echoes from 0° direction
         Element 2 fires → emits pulse at ~5.6° (360°/64)
         Element 2 listens → receives echoes
         Continues sequentially through all 64 elements

STEP 4 ── SYNTHETIC APERTURE PROCESSING
         Signals from multiple adjacent elements combined mathematically
         Creates virtual aperture larger than any single element
         Significantly improves lateral resolution
         DSP in console performs reconstruction algorithm

STEP 5 ── 360° FRAME ASSEMBLY
         All 64 elements complete one full firing cycle
         64 angular scan lines assembled into one circular frame
         Frame rate: ~30 frames per second

STEP 6 ── PULLBACK AND RECONSTRUCTION
         Same motorized pullback at 0.5–1.0 mm/sec
         Sequential cross-sectional frames build longitudinal vessel map
         3D reconstruction of plaque, lumen, and vessel geometry

---

Ring-Down Artifact — Solid-State Catheter

---

5. HEAD-TO-HEAD COMPARISON

---

6. TECHNICAL PARAMETERS — QUICK REFERENCE

---

7. VESSEL LAYERS VISUALIZED BY IVUS CATHETER

---

8. SUMMARY — EXAM POINTS
