Chiari Il Malformation Chiari Il malformation involves the downward di

Chiari Il Malformation Chiari Il malformation involves the downward displacement of the cerebellum (including the vermis and tonsils) and the medulla through the foramen magnum. It is more severe than Chiari I and typically presents early in life with symptoms such as dysphagia, stridor, apnea, and limb weakness. It is associated with noncommunicating hydrocephalus and myelomeningocele, usually in the lumbosacral region. Dandy-Walker Malformation Dandy-Walker malformation is characterized by the agenesis of the cerebellar vermis, leading to cystic enlargement of the fourth ventricle, which fills the enlarged posterior fossa. It is associated with noncommunicating hydrocephalus and spina bifida. Same make images to make concept visual better like visual diagram how it made

Generating Image

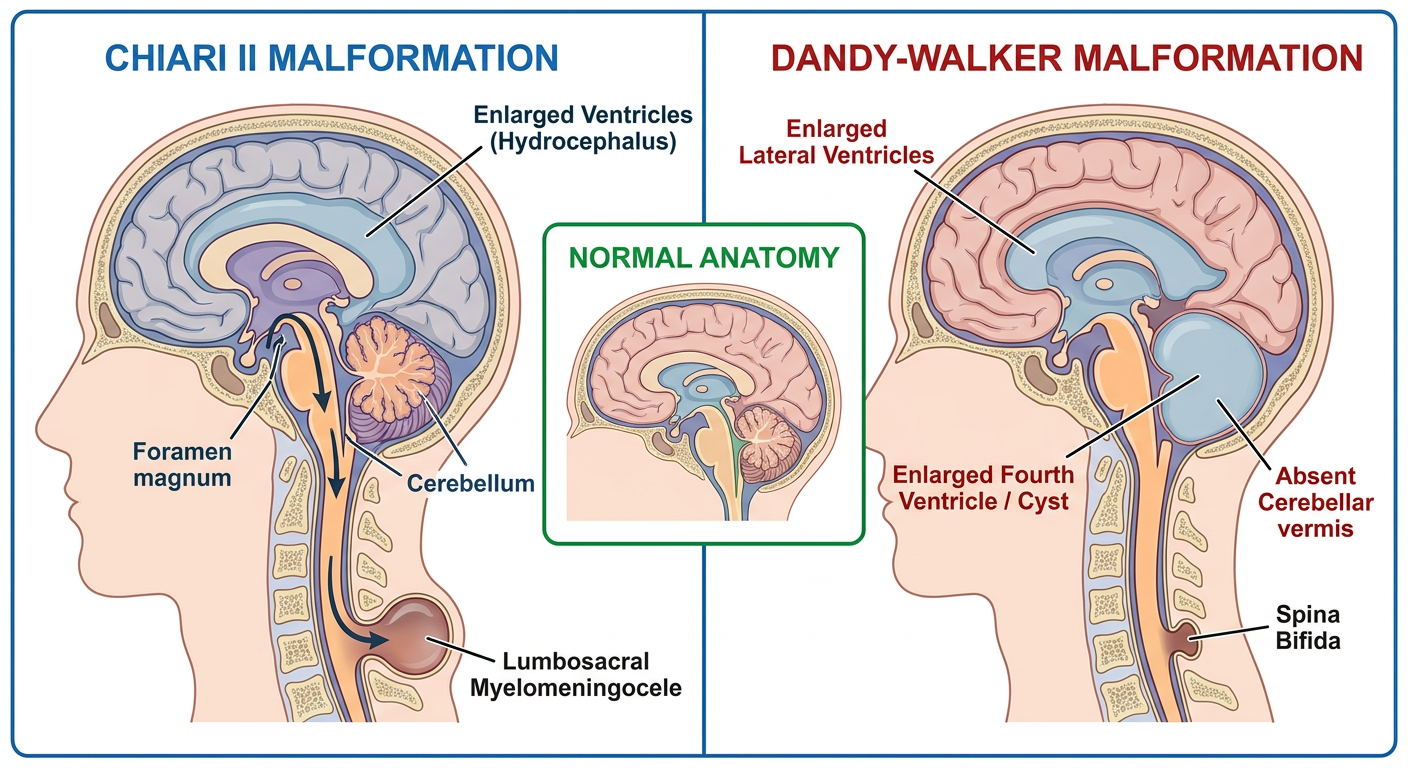

Medical diagram comparing Chiari II Malformation and Dandy-Walker Malformation side by side. Left panel labeled "Chiari II Malformation": sagittal cross-section of brain and spine showing downward displacement of cerebellum vermis and tonsils through foramen magnum, medulla displaced downward, enlarged ventricles indicating noncommunicating hydrocephalus, and lumbosacral myelomeningocele shown at bottom of spine. Arrows indicating direction of displacement downward. Right panel labeled "Dandy-Walker Malformation": sagittal cross-section showing absent/agenesis of cerebellar vermis, massively enlarged fourth ventricle as a cyst filling the enlarged posterior fossa, noncommunicating hydrocephalus with enlarged lateral ventricles, and spina bifida at lumbar spine. Both panels use clean anatomical illustration style with color-coded labels for cerebellum, brainstem, ventricles, spinal cord, and key pathological features. Include a small normal brain sagittal view in the center for comparison.

Generating Image

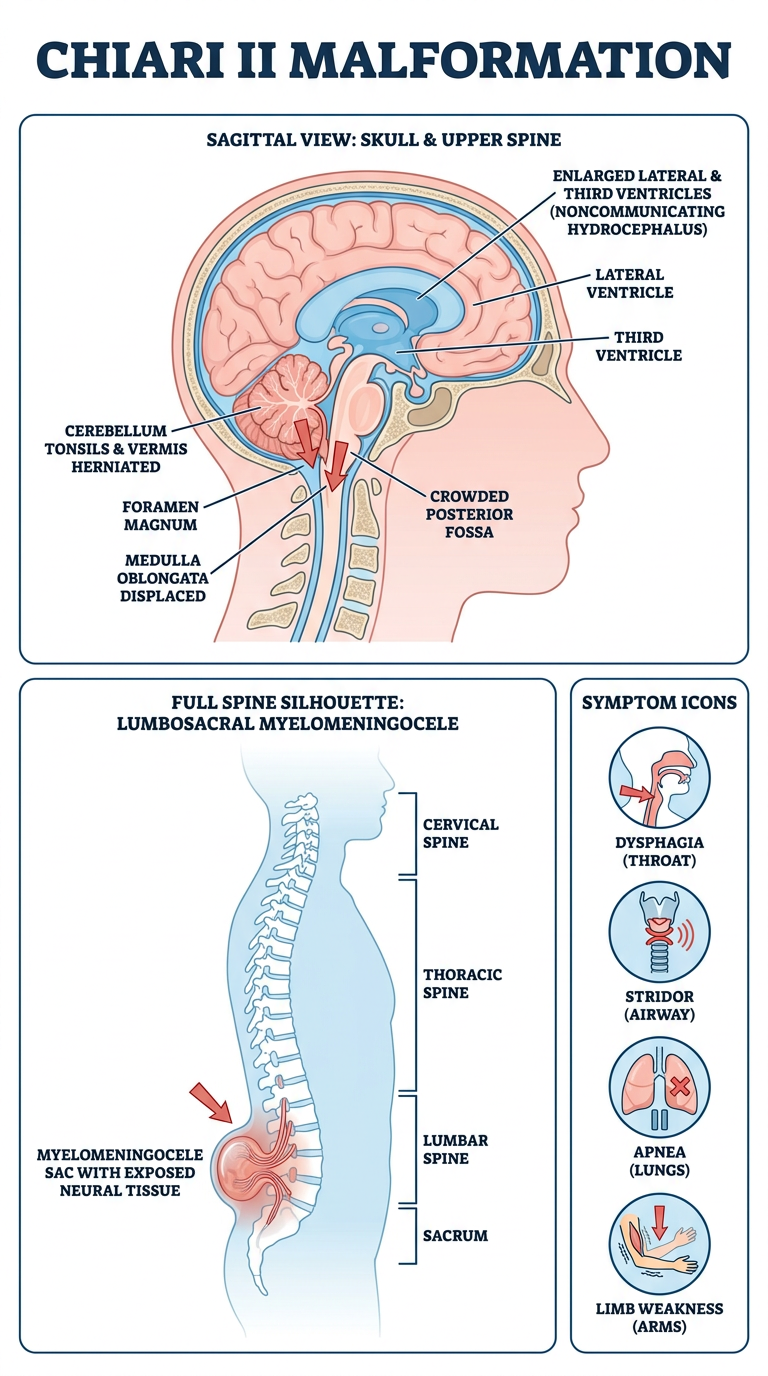

Detailed medical infographic poster for Chiari II Malformation. Clean clinical illustration style. Top section: sagittal view of skull and upper spine showing: cerebellum tonsils and vermis herniated downward through foramen magnum, medulla oblongata displaced caudally, crowded posterior fossa, enlarged lateral and third ventricles (noncommunicating hydrocephalus). Bottom section: full spine silhouette showing lumbosacral myelomeningocele (sac protruding from lower back with exposed neural tissue). Side panel with symptom icons: dysphagia (throat), stridor (airway), apnea (lungs), limb weakness (arms). Color scheme: blue for CSF/ventricles, pink for brain tissue, red arrows showing displacement direction. Bold title at top. Labels for all key structures.

Generating Image

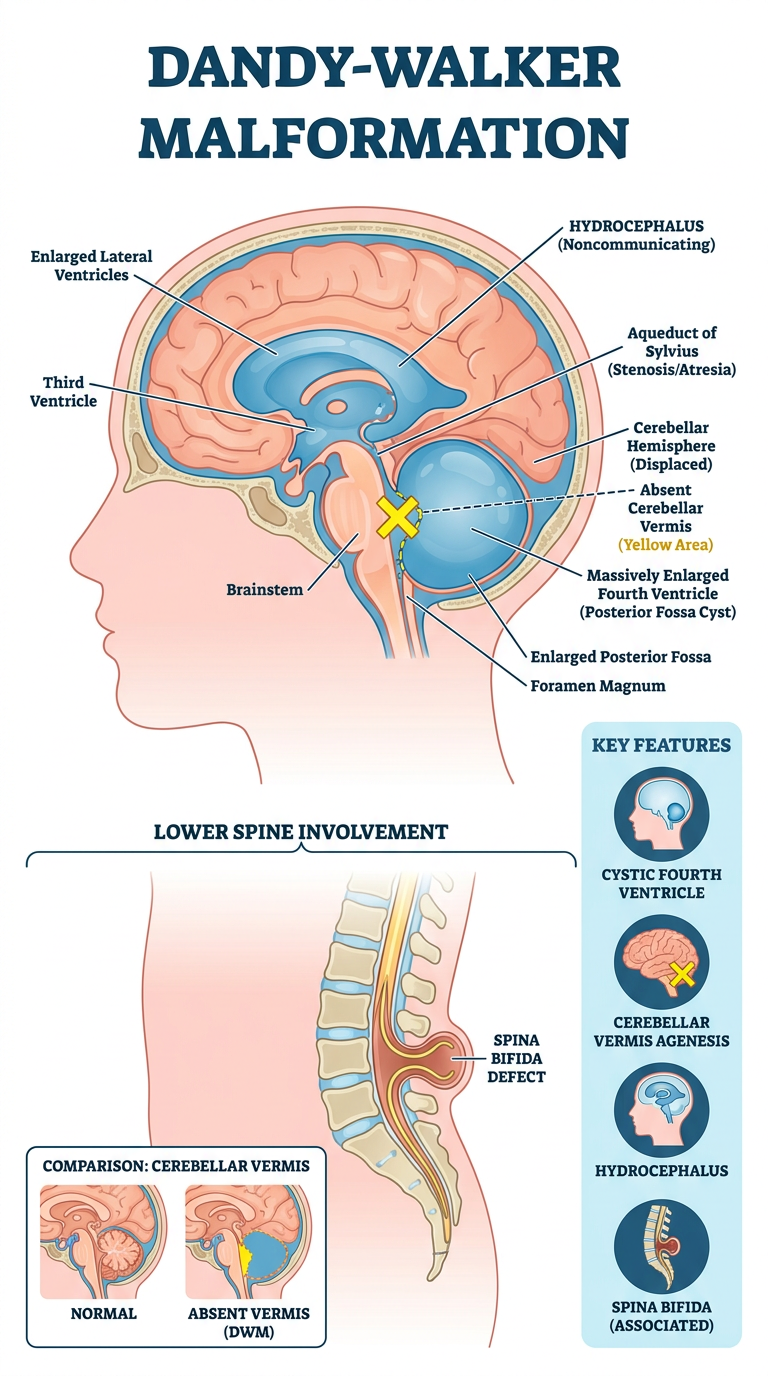

Detailed medical infographic poster for Dandy-Walker Malformation. Clean clinical illustration style. Main sagittal brain cross-section showing: absent cerebellar vermis (marked with X or gap), massively enlarged fourth ventricle as a large posterior fossa cyst dominating the back of the skull, enlarged posterior fossa, enlarged lateral ventricles indicating noncommunicating hydrocephalus. Lower section: lumbar spine showing spina bifida defect. Comparison inset showing normal cerebellar vermis vs absent vermis. Side panel showing key features as icons: cystic fourth ventricle, cerebellar vermis agenesis, hydrocephalus, spina bifida. Color scheme: blue for CSF/cyst, pink/orange for brain tissue, yellow for missing vermis area. Bold title. Labeled anatomy. Clean educational poster format.

Here are your visual diagrams for both malformations:

Comparison Overview

Chiari II Malformation - Detailed Diagram

Key visual takeaways:

The posterior fossa is too small, so the cerebellum (vermis + tonsils) and medulla get pushed downward through the foramen magnum
Hydrocephalus develops because CSF outflow is blocked (noncommunicating)
The lumbosacral myelomeningocele is the defining co-lesion - neural tissue is exposed outside the spine

Dandy-Walker Malformation - Detailed Diagram

Key visual takeaways:

The cerebellar vermis never forms (agenesis) - this is the primary defect
With no vermis to fill it, the fourth ventricle balloons into a large posterior fossa cyst
The posterior fossa itself is enlarged (opposite of Chiari II)
Hydrocephalus occurs because the fourth ventricle foramina (Luschka & Magendie) fail to open

Quick Comparison Table

Feature	Chiari II	Dandy-Walker
Primary defect	Herniation of cerebellum/medulla	Cerebellar vermis agenesis
Posterior fossa	Small (crowded)	Enlarged (cystic)
4th ventricle	Compressed/displaced	Massively enlarged (cyst)
Hydrocephalus	Noncommunicating	Noncommunicating
Spinal association	Myelomeningocele (lumbosacral)	Spina bifida
Symptoms	Dysphagia, stridor, apnea, weakness	Macrocephaly, ataxia (later onset)

The core memory trick: Chiari II = pushed down / too small, Dandy-Walker = missing vermis / cyst fills the space.

Syringomyelia Syringomyelia involves a fluid-filled, gliosis-lined cavity within the spinal cord, often occurring between C2 and T9. The condition is typically associated with Chiari | malformation and less commonly with other malformations, infections, tumors, or trauma. The cavity, or syrinx, can damage fibers crossing in the anterior white commissure, particularly affecting the spinothalamic tract, leading to a 'cape-like" loss of pain and temperature sensation in the bilateral upper extremities. As the lesion expands, it may also damage the anterior horns, resulting in lower motor neuron (LMN) findings. •Syrinx: Greek for "tube" as in 'syringe." Commonly affected areas: C2 to T9. • Symptoms: Loss of pain and temperature sensation at affected dermatomes, potentially affecting mułtiple dermatomes as the syinx expands. Same make images to make concept visual better like visual diagram how it made

Generating Image

Medical educational infographic poster about Syringomyelia. Three-panel layout on clean white background. LEFT PANEL - Sagittal spine view: Full cervical and thoracic spine silhouette showing a fluid-filled cavity (syrinx) inside the spinal cord highlighted in blue, spanning from C2 to T9 vertebral levels. Above the spine, show the brain with Chiari I malformation (cerebellar tonsils slightly herniated through foramen magnum) connected by an arrow labeled "Most common cause: Chiari I Malformation". Label the syrinx cavity clearly with "Syrinx (fluid-filled cavity, gliosis-lined)". CENTER PANEL - Cross-sectional spinal cord diagram at mid-cervical level: Show the spinal cord in cross-section with the central syrinx cavity (blue fluid) expanding outward. Highlight and label: anterior white commissure being compressed/damaged (red), spinothalamic tract fibers (orange), anterior horns (green). Arrows showing how the expanding syrinx damages these structures first. RIGHT PANEL - Human body posterior view showing sensory loss distribution: A body silhouette showing the classic "cape-like" or "shawl-like" pattern of pain and temperature loss colored in red/orange covering both arms, shoulders, and upper chest/back bilaterally. Label it "Cape-like loss of pain and temperature sensation - bilateral upper extremities". Below show LMN findings icon (muscle wasting in hands) labeled "Anterior horn damage = LMN signs (weakness, atrophy, areflexia)". Bottom section: Etymology box - "Syrinx = Greek for tube (as in syringe)". Clean medical illustration style, color-coded, bold title "SYRINGOMYELIA" at top.

Generating Image

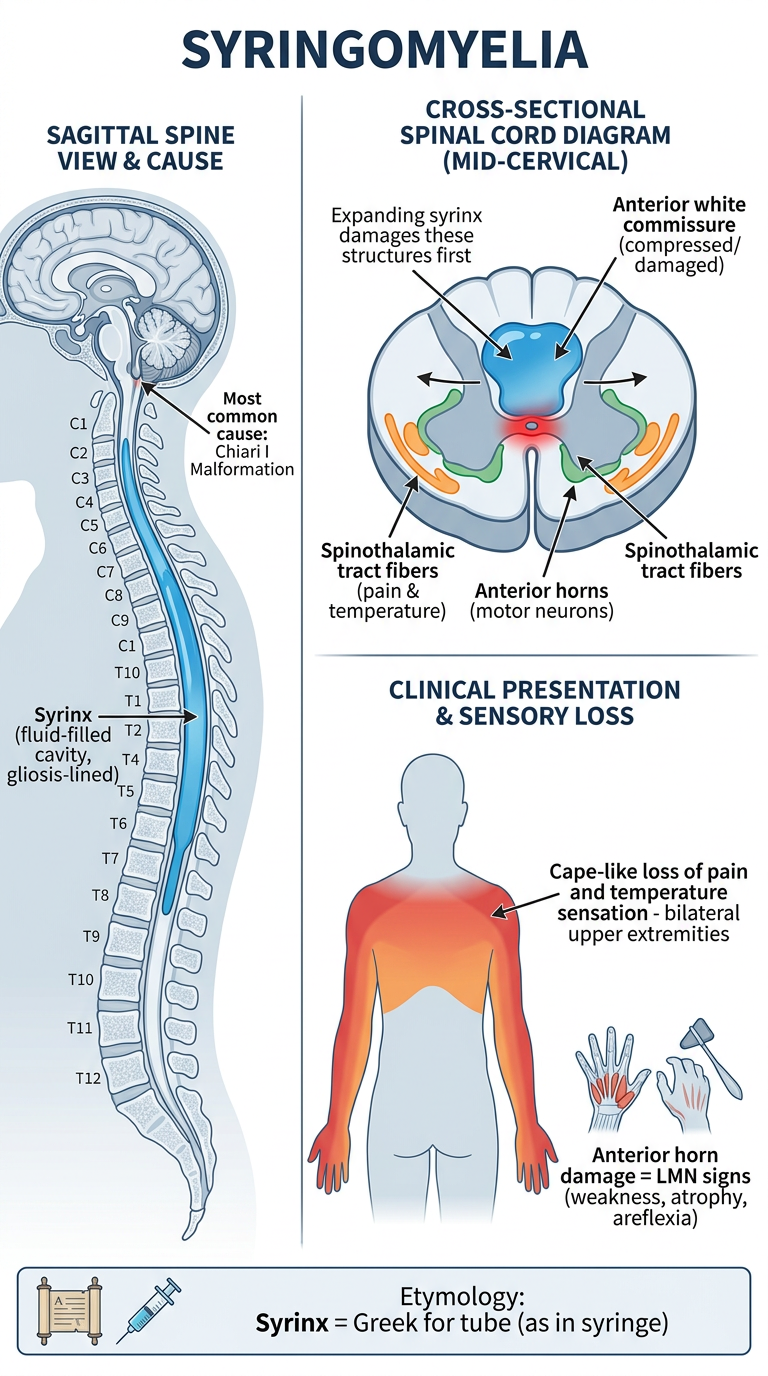

Detailed spinal cord cross-section diagram showing Syringomyelia pathophysiology. Clean anatomical illustration, educational style. Central large circle representing the spinal cord cross-section at cervical level. In the center: a large oval blue fluid-filled cavity labeled "Syrinx (fluid-filled, gliosis-lined wall)". Around the syrinx, show concentric zones of damage as it expands: - First zone damaged (innermost): Anterior white commissure with crossing spinothalamic fibers shown as red crossing fibers, labeled "1st - Anterior white commissure damaged: crossing spinothalamic fibers disrupted → bilateral pain and temperature loss" - Second zone: Anterior horns (ventral gray matter) highlighted in green, labeled "2nd - Anterior horn cells damaged → LMN signs: weakness, muscle atrophy, hyporeflexia" - Outer preserved areas: Corticospinal tracts (if larger expansion), posterior columns intact early Surrounding the cross-section: dermatome map showing C2-T9 segments affected. Arrows pointing outward showing expanding syrinx direction. Bottom inset: small comparison of normal spinal cord cross-section vs syringomyelia cross-section side by side. Bold title "Syrinx Expansion - Sequence of Damage". Color scheme: blue for fluid, red for spinothalamic, green for motor, gray for normal tissue.

Here are your visual diagrams for Syringomyelia:

Syringomyelia - Full Overview Diagram

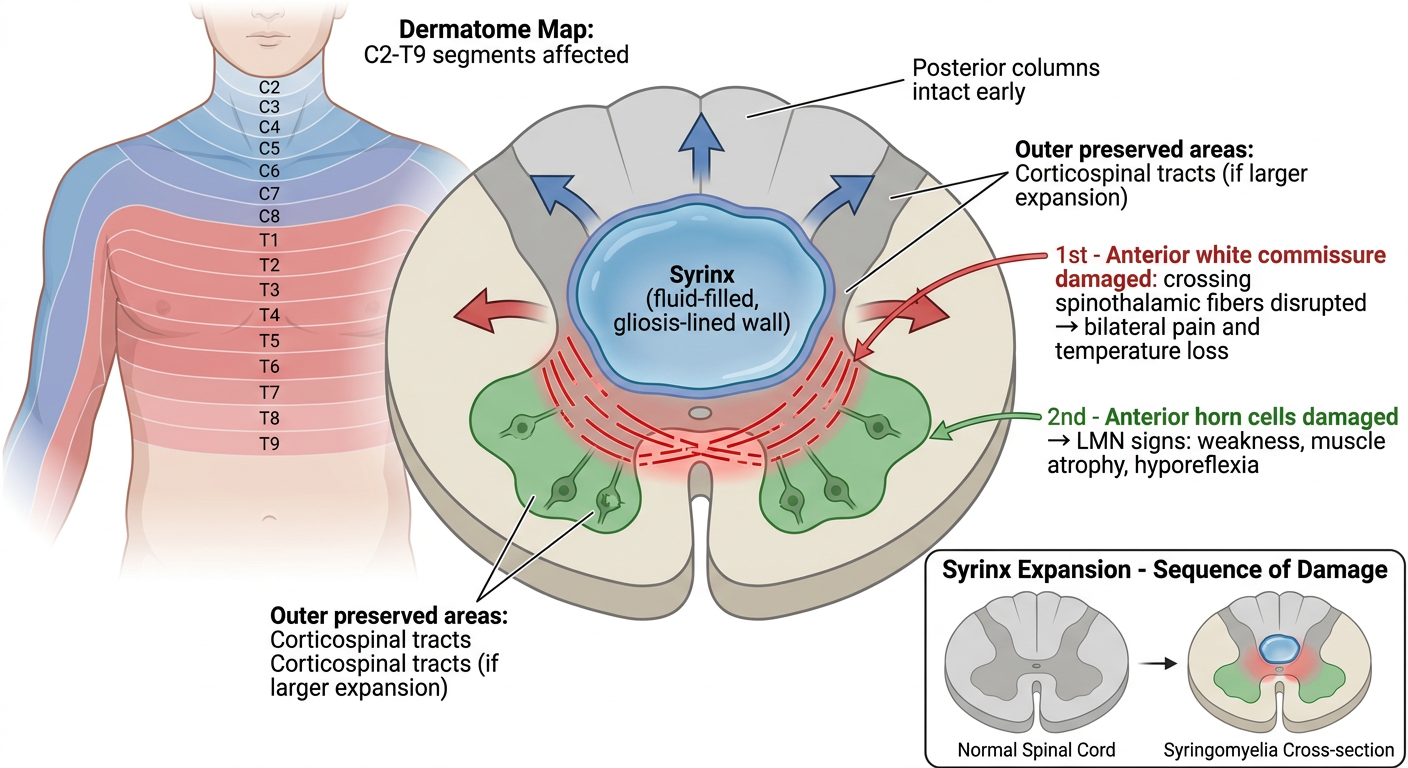

Spinal Cord Cross-Section - Sequence of Damage

How to Read These Diagrams

The Syrinx Location

Fluid-filled, gliosis-lined cavity sitting inside the spinal cord, C2 to T9
Most commonly caused by Chiari I malformation (tonsillar herniation disrupts normal CSF flow, which is thought to drive fluid into the cord under pressure)

Order of Damage as Syrinx Expands

Stage	Structure Damaged	Clinical Result
1st	Anterior white commissure (crossing spinothalamic fibers)	Bilateral loss of pain & temperature in a cape/shawl distribution over shoulders and arms
2nd	Anterior horn cells (motor neurons)	LMN signs - weakness, muscle wasting, hyporeflexia in upper limbs
3rd (large syrinx)	Corticospinal tracts	UMN signs in lower limbs

The "Cape-Like" Pattern - Why Bilateral?

The spinothalamic fibers cross the midline in the anterior white commissure before ascending. The syrinx sits centrally, so it cuts these fibers at the level they cross - knocking out pain/temperature from both sides at the same dermatomal levels. This is the classic dissociated sensory loss (pain/temp lost, fine touch preserved because dorsal columns are spared early).

Key Memory Anchor

Syrinx = Greek for "tube" (same root as syringe) - a tube of fluid inside the cord, destroying from the inside out.

5/70 Astrocytes Cells of the NervOus System The nervous system is composed of neurons and nonneuronal (glial) cells. Neurons are permanent, signal-transmitting cells that consist of dendrites (which receive input), cell bodies, and axons (which send output). Dendrites and cell bodies can be Visualized using Nissl staining, which stains the rough endoplasmic reticulum (RER) and is not present in axons. Key markers for neurons include neurofilament protein and synaptophysin. CNS Glial Cells • Astrocytes: Provide physical support, repair, removal of excess neurotransmitters, form part of the blood- brain barrier, and serve as a glycogen fuel reserve buffer. They are GFAP positive and are the largest and most abundant glial cells in the CNS. Astrocytes undergo reactive gliosis in response to neural injury. Same make images to make concept visual better like visual diagram how it made

Generating Image

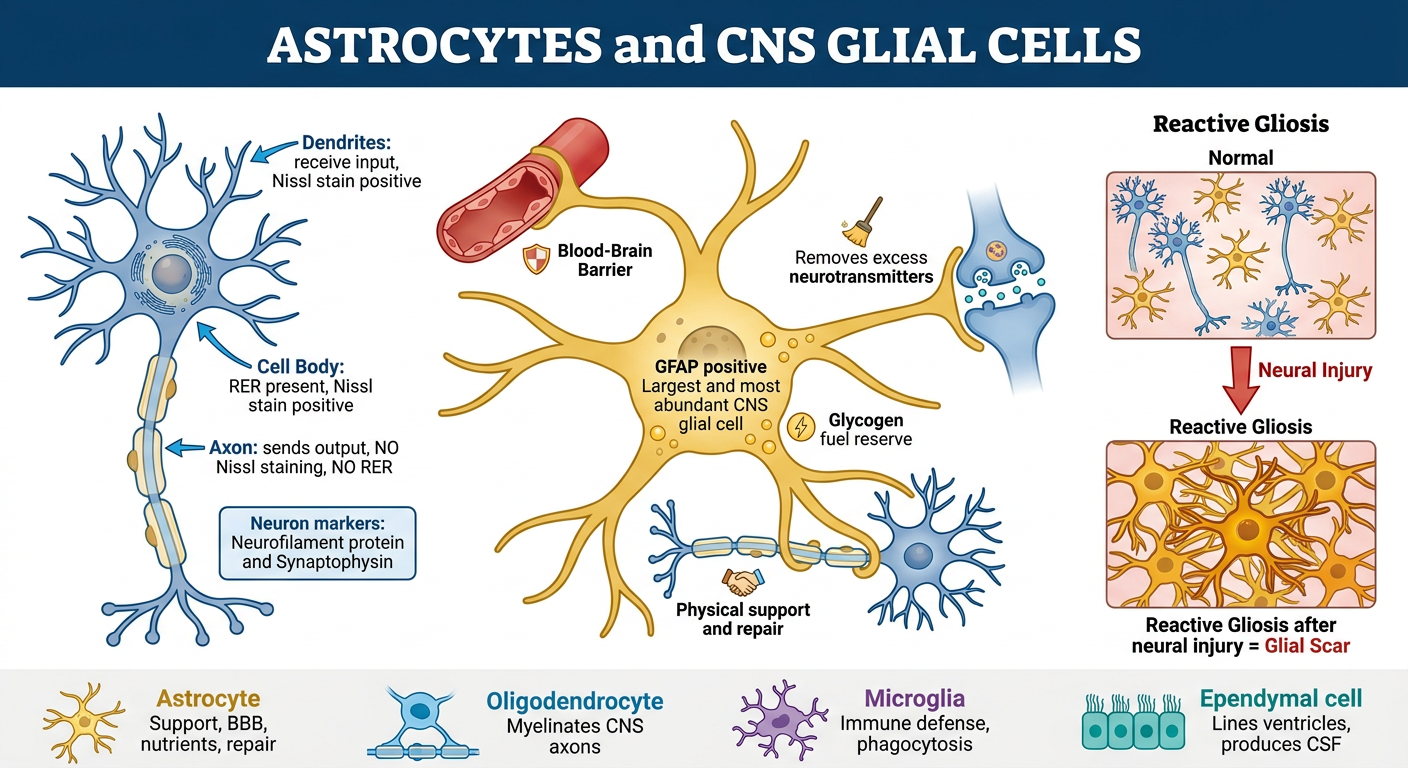

Medical educational infographic poster about Astrocytes and CNS Glial Cells. Clean, modern scientific illustration style on white background. Bold title "CELLS OF THE NERVOUS SYSTEM" at top. TOP SECTION - Neuron anatomy diagram: A single neuron showing dendrites (branching input structures, labeled "Dendrites - receive input"), cell body/soma (labeled "Cell Body - contains RER, stained by Nissl stain"), and a long axon (labeled "Axon - sends output, NO Nissl staining"). Small inset box: "Key Neuron Markers: Neurofilament protein, Synaptophysin". Another inset: "Nissl Stain = stains RER in dendrites and cell body only". MAIN SECTION - Large detailed Astrocyte illustration: A star-shaped astrocyte (classic stellate morphology) with many long processes. Show: - Endfeet wrapping around a blood vessel (labeled "Endfeet on blood vessels = Blood-Brain Barrier component") - Process touching a synapse (labeled "Removes excess neurotransmitters") - Glycogen granules inside cell body (labeled "Glycogen storage = fuel reserve buffer") - Process supporting a neuron (labeled "Physical support for neurons") - GFAP label on the cell body with a positive (+) symbol: "GFAP positive marker" - Label: "Largest and most abundant CNS glial cell" BOTTOM SECTION - Reactive Gliosis panel: Two side-by-side small illustrations. Left: normal brain tissue with normal astrocytes. Right: after neural injury showing hypertrophied, proliferating astrocytes forming a glial scar, labeled "Reactive Gliosis: response to neural injury → glial scar formation". Arrow between them labeled "Neural Injury". Color scheme: blue/purple neurons, golden-yellow astrocytes, red blood vessels, green synapses. Clean labels, educational medical style.

Generating Image

Medical diagram showing all major CNS Glial Cell types comparison chart. Clean anatomical illustration, educational poster style. Title "CNS GLIAL CELLS - Overview". Grid layout showing 4 main glial cell types, each with a labeled illustration: 1. ASTROCYTE (top left): Large star-shaped cell with many processes, golden/yellow color. Endfeet touching blood vessel and neuron. Labels: "GFAP+", "Largest and most abundant", "BBB formation", "Neurotransmitter removal", "Glycogen reserve", "Reactive gliosis on injury" 2. OLIGODENDROCYTE (top right): Small cell with few processes wrapping around multiple axons forming myelin sheaths in CNS. Blue color. Labels: "Myelinates CNS axons", "One cell = multiple axons", "Fried egg appearance on histology" 3. MICROGLIA (bottom left): Small irregular cell with thin branching processes, purple/dark color, resembling macrophage. Labels: "Brain's resident macrophage", "Phagocytosis", "Derived from mesoderm", "CD68+", "Activated in infection/injury" 4. EPENDYMAL CELLS (bottom right): Columnar ciliated cells lining a ventricle cavity, teal color. Labels: "Line ventricles and central canal", "Produce and circulate CSF", "Ciliated epithelium" Center comparison box: small table showing Key Marker, Origin, and Main Function for each cell type. Color-coded borders matching each cell. Clean white background, bold labels.

400, message: Got more than 4194304 bytes when reading: b'data: {"candidates": [{"content": {"role": "model","parts": [{"inlineData": {"mimeType": "image/png"...'.

We encountered an error while processing your request. Please try again or reach out to us for help.

🔗Contact Support

✉️hi@orris.care

Generating Image

Medical educational infographic about Astrocytes and CNS Glial Cells. Clean scientific illustration on white background. Bold title "ASTROCYTES and CNS GLIAL CELLS" at top. LEFT SIDE - Neuron anatomy: A labeled neuron showing branching dendrites (labeled "Dendrites: receive input, Nissl stain positive"), round cell body (labeled "Cell Body: RER present, Nissl stain positive"), and long axon (labeled "Axon: sends output, NO Nissl staining, NO RER"). Small badge: "Neuron markers: Neurofilament protein and Synaptophysin". CENTER - Large star-shaped Astrocyte (yellow-gold color) with multiple long processes radiating outward. Each process has a function label with icon: process touching blood vessel wall with endfeet = "Blood-Brain Barrier", process near synapse = "Removes excess neurotransmitters", glycogen granules inside = "Glycogen fuel reserve", process touching neuron = "Physical support and repair". Cell body badge: "GFAP positive" and "Largest and most abundant CNS glial cell". RIGHT SIDE - Reactive Gliosis: Two panels stacked. Top panel: normal brain tissue with normal-sized astrocytes labeled "Normal". Bottom panel: after neural injury showing enlarged hypertrophied astrocytes crowded together forming a scar labeled "Reactive Gliosis after neural injury = Glial Scar". Red arrow between panels labeled "Neural Injury". BOTTOM BAR - Simple icons for all 4 CNS glial cells: Astrocyte (star shape, yellow), Oligodendrocyte (wrapping axon, blue), Microglia (irregular, purple), Ependymal cell (ciliated line, teal), each with one-line function below. Clean, color-coded, medical education style.

Breaking Down the Concepts

The Neuron - Nissl Staining Trick

Structure	Nissl Stain	Why
Dendrites	✅ Positive	Contains RER
Cell Body	✅ Positive	Contains RER
Axon	❌ Negative	No RER present

Memory trick: "Axons Avoid Nissl" - the axon hillock marks where Nissl staining stops.

Astrocyte - 5 Key Functions

Function	How
Physical support	Star-shaped processes brace neurons mechanically
Repair	Fill in gaps after neuron death
Neurotransmitter removal	Reuptake transporters (e.g., glutamate, GABA) at synapses
Blood-Brain Barrier	Astrocyte endfeet wrap around brain capillaries
Glycogen reserve	Store and release glucose as energy buffer for neurons

Marker: GFAP (Glial Fibrillary Acidic Protein) - positive in astrocytes only among glial cells.

Reactive Gliosis

When neurons are injured or die, astrocytes hypertrophy and proliferate, forming a glial scar. This is the CNS equivalent of fibrosis in other organs. It limits further damage but also inhibits axonal regeneration - a double-edged response.

Quick CNS Glial Cell Summary

Cell	Marker	Key Role
Astrocyte	GFAP+	Support, BBB, gliosis
Oligodendrocyte	MBP+	Myelin in CNS (1 cell = many axons)
Microglia	CD68+	Brain macrophage (mesodermal origin)
Ependymal cells	Ciliated	Line ventricles, circulate CSF

• Oligodendrocytes: Responsible for myelinating axons in the CNS, including cranial nerve II. They have a "fried egg"' appearance histologically and each oligodendrocyte can myelinate approximately 30 axons. They are the predominant type of glial cell in white matter and are injured in conditions such as multiple sclerosis, leukodystrophies, and progressive multifocal leukoencephalopathy. Ependymal Cells: These are ciliated simple columnar glial cells lining the ventricles and central canal of the spinal cord. Their apical surfaces are covered with cilia, which circulate cerebrospinal fluid (CSF), and microvilli, which aid in CSF absorption. Specialized ependymal cells in the choroid plexus produce CSF. • Microglia: These are phagocytic scavenger cells of the CNS that activate in response to tissue damage, releasing inflammatory mediators such as nitric oxide and glutamate. They are not readily discernible by Nissl stain. In HIVassociated dementia, HIV- infected microglia can fuse to form multinucleated giant cells in the CNS. Same make images to make the Concept visual better like visual diagram how it made

Generating Image

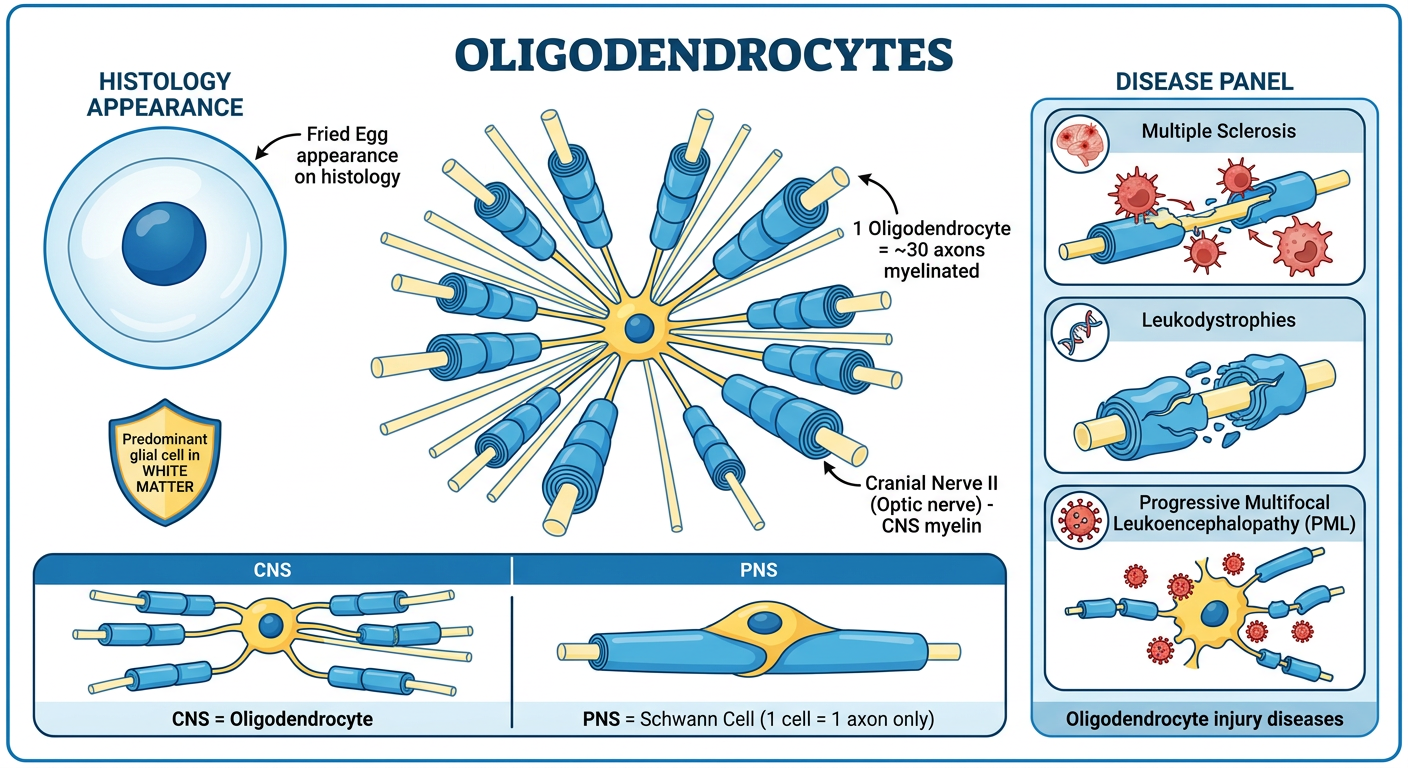

Medical educational infographic about Oligodendrocytes. Clean scientific illustration on white background. Title "OLIGODENDROCYTES" bold at top. LEFT - Histology appearance: A round cell with clear halo around dark nucleus resembling a fried egg shape, labeled "Fried Egg appearance on histology". Small badge: "Predominant glial cell in WHITE MATTER". CENTER - Main diagram: One oligodendrocyte cell body (small, round) with multiple processes extending outward, each wrapping around a different axon as myelin sheath (shown as spiral wrapping in cross-section). Count shows approximately 30 axons being myelinated. Label: "1 Oligodendrocyte = ~30 axons myelinated". One axon labeled "Cranial Nerve II (Optic nerve) - CNS myelin". RIGHT - Disease panel showing 3 boxes: 1. "Multiple Sclerosis" - demyelinated axon patch with immune cells attacking 2. "Leukodystrophies" - genetic myelin breakdown 3. "Progressive Multifocal Leukoencephalopathy (PML)" - JC virus attacking oligodendrocytes Each with small icon. All labeled "Oligodendrocyte injury diseases". Bottom comparison: "CNS = Oligodendrocyte" vs "PNS = Schwann Cell (1 cell = 1 axon only)". Color: blue myelin, yellow cell bodies, red disease markers.

Generating Image

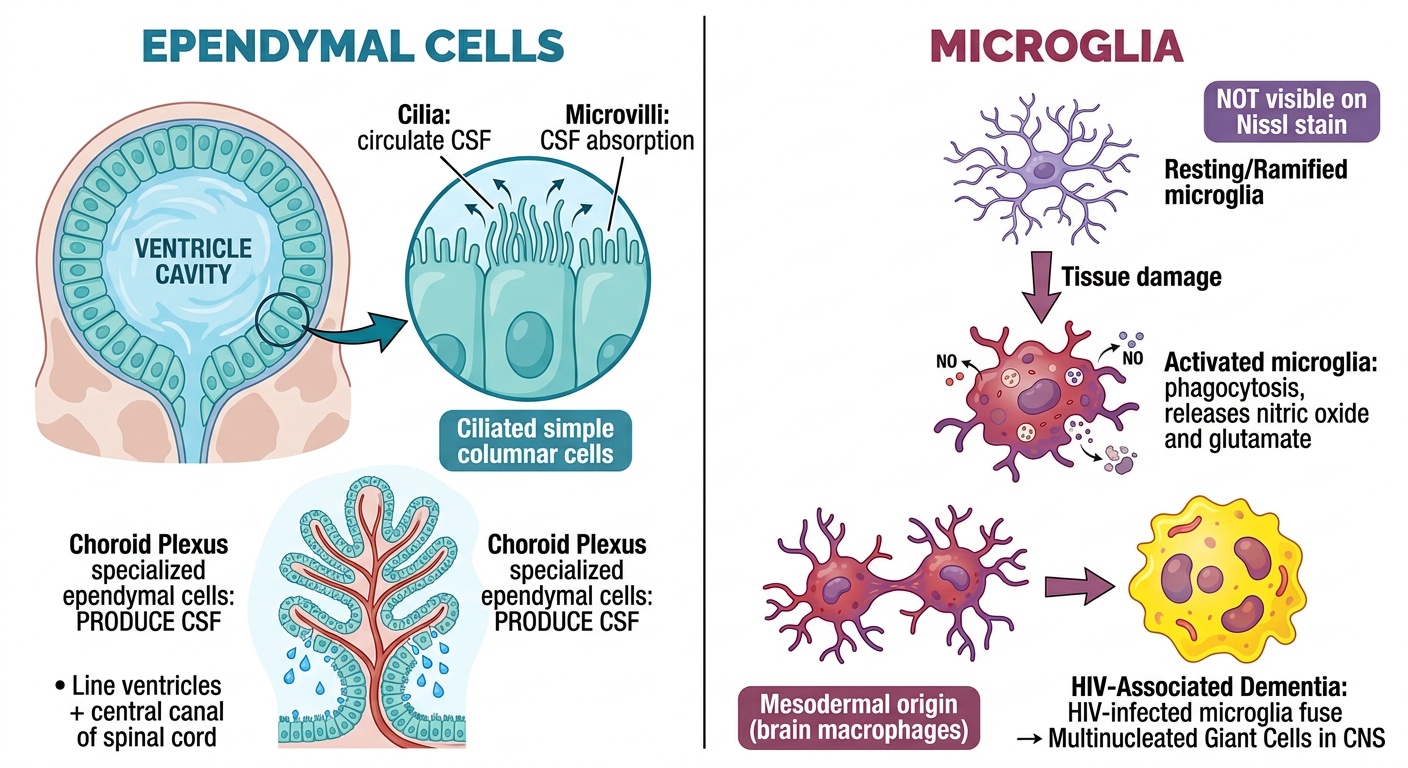

Medical educational infographic comparing Ependymal Cells and Microglia. Two-panel layout, clean scientific style, white background. LEFT PANEL - "EPENDYMAL CELLS": Top: Cross-section of a brain ventricle showing the ventricular lining. Cells shown as tall columnar epithelial cells lining the ventricle cavity. Zoom-in showing: apical cilia (hair-like projections labeled "Cilia: circulate CSF") and microvilli (labeled "Microvilli: CSF absorption"). Cell description badge: "Ciliated simple columnar cells". Below: Separate illustration of choroid plexus (frond-like structure) inside ventricle labeled "Choroid Plexus specialized ependymal cells: PRODUCE CSF". Locations listed: "Line ventricles + central canal of spinal cord". RIGHT PANEL - "MICROGLIA": Top: Normal resting microglial cell with thin ramified processes (small, irregular, spider-like), labeled "Resting/Ramified microglia". Middle: Activated microglial cell, larger, amoeboid shape, labeled "Activated microglia: phagocytosis, releases nitric oxide and glutamate". Arrow between them labeled "Tissue damage". Bottom: Two activated microglia fusing together forming one large cell with multiple nuclei, labeled "HIV-Associated Dementia: HIV-infected microglia fuse → Multinucleated Giant Cells in CNS". Badge: "NOT visible on Nissl stain". Origin badge: "Mesodermal origin (brain macrophages)". Color scheme: teal for ependymal cells and CSF, purple/red for microglia, yellow for giant cells. Bold labels throughout.

Oligodendrocytes

Ependymal Cells & Microglia

Key Concept Breakdown

Oligodendrocytes - High-Yield Points

Feature	Detail
Location	White matter (predominant glial cell there)
Histology	"Fried egg" - clear halo + dark nucleus
Myelination	1 cell = ~30 axons (very efficient)
Special note	Myelinates CN II (optic nerve) - it is a CNS tract, not a true peripheral nerve
Key diseases	MS, Leukodystrophies, PML (JC virus)
vs Schwann Cell	Schwann = PNS, 1 cell = 1 axon only

Ependymal Cells - Key Points

Ciliated simple columnar cells lining ventricles and the central canal
Apical cilia - circulate CSF (flow direction)
Apical microvilli - absorb CSF
Specialized subtype = Choroid plexus cells - these actually produce CSF (ultrafiltrate of plasma)

Microglia - High-Yield Points

Feature	Detail
Origin	Mesoderm (not neuroectoderm - unique among CNS cells)
Function	CNS resident macrophages - phagocytosis
Activation	Releases nitric oxide and glutamate as inflammatory mediators
Nissl stain	Not visible - cannot be stained
HIV dementia	HIV infects microglia → cells fuse → multinucleated giant cells in CNS

Memory trick: "Microglia = Macro in disguise" - they are the brain's macrophages but look tiny at rest.

PNS Glial Cells Satellite Cells: Surround neuronal cell bodies in ganglia and have a supportive role similar to astrocytes. Schwann Cells: Responsible for myelinating axons in the PNS, including cranial nerves IlI-X. Each Schwann cell myelinates a single axon and is S100 positive. Schwann cells are injured in Guillain-Baré syndrome. Myelin and Conduction Myelin is amultilayer wrapping of electrical insulation formed around axXons, which increases the conduction velocity of transmitted signals via saltatory conduction of action potentials at nodes of Ranvier. This is associated with increased Na+ channel density at these nodes. Same make images to make the concept visual better like visual diagram how it made

Generating Image

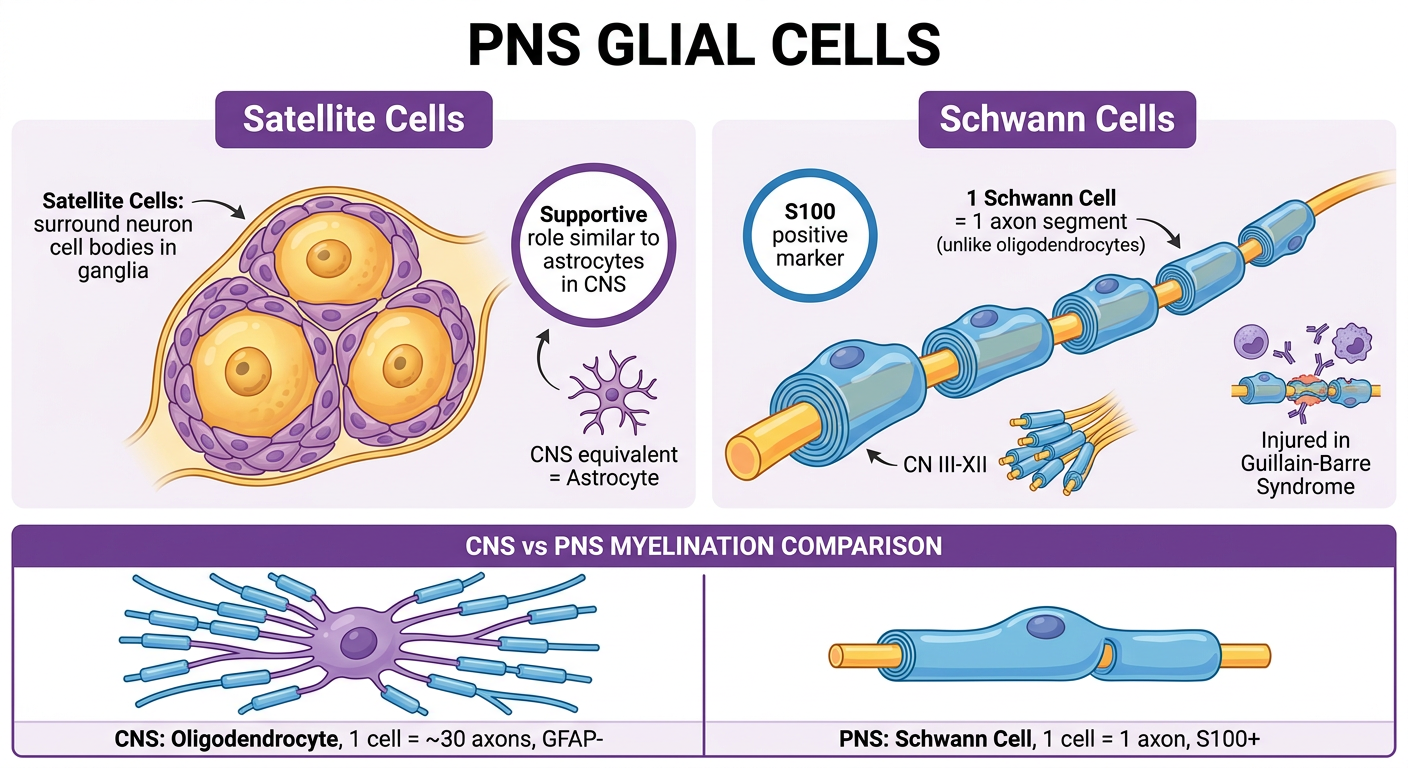

Medical educational infographic about PNS Glial Cells: Satellite Cells and Schwann Cells. Clean scientific illustration on white background. Title "PNS GLIAL CELLS" bold at top. LEFT PANEL - Satellite Cells: Show a dorsal root ganglion cross-section with large round neuronal cell bodies surrounded by small flat satellite cells wrapping around them like a capsule. Label "Satellite Cells: surround neuron cell bodies in ganglia". Badge: "Supportive role similar to astrocytes in CNS". Arrow connecting to a small astrocyte icon labeled "CNS equivalent = Astrocyte". RIGHT PANEL - Schwann Cells: Show a single peripheral nerve axon with individual Schwann cells wrapping around it one by one along the length of the axon. Each Schwann cell shown as a spiral myelin wrap around one segment. Labels: "1 Schwann Cell = 1 axon segment (unlike oligodendrocytes)". Badge: "S100 positive marker". Small CN III-XII label showing cranial nerves myelinated. Small icon: Guillain-Barre Syndrome showing immune attack on Schwann cell labeled "Injured in Guillain-Barre Syndrome". BOTTOM COMPARISON TABLE: Two-column visual comparing CNS vs PNS myelination: Left: Oligodendrocyte (one cell body with 30 arms each wrapping different axons) labeled "CNS: Oligodendrocyte, 1 cell = ~30 axons, GFAP-" Right: Schwann cell (one cell wrapping one axon) labeled "PNS: Schwann Cell, 1 cell = 1 axon, S100+" Color: blue for myelin sheaths, yellow/orange cell bodies, purple for labels. Clean educational style.

Generating Image

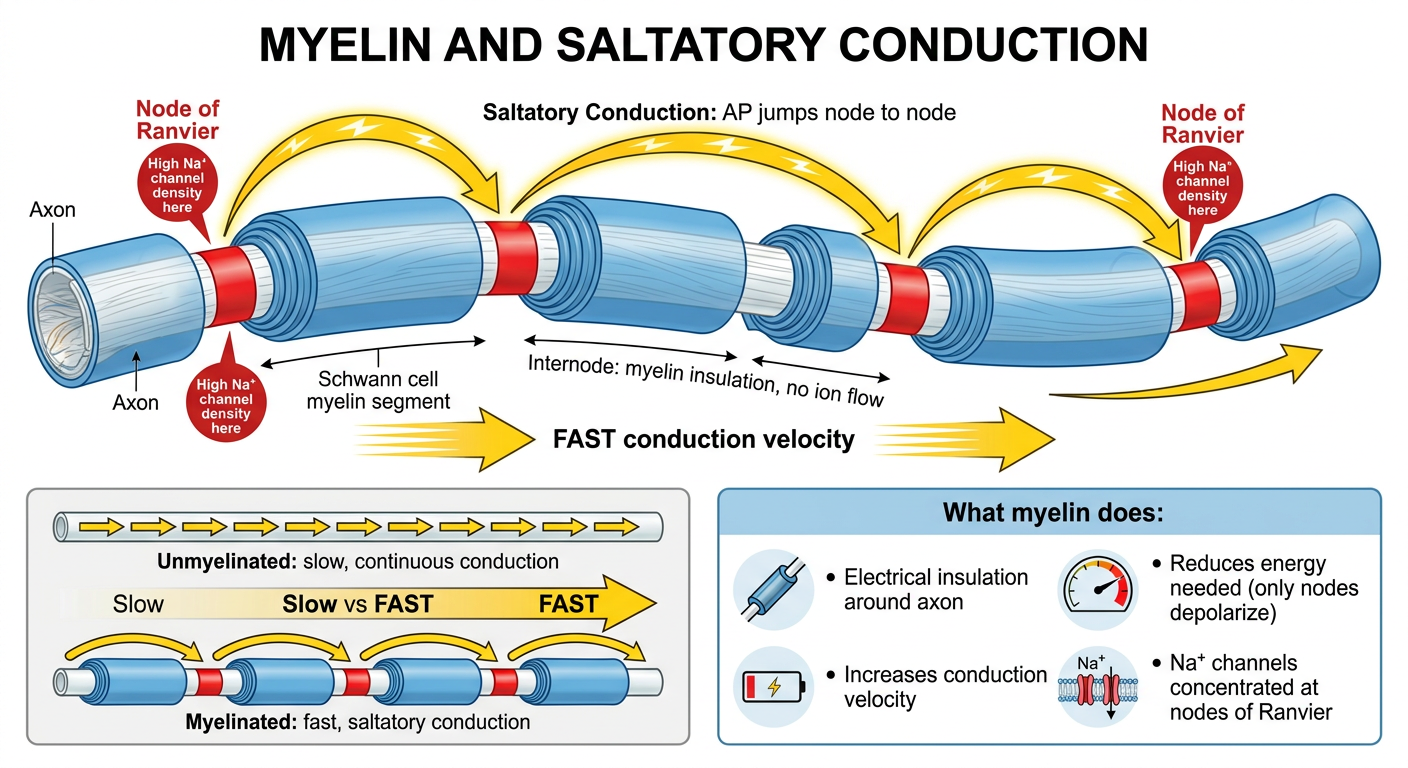

Medical educational diagram about Myelin and Saltatory Conduction. Clean scientific illustration on white background. Title "MYELIN AND SALTATORY CONDUCTION" bold at top. MAIN DIAGRAM - A long myelinated axon running horizontally across the page: - Axon shown as a central tube/cylinder - Multiple Schwann cell myelin segments (blue spiral wrapping) covering the axon with gaps between them - Gaps labeled "Node of Ranvier" with red highlight and badge "High Na+ channel density here" - Between nodes labeled "Internode: myelin insulation, no ion flow" - Arrows showing action potential JUMPING from one node to the next (skipping the myelinated segments), labeled "Saltatory Conduction: AP jumps node to node" - Speed arrows showing "FAST conduction velocity" COMPARISON inset - Two axons side by side: Top: Unmyelinated axon with slow continuous conduction arrows along entire length, labeled "Unmyelinated: slow, continuous conduction" Bottom: Myelinated axon with jumping arrows only at nodes, labeled "Myelinated: fast, saltatory conduction" Speed comparison: "Slow vs FAST" BOTTOM BOX - What myelin does: bullet points with icons: - "Electrical insulation around axon" - "Increases conduction velocity" - "Reduces energy needed (only nodes depolarize)" - "Na+ channels concentrated at nodes of Ranvier" Color: blue myelin, red nodes of Ranvier, yellow action potential arrows, white axon. Clean labeled educational style.

PNS Glial Cells - Satellite & Schwann Cells

Myelin and Saltatory Conduction

Concept Breakdown

PNS Glial Cells

Cell	Location	Function	Marker	CNS Equivalent
Satellite Cells	Ganglia	Surround & support neuron cell bodies	-	Astrocytes
Schwann Cells	PNS axons (CN III-XII)	Myelinate peripheral axons	S100+	Oligodendrocytes

Key Schwann Cell facts:

1 Schwann cell = 1 axon (compare: 1 oligodendrocyte = ~30 axons)
Injured in Guillain-Barre Syndrome - autoimmune demyelination of PNS
S100+ makes Schwann cell tumors (schwannomas) identifiable on pathology

Myelin and Saltatory Conduction - Step by Step

Axon hillock → [myelin] → Node of Ranvier → [myelin] → Node → [myelin] → Node...
                  ↑                ↑
            No ion flow       Na+ channels
            (insulated)       fire here only

Why saltatory conduction is faster:

Action potential only needs to depolarize at nodes of Ranvier (bare axon gaps)
Skips over the insulated myelin segments entirely
Far less ion movement needed = faster + more energy efficient

Na+ channels are concentrated at nodes - this is why demyelination (MS, GBS) slows or blocks conduction even though axons are intact. Without myelin, the signal has to crawl along the entire axon instead of jumping.

Master Comparison: CNS vs PNS Myelination

Feature	CNS (Oligodendrocyte)	PNS (Schwann Cell)
Axons per cell	~30	1
Marker	GFAP- / MBP+	S100+
Disease	MS, PML, leukodystrophies	Guillain-Barre Syndrome
Regeneration	Poor	Better (Schwann cells guide regrowth)
CN II	Yes (CNS tract)	No
CN III-XII	No	Yes

Free nerve endings Sensory Receptors The page describes various sensory receptors, their fiber types, locations, and the senses they are responsible for: • Free nerve endings Sensory neuron fiber type: A -fast, myelinated fibers; -slow, unmyelinated fibers •Location: All tissues except cartilage and eye lens; numerous in skin • Senses: Pain, temperature • Meissner corpuscles •Sensory neuron fiber type: Large, myelinated fibers; adapt quickly • Location: Glabrous (hairless) skin (e.g., palms, soles, lips) ·Senses: Dynamic, fine/light touch, low-frequency vibration, skin indentation Same make images to make concept visual better like visual diagram how it made

Generating Image

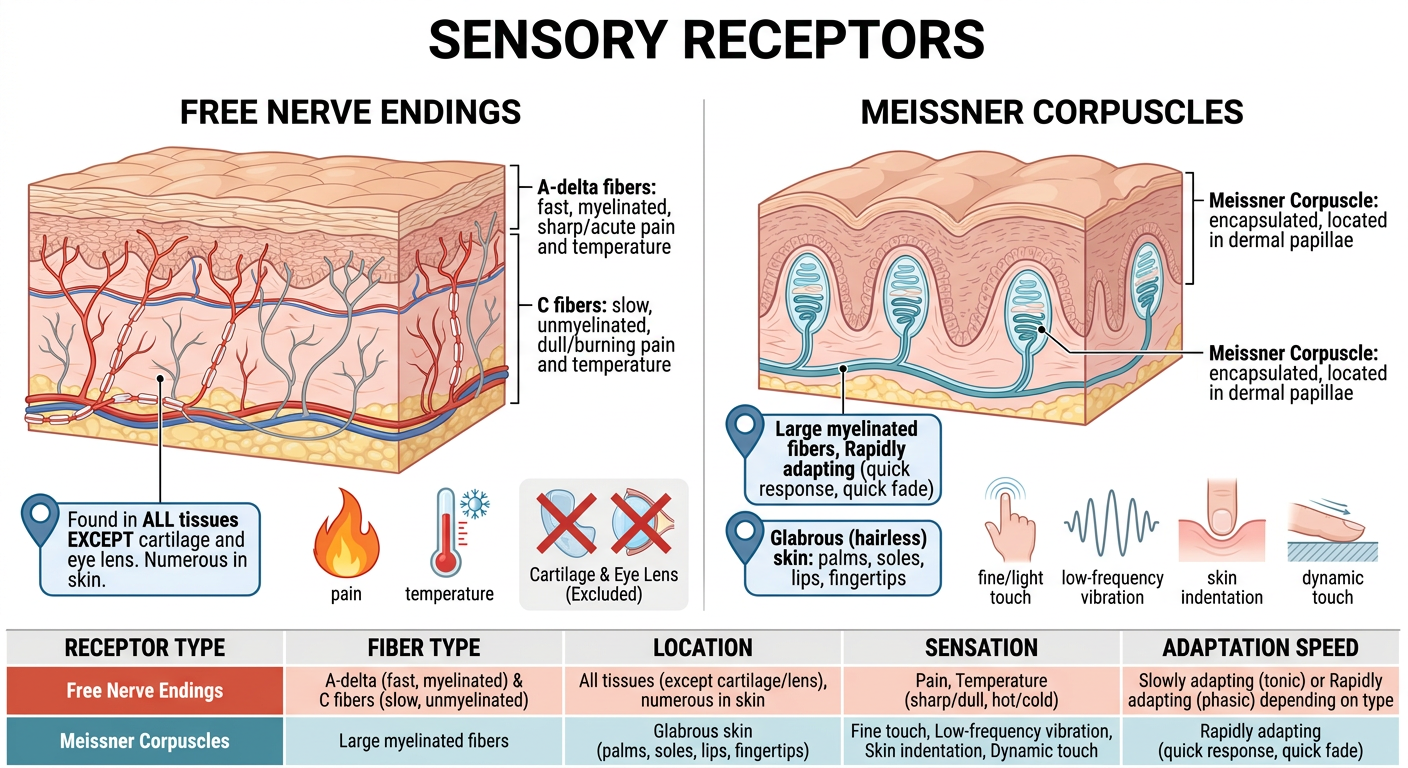

Medical educational infographic about Sensory Receptors: Free Nerve Endings and Meissner Corpuscles. Clean scientific illustration on white background. Title "SENSORY RECEPTORS" bold at top. LEFT PANEL - "FREE NERVE ENDINGS": Cross-section of skin layers (epidermis, dermis) showing bare unencapsulated nerve endings branching freely throughout the tissue. Two fiber types shown with different colors: - Thin red fibers labeled "A-delta fibers: fast, myelinated, sharp/acute pain and temperature" - Thin gray fibers labeled "C fibers: slow, unmyelinated, dull/burning pain and temperature" Location badge: "Found in ALL tissues EXCEPT cartilage and eye lens. Numerous in skin." Sensation icons: flame icon = pain, thermometer icon = temperature. Small excluded zone showing cartilage and eye lens with X marks. RIGHT PANEL - "MEISSNER CORPUSCLES": Cross-section of glabrous (hairless) skin showing fingertip/palm region. In the dermal papillae just beneath the epidermis, show oval encapsulated receptors with stacked internal lamellae (coiled nerve ending inside capsule shape). Label: "Meissner Corpuscle: encapsulated, located in dermal papillae". Fiber badge: "Large myelinated fibers, Rapidly adapting (quick response, quick fade)". Location badge: "Glabrous (hairless) skin: palms, soles, lips, fingertips". Sensation icons: fingertip touching surface = fine/light touch, wavy lines = low-frequency vibration, finger pressing = skin indentation, moving finger = dynamic touch. BOTTOM COMPARISON BAR: Simple table showing both receptors side by side with fiber type, location, sensation, adaptation speed. Color: red/orange for free nerve endings, blue/teal for Meissner corpuscles. Bold labels, educational medical style.

Concept Breakdown

Free Nerve Endings

These are unencapsulated - just bare nerve terminals branching through tissue with no surrounding capsule. Two fiber types carry their signals:

Fiber	Type	Speed	Sensation
A-delta	Thin, myelinated	Fast	Sharp/acute pain, cold temperature
C fibers	Unmyelinated	Slow	Dull/burning/aching pain, warmth

Found everywhere - skin, muscles, viscera, cornea, periosteum
Exception: cartilage and eye lens have no blood supply and no free nerve endings (which is why cartilage injuries hurt so little directly, and why you can touch your lens without pain)

Meissner Corpuscles

These are encapsulated receptors sitting in the dermal papillae (just under the epidermis):

Feature	Detail
Fiber type	Large, myelinated (fast)
Adaptation	Rapidly adapting - fire on change, go silent when stimulus is held
Location	Glabrous skin only - palms, soles, lips, fingertips
Senses	Dynamic/light touch, skin indentation, low-frequency vibration

Why "rapidly adapting" matters: When you first pick up an object you feel it immediately, then the sensation fades. This lets you detect texture changes and slipping - critical for grip control.

Memory Trick for Location

"Meissner = Hairless skin" - if there's hair there, no Meissner corpuscles. Fingertips are loaded with them because fine discriminative touch is needed there.

Pacinian corpuscles •Sensory neuron fiber type: Large, myelinated fibers; adapt quickly Location: Deep skin layers, ligaments, joints Senses: High-frequency vibration, pressure (e.g., pressure cooker) • Merkel discs •Sensory neuron fiber type: Large, myelinated fibers; adapt slowly •Location: Finger tips, superficial skin •Senses: Pressure, deep static touch (e.g, shapes, edges) •Ruffini corpuscles Sensory neuron fiber type: Large, myelinated fiber intertwined among collagen fiber bundles; adapt slowly Location: Finger tips, joints Senses: Stretch, joint angle change Same make images to make concept visual better like visual diagram how it made

Generating Image

Medical educational infographic comparing three sensory receptors: Pacinian Corpuscles, Merkel Discs, and Ruffini Corpuscles. Clean scientific illustration on white background. Title "SENSORY RECEPTORS - MECHANORECEPTORS" bold at top. THREE COLUMN LAYOUT: LEFT COLUMN - "PACINIAN CORPUSCLES": Large oval onion-layered encapsulated receptor shown in cross-section with concentric lamellae rings around central nerve ending. Located deep in skin dermis and subcutaneous tissue. Show also in ligament and joint tissue. Label: "Onion-like layered capsule". Fiber badge: "Large myelinated, Rapidly adapting". Location: "Deep skin, ligaments, joints". Sensation icons: tuning fork vibration waves = "High-frequency vibration", hand pressing hard = "Deep pressure". Memory cue box: "Think: pressure cooker / vibrating tool". CENTER COLUMN - "MERKEL DISCS": Flat disc-shaped receptor sitting just at the base of epidermis touching a Merkel cell. Show in fingertip skin cross-section close to surface. Receptor appears as flattened disc-like nerve terminal touching specialized epidermal cells. Label: "Flat disc at epidermal-dermal junction". Fiber badge: "Large myelinated, SLOWLY adapting (sustained response)". Location: "Fingertips, superficial skin". Sensation icons: finger tracing an edge = "Edges and shapes", sustained pressure dot = "Deep static touch, pressure". Memory cue box: "Think: reading Braille, feeling textures". RIGHT COLUMN - "RUFFINI CORPUSCLES": Elongated spindle-shaped receptor with nerve fibers intertwined among collagen fiber bundles inside a loose capsule. Show in fingertip and joint tissue. Label: "Spindle-shaped, nerve among collagen bundles". Fiber badge: "Large myelinated, SLOWLY adapting". Location: "Fingertips, joints". Sensation icons: stretching skin arrows = "Skin stretch", joint angle icon = "Joint position/angle change". Memory cue box: "Think: proprioception, joint awareness". BOTTOM SUMMARY TABLE: All 5 receptors (including Meissner and Free nerve endings) in one row table: Receptor | Fiber | Adaptation | Location | Sensation. Color: purple Pacinian, green Merkel, orange Ruffini. Clean medical education style.

400, message: Got more than 4194304 bytes when reading: b'data: {"candidates": [{"content": {"role": "model","parts": [{"inlineData": {"mimeType": "image/png"...'.

We encountered an error while processing your request. Please try again or reach out to us for help.

🔗Contact Support

✉️hi@orris.care

Generating Image

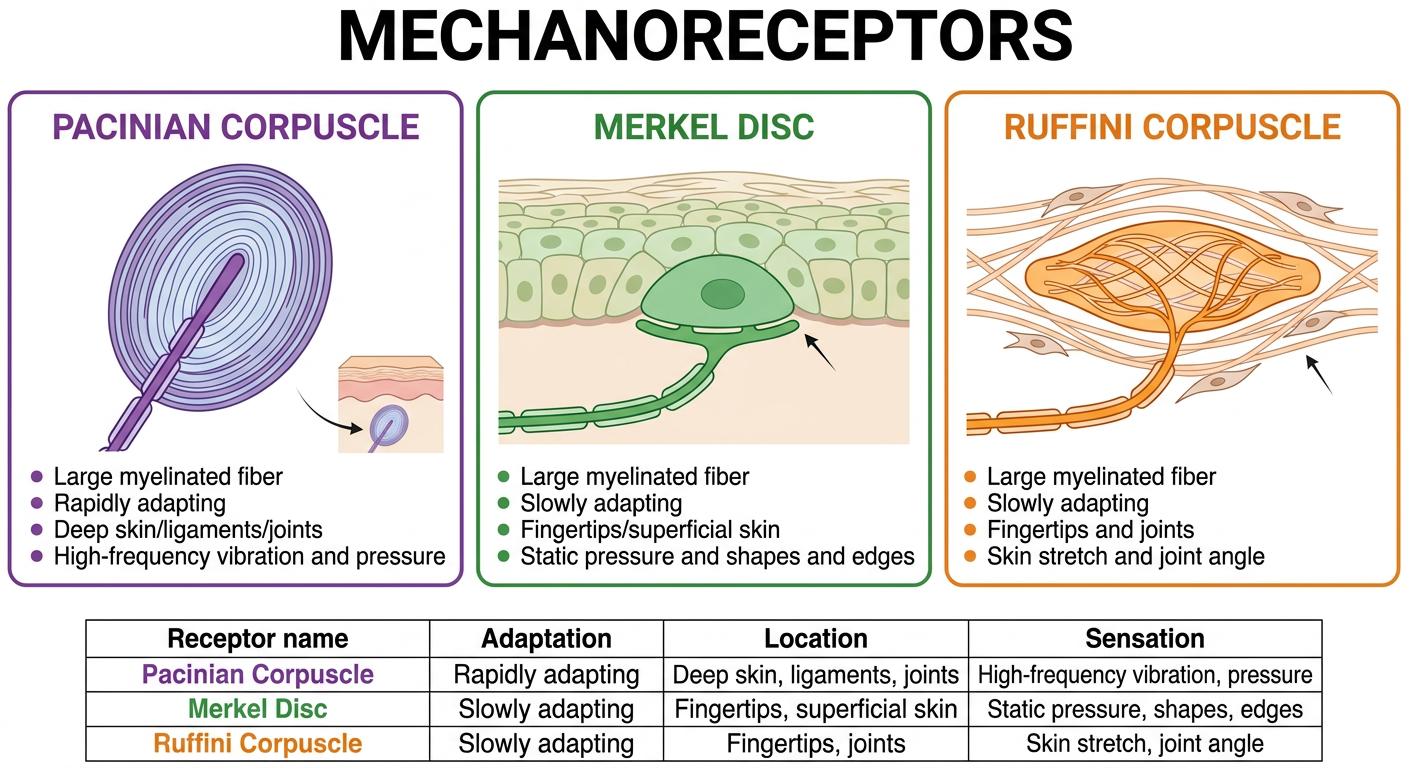

Medical diagram of three mechanoreceptors side by side. Simple clean style, white background, bold title "MECHANORECEPTORS". Three labeled boxes in a row: Box 1 "PACINIAN CORPUSCLE": Oval onion-layered receptor with concentric rings around central nerve. Located deep in skin. Tags: Large myelinated fiber, Rapidly adapting, Deep skin/ligaments/joints, High-frequency vibration and pressure. Box 2 "MERKEL DISC": Flat disc nerve terminal at epidermis base touching Merkel cell. Located superficial skin. Tags: Large myelinated fiber, Slowly adapting, Fingertips/superficial skin, Static pressure and shapes and edges. Box 3 "RUFFINI CORPUSCLE": Elongated spindle receptor with nerve threads woven through collagen bundles inside loose capsule. Located in joints. Tags: Large myelinated fiber, Slowly adapting, Fingertips and joints, Skin stretch and joint angle. Small bottom table: Receptor name, Adaptation, Location, Sensation for all three. Purple, green, orange color coding. Clean labels.

Mechanoreceptors - Pacinian, Merkel, Ruffini

Concept Breakdown

The 3 Receptors at a Glance

Receptor	Shape	Adaptation	Location	Senses
Pacinian	Onion-layered oval	Rapidly adapting	Deep skin, ligaments, joints	High-freq vibration, pressure
Merkel disc	Flat disc	Slowly adapting	Fingertips, superficial skin	Static pressure, shapes, edges
Ruffini	Spindle (among collagen)	Slowly adapting	Fingertips, joints	Skin stretch, joint angle

Understanding Rapid vs Slow Adaptation

Rapidly adapting = fires when stimulus starts and stops, silent in between. Good for detecting change and movement (vibration).
Slowly adapting = fires continuously as long as the stimulus is present. Good for detecting sustained contact and position.

Quickly adapts	Slowly adapts
Pacinian (deep vibration)	Merkel (static pressure/shapes)
Meissner (light touch/dynamic)	Ruffini (stretch/joint angle)

Memory Anchors

Pacinian = "Pressure cooker" - deep, high-frequency, like holding a vibrating drill
Merkel = "Mark an edge" - reading Braille, tracing the rim of a coin, feeling textures
Ruffini = "Rotation/stretch" - tells your brain how far a joint has moved; proprioception

Complete Sensory Receptor Master Table

Receptor	Fiber	Encapsulated	Adaptation	Location	Sensation
Free nerve endings	A-delta / C	No	-	All tissues (not cartilage/lens)	Pain, temperature
Meissner corpuscle	Large myelinated	Yes	Rapid	Glabrous skin (palms, lips)	Light/dynamic touch, low-freq vibration
Pacinian corpuscle	Large myelinated	Yes	Rapid	Deep skin, joints, ligaments	High-freq vibration, pressure
Merkel disc	Large myelinated	No (disc)	Slow	Fingertips, superficial skin	Static pressure, shapes, edges
Ruffini corpuscle	Large myelinated	Yes (loose)	Slow	Fingertips, joints	Stretch, joint angle

Generating Image

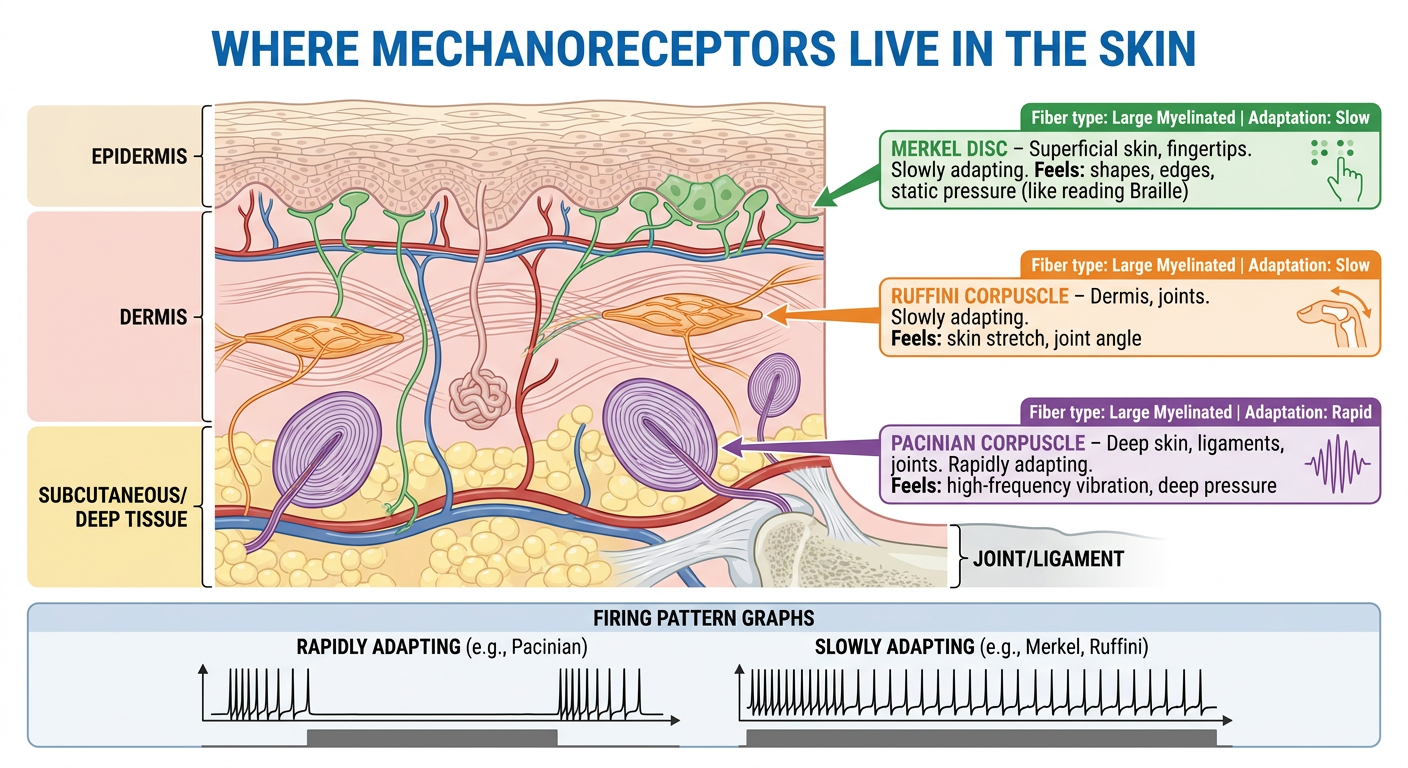

Detailed anatomical cross-section of human fingertip skin showing all three mechanoreceptors in their actual tissue locations. Medical illustration style, highly visual, color-coded. Title "WHERE MECHANORECEPTORS LIVE IN THE SKIN". Show a vertical cross-section of fingertip with clear layers labeled: Epidermis (top), Dermis (middle), Subcutaneous/Deep tissue (bottom), Joint/Ligament (bottom right). Place each receptor in its correct anatomical location: 1. MERKEL DISC - at the base of epidermis, superficial. Show flat disc-shaped nerve terminals touching specialized Merkel cells right at the epidermal-dermal junction. Color: GREEN. Label with arrow: "MERKEL DISC - Superficial skin, fingertips. Slowly adapting. Feels: shapes, edges, static pressure (like reading Braille)". Show a Braille dot icon nearby. 2. RUFFINI CORPUSCLE - in the dermis, spindle-shaped elongated receptor with nerve fibers woven through collagen fiber bundles. Color: ORANGE. Label with arrow: "RUFFINI CORPUSCLE - Dermis, joints. Slowly adapting. Feels: skin stretch, joint angle". Show a bent joint angle icon nearby. 3. PACINIAN CORPUSCLE - deep in subcutaneous tissue, large oval onion-layered structure with many concentric lamellae rings visible in cross-section. Color: PURPLE. Label with arrow: "PACINIAN CORPUSCLE - Deep skin, ligaments, joints. Rapidly adapting. Feels: high-frequency vibration, deep pressure". Show a vibration wave icon nearby. Each receptor has a small badge showing: Fiber type (large myelinated), Adaptation speed (rapid/slow). Bottom strip shows firing pattern graphs: Rapidly adapting = spikes only at start/end of stimulus. Slowly adapting = continuous spikes throughout stimulus. Clean educational medical illustration.

Generating Image

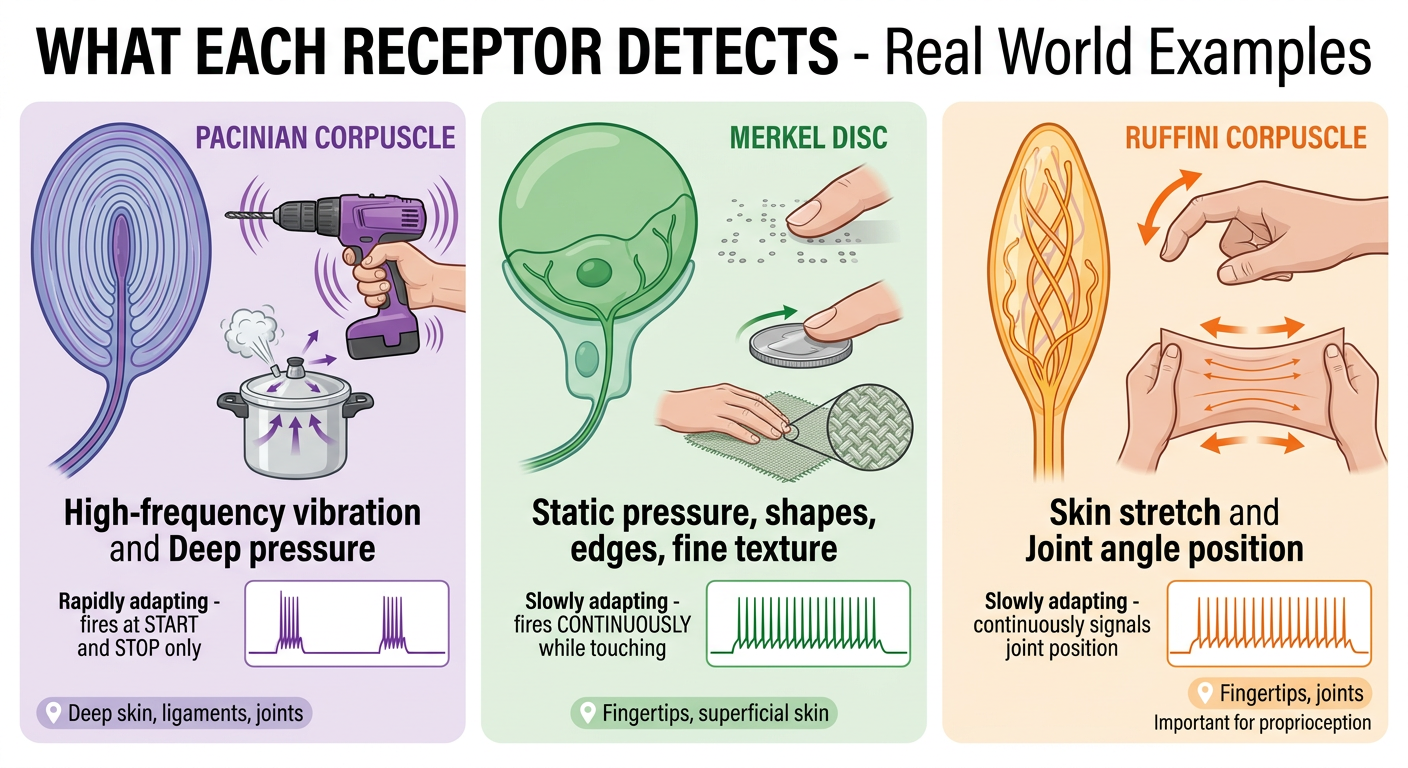

Medical educational visual showing real-world sensory scenarios matched to mechanoreceptors. Clean infographic style, white background, bold title "WHAT EACH RECEPTOR DETECTS - Real World Examples". Three large illustrated scenario panels: Panel 1 - PACINIAN CORPUSCLE (purple theme): Large onion-shaped receptor illustration on left. Right side shows: a hand holding a vibrating power drill with vibration waves, a pressure cooker with steam. Bold text: "High-frequency vibration and Deep pressure". Below: "Rapidly adapting - fires at START and STOP only". Small firing trace graph showing two brief spike bursts. Location tag: "Deep skin, ligaments, joints". Panel 2 - MERKEL DISC (green theme): Flat disc receptor illustration on left. Right side shows: a fingertip reading Braille dots, a finger tracing the sharp edge of a coin, hand feeling fabric texture. Bold text: "Static pressure, shapes, edges, fine texture". Below: "Slowly adapting - fires CONTINUOUSLY while touching". Small firing trace graph showing sustained spike train. Location tag: "Fingertips, superficial skin". Panel 3 - RUFFINI CORPUSCLE (orange theme): Spindle receptor with collagen threads illustration on left. Right side shows: a hand bending at the knuckle joint with angle arrow, skin being stretched sideways with arrows. Bold text: "Skin stretch and Joint angle position". Below: "Slowly adapting - continuously signals joint position". Small firing trace graph showing sustained spikes. Location tag: "Fingertips, joints". Note: "Important for proprioception". Clean bold labels, color-coded, highly visual educational poster format.

Diagram 1 - Where Each Receptor Lives in the Skin

Mechanoreceptors in Fingertip Cross-Section

Diagram 2 - Real-World Scenarios for Each Receptor

The Core Concept: Depth + Adaptation Speed = Function

Depth in Tissue

SUPERFICIAL ──────────────────────────────── DEEP
   Merkel disc        Ruffini corpuscle        Pacinian corpuscle
(epidermal base)      (dermis/joints)       (subcutaneous/ligaments)
Fine detail touch     Stretch/angle          Vibration/deep pressure

Adaptation Speed Determines the "Job"

Slowly Adapting	Rapidly Adapting
Fires the whole time you touch something	Fires only at start and stop
Good for: sustained grip, shapes, joint position	Good for: detecting movement, vibration, slip
Merkel + Ruffini	Pacinian + Meissner

The 3-Second Memory System

Receptor	Think of...	Key sense
Pacinian	Holding a vibrating phone deep in your palm	High-freq vibration
Merkel	Marking the exact edge of a coin (Merkel = Mark)	Shapes/edges/static
Ruffini	Rotating a joint, feeling the stretch (Ruffini = Rotation)	Stretch/joint angle

Neuron Action Potential The page outlines the stages of neuron action potential, including changes in membrane potential and ion permeability: 1. Resting membrane potential: The membrane is more permeable to K+ than Na+. Voltage-gated Na+ and K+ channels are closed. 2. Membrane depolarization: Na+ activation gate opens, allowing Na+ to flow inward. 3. Membrane repolarization: Na+ inactivation gate closes at peak potential, stopping Na+ inflow. K+ activation gate opens, allowing K+ to flow outward. 4. Membrane hyperpolarization: K+ activation gates are slow to close, leading to excess K+ efflux and a brief period of hyperpolarization. Voltage-gated Nat channels switch back to the resting state. The Na+/ K+ pump restores ion concentration. Same make images to make concept visual better separately like visual diagram how it mademske strong concept

Generating Image

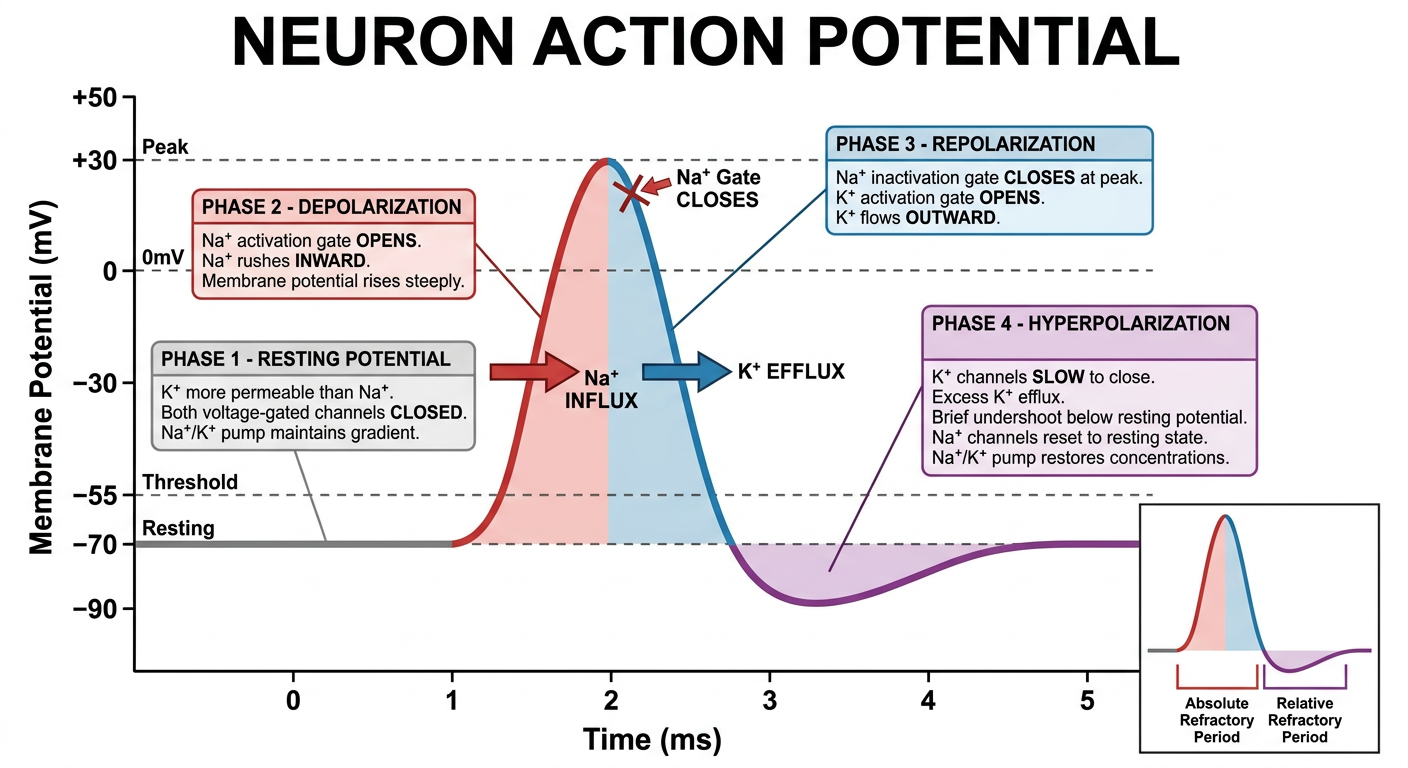

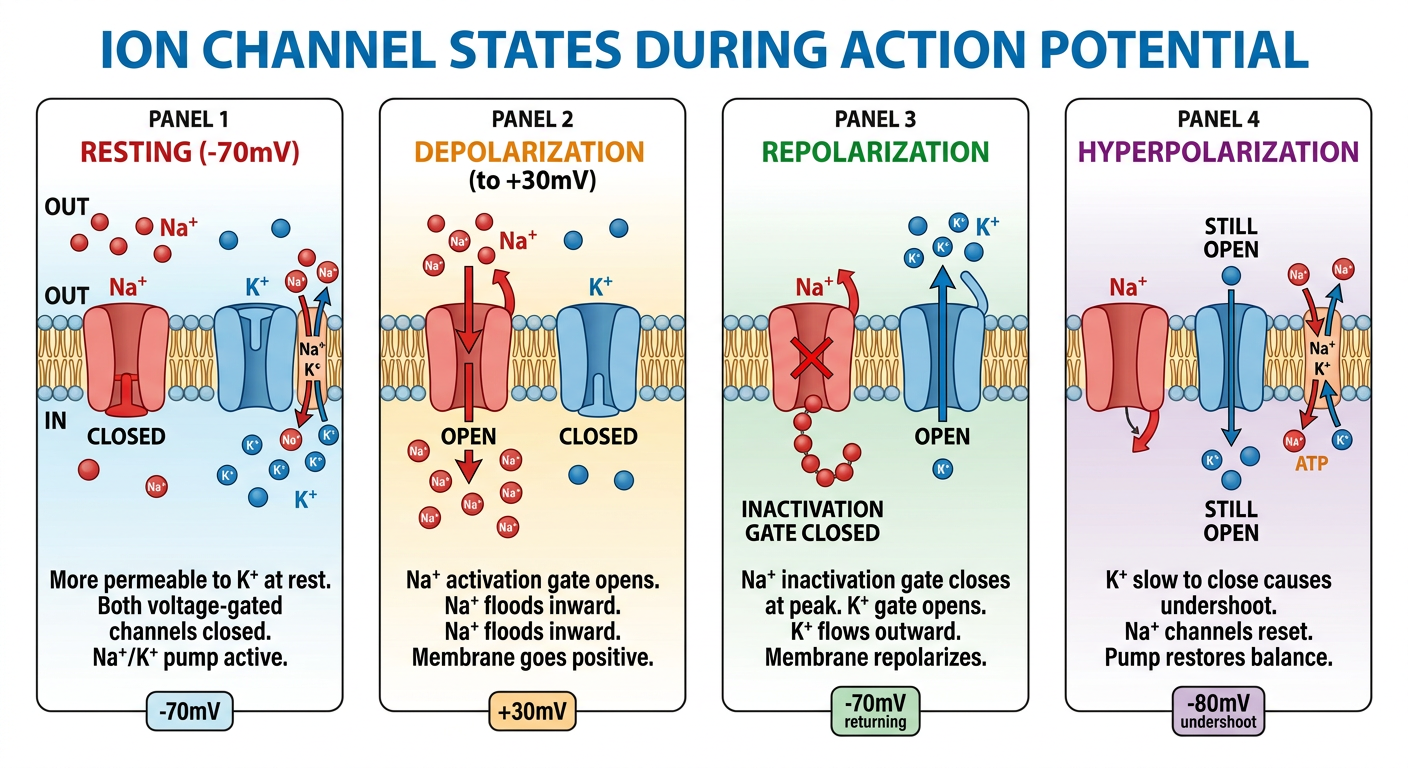

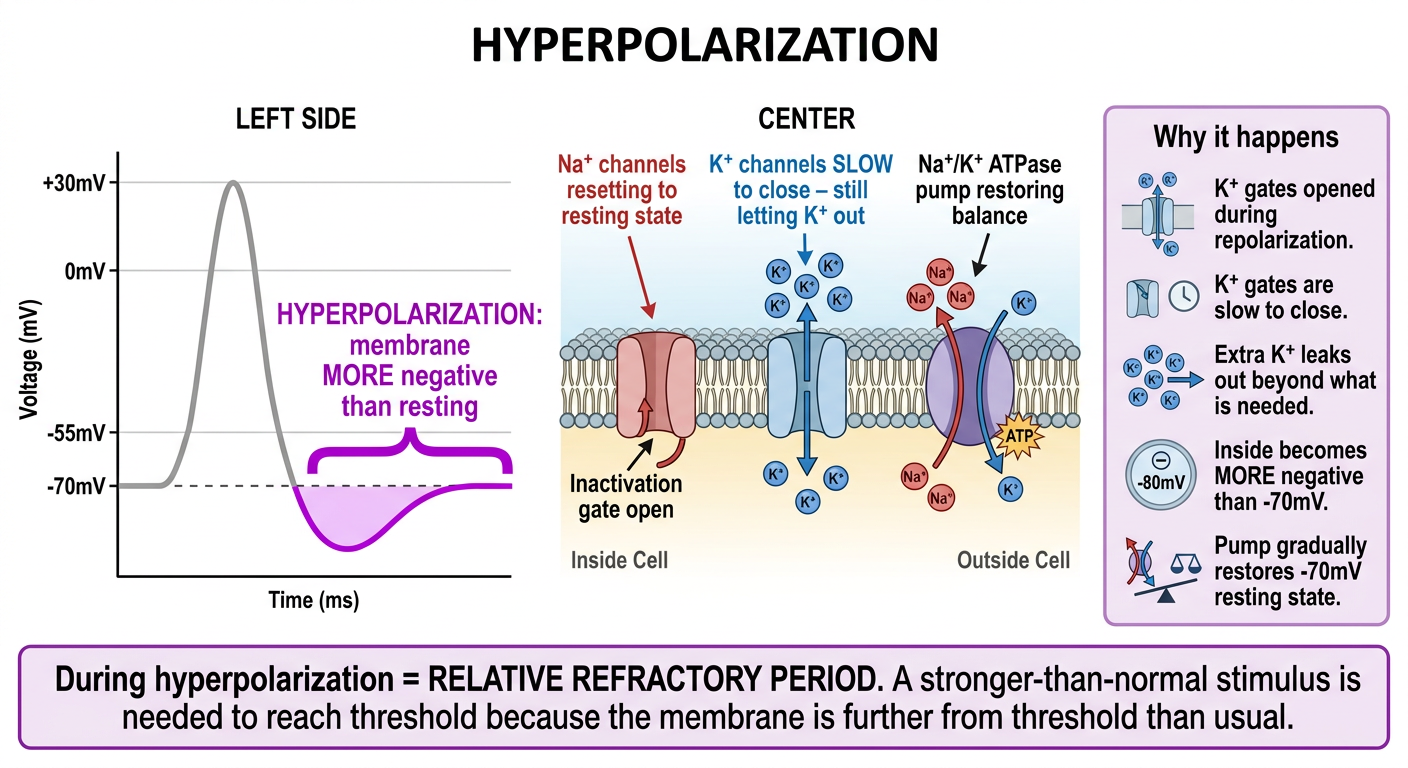

Medical educational diagram of the Neuron Action Potential curve with all stages labeled. Clean scientific illustration on white background. Title "NEURON ACTION POTENTIAL" bold at top. Main element: A large action potential waveform graph. X-axis labeled "Time (ms)", Y-axis labeled "Membrane Potential (mV)". Key voltage lines marked: -70mV (resting), -55mV (threshold), 0mV, +30mV (peak). The curve shows 4 clearly labeled phases with colored zones: PHASE 1 - "RESTING POTENTIAL" (gray zone, flat at -70mV): Label: "K+ more permeable than Na+. Both voltage-gated channels CLOSED. Na+/K+ pump maintains gradient." PHASE 2 - "DEPOLARIZATION" (red zone, sharp upswing to +30mV): Label: "Na+ activation gate OPENS. Na+ rushes INWARD. Membrane potential rises steeply." Arrow showing Na+ flowing inward. PHASE 3 - "REPOLARIZATION" (blue zone, falling from +30mV back toward -70mV): Label: "Na+ inactivation gate CLOSES at peak. K+ activation gate OPENS. K+ flows OUTWARD." Arrows showing Na+ gate closing and K+ flowing out. PHASE 4 - "HYPERPOLARIZATION" (purple zone, dip below -70mV to about -80mV): Label: "K+ channels SLOW to close. Excess K+ efflux. Brief undershoot below resting potential. Na+ channels reset to resting state. Na+/K+ pump restores concentrations." Small inset showing absolute refractory period (during depolarization+repolarization) and relative refractory period (during hyperpolarization) marked on the curve with colored brackets. Color: red for Na+ movements, blue for K+ movements, clear phase labels with connecting lines to the curve.

Generating Image

Medical educational diagram showing ion channel states during each phase of action potential. Four sequential panels arranged left to right on white background. Title "ION CHANNEL STATES DURING ACTION POTENTIAL". Each panel shows a simple cell membrane cross-section (lipid bilayer) with two channel types: Na+ channel (red) and K+ channel (blue). Inside cell labeled "IN", outside labeled "OUT". PANEL 1 - "RESTING (-70mV)": Na+ channel shown CLOSED (gate down, red). K+ channel shown CLOSED (gate down, blue). Small Na+ ions outside (more outside), small K+ ions inside (more inside). Label: "More permeable to K+ at rest. Both voltage-gated channels closed. Na+/K+ pump active." PANEL 2 - "DEPOLARIZATION (to +30mV)": Na+ activation gate shown OPEN (gate up, red arrow showing Na+ rushing IN with multiple Na+ ions flowing inward). K+ channel still CLOSED. Label: "Na+ activation gate opens. Na+ floods inward. Membrane goes positive." PANEL 3 - "REPOLARIZATION": Na+ channel shown with INACTIVATION GATE CLOSED (ball-and-chain blocking the channel, red X). K+ channel now OPEN (gate up, blue arrow showing K+ rushing OUT). Label: "Na+ inactivation gate closes at peak. K+ gate opens. K+ flows outward. Membrane repolarizes." PANEL 4 - "HYPERPOLARIZATION": Na+ channel resetting (returning to closed resting state). K+ channel STILL OPEN (slow to close, K+ still trickling out). Na+/K+ pump shown actively pumping (3 Na+ out, 2 K+ in). Label: "K+ slow to close causes undershoot. Na+ channels reset. Pump restores balance." Small voltage badge under each panel: -70mV, +30mV, -70mV returning, -80mV undershoot. Bold color-coded labels. Clean educational medical style.

Diagram 1 - The Action Potential Curve (All Phases)

Diagram 2 - Ion Channel States at Each Phase

Phase-by-Phase Breakdown

Phase 1 - Resting Membrane Potential (-70 mV)

Membrane is more permeable to K+ than Na+ (leaky K+ channels open at rest)
Voltage-gated Na+ and K+ channels are both closed
Na+/K+ pump continuously maintains: 3 Na+ out, 2 K+ in
Result: inside negative, outside positive

Phase 2 - Depolarization (up to +30 mV)

Stimulus reaches threshold (-55 mV)
Na+ activation gate opens → Na+ floods inward
Membrane potential shoots from -70 mV up to +30 mV
This is the "all-or-nothing" spike

Phase 3 - Repolarization (+30 mV back to -70 mV)

Na+ inactivation gate closes at peak (ball-and-chain mechanism)
K+ activation gate opens → K+ rushes outward
Membrane returns toward resting potential

Phase 4 - Hyperpolarization (dips to ~-80 mV)

K+ channels are slow to close → excess K+ efflux
Membrane overshoots below -70 mV briefly (undershoot)
Na+ channels reset to closed resting state
Na+/K+ pump restores ion concentrations

Refractory Periods - High Yield

Period	Phase	Reason	Effect
Absolute refractory	Depolarization + Repolarization	Na+ channels inactivated (cannot open)	No AP possible at all
Relative refractory	Hyperpolarization	Membrane more negative than usual	AP possible only with stronger than normal stimulus

The Na+ Channel Has 2 Gates - Key Concept

RESTING:      Activation gate CLOSED  |  Inactivation gate OPEN   → Can be opened
OPEN:         Activation gate OPEN    |  Inactivation gate OPEN   → Na+ flowing in
INACTIVATED:  Activation gate OPEN    |  Inactivation gate CLOSED → BLOCKED (refractory)

This is why local anesthetics (lidocaine) work - they bind the inactivated state and prevent channels from resetting to resting, blocking all further action potentials.

Can you make images of huper polarization and absolute refractory period and relative refractory period

Generating Image

Medical educational diagram focused on Hyperpolarization phase of action potential. Clean scientific illustration on white background. Title "HYPERPOLARIZATION" bold at top. LEFT SIDE - Action potential curve: Full waveform shown with all phases, but the HYPERPOLARIZATION phase highlighted in bright purple. The curve dips below resting potential from -70mV down to -80mV before returning to -70mV. Large colored bracket over this section labeled "HYPERPOLARIZATION: membrane MORE negative than resting". Resting line at -70mV shown as dashed horizontal. The undershoot clearly visible below this line. CENTER - Ion channel diagram during hyperpolarization: Cell membrane cross-section showing: Na+ channel in RESET/CLOSED state (labeled "Na+ channels resetting to resting state"), K+ channel STILL OPEN but slowly closing (labeled "K+ channels SLOW to close - still letting K+ out"). Multiple K+ ions shown streaming outward. Na+/K+ pump shown working (3 Na+ pumped out, 2 K+ pumped in) labeled "Na+/K+ ATPase pump restoring balance". RIGHT SIDE - Why it happens explanation box with simple icons: Step 1: K+ gates opened during repolarization. Step 2: K+ gates are slow to close. Step 3: Extra K+ leaks out beyond what is needed. Step 4: Inside becomes MORE negative than -70mV. Step 5: Pump gradually restores -70mV resting state. Bottom key fact box: "During hyperpolarization = RELATIVE REFRACTORY PERIOD. A stronger-than-normal stimulus is needed to reach threshold because the membrane is further from threshold than usual." Color: purple for hyperpolarization zone, blue for K+, red for Na+.

Generating Image

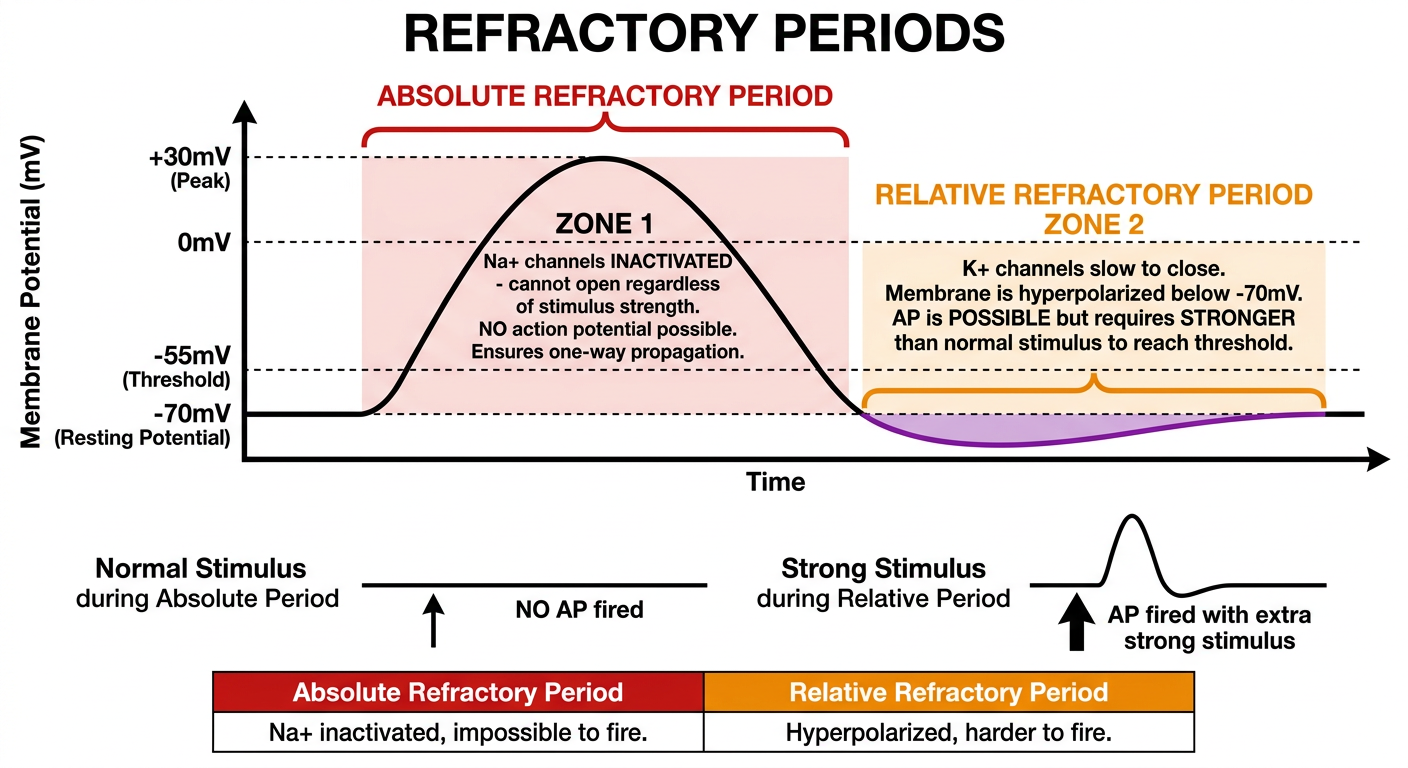

Medical educational diagram comparing Absolute Refractory Period vs Relative Refractory Period on an action potential curve. Clean scientific style, white background. Title "REFRACTORY PERIODS" bold at top. MAIN DIAGRAM: A large action potential waveform. X-axis: Time. Y-axis: Membrane Potential (mV). Key levels marked: -70mV resting, -55mV threshold, 0mV, +30mV peak. Two clearly colored bracket zones marked ON the curve: ZONE 1 - ABSOLUTE REFRACTORY PERIOD (solid red bracket, covering from start of depolarization upstroke all the way through repolarization back to resting): Large red label "ABSOLUTE REFRACTORY PERIOD". Inside the bracket: "Na+ channels INACTIVATED - cannot open regardless of stimulus strength. NO action potential possible. Ensures one-way propagation." ZONE 2 - RELATIVE REFRACTORY PERIOD (solid orange bracket, covering the hyperpolarization dip below -70mV): Large orange label "RELATIVE REFRACTORY PERIOD". Inside the bracket: "K+ channels slow to close. Membrane is hyperpolarized below -70mV. AP is POSSIBLE but requires STRONGER than normal stimulus to reach threshold." Below the curve: Two stimulus comparison panels side by side: Left panel: Normal stimulus arrow during absolute period → flat line = "NO AP fired" Right panel: Strong stimulus arrow during relative period → small AP fires = "AP fired with extra strong stimulus" Bottom summary box: Two columns: Absolute = Na+ inactivated, impossible to fire. Relative = Hyperpolarized, harder to fire. Color: red absolute, orange relative, purple hyperpolarization dip on curve. Bold clear labels.

Hyperpolarization - Deep Dive

Absolute vs Relative Refractory Period

$Refractory Periods Diagram$

Concept Summary

Hyperpolarization - Why It Happens

K+ gates open (repolarization)
        ↓
K+ gates are SLOW to close
        ↓
Extra K+ leaks out beyond what is needed
        ↓
Inside becomes MORE negative than -70mV (drops to ~-80mV)
        ↓
Na+/K+ pump gradually restores resting -70mV

The membrane is now further away from threshold (-55mV) than normal, making it harder to fire again.

Refractory Periods - Side by Side

	Absolute Refractory Period	Relative Refractory Period
When	During depolarization + repolarization	During hyperpolarization
Na+ channel state	Inactivated (ball-and-chain gate closed)	Resetting back to resting state
K+ channel state	Open (flowing out)	Slow to close (still partially open)
Can AP fire?	NO - impossible, no matter how strong	YES - but only with a stronger-than-normal stimulus
Why important	Ensures APs travel in one direction only	Sets the maximum firing frequency of a neuron

Clinical Link

Local anesthetics (lidocaine, bupivacaine) block Na+ channels in the inactivated state - they extend the absolute refractory period indefinitely, preventing any further APs
High firing rate neurons are more sensitive to these drugs because their channels spend more time inactivated

Chromatolysis Neuronal Response to Axonal Injury Chromatolysis is characterized by the dispersion of Nissl substance throughout the cytoplasm, where the rough endoplasmic reticulum (RER) is no longer visible on staining. This reaction of the neuronal cell body reflects an increase in protein synthesis in an effort to repair the damaged axon. It is accompanied by round cellular swelling and displacement of the nucleus to the periphery. Axonal Retraction involves the proximal axon segment retracting and sprouting new protrusions that grow toward other neurons for potential reinnervation. In the peripheral nervous system (PNS), Schwann cells create a tract that guides axonal regeneration. Wallerian Degeneration ocCurs when the distal axon segment and associated myelin sheath disintegrate, with macrophages removing debris. In the central nervous system (CNS), the persistence of myelin debris and reactive gliosis prevent axonal regeneration. Same make images visual better and focus is visual concept better like how it made

Generating Image

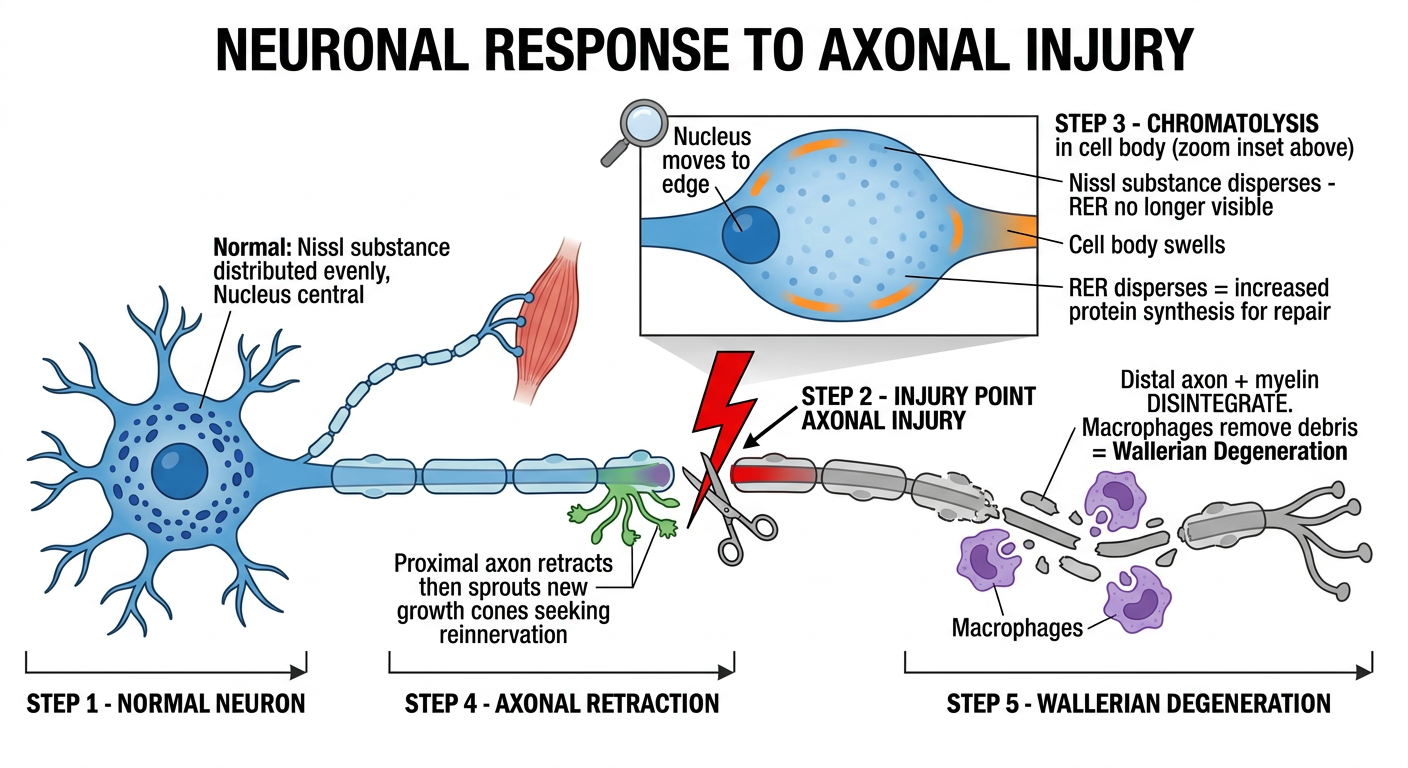

Medical educational diagram showing the full sequence of neuronal response to axonal injury. Timeline-style illustration from left to right on white background. Bold title "NEURONAL RESPONSE TO AXONAL INJURY" at top. Show ONE neuron going through all stages in sequence with numbered steps: STEP 1 - NORMAL NEURON (leftmost): Round cell body with dark nucleus centrally placed, Nissl substance (rough ER) shown as dark blue granules evenly distributed throughout cytoplasm, labeled "Normal: Nissl substance distributed evenly, Nucleus central". Long axon extending right with myelin sheath. Axon ends at target muscle/cell. STEP 2 - INJURY POINT: A red lightning bolt or scissors cut across the axon at midpoint labeled "AXONAL INJURY". Arrow pointing here. STEP 3 - CHROMATOLYSIS in cell body (zoom inset above): Same cell body now showing: swollen/rounded larger cell body, Nissl granules DISPERSED and faded (labeled "Nissl substance disperses - RER no longer visible"), nucleus pushed to PERIPHERY of cell (eccentric nucleus). Labels: "Cell body swells", "Nucleus moves to edge", "RER disperses = increased protein synthesis for repair". Color the dispersed RER as light faded dots vs the dark normal dots. STEP 4 - AXONAL RETRACTION (proximal segment, left of injury): Proximal axon shown retracting slightly then sprouting small new growth cones/protrusions growing toward target. Label: "Proximal axon retracts then sprouts new growth cones seeking reinnervation". STEP 5 - WALLERIAN DEGENERATION (distal segment, right of injury): Distal axon segment shown fragmenting and breaking apart, myelin sheath disintegrating into debris. Macrophages (purple blob cells with engulfed debris) shown cleaning up. Label: "Distal axon + myelin DISINTEGRATE. Macrophages remove debris = Wallerian Degeneration". Color: blue cell body, red injury, orange chromatolysis changes, green sprouting axon, purple macrophages, gray degenerated distal axon.

Generating Image

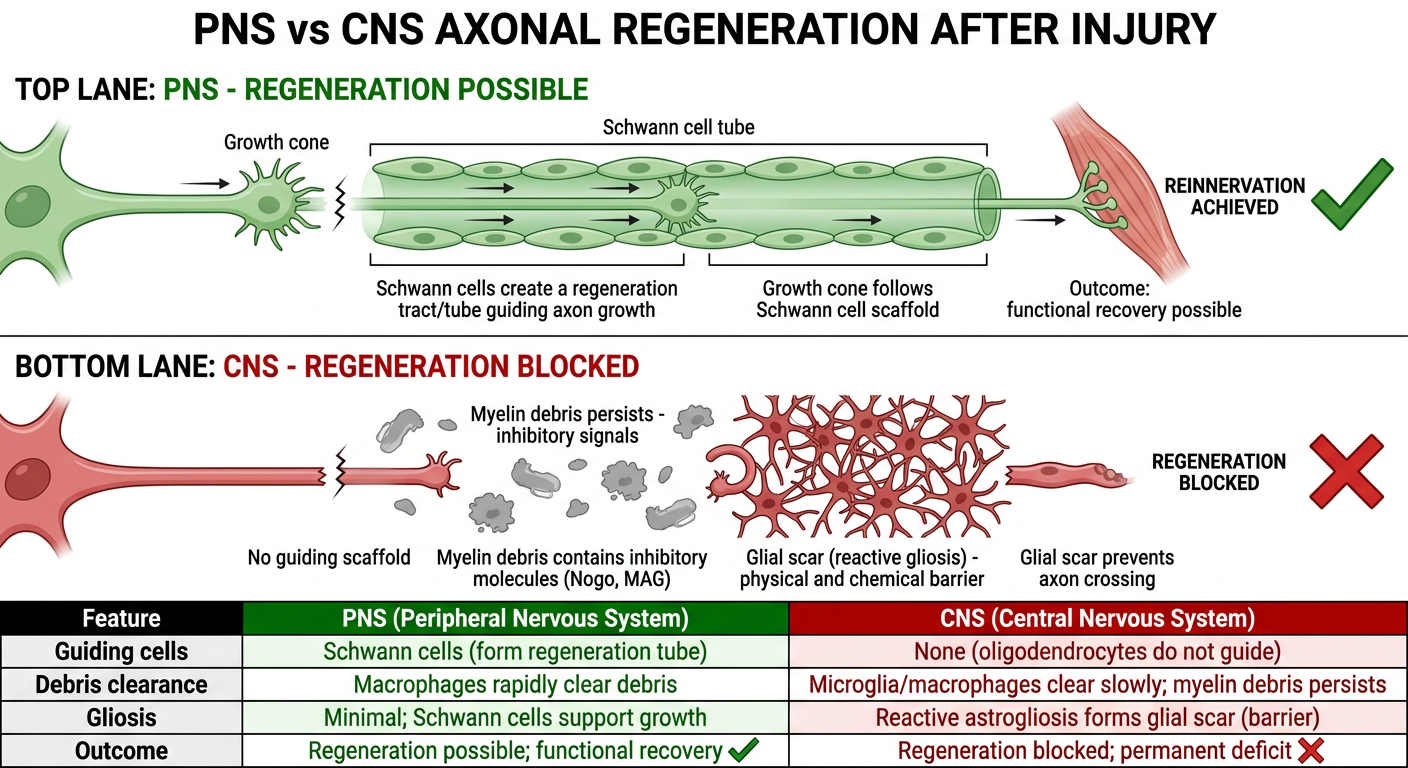

Medical educational diagram comparing PNS vs CNS axonal regeneration after injury. Two parallel horizontal lanes on white background. Bold title "PNS vs CNS AXONAL REGENERATION AFTER INJURY". TOP LANE - "PNS - REGENERATION POSSIBLE" (green theme): Show a peripheral nerve axon cut. Left of cut: proximal axon with growth cone sprouting. Schwann cells shown forming a tube/tunnel along the original nerve path (like a green corridor/channel). Growth cone navigating through Schwann cell tube toward target. End result: axon successfully reaches target muscle, labeled "REINNERVATION ACHIEVED". Labels: "Schwann cells create a regeneration tract/tube guiding axon growth", "Growth cone follows Schwann cell scaffold", "Outcome: functional recovery possible". Green checkmark at end. BOTTOM LANE - "CNS - REGENERATION BLOCKED" (red theme): Show a CNS axon cut. Left of cut: proximal axon with tiny growth cone attempting to sprout. Right of cut: myelin debris shown persisting (gray clumps labeled "Myelin debris persists - inhibitory signals"), reactive gliosis shown as dense network of hypertrophied astrocytes forming a wall labeled "Glial scar (reactive gliosis) - physical and chemical barrier". Growth cone shown hitting the barrier and stopping/curling back. End result: axon fails to cross, labeled "REGENERATION BLOCKED". Labels: "No guiding scaffold", "Myelin debris contains inhibitory molecules (Nogo, MAG)", "Glial scar prevents axon crossing". Red X at end. Bottom comparison table: PNS vs CNS, Guiding cells (Schwann vs none), Debris clearance (macrophages clear vs persists), Gliosis (minimal vs reactive scar), Outcome (regeneration possible vs blocked). Bold color coded educational style.

Diagram 1 - Full Sequence: Neuronal Response to Axonal Injury

Diagram 2 - PNS vs CNS Regeneration

Step-by-Step Concept Breakdown

What Happens After Axonal Injury - 3 Simultaneous Events

         CELL BODY                PROXIMAL AXON              DISTAL AXON
            ↓                          ↓                          ↓
       CHROMATOLYSIS            AXONAL RETRACTION          WALLERIAN DEGENERATION
  (repair response)            + SPROUTING                (breakdown + cleanup)

Chromatolysis - The Cell Body's Response

Normal	After Injury (Chromatolysis)
Nissl substance evenly distributed	Nissl substance dispersed/dissolved
Nucleus central	Nucleus pushed to periphery
Normal cell body size	Cell body swells/rounds up
Normal protein synthesis	Increased protein synthesis (repair mode)

The cell body is essentially going into "repair factory" mode - dissolving the Nissl staining pattern reflects the RER being reorganized to maximize protein output for axon rebuilding.

Wallerian Degeneration - Distal Axon

Everything distal to the injury dies because it is cut off from the cell body (which supplies it):

Distal axon segment breaks apart and fragments
Myelin sheath disintegrates
Macrophages phagocytose the debris

PNS vs CNS - Why the Difference?

Feature	PNS	CNS
Guiding scaffold	Schwann cells form a tube	None
Myelin debris	Macrophages clear it	Persists (inhibitory)
Gliosis	Minimal	Reactive gliosis - glial scar
Inhibitory signals	Few	Nogo, MAG in myelin debris
Regeneration	Possible	Blocked

The Schwann cell tube (band of Büngner) is the key - it acts like a highway guide for the regenerating axon tip, directing it back toward the original target.

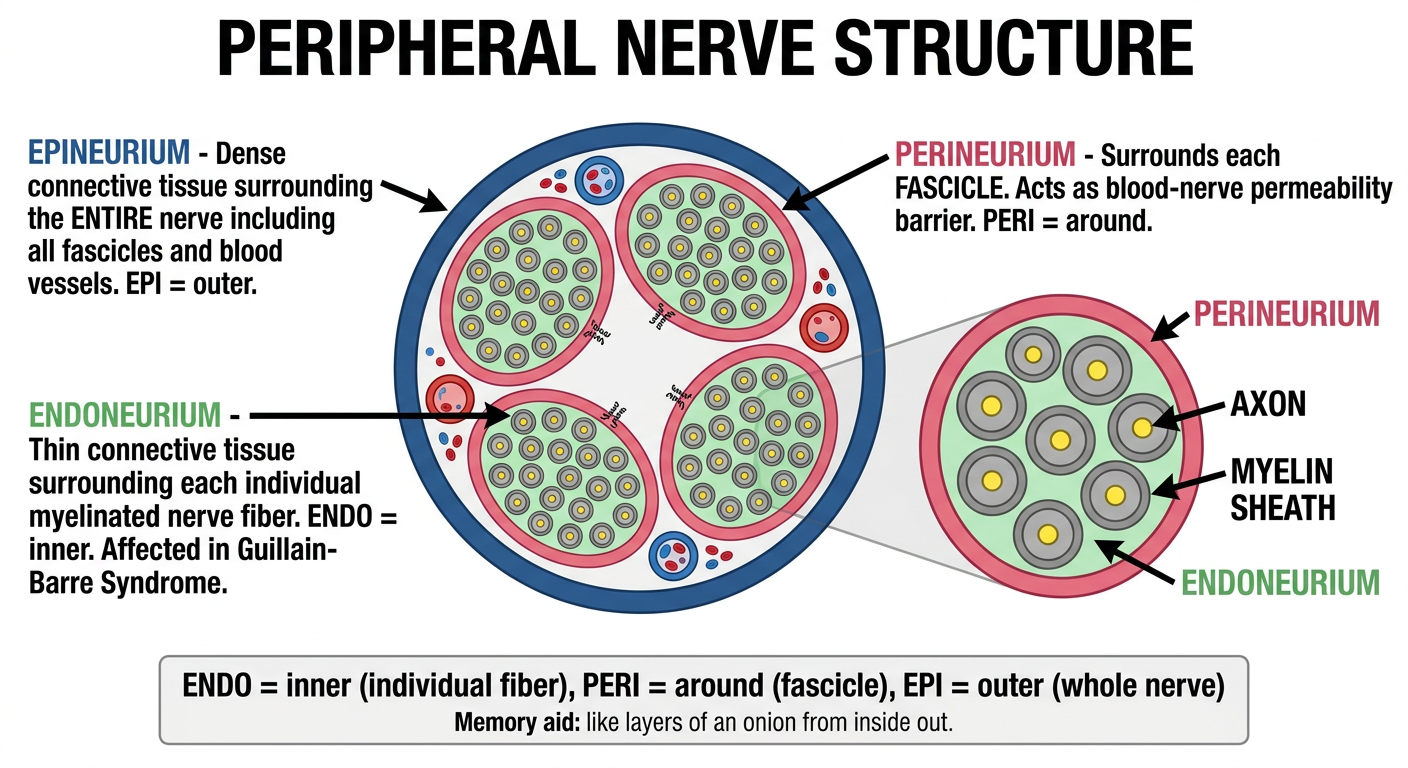

Peripheral Nerve Structure •Endoneurium: A thin, supportive connective tissue that ensheathes and supports individual myelinated nerve fibers. It may be affected in Guillain-Barré syndrome. •Perineurium: Acts as a blood-nerve permeability barrier and surrounds a fascicle of nerve fibers. •Epineurium: Dense connective tissue that surrounds the entire nerve, including fascicles and blood vessels. Definitions: Endo = inner, Peri = around, Epi = outer. Same

Generating Image

Medical educational diagram of peripheral nerve cross-section structure showing all three connective tissue layers. Clean anatomical illustration on white background. Bold title "PERIPHERAL NERVE STRUCTURE" at top. Main element: A large circular cross-section of a peripheral nerve cut transversely, showing concentric layers from outside in: OUTERMOST LAYER - EPINEURIUM (thick dark blue ring surrounding everything): Label with arrow pointing to outer ring: "EPINEURIUM - Dense connective tissue surrounding the ENTIRE nerve including all fascicles and blood vessels. EPI = outer." Show small blood vessels (red and blue circles) embedded within this layer. MIDDLE LAYER - PERINEURIUM (medium pink/red ring surrounding each fascicle): Inside the epineurium show 3-4 oval fascicle bundles. Each fascicle is surrounded by its own perineurium ring. Label: "PERINEURIUM - Surrounds each FASCICLE. Acts as blood-nerve permeability barrier. PERI = around." Show tight junction symbols on this layer indicating barrier function. INNERMOST LAYER - ENDONEURIUM (thin light green material filling space between individual nerve fibers inside each fascicle): Inside each fascicle show multiple small individual myelinated nerve fibers (small circles with dark myelin ring and central axon). The loose connective tissue between each fiber is the endoneurium. Label: "ENDONEURIUM - Thin connective tissue surrounding each individual myelinated nerve fiber. ENDO = inner. Affected in Guillain-Barre Syndrome." One fascicle shown enlarged as inset zoom showing: individual axon (central dot), myelin sheath (ring around it), endoneurium (space between fibers), perineurium (outer ring of fascicle). Bottom etymology box: "ENDO = inner (individual fiber), PERI = around (fascicle), EPI = outer (whole nerve)". Memory aid: like layers of an onion from inside out. Color: blue epineurium, pink perineurium, green endoneurium, yellow axons, gray myelin. Clean bold labels with connecting lines.

Concept Breakdown

The 3 Layers - Inside Out

        Individual axon
              ↓
        ENDONEURIUM     ← wraps each individual nerve fiber
              ↓
        Group of fibers = FASCICLE
              ↓
        PERINEURIUM     ← wraps each fascicle (+ barrier function)
              ↓
        All fascicles + blood vessels = whole nerve
              ↓
        EPINEURIUM      ← wraps the entire nerve

Quick Reference Table

Layer	What it surrounds	Special function	Clinical link
Endoneurium	Individual myelinated nerve fiber	Supportive connective tissue	Damaged in Guillain-Barré syndrome
Perineurium	A fascicle (bundle of fibers)	Blood-nerve permeability barrier	Surgical landmark for nerve repair
Epineurium	Entire nerve (all fascicles + vessels)	Dense protective outer coat	First layer encountered in nerve surgery

Memory Anchor

"Endo - Peri - Epi" mirrors "Endo - Peri - Epi" in muscle too:

Endomysium = wraps each muscle fiber

Perimysium = wraps each muscle fascicle

Epimysium = wraps the entire muscle

The naming logic is identical across both systems - same Latin roots, same organizational principle. Learn it once, applies everywhere.

Generating Image

Highly detailed medical educational poster of peripheral nerve structure. Realistic anatomical illustration style. White background. Bold title "PERIPHERAL NERVE STRUCTURE" at top. TWO MAIN VIEWS side by side: LEFT - 3D PERSPECTIVE VIEW of a nerve segment cut open lengthwise and in cross section simultaneously, showing the nerve like a cable being peeled open to reveal inner layers. Show: - Outermost thick sheath = EPINEURIUM (deep blue) wrapping the whole nerve like a thick cable jacket, with small red and blue blood vessels running through it - Inside: 4 visible oval fascicle bundles - Each fascicle wrapped by PERINEURIUM (pink/coral), shown as a distinct tight sheath with small arrows indicating "barrier" function - Inside each fascicle: dozens of tiny individual myelinated axons packed together, each surrounded by a whisper-thin ENDONEURIUM (light green/yellow) - One fascicle shown being "unpeeled" to reveal the individual fibers inside RIGHT - CLEAN LABELED CROSS-SECTION (looking straight down the nerve): Large circle = entire nerve. EPINEURIUM = thick outer blue ring. Label with bold arrow: "EPINEURIUM: Dense CT, surrounds entire nerve + blood vessels. EPI = OUTER" Inside: 3 fascicle ovals each with pink ring = PERINEURIUM. Label: "PERINEURIUM: Surrounds fascicle. Blood-nerve barrier. PERI = AROUND" Inside each fascicle: small circles = individual myelinated fibers. Between them = thin green fill = ENDONEURIUM. Label: "ENDONEURIUM: Wraps each individual nerve fiber. Affected in Guillain-Barré. ENDO = INNER" One fiber shown enlarged: central axon dot + dark myelin ring + thin green endoneurium coat. BOTTOM STRIP - Etymology visual: Three boxes in a row: Box 1: "ENDO = inner" with arrow pointing inward to single fiber Box 2: "PERI = around" with ring around fascicle Box 3: "EPI = outer" with ring around whole nerve Clinical note badge: "Guillain-Barré Syndrome damages the ENDONEURIUM layer" Rich color scheme: navy blue epineurium, coral/pink perineurium, lime green endoneurium, golden axons, dark myelin rings. Highly visual, textbook-quality illustration.

400, message: Got more than 4194304 bytes when reading: b'data: {"candidates": [{"content": {"role": "model","parts": [{"inlineData": {"mimeType": "image/png"...'.

We encountered an error while processing your request. Please try again or reach out to us for help.

🔗Contact Support

✉️hi@orris.care

Generating Image

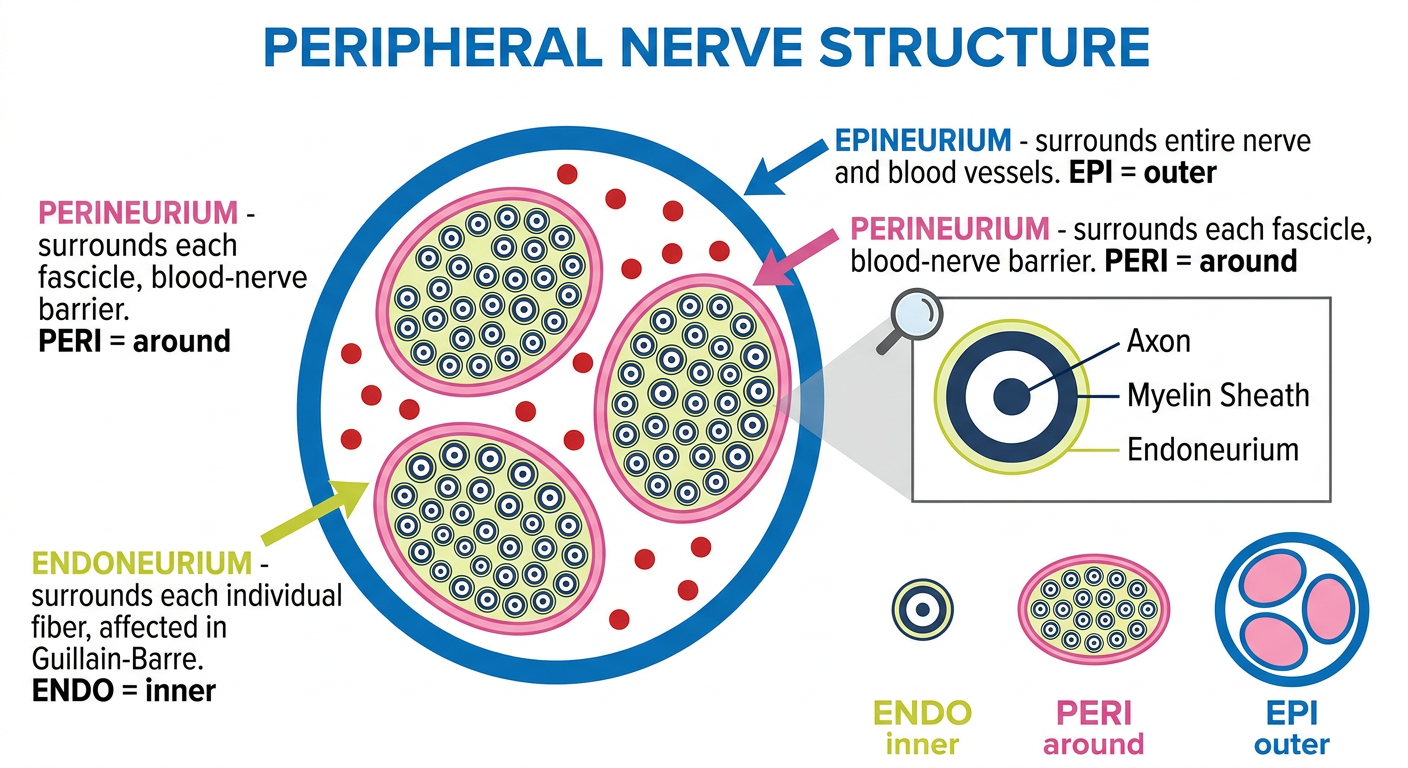

Medical diagram of peripheral nerve cross-section. Clean labeled illustration on white background. Title "PERIPHERAL NERVE STRUCTURE". Large circular cross-section showing three concentric layers: Outermost thick blue ring labeled "EPINEURIUM - surrounds entire nerve and blood vessels. EPI = outer". Small red dots inside this ring representing blood vessels. Inside: three oval shaped fascicle bundles each wrapped in a pink ring labeled "PERINEURIUM - surrounds each fascicle, blood-nerve barrier. PERI = around". Inside each fascicle: small circles representing individual myelinated nerve fibers packed together, surrounded by thin yellow-green fill labeled "ENDONEURIUM - surrounds each individual fiber, affected in Guillain-Barre. ENDO = inner". Each small fiber circle has a dark ring for myelin and central dot for axon. One fiber shown in zoomed inset box: central axon, dark myelin ring, thin endoneurium coat. Bottom row: three simple icons - single fiber with label ENDO inner, fascicle bundle with label PERI around, whole nerve circle with label EPI outer. Clean bold labels, blue pink green color scheme.

Layer by Layer - Inside Out

Layer	Surrounds	Key Function	Clinical Note
Endoneurium	Each individual nerve fiber	Thin supportive connective tissue	Damaged in Guillain-Barré syndrome
Perineurium	Each fascicle (bundle of fibers)	Blood-nerve permeability barrier	Surgical repair landmark
Epineurium	Entire nerve + all fascicles + blood vessels	Dense protective outer coat	Outermost layer

The "Cable" Analogy

Think of a peripheral nerve like an electrical cable:

EPINEURIUM   =  Outer plastic jacket of the whole cable
PERINEURIUM  =  Individual wire bundle insulation inside
ENDONEURIUM  =  Thin coating on each individual wire
AXON         =  The copper wire itself
MYELIN       =  Extra insulation around the wire

Etymology - Never Forget the Order

ENDO = inner → single fiber
PERI = around → fascicle (bundle)
EPI = outer → whole nerve

Same logic applies to muscle layers: Endomysium / Perimysium / Epimysium - learn once, works for both.

Dura mater Meninges and Cerebrospinal Fluid (CSF) The meninges are three membranes that surround and protect the brain and spinal cord, derived from both neural crest and mesoderm: • Dura mater: The thick outer layer closest to the skull. Arachnoid mater: The middle layer containing weblike connections. • Pia mater: A thin, fibrous inner layer that firmly adheres to the brain and spinal cord. CSF flows in the subarachnoid space, located between the arachnoid and pia mater. The epidural space is a potential space between the dura mater and skull/ vertebral column containing fat and blood vessels, and is a site of blood collection associated with middle meningeal artery injury. Same make images visual better like visual diagram how it made

Generating Image

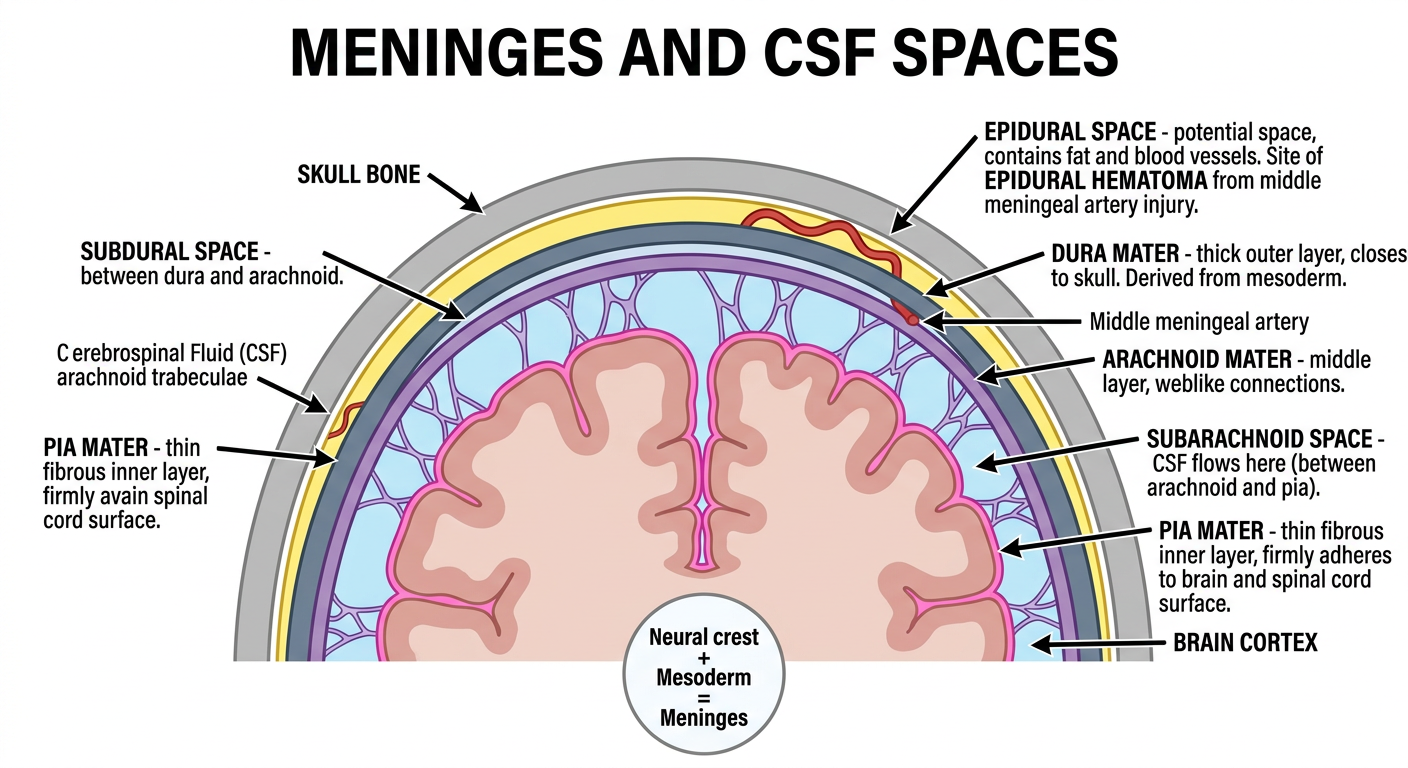

Medical educational diagram of the meninges layers surrounding the brain. Clean anatomical cross-section illustration. White background. Bold title "MENINGES AND CSF SPACES". Main diagram: A curved cross-section showing the skull and brain layers from outside to inside, like a slice through the top of the head. Show each layer clearly with distinct colors and bold labels: Layer 1 (outermost) - SKULL BONE: Gray thick curved bone at top. Layer 2 - EPIDURAL SPACE: Thin yellow space between skull and dura. Label: "EPIDURAL SPACE - potential space, contains fat and blood vessels. Site of EPIDURAL HEMATOMA from middle meningeal artery injury." Show a small red artery labeled "Middle meningeal artery" running here. Layer 3 - DURA MATER: Thick dark blue-gray band. Label: "DURA MATER - thick outer layer, closest to skull. Derived from mesoderm." Layer 4 - SUBDURAL SPACE: Very thin space between dura and arachnoid. Label: "SUBDURAL SPACE - between dura and arachnoid." Layer 5 - ARACHNOID MATER: Medium purple layer with web-like trabeculae (fine connecting threads) shown extending downward. Label: "ARACHNOID MATER - middle layer, weblike connections." Layer 6 - SUBARACHNOID SPACE: Wide blue space filled with CSF between arachnoid and pia, with web-like arachnoid trabeculae crossing it. Label: "SUBARACHNOID SPACE - CSF flows here (between arachnoid and pia)." Fill with light blue color for CSF. Layer 7 - PIA MATER: Very thin bright pink layer tightly adherent to brain surface, following every gyrus fold. Label: "PIA MATER - thin fibrous inner layer, firmly adheres to brain and spinal cord surface." Layer 8 (innermost) - BRAIN CORTEX: Pink/tan brain tissue with gyri folds. Bottom inset: Small origin badge showing "Neural crest + Mesoderm = Meninges". Clean color coded layers, bold arrows and labels for each space.

Layer by Layer - Outside to Inside

SKULL
  ↓
EPIDURAL SPACE     ← fat + blood vessels (middle meningeal artery)
  ↓
DURA MATER         ← thick, tough outer membrane
  ↓
SUBDURAL SPACE     ← thin potential space
  ↓
ARACHNOID MATER    ← weblike middle layer
  ↓
SUBARACHNOID SPACE ← CSF flows here
  ↓
PIA MATER          ← thin, tightly hugs brain surface
  ↓
BRAIN

Key Spaces and Their Clinical Significance

Space	Location	Contents	Clinical event
Epidural space	Between skull and dura	Fat, blood vessels	Epidural hematoma - middle meningeal artery rupture, lens-shaped bleed, lucid interval
Subdural space	Between dura and arachnoid	Thin film	Subdural hematoma - bridging vein tear, crescent-shaped bleed
Subarachnoid space	Between arachnoid and pia	CSF	Subarachnoid hemorrhage - aneurysm rupture, thunderclap headache

The 3 Meningeal Layers

Layer	Character	Adherence	Origin
Dura mater	Thick, tough, leathery	Closest to skull	Mesoderm
Arachnoid mater	Delicate, weblike trabeculae	Loosely applied	Neural crest
Pia mater	Extremely thin, fibrous	Firmly adheres to every gyrus and sulcus	Neural crest

Memory Trick - "DAP"

Dura (tough) → Arachnoid (web) → Pia (hugs brain) Or: "Dura is Durable, Pia is Precious (delicate)"

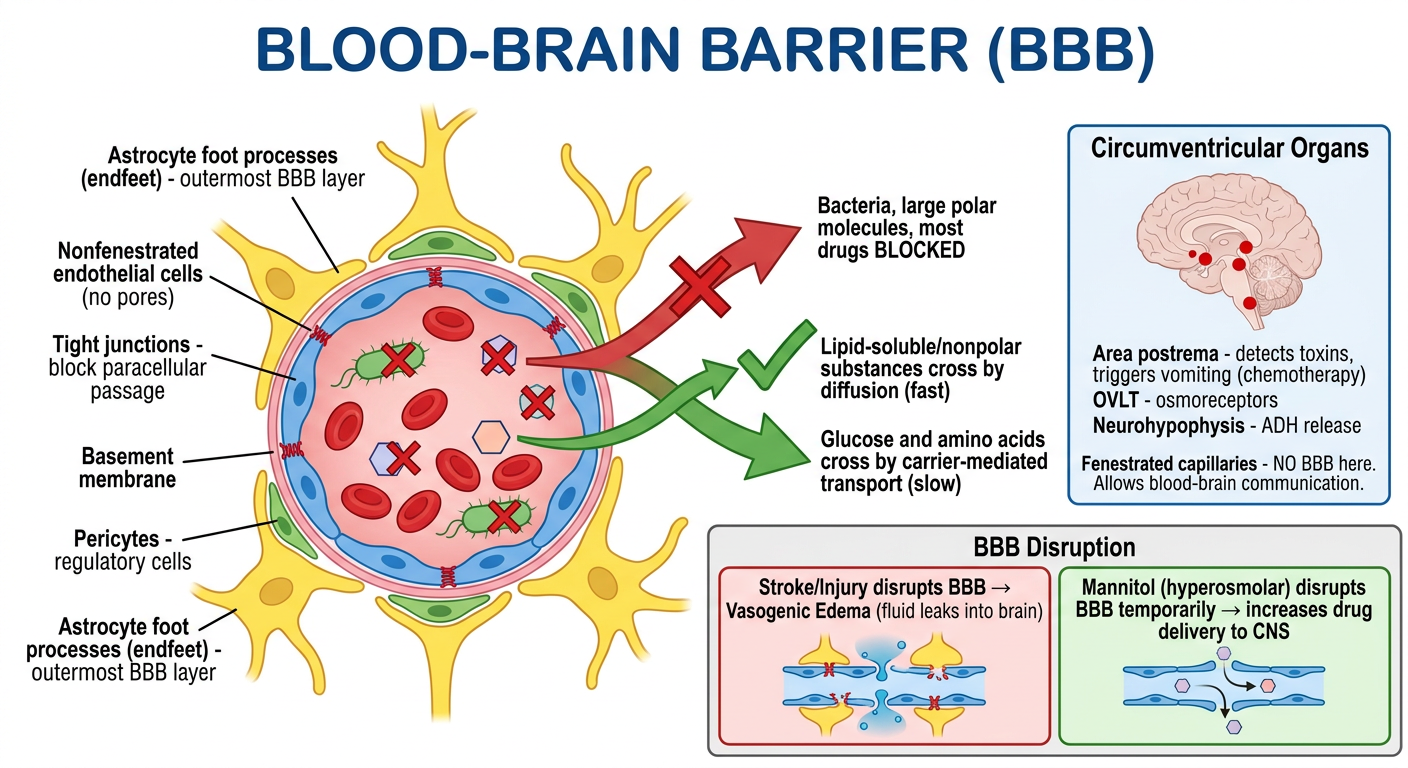

Blood-Brain Barrier (BBB) The blood-brain barrier prevents circulating blood substances (e.g., bacteria, drugs) from reaching the CSF/CNS. It is formed by four structures: • Tight junctions between nonfenestrated capillary endothelial cells • Basemnent membrane •Pericytes • Astrocyte foot processes Glucose and amino acids cross slowly by carrier- mediated transport mechanisms, while nonpolar/lipid- soluble substances cross rapidly via diffusion. Circumventricular organs with fenestrated capillaries and no blood-brain barrier allow molecules in blood to affect brain function (e.g., area postrema--vomiting after chemotherapy; OVLT-osmoreceptors) or urosecretory products to enter circulation (e.g., neurohypophysis-ADH release). BBB disruption (e.g., stroke) can lead to vasogenic edema. Hyperosmolar agents (e.g., mannitol) can disrupt the BBB, increasing the permeability of medications. Same make images visual better like visual diagram how it made

Generating Image

Medical educational diagram of the Blood-Brain Barrier (BBB). Clean scientific illustration on white background. Bold title "BLOOD-BRAIN BARRIER (BBB)" at top. MAIN CENTER DIAGRAM - Cross-section of a brain capillary surrounded by brain tissue: Show a tubular blood vessel in cross-section. Inside vessel lumen: red blood cells, bacteria (green ovals with X blocked), drug molecules (hexagons with X blocked). The vessel wall built from 4 labeled components: 1. ENDOTHELIAL CELLS - flat cells lining the vessel, labeled "Nonfenestrated endothelial cells (no pores)". Between adjacent cells show TIGHT JUNCTIONS as bold red zipper-like connections labeled "Tight junctions - block paracellular passage". 2. BASEMENT MEMBRANE - thin pink layer just outside endothelium labeled "Basement membrane". 3. PERICYTES - small oval cells embedded in basement membrane labeled "Pericytes - regulatory cells". 4. ASTROCYTE FOOT PROCESSES - large star-shaped astrocyte with thick endfeet wrapping around the outside of the capillary labeled "Astrocyte foot processes (endfeet) - outermost BBB layer". TWO CROSSING ARROWS showing what gets through: - Red X arrows: bacteria, large polar molecules, most drugs BLOCKED - Green check arrows: "Lipid-soluble/nonpolar substances cross by diffusion (fast)" and "Glucose and amino acids cross by carrier-mediated transport (slow)" RIGHT PANEL - Circumventricular Organs box: Show a small brain outline with dots marking BBB-free zones. List: "Area postrema - detects toxins, triggers vomiting (chemotherapy)", "OVLT - osmoreceptors", "Neurohypophysis - ADH release". Label: "Fenestrated capillaries - NO BBB here. Allows blood-brain communication." BOTTOM PANEL - BBB Disruption: Two boxes: Box 1: "Stroke/Injury disrupts BBB → Vasogenic Edema (fluid leaks into brain)" Box 2: "Mannitol (hyperosmolar) disrupts BBB temporarily → increases drug delivery to CNS" Color: blue vessel, red tight junctions, yellow astrocyte, pink basement membrane, green pericytes.

The 4 Structures That Form the BBB

BLOOD VESSEL LUMEN
        ↓
1. TIGHT JUNCTIONS between endothelial cells  ← most critical barrier
        ↓
2. NONFENESTRATED ENDOTHELIAL CELLS           ← no pores/fenestrations
        ↓
3. BASEMENT MEMBRANE                          ← structural support
        ↓
4. PERICYTES + ASTROCYTE FOOT PROCESSES       ← regulation and signaling
        ↓
BRAIN TISSUE

What Crosses vs What Is Blocked

Substance	Crosses?	Mechanism
Lipid-soluble / nonpolar (O₂, CO₂, ethanol, steroids)	✅ Fast	Simple diffusion
Glucose	✅ Slow	Carrier-mediated transport (GLUT1)
Amino acids	✅ Slow	Carrier-mediated transport
Bacteria, large proteins	❌ Blocked	Tight junctions prevent passage
Most drugs (polar)	❌ Blocked	Cannot cross without aid

Circumventricular Organs - BBB-Free Zones

These brain regions have fenestrated capillaries (with pores) and intentionally lack a BBB:

Organ	Function
Area postrema	Detects blood-borne toxins → triggers vomiting (why chemotherapy causes nausea)
OVLT (Organum vasculosum of lamina terminalis)	Osmoreceptors - detects blood osmolarity changes
Neurohypophysis	Releases ADH directly into bloodstream

BBB Disruption - Clinical Consequences

Cause	Effect
Stroke / trauma / infection	BBB breaks down → fluid leaks into brain → vasogenic edema
Mannitol (hyperosmolar agent)	Osmotically shrinks endothelial cells → opens tight junctions temporarily → used to increase CNS drug delivery or reduce ICP

Memory anchor: "Tight junctions = the real wall. Astrocyte endfeet = the support crew." The tight junctions physically block passage; the astrocytes regulate and maintain the barrier's integrity.

Vomiting Center The vomiting center is coordinated by the nucleus tractus solitarius (NTS) in the medulla, which receives information from the chemoreceptor trigger zone (CTZ, located within the area postrema at the base of the 4th ventricle), the gastrointestinal tract (via the vagus nerve), the vestibular system, and the CNS. The CTZ and adjacent vomiting center nuclei receive input through five major receptors: • Histamine (H1) • Muscarinic (M1) • Neurokinin (NK-1) • Dopamine (D2) •Serotonin (5-HT3) 5-HT3, D2, and NK-1 antagonists are used to treat chemotherapy-induced vomiting. H1 and M1 antagonists are used to treat motion sickness, and H1 antagonists are used to treat hyperemesis gravidarum. Same make images visual better like visual diagram how it made

Generating Image

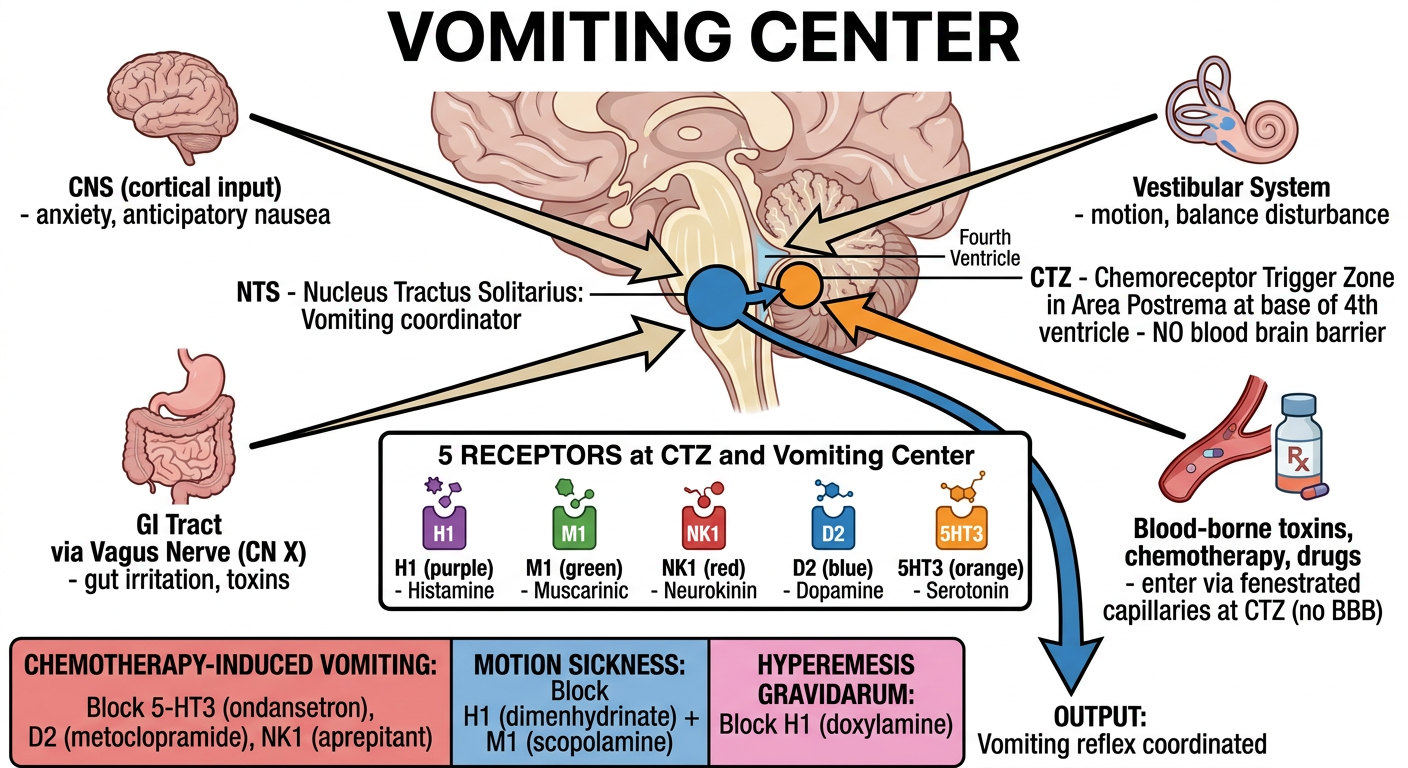

Medical educational diagram of the Vomiting Center and its pathways. Clean scientific illustration on white background. Bold title "VOMITING CENTER" at top. CENTRAL ELEMENT - Brain cross-section showing medulla at bottom with two labeled structures: 1. "NTS - Nucleus Tractus Solitarius: Vomiting coordinator" (blue circle) 2. "CTZ - Chemoreceptor Trigger Zone in Area Postrema at base of 4th ventricle - NO blood brain barrier" (orange circle, slightly separate but connected to NTS with arrow) FOUR INPUT ARROWS coming into NTS/CTZ from four directions: TOP LEFT arrow from brain cortex: "CNS (cortical input) - anxiety, anticipatory nausea" TOP RIGHT arrow from inner ear icon: "Vestibular System - motion, balance disturbance" BOTTOM LEFT arrow from stomach/GI tract icon: "GI Tract via Vagus Nerve (CN X) - gut irritation, toxins" BOTTOM RIGHT arrow from blood/drugs icon pointing to CTZ: "Blood-borne toxins, chemotherapy, drugs - enter via fenestrated capillaries at CTZ (no BBB)" CENTER BOX - "5 RECEPTORS at CTZ and Vomiting Center": Five colored receptor icons in a row: H1 (purple) - Histamine M1 (green) - Muscarinic NK1 (red) - Neurokinin D2 (blue) - Dopamine 5HT3 (orange) - Serotonin BOTTOM SECTION - Drug treatment table with colored boxes: Box 1 (red): "CHEMOTHERAPY-INDUCED VOMITING: Block 5-HT3 (ondansetron), D2 (metoclopramide), NK1 (aprepitant)" Box 2 (blue): "MOTION SICKNESS: Block H1 (dimenhydrinate) + M1 (scopolamine)" Box 3 (pink): "HYPEREMESIS GRAVIDARUM: Block H1 (doxylamine)" Arrow from NTS going down labeled "OUTPUT: Vomiting reflex coordinated". Clean color coded, bold labels, educational poster style.

Concept Breakdown

The Two Key Structures in the Medulla

Structure	Full Name	Role
NTS	Nucleus Tractus Solitarius	Master coordinator - integrates all inputs and triggers the vomiting reflex
CTZ	Chemoreceptor Trigger Zone (Area Postrema)	Samples the blood directly (no BBB) - detects toxins, drugs, chemotherapy

Why CTZ has no BBB - it sits at the area postrema where capillaries are fenestrated, allowing blood-borne chemicals to directly activate it. This is why IV chemo causes vomiting even without touching the GI tract.

4 Inputs Into the Vomiting Center

Source	Pathway	Example trigger
GI tract	Vagus nerve (CN X)	Food poisoning, gastric distension
Vestibular system	CN VIII → brainstem	Motion sickness, labyrinthitis
CTZ	Direct blood-borne	Chemotherapy, opioids, uremia
CNS	Cortical/higher centers	Anticipatory nausea, pain, anxiety

5 Receptors + Antiemetic Drugs

Receptor	Agonist	Antagonist (drug)	Used for
5-HT3	Serotonin	Ondansetron, granisetron	Chemo-induced vomiting
D2	Dopamine	Metoclopramide, haloperidol	Chemo-induced vomiting
NK-1	Substance P	Aprepitant	Chemo-induced vomiting
H1	Histamine	Dimenhydrinate, doxylamine	Motion sickness, hyperemesis gravidarum
M1	Acetylcholine	Scopolamine	Motion sickness

Clinical Summary - Which Drug for Which Condition?

Chemotherapy nausea  →  5-HT3 blocker + NK1 blocker + D2 blocker
Motion sickness      →  H1 blocker + M1 blocker (scopolamine patch)
Hyperemesis gravidarum → H1 blocker (doxylamine + B6 = Diclegis)
Post-op nausea       →  Ondansetron (5-HT3) ± scopolamine

This is a shared conversation. Sign in to Orris to start your own chat.
