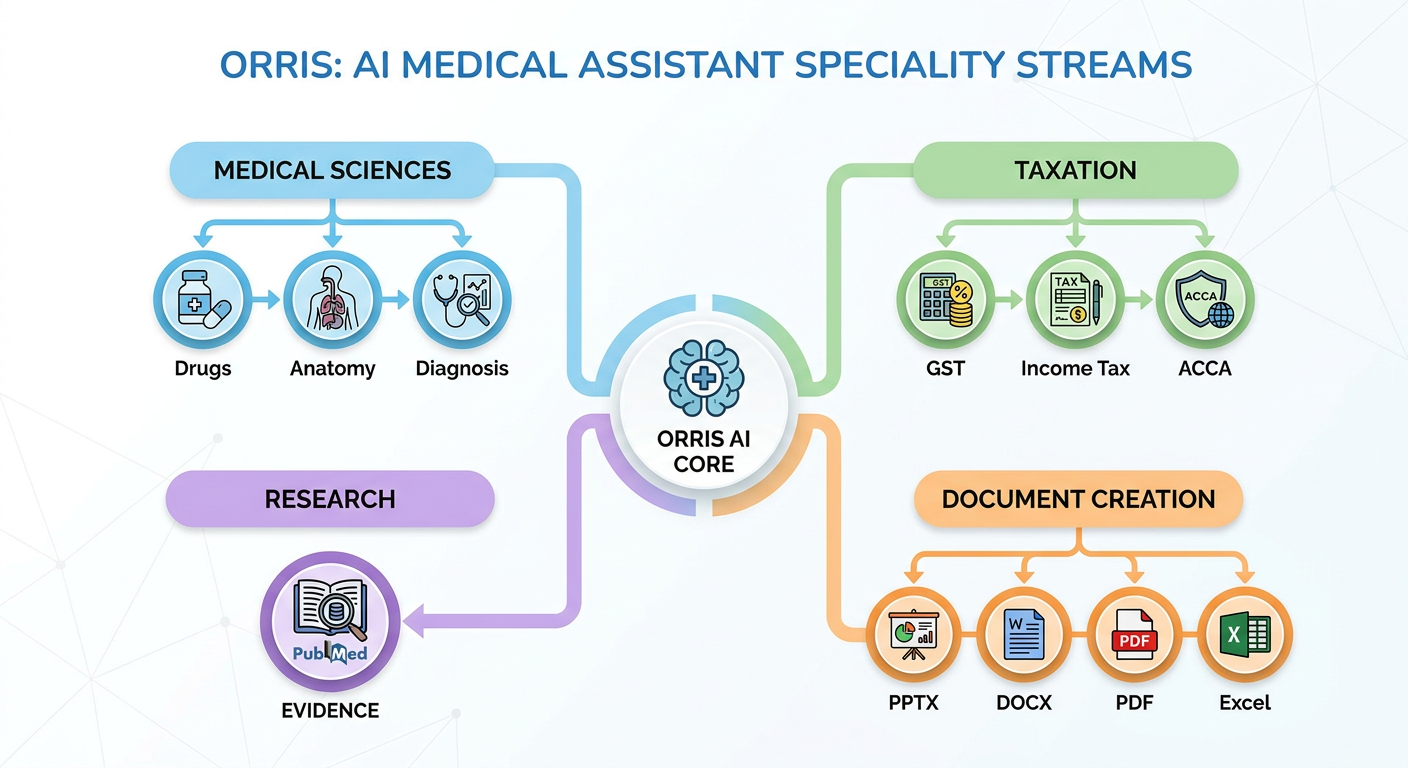

A clean infographic showing the speciality streams of an AI medical assistant named Orris: Medical Sciences (drugs, anatomy, diagnosis), Taxation (GST, Income Tax, ACCA), Research (PubMed evidence), and Document Creation (PPTX, DOCX, PDF, Excel). Modern flat design with icons for each stream.
🔬 Visual Explanation Examples
When you ask me a medical or scientific topic, I can:
- Pull textbook diagrams - real images from medical textbooks (microscopy, anatomy charts, clinical photos)
- Generate custom infographics - like the one above
- Create flashcards - question + answer visual cards for studying
- Draw diagrams - flowcharts, pathways (e.g., drug mechanisms, disease pathways)
- Make slide decks - full PowerPoint presentations on any topic
💡 Example Prompts You Can Try
| What You Ask | What I Deliver |
|---|---|
| "Explain how beta blockers work" | Textbook explanation + mechanism diagram |
| "Create a PPTX on diabetes management" | Full downloadable slide deck |
| "Make a flashcard for ACE inhibitors" | Visual study card image |
| "What does the 2025 GST law say about exports?" | Answer from CA-level GST textbook |
| "Show me the anatomy of the heart" | Textbook image + labeled explanation |
| "Summarize recent studies on metformin" | PubMed systematic reviews cited |
| "Build an Excel tracker for patient vitals" | Downloadable .xlsx file |
Simply ask me anything - a topic to explain, a document to create, a visual to generate, or research to find. I'll use the right tools automatically. What would you like to explore? 🚀
Fallot triangle explain a with figure or reference images to understand
Reading File
Finding Sources
Finding Sources
Searching the Web
Tetralogy of Fallot anatomy diagram four defects explanation
Reading File
Reading File
Reading File
Loading Image
Loading Image
Loading Image
Loading Image
Reading File
I now have everything needed - textbook content from multiple sources and actual diagrams. Here is the full explanation:
Tetralogy of Fallot (TOF)
"The most common cause of cyanotic congenital heart disease"
- Robbins & Kumar Basic Pathology
What is it?
Tetralogy of Fallot is a congenital heart defect made up of four simultaneous structural abnormalities - all arising from a single embryologic error: anterosuperior displacement of the infundibular (conal) septum, causing abnormal septation between the pulmonary trunk and aortic root.
It accounts for about 5% of all congenital cardiac malformations.
The Four Defects (The "Tetralogy")
| # | Defect | What It Means |
|---|---|---|
| 1 | Ventricular Septal Defect (VSD) | A large hole in the wall between the two ventricles |
| 2 | Right Ventricular Outflow Tract Obstruction (RVOTO) | Narrowing below / at the pulmonary valve (subpulmonic/infundibular stenosis) - blocks blood going to the lungs |
| 3 | Overriding Aorta | The aorta sits directly over the VSD, receiving blood from BOTH ventricles |
| 4 | Right Ventricular Hypertrophy (RVH) | The RV wall thickens as it works harder against the obstruction (secondary / compensatory change) |
📸 Textbook Diagram 1 - Classic TOF (Robbins Pathology)
What you see: The RV (blue = deoxygenated) mixes blood directly into both the small PT (pulmonary trunk) and the large overriding Ao (aorta). The arrow shows the right-to-left shunt through the VSD. The pulmonary trunk is visibly smaller than the aorta.
Ao = Aorta | PT = Pulmonary Trunk | RV = Right Ventricle | LV = Left Ventricle | RA = Right Atrium | LA = Left Atrium
📸 Textbook Diagram 2 - Blood Flow in TOF (Rosen's Emergency Medicine)
What you see: The thick blue arrows show deoxygenated blood shunting across the VSD into the left ventricle and out the overriding aorta (OAo). The OB label marks the outflow obstruction. The purple arrows in the aorta show mixed blood (partly deoxygenated) going to the whole body - hence the cyanosis.
How the Defects Cause Disease
Infundibular obstruction (RVOTO)
↓
RV can't push enough blood → lungs
↓
RV pressure rises → blood finds easier path through VSD
↓
Deoxygenated blood → left ventricle → overriding aorta → body
↓
CYANOSIS ("Blue baby") + Low O₂ to tissues
- As much as 75% of venous blood can bypass the lungs entirely and go directly into the aorta (Guyton & Hall)
- Severity of cyanosis depends on how tight the RVOTO is
- Mild RVOTO = "Pink Tet" (left-to-right shunt, no cyanosis)
- Severe RVOTO = profound cyanosis from birth
Classic Clinical Signs
| Sign | Explanation |
|---|---|
| Central cyanosis | Deoxygenated blood entering systemic circulation |
| Clubbing of fingers/toes | Chronic hypoxemia stimulates periosteal changes |
| Polycythemia | Compensatory increase in RBCs to carry more O₂ |
| "Tet spells" | Episodes of acute worsening cyanosis during crying/feeding - SVR drops, more shunting occurs |
| Squatting posture | Child squats to increase SVR, reducing R-to-L shunt |
| Systolic ejection murmur | Along left sternal border (from RVOTO, not VSD) |
| Boot-shaped heart | On chest X-ray - upturned apex from RV hypertrophy, concave pulmonary bay |
| Right axis deviation | On ECG from RVH |
Chest X-Ray - "Boot-Shaped Heart" (Coeur en Sabot)
The classic radiographic finding - the heart looks like a boot because:
- RV hypertrophy lifts the cardiac apex upward
- The pulmonary artery segment is hypoplastic (concave left heart border)
- Decreased pulmonary vascular markings (less blood reaching lungs)
Why "Tetralogy"?
Described by French physician Étienne-Louis Arthur Fallot in 1888. The word "tetralogy" simply means four (Greek: tetra). Although there are four anatomic defects, they all stem from one single developmental error - the malalignment of the infundibular septum.
"Developmentally, all features of tetralogy of Fallot result from anterosuperior displacement of the infundibular septum."
- Robbins & Kumar Basic Pathology
Treatment
| Approach | Details |
|---|---|
| Temporary (palliative) | Blalock-Taussig shunt - connects subclavian artery to pulmonary artery to increase pulmonary flow |
| Definitive surgery | Open the pulmonary stenosis + patch/close the VSD + reconstruct RVOT |
| Outcome | Without surgery: avg. survival 3-4 years. With surgery: life expectancy increases to 50+ years (Guyton & Hall) |
Sources:
- Robbins & Kumar Basic Pathology, Fig. 9.4
- Textbook of Clinical Echocardiography, Fig. 17.25 & 17.26
- Rosen's Emergency Medicine, Fig. 165.8
- Guyton & Hall Textbook of Medical Physiology
