Guidelines for the Treatment of Myocardial Infarction

Based on the 2025 ACC/AHA/ACEP/NAEMSP/SCAI Guideline for Management of Patients With Acute Coronary Syndromes (PMID 40014670), Harrison's Principles of Internal Medicine (22e), and the Washington Manual of Medical Therapeutics, updated with the full 2025 AHA guideline.

1. Initial Diagnosis and Assessment

ECG and Biomarkers (Time-Critical)
  • 12-lead ECG must be acquired and interpreted within 10 minutes of presentation with suspected ACS symptoms
  • Serial ECGs if initial is non-diagnostic
  • High-sensitivity cardiac troponin (hs-cTn) should be measured immediately, with repeat at 1-2 hours (hs-cTn) or 3-6 hours (standard cTn) if initial result is non-diagnostic
  • ACS is classified as:
    • STEMI - persistent (>20 min) ST elevation + myonecrosis biomarkers = complete coronary occlusion
    • NSTEMI - elevated troponin without ST elevation = subtotal occlusion
    • Unstable Angina (UA) - ischemic symptoms, no troponin rise

2. Immediate General Measures (All ACS)

InterventionDetail
OxygenOnly if SpO₂ < 90% - routine O₂ not recommended
Aspirin162-325 mg loading dose immediately (chewed), then 81 mg/day indefinitely
NitratesSublingual NTG for pain; IV NTG if persistent pain, hypertension, pulmonary edema - avoid if hypotension or RV infarction
MorphineFor severe pain unresponsive to nitrates - use cautiously as it may mask ongoing ischemia and has been associated with worse outcomes
Beta-blockersOral, within 24 hours; reduces ventricular arrhythmias and reinfarction - avoid in cardiogenic shock, acute HF, significant bradycardia/hypotension

3. STEMI: Reperfusion Strategy (Top Priority)

Reperfusion is the cornerstone of STEMI management. The goal is to restore coronary flow as rapidly as possible.

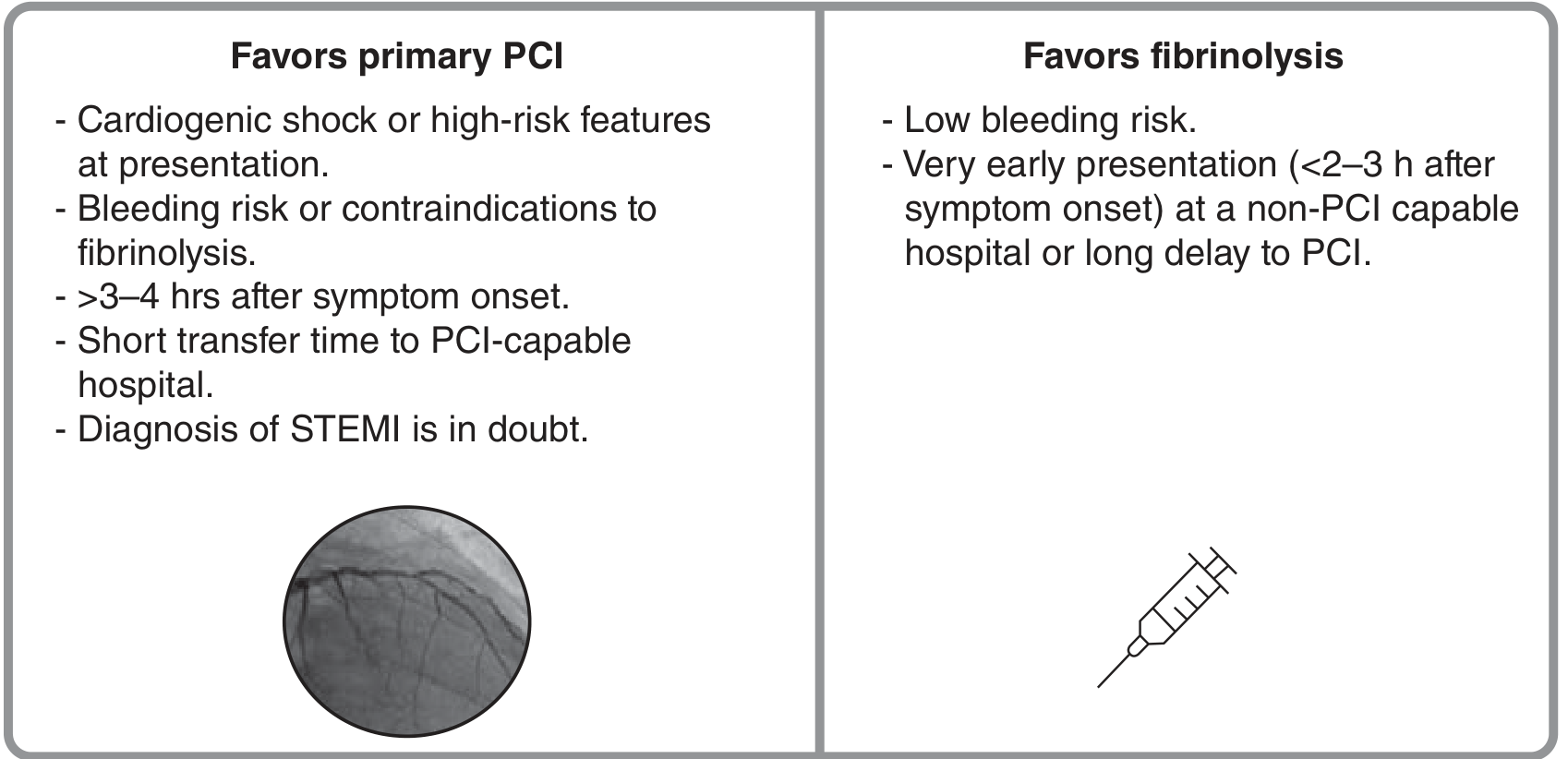

STEMI Reperfusion Decision - PCI vs Fibrinolysis
Fuster and Hurst's The Heart, 15th Edition - Reperfusion decision algorithm

A. Primary PCI (Preferred)

  • First choice when available within 90 minutes of first medical contact (door-to-balloon ≤90 min), or within 120 minutes if transfer is required
  • Superior to fibrinolysis: better vessel patency, lower reinfarction rate, lower intracranial hemorrhage risk, improved survival
  • Indicated for symptom onset <12 hours (can extend to 12-24 hours with ongoing symptoms)
  • In cardiogenic shock (Killip III/IV): primary PCI preferred even if time goals are exceeded
  • Transradial access preferred - reduces bleeding and may improve survival vs. transfemoral
  • Complete revascularization of non-infarct arteries: recommended either during index procedure or within 45 days (EXCEPT in cardiogenic shock - culprit-only PCI preferred per CULPRIT-SHOCK trial)

B. Fibrinolytic Therapy (When PCI Unavailable)

  • Indicated when PCI is not available within 120 minutes
  • Must be given within 30 minutes of presentation (door-to-needle ≤30 min)
  • Most effective within the first 3 hours of symptom onset
  • Eligible time window: within 12 hours of symptom onset with qualifying ECG (ST elevation, new LBBB, true posterior MI)
  • Agents: tenecteplase (TNK), alteplase (tPA), reteplase (rPA), streptokinase
  • After fibrinolysis: transfer to PCI-capable facility; perform angiography 2-24 hours later if reperfusion successful; perform rescue PCI immediately if reperfusion fails (no 50% ST resolution, no pain relief, hemodynamic instability)
Absolute contraindications to fibrinolysis:
  • Prior intracranial hemorrhage
  • Known structural cerebrovascular lesion
  • Ischemic stroke within 3 months
  • Suspected aortic dissection
  • Active bleeding (excluding menses)
  • Significant closed-head trauma within 3 months

4. NSTEMI/Unstable Angina: Invasive vs. Conservative Strategy

All patients receive antithrombotic therapy; the timing of coronary angiography depends on risk:
TimingIndication
Immediate (<2 h)Refractory angina, hemodynamic instability/shock, sustained VT/VF, acute HF/MR
Early invasive (<24 h)High TIMI score (≥3) or GRACE >140, rapid rise in biomarkers, new ST depression
Delayed invasive (24-72 h)Diabetes, renal insufficiency (GFR <60), EF <40%, prior CABG, TIMI ≥2 or GRACE 109-140
Ischemia-driven (conservative)Low-risk (TIMI ≤1, GRACE <109), biomarker-negative, patient preference

5. Antiplatelet Therapy (DAPT)

  • Aspirin 162-325 mg loading, then 81 mg/day indefinitely
  • P2Y12 inhibitor (add to aspirin = Dual Antiplatelet Therapy):
    • Ticagrelor 180 mg load → 90 mg BID (preferred for STEMI/NSTEMI)
    • Prasugrel 60 mg load → 10 mg/day (preferred for PCI; avoid in prior stroke/TIA, age >75, weight <60 kg)
    • Clopidogrel 300-600 mg load → 75 mg/day (use if fibrinolysis, or if ticagrelor/prasugrel contraindicated)
  • Duration: 12 months after ACS (aspirin lifelong; P2Y12 for 12 months)
  • Ticagrelor monotherapy (drop aspirin at 3 months) is an emerging strategy (TICO trial) to reduce bleeding while maintaining efficacy

6. Anticoagulation

  • UFH (unfractionated heparin): Standard with primary PCI; IV bolus + infusion
  • LMWH (enoxaparin): Preferred with fibrinolysis; continue until revascularization or up to 8 days
  • Bivalirudin: Alternative to UFH in PCI settings, particularly with high bleeding risk
  • Fondaparinux: Preferred with conservative NSTEMI strategy (not for primary PCI alone)
  • Stop anticoagulation after successful PCI unless another indication exists

7. Additional Medical Therapies

During Hospitalization

DrugIndication/Timing
Beta-blockersWithin 24 h orally; titrate to HR 50-60 bpm
ACE inhibitorsStart within 24 h if EF <40%, anterior STEMI, HF, hypertension, or diabetes; ARB if ACE intolerant
High-intensity statinStart immediately: atorvastatin 40-80 mg or rosuvastatin 20-40 mg
Aldosterone antagonistIf EF ≤40% + HF or diabetes, without significant renal impairment

Avoid

  • NSAIDs and glucocorticoids (except aspirin): impair infarct healing, increase myocardial rupture risk, reduce flow to ischemic myocardium
  • Routine oxygen if SpO₂ ≥90%

8. Management of Complications

ComplicationManagement
Cardiogenic shockPrimary PCI (culprit-only), inotropes (dobutamine), consider IABP or mechanical support
Acute HF/pulmonary edemaIV diuretics, nitrates, CPAP, intubation if severe
Ventricular fibrillation/VTDefibrillation; amiodarone for refractory VT; beta-blockers
Complete heart block (inferior MI)Temporary pacing; often resolves
Pericarditis (Dressler's)Aspirin, colchicine; avoid NSAIDs/steroids in early post-MI period
Mechanical complications(Free wall rupture, VSD, papillary muscle rupture) - urgent surgical repair

9. Secondary Prevention (Post-MI)

  • Aspirin 81 mg/day indefinitely
  • P2Y12 inhibitor for 12 months (ticagrelor or clopidogrel for stable patients)
  • Beta-blocker (especially if EF <40% or HF)
  • ACE inhibitor/ARB (especially if EF <40%)
  • High-intensity statin (target LDL <55 mg/dL per ESC; <70 mg/dL per ACC/AHA)
  • Eplerenone/spironolactone if EF ≤40% + HF or diabetes
  • Lifestyle: smoking cessation, cardiac rehabilitation, dietary modification, weight management
  • BP target <130/80 mmHg, HbA1c <7% in diabetics

Key Time Targets Summary

GoalTarget
ECG acquisition/interpretation≤10 minutes of arrival
Door-to-balloon (primary PCI)≤90 minutes
First-medical-contact to device (transferred)≤120 minutes
Door-to-needle (fibrinolysis)≤30 minutes
Angiography post-fibrinolysis2-24 hours
Key Reference: 2025 ACC/AHA Guideline for Management of Acute Coronary Syndromes (PMID 40014670) - Rao SV et al., Circulation, 2025. Note: An erratum was published (PMID 41212941).
Additional sources: Harrison's Principles of Internal Medicine 22e, p. 2163 | Washington Manual of Medical Therapeutics, p. 155-157 | Goldman-Cecil Medicine, Ch. 57-58 | Fuster and Hurst's The Heart, 15th Ed.
