Wound Approximation Methods - Alternatives to Sutures

The five main non-suture methods of wound closure are: skin staples, tissue adhesives (cyanoacrylates), adhesive skin tapes, hair apposition, and wound closure clips/MicroMend devices. Each has specific indications, advantages, and limitations. Here is a detailed breakdown with images.

Comparison Table

(Tintinalli's Emergency Medicine, Table 41-1)

Method	Advantages	Disadvantages
Staples	Rapid application; low tissue reactivity; low cost; low needle-stick risk	Less meticulous closure; may interfere with CT/MRI; requires removal
Tissue adhesives	Fastest application; no removal needed; microbial barrier; patient comfort	Lower tensile strength; dehiscence on high-tension areas; cannot use on hands or in wet areas
Adhesive tapes	Least reactive; lowest infection rates; rapid; no needle-stick risk	Frequently fall off; highest dehiscence rate; cannot use in hair-bearing areas; cannot get wet
Hair apposition	Simple; low cost; no foreign body; no needle-stick risk	Scalp only; limited to non-gaping lacerations

1. Skin Staples

Staples are the fastest method and provide the highest tensile strength of all closure devices. They are made of stainless steel or titanium, cause minimal tissue reactivity, and have the lowest infection risk after tissue adhesives.

Indications: Linear lacerations through the dermis, scalp wounds, extremity/trunk lacerations under tension. Good for wounds under tension.

Technique:

Evert and approximate skin edges manually or with forceps (an assistant helps)
Align the center of the stapler over the center of the wound
Squeeze the handle - the anvil automatically bends the staple to the correct configuration
Leave a 2-3 mm gap between the crossbar and skin surface to prevent ischemia
Remove with a staple remover in 7-10 days (face), 10-14 days (trunk/extremities)

Key caution: Interference with CT and MRI imaging. Cosmetically slightly inferior to sutures.

2. Cyanoacrylate Tissue Adhesives (Glues)

Cyanoacrylates are liquid monomers that polymerize on contact with moisture, forming a strong epidermal bridge. They slough off spontaneously in 5-10 days as skin renews. They also form an occlusive antimicrobial barrier.

Common products:

Octyl-cyanoacrylate (Dermabond): stronger, more flexible, longer working time (2-3 min), no refrigeration needed, used for longer lacerations
Butyl-cyanoacrylate (Histoacryl): faster set (5-10 s), lower bursting strength, requires refrigeration
Fibrinogen-based (Tisseel) and hydrogel-based (Duraseal) - specialized uses

Indications: Low-tension wounds, facial lacerations, pediatric wounds (avoids needle anxiety), easily approximated wounds.

Contraindications: High-tension wounds (over joints), hands, infected wounds, mucous membranes, areas that get wet repeatedly.

Application technique:

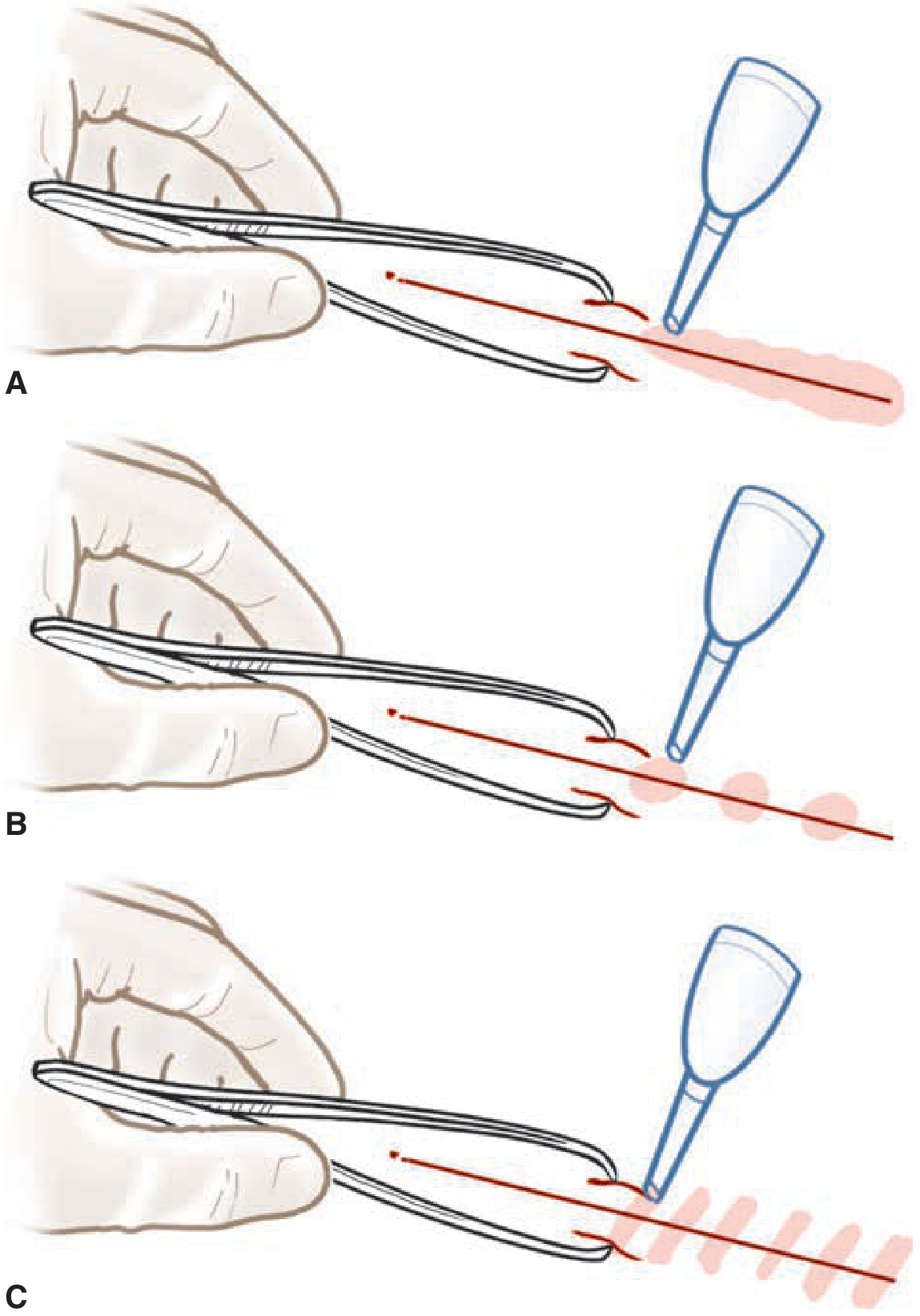

Octyl-cyanoacrylate (A): Brush continuously along wound surface, parallel to wound edges, covering 5-10 mm on each side. Apply 1 layer, allow 30-45 sec to dry. Repeat 3-4 layers.
Butyl-cyanoacrylate (B/C): Apply in discrete drops as "spot welds" or in bands across the wound.

Tissue adhesive application procedure near the eye

Strength note: Comparable to 4-0 poligecaprone subcuticular sutures but weaker than staples. About 4% higher dehiscence rate than sutures.

3. Adhesive Skin Tapes (Steri-Strips / Wound Closure Strips)

The most cost-effective method for low-tension lacerations. Lowest tissue reactivity and lowest infection rates of all methods. Often used as a reinforcing adjunct after suture or staple removal.

Indications: Perfectly apposed lacerations or wound edges under little tension; epidermal closure after subcutaneous suturing is complete; thin skin (e.g., pretibial lacerations).

Cannot be used: In hair-bearing areas, or when the skin cannot be dried (excessive moisture/bleeding).

Technique:

Dry the skin thoroughly (key - moisture is the most common cause of failure)
Optionally apply tincture of benzoin to adjacent skin to enhance adhesion (do not get benzoin in the wound)
Cut tape to length; peel the end-tab off gently
Secure half the tape to one side of the wound, appose edges, then secure to the opposite side
Place strips perpendicular to the wound, 2-3 mm apart, using bisection technique
Place additional parallel strips 2.5 cm from wound margins to prevent blistering

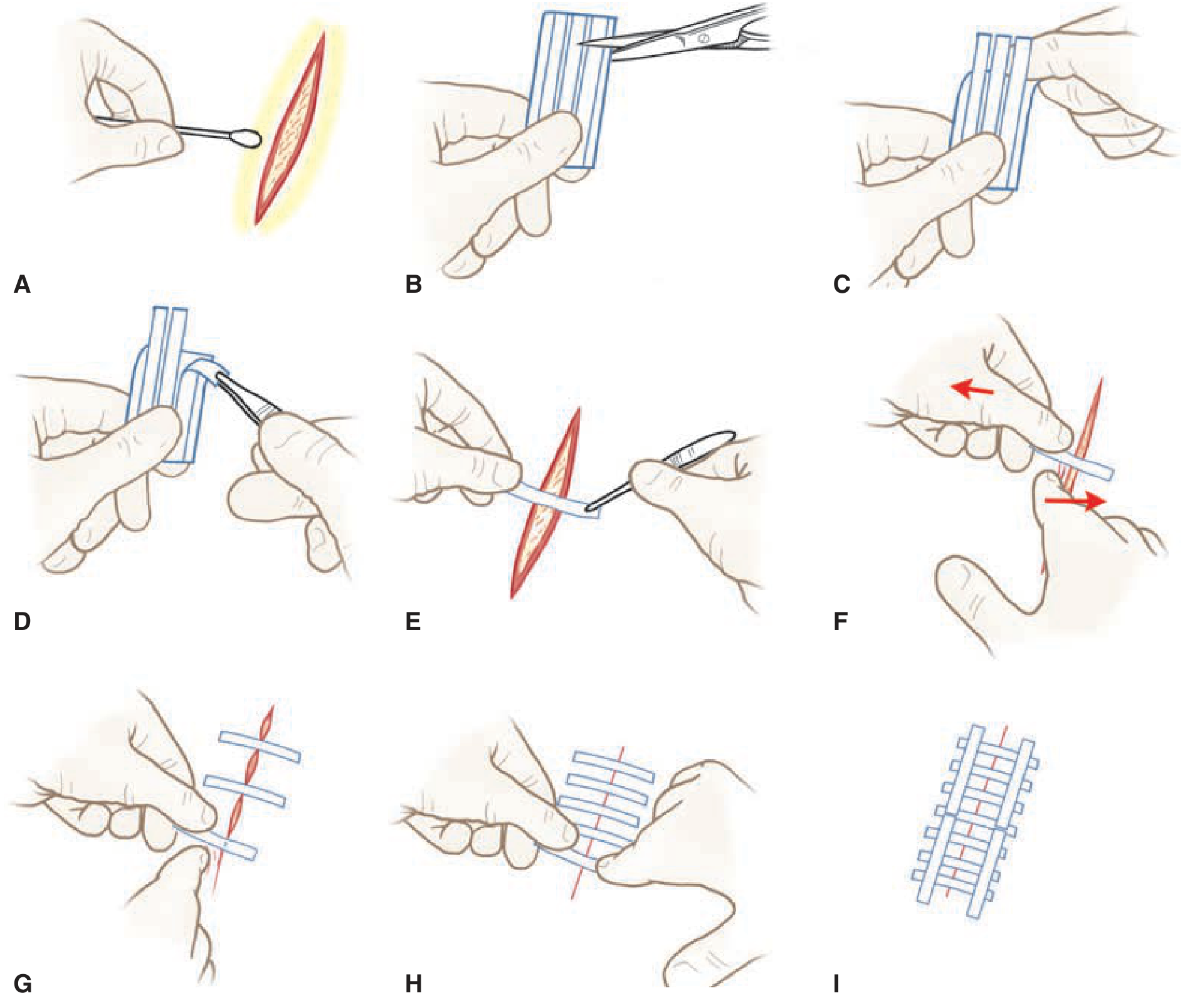

Laceration repair with adhesive tape strips (Steri-Strips technique A-I)

Clinical photo: tape used on a wound before and after application

4. Hair Apposition Technique (HAT) - Scalp Only

An elegant, needle-free method for scalp lacerations in hair-bearing areas, first described in a 2002 Singapore RCT. Uses the patient's own hair as a "suture."

Indications: Linear, superficial, non-contaminated scalp lacerations up to ~10 cm, with adjacent hair strands at least 3 cm long.

Contraindications: Lacerations >10 cm; grossly contaminated wounds; uncontrolled bleeding; wounds with significant gaping under tension; hair <3 cm in length adjacent to wound.

Technique:

Irrigate wound and achieve hemostasis
Twist 3-7 strands of hair on one side of the wound into a bundle
Twist 3-7 strands on the opposite side into another bundle
Cross-twist both bundles together through a full 360° revolution
Apply a few drops of cyanoacrylate tissue adhesive to secure the intertwined bundle
Repeat at intervals along the full laceration length

The adhesive flakes off and hair unravels in about 1 week - no return visit needed.

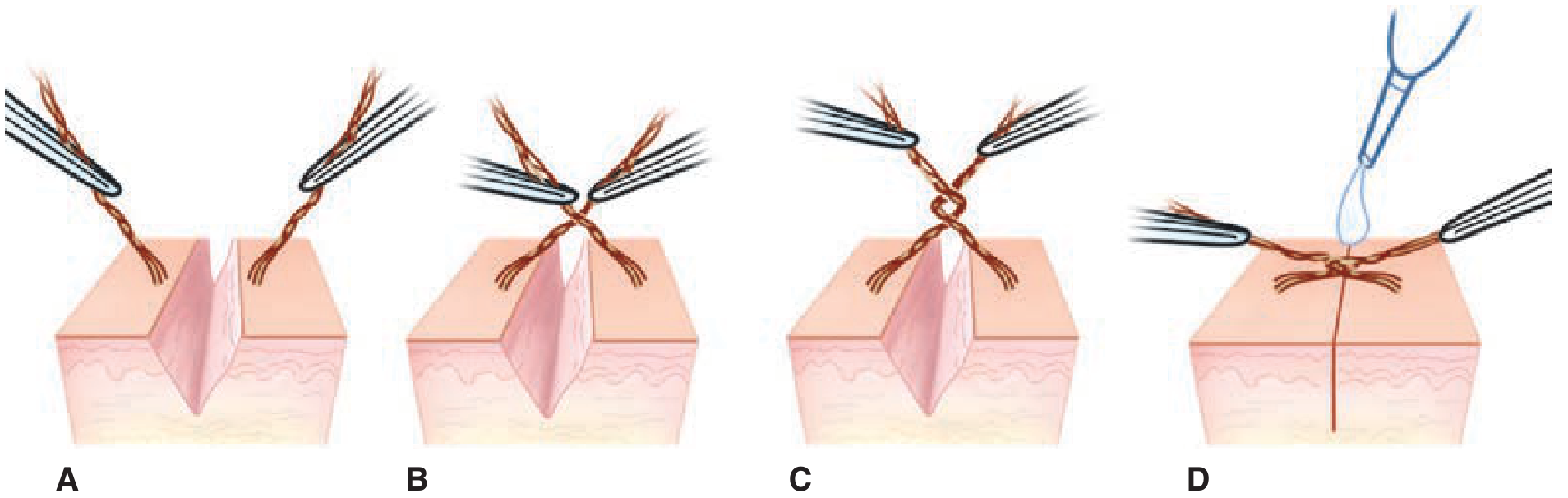

Hair apposition technique - illustration: A. select hair strands, B. twist bundles together, C. full cross-twist, D. secure with tissue adhesive drop

Hair apposition technique - clinical photo showing hair being twisted together

5. Wound Closure Clips (MicroMend)

A newer device that incorporates metal microclips embedded in an adhesive bandage. Works for wounds that are fairly well apposed and under only modest tension. Available over-the-counter for superficial lacerations. No anesthesia required.

6. Experimental / Emerging Methods

(Dermatology 5e, Table 146.9)

Laser welding (Nd:YAG, CO₂ lasers): Fuses wound edges using thermal energy - still experimental, infrequently used clinically
Photochemical welding (Rose Bengal + green light): Experimental technique crosslinking collagen using photoactivated dye

Decision Guide: How to Choose

Clinical situation	Preferred method
High-tension wound	Sutures (or deep sutures + epidermal tape/adhesive)
Low-tension, linear facial lac	Tissue adhesive or fine sutures
Scalp laceration with adequate hair	Hair apposition (HAT)
Scalp/trunk/extremity linear lac	Staples (fastest)
Very superficial, well-apposed wound	Adhesive tape
Patient prone to keloid	Minimize foreign material → tapes or adhesive
Child, needle-phobic patient	Tissue adhesive
Post-suture/staple removal support	Adhesive tape reinforcement

Sources: Tintinalli's Emergency Medicine (9th ed.), Dermatology 2-Volume Set (5th ed., Table 146.9), Roberts and Hedges' Clinical Procedures in Emergency Medicine
