Central Venous Pressure (CVP) - Complete Guide
What is CVP?
CVP is the back pressure to systemic venous return, measured in the great veins (superior vena cava / right atrium junction). It reflects the filling pressure of the right side of the heart and is used clinically to assess volume status and cardiac function.
- Measured in cmH2O (manometer) or mmHg (transducer)
- Normal range: 2-8 mmHg or approximately 5-10 cmH2O in healthy individuals
How CVP is Measured
A central venous cannula is inserted into a great vein. The right atrium is used as the zero reference point.

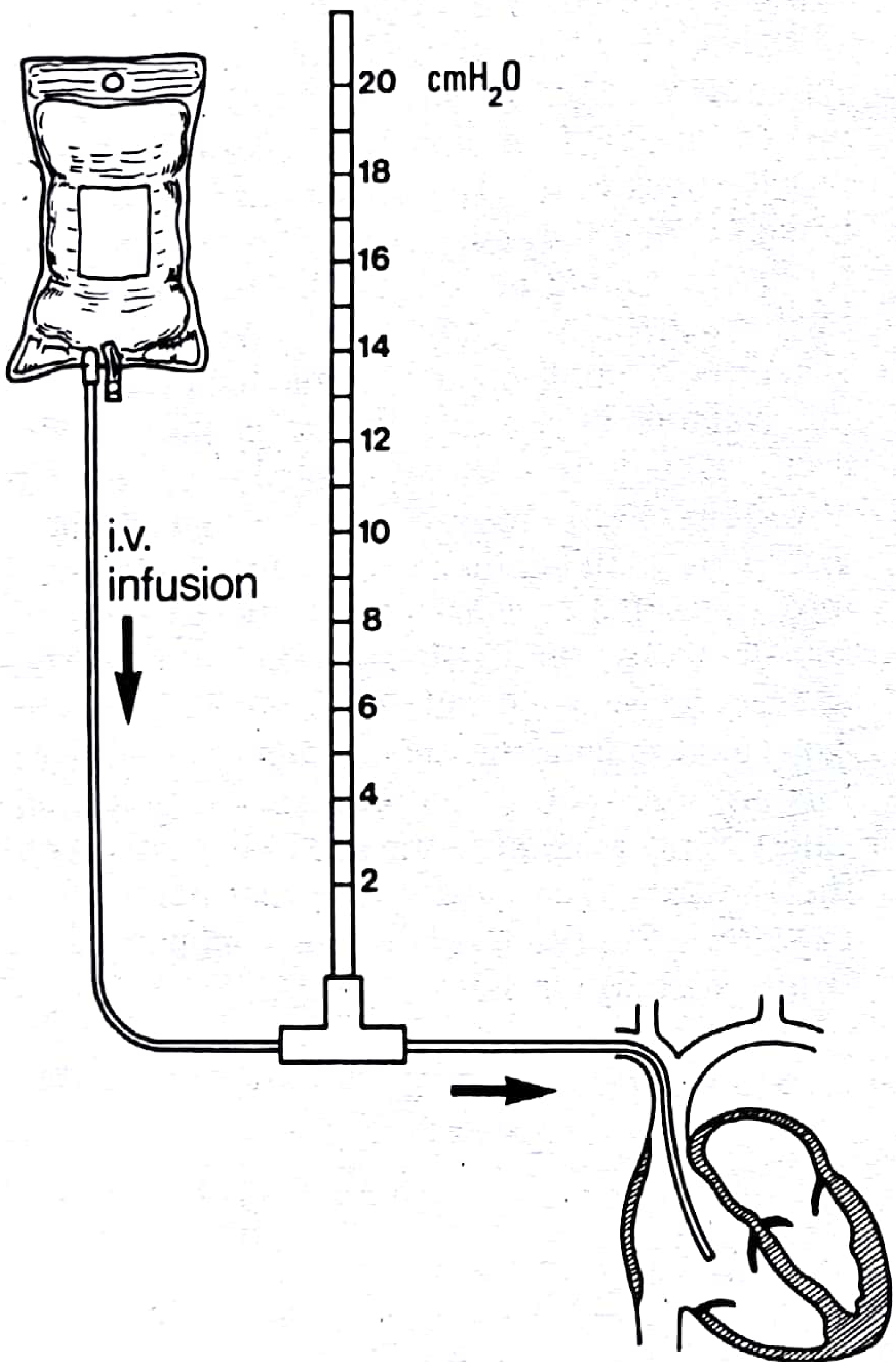

Figure: IV infusion bag + side-arm manometer connected to the central vein - Pye's Surgical Handicraft
Important technical points:
- Adjust the reference point whenever the patient's position changes
- Assisted/positive pressure ventilation increases CVP - account for this
- Only clear fluids (like NS) should be infused through the CVP line during measurement
- CVP is NOT an absolute measurement - it is only valuable as a dynamic response to fluid infusion
CVP with Normal Saline (NS) - The Fluid Challenge
This is the most clinically important concept. CVP alone is unreliable; what matters is how CVP responds to a fluid bolus.
The Standard NS Fluid Challenge Protocol:
| Step | Action |
|---|
| Volume | 250-500 mL of NS (0.9% Normal Saline) |
| Rate | Infused rapidly over 5-10 minutes |
| Measure | CVP before and after the bolus |
Interpreting the Response:
| CVP Response | Interpretation | Clinical Action |
|---|
| Rise of 2-5 cmH2O then returns to baseline over 10-20 min | Normal - adequate cardiac function, some volume still needed | Cautious further fluid |
| No change in CVP | Patient is volume depleted (empty) - hypovolaemic | Give more fluid aggressively |
| Large, sustained rise in CVP | High preload - cardiac insufficiency or volume overload | Stop fluids, consider inotropes/diuretics |
"CVP measurements should be assessed dynamically as the response to a fluid challenge." - Bailey & Love's Surgery, 28e
Why Normal Saline is Used
- NS (0.9% NaCl) is an isotonic crystalloid - the most appropriate solution for CVP-guided fluid resuscitation
- It maintains the same osmolality as plasma, preventing osmotic shifts
- It does NOT interfere with CVP readings (clear fluid)
- Caution: Large volumes of NS can cause hyperchloremic metabolic acidosis due to excess chloride - especially relevant in renal patients
- Some guidelines now prefer balanced crystalloids (Lactated Ringer's / Plasmalyte) over NS to avoid this acidosis
What CVP Tells You (and What It Doesn't)
CVP IS useful for:
- Detecting severe hypovolaemia (very low CVP)
- Detecting volume overload / right heart failure (very high CVP)
- Dynamic monitoring - tracking response to fluid therapy
- Preventing premature anaesthesia in an under-resuscitated patient (vasoconstriction may falsely normalise BP)
CVP IS NOT reliable for:
- Predicting fluid responsiveness as a single absolute value
- Assessing left heart function (use PCWP / echocardiography for that)
- Guiding resuscitation in septic shock - protocolized CVP targets (8-12 mmHg) have NOT been shown to improve mortality
"CVP is a poor reflection of end-diastolic volume (preload)... ventricular compliance can change from minute to minute in the shocked state." - Bailey & Love, 28e
Factors That Affect CVP (Contributors Table)
| Category | Factors |
|---|
| Central venous blood volume | Venous return, total blood volume, cardiac output |
| Compliance | Vascular tone, RV compliance, myocardial disease, pericardial disease |
| External | Positive pressure ventilation, patient position, intra-abdominal pressure |
CVP in Specific Surgical Scenarios
| Scenario | CVP Guidance |
|---|
| Post-op hypovolaemia | Low CVP + no response to NS challenge = aggressive fluid replacement |
| Septic shock | CVP alone not reliable; use alongside MAP, urine output, lactate |
| Cardiogenic shock | High CVP + low BP = do NOT give more fluid; inotropes needed |
| Burns / major surgery | Serial CVP + urine output (target 40-50 mL/hr) together guide NS infusion |
| Elderly patients | Risk of fluid overload - do not over-infuse NS trying to increase urine output >50-60 mL/hr |
Summary: The Golden Rule of CVP + NS
CVP is not a number - it's a trend. Give 250-500 mL NS rapidly, watch how CVP changes, and let the response guide your next step.
- No rise → give more fluid
- Normal transient rise → titrate carefully
- Large sustained rise → stop fluids, reassess cardiac function
Sources: Bailey & Love's Surgery 28e, Pye's Surgical Handicraft 22e, Tintinalli's Emergency Medicine, Harrison's Principles of Internal Medicine 22e, Goldman-Cecil Medicine
