Conducting System of the Heart - CVS Anatomy (MBBS)

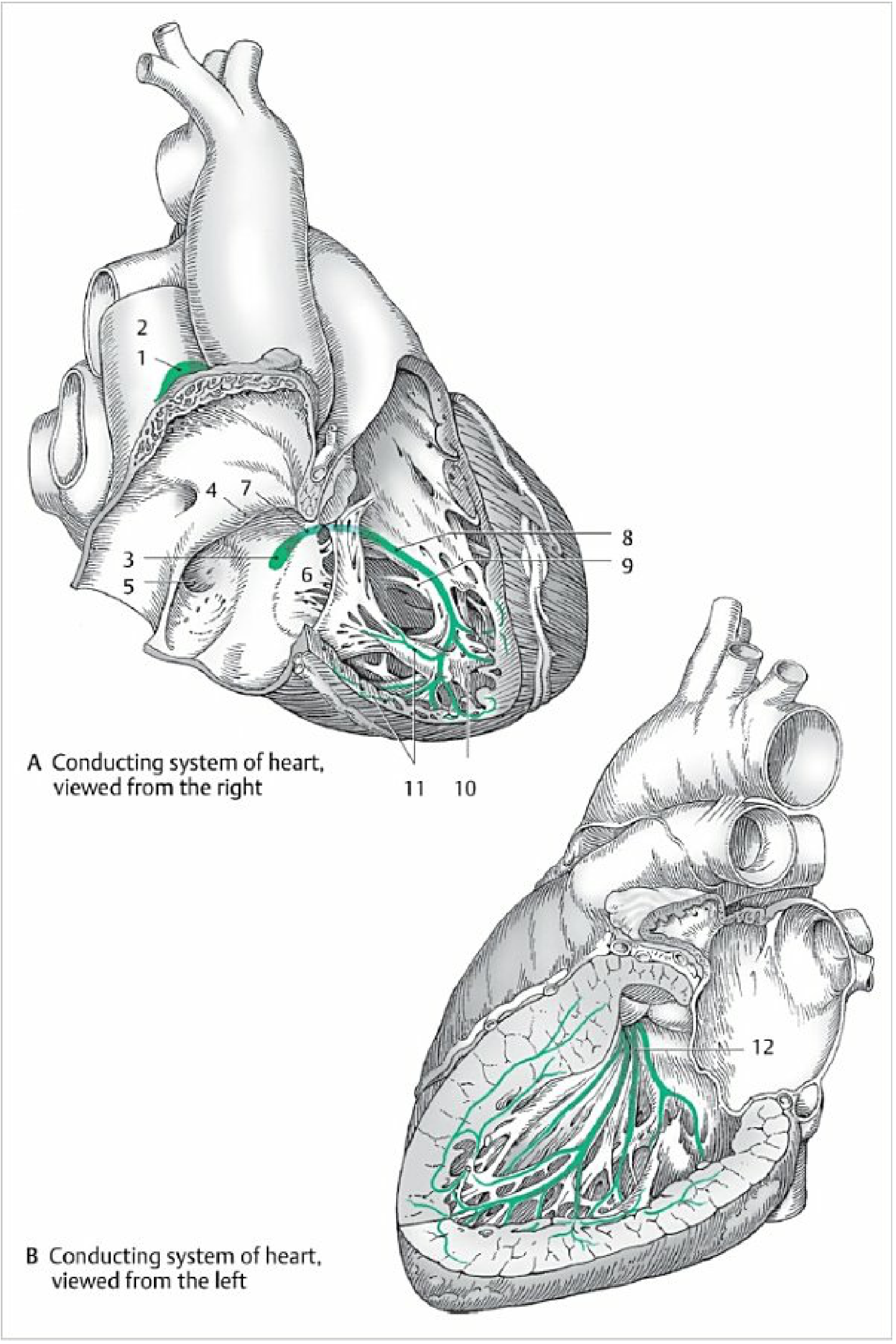

Fig. 2.11 - Conducting system of the heart viewed from right (A) and left (B) sides. Green = conduction pathway. Key: 1=SA node, 2=SVC, 3=AV node, 4=AV bundle (His), 5=coronary sinus, 6=right bundle branch, 7=trunk of AV bundle, 8=left bundle, 9=subendocardial plexus, 10=anterior papillary muscle, 11=septomarginal trabecula, 12=left bundle fan.
(Color Atlas of Human Anatomy Vol. 2)
Overview
The conducting system consists of specialized cardiac muscle cells that generate and propagate rhythmic electrical impulses to coordinate contraction. It is composed of four basic components:
- Sinoatrial (SA) node
- Atrioventricular (AV) node
- Atrioventricular bundle (Bundle of His) with right and left bundle branches
- Subendocardial network of Purkinje fibers
Throughout its course, the system is insulated from the surrounding myocardium by connective tissue, which prevents inappropriate stimulation and ensures a unidirectional wave of excitation.
1. Sinoatrial (SA) Node - "The Pacemaker"
| Feature | Detail |
|---|
| Also called | Keith-Flack node |
| Shape | Tadpole/spindle-shaped |
| Size | ~10-13.5 mm long in adult |
| Location | Subepicardial, on the posterior surface of the right atrium, near the opening of the superior vena cava (SVC), in the sulcus terminalis / crista terminalis |
| Rate | 60-80 impulses/minute |
| Blood supply | Nodal artery - arises from the right coronary artery (RCA) in 65% of individuals; from LCA in 35% |
| Ion channel type | Calcium (Ca²+) channel dependent (slow conduction, similar to AV node) |
The "head" of the node is close to the epicardium at the anterolateral junction of the right atrium and SVC; the "tail" lies deeper toward the endocardium, and can extend down >50% of the length of the crista terminalis toward the IVC.
Embryological note: This site corresponds to the junction between the embryonic sinus venosus and the atrium proper.
The SA node generates the highest spontaneous discharge frequency, so it acts as the dominant pacemaker - all downstream components remain silent under normal conditions.
2. Interatrial Conduction
There are no discrete anatomical "internodal tracts" - excitation spreads from the SA node via the working myocardium of the right atrium to the AV node. However, certain muscle bundles have architecture that facilitates faster transmission:
- Crista terminalis (terminal crest)
- Rim of the oval fossa
- Bachmann's bundle - a prominent interatrial muscle bridge crossing the roof of the atria, anterosuperior to the fossa ovalis; leads to early anterior left atrial activation, helping facilitate interatrial synchrony.
3. Atrioventricular (AV) Node
| Feature | Detail |
|---|
| Also called | Aschoff-Tawara node |
| Size | ~5 mm long and wide |
| Location | Triangle of Koch (apex) - at the atrioventricular septum/interatrial septum, near the opening of the coronary sinus, close to the attachment of the septal cusp of the tricuspid valve |
| Rate | 40-60 impulses/minute (subsidiary pacemaker) |
| Function | Delays impulse (allows atrial contraction to complete before ventricular filling ends); only normal AV connection |
| Blood supply | AV nodal artery - from the dominant coronary artery (RCA in right-dominant, LCA in left-dominant hearts) |
The compact AV node sits at the apex of the triangle of Koch (Koch's triangle), which is bounded by:
- The tendon of Todaro (posteriorly)
- The attachment of the septal leaflet of the tricuspid valve (anteroinferiorly)
- The ostium of the coronary sinus (base)
The AV node is the only muscular continuity between atria and ventricles in the normal heart (no accessory pathways). It has inferior extensions (right and left) that are targets for catheter ablation in AV nodal reentrant tachycardia (AVNRT).
4. Bundle of His (Atrioventricular Bundle)
| Feature | Detail |
|---|
| Origin | Direct continuation of AV node at apex of Koch's triangle |
| Course | Penetrates the central fibrous body (cardiac skeleton); passes to the lower border of the membranous interventricular septum; lies between the membranous septum and crest of muscular ventricular septum |
| Relation | Closely related to the aortic outflow tract - the membranous septum lies immediately inferior to the fibrous area between the right and non-coronary aortic sinuses |
| Significance | Surgical landmark - vulnerable during repair of VSD or aortic valve surgery |
The bundle then bifurcates into right and left bundle branches.
5. Right Bundle Branch (RBB)
- Cord-like (compact, discrete)
- Descends through the musculature of the ventricular septum to the right ventricle
- Emerges subendocardially at the base of the medial papillary muscle
- Runs in the septomarginal trabecula (moderator band) to reach the anterior papillary muscle
- One branch crosses to the parietal wall within the moderator band
- Terminates in a subendocardial plexus (Purkinje network)
6. Left Bundle Branch (LBB)
- Fan-shaped (broad, diffuse)
- Fans out into flat/interconnecting fascicles along the subendocardial surface of the left interventricular septum
- Classically divided into two major fascicles:
- Left anterior fascicle (LAF)
- Left posterior fascicle (LPF)
- Branches reach the bases of the papillary muscles, then spread to ventricular apex and base
7. Purkinje Fibers (Subendocardial Network)
| Feature | Detail |
|---|
| Location | Terminal ramifications of the conducting system, beneath the endocardium of the ventricles |
| Conduction velocity | 10x faster than atrial/ventricular myocytes; 50-60x faster than nodal cells |
| ECG correlation | Rapid, near-simultaneous activation of RV and LV → narrow QRS (<120 ms) |
| Histology | Larger than ventricular muscle cells; myofibrils at periphery; large round nuclei; rich in glycogen → stain pale with H&E, PAS-positive; fewer myofibrils |
| Resistance to hypoxia | More resistant than ordinary myocytes (due to stored glycogen) |
The unidirectional wave moves apex to base (papillary muscles and apex contract first, driving blood toward the arterial outflow tracts).
8. Impulse Hierarchy (Pacemaker Dominance)
| Structure | Intrinsic Rate |
|---|
| SA node | 60-80/min (dominant) |
| AV node | 40-60/min |
| Bundle of His / Purkinje | 25-45/min |
SA node fires fastest, so it drives the entire heart. If the SA node fails, the AV node takes over (junctional rhythm), and if both fail, the ventricles can beat at their own slow idioventricular rate.
9. Autonomic Regulation
| Division | Effect on Heart | Mechanism |
|---|
| Sympathetic (T1-T4) | ↑ HR, ↑ contractility, ↑ AV conduction velocity | Noradrenaline via β1 receptors |
| Parasympathetic (Vagus CN X) | ↓ HR, ↓ contractility, ↓ AV conduction | Acetylcholine; mainly acts on SA and AV nodes |
Both divisions converge at the cardiac plexus (superficial/anterior: below aortic arch; deep/posterior: behind aortic arch, anterior to tracheal bifurcation).
10. Clinical Correlates (High-Yield for MBBS)
| Condition | Anatomy Involved | Key Point |
|---|
| Sick Sinus Syndrome | SA node degeneration | Most common indication for permanent pacemaker worldwide; causes brady-tachy arrhythmia |
| Complete Heart Block (3rd degree AV block) | AV node/His bundle injury | PR interval no longer measurable; P and QRS dissociated; escape at 25-45/min |
| LBBB / RBBB | Bundle branches | Wide QRS (>120 ms); RBB block common in RV strain; LBB block in LV disease |
| AVNRT | Dual AV node pathways | Most common SVT; ablation targets slow pathway (right inferior extension of AV node) |
| Wolff-Parkinson-White | Accessory pathway (Kent bundle) | Bypasses AV node delay → delta wave + short PR; risk of re-entry tachycardia |
| MI affecting SA node | RCA occlusion (proximal) | Since nodal artery arises from RCA in 65% - inferior MI can cause sinus bradycardia |
Sources:
- Color Atlas of Human Anatomy Vol. 2 (Internal Organs), p. 61-62
- Gray's Anatomy for Students, Cardiac conduction system section
- Fuster and Hurst's The Heart, 15th ed., Ch. 34
- Histology: A Text and Atlas (Gartner), p. 1068
- Textbook of Family Medicine 9e, Bundle Branch Network and His-Purkinje Tissue
