Upper Limb Radiology: Modalities, Diseases, and When to Use Each
Source: Grainger & Allison's Diagnostic Radiology (9780323760751); Imaging Anatomy: Bones, Joints, Vessels and Nerves (9781626239845)
The Three Modalities - Quick Summary
| Modality | Best For | Limitations |
|---|---|---|
| X-ray (Plain Radiograph) | Bones, fractures, alignment, arthritis, calcification | No soft tissue detail; misses early or occult fractures |
| CT | Complex fracture geometry, bony detail, surgical planning, articular cartilage (with contrast) | Radiation; poor soft-tissue contrast without arthrography |
| MRI | Tendons, ligaments, cartilage, labrum, bone marrow oedema, nerve compression | Slow, expensive, limited in acute trauma triage |
REGION 1 - THE SHOULDER
Anatomy Context
The glenohumeral joint (GHJ) is the most mobile joint in the body - a "golf ball on a tee" configuration, making it inherently unstable. Stability comes from the rotator cuff (subscapularis, supraspinatus, infraspinatus, teres minor), the glenoid labrum, and glenohumeral ligaments. The subacromial space between the humeral head and acromion is where most impingement occurs.
Disease 1 - Rotator Cuff Impingement and Subacromial Enthesophyte
Modality of choice: X-ray first, then MRI

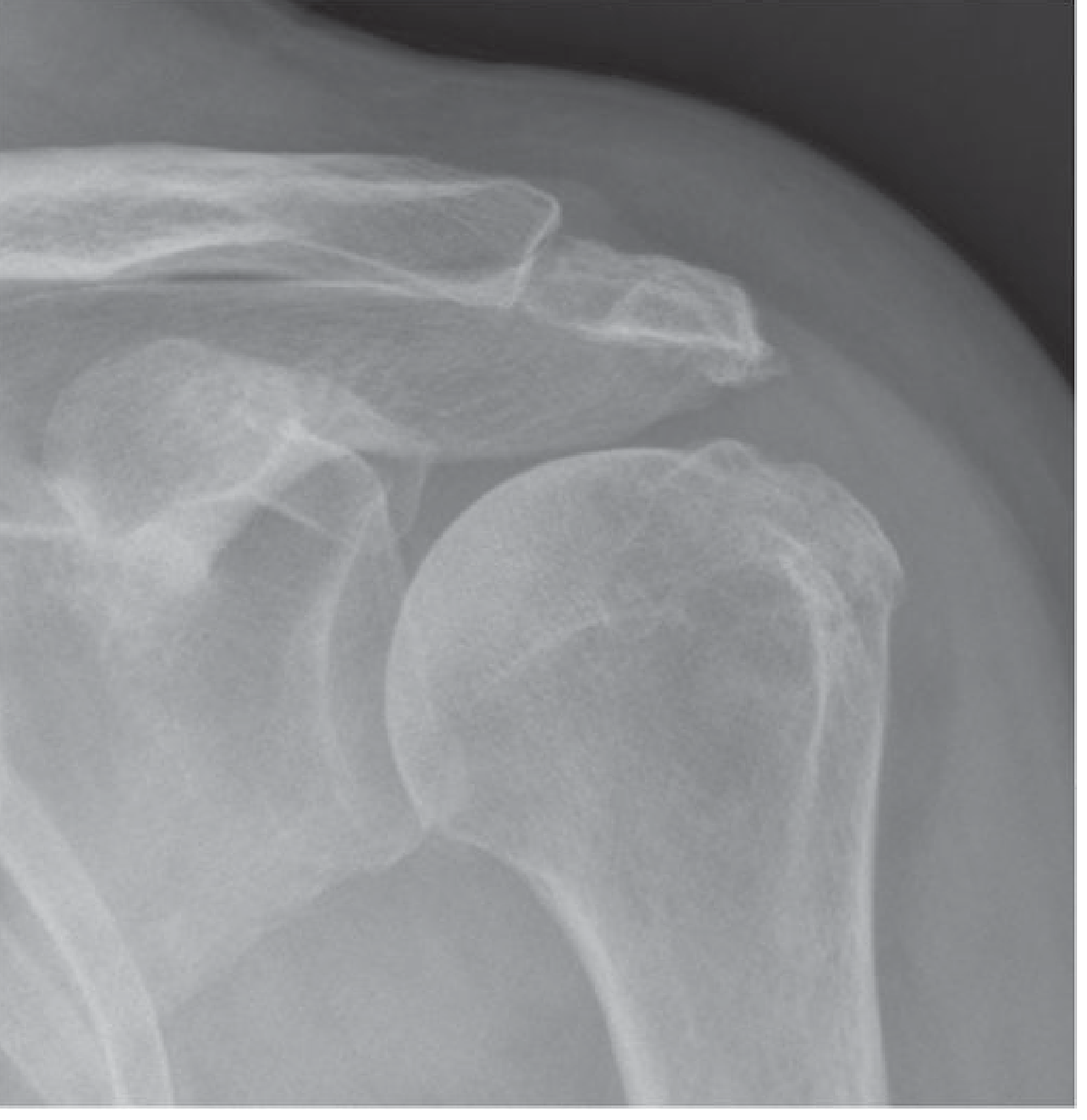

X-ray is the starting point. An AP shoulder radiograph shows bony enthesophyte (bone spur) formation on the lateral acromion or greater tuberosity, which narrows the subacromial space and drives the impingement process. Subacromial space narrowing below 7 mm on AP view is a specific (though insensitive) sign of significant rotator cuff disease.
Why X-ray here: Cheap, fast, shows bony architecture, acromial shape, AC joint osteophytes, and helps exclude GHJ arthritis. Cannot show the tendon itself.
Disease 2 - Rotator Cuff Arthropathy (Chronic Full-Thickness Tear)
Modality of choice: X-ray for diagnosis, MRI for surgical planning

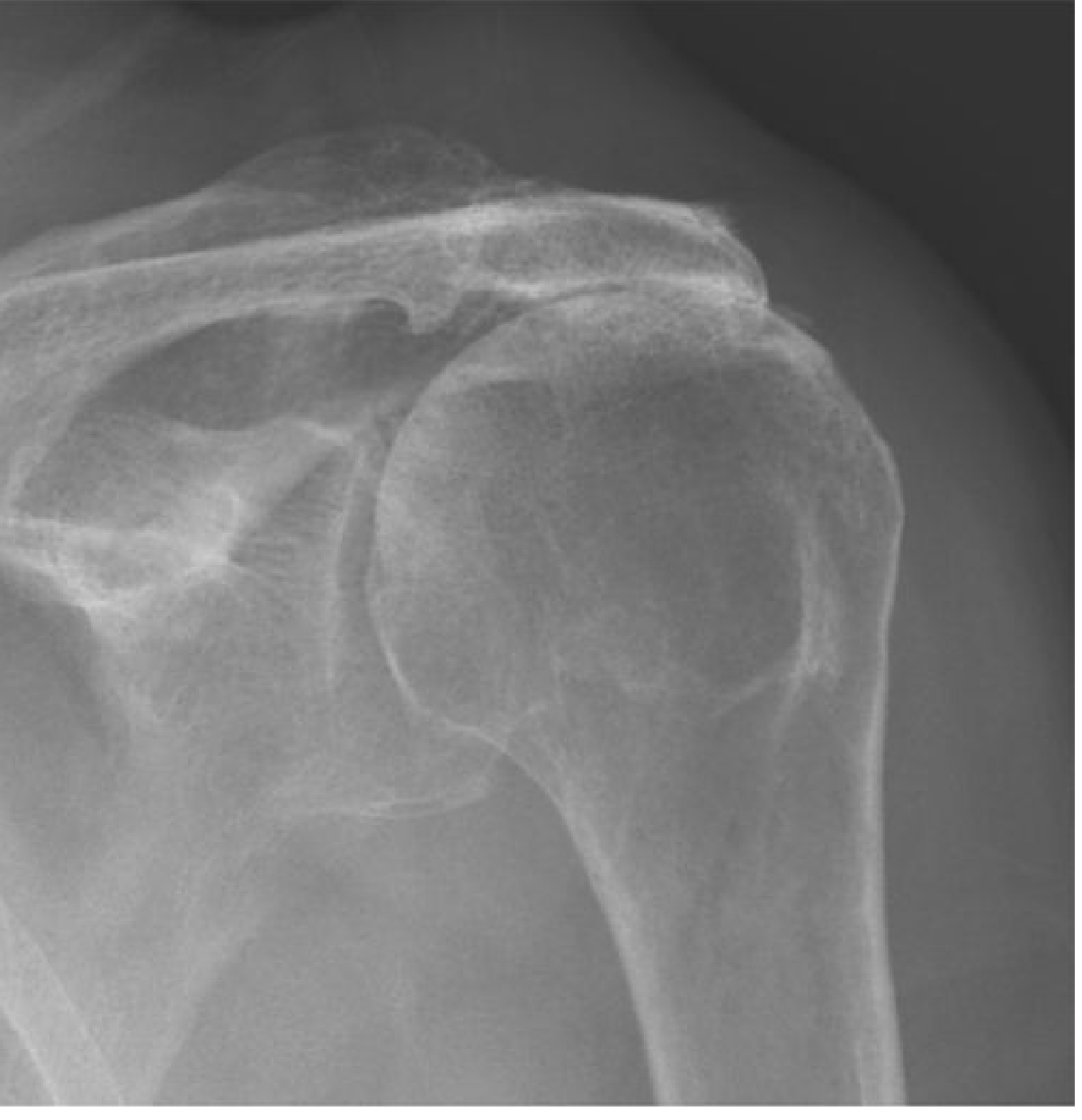

When a full-thickness rotator cuff tear becomes long-standing, the humeral head migrates superiorly to abut directly against the undersurface of the acromion. This is visible on a plain AP radiograph as marked subacromial space narrowing with femoralization of the humeral head.
Why X-ray here: Sufficient to make the diagnosis when the space is clearly obliterated. MRI is then used to characterize residual cuff muscle quality (fatty infiltration, atrophy), which determines whether a reverse shoulder arthroplasty is feasible.
Disease 3 - Full-Thickness Supraspinatus Tear
Modality of choice: MRI

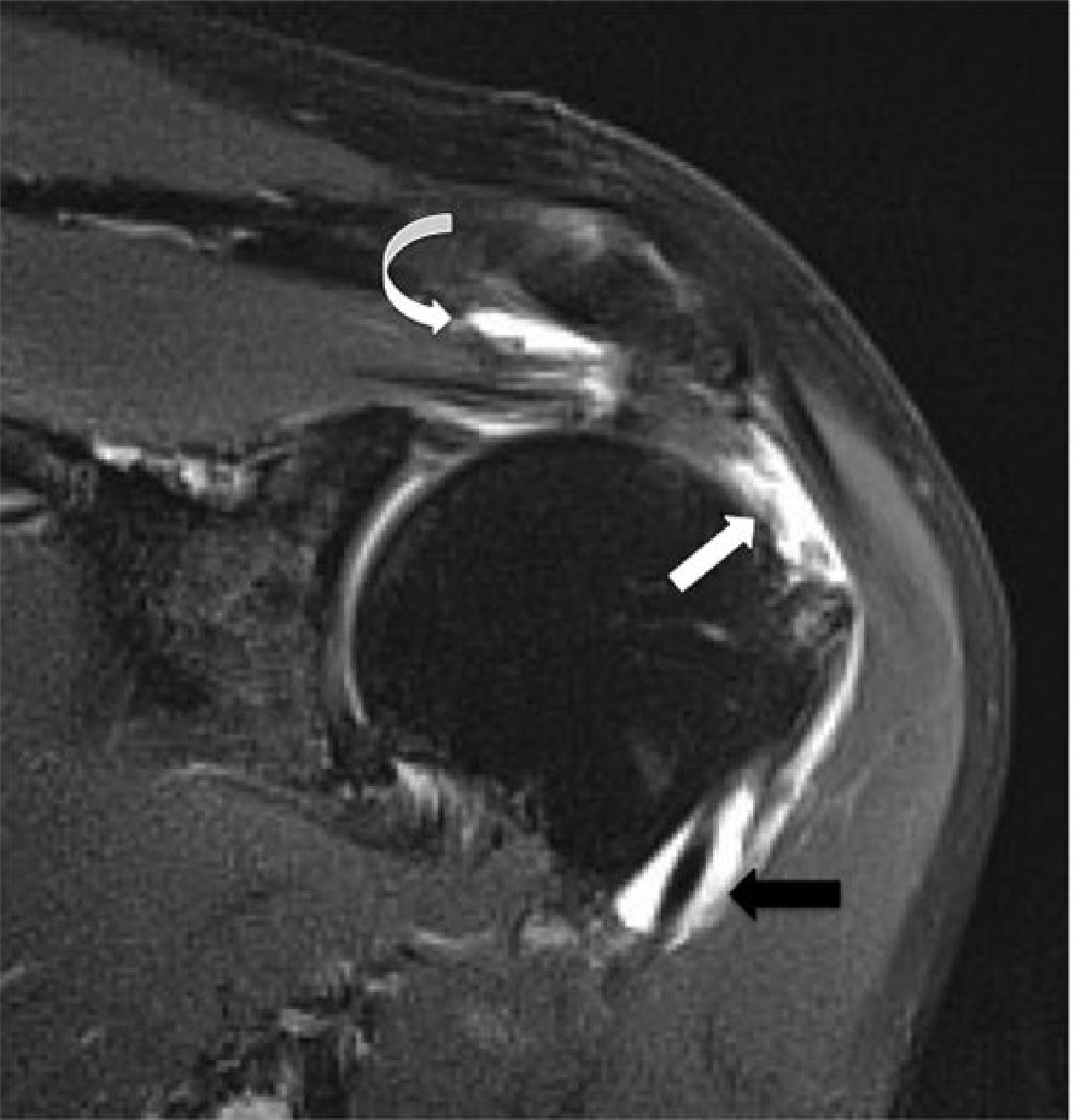

MRI directly visualizes the tendon substance. The primary sign is a focal defect through the full tendon thickness filled with fluid (high signal on T2/FS sequences). Secondary signs include fluid in both the GHJ AND the subacromial bursa simultaneously - pathognomonic of a full-thickness communication between the two compartments.
Why MRI here: Nearly 100% accuracy for full-thickness tears. Critical pre-operative information includes tear size and shape (crescentic, U-shaped, or L-shaped), tendon retraction distance, degree of supraspinatus muscle atrophy, and whether infraspinatus or subscapularis are also involved. CT adds nothing for soft tissue here.
Disease 4 - SLAP Tear (Superior Labrum Anterior to Posterior)
Modality of choice: MRI Arthrography

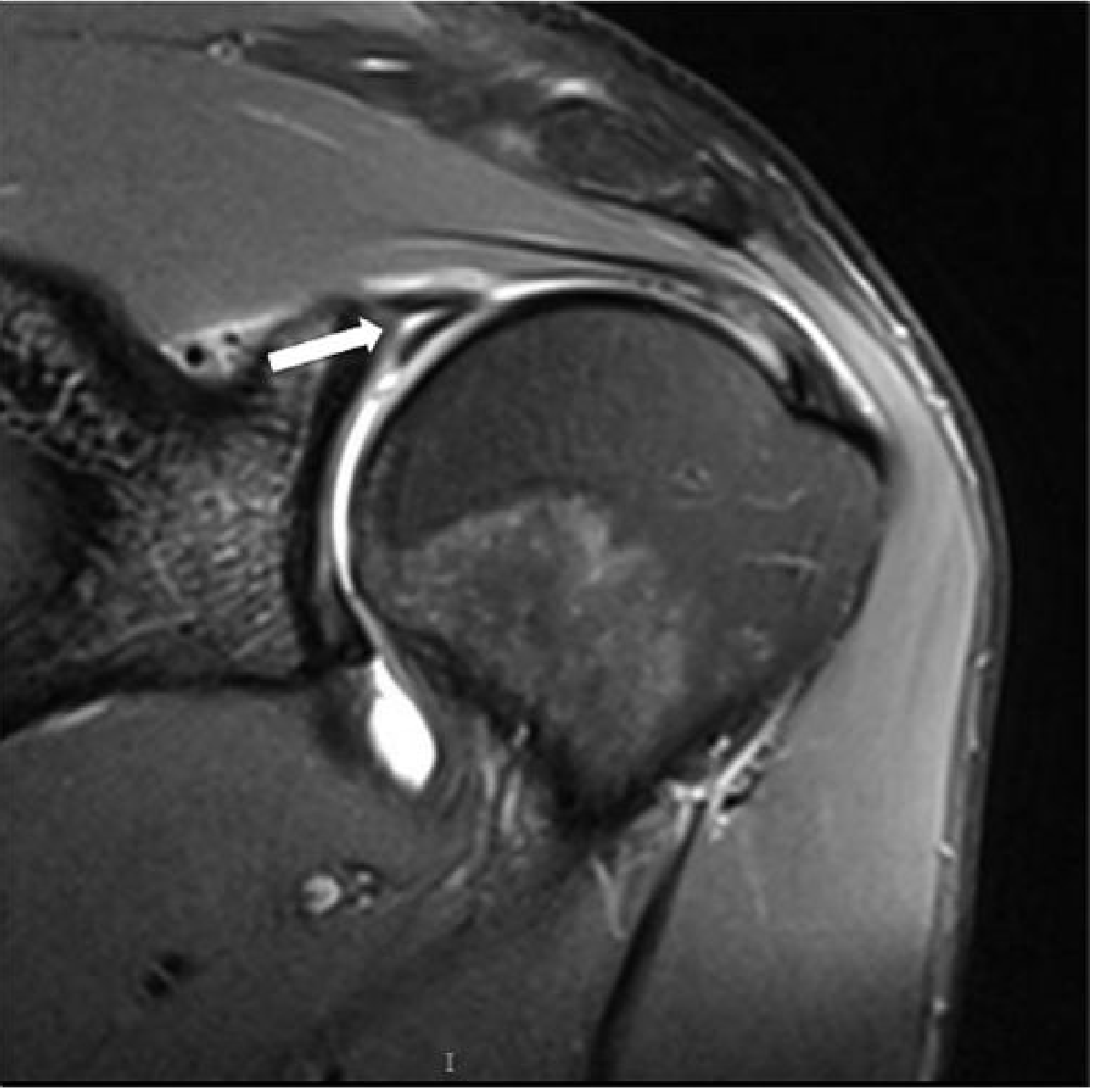

Standard MRI may miss subtle labral tears. MR arthrography (intra-articular gadolinium) distends the joint, driving contrast into any labral cleft. A SLAP tear appears as high-signal contrast medium extending into the substance of the superior labrum.
Why MR arthrography: Plain MRI is less sensitive for partial labral tears. Gadolinium arthrography is the gold standard for instability lesions. It shows Bankart lesions (anterior-inferior labral tears), Hill-Sachs deformities, and SLAP tears simultaneously.
Disease 5 - AC Joint Disruption
Modality of choice: X-ray first, MRI for soft tissue assessment

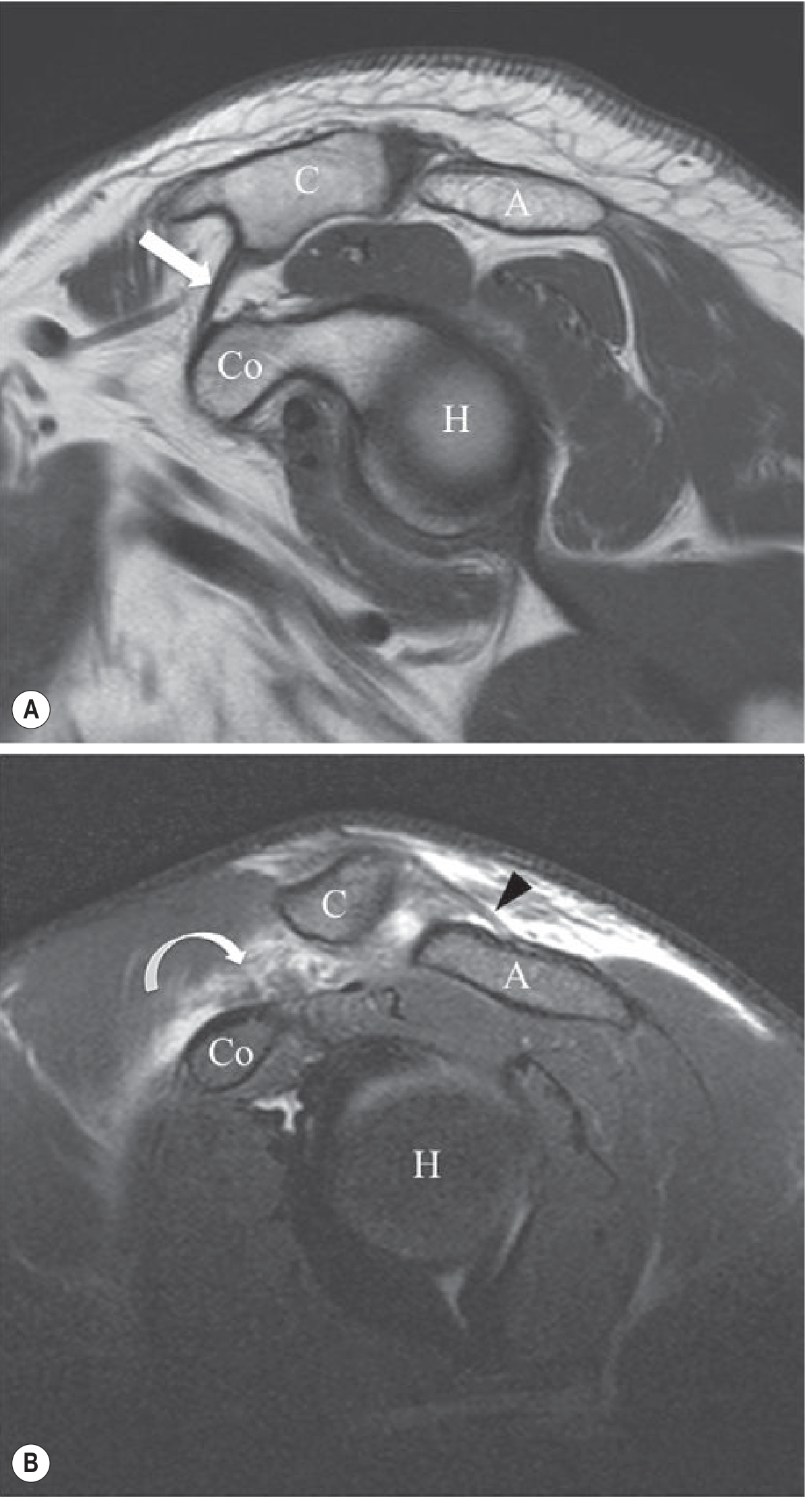

The acromioclavicular joint (ACJ) is assessed on AP views. Widening, superior displacement of the clavicle, and disruption of the coracoclavicular distance indicate grade of injury. MRI can show partial capsular stripping and haemorrhage when X-ray appears near-normal.
REGION 2 - THE ELBOW
The elbow is a complex hinge joint comprising the ulnotrochlear and radiocapitellar articulations (flexion/extension) and the proximal radioulnar joint (pronation/supination). The UCL (medial) and radial collateral complex stabilize the joint.
Disease 6 - Lateral Epicondylitis (Tennis Elbow) and Medial Epicondylitis (Golfer's Elbow)
Modality of choice: Ultrasound (first line); MRI for refractory cases
Insertional tendinopathy of the common extensor origin (lateral) or common flexor origin (medial) is the most common tendon pathology around the elbow. MRI shows tendon thickening, increased T2 signal (oedema), and partial tears at the epicondyle. For refractory cases, ultrasound-guided injection or needle therapy can be performed under real-time guidance - a therapeutic advantage that MRI cannot offer.
Why MRI over CT here: CT cannot visualize tendon substance. MRI shows the extent of tendinopathy, associated intrasubstance tearing, and whether bone marrow oedema of the epicondyle is present.
Disease 7 - Osteochondritis Dissecans (OCD) of the Capitellum
Modality of choice: MRI or CT Arthrography for fragment stability
The capitellum is the third most common site for OCD (after the medial femoral condyle and talus). The key clinical question is whether the fragment is stable (intact articular cartilage) or unstable (loose body risk). MRI shows low T1 signal in the subchondral bone. Crucially, high-signal fluid or contrast medium extending around the base of the lesion indicates instability.

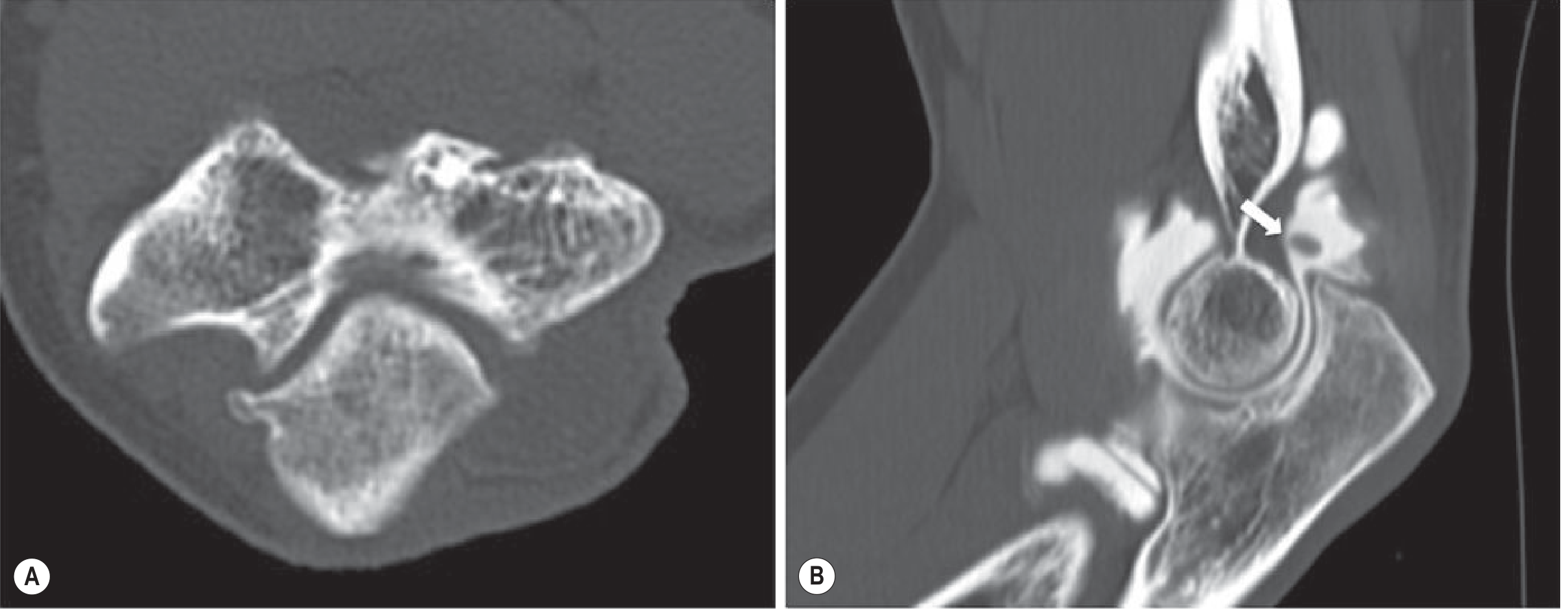

CT arthrography offers excellent spatial resolution for articular cartilage integrity and is a useful alternative when MRI is unavailable or in patients with metallic implants.
Why CT arthrography here: When evaluating OCD stability or post-traumatic chondral loose bodies, CT arthrography provides exquisite bony detail with simultaneous cartilage assessment. Axial CT slices also show olecranon osteophytes and intra-articular bodies that plain X-ray may miss because they are radiolucent.
Disease 8 - Radial Head Fracture / Elbow Fractures
Modality of choice: X-ray first; CT for complex or occult fractures
Plain radiographs (AP and lateral) are the first step. A posterior fat pad sign on the lateral view indicates joint effusion and should raise suspicion of an occult fracture (most often radial head in adults; supracondylar in children). When X-rays are equivocal but clinically fracture is suspected, CT provides multiplanar reconstruction to identify fracture lines, fragment displacement, and articular step-off critical for surgical planning.
Why CT over MRI for fractures: CT is faster, widely available in emergency settings, and gives precise bony anatomy. MRI adds bone marrow oedema (useful for occult fractures) but is slower and impractical acutely. CT is preferred when surgical planning is needed.
REGION 3 - WRIST AND HAND
The wrist mechanics depend on the intercalated segment (scaphoid-lunate-triquetrum). The triangular fibrocartilage complex (TFCC) stabilizes the distal radioulnar joint. The carpal tunnel contains the median nerve and all flexor tendons.
Disease 9 - TFCC (Triangular Fibrocartilage Complex) Tear
Modality of choice: MRI Arthrography

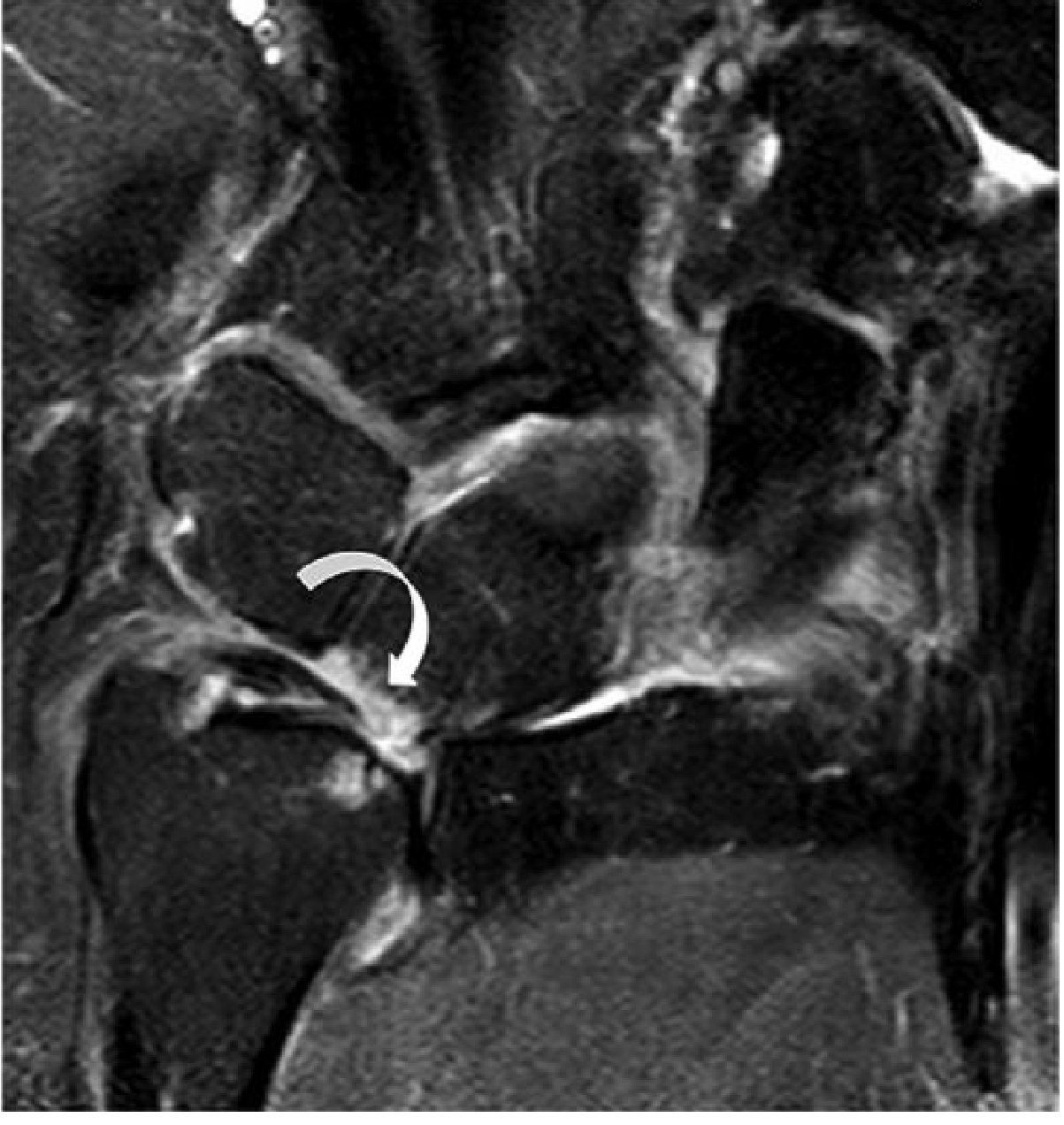

The TFC disc arises from the ulnar border of the distal radius and attaches to the fovea and ulnar styloid. Central perforations are degenerative and common with age. Peripheral tears at the ulnar styloid attachment are traumatic and surgically repairable. On coronal T2-weighted gradient-echo MRI or MR arthrography, contrast medium or fluid extending through the TFC defect is diagnostic.
Why MRI here: The TFC is a fibrocartilaginous structure invisible on X-ray. CT can show arthritic changes but cannot characterize the TFC. MR arthrography is the gold standard, distinguishing central (degenerative) from peripheral (traumatic) tears which have different surgical implications.
Disease 10 - Scaphoid Fracture
Modality of choice: X-ray first; MRI or CT for occult fractures
Scaphoid fractures are the most common carpal fracture (80% of all carpal fractures), typically from a fall on an outstretched hand. The scaphoid waist is the most common site. Up to 20% of scaphoid fractures are occult on initial X-ray.
- X-ray: PA, lateral, and scaphoid views. Positive in most displaced fractures.
- CT: Used when surgical planning is needed to assess fracture displacement, comminution, and alignment for percutaneous screw fixation.
- MRI: Gold standard for occult fractures - T1-weighted images show a dark fracture line; STIR/fat-suppressed T2 shows adjacent bone marrow oedema within 24 hours. MRI also shows avascular necrosis of the proximal pole (dark T1, dark T2 in the proximal fragment).
Why MRI for occult scaphoid: An untreated scaphoid fracture carries a 30% non-union rate and risk of avascular necrosis. MRI avoids unnecessary immobilization when truly negative and confirms the diagnosis when X-ray is misleading.
Disease 11 - De Quervain's Tenosynovitis
Modality of choice: Ultrasound (first line); MRI for confirmation
Stenosing tenosynovitis of the first extensor compartment (abductor pollicis longus and extensor pollicis brevis) produces radial-sided wrist pain. Ultrasound shows tendon thickening, fluid in the tendon sheath, and increased vascularity. MRI confirms the diagnosis when ultrasound is equivocal.
Why ultrasound over MRI here: Real-time dynamic assessment during thumb movement is possible with ultrasound. It also guides corticosteroid injection directly into the first compartment - a combined diagnostic and therapeutic approach.
Disease 12 - Rheumatoid Arthritis of the Hand and Wrist
Modality of choice: X-ray for monitoring; MRI for early disease
- X-ray: Classic findings include periarticular osteopenia, joint space narrowing, marginal erosions at the metacarpophalangeal (MCP) and proximal interphalangeal (PIP) joints, ulnar deviation of the fingers, and volar subluxation. AP views of both hands are standard for monitoring.
- MRI: Far more sensitive in early RA. Synovitis, tenosynovitis, and bone marrow oedema (osteitis) precede erosions by months to years. Early MRI findings predict subsequent erosive damage. Contrast-enhanced MRI shows synovial enhancement.
Why MRI for early RA: Bone erosions on X-ray reflect established disease. MRI detects subclinical synovitis and bone marrow oedema before irreversible joint damage, enabling earlier treatment escalation (DMARD therapy).
Disease 13 - Carpal Tunnel Syndrome
Modality of choice: Ultrasound (first line); MRI when structural cause is suspected
CTS is a neuropathy of the median nerve, usually idiopathic but can follow wrist fractures, rheumatoid tenosynovitis, or ganglion cysts within the tunnel. Diagnosis is primarily clinical + nerve conduction studies.
- Ultrasound: Shows median nerve cross-sectional area (>10-12 mm² is abnormal) and flattening at the pisiform level. Can detect ganglion cysts, accessory muscles, or other structural causes.
- MRI: Shows nerve signal change (T2 hyperintensity), swelling of the median nerve proximal to the flexor retinaculum, and identifies mass lesions (lipomas, ganglia, peripheral nerve sheath tumours) responsible for compression.
Summary: When to Use Each Modality
| Clinical Scenario | First Line | Second Line | Avoid / Less Useful |
|---|---|---|---|
| Acute trauma (fracture suspected) | X-ray | CT (complex fractures) | MRI (unless occult fx) |
| Occult scaphoid fracture | X-ray | MRI (gold standard) | CT misses marrow oedema |
| Rotator cuff tear | X-ray (exclude arthritis) | MRI | CT |
| Labral tears (SLAP, Bankart) | - | MRI arthrography | Plain MRI less sensitive |
| Tendinopathy (tennis/golfer's elbow) | Ultrasound | MRI | CT |
| OCD capitellum - stability | MRI | CT arthrography | Plain X-ray (late only) |
| TFCC tear | - | MRI arthrography | CT |
| Elbow OA / loose bodies | X-ray | CT arthrography | MRI (less spatial res.) |
| RA hand monitoring | X-ray (serial) | MRI (early disease) | CT |
| Carpal tunnel syndrome | Ultrasound | MRI (mass lesion) | CT |
| Complex periarticular fracture | X-ray | CT | MRI acutely |
| Bone tumour / AVN | X-ray | MRI | CT (supplementary) |
Key Principles
X-ray is always the entry point for musculoskeletal imaging. It is fast, inexpensive, gives a structural overview, and is mandatory before any further imaging. Never proceed to CT or MRI without prior radiographs.
CT excels at bone detail - fracture geometry, comminution, articular surface displacement, and pre-surgical planning. CT arthrography adds cartilage assessment and is a strong alternative to MR arthrography in patients with metallic implants (prostheses, pacemakers) or claustrophobia.
MRI is the workhorse for soft-tissue pathology. The rotator cuff, labrum, intrinsic ligaments of the wrist, tendons, nerves, and bone marrow are all best seen on MRI. Fat suppression sequences (STIR, FS-T2) highlight oedema and fluid. Arthrography (intra-articular gadolinium) improves sensitivity for partial tears of the labrum and ligaments.
Ultrasound (though not the focus here) should not be forgotten for tendons and guided procedures - it offers real-time dynamic assessment, is operator-dependent but highly sensitive for superficial structures.
Sources: Grainger & Allison's Diagnostic Radiology (Elsevier, 2021), Chapter 39 - Musculoskeletal System (Upper Limb); Imaging Anatomy: Bones, Joints, Vessels and Nerves, Vol. 3 (Thieme, 2015)
