Ketogenic Diet Therapy (KDT) in Epilepsy

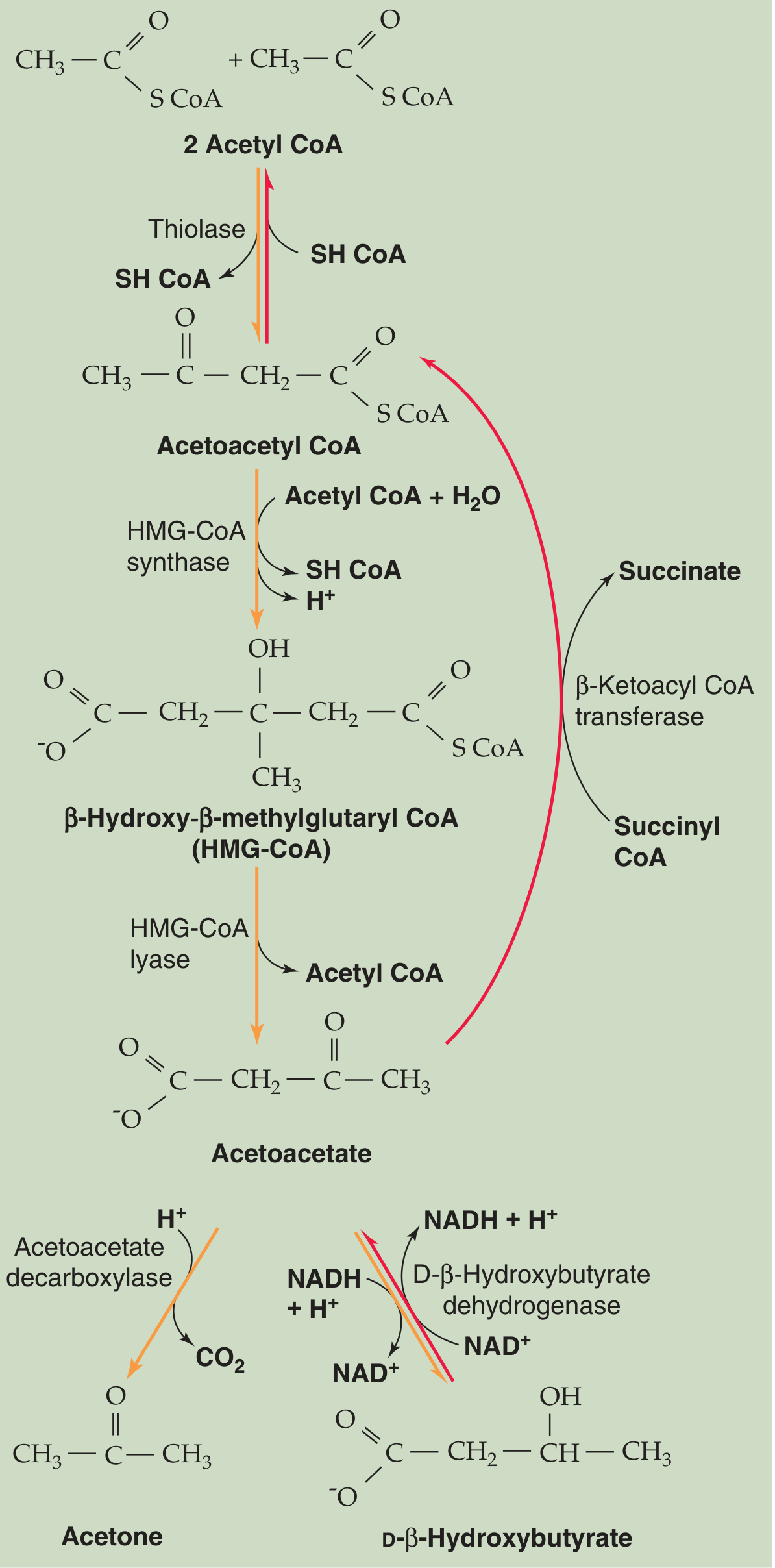

Textbook Diagram: Ketogenesis Pathway
- 2 Acetyl-CoA (from fat breakdown) → Acetoacetyl-CoA via thiolase
- → HMG-CoA via HMG-CoA synthase
- → Acetoacetate via HMG-CoA lyase
- Acetoacetate → Acetone (via acetoacetate decarboxylase) or D-β-Hydroxybutyrate (via D-β-hydroxybutyrate dehydrogenase)
How KDT Controls Seizures (from Bradley & Daroff's Neurology + Adams & Victor's)
| Mechanism | Effect |
|---|---|
| Ketosis | Ketone bodies serve as alternative brain fuel; acetone has direct anticonvulsant activity |
| ↑ GABA synthesis | β-hydroxybutyrate (BHB) inhibits HDAC1/2 → upregulates GAD1 → more GABA (inhibitory neurotransmitter) |
| ↓ Glutamate | BHB-induced SIRT4 inactivates glutamate dehydrogenase → preserves glutamate for GABA synthesis |
| ↑ GABA/Glutamate ratio | Net shift toward inhibition → reduced neuronal excitability |
| Reduced blood glucose | Less substrate for excitatory neuronal firing |
| Metabolic acidosis | Contributes to membrane stabilization |
| Caloric restriction | Reduces neuronal activity |
Key Clinical Points (Bradley & Daroff; Adams & Victor)
-
Diet composition: 80-90% calories from fat; carbohydrates only 5-10 g/day; fat:protein+carb ratio 2:1 to 4:1
-
Efficacy: ~38-50% of children get >50% seizure reduction; about 10-15% achieve seizure freedom
-
Best candidates: Drug-refractory epilepsy; GLUT1 deficiency (first-line); pyruvate dehydrogenase deficiency; Dravet syndrome; Lennox-Gastaut; infantile spasms; myoclonic-atonic epilepsy
-
Onset: Rapid - median 5 days to first improvement; 75% improve within 14 days
-
Contraindications: Mitochondrial disorders, pyruvate carboxylase deficiency, β-oxidation defects
-
Adverse effects: Nephrolithiasis (5-6%), hyperlipidemia, constipation, acidosis, poor growth
-
Medical Physiology (Boron & Boulpaep), Fig. 58-12
-
Bradley and Daroff's Neurology in Clinical Practice - Dietary Therapy section
-
Adams and Victor's Principles of Neurology, 12th Ed - Ketogenic Diet section
