Superior Mesenteric Vein (SMV) - Detailed Anatomy

Venous Drainage of the Abdominal GI Tract

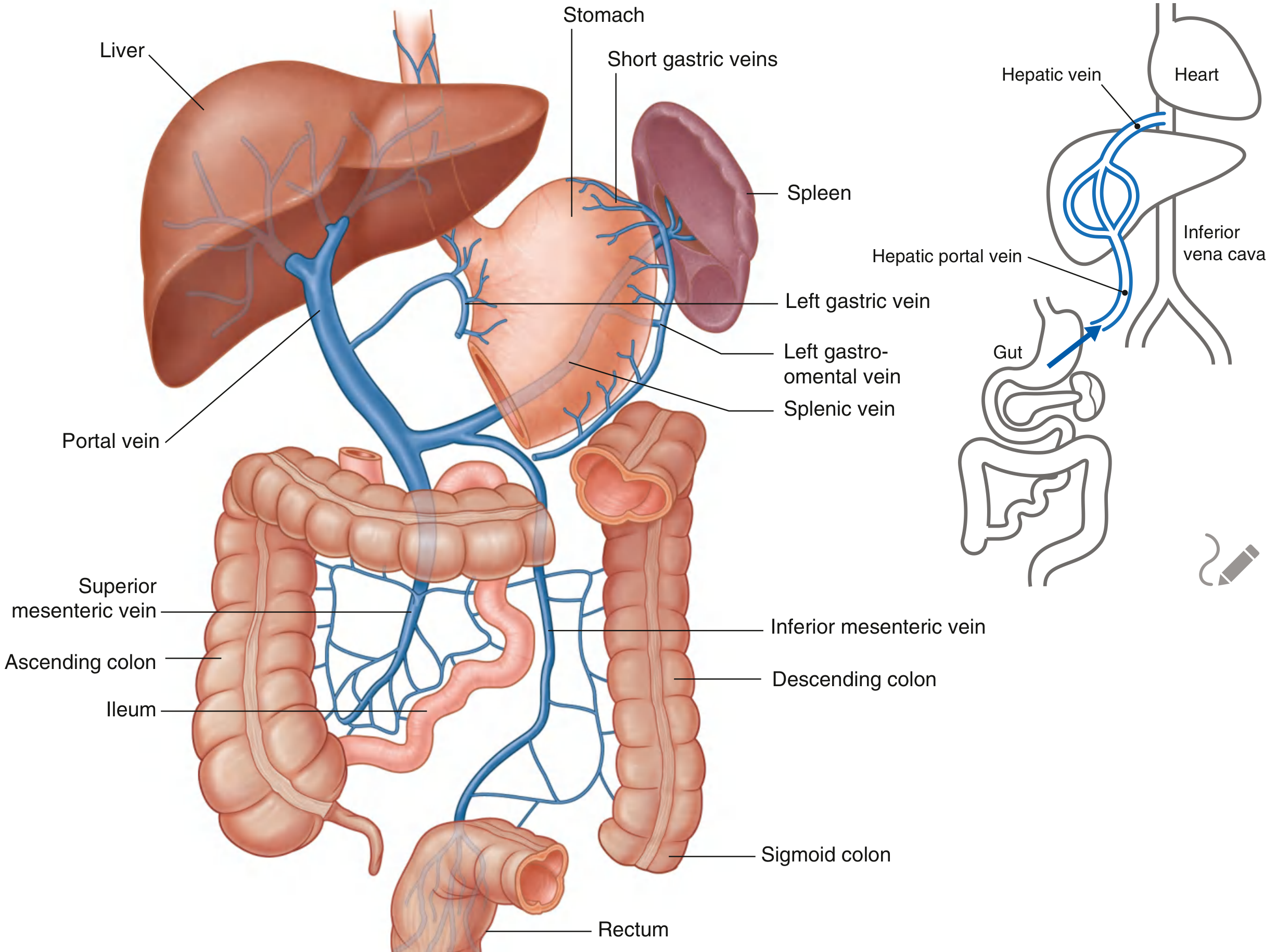

Fig. 4.133 - Venous Drainage of the Abdominal Portion of the Gastrointestinal Tract (Gray's Anatomy for Students)

Overview

The superior mesenteric vein (SMV) is the principal venous tributary of the hepatic portal system, draining the majority of the abdominal gastrointestinal tract. It is embryologically derived in association with the vitelline vein. Its blood ultimately enters the liver via the portal vein, carrying absorbed nutrients for hepatic processing.

Latin name: Vena mesenterica superior
System: Hepatic portal system
Drains to: Portal vein (which drains to the liver via hepatic sinusoids)
Companion artery: Superior mesenteric artery (SMA), which lies just to its left

Origin

The SMV begins in the right iliac fossa as small veins draining the terminal ileum, cecum, and vermiform appendix converge. It is formed by the union of the ileocolic vein and jejunointermediate vein at the inferior border of the third part of the duodenum - this confluence is termed the lower limit of the surgical trunk of the SMV. - Yamada's Textbook of Gastroenterology, p. 199

Course

The SMV follows this pathway:

Arises in the right iliac fossa from ileal, cecal, and appendiceal veins
Ascends within the root of the mesentery of the small intestine, lying to the right of the SMA
Passes anteriorly across the third part of the duodenum and the uncinate process of the pancreas
Travels posteriorly to the neck of the pancreas
Terminates at the transpyloric plane (approximately the lower border of L1 vertebra) by joining the splenic vein to form the portal vein - Gray's Anatomy for Students, p. 418

Approximately two-thirds of the SMV lies below the inferior border of the pancreatic neck; the remaining one-third is retropancreatic.

Tributaries

As a general rule, each branch of the SMA has a corresponding venous tributary draining into the SMV:

Tributary	Drains
Jejunal veins	Jejunum
Ileal veins	Ileum
Ileocolic vein	Terminal ileum, cecum, appendix
Right colic vein	Ascending colon
Middle colic vein	Transverse colon (up to splenic flexure)
Right gastro-omental (gastroepiploic) vein	Right side of greater curvature of stomach
Anterior inferior pancreaticoduodenal vein	Head of pancreas/duodenum (anterior arcade)
Posterior inferior pancreaticoduodenal vein	Head of pancreas/duodenum (posterior arcade)

Additional notes:

The anterior superior pancreaticoduodenal vein usually drains into the right gastro-omental vein
The posterior superior pancreaticoduodenal vein usually drains directly into the portal vein itself, not the SMV - Gray's Anatomy for Students, p. 418
The superior jejunal vein joins the left side of the SMV just above the surgical trunk
The middle colic vein typically joins just below the inferior border of the pancreatic neck - Yamada's Gastroenterology, p. 199

Gastrocolic Trunk (Trunk of Henle)

A notable variant: the gastrocolic trunk is one of the main tributaries of the SMV, composed of the right gastroepiploic vein and colonic drainage veins. This is an important landmark in right hemicolectomy.

Formation of the Portal Vein

Behind the neck of the pancreas, the SMV receives the splenic vein at a right angle. The resulting portal vein:

Is 8-10 cm long and 8-14 mm wide in adults
Passes upward and to the right into the free border of the lesser omentum
Lies posterior to the hepatic artery and common bile duct at the porta hepatis
Divides at the porta hepatis into a short broad right branch and a longer narrower left branch

The inferior mesenteric vein (IMV) most commonly joins the splenic vein behind the body of the pancreas, but in about one-third of people it joins the SMV directly, or less commonly forms a trifurcation at the SMV-portal junction. Occasionally the portal vein is formed by multiple smaller mesenteric branches with no single SMV - Mulholland & Greenfield's Surgery

Relations

The SMV has important anatomical relationships that are critical for surgery:

Structure	Relation
Superior mesenteric artery	Immediately to the left
Neck of pancreas	Passes posterior to it
Uncinate process	Wraps around the right and posterior sides of the SMV/portal vein
Third part of duodenum	Lies anterior as SMV crosses it
Head of pancreas	Small venous branches drain directly into the right lateral and posterior sides

The anterior aspects of the SMV and portal vein are typically free of tributaries, which allows development of a surgical plane between the neck of the pancreas and the portal vein during pancreaticoduodenectomy (Whipple procedure) - Schwartz's Principles of Surgery, p. 4162

Function

The SMV collects nutrient-rich, oxygen-depleted blood from virtually all midgut derivatives:

Small intestine (jejunum, ileum) - carries absorbed carbohydrates, amino acids, fatty acids
Cecum and appendix
Ascending colon and transverse colon (up to the splenic flexure)
Portions of the stomach (right greater curvature) and pancreatic head/duodenum

This blood is delivered to the liver for first-pass metabolism before reaching the systemic circulation.

Surgical Significance

Pancreaticoduodenectomy (Whipple procedure): The SMV is the primary landmark. Surgeons create a "tunnel" between the neck of the pancreas and the SMV/portal vein. Involvement of the SMV/portal vein by pancreatic cancer determines resectability
Borderline resectable pancreatic cancer: A fat plane between tumor and SMV indicates potential resectability; contact or occlusion indicates borderline or locally advanced disease - Yamada's Gastroenterology
Right hemicolectomy: The gastrocolic trunk and SMV must be carefully identified
Portal hypertension: Increased pressure backs up through SMV tributaries, leading to porto-systemic collaterals (varices at gastroesophageal junction, umbilicus, rectum)

Clinical Significance

1. Superior Mesenteric Vein Thrombosis (SMVT)

Accounts for 10-15% of all mesenteric ischemia cases
Isolated SMVT tends to have milder progression than portomesenteric thrombosis, due to extensive venous collateral circulation
Causes: Malignancy, hypercoagulable states (protein C deficiency, polycythemia vera), peritonitis, recent surgery, portal hypertension, sepsis. Post-splenectomy patients have the highest incidence
Presentation: Diffuse colicky abdominal pain, fever, nausea, hematemesis, melena, distension - average symptom duration 12 days
Diagnosis: CT angiography (filling defect in SMV)

2. Pylephlebitis

Portal/mesenteric venous thrombosis with bacteremia within 30 days of an intra-abdominal infection
Common causes: diverticulitis, appendicitis, IBD, pancreatitis, gastroenteritis
Presents with fever, abdominal pain, hepatic dysfunction, bacteremia
Was universally fatal before antibiotics; current mortality 10-32%
Management: antibiotics (mainstay) ± anticoagulation - StatPearls / NBK545162

3. Portal Hypertension and Left-Sided Portal Hypertension

Splenic vein occlusion (from pancreatitis or pancreatic cancer) causes left-sided portal hypertension with gastric varices via short gastric veins
SMV itself can develop collaterals and cavernous transformation in chronic thrombosis

4. Imaging Landmark

The SMV is a critical landmark on cross-sectional imaging (CT/MRI/ultrasound):
- Divides the pancreatic head (right of SMV) from the neck and body (left of SMV)
- Used to assess vascular invasion in pancreatic and GI malignancies

Embryology

The SMV is embryologically derived from the right vitelline (omphalomesenteric) vein, which drains the yolk sac and later the developing gut. The vitelline veins remodel around the duodenum to form the portal venous system. Anomalies of this remodeling can result in portal vein agenesis, pre-duodenal portal vein (a cause of duodenal obstruction in neonates), or absence of the SMV with multiple mesenteric tributaries forming the portal vein directly.

Key sources:

Gray's Anatomy for Students (9780323934237), p. 418 - Section: "Superior mesenteric vein"
Yamada's Textbook of Gastroenterology, 7e (9781119600169), p. 199 - Section: "Venous drainage"
Schwartz's Principles of Surgery, 11e (9781259835346) - Pancreatic anatomy
Mulholland & Greenfield's Surgery, 7e (9781975143169) - Pancreatic/portal anatomy
StatPearls: SMV Anatomy (NBK545162)
